Page 1

1/4 NPT

1-5/8

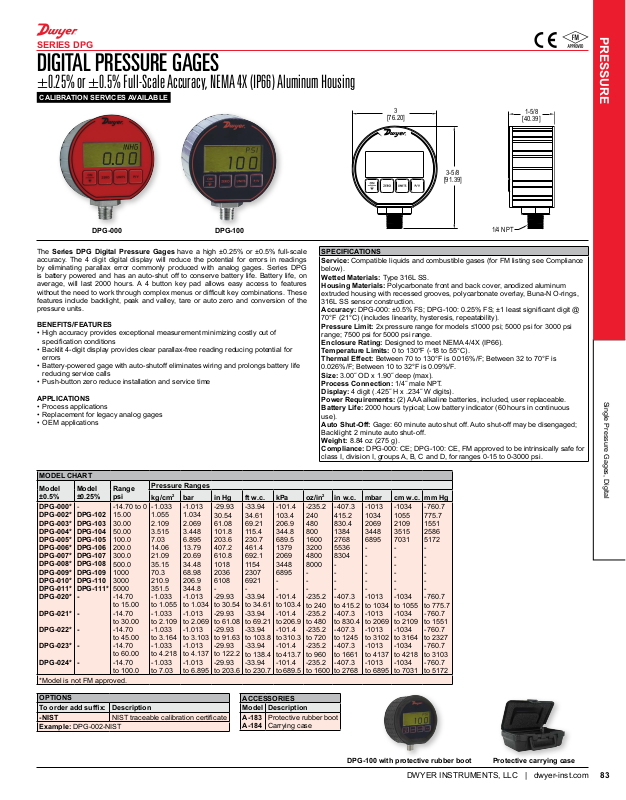

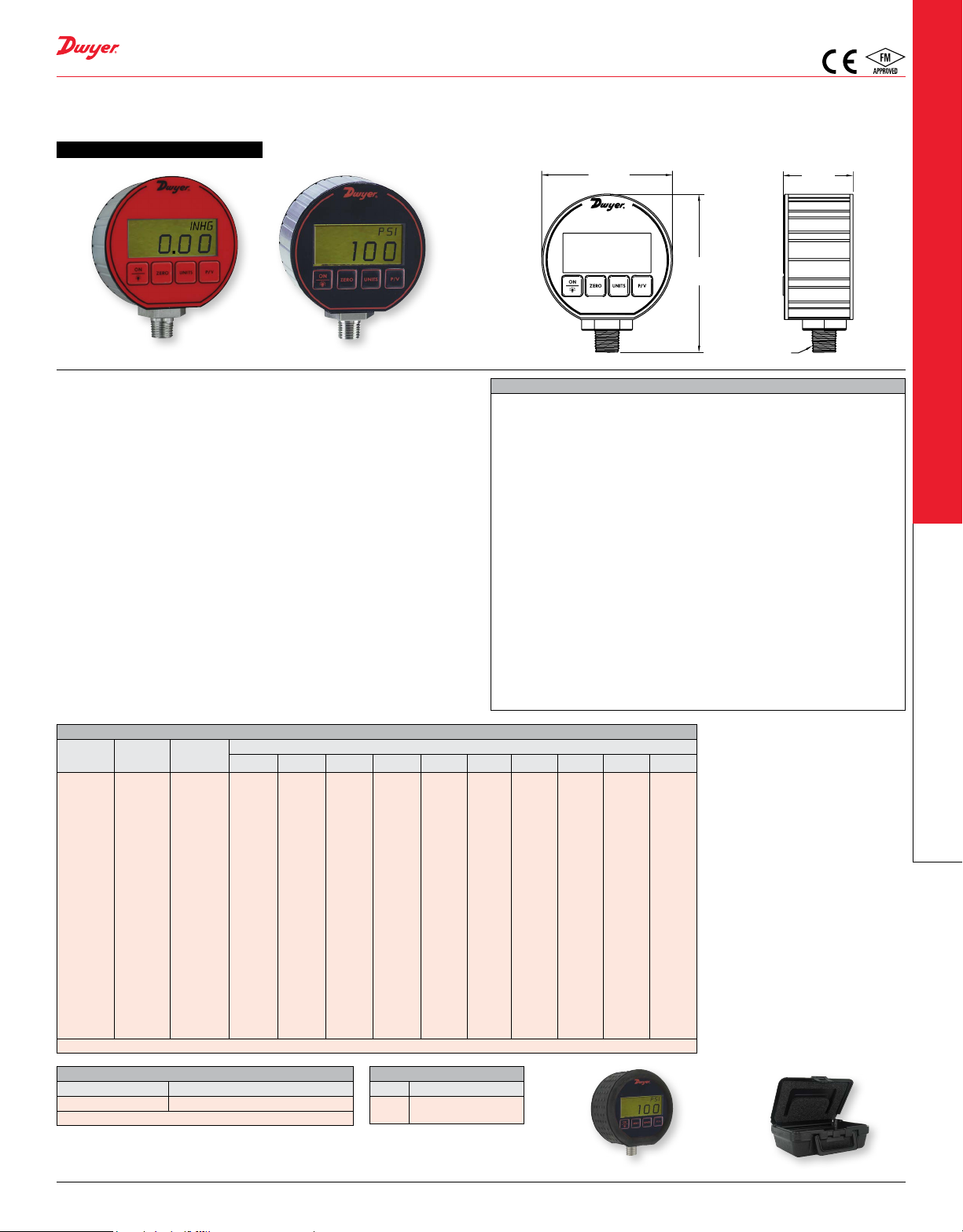

SERIES DPG

DIGITAL PRESSURE GAGES

±0.25% or ±0.5% Full-Scale Accuracy, NEMA 4X (IP66) Aluminum Housing

CALIBRATION SERVICES AVAILABLE

PRESSURE

DPG-000

The Series DPG Digital Pressure Gages have a high ±0.25% or ±0.5% full-scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. Series DPG is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A 4 button key pad allows easy access to features

without the need to work through complex menus or difcult key combinations. These

features include backlight, peak and valley, tare or auto zero and conversion of the pressure units.

BENEFITS/FEATURES

• High accuracy provides exceptional measurement minimizing costly out of

specication conditions

• Backlit 4-digit display provides clear parallax-free reading reducing potential for errors

• Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls

• Push-button zero reduce installation and service time

APPLICATIONS

• Process applications

• Replacement for legacy analog gages

• OEM applications

DPG-100

[76.20]

3-5/8

[91.39]

SPECIFICATIONS Service: Compatible liquids and combustible gases (for FM listing see Compliance

below).

Wetted Materials: Type 316L SS. Housing Materials: Polycarbonate front and back cover, anodized aluminum

extruded housing with recessed grooves, polycarbonate overlay, Buna-N O-rings, 316L SS sensor construction.

Accuracy: DPG-000: ±0.5% FS; DPG-100: 0.25% FS; ±1 least signicant digit @

70°F (21°C) (includes linearity, hysteresis, repeatability).

Pressure Limit: 2x pressure range for models ≤1000 psi; 5000 psi for 3000 psi

range; 7500 psi for 5000 psi range.

Enclosure Rating: Designed to meet NEMA 4/4X (IP66). Temperature Limits: 0 to 130°F (-18 to 55°C). Thermal Effect: Between 70 to 130°F is 0.016%/F; Between 32 to 70°F is

0.026%/F; Between 10 to 32°F is 0.09%/F.

Size: 3.00˝ OD x 1.90˝ deep (max). Process Connection: 1/4˝ male NPT. Display: 4 digit (.425˝ H x .234˝ W digits). Power Requirements: (2) AAA alkaline batteries, included, user replaceable. Battery Life: 2000 hours typical; Low battery indicator (60 hours in continuous

use). Auto Shut-Off: Gage: 60 minute auto shut off. Auto shut-off may be disengaged; Backlight: 2 minute auto shut-off.

Weight: 8.84 oz (275 g). Compliance: DPG-000: CE; DPG-100: CE, FM approved to be intrinsically safe for

class I, division I, groups A, B, C and D, for ranges 0-15 to 0-3000 psi.

[40.39]

Single Pressure Gages, Digital

MODEL CHART

Model ±0.5%

DPG-000* DPG-002* DPG-003* DPG-004* DPG-005* DPG-006* DPG-007* DPG-008* DPG-009* DPG-010* DPG-011* DPG-020*

DPG-021*

DPG-022*

DPG-023*

DPG-024*

*Model is not FM approved.

OPTIONS To order add sufx: Description

-NIST NIST traceable calibration certicate

Example: DPG-002-NIST

Model ±0.25%

DPG-102 DPG-103 DPG-104 DPG-105 DPG-106 DPG-107 DPG-108 DPG-109 DPG-110 DPG-111*

Range psi

-14.70 to 0

15.00

30.00

50.00

100.0

200.0

300.0

500.0 1000 3000 5000

-14.70 to 15.00

-14.70 to 30.00

-14.70 to 45.00

-14.70 to 60.00

-14.70 to 100.0

Pressure Ranges

kg/cm

-1.033

1.055

2.109

3.515

7.03

14.06

21.09

35.15

70.3

210.9

351.5

-1.033 to 1.055

-1.033 to 2.109

-1.033 to 3.164

-1.033 to 4.218

-1.033 to 7.03

bar in Hg ft w.c. kPa oz/in2in w.c. mbar cm w.c. mm Hg

-1.013

1.034

2.069

3.448

6.895

13.79

20.69

34.48

68.98

206.9

344.8

-1.013 to 1.034

-1.013 to 2.069

-1.013 to 3.103

-1.013 to 4.137

-1.013 to 6.895

-29.93

30.54

61.08

101.8

203.6

407.2

610.8 1018 2036 6108

-29.93 to 30.54

-29.93 to 61.08

-29.93 to 91.63

-29.93 to 122.2

-29.93 to 203.6

-33.94

34.61

69.21

115.4

230.7

461.4

692.1 1154 2307 6921

-33.94 to 34.61

-33.94 to 69.21

-33.94 to 103.8

-33.94 to 138.4

-33.94 to 230.7

ACCESSORIES Model Description A-183

A-184

-101.4

103.4

206.9

344.8

689.5 1379 2069 3448 6895

-101.4 to 103.4

-101.4 to 206.9

-101.4 to 310.3

-101.4 to 413.7

-101.4 to 689.5

Protective rubber boot Carrying case

-235.2 240 480 800 1600 3200 4800 8000

-235.2 to 240

-235.2 to 480

-235.2 to 720

-235.2 to 960

-235.2 to 1600

-407.3

415.2

830.4 1384 2768 5536 8304

-407.3 to 415.2

-407.3 to 830.4

-407.3 to 1245

-407.3 to 1661

-407.3 to 2768

-1013 1034 2069 3448 6895

-1013 to 1034

-1013 to 2069

-1013 to 3102

-1013 to 4137

-1013 to 6895

-1034

-760.7

1055

775.7

2109

1551

3515

2586

7031

5172

-1034

-760.7

to 1055

to 775.7

-1034

-760.7

to 2109

to 1551

-1034

-760.7

to 3164

to 2327

-1034

-760.7

to 4218

to 3103

-1034

-760.7

to 7031

to 5172

Protective carrying caseDPG-100 with protective rubber boot

DWYER INSTRUMENTS, LLC | dwyer-inst.com
