Omega DPA1002 User guide

User’s Guide

Shop online at

omega.com

®

DPA1002

DIN-Rail Mounting Kit

DPA1002 DIN-Rail Mounting Kit Instruction Manual

®

OMEGAnet®Online Service Internet e-mail

omega.com [email protected]

U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford, CT 06907-0047 USA

Canada: 976 Bergar

For immediate technical or application assistance:

U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA

Mexico/ En Español: 001 [phone] FAX: [phone]

Latin America: [email protected] e-mail: [email protected]

Benelux: Managed by the United Kingdom Office

Czech Republic: Frystatska 184

France: Managed by the United Kingdom Office

Germany/Austria: Daimlerstrasse 26

United Kingdom: OMEGA Engineering Ltd.

ISO 9001 Certified

Servicing North America:

Toll Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

Laval (Quebec), H7L 5A1 Canada
Toll-Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

®

Customer Service: 1-800-622-2378/1-800-622-BEST
Engineering Service: 1-800-872-9436/1-800-USA-WHEN

®

®

Servicing Europe:

Toll-Free: 0800 099 3344 TEL: [phone]
FAX: [phone] e-mail: [email protected]

733 01 Karviná, Czech Republic
Toll-Free: 0800-1-66342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

Toll-Free: 0800 466 342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

D-75392 Deckenpfronn, Germany
Toll-Free: 0800 6397678 TEL: [phone]
FAX: [phone] e-mail: [email protected]

One Omega Drive, River Bend Technology Centre, Northbank
Irlam, Manchester M44 5BD United Kingdom
Toll-Free: 0800-488-488 TEL: [phone]
FAX: [phone] e-mail: [email protected]

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.

2

DPA1002 DIN-Rail Mounting Kit Instruction Manual

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13
months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one
(1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum
coverage on each product. If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon
examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WAR­RANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling,

improper interfacing, operation outside of design limits, improper repair, or unauthorized modication. This WARRANTY

is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a

result of excessive corrosion; or current, heat, moisture or vibration; improper specication; misapplication; misuse or

other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result
from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA

warrants only that the parts manufactured by the company will be as specied and free of defects. OMEGA MAKES
NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED,
EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The rem-

edies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether

based on contract, warranty, negligence, indemnication, strict liability or otherwise, shall not exceed the purchase

price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental
or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component”

under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on
humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on

humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER

language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage
whatsoever arising out of the use of the Product(s) in such a manner.

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING
ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM
OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PRO-CESSING DELAYS). The assigned

AR number should then be marked on the outside of the return package and on any correspondence. The purchaser is
responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have the

following information available BEFORE contacting
OMEGA:

1. Purchase Order number under which the product
was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specic problems relative
to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.

© Copyright 2012 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without
the prior written consent of OMEGA ENGINEERING, INC.

WARRANTY/DISCLAIMER

RETURN REQUEST/INQUIRIES

FOR NON-WARRANTY REPAIRS, consult OMEGA for
current repair charges. Have the following information

available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the
repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specic problems relative
to the product.

3

DPA1002 DIN-Rail Mounting Kit Instruction Manual

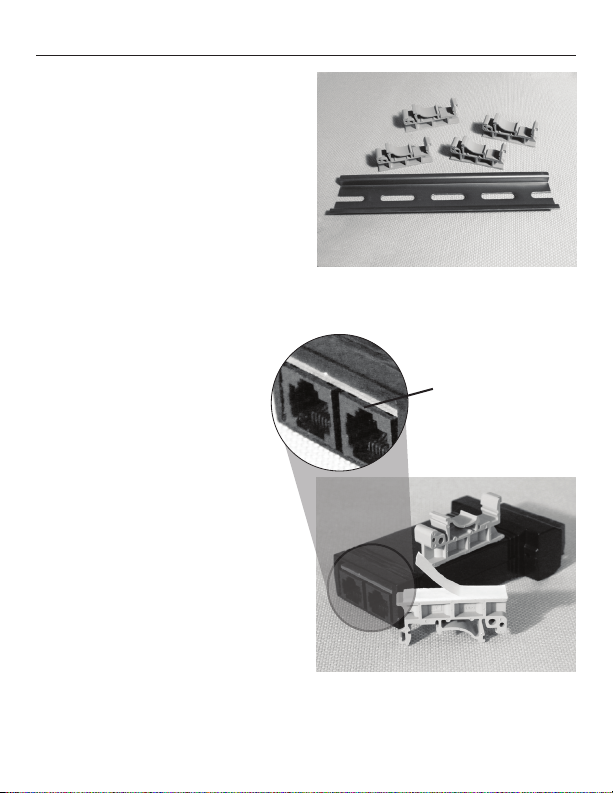

The mounting kit includes
(1) 6" length of DIN-rail,
(4) mounting clips, and this
instruction sheet. It contains
enough parts to mount 2
modules. Please read the
instructions thoroughly before
proceeding.

INSTRUCTIONS

Step 1

Mounting the DIN-rail clips
to the module.

Place the expansion module
on a at surface with the bot­tom surface facing up. The
bottom surface can be identi-

ed as the surface closest

to the locking tab slot on the
modular connector (see pic­ture at right).

Locking Tab Slot

Expansion Module Example

4

DPA1002 DIN-Rail Mounting Kit Instruction Manual

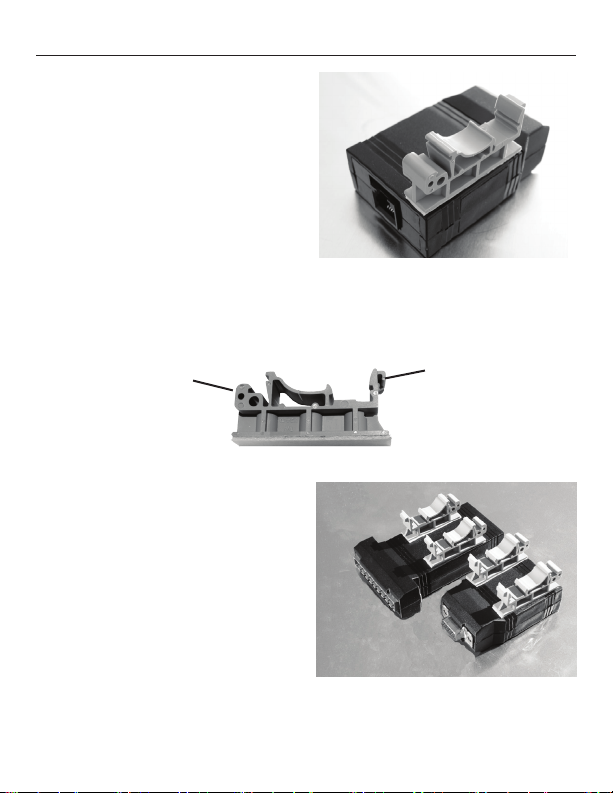

Peel the protective layer off
of the adhesive tape on the
bottom of one of the mount­ing clips. With the hinge end
of the clip (see below) facing
the end of the module with the
communications connector,
align the clip along the long
(side) edge of the module and

Communications Module Example

centered lengthwise within the

at surface of the module.

Hinge End

Firmly press down on clip for
10 seconds. Repeat this pro­cedure on opposite side. Once
clips are properly installed, the
modules with clips mounted
should look similar to one or
both of the modules pictured
to the right. While the adhe­sive is initially quite strong, this

strength improves signicantly

over a period of approximately
12 hours.

Latch End

Completed Assemblies

5

DPA1002 DIN-Rail Mounting Kit Instruction Manual

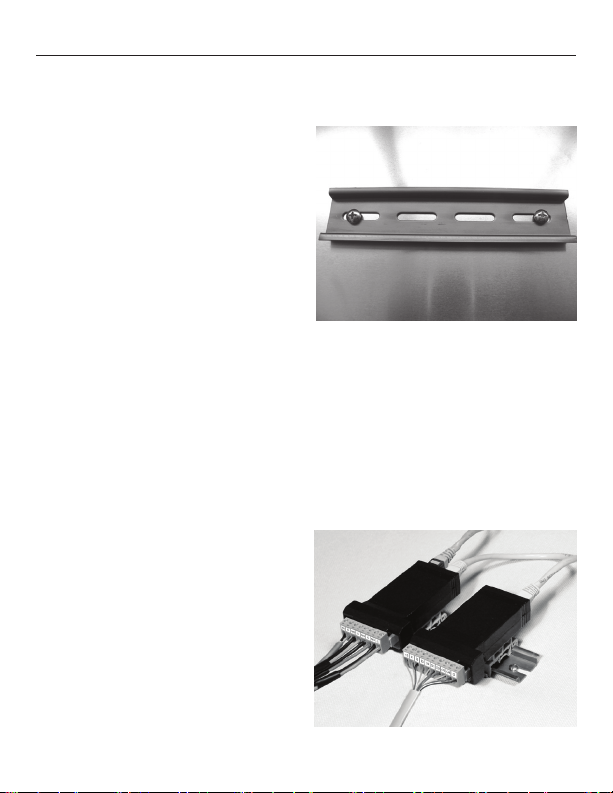

Step 2

Mounting the DIN-rail to
your panel.

The modules are very light
(approx. 1½ oz each). As
such, the mounting hardware
does not need to be very
strong. We recommend two
#10 pan head screw (shown
to the right), but only because
it best accommodates the slots in the DIN-rail. Do consider
any strain your wiring might place on the module mount-

ing. In many cases, you may nd mounting the DIN-rail with

double-sided tape might be acceptable (not recommended
in areas of high vibration or temperatures outside the range
of 45 to 95°F). When choosing a location to mount the DIN­rail, keep in mind that wires will be entering both ends of the
modules (see picture shown

on the bottom right). Leave

enough space on either end of
module to allow for wire rout­ing. Otherwise undue stress
may be placed on the module’s
connectors and mounting clips.
The DIN-rail can be mounted
on any vertical or horizontal
mounting plane, providing wir­ing that is properly secured.

6

DPA1002 DIN-Rail Mounting Kit Instruction Manual

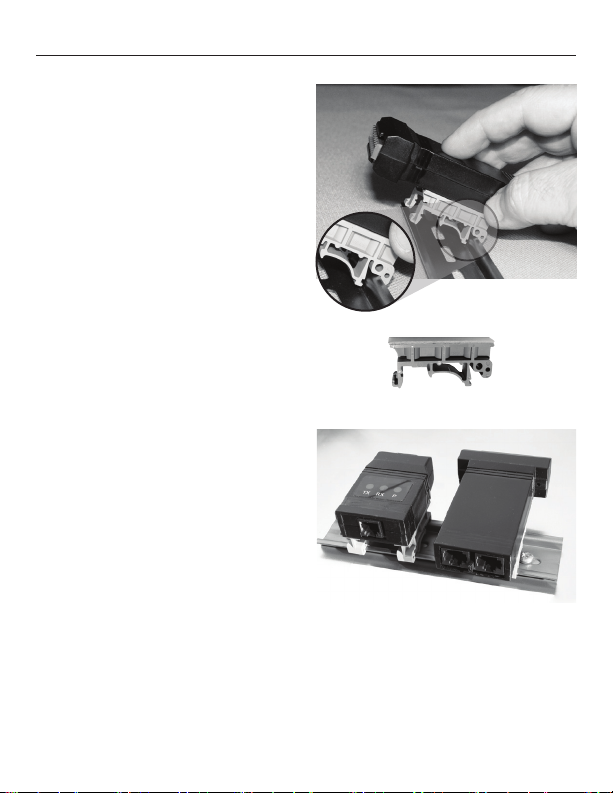

Step 3

Mounting modules to DIN­rail.

To mount modules to DIN­rail, rst locate the approxi­mate position you would like
to place the module on the
DIN-rail, then hook hinge end
of mounting clip to edge of
DIN-rail as shown to the right.

Then lower the opposite “latch
end” of the clip onto the rail.

Press down on the module
until the latch end snaps in
place.

A typical installation may
look like the photo to the
right once modules are
mounted to the DIN-rail.

Hinge EndLatch End

Step 4

After mounting the expansion module(s), please refer to the
Instruction Manual for each module for proper wiring and use
instructions.
