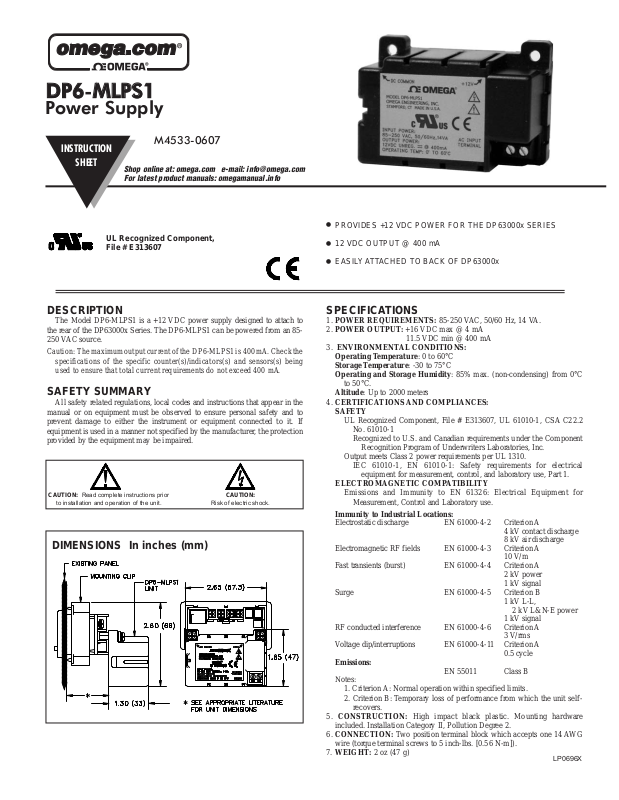

Omega DP6-MLPS1 User Manual

DP6-MMLPS1

Power Supply

M4533-0607

O

PROVIDES +12 VDC POWER FOR THE DP63000x SERIES

O

12 VDC OUTPUT @ 400 mA

O

EASILY ATTACHED TO BACK OF DP63000x

UL Recognized Component,
File # E313607

DESCRIPTION

The Model DP6-MLPS1 is a +12 VDC power supply designed to attach to
the rear of the DP63000x Series. The DP6-MLPS1 can be powered from an 85­250 VAC source.

Caution: The maximum output current of the DP6-MLPS1 is 400 mA. Check the

specifications of the specific counter(s)/indicators(s) and sensors(s) being

used to ensure that total current requirements do not exceed 400 mA.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

DIMENSIONS In inches (mm)

SPECIFICATIONS

1. POWER REQUIREMENTS: 85-250 VAC, 50/60 Hz, 14 VA.

2. POWER OUTPUT: +16 VDC max @ 4 mA

11.5 VDC min @ 400 mA

3. ENVIRONMENTALCONDITIONS:

Operating Temperature: 0 to 60°C
Storage Temperature: -30 to 75°C
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C

to 50°C.

Altitude: Up to 2000 meters

4. CERTIFICA TIONS AND COMPLIANCES:

SAFETY

UL Recognized Component, File # E313607, UL 61010-1, CSA C22.2

No. 61010-1
Recognized to U.S. and Canadian requirements under the Component

Recognition Program of Underwriters Laboratories, Inc.

Output meets Class 2 power requirements per UL 1310.

IEC 61010-1, EN 61010-1: Safety requirements for electrical

equipment for measurement, control, and laboratory use, Part 1.

ELECTROMAGNETIC COMPATIBILITY

Emissions and Immunity to EN 61326: Electrical Equipment for

Measurement, Control and Laboratory use.

Notes:

1. Criterion A: Normal operation within specified limits.

2. Criterion B: Temporary loss of performance from which the unit self­recovers.

5. CONSTRUCTION: High impact black plastic. Mounting hardware

included. Installation Category II, Pollution Degree 2.

6. CONNECTION: Two position terminal block which accepts one 14 AWG

wire (torque terminal screws to 5 inch-lbs. [0.56 N-m]).

7. WEIGHT: 2 oz (47 g)

CAUTION: Read complete instructions prior

to installation and operation of the unit.

CAUTION:

Risk of electric shock.

Class BEN 55011

Emissions:

0.5 cycle

Criterion A
3 V/rms
Criterion A

EN 61000-4-6
EN 61000-4-11

RF conducted interference
Voltage dip/interruptions

1 kV L-L,

Criterion BEN 61000-4-5Surge

1 kV signal

2 kV power

Criterion AEN 61000-4-4Fast transients (burst)

1 kV signal

2 kV L&N-E power

10 V/m

Criterion AEN 61000-4-3Electromagnetic RF fields

8 kV air discharge

4 kV contact discharge

Criterion AEN 61000-4-2Electrostatic discharge

Immunity to Industrial Locations:

LP0696X

INSTRUCTION

SHEET

Shop online at: omega.com e-mail: [e-mail]
For latest product manuals: omegamanual.info

INSTALLATION ENVIRONMENT

The unit should be installed in a location that does not exceed the
maximum operating temperature and provides good air circulation. Placing
the unit near devices that generate excessive heat should be avoided.

Installation Procedure

The DP6-MLPS1 is shipped with all the necessary hardware to mount to
the rear of an installed DP63000x. Refer to the instructions that correspond
to your unit for proper installation.

TROUBLESHOOTING

For further technical assistance, contact technical support at the appropriate

company numbers listed.

The user must remove the common and V+ screw terminals
on the rear of the DP63000x. Install the 3/16" hex drive
stand-offs into the common and V+ terminals. The
DP6-MLPS1 is then mounted to the stand-offs
using the supplied screws and square
washers. AC power can then be connected
to the terminal block of the DP6-MLPS1.
