3

z FOUR SELECTABLE D.C. RANGES

0 to 200 mV, 2 V, 20 V, 200 V

z MINIMUM AND MAXIMUM DISPLAY CAPTURE

z LCD, REFLECTIVE OR RED/GREEN LED BACKLIGHTING

z 0.48" (12.2 mm) HIGH DIGITS

z OPTIONAL SETPOINT OUTPUT MODULES

z OPTIONAL SERIAL COMMUNICATIONS MODULES (RS232 or RS485)

z OPERATES FROM 9 TO 28 VDC POWER SOURCE

z FRONT PANEL OR SOFTWARE PROGRAMMABLE

z DISPLAY COLOR CHANGE CAPABILITY AT SETPOINT OUTPUT

z NEMA 4X/IP65 SEALED FRONT BEZEL

GENERAL DESCRIPTION

The DP63000 provides the user the ultimate in flexibility, from its complete
user programming to the optional setpoint control and communication
capability. This unit accepts a DC Voltage input signal and provides a display in
the desired unit of measure. The meter also features minimum and maximum
display capture, display offset, units indicator, and programmable user input.
The display can be toggled either manually or automatically between the
selected displays.

The DP63000 display has 0.48" (12.2 mm) high digits. The LCD is available
in two versions, reflective and red/green backlight. The backlight version is user
selectable for the desired color and also has variable display intensity.

The capability of the DP63000 can be easily expanded with the addition of
option modules. Setpoint capability is field installable with the addition of the
setpoint output modules. Serial communications capability for RS232 or RS485
is added with a serial option module.

The DP63000 can be powered from an optional Power Supply (Model
Number DP6-MLPS1), that attaches directly to the back of a DP63000. The
DP6-MLPS1 is powered from 85 to 250 VAC and provides up to 400 mA to
drive the unit and sensors.

VOLTAGE

This unit is the DC Volt meter. It features 4 voltage input ranges, that are
selected by the user via a programming jumper and software input range
selection. The ranges consist of: 0 to 200 mV, 2 V, 20 V, 200 V. Users should
select the appropriate voltage range that covers their maximum input.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in this
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

Do not use this meter to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the meter.

CAUTION: Risk of Danger.

Read complete instructions prior to

installationand operation of the unit.

CAUTION: Risk of electric shock.

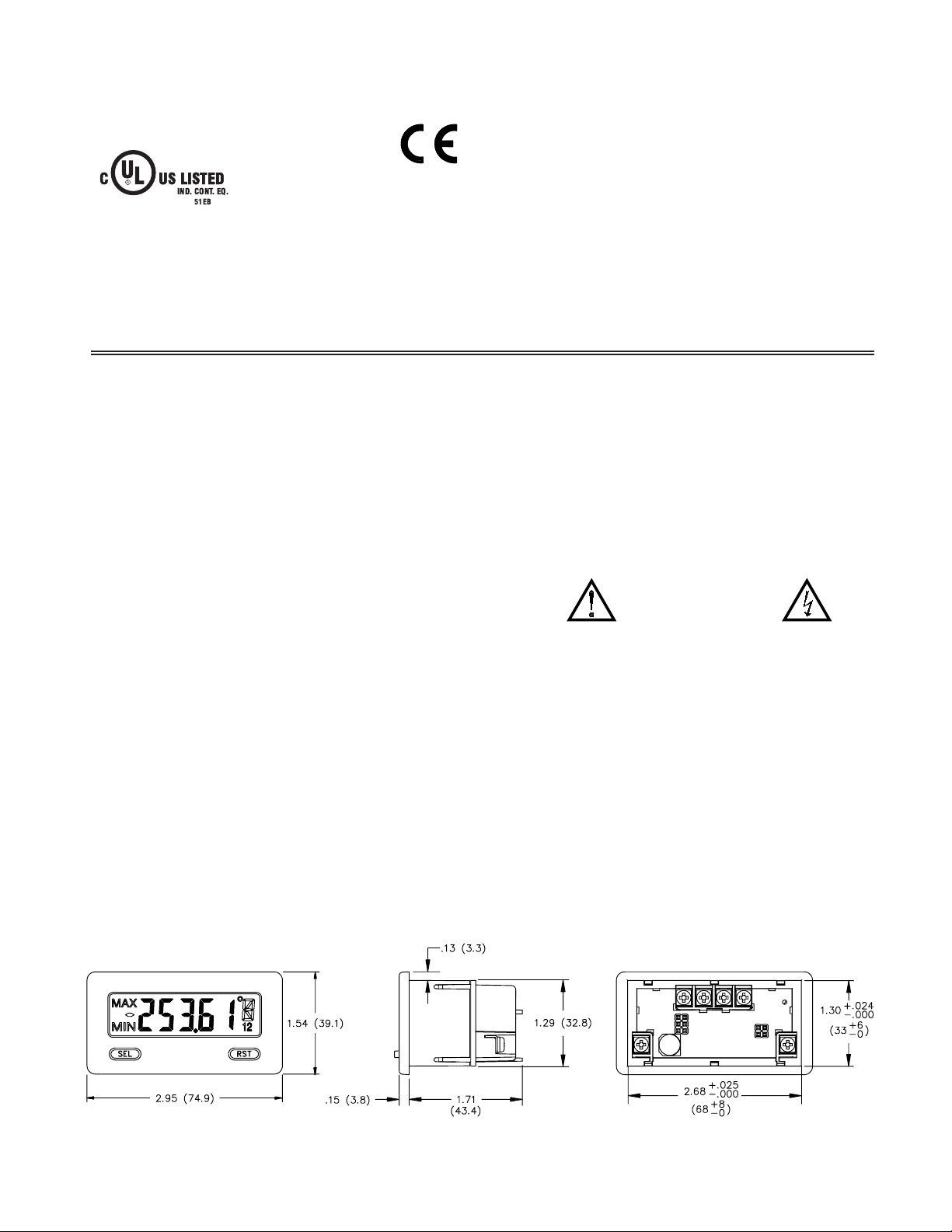

DIMENSIONS In inches (mm)

Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.

C

US LISTEDUS

U

L

R

IND. CONT. EQ.

51EB

1. DISPLAY: 5 digit LCD 0.48" (12.2 mm) high digits

DP63000A-V: Reflective LCD with full viewing angle
DP63000B-V: Transmissive LCD with selectable red or green LED

backlight, viewing angle optimized. Display color change capability with
output state when using an output module.

2. POWER: Input voltage range is +9 to +28 VDC with short circuit and input
polarity protection. Must use a DP6-MLPS1 or a Class 2 or SELV rated power
supply.

3. INPUT RANGES: Jumper Selectable
D.C. Voltages: 200 mV, 2 V, 20 V, 200 V

4. SIGNAL INPUTS:

5. OVERRANGE RATINGS, PROTECTION & INDICATION:
9 to 28 VDC power circuit is not isolated from the signal circuit.

Input Overrange Indication: “OLOL”.
Input Underrange Indication: “ULUL”.

Display Overrange/Underrange Indication: “.....”/“-.....”

6. DISPLAY RESPONSE TIME: 500 msec min.

7. NORMAL MODE REJECTION: 60 dB 50/60 Hz

8. USER INPUT (USR): Programmable input. Connect terminal to common
(USR COMM) to activate function. Internal 10KΩ pull-up resistor to +9 to
28 VDC.
Threshold Levels: VIL= 1.0 V max; VIH= 2.4 V min; V

MAX

= 28 VDC

Response Time: 5 msec typ.; 50 msec debounce (activation and release)

9. ENVIRONMENTAL CONDITIONS:

Operating Temperature Range for DP63000A-V: -35 to 75°C
Operating Temperature Range for DP63000B-V depends on display color

and intensity level as per below:

Storage Temperature: -35 to 85°C
Operating and Storage Humidity: 0 to 85% max. relative humidity (non-

condensing)

Vibration According to IEC 68-2-6: 5 to 500 Hz, in X, Y, Z direction for 1.5

hours, 5 g’s.

Shock According to IEC 68-2-27: Operational 30 g, 11 msec in 3 directions.
Altitude: Up to 2000 meters

10. MEMORY: Nonvolatile E2PROM memory retains all programming
parameters and max/min values when power is removed.

11. CONNECTIONS: Wire clamping screw terminals

Wire Strip Length: 0.3" (7.5 mm)
Wire Gage: 30-14 AWG copper wire
Torque: 5 inch-lbs (0.565 N-m) max.

12. CONSTRUCTION: This unit is rated for NEMA 4X/IP65 requirements for

indoor use. Installation Category I, Pollution Degree 2. High impact plastic
case with clear viewing window. Panel gasket and mounting clip included.

13. CERTIFICATIONS AND COMPLIANCES:

SAFETY

UL Recognized Component, File #E313607, UL61010A-1, CSA 22.2 No. 61010-1

Recognized to U.S. and Canadian requirements under the Component
Recognition Program of Underwriters Laboratories, Inc.

UL Listed, File # E313547, UL508, CSA C22.2 No. 14-M95

LISTED by Und. Lab. Inc. to U.S. and Canadian safety standards

Type 4X Indoor Enclosure rating (Face only), UL50

IEC 61010-1, EN 61010-1: Safety requirements for electrical equipment

for measurement, control, and laboratory use, Part 1.

IP65 Enclosure rating (Face only), IEC 529

ELECTROMAGNETIC COMPATIBILITY

Emissions and Immunity to EN 61326: Electrical Equipment for

Measurement, Control and Laboratory use.

Notes:

1. Criterion A: Normal operation within specified limits.

14. WEIGHT: 3.2 oz (100 g)

4

GENERAL METER SPECIFICATIONS

MODEL

NO.

DISPLAY COLOR

INPUT CURRENT

@ 9 VDC WITH

DP6-RLY0

DP63000A-V --- 10 mA 40 mA
DP63000B-V Red (max intensity) 85 mA 115 mA
DP63000B-V Green (max intensity) 95 mA 125 mA

TEMPERATURE

1 & 2 -35 to 75°C

3 -35 to 70°C
4 -35 to 60°C
5 -35 to 50°C

1 & 2 -35 to 75°C

3 -35 to 65°C

5

4

-35 to 35°C

-35 to 50°C

INTENSITY LEVEL

Class AEN 55011Emissions

Emissions:

30 A/m

3 V/rms
Criterion A

Criterion A

EN 61000-4-8

EN 61000-4-6RF conducted interference

1 kV L-L,

Criterion AEN 61000-4-5Surge

1 kV signal

2 kV power

Criterion AEN 61000-4-4Fast transients (burst)

2 kV L&N-E power

10 V/m

Criterion AEN 61000-4-3Electromagnetic RF fields

8 kV air discharge

4 kV contact discharge

Criterion AEN 61000-4-2Electrostatic discharge

Immunity to Industrial Locations:

Power frequency magnetic fields

Green Display

Red Display

INPUT CURRENT

@ 9 VDC WITHOUT

DP6-RLY0

INPUT

RANGE

ACCURACY
@23 °C, less
than 85% RH

INPUT

IMPEDANCE

MAX

INPUT

SIGNAL

RESOLUTION

TEMP.

COEFFICIENT

0.1% of span

1.027 MΩ

75 VDC 10 µV 70 ppm / °C

2 VDC 0.1% of span

1.027 MΩ

75 VDC .1 mV 70 ppm / °C

20 VDC 0.1% of span

1.027 MΩ

250 VDC 1 mV 70 ppm / °C

200 VDC 0.1% of span

1.027 MΩ

250 VDC 10 mV 70 ppm / °C

200 mVDC

PART NUMBER INFORMATION

DP6-SNK0Dual Sinking Open Collector Output card

DP6-SOFT

DP6-485-CABLERS485 Programming Cable (DB9-RJ11)

DP63000B-V

PC Configuration Software for Windows 98, ME, 2000, XP

*

DC Voltage Input Meter with backlight display

DP6-232-CABLE

DP6-RLY0

DP6-MLPS1Micro-Line Power Supply, 85 to 250 VAC

Single Relay Output Card

RS232 Programming Cable (DB9-RJ11)

DP6-COM2RS232 Serial Communications Card

DP6-COM1RS485 Serial Communications Card

DP63000A-VDC Voltage Input Meter with reflective display

PART NUMBERDESCRIPTION

5

ADDING OPTION CARDS

The DP63000 meters can be fitted with optional output cards and/or serial
communications cards. The details for the plug-in cards can be reviewed in the
specification section below. The plug-in cards, that are sold separately, can be
installed initially or at a later date.

WARNING: Disconnect all power to the unit before

installing Plug-in card.

Note: Measurement errors may occur if signal input common is shared with

another circuit common (ie, serial common, Dual Sinking Output option card,

or Power Supply common) on multiple units.

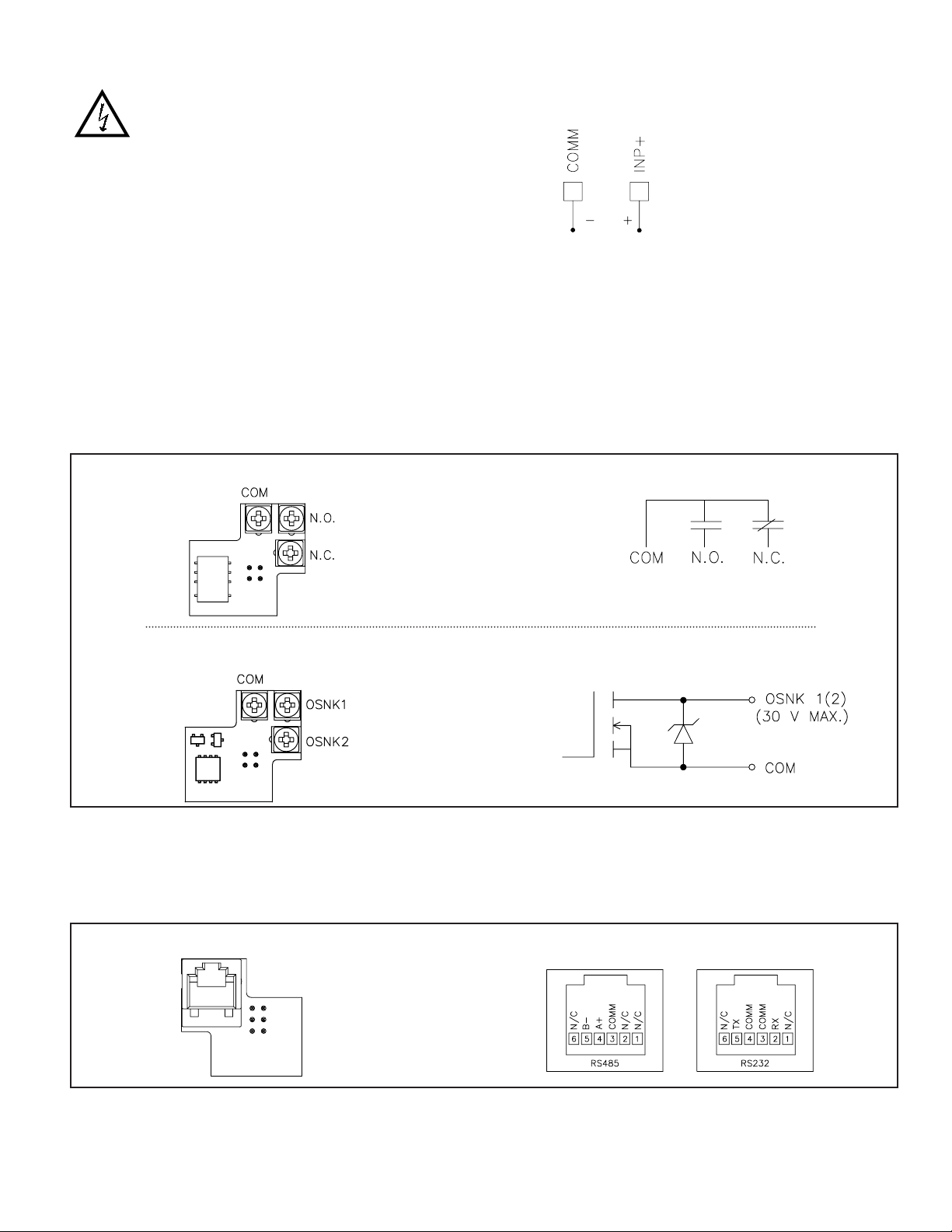

SINGLE RELAY CARD

Type: Single FORM-C relay

Isolation To Sensor & User Input Commons: 1400 Vrms for 1 min.

Working Voltage: 150 Vrms

Contact Rating: 1 amp @ 30 VDC resistive; 0.3 amp @ 125 VAC resistive

Life Expectancy: 100,000 minimum operations

Response Time:

Turn On Time: 4 msec max.
Turn Off Time: 4 msec max.

DUAL SINKING OUTPUT CARD

Type: Non-isolated switched DC, N Channel open drain MOSFET
Current Rating: 100 mA max.
V

DS ON

: 0.7 V @ 100 mA

V

DS MAX

: 30 VDC

Offstate Leakage Current: 0.5 mA max.

RS485 SERIAL COMMUNICATIONS CARD

Type: RS485 multi-point balanced interface (non-isolated)
Baud Rate: 300 to 38.4k
Data Format: 7/8 bits; odd, even, or no parity
Bus Address: 0 to 99; max 32 meters per line
Transmit Delay: Selectable (refer to DP6-COM bulletin)

RS232 SERIAL COMMUNICATIONS CARD

Type: RS232 half duplex (non-isolated)
Baud Rate: 300 to 38.4k
Data Format: 7/8 bits; odd, even, or no parity

OPTIONAL PLUG-IN CARDS

1.0 I

NSTALLING THE M

ETER

INSTALLATION

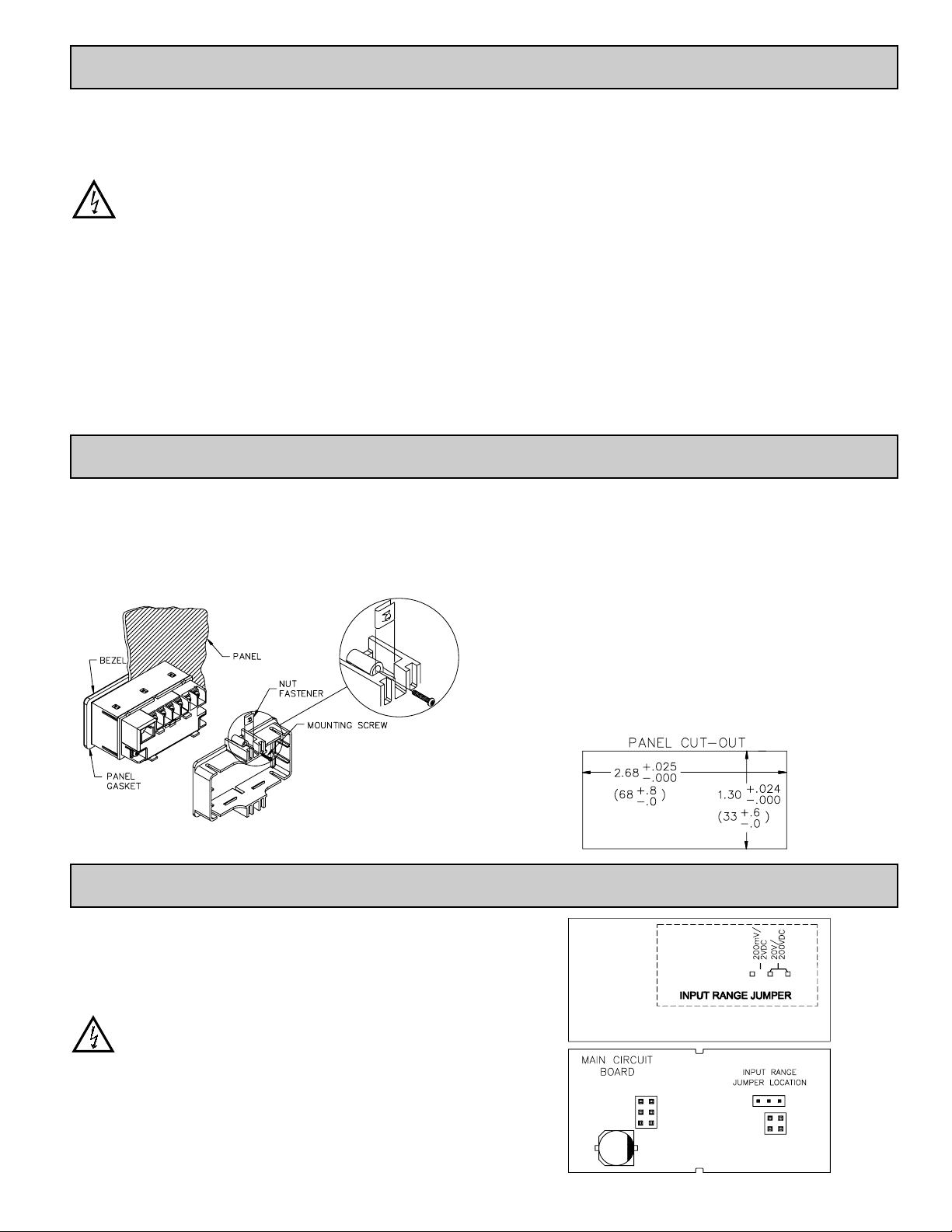

The meter meets NEMA 4X/IP65 requirements when properly installed. The
unit is intended to be mounted into an enclosed panel. Prepare the panel cutout
to the dimensions shown. Remove the panel latch from the unit. Slide the panel
gasket over the rear of the unit to the back of the bezel. The unit should be
installed fully assembled. Insert the unit into the panel cutout.

While holding the unit in place, push the panel latch over the rear of the unit
so that the tabs of the panel latch engage in the slots on the case. The panel latch
should be engaged in the farthest forward slot possible. To achieve a proper seal,
tighten the latch screws evenly until the unit is snug in the panel (Torque to
approx. 28 to 36 in-oz [0.202 to 0.26 N-m]). Do not over-tighten the screws.

INSTALLATION ENVIRONMENT

The unit should be installed in a location that does not exceed the operating
temperature and provides good air circulation. Placing the unit near devices that
generate excessive heat should be avoided.

The bezel should only be cleaned with a soft cloth and neutral soap product.
Do NOT use solvents. Continuous exposure to direct sunlight may accelerate the
aging process of the bezel.

Do not use tools of any kind (screwdrivers, pens, pencils, etc.) to operate the
keypad of the unit.

2.0 SETTING THE JUMPERS

INPUT RANGE JUMPER

This jumper is used to select the proper input range. The input range selected
in programming must match the jumper setting. Select a range that is high
enough to accommodate the maximum input to avoid overloads. To access the
jumper, remove the rear cover of the meter.

Warning: Exposed line voltage exists on the circuit boards. Remove

all power to the meter and load circuits before accessing inside of
the meter.

REMOVING THE REAR COVER

To remove the rear cover, locate the cover locking tab below the 2nd and 3rd
input terminals. To release the tab, insert a small, flat blade screwdriver between
the tab and the plastic wall below the terminals. Inserting the screwdriver will
provide enough pressure to release the tab locks. To replace the cover, align the
cover with the input terminals and press down until the cover snaps into place.

WIRING OVERVIEW

Electrical connections are made via screw-clamp terminals located on the
back of the meter. All conductors should conform to the meter’s voltage and
current ratings. All cabling should conform to appropriate standards of good
installation, local codes and regulations. It is recommended that the power
supplied to the meter (DC or AC) be protected by a fuse or circuit breaker.

Strip the wire, leaving approximately 0.3" (7.5 mm) bare lead exposed
(stranded wires should be tinned with solder.) Insert the lead under the correct
screw-clamp terminal and tighten until the wire is secure. (Pull wire to verify
tightness.) Each terminal can accept up to one #14 AWG (2.55 mm) wire, two
#18 AWG (1.02 mm), or four #20 AWG (0.61 mm).

EMC INSTALLATION GUIDELINES

Although this meter is designed with a high degree of immunity to Electro­Magnetic Interference (EMI), proper installation and wiring methods must be
followed to ensure compatibility in each application. The type of the electrical
noise, source or coupling method into the meter may be different for various
installations. The meter becomes more immune to EMI with fewer I/O
connections. Cable length, routing, and shield termination are very important
and can mean the difference between a successful or troublesome installation.
Listed below are some EMC guidelines for successful installation in an
industrial environment.

1. The meter should be mounted in a metal enclosure, which is properly

connected to protective earth.

2. Use shielded (screened) cables for all Signal and Control inputs. The shield

(screen) pigtail connection should be made as short as possible. The

connection point for the shield depends somewhat upon the application.

Listed below are the recommended methods of connecting the shield, in order

of their effectiveness.

a. Connect the shield only at the panel where the unit is mounted to earth

ground (protective earth).

b. Connect the shield to earth ground at both ends of the cable, usually when

the noise source frequency is above 1 MHz.

c. Connect the shield to common of the meter and leave the other end of the

shield unconnected and insulated from earth ground.

3. Never run Signal or Control cables in the same conduit or raceway with AC
power lines, conductors feeding motors, solenoids, SCR controls, and
heaters, etc. The cables should be ran in metal conduit that is properly
grounded. This is especially useful in applications where cable runs are long
and portable two-way radios are used in close proximity or if the installation
is near a commercial radio transmitter.

4. Signal or Control cables within an enclosure should be routed as far as possible
from contactors, control relays, transformers, and other noisy components.

5. In extremely high EMI environments, the use of external EMI suppression
devices, such as ferrite suppression cores, is effective. Install them on Signal
and Control cables as close to the unit as possible. Loop the cable through the
core several times or use multiple cores on each cable for additional protection.
Install line filters on the power input cable to the unit to suppress power line
interference. Install them near the power entry point of the enclosure. The
following EMI suppression devices (or equivalent) are recommended:

Ferrite Suppression Cores for signal and control cables:

Fair-Rite # 0443167251 (RLC# FCOR0000)
TDK # ZCAT3035-1330A
Steward # 28B2029-0A0

Line Filters for input power cables:

Schaffner # FN610-1/07 (RLC# LFIL0000)
Schaffner # FN670-1.8/07
Corcom # 1 VR3

Note: Reference manufacturer’s instructions when installing a line filter.

6. Long cable runs are more susceptible to EMI pickup than short cable runs.
Therefore, keep cable runs as short as possible.

7. Switching of inductive loads produces high EMI. Use of snubbers across
inductive loads suppresses EMI.

Snubber: RLC# SNUB0000.

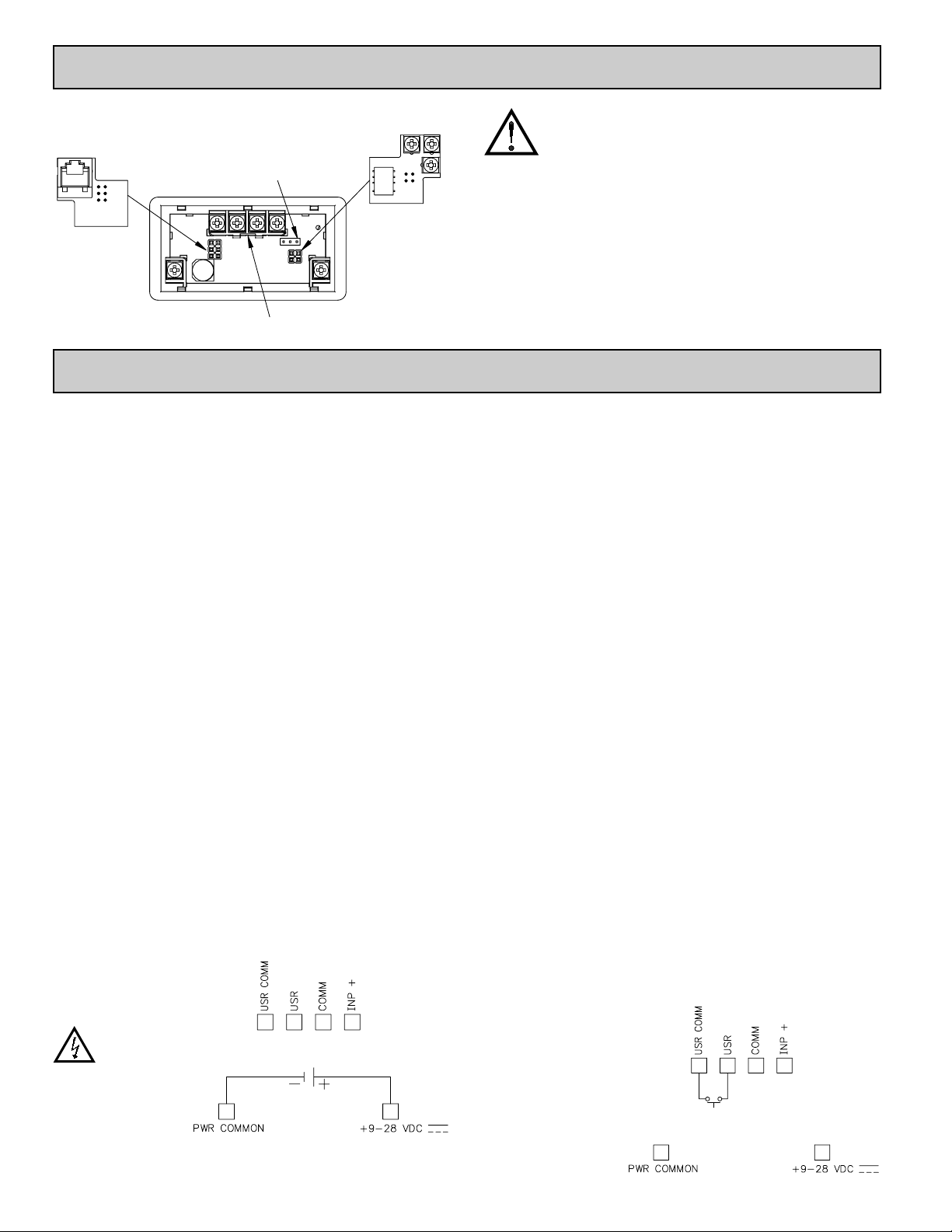

4.0 WIRING THE METER

4.1 POWER WIRING

DC Power

+9 to +28 VDC: +VDC
Power Common: -VDC

CAUTION: 9 to 28 VDC

power circuit is not isolated
from the signal circuit.

4.2 USER INPUT WIRING

Sinking Logic

USR COMM
USR

The user input of the meter is
internally pulled up to +9 to +28 V
with 10 K resistance. The input is
active when it is pulled low (<0 .7 V).

Connect external switching device between the
User Input terminal and User Input Common.

}

6

The Plug-in cards are separately purchased option cards that perform specific

functions. The cards plug into the main circuit board of the meter

CAUTION: The Plug-in cards and main circuit board contain static

sensitive components. Before handling the cards, discharge
static charges from your body by touching a grounded bare
metal object. Ideally, handle the cards at a static controlled
clean workstation. Also, only handle the cards by the edges.
Dirt, oil or other contaminants that may contact the cards can
adversely affect circuit operation.

REMOVING THE REAR COVER

To remove the rear cover, locate the cover locking tab below the 2nd and 3rd

input terminals. To release the tab, insert a small, flat blade screwdriver between
the tab and the plastic wall below the terminals. Inserting the screwdriver will
provide enough pressure to release the tab locks. To replace the cover, align the
cover with the input terminals and press down until the cover snaps into place.

3.0 INSTALLING PLUG-IN CARDS

Comms Card

Range Jumpers

Locking Tab

Setpoint Card

7

4.3 INPUT WIRING

CAUTION: Power input common is NOT isolated from user input

common. In order to preserve the safety of the meter application, the
power input common must be suitably isolated from hazardous live earth

referenced voltage; or input common must be at protective earth ground
potential. If not, hazardous voltage may be present at the User Inputs and User Input
Common terminals. Appropriate considerations must then be given to the potential of
the user input common with respect to earth ground; and the common of the plug-in
cards with respect to input common.

Before connecting signal wires, the Input Range Jumper should be verified for proper

position.

4.4 SETPOINT (OUTPUT) WIRING

4.5 SERIAL COMMUNICATION WIRING

SINGLE SETPOINT RELAY PLUG-IN CARD

SERIAL COMMUNICATIONS PLUG-IN CARD

RJ11 CONNECTOR PIN OUTS

Voltage Signal

(self powered)

ELECTRICAL CONNECTIONS

DUAL SETPOINT N-FET OPEN DRAIN PLUG-IN CARD

ELECTRICAL CONNECTIONS

JUMPER

POSITION

MAX INPUT

VOLTAGE

200 mV ⁄ 2 VDC

75 VDC

20V ⁄ 200 VDC

250 VDC

8

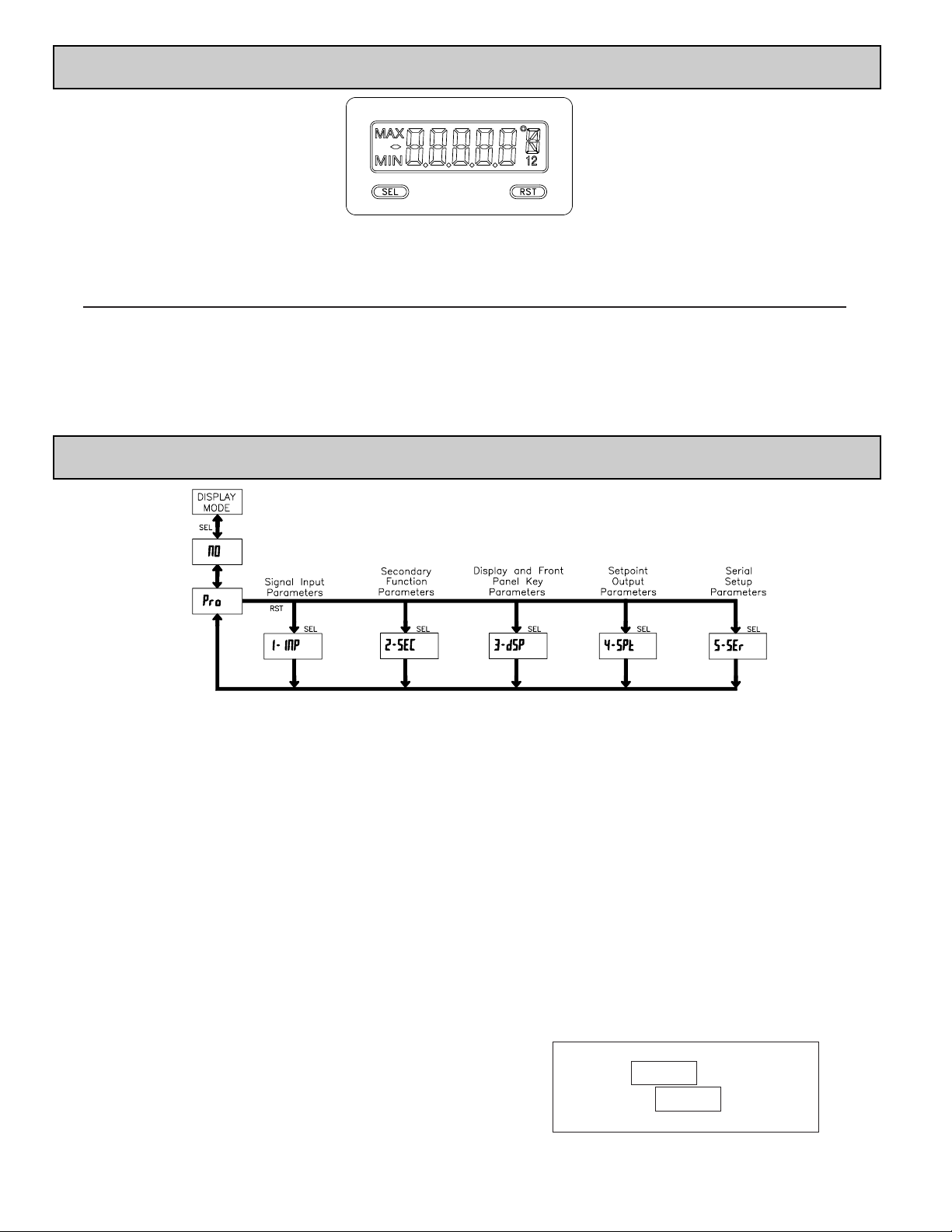

5.0 REVIEWING THE FRONT BUTTONS AND DISPLAY

PROGRAMMING MODE ENTRY (SEL BUTTON)

It is recommended all programming changes be made off line, or before
installation. The meter normally operates in the Display Mode. No parameters
can be programmed in this mode. The Programming Mode is entered by
pressing and holding the SEL button. If it is not accessible then it is locked by
either a security code, or a hardware lock.

MODULE ENTRY (SEL & RST BUTTONS)

The Programming Menu is organized into separate modules. These modules
group together parameters that are related in function. The display will alternate
between

Pro and the present module. The RST button is used to select the desired

module. The displayed module is entered by pressing the

SEL button.

MODULE MENU (SEL BUTTON)

Each module has a separate module menu (which is shown at the start of each
module discussion). The SEL button is pressed to advance to a particular
parameter to be changed, without changing the programming of preceding
parameters. After completing a module, the display will return to Pro NO.
Programming may continue by accessing additional modules.

SELECTION / VALUE ENTRY

For each parameter, the display alternates between the present parameter and
the selections/value for that parameter. The RST button is used to move through
the selections/values for that parameter. Pressing the

SEL button, stores and

activates the displayed selection/value. This also advances the meter to the next
parameter.

For numeric values, press the RST button to access the value. The right hand
most digit will begin to flash. Pressing the

RST button again increments the

digit by one or the user can hold the RST button and the digit will automatically
scroll. The

SEL button will advance to the next digit. Pressing and holding the

SEL button will enter the value and move to the next parameter.

PROGRAMMING MODE EXIT (SEL BUTTON)

The Programming Mode is exited by pressing the SEL button with Pro NO

displayed. This will commit any stored parameter changes to memory and
return the meter to the Display Mode. (If power loss occurs before returning to
the Display Mode, verify recent parameter changes.)

PROGRAMMING TIPS

It is recommended to start with Module 1 and proceed through each module in
sequence. When programming is complete, it is recommended to record the
parameter programming and lock out parameter programming with the user input
or programming security code.

FACTORY SETTINGS

Factory Settings may be completely restored in Module 2. This is useful
when encountering programming problems.

ALTERNATING SELECTION DISPLAY

In the explanation of the modules, the following dual display with arrows will
appear. This is used to illustrate the display alternating between the parameter
on top and the parameter’s Factory Setting on the bottom. In most cases,
selections and values for the parameter will be listed on the right.

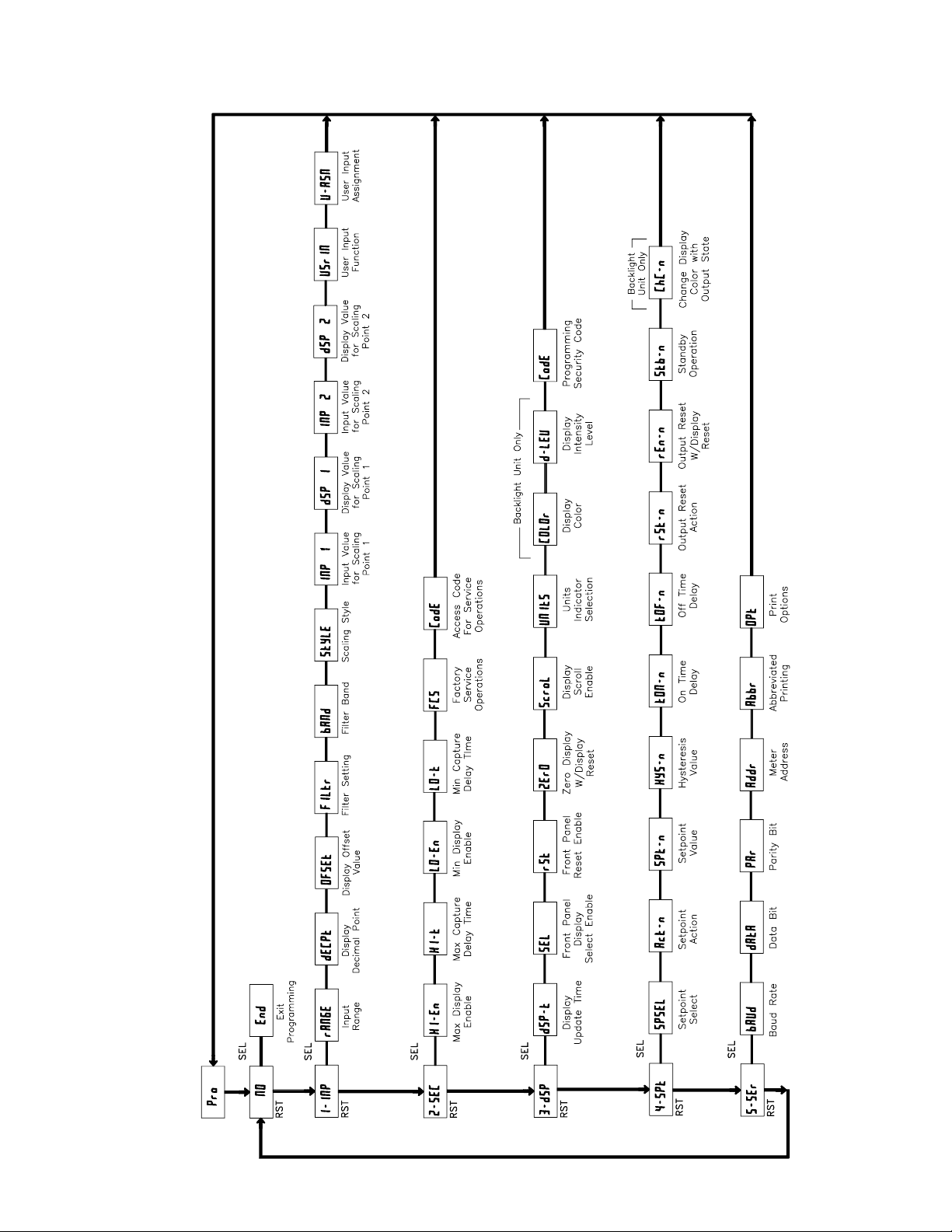

6.0 PROGRAMMING THE METER

OVERVIEW

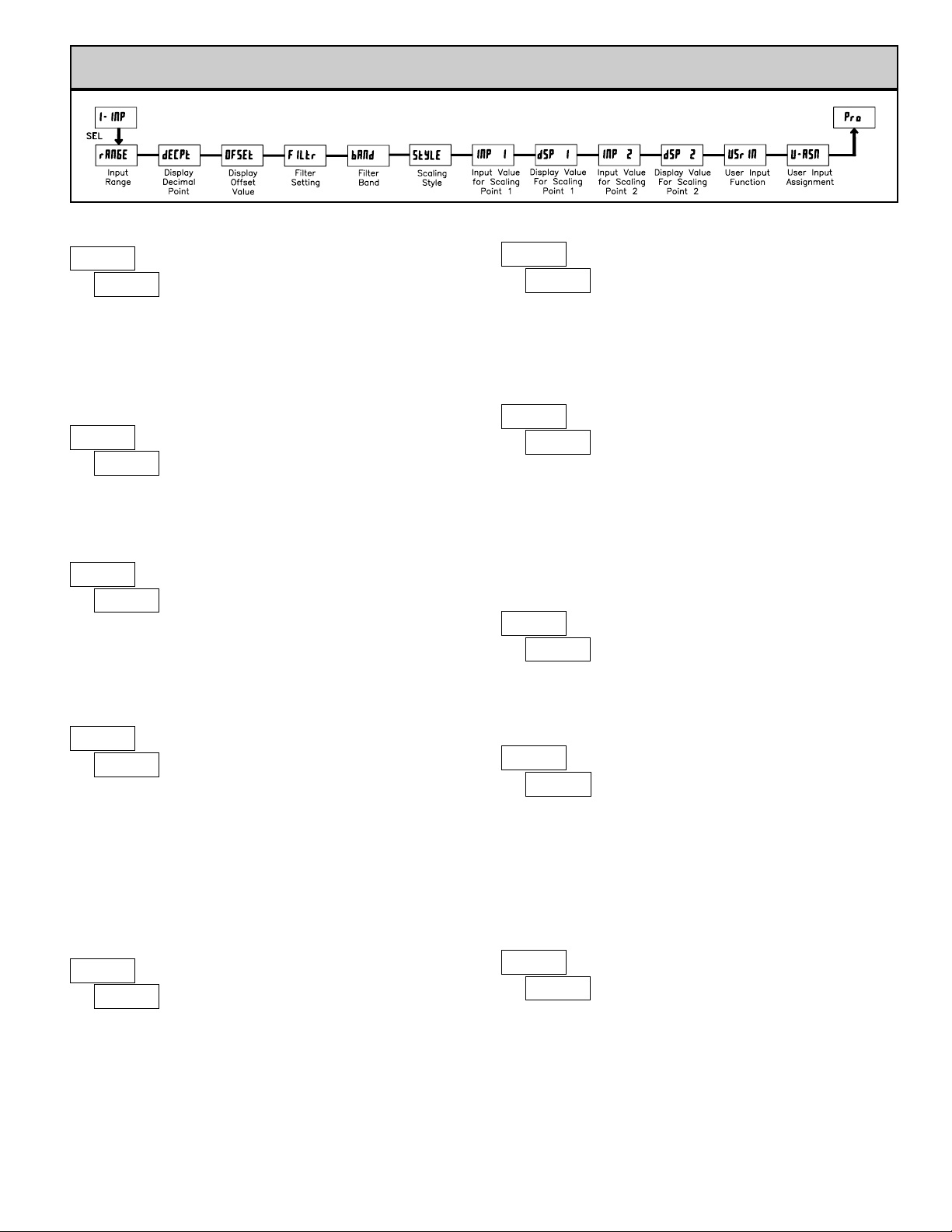

PROGRAMMING MENU

Indicates Program Mode Alternating Display

Factory Settings are shown.

Parameter

Selection/Value

BUTTON DISPLAY MODE OPERATION ENTERING PROGRAM MODE PROGRAMMING MODE OPERATION

SEL Index display through enabled values Press and hold for 2 seconds to activate Store selected parameter and index to next parameter

RST Resets values (MIN/MAX) or outputs

Advances through the program menu
Increments selected parameter value or selection

OPERATING MODE DISPLAY DESIGNATORS

MAX - Maximum display capture value
MIN - Minimum display capture value

“1” - To the right of the display indicates setpoint 1 output activated.

“2” - To the right of the display indicates setpoint 2 output activated.

Pressing the SEL button toggles the meter through the selected displays. If display scroll is enabled, the display will toggle automatically every four seconds between

the enabled display values.

ª

«

N0

USrIN

9

6.1 MODULE 1 - SIGNAL INPUT

PARAMETERS (

1-INP)

PARAMETER MENU

ª

«

200u

rAN6E

DP63000V INPUT RANGE

Select the input range that corresponds to the external signal. This selection
should be high enough to avoid input signal overload but low enough for the
desired input resolution. This selection and the position of the Input Range
Jumper must match.

ª

«

0

dECPt

0.000 0.00000.000.00

DISPLAY DECIMAL POINT

Select the decimal point location for the Input, MIN and MAX displays. This
selection also affects the dSP1 and dSP2 parameters and setpoint values.

ª

«

1

FILtr

FILTER SETTING

If the displayed value is difficult to read due to small process variations or
noise, increased levels of filtering will help to stabilize the display. Software
filtering effectively combines a fraction of the current input reading with a
fraction of the previous displayed reading to generate the new display.

Filter values represent no filtering (0), up to heavy filtering (3). A value of 1
for the filter uses 1/4 of the new input and 3/4 of the previous display to generate
the new display. A filter value of 2 uses 1/8 new and 7/8 previous. A filter value
of 3 uses 1/16 new and 15/16 previous.

0,1 2 3

ª

«

10

bANd

FILTER BAND

The filter will adapt to variations in the input signal. When the variation
exceeds the input filter band value, the filter disengages. When the variation
becomes less than the band value, the filter engages again. This allows for a
stable readout, but permits the display to settle rapidly after a large process
change. The value of the band is in display units, independent of the Display
Decimal Point position. A band setting of ‘0’ keeps the filter permanently
engaged at the filter level selected above.

0 to 199 display units

ª

«

KEy

StYLE

SCALING STYLE

If Input Values and corresponding Display Values are known, the Key-in

(KEY) scaling style can be used. This allows scaling without the presence or
changing of the input signal. If Input Values have to be derived from the actual
input signal source or simulator, the Apply (APLY) scaling style must be used.

KEy APLY

ª

«

0.00

INP 1

INPUT VALUE FOR SCALING POINT 1

For Key-in (KEY) style, enter the first Input Value using the front panel buttons.

(The Input Range selection sets the decimal location for the Input Value).

For Apply (APLY) style, the meter shows the previously stored Input Value. To

retain this value, press the SEL button to advance to the next parameter. To
change the Input Value, press the RST button and apply the input signal to the
meter. Adjust the signal source externally until the desired Input Value appears.
Press the SEL button to enter the value being displayed.

0 to 29999

ª

«

0.00

dSP 1

DISPLAY VALUE FOR SCALING POINT 1

-19999 to 99999

Enter the first Display Value by using the front panel buttons. This is the same

for KEY and APLY scaling styles. The decimal point follows the dECPt selection.

ª

«

100.00

INP 2

INPUT VALUE FOR SCALING POINT 2

0 to 29999

For Key-in (KEY) style, enter the known second Input Value using the front

panel buttons.

For Apply (APLY) style, the meter shows the previously stored Input Value for

Scaling Point 2. To retain this value, press the SEL button to advance to the next
parameter. To change the Input Value, press the RST button and apply the input
signal to the meter. Adjust the signal source externally until the desired Input
Value appears. Press the SEL button to enter the value being displayed.

ª

«

100.00

dSP 2

DISPLAY VALUE FOR SCALING POINT 2

-19999 to 99999

Enter the second Display Value by using the front panel buttons. This is the

same for KEY and APLY scaling styles.

0.2u

200.00 mV

2u

2.0000 V

20.000 V

200.00 V

20u

200u

SELECTION

RANGE

RESOLUTION

RANGE

RESOLUTION

SELECTION

ª

«

0.00

OFSEt

DISPLAY OFFSET VALUE

The display can be corrected with an offset value. This can be used to
compensate for signal variations or sensor errors. This value is automatically
updated after a Zero Display to show how far the display is offset. A value of
zero will remove the effects of offset.

-19999 to 19999

General Notes on Scaling

1. When using the Apply (APLY) scaling style, input values for scaling points

must be confined to the signal input imits of the selected range.

2. The same Input Value should not correspond to more than one Display Value.
(Example: 10 V can not equal 0 and 10.)

3. For input levels beyond the programmed Input Values, the meter extends the
Display Value by calculating the slope from the two coordinate pairs (INP1 /

dSP1 & INP2 / dSP2).

Entering Code 66 will overwrite all user settings with

the factory settings. The meter will display rESEt and then
return to CodE 00. Press the SEL button to exit the module.

10

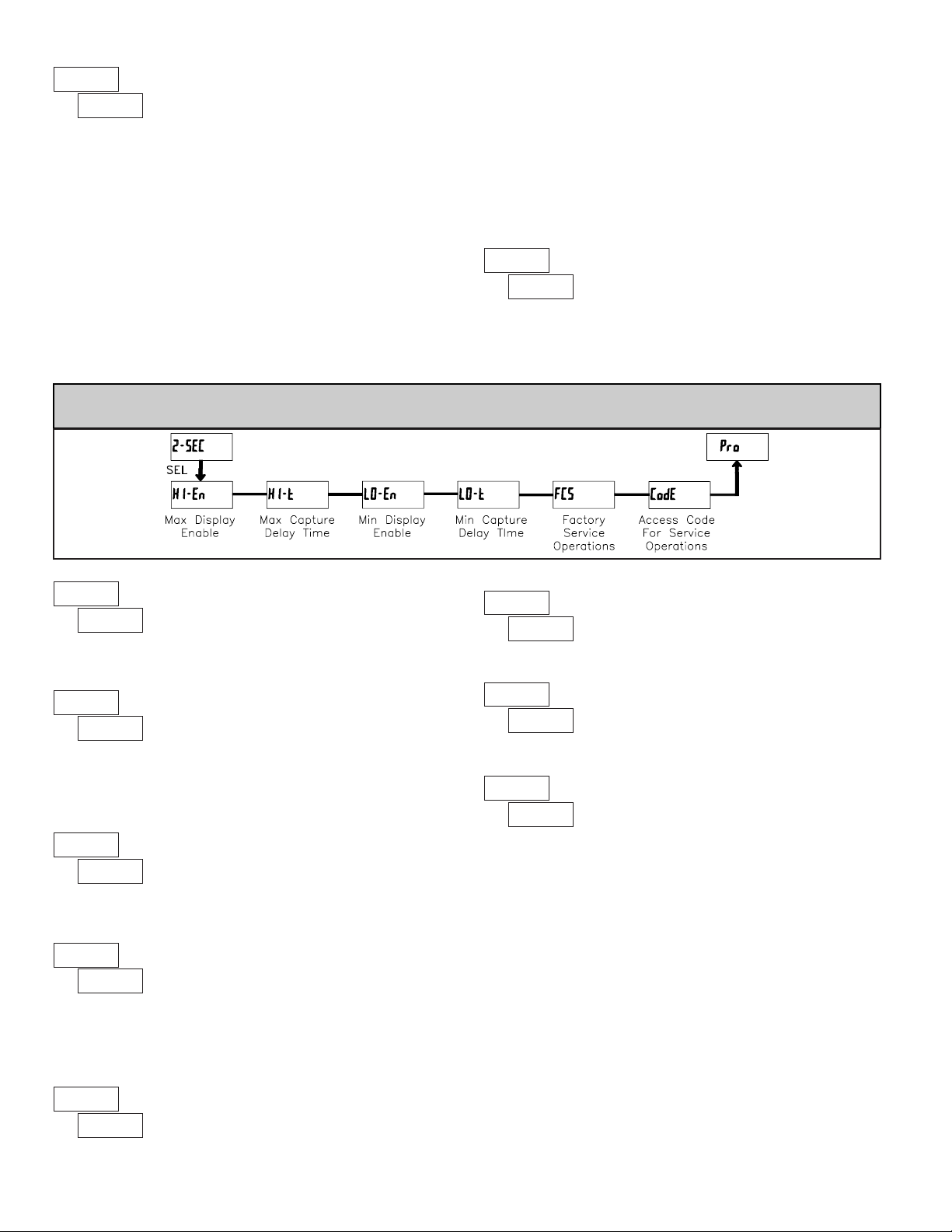

6.2 MODULE 2 - S

ECONDARY FUNCTION P

ARAMETERS (

2-SEC)

PARAMETER MENU

MIN DISPLAY ENABLE

USER INPUT ASSIGNMENT

Select the value(s) to which the User Input Function is assigned. The User
Input Assignment only applies if a selection of reset, display hold, or print and
reset is selected in the User Input Function menu.

MODEDISPLAY

No Function

NO

DESCRIPTION

User Input disabled.

Program Mode Lock-out

P-Loc

Zero Input
(Edge triggered)

ZErO

Zero the Input Display value causing
Display Reading to be Offset.

COLOr

d-SEL

d-LEV

d-HLd

rESEt

Resets the assigned value(s) to the
current input value.

HI-LO HI

dSPLO

See Programming Mode Access chart
(Module 3).

YESNO

MODE DESCRIPTIONDISPLAY

Setpoint 1 and 2 Reset

Setpoint 1 Reset

Setpoint 2 Reset

Print and Reset

Reset both setpoint 1 and 2 outputs.

Resets setpoint 1 output.

Resets setpoint 2 output.

Same as Print Request followed by a
momentary reset of the assigned value(s).

rSt12

rSt-1
rSt-2

P-r5t

Print Request

Serial transmit of the active parameters
selected in the Print Options menu
(Module 5).

Print

ª

«

2.0

HI-t

ª

«

NO

LO-En

ª

«

NO

FCS

MAX CAPTURE DELAY TIME

When the Input Display is above the present MAX value for the entered
delay time, the meter will capture that display value as the new MAX reading.
A delay time helps to avoid false captures of sudden short spikes.

ª

«

2.0

LO-t

MIN CAPTURE DELAY TIME

When the Input Display is below the present MIN value for the entered delay
time, the meter will capture that display value as the new MIN reading. A delay
time helps to avoid false captures of sudden short spikes.

0.0 to 999.9 sec.

USER INPUT FUNCTION

ª

«

NO

USrIN

ª

«

dSP

U-ASN

ª

«

NO

HI-En

MAX DISPLAY ENABLE

0.0 to 999.9 sec.

Select yES to perform either of the Factory Service Operations shown below.

FACTORY SERVICE OPERATIONS

yESNO

YESNO

Enables the Maximum Display Capture capability.

Enables the Minimum Display Capture capability.

The unit uses stored voltage calibration values to
provide accurate voltage measurements. Over time, the
electrical characteristics of the components inside the
meter will slowly change, with the result that the stored

calibration values no longer accurately define the input circuit. For most
applications, recalibration every 1 to 2 years should be sufficient.

Calibration of the unit involves an input voltage calibration, which should
only be performed by individuals experienced in calibrating electronic
equipment. Allow a 30 minute warm up before performing any calibration
related procedures. The following procedures should be performed at an
ambient temperature of 15 to 35°C (59 to 95°F).

CAUTION: The accuracy of the calibration equipment will directly affect the

accuracy of the unit.

Voltage Calibration

1. Connect a precision DC voltage source with an accuracy of 0.01% or better

to the INP+ (positive) and COMM (negative) terminals of the unit. Set the

output of the voltage source to zero.

2. With the display at CodE 48, press and hold the SEL button for 2 seconds. Unit

will display CAL NO.

3. Press the RST button to select the range to be calibrated.

4. Press the SEL button. Display reads 0.0v.

5. With the voltage source set to zero (or a dead short applied to the input), press

SEL. Display reads CALC for about 8 seconds.

6. When the display reads the selected range, apply full-scale input signal for

the range. (Note: For 200V range, apply 100V as indicated on the display.)

Press SEL. Display reads CALC for about 8 seconds.

7. Repeat steps 3 through 6 for each input range to be calibrated. When display

reads CAL NO, press the SEL button to exit calibration.

CALIBRATION

ª

«

48

CodE

ª

«

66

CodE

RESTORE FACTORY DEFAULT SETTINGS

Backlight Color
(Edge Triggered)

Display Select
(Edge Triggered)

Display Intensity Level
(Edge Triggered)

Display Hold

Reset (Edge triggered)

Change backlight color with each
activation (backlight version only).

Advance once for each activation.

Increase intensity one level for each
activation (backlight version only).

Holds the assigned display, but all other
meter functions continue as long as
activated (maintained action).

Entering Code 50 will display the version (x.x) of the

meter. The display the returns to CodE 00. Press the SEL
button to exit the module.

ª

«

50

CodE

VIEW VERSION DISPLAY

11

The Security Code determines the programming mode and the accessibility

of programming parameters. This code can be used along with the Program
Mode Lock-out (P-Loc) in the User Input Function parameter (Module 1).

Two programming modes are available. Full Programming mode allows all
parameters to be viewed and modified. Quick Programming mode permits only
the Setpoint values to be modified, but allows direct access to these values
without having to enter Full Programming mode.

Programming a Security Code other than 0, requires this code to be entered
at the CodE prompt in order to access Full Programming mode. Depending on the
code value, Quick Programming may be accessible before the CodE prompt
appears (see chart).

PROGRAMMING SECURITY CODE

000 to 999

USER INPUT

FUNCTION

USER INPUT

STATE

SECURITY

CODE

MODE WHEN “SEL”

BUTTON IS PRESSED

FULL PROGRAMMING

MODE ACCESS

0 Full Programming Immediate Access

not P-Loc

______

1-99 Quick Programming

After Quick Programming

with correct code entry

at

CodE prompt *

100-999

CodE prompt

With correct code entry

at

CodE prompt *

0 Programming Lock No Access

Active

1-99 Quick Programming No Access

P-Loc

100-999

CodE prompt

With correct code entry

at

CodE prompt *

Not Active 0-999 Full Programming Immediate Access

* Entering Code 222 allows access regardless of security code.

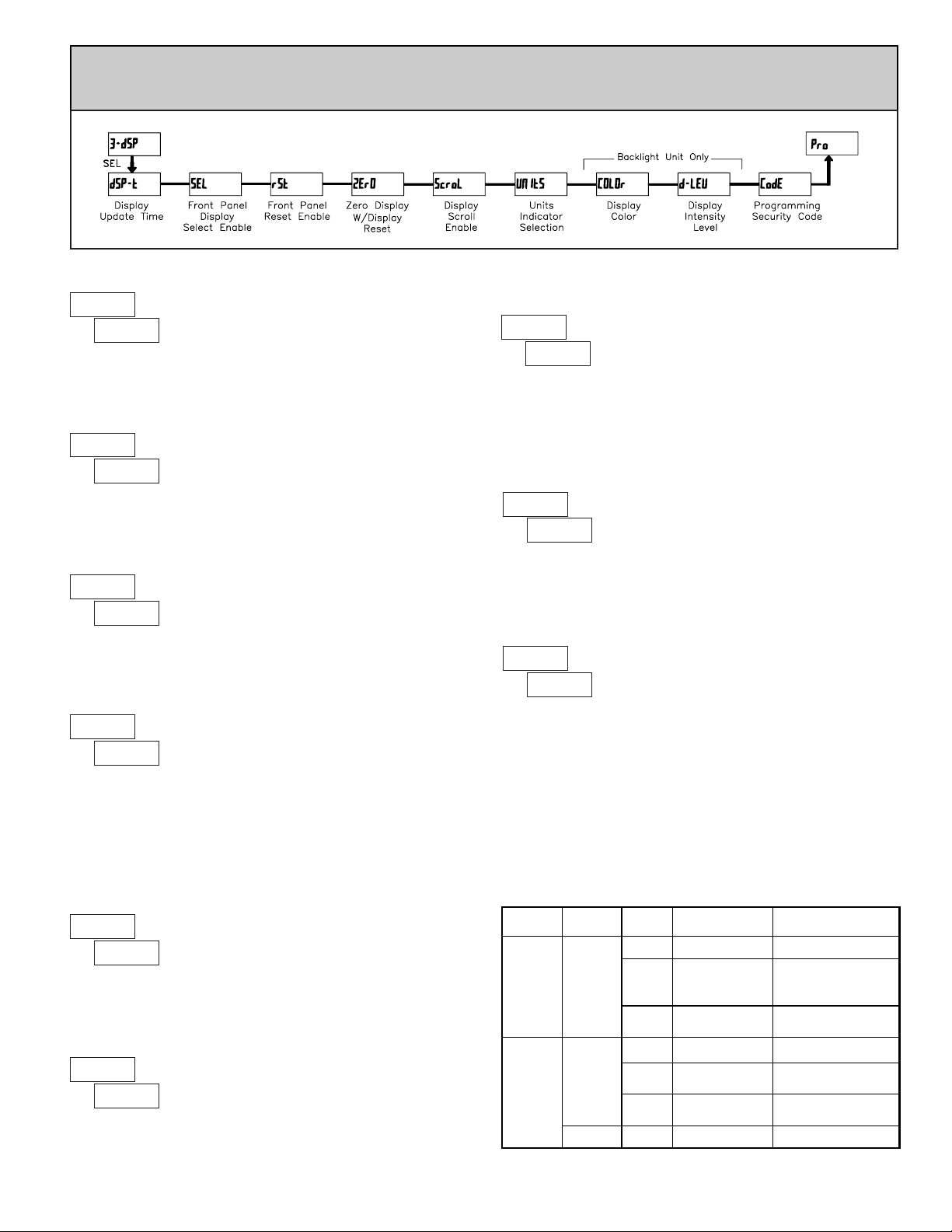

6.3 MODULE 3 - DISPLAY AND F

RONT PANEL B

UTTON

PARAMETERS (3-dSP)

PARAMETER MENU

The yES selection allows the SEL button to toggle through the enabled

displays.

FRONT PANEL DISPLAY SELECT ENABLE (SEL)

This selection allows the RST button to reset the selected value(s).

FRONT PANEL RESET ENABLE (RST)

The yES selection allows the display to automatically scroll through the

enabled displays. The scroll rate is every 4 seconds. This parameter only appears
when the MAX or MIN displays are enabled.

DISPLAY SCROLL ENABLE

NOyES

dSPNO

HI

LO
HI-LO

NOyES

This parameter activates the Units Indicator on the display. There are two
methods of selecting the Indicator. List will present a group of Units
preprogrammed into the meter. Segments allows the user to choose which of the
segments should light.

UNITS INDICATOR SELECTION

LISt SEGSOFF

Enter the desired display color, red or green. This parameter is active for

backlight units only.

DISPLAY COLOR (BACKLIGHT UNIT ONLY)

6rnrEd

Enter the desired Display Intensity Level (1-5). The display will actively dim

or brighten as levels are changed. This parameter is active for backlight units only.

DISPLAY INTENSITY LEVEL (BACKLIGHT UNIT ONLY)

1 to 5

ª

«

1

dSP-t

ª

«

yES

SEL

ª

«

dSP

rSt

ª

«

NO

ScroL

This parameter enables the RST button or user input to zero the input display
value, causing the display reading to be offset.

Note: For this parameter to operate, the RST button or User Input being used
must be set to dSP and the Input value must be displayed. If these conditions are
not met, the display will not zero.

ZERO DISPLAY WITH DISPLAY RESET

NOyES

ª

«

NO

ZErO

ª

«

OFF

UNItS

ª

«

rEd

COLOr

ª

«

5

d-LEV

ª

«

000

CodE

DISPLAY UPDATE TIME

This parameter sets the display update time in seconds.

1

0.5

2

seconds

Enter the reset action of the output. See figure for details.

Auto = Automatic action; This action allows the output to automatically reset off

at the trigger points per the Setpoint Action shown in Setpoint Output
Figures. The “on” output may be manually reset (off) immediately by the
front panel RST button or user input.The output remains off until the trigger
point is crossed again.

LAtCH = Latch with immediate reset action; This action latches the output on at

the trigger point per the Setpoint Action shown in Setpoint Output Figures.
Latch means that the output can only be turned off by the front panel RST

12

6.4 MODULE 4 - SETPOINT OUTPUT PARAMETERS (4-SPt)

PARAMETER MENU

The Setpoint Output Parameters are only active when an optional output

module is installed in the meter.

Enter the setpoint (output) to be programmed. The n in the following
parameters will reflect the chosen setpoint number. After the chosen setpoint
is completely programmed, the display will return to SPSEL. Repeat steps for
each setpoint to be programmed. Select NO to exit the module. The number of
setpoints available is setpoint output card dependent.

SETPOINT SELECT

SP-2SP-1NO

ª

«

NO

SPSEL

ª

«

2

HYS-n

HYSTERESIS VALUE

ª

«

0.0

tOF-n

ª

«

0.0

tON-n

OFF TIME DELAY

ON TIME DELAY

OUTPUT RESET ACTION

LAtCHAuto L-dLY

0.0 to 599.9 Sec

0.0 to 599.9 Sec

ª

«

Auto

rSt-n

1 to 59999

Enter desired hysteresis value. See Setpoint Output Figures for visual
explanation of how setpoint output actions (balanced and unbalanced) are
affected by the hysteresis. When the setpoint is a control output, usually
balanced hysteresis is used. For alarm applications, usually unbalanced
hysteresis is used. For unbalanced hysteresis modes, the hysteresis functions on
the low side for high acting setpoints and functions on the high side for low
acting setpoints.

Note: Hysteresis eliminates output chatter at the switch point, while time delay

can be used to prevent false triggering during process transient events.

Enter the time value in seconds that the output is delayed from turning on
after the trigger point is reached. A value of 0.0 allows the meter to update the
output status per the response time listed in the Specifications.

Enter the time value in seconds that the output is delayed from turning off
after the trigger point is reached. A value of 0.0 allows the meter to update the
output status per the response time listed in the Specifications.

Select YES to enable Setpoint 2 and access the setup parameters. If NO is
selected, the unit returns to SPSEL and setpoint 2 is disabled.

SETPOINT 2 ENABLE

NOYES

ª

«

NO

Enb-2

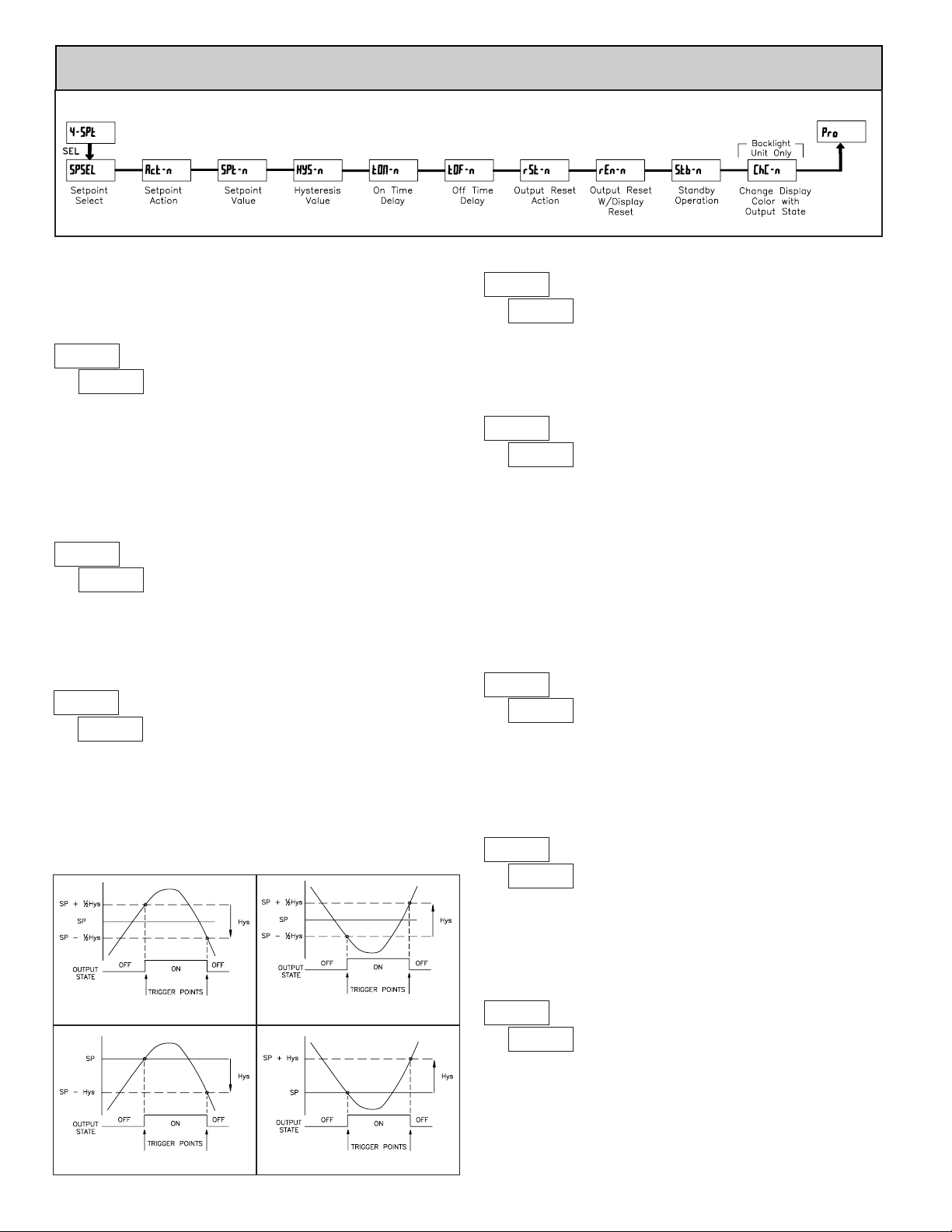

Enter the action for the selected setpoint (output). See Setpoint Output
Figures for a visual detail of each action.

SETPOINT ACTION

ª

«

HI-Ub

Act-n

LO-UbHI-UbLO-bL

HI-bL

LO-Ub

=

HI-Ub

=

LO-bL

=

HI-bL

=

Low Acting, with unbalanced hysteresis

High Acting, with unbalanced hysteresis

Low Acting, with balanced hysteresis

High Acting, with balanced hysteresis

High Acting (Balanced Hys) = HI-bL

Low Acting (Unbalanced Hys) = LO-Ub

Low Acting (Balanced Hys) = LO-bL

High Acting (Unbalanced Hys) = HI-Ub

SETPOINT VALUE

Enter the desired setpoint value. The decimal point position for the setpoint
and hysteresis values follow the selection set in Module 1.

-19999 to 99999

ª

«

10000

SPt-n

13

6.5 MODULE 5 - SERIAL SETUP PARAMETERS (

5-SSEr

)

The Serial Setup Parameters are only active when the optional RS232 or RS485 serial communications module is installed in the meter. Refer to the DP6-COM

bulletin for complete details on DP63000 serial communications.

PARAMETER MENU

button or user input manual reset, serial reset command or meter power
cycle. When the user input or RST button is activated (momentary action),
the corresponding “on” output is reset immediately and remains off until the
trigger point is crossed again. (Previously latched alarms will be off if power
up Display Value is lower than setpoint value.)

L-dLY = Latch with delay reset action; This action latches the output on at the

trigger point per the Setpoint Action shown in Setpoint Output Figures. Latch
means that the output can only be turned off by the front panel RST button
or user input manual reset, serial reset command or meter power cycle. When
the user input or RST button is activated (momentary action), the meter
delays the event until the corresponding “on” output crosses the trigger off
point. (Previously latched outputs are off if power up Display Value is lower
than setpoint value. During a power cycle, the meter erases a previous L-dLY
reset if it is not activated at power up.)

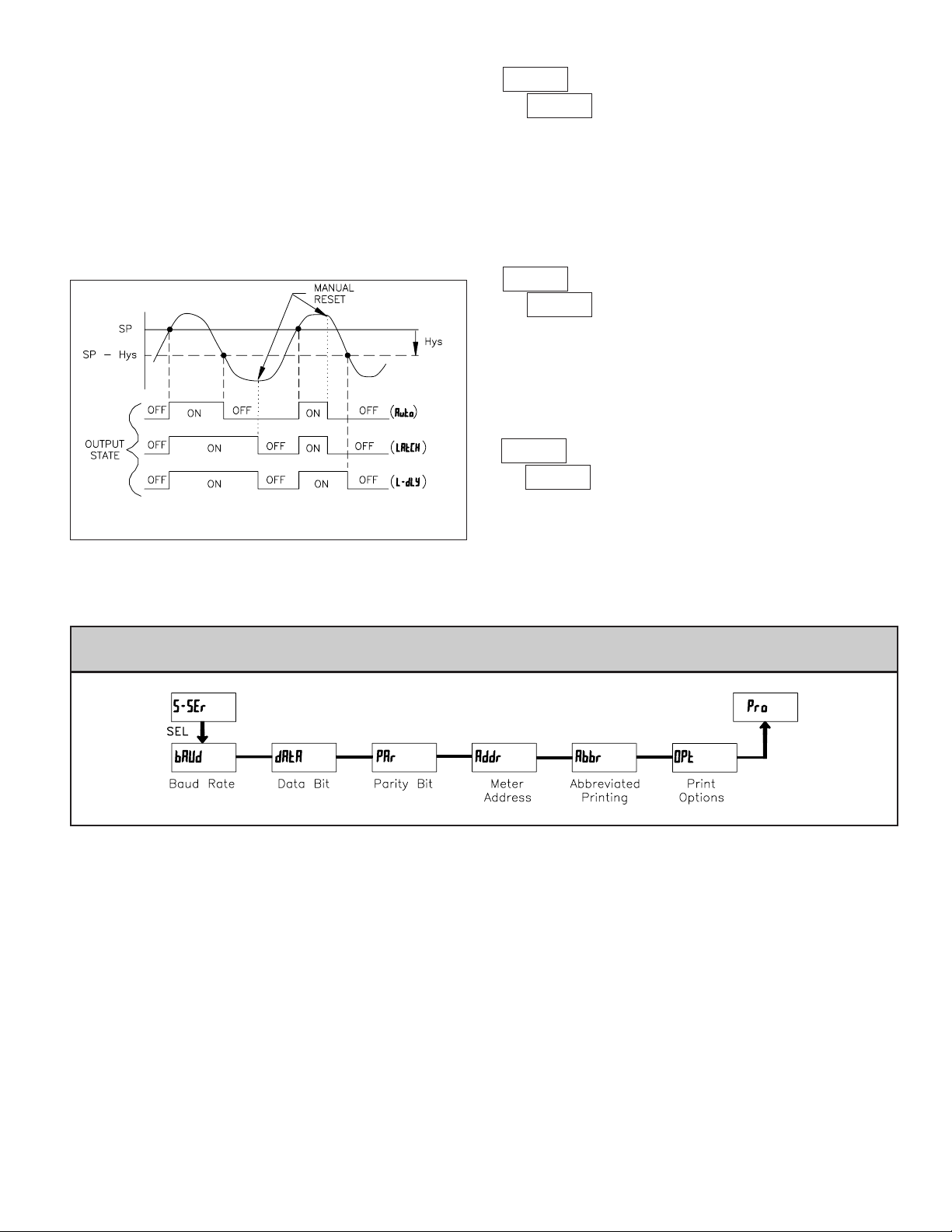

Setpoint Output Reset Actions

This parameter enables the RST button or user input to reset the output when

the display is reset.

Note: For this parameter to operate, the RST button or User Input being used

must be set to dSP and the Input value must be displayed. If these conditions are
not met, the output will not reset.

ª

«

YES

rEn-n

OUTPUT RESET WITH DISPLAY RESET

YESNO

When YES, the output is disabled (after a power up) until the trigger point is

crossed. Once the output is on, the output operates normally per the Setpoint
Action and Output Reset Action.

ª

«

NO

Stb-n

ª

«

NO

ChC-n

STANDBY OPERATION

YESNO

This parameter enables the backlight DP63000 to switch the backlight color

when the output state changes. This parameter is only active for the backlight

CHANGE DISPLAY COLOR w/OUTPUT STATE

YESNO

PROGRAMMING QUICK OVERVIEW

Press and hold SEL button

to enter Programming Mode.

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace
period to the normal one (1) year product warranty to cover handling and shipping time. This ensures
that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon
examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge.
OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but
not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or
unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered
with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat,
moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside
of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact
points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA
neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for consequential,
incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity,
medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth
in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and
hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in
such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR)
NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING
DELAYS). The assigned AR number should then be marked on the outside of the return package and on any
correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our
customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2006 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

FOR WARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product
was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems
relative to the product.

FOR NON-

WARRANTY REPAIRS, consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the

repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems

relative to the product.

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

TEMPERATURE

] Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
] Wire: Thermocouple, RTD & Thermistor
] Calibrators & Ice Point References
] Recorders, Controllers & Process Monitors
] Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

] Transducers & Strain Gages
] Load Cells & Pressure Gages
] Displacement Transducers
] Instrumentation & Accessories

FLOW/LEVEL

] Rotameters, Gas Mass Flowmeters & Flow Computers
] Air Velocity Indicators
] Turbine/Paddlewheel Systems
] Totalizers & Batch Controllers

pH/CONDUCTIVITY

] pH Electrodes, Testers & Accessories
] Benchtop/Laboratory Meters
] Controllers, Calibrators, Simulators & Pumps
] Industrial pH & Conductivity Equipment

DATA ACQUISITION

] Data Acquisition & Engineering Software
] Communications-Based Acquisition Systems
] Plug-in Cards for Apple, IBM & Compatibles
] Datalogging Systems
] Recorders, Printers & Plotters

HEATERS

] Heating Cable
] Cartridge & Strip Heaters
] Immersion & Band Heaters
] Flexible Heaters
] Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

] Metering & Control Instrumentation
] Refractometers
] Pumps & Tubing
] Air, Soil & Water Monitors
] Industrial Water & Wastewater Treatment
] pH, Conductivity & Dissolved Oxygen Instruments

M4486/0108
