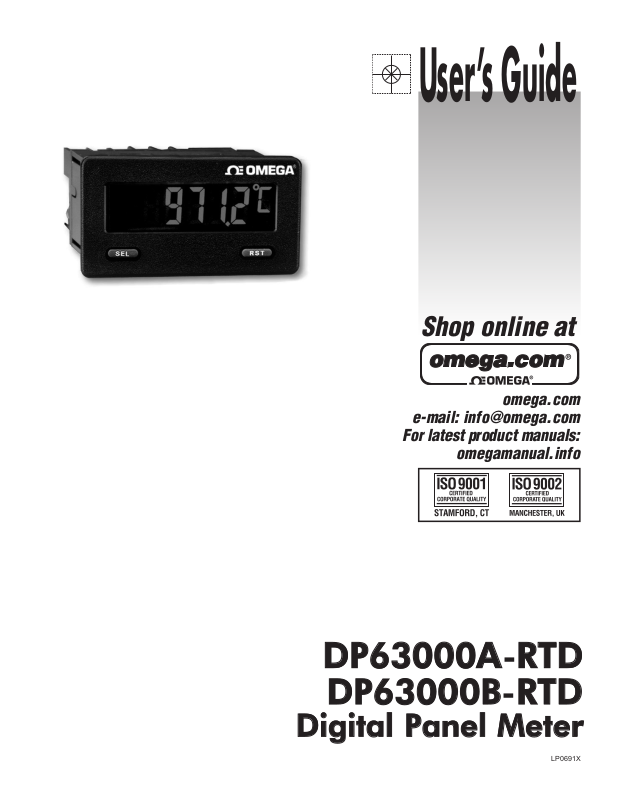

Omega DP63000A-RTD, DP63000B-RTD User guide

LP0691X

User’s Guide

DDPP6633000000AA-RRTTDD

DDPP6633000000BB-RRTTDD

Digital PPanel MMeter

Shop online at

omega.com

e-mail: [email protected]

For latest product manuals:

omegamanual.info

OMEGAnet®Online Service

omega.com

Internet e-mail

[email protected]

Servicing North America:

U.S.A.: One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford, CT 06907-0047

TEL: [phone] FAX: [phone]
e-mail: [email protected]

Canada: 976 Bergar

Laval (Quebec) H7L 5A1, Canada
TEL: [phone] FAX: [phone]
e-mail: [email protected]

For immediate technical or application assistance:

U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA

®

Customer Service: 1-800-622-2378/1-800-622-BEST

®

Engineering Service: 1-800-872-9436/1-800-USA-WHEN

®

Mexico: En Español: [phone]-7803 e-mail: [email protected]

FAX: [phone] [email protected]

Servicing Europe:

Czech Republic: Frystatska 184, 733 01 Karviná, Czech Republic

TEL: [phone] FAX: [phone]
Toll Free: 0800-1-66342
e-mail: [email protected]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

TEL: [phone] FAX: [phone]
Toll Free in Germany: 0800 639 7678
e-mail: [email protected]

United Kingdom: One Omega Drive, River Bend Technology Centre

ISO 9002 Certified Northbank, Irlam, Manchester

M44 5BD United Kingdom
TEL: [phone] FAX: [phone]
Toll Free in United Kingdom: 0800-488-488
e-mail: [email protected]

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.

WARNING : These products are not designed for use in, and should not be used for, human applications.

3

z MINIMUM AND MAXIMUM DISPLAY CAPTURE

z LCD, REFLECTIVE OR GREEN/RED LED BACKLIGHTING

z 0.48" (12.2 mm) HIGH DIGITS

z OPTIONAL SETPOINT OUTPUT MODULES

z OPTIONAL SERIAL COMMUNICATION MODULES (RS232 or RS485)

z OPERATES FROM 9 TO 28 VDC POWER SOURCE

z FRONT PANEL OR SOFTWARE PROGRAMMABLE

z DISPLAY COLOR CHANGE CAPABILITY AT SETPOINT OUTPUT

z NEMA 4X/IP65 SEALED FRONT BEZEL

GENERAL DESCRIPTION

The DP63000 provides the user the ultimate in flexibility, from its complete
user programming to the optional setpoint control and communication
capability. This unit accepts an RTD input and provides a temperature display
in Celcius or Farenheit. The meter also features minimum and maximum
display capture, display offset, °F or °C indicator, and programmable user input.
The display can be toggled either manually or automatically between the
selected displays.

The DP63000 display has 0.48" (12.2 mm) high digits. The LCD is available
in two versions, reflective and red/green backlight. The backlight version is user
selectable for the desired color and also has variable display intensity.

The capability of the DP63000 can be easily expanded with the addition of
option modules. Setpoint capability is field installable with the addition of the
setpoint output modules. Serial communications capability for RS232 or RS485
is added with a serial option module.

The DP63000 can be powered from an optional Power Supply (Model
Number DP6-MLPS1), that attaches directly to the back of a DP63000. The
DP6-MLPS1 is powered from 85 to 250 VAC and provides up to 400 mA to
drive the unit and sensors.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in this
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

Do not use this meter to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the meter.

CAUTION: Risk of Danger.

Read complete instructions prior to

installationand operation of the unit.

CAUTION: Risk of electric shock.

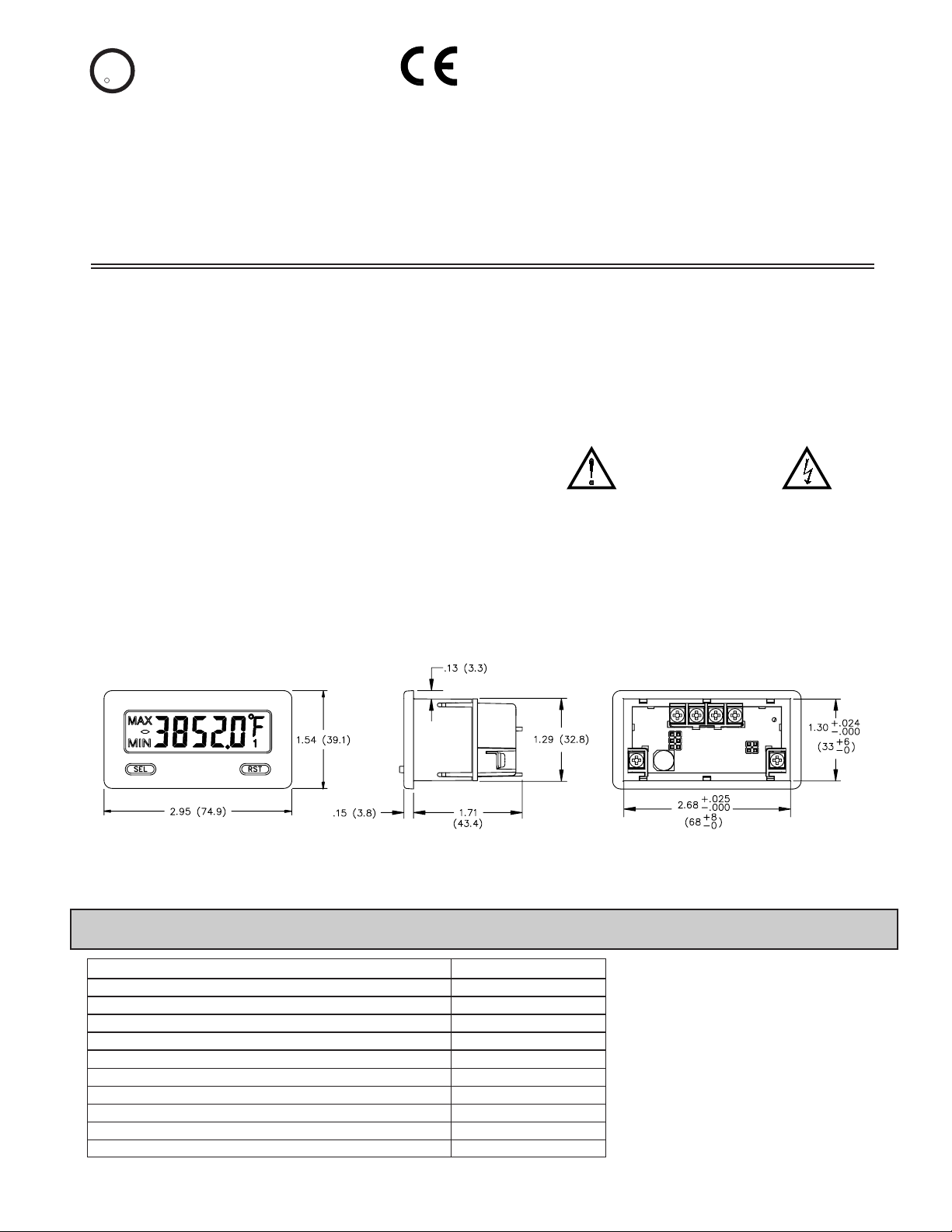

DIMENSIONS In inches (mm)

Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.

C

US LISTED

U

L

R

IND. CONT. EQ.

51EB

z RTD INPUTS

RTD types Pt385, Pt392, Ni672, Cu427

z PROGRAMMABLE TEMPERATURE OFFSET

z SELECTABLE °F or °C WITH 1 or 0.1 DEGREE RESOLUTION

z °F OR °C DISPLAY ANNUNCIATORS

PART NUMBER INFORMATION

DP6-SNK0Dual Sinking Open Collector Output card

DP6-SOFT

DP6-485-CABLERS485 Programming Cable (DB9-RJ11)

DP63000B-RTD

PC Configuration Software for Windows 98, ME, 2000, XP

*

RTD Input Meter with backlight display

DP6-232-CABLE

DP6-RLY0

DP6-MLPS1Micro-Line Power Supply, 85 to 250 VAC

Single Relay Output Card

RS232 Programming Cable (DB9-RJ11)

DP6-COM2RS232 Serial Communications Card

DP6-COM1RS485 Serial Communications Card

DP63000A-RTDRTD Input Meter with reflective display

PART NUMBERDESCRIPTION

1. DISPLAY: 5 digit LCD 0.48" (12.2 mm) high digits

DP63000A-RTD: Reflective LCD with full viewing angle
DP63000B-RTD: Transmissive LCD with selectable red or green LED

backlight, viewing angle optimized. Display color change capability with
output state when using an output module.

2. POWER: Input voltage range is +9 to +28 VDC with short circuit and input

polarity protection. Must use a DP6-MLPS1 or an NEC Class 2 or SELV
rated power supply.

3. READOUT:

Resolution: 1 or 0.1 degrees
Scale: °F or °C
Offset Range: -19999 to 19999 display units

4. RTD INPUTS:
Isolation: Input and EXC terminals are not electrically isolated from the

power supply or optional comms cards.

Response Time: 500 msec.
Failed Sensor Display:

OPEN or Short

Overrange/Underrange Input: OLOL/ULUL
Overrange/Underrange Display : “

.....”/“-.....”

Maximum Input Voltage: 30 VDC
Type: 2, 3 or 4 wire
Excitation current: 100 ohm range: 165 μA

10 ohm range: 2.5 mA

Lead resistance: 100 ohm range: 10 ohm/lead max.

10 ohm range: 3 ohms/lead max.
Balanced Lead Resistance: Automatically compensated up to max per lead.
Unbalanced Lead Resistance: Uncompensated.

*After 20 min. warm-up. Accuracy is specified in two ways: Accuracy at

23°C and 15 to 75% RH environment; and Accuracy over a -35 to 75°C and
0 to 85% RH (non condensing) environment. Accuracy specified over the -35
to 75°C operating range includes meter tempco effects. The specification
includes the A/D conversion errors and linearization conformity. Total system
accuracy is the sum of meter and probe errors. Accuracy may be improved by
field calibrating the meter readout at the temperature of interest.

5. USER INPUT (USR): Programmable input. Connect terminal to common

(USR COMM) to activate function. Internal 10KΩ pull-up resistor to +9 to
28 VDC.
Threshold Levels: V

IL

= 1.0 V max; VIH= 2.4 V min; V

MAX

= 28 VDC

Response Time: 5 msec typ.; 50 msec debounce (activation and release)

6. MEMORY: Nonvolatile E

2

PROM memory retains all programming

parameters and max/min values when power is removed.

7. CONNECTIONS: Wire clamping screw terminals

Wire Strip Length: 0.3" (7.5 mm)
Wire Gage: 30-14 AWG copper wire
Torque: 5 inch-lbs (0.565 N-m) max.

8. ENVIRONMENTALCONDITIONS:
Operating Temperature Range for DP63000A-RTD: -35 to 75°C
Operating Temperature Range for DP63000B-RTD depends on display

color and intensity level as per below:

Storage Temperature: -35 to 85°C
Operating and Storage Humidity: 0 to 85% max. relative humidity (non-

condensing)

Altitude: Up to 2000 meters

9. CERTIFICATIONS AND COMPLIANCES:

SAFETY

UL Recognized Component, File #E313607, UL61010A-1, CSA 22.2 No. 61010-1

Recognized to U.S. and Canadian requirements under the Component
Recognition Program of Underwriters Laboratories, Inc.

UL Listed, File # E313547, UL508, CSA C22.2 No. 14-M95

LISTED by Und. Lab. Inc. to U.S. and Canadian safety standards

Type 4X Indoor Enclosure rating (Face only), UL50

IEC 61010-1, EN 61010-1: Safety requirements for electrical equipment

for measurement, control, and laboratory use, Part 1.

IP65 Enclosure rating (Face only), IEC 529

ELECTROMAGNETIC COMPATIBILITY

Emissions and Immunity to EN 61326: Electrical Equipment for
Measurement, Control and Laboratory use.

Note:

1. Criterion A: Normal operation within specified limits.

Refer to EMC Installation Guidelines for additional information.

10. CONSTRUCTION: This unit is rated for NEMA4X/IP65 requirements for

indoor use. Installation Category I, Pollution Degree 2. High impact plastic
case with clear viewing window. Panel gasket and mounting clip included.

11. WEIGHT: 3.2 oz (100 g)

4

GENERAL METER SPECIFICATIONS

MODEL

NO.

DISPLAYCOLOR

INPUT CURRENT

@ 9 VDC WITHOUT

DP6-RLY0

INPUT CURRENT

@ 9 VDC WITH

DP6-RLY0

DP63000A-RTD --- 10 mA 40 mA
DP63000B-RTD Red (max intensity) 85 mA 115 mA
DP63000B-RTD Green (max intensity) 95 mA 125 mA

TEMPERATURE

1 & 2 -35 to 75°C

3 -35 to 70°C
4 -35 to 60°C
5 -35 to 50°C

1 & 2 -35 to 75°C

3 -35 to 65°C

5

4

-35 to 35°C

-35 to 50°C

INTENSITY LEVEL

Class AEN 55011Emissions

Emissions:

30 A/m

3 V/rms
Criterion A

Criterion A

EN 61000-4-8

EN 61000-4-6RF conducted interference

1 kV L-L,

Criterion AEN 61000-4-5Surge

1 kV signal

2 kV power

Criterion AEN 61000-4-4Fast transients (burst)

2 kV L&N-E power

10 V/m

Criterion AEN 61000-4-3Electromagnetic RF fields

8 kV air discharge

4 kV contact discharge

Criterion AEN 61000-4-2Electrostatic discharge

Immunity to Industrial Locations:

Power frequency magnetic fields

Green Display

Red Display

100 ohm Pt

alpha = .00385

-200 to 850°C 0.4°C 1.6°C IEC 751

100 ohm Pt

alpha = .00392

-200 to 850°C 0.4°C 1.6°C

no official

standard

120 ohm Nickel

alpha = .00672

-80 to 260°C 0.2°C 0.5°C

no official

standard

INPUT TYPE

10 ohm Copper

alpha = .00427

-100 to 260°C 0.4°C 0.9°C

no official

standard

RANGE

ACCURACY*

(18 to 28°C)

ACCURACY*

(0 to 50°C)

STANDARD

5

ADDING OPTION CARDS

The DP63000 meters can be fitted with optional output cards and/or serial
communications cards. The details for the plug-in cards can be reviewed in the
specification section below. The plug-in cards, that are sold separately, can be
installed initially or at a later date.

WARNING: Disconnect all power to the unit before

installing Plug-in card.

SINGLE RELAY CARD

Type: Single FORM-C relay

Isolation To Sensor & User Input Commons : 1400 Vrms for 1 min.

Working Voltage: 150 Vrms

Contact Rating: 1 amp @ 30 VDC resistive; 0.3 amp @ 125 VAC resistive

Life Expectancy: 100,000 minimum operations

Response Time:

Turn On Time: 4 msec max.
Turn Off Time: 4 msec max.

DUAL SINKING OUTPUT CARD

Type: Non-isolated switched DC, N Channel open drain MOSFET
Current Rating: 100 mA max.
V

DS ON

: 0.7 V @ 100 mA

V

DS MAX

: 30 VDC

Offstate Leakage Current: 0.5 mA max.

RS485 SERIAL COMMUNICATIONS CARD

Type: RS485 multi-point balanced interface (non-isolated)

Note: Non-grounded (isolated) RTD probes must be used when multiple units

are connected in an RS485 network, or measurement errors will occur.

Baud Rate: 300 to 38.4k
Data Format: 7/8 bits; odd, even, or no parity
Bus Address: 0 to 99; max 32 meters per line
Transmit Delay: Selectable (refer to DP6-COM bulletin)

RS232 SERIAL COMMUNICATIONS CARD

Type: RS232 half duplex (non-isolated)
Baud Rate: 300 to 38.4k
Data Format: 7/8 bits; odd, even, or no parity

OPTIONAL

PLUG-

IN CARDS

1.0 INSTALLING THE METER

INSTALLATION

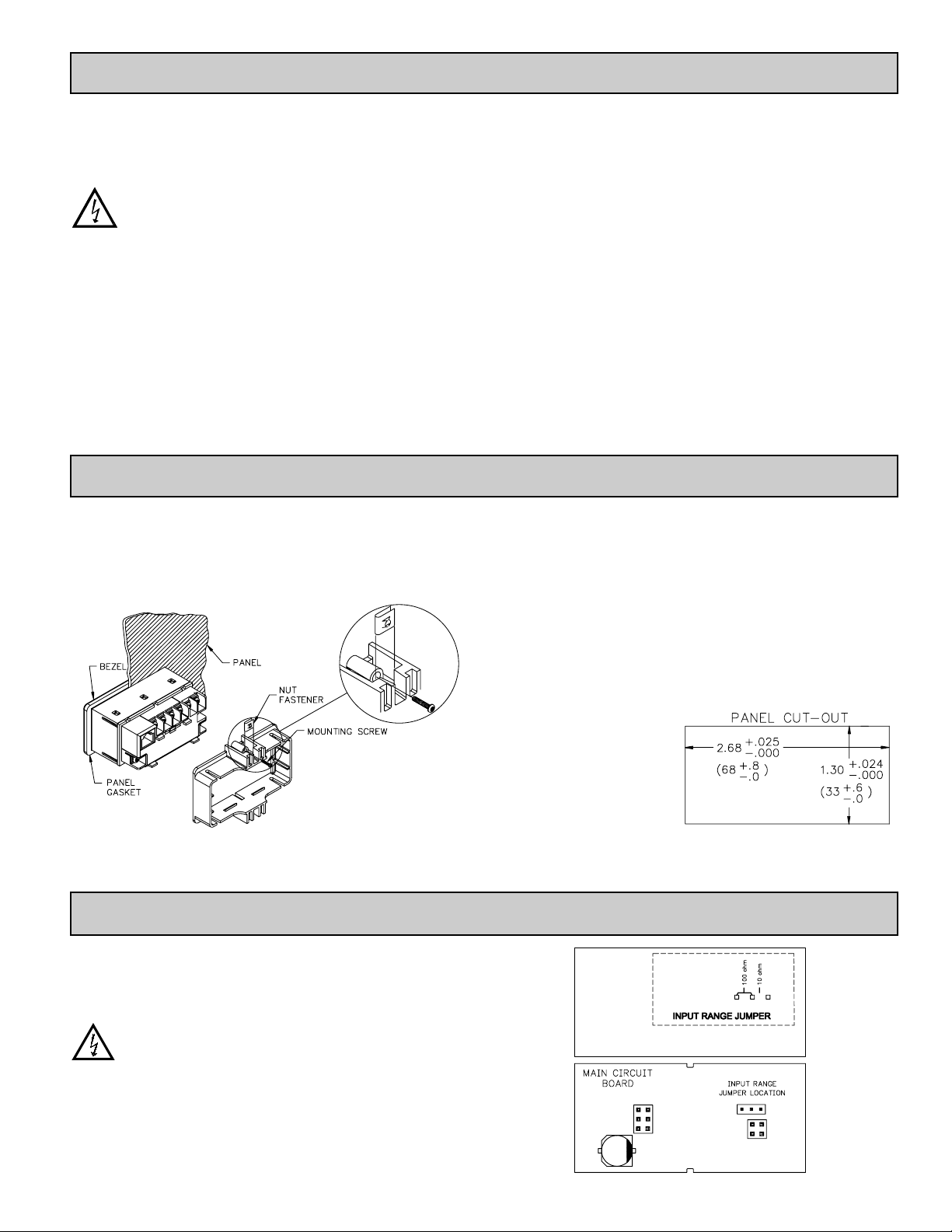

The meter meets NEMA 4X/IP65 requirements when properly installed. The
unit is intended to be mounted into an enclosed panel. Prepare the panel cutout
to the dimensions shown. Remove the panel latch from the unit. Slide the panel
gasket over the rear of the unit to the back of the bezel. The unit should be
installed fully assembled. Insert the unit into the panel cutout.

While holding the unit in place, push the panel latch over the rear of the unit
so that the tabs of the panel latch engage in the slots on the case. The panel latch
should be engaged in the farthest forward slot possible. T o achieve a proper seal,
tighten the latch screws evenly until the unit is snug in the panel (Torque to
approx. 28 to 36 in-oz [0.202 to 0.26 N-m]). Do not over-tighten the screws.

INSTALLATION ENVIRONMENT

The unit should be installed in a location that does not exceed the operating
temperature and provides good air circulation. Placing the unit near devices that
generate excessive heat should be avoided.

The bezel should only be cleaned with a soft cloth and neutral soap product.
Do NOT use solvents. Continuous exposure to direct sunlight may accelerate the
aging process of the bezel.

Do not use tools of any
kind (screwdrivers, pens,
pencils, etc.) to operate the
keypad of the unit.

2.0 SETTING THE JUMPERS

INPUT RANGE JUMPER

This jumper is used to select the proper input range. The input range selected
in programming must match the jumper setting. Select a range that is high
enough to accommodate the maximum input signal to avoid overloads. To
access the jumper, remove the rear cover of the meter.

Warning: Exposed line voltage exists on the circuit boards. Remove

all power to the meter and load circuits before accessing inside of
the meter.

REMOVING THE REAR COVER

To remove the rear cover, locate the cover locking tab below the 2nd and 3rd
input terminals. T o release the tab, insert a small, flat blade screwdriver between
the tab and the plastic wall below the terminals. Inserting the screwdriver will
provide enough pressure to release the tab locks. To replace the cover, align the
cover with the input terminals and press down until the cover snaps into place.

WIRING OVERVIEW

Electrical connections are made via screw-clamp terminals located on the
back of the meter. All conductors should conform to the meter ’s voltage and
current ratings. All cabling should conform to appropriate standards of good
installation, local codes and regulations. It is recommended that the power
supplied to the meter (DC or AC) be protected by a fuse or circuit breaker.

Strip the wire, leaving approximately 0.3" (7.5 mm) bare lead exposed
(stranded wires should be tinned with solder.) Insert the lead under the correct
screw-clamp terminal and tighten until the wire is secure. (Pull wire to verify
tightness.) Each terminal can accept up to one #14 AWG (2.55 mm) wire, two
#18 AWG (1.02 mm), or four #20 AWG (0.61 mm).

EMC INSTALLATION GUIDELINES

Although this meter is designed with a high degree of immunity to Electro­Magnetic Interference (EMI), proper installation and wiring methods must be
followed to ensure compatibility in each application. The type of the electrical
noise, source or coupling method into the meter may be different for various
installations. The meter becomes more immune to EMI with fewer I/O
connections. Cable length, routing, and shield termination are very important
and can mean the difference between a successful or troublesome installation.
Listed below are some EMC guidelines for successful installation in an
industrial environment.

1. The meter should be mounted in a metal enclosure, which is properly

connected to protective earth.

2. Use shielded (screened) cables for all Signal and Control inputs. The shield

(screen) pigtail connection should be made as short as possible. The

connection point for the shield depends somewhat upon the application.

Listed below are the recommended methods of connecting the shield, in order

of their effectiveness.

a. Connect the shield only at the panel where the unit is mounted to earth

ground (protective earth).

b. Connect the shield to earth ground at both ends of the cable, usually when

the noise source frequency is above 1 MHz.

c. Connect the shield to common of the meter and leave the other end of the

shield unconnected and insulated from earth ground.

3. Never run Signal or Control cables in the same conduit or raceway with AC
power lines, conductors feeding motors, solenoids, SCR controls, and
heaters, etc. The cables should be ran in metal conduit that is properly
grounded. This is especially useful in applications where cable runs are long
and portable two-way radios are used in close proximity or if the installation
is near a commercial radio transmitter.

4. Signal or Control cables within an enclosure should be routed as far as possible
from contactors, control relays, transformers, and other noisy components.

5. In extremely high EMI environments, the use of external EMI suppression
devices, such as ferrite suppression cores, is effective. Install them on Signal
and Control cables as close to the unit as possible. Loop the cable through the
core several times or use multiple cores on each cable for additional protection.
Install line filters on the power input cable to the unit to suppress power line
interference. Install them near the power entry point of the enclosure. The
following EMI suppression devices (or equivalent) are recommended:

Ferrite Suppression Cores for signal and control cables:

Fair-Rite # 0443167251)
TDK # ZCAT3035-1330A
Steward # 28B2029-0A0

Line Filters for input power cables:

Schaffner # FN610-1/07
Schaffner # FN670-1.8/07
Corcom # 1 VR3

Note: Reference manufacturer’s instructions when installing a line filter.

6. Long cable runs are more susceptible to EMI pickup than short cable runs.
Therefore, keep cable runs as short as possible.

7. Switching of inductive loads produces high EMI. Use of snubbers across
inductive loads suppresses EMI.

3.0 WIRING THE METER

6

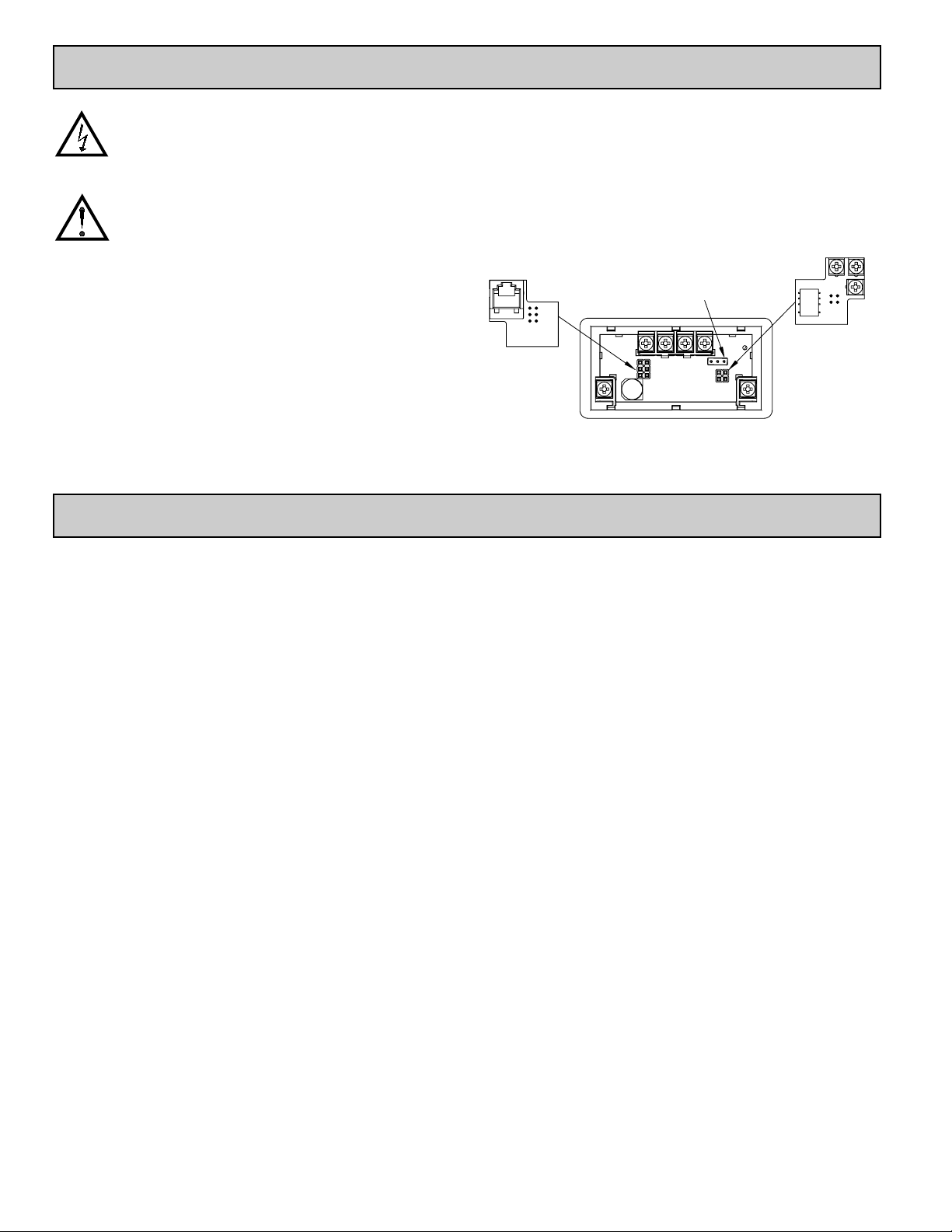

2.0 INSTALLING PLUG-IN CARDS

WARNING: Exposed line voltage exists on the circuit boards.

Remove all power to the meter and load circuits before
accessing inside of the meter.

CAUTION: The Plug-in cards and main circuit board contain static

sensitive components. Before handling the cards, discharge
static charges from your body by touching a grounded bare
metal object. Ideally, handle the cards at a static controlled
clean workstation. Also, only handle the cards by the edges.
Dirt, oil or other contaminants that may contact the cards can
adversely affect circuit operation.

REMOVING THE REAR COVER

To remove the rear cover, locate the cover locking tab below the 2nd and 3rd

input terminals. T o release the tab, insert a small, flat blade screwdriver between
the tab and the plastic wall below the terminals. Inserting the screwdriver will
provide enough pressure to release the tab locks. To replace the cover, align the
cover with the input terminals and press down until the cover snaps into place.

The Plug-in cards are separately purchased option cards that perform specific

functions. The cards plug into the main circuit board of the meter.

Comms Card

Setpoint Card

Range Jumpers

7

3.1 POWER WIRING

DC Power

+9 to +28 VDC: +VDC
Power Common: -VDC

3.2 USER INPUT WIRING

Sinking Logic

USR COMM
USR

The user input of the meter is
internally pulled up to +9 to +28 V
with 10 K resistance. The input is
active when it is pulled low (<0 .7 V).

Connect external switching device between the
User Input terminal and User Input Common.

}

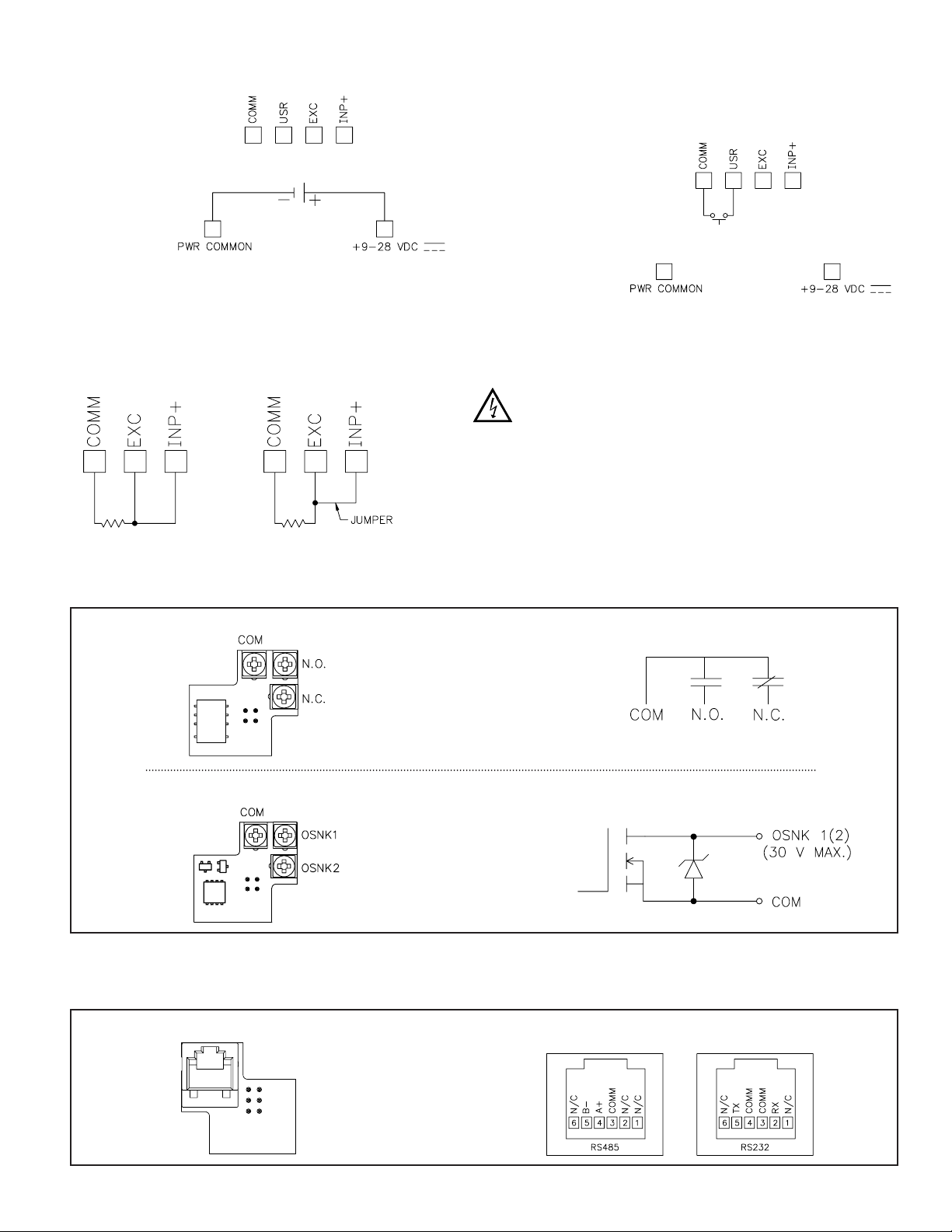

3.3 INPUT WIRING

3.4 SETPOINT (OUTPUT) WIRING

3.5 SERIAL COMMUNICATION WIRING

SINGLE SETPOINT RELAY PLUG-IN CARD

SERIAL COMMUNICATIONS PLUG-IN CARD

RJ11 CONNECTOR PIN OUTS

ELECTRICAL CONNECTIONS

DUAL SETPOINT N-FET OPEN DRAIN PLUG-IN CARD

ELECTRICAL CONNECTIONS

3-WIRE RTD 2-WIRE RTD

CAUTION: Power input common and sensor input common are NOT isolated

from user input common. In order to preserve the safety of the meter
application, the power input common and the sensor input common must

be suitably isolated from hazardous live earth referenced voltages; or
input common must be at protective earth ground potential. If not, hazardous
live voltage may be present at the User Inputs and User Input Common
terminals. Appropriate considerations must then be given to the potential of
the user input common with respect to earth common; and the common of
the isolated plug-in cards with respect to input common.

8

4.0 REVIEWING THE FRONT BUTTONS AND DISPLAY

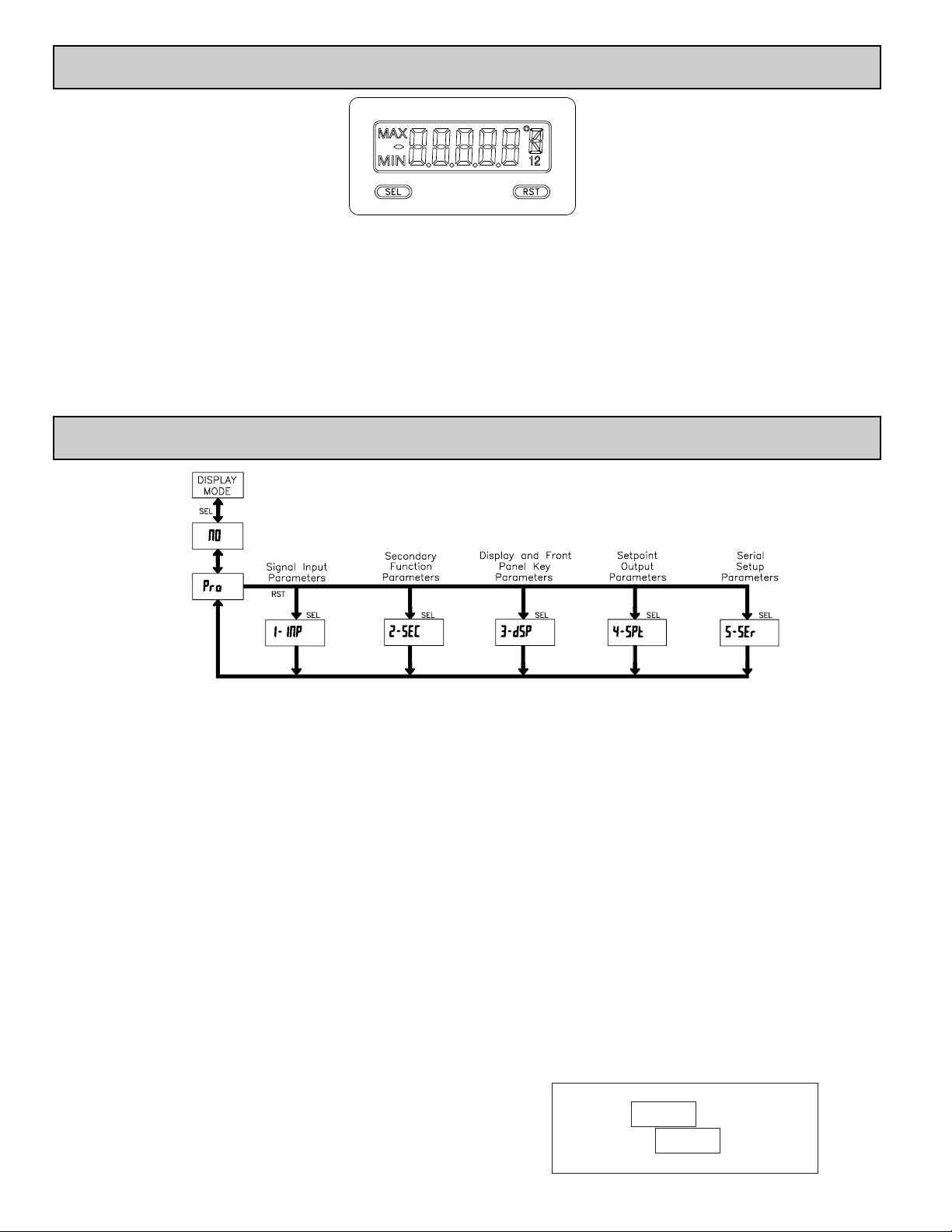

PROGRAMMING MODE ENTRY (SEL BUTTON)

It is recommended that all programming changes be made off line, or before
installation. The meter normally operates in the Display Mode. No parameters
can be programmed in this mode. The Programming Mode is entered by
pressing and holding the

SEL button. If it is not accessible then it is locked by

either a security code, or a hardware lock.

MODULE ENTRY (SEL & RST BUTTONS)

The Programming Menu is organized into separate modules. These modules
group together parameters that are related in function. The display will alternate
between

Pro and the present module. The RST button is used to select the desired

module. The displayed module is entered by pressing the

SEL button.

MODULE MENU (SEL BUTTON)

Each module has a separate module menu (which is shown at the start of each
module discussion). The

SEL button is pressed to advance to a particular

parameter to be changed, without changing the programming of preceding
parameters. After completing a module, the display will return to

Pro NO.

Programming may continue by accessing additional modules.

SELECTION / VALUE ENTRY

For each parameter, the display alternates between the present parameter and
the selections/value for that parameter. The

RST button is used to move through

the selections/values for that parameter. Pressing the

SEL button, stores and

activates the displayed selection/value. This also advances the meter to the next
parameter.

For numeric values, press the

RST button to access the value. The right hand

most digit will begin to flash. Pressing the

RST button again increments the

digit by one or the user can hold the

RST button and the digit will automatically

scroll. The

SEL button will advance to the next digit. Pressing and holding the

SEL button will enter the value and move to the next parameter.

PROGRAMMING MODE EXIT (SEL BUTTON)

The Programming Mode is exited by pressing the SEL button with Pro NO
displayed. This will commit any stored parameter changes to memory and
return the meter to the Display Mode. (If power loss occurs before returning to
the Display Mode, verify recent parameter changes.)

PROGRAMMING TIPS

It is recommended to start with Module 1 and proceed through each module
in sequence. When programming is complete, it is recommended to record the
parameter programming and lock out parameter programming with the user
input or programming security code.

FACTORY SETTINGS

Factory Settings may be completely restored in Module 2. This is useful
when encountering programming problems.

Pressing both the

SEL and the RST button on power-up will also load the

factory settings and display

rESEt. This allows operation in the event of a

memory failure or corrupted data.

ALTERNATING SELECTION DISPLAY

In the explanation of the modules, the following dual display with arrows will
appear. This is used to illustrate the display alternating between the parameter
on top and the parameter’s Factory Setting on the bottom. In most cases,
selections and values for the parameter will be listed on the right.

5.0 PROGRAMMING THE METER

OVERVIEW

PROGRAMMING MENU

Indicates Program Mode Alternating Display

Factory Settings are shown.

Parameter

Selection/Value

BUTTON DISPLAY MODE OPERATION ENTERING PROGRAM MODE PROGRAMMING MODE OPERATION

SEL Index display through enabled values Press and hold for 2 seconds to activate Store selected parameter and index to next parameter
RST Resets values (MIN / MAX) or outputs

Advances through the program menu
Increments selected parameter value or selection

OPERATING MODE DISPLAY DESIGNATORS

MAX - Maximum display capture value
MIN - Minimum display capture value

“1” - To the right of the display indicates setpoint 1 output activated.

“2” - To the right of the display indicates setpoint 2 output activated.

Pressing the SEL button toggles the meter through the selected displays. If display scroll is enabled, the display will toggle automatically every four seconds between

the enabled display values.

ª

«

N0

USrIN

9

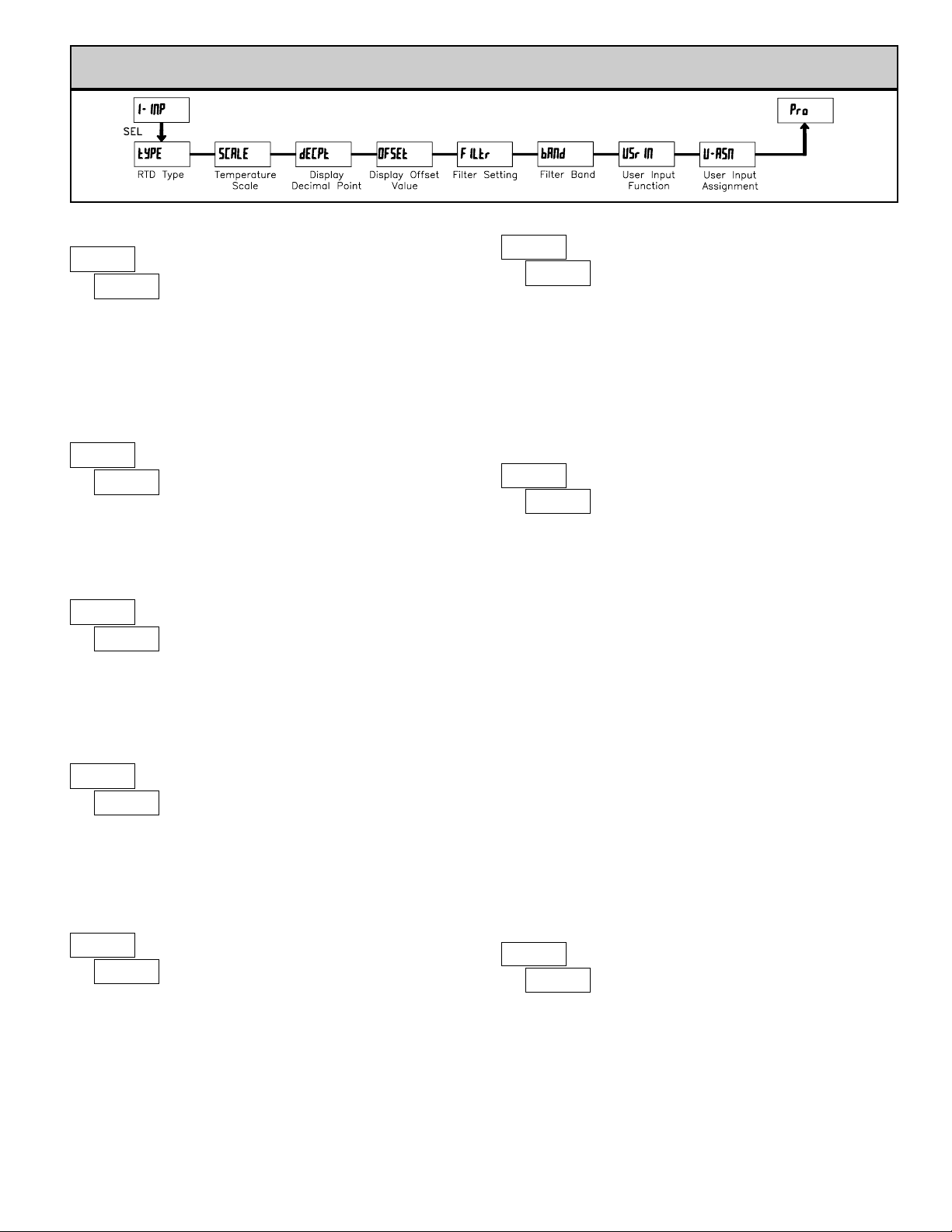

5.1 MODULE 1 - SIGNAL INPUT

PARAMETERS (

1-INP)

PARAMETER MENU

ª

«

Pt385

tYPE

RTD TYPE

ª

«

0

dECPt

0.00

DISPLAY DECIMAL POINT

Select the decimal point location for the desired display resolution. This

selection applies for the Input, MAX and MIN displays.

ª

«

1

FILtr

FILTER SETTING

If the displayed temperature is difficult to read due to small process
variations or noise, increased levels of filtering will help to stabilize the display.
Software filtering effectively combines a fraction of the current input reading
with a fraction of the previous displayed reading to generate the new display.

Filter values represent no filtering (0), up to heavy filtering (3). Avalue of 1
for the filter uses 1/4 of the new input and 3/4 of the previous display to
generate the new display. A filter value of 2 uses 1/8 new and 7/8 previous. A
filter value of 3 uses 1/16 new and 15/16 previous.

0,1 2 3

ª

«

10

bANd

FILTER BAND

The filter will adapt to variations in the input signal. When the variation
exceeds the input filter band value, the filter disengages. When the variation
becomes less than the band value, the filter engages again. This allows for a
stable readout, but permits the display to settle rapidly after a large process
change. The value of the band is in display units, independent of the Display
Decimal Point position. A band setting of ‘0’ keeps the filter permanently
engaged at the filter level selected in the previous parameter.

00 to 199 display units

Select the RTD type used for the application. The appropriate curve will be
automatically loaded for the selected type. The position of the Input Range
Jumper must match the RTD type selected.

ª

«

°F

SCALE

TEMPERATURE SCALE

Select the temperature scale. This selection applies for the Input, MAX and
MIN displays.

°C°F

RANGE JUMPERSTYPESELECTION

10 ohm

RTD Copper 10 Ω

Cu427

100 ohmRTD Nickel 672

Ni672

100 ohmRTD Platinum 392

Pt392

100 ohmRTD Platinum 385

Pt385

ª

«

0

OFSEt

DISPLAY OFFSET VALUE

The temperature display can be corrected with an offset value. This can be
used to compensate for probe errors, errors due to variances in probe placement
or adjusting the readout to a reference thermometer.

-19999 to 19999

USER INPUT FUNCTION

ª

«

NO

USrIN

Setpoint 1 and 2 Reset

Setpoint 1 Reset

Setpoint 2 Reset

Print and Reset

Reset both setpoint 1 and 2 outputs.

Resets setpoint 1 output.

Resets setpoint 2 output.

Same as Print Request followed by a
momentary reset of the assigned value(s).

rSt12

rSt-1
rSt-2

P-r5t

Print Request

Serial transmit of the active parameters
selected in the Print Options menu
(Module 5).

Print

Select the value(s) to which the User Input Function is assigned. The User
Input Assignment only applies if a selection of reset, display hold, or print and
reset is selected in the User Input Function menu.

USER INPUT ASSIGNMENT

ª

«

dSP

U-ASN

dSP

HI-LO

LO

HI

MODE

Reset (Edge triggered)

Program Mode Lock-out

No Function

DESCRIPTIONDISPLAY

Display Select
(Edge Triggered)

Advance once for each activation.

d-SEL

Backlight Color
(Edge Triggered)

Change backlight color with each
activation (backlight version only).

COLOr

Display Intensity Level
(Edge Triggered)

Increase intensity one level for each
activation (backlight version only).

d-LEV

Display Hold

Holds the assigned display, but all other
meter functions continue as long as
activated (maintained action).

Resets the assigned value(s) to the
current input value.

rESEt

d-HLd

See Programming Mode Access chart
(Module 3).

P-Loc

User Input disabled.

NO

10

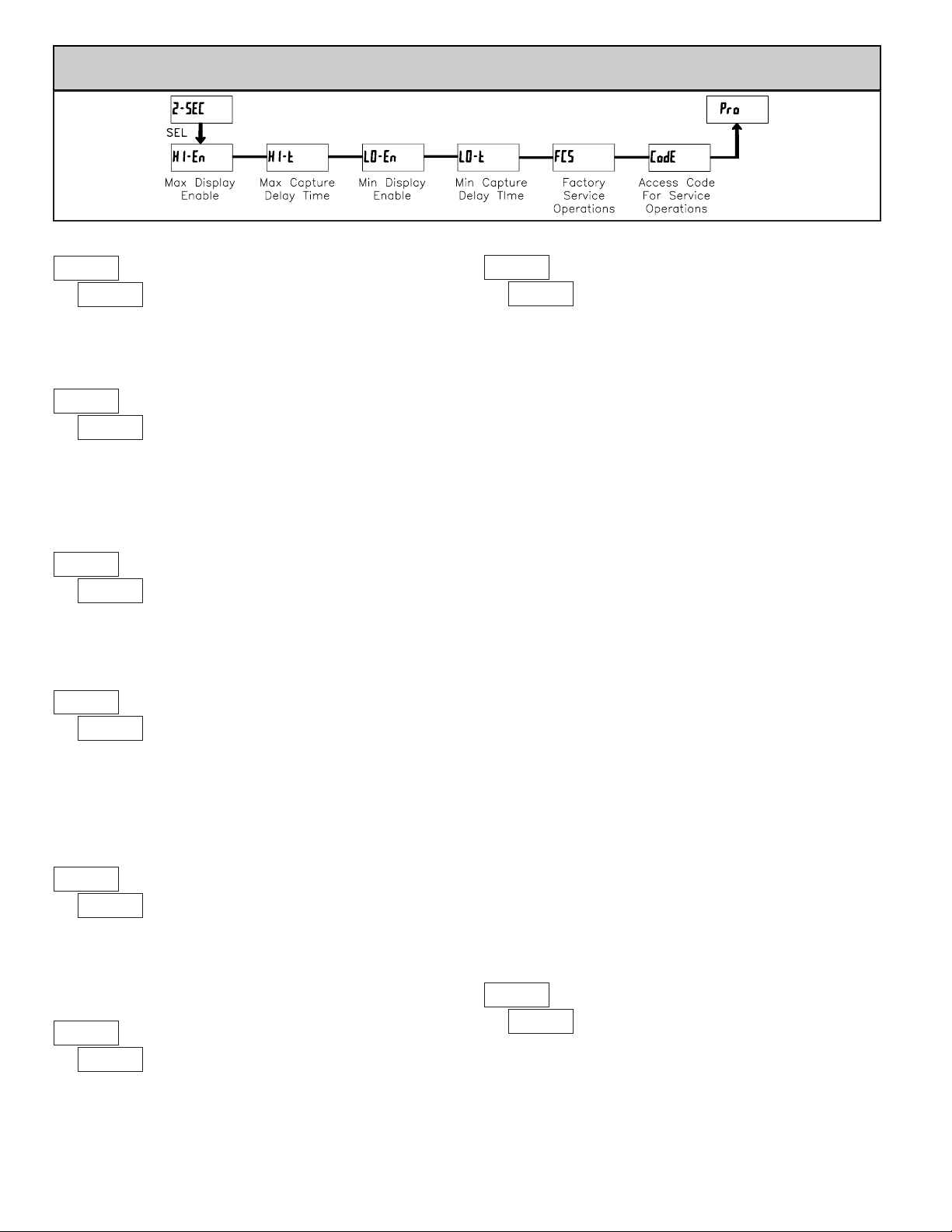

5.2 MODULE 2 - SECONDARY FUNCTION PARAMETERS (2-SEC)

PARAMETER MENU

MIN DISPLAY ENABLE

YESNO

ª

«

2.0

HI-t

ª

«

NO

LO-En

ª

«

NO

FCS

MAX CAPTURE DELAY TIME

When the Input Display is above the present MAX value for the entered
delay time, the meter will capture that display value as the new MAX reading.
A delay time helps to avoid false captures of sudden short spikes.

ª

«

2.0

LO-t

MIN CAPTURE DELAY TIME

When the Input Display is below the present MIN value for the entered delay
time, the meter will capture that display value as the new MIN reading. Adelay
time helps to avoid false captures of sudden short spikes.

0.0 to 999.9 sec.

ª

«

NO

HI-En

MAX DISPLAY ENABLE

0.0 to 999.9 sec.

Select YES to perform any of the Factory Service Operations shown below.

FACTORY SERVICE OPERATIONS

yESNO

YESNO

Enables the Maximum Display Capture capability.

Enables the Minimum Display Capture capability.

The unit uses stored resistance calibration values to
provide accurate temperature measurements. Over time,
the electrical characteristics of the components inside the
meter could slowly change. The result is that the stored
calibration values may no longer accurately define the

input circuit. For most applications, recalibration every 1 to 2 years should be
sufficient.

Calibration of the unit involves a resistance calibration. Allow 30 minute
warm up before performing any calibration related procedure. The following
procedures should be performed at an ambient temperature of 15 to 35 °C (59
to 95 °F).

Calibration should only be performed by individuals experienced in
calibrating electronic equipment.

CAUTION: The accuracy of the calibration equipment will directly affect the

accuracy of the unit.

10 OHM RTD Range Calibration

1. Set the Input Range Jumper to 10 ohm.

2. With the display at

CodE 48, press and hold the SEL button for 2 seconds. Unit

will display

CAL NO.

3. Press the

RST button. Display reads CAL r10.

4. Press the

SEL button. Display reads 00r.

5. Apply a direct short to terminals INP+, EXC, and COMM using a three wire

link. Press

SEL. Display reads CALC for about 15 seconds.

6. When the display reads

15.0r, apply a precision resistance of 15 ohms (with an

accuracy of 0.01% or better) to terminals INP+, EXC, and COMM using a

three wire link. Press

SEL. Display reads CALC for about 15 seconds.

7. When display reads

CAL NO, press the SEL button to exit calibration, or

proceed to the 100 ohm RTD Range Claibration.

100 OHM RTD Range Calibration

1. Set the Input Range Jumper to 100 ohm.

2. With the display at

CodE 48, press and hold the SEL button for 2 seconds. Unit

will display

CAL NO.

3. Press the

RST button until the display reads CAL r100.

4. Press the

SEL button. Display reads 0.0r.

5. Apply a direct short to terminals INP+, EXC, and COMM using a three wire

link. Press

SEL. Display reads CALC for about 15 seconds.

6. When the display reads

300.0r, apply a precision resistance of 300 ohms (with

an accuracy of 0.01% or better) to terminals INP+, EXC, and COMM using

a three wire link. Press

SEL. Display reads CALC for about 15 seconds.

7. When display reads

CAL NO, press the SEL button to exit calibration.

CALIBRATION

ª

«

48

CodE

RESTORE FACTORY DEFAULT SETTINGS

Entering Code 66 will overwrite all user settings with

the factory settings. The meter will display

rESEt and then

return to

CodE 00. Press SEL button to exit the module.

Pressing both the SEL and the RST button on power-up

will also load the factory settings and display

rESEt. This allows operation in

the event of a memory failure or corruted data.

ª

«

66

CodE

RESISTANCE DISPLAY MODE

Entering Code 85 will place the unit in a resistance
display mode. This mode is useful for diagnostic purposes
before and after calibration, or to display the measured
resistance of a connected RTD probe. If the RTD type is set

for

Cu427 with the jumper set to the 10 ohm position, the display will read

resistance in

0.000 ohms resolution. For all other RTD types, with the jumper in

the 100 ohm position, the display will read in

0.00 ohms resolution.

Re-entering code 85 toggles the display back to the temperature display mode
without having to remove power from the meter. If power is removed, the
display always returns to the temperature display mode when power is reapplied.

ª

«

85

CodE

11

The Security Code determines the programming mode and the accessibility
of programming parameters. This code can be used along with the Program
Mode Lock-out (

P-Loc) in the User Input Function parameter (Module 1).

Two programming modes are available. Full Programming mode allows all
parameters to be viewed and modified. Quick Programming mode permits only
the Setpoint values to be modified, but allows direct access to these values
without having to enter Full Programming mode.

Programming a Security Code other than 0, requires this code to be entered
at the

CodE prompt in order to access Full Programming mode. Depending on the

code value, Quick Programming may be accessible before the

CodE prompt

appears (see chart).

PROGRAMMING SECURITY CODE

000 to 999

USER INPUT

FUNCTION

USER INPUT

STATE

SECURITY

CODE

MODE WHEN “SEL”

BUTTON IS PRESSED

FULL PROGRAMMING

MODE ACCESS

0 Full Programming Immediate Access

not P-Loc

______

1-99 Quick Programming

100-999

CodE prompt

With correct code entry

at

CodE prompt *

0 Programming Lock No Access

Active

1-99 Quick Programming No Access

P-Loc

100-999

CodE prompt

With correct code entry

at

CodE prompt *

Not Active 0-999 Full Programming Immediate Access

* Entering Code 222 allows access regardless of security code.

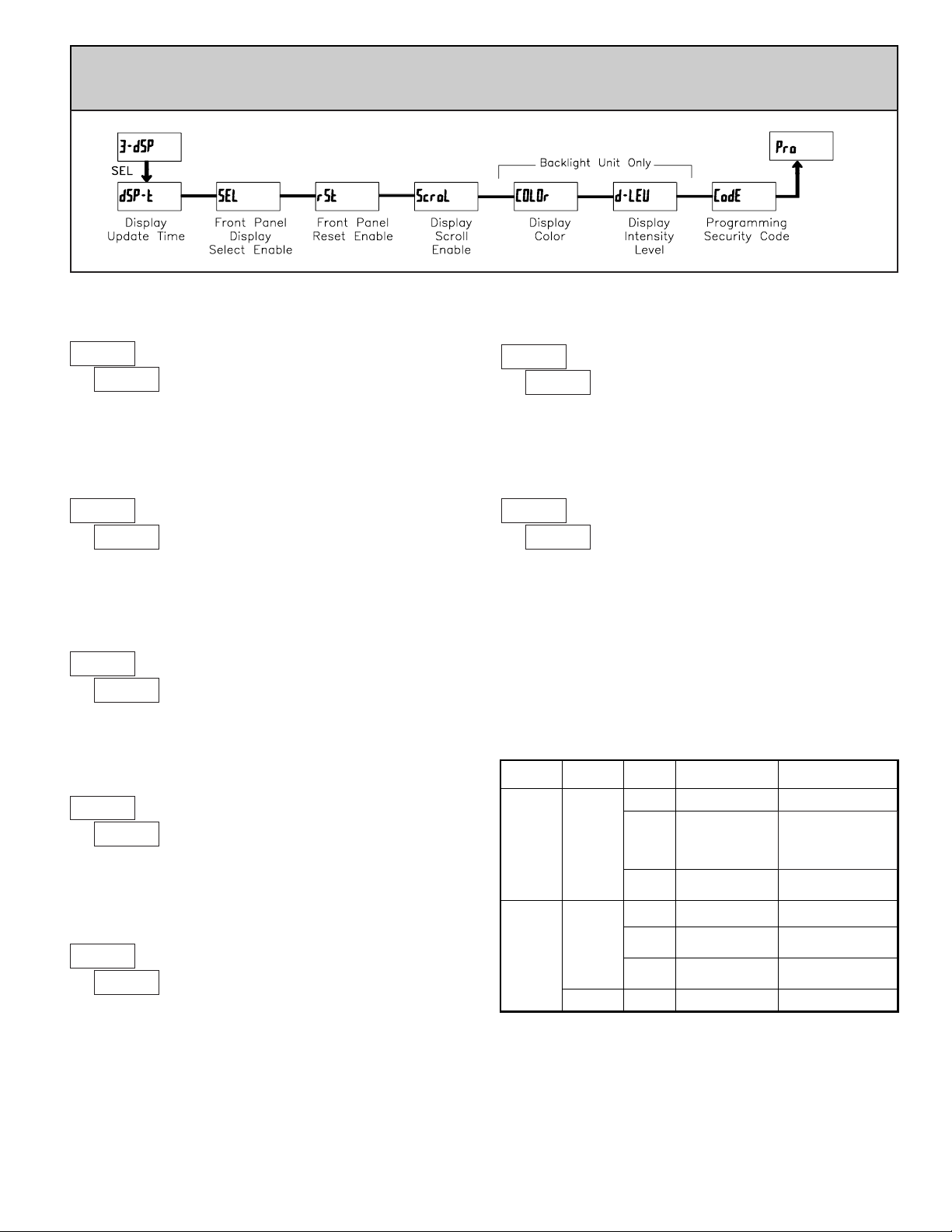

5.3 MODULE 3 - DISPLAY AND F

RONT PANEL B

UTTON

PARAMETERS (3-dSP)

PARAMETER MENU

The yES selection allows the SEL button to toggle through the enabled

displays.

FRONT PANEL DISPLAY SELECT ENABLE (SEL)

This selection allows the RST button to reset the selected value(s).

FRONT PANEL RESET ENABLE (RST)

The yES selection allows the display to automatically scroll through the

enabled displays. The scroll rate is every 4 seconds.

DISPLAY SCROLL ENABLE

NOyES

dSPNO

HI

LO
HI-LO

NOyES

Enter the desired display color, red or green. This parameter is active for

backlight units only.

DISPLAY COLOR (BACKLIGHT UNIT ONLY)

6rnrEd

Enter the desired Display Intensity Level (1-5). The display will actively dim
or brighten as levels are changed. This parameter is active for backlight units only .

DISPLAY INTENSITY LEVEL (BACKLIGHT UNIT ONLY)

1 to 5

ª

«

1

dSP-t

ª

«

yES

SEL

ª

«

dSP

rSt

ª

«

NO

ScroL

ª

«

rEd

COLOr

ª

«

5

d-LEV

ª

«

000

CodE

DISPLAY UPDATE TIME

This parameter sets the display update time in seconds.

10.5 2

seconds

After Quick

Programming with

correct code entry at

CodE prompt *

12

SETPOINT VALUE

Enter the desired setpoint value. The decimal point position for the setpoint

and hysteresis values follow the selection set in Module 1.

-9999 to 99999

5.4 MODULE 4 - SETPOINT OUTPUT PARAMETERS (4-SPt)

PARAMETER MENU

The Setpoint Output Parameters are only active when an optional output

module is installed in the meter.

Enter the setpoint (output) to be programmed. The

n in the following

parameters will reflect the chosen setpoint number. After the chosen setpoint
is completely programmed, the display will return to

SPSEL. Repeat steps for

each setpoint to be programmed. Select

NO to exit the module. The number of

setpoints available is setpoint output card dependent.

SETPOINT SELECT

SP-2SP-1NO

ª

«

NO

SPSEL

Select YES to enable Setpoint 2 and access the setup parameters. If NO is
selected, the unit returns to

SPSELand setpoint 2 is disabled.

SETPOINT 2 ENABLE

NOYES

ª

«

NO

Enb-2

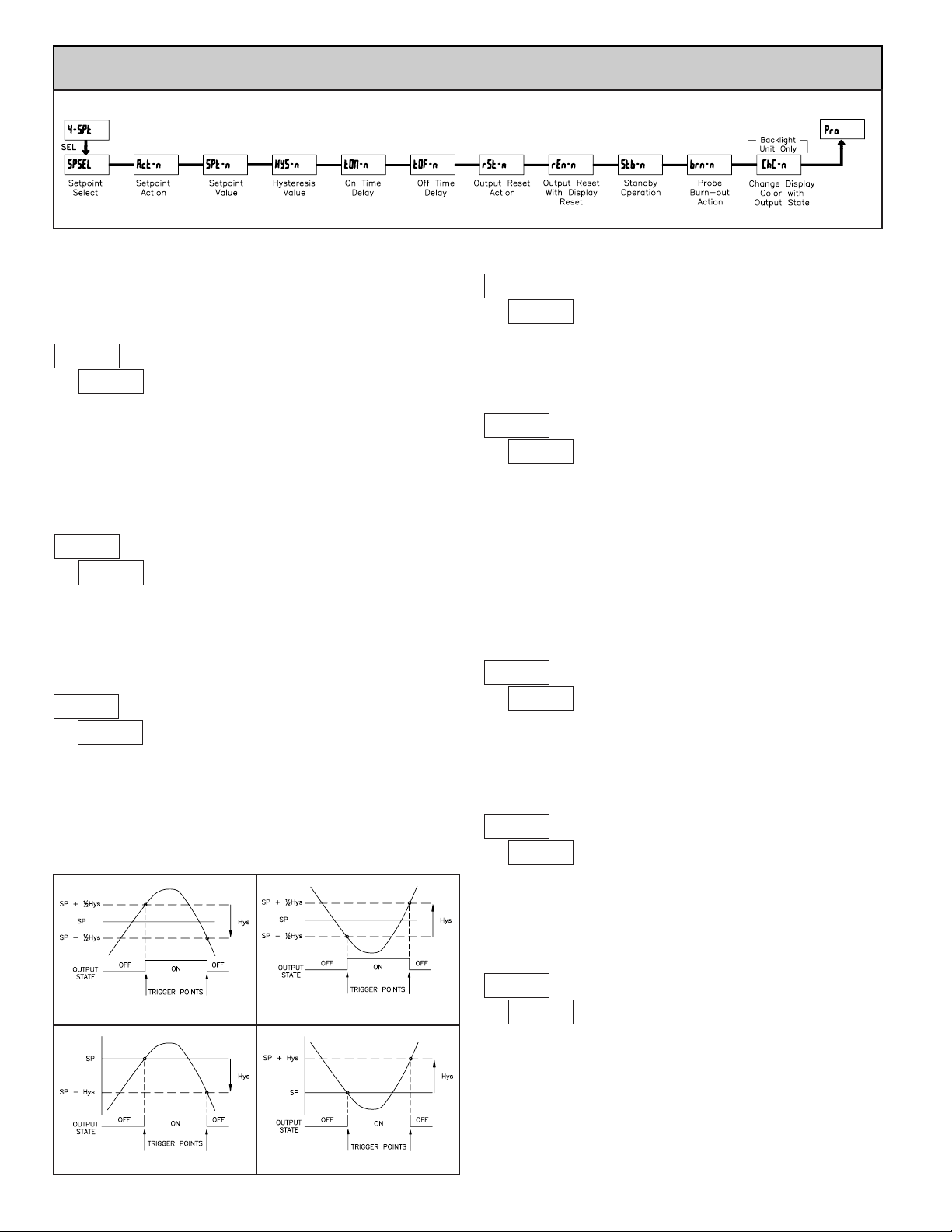

Enter the action for the selected setpoint (output). See Setpoint Output
Figures for a visual detail of each action.

SETPOINT ACTION

ª

«

HI-Ub

Act-n

ª

«

100

SPt-n

LO-UbHI-UbLO-bL

HI-bL

LO-Ub

=

HI-Ub

=

LO-bL

=

HI-bL

=

Low Acting, with unbalanced hysteresis

High Acting, with unbalanced hysteresis

Low Acting, with balanced hysteresis

High Acting, with balanced hysteresis

High Acting (Balanced Hys) = HI-bL

Low Acting (Unbalanced Hys) = LO-Ub

Low Acting (Balanced Hys) = LO-bL

High Acting (Unbalanced Hys) = HI-Ub

ª

«

2

HYS-n

HYSTERESIS VALUE

1 to 59999

Enter desired hysteresis value. See Setpoint Output Figures for visual
explanation of how setpoint output actions (balanced and unbalanced) are
affected by the hysteresis. When the setpoint is a control output, usually
balanced hysteresis is used. For alarm applications, usually unbalanced
hysteresis is used. For unbalanced hysteresis modes, the hysteresis functions on
the low side for high acting setpoints and functions on the high side for low
acting setpoints.

Note: Hysteresis eliminates output chatter at the switch point, while time delay

can be used to prevent false triggering during process transient events.

ª

«

0.0

tOF-n

ª

«

0.0

tON-n

OFF TIME DELAY

ON TIME DELAY

OUTPUT RESET ACTION

LAtCHAuto L-dLY

0.0 to 599.9 Sec

0.0 to 599.9 Sec

Enter the time value in seconds that the output is delayed from turning on
after the trigger point is reached. Avalue of 0.0 allows the meter to update the
output status per the response time listed in the Specifications.

Enter the time value in seconds that the output is delayed from turning off
after the trigger point is reached. Avalue of 0.0 allows the meter to update the
output status per the response time listed in the Specifications.

Enter the reset action of the output. See figure for details.

Auto = Automatic action; This action allows the output to automatically reset off

at the trigger points per the Setpoint Action shown in Setpoint Output

Figures. The “on” output may be manually reset (off) immediately by the

front panel RST button or user input.The output remains off until the trigger

point is crossed again.

LAtCH = Latch with immediate reset action; This action latches the output on at

the trigger point per the Setpoint Action shown in Setpoint Output Figures.

Latch means that the output can only be turned off by the front panel RST

button or user input manual reset, serial reset command or meter power cycle.

ª

«

Auto

rSt-n

13

5.5 MODULE 5 - S

ERIAL

SETUP

PARAMETERS (

5-SSEr

)

Enter the probe burn-out action. In the event of a temperature probe failure

(open or short), the output can be programmed to be on or off.

PROBE BURN-OUT ACTION

ONOFF

This parameter enables the backlight DP63000B-RTD to switch the backlight
color when the output state changes. This parameter is only active for the
backlight version.

CHANGE DISPLAY COLOR w/OUTPUT STATE

YESNO

The Serial Setup Parameters are only active when the optional RS232 or RS485 serial communications module is installed in the meter. Refer to the DP6-COM

bulletin for complete details on DP63000 serial communications.

PARAMETER MENU

This parameter enables the RST button or user input to reset the output when

the display is reset.

Note: For this parameter to operate, the

RST button or User Input being used

must be set to

dSP and the Input value must be displayed. If these conditions are

not met, the output will not reset.

ª

«

YES

rEn-n

OUTPUT RESET WITH DISPLAY RESET

YESNO

When YES, the output is disabled (after a power up) until the trigger point is
crossed. Once the output is on, the output operates normally per the Setpoint
Action and OutputReset Action.

ª

«

NO

Stb-n

STANDBY OPERATION

YESNO

When the user input or RST button is activated (momentary action), the
corresponding “on” output is reset immediately and remains off until the
trigger point is crossed again. (Previously latched alarms will be off if power
up Display Value is lower than setpoint value.)

L-dLY = Latch with delay reset action; This action latches the output on at the

trigger point per the Setpoint Action shown in Setpoint Output Figures. Latch
means that the output can only be turned off by the front panel RST button
or user input manual reset, serial reset command or meter power cycle. When
the user input or RST button is activated (momentary action), the meter
delays the event until the corresponding “on” output crosses the trigger off
point. (Previously latched outputs are off if power up Display Value is lower
than setpoint value. During a power cycle, the meter erases a previous L-dLY
reset if it is not activated at power up.)

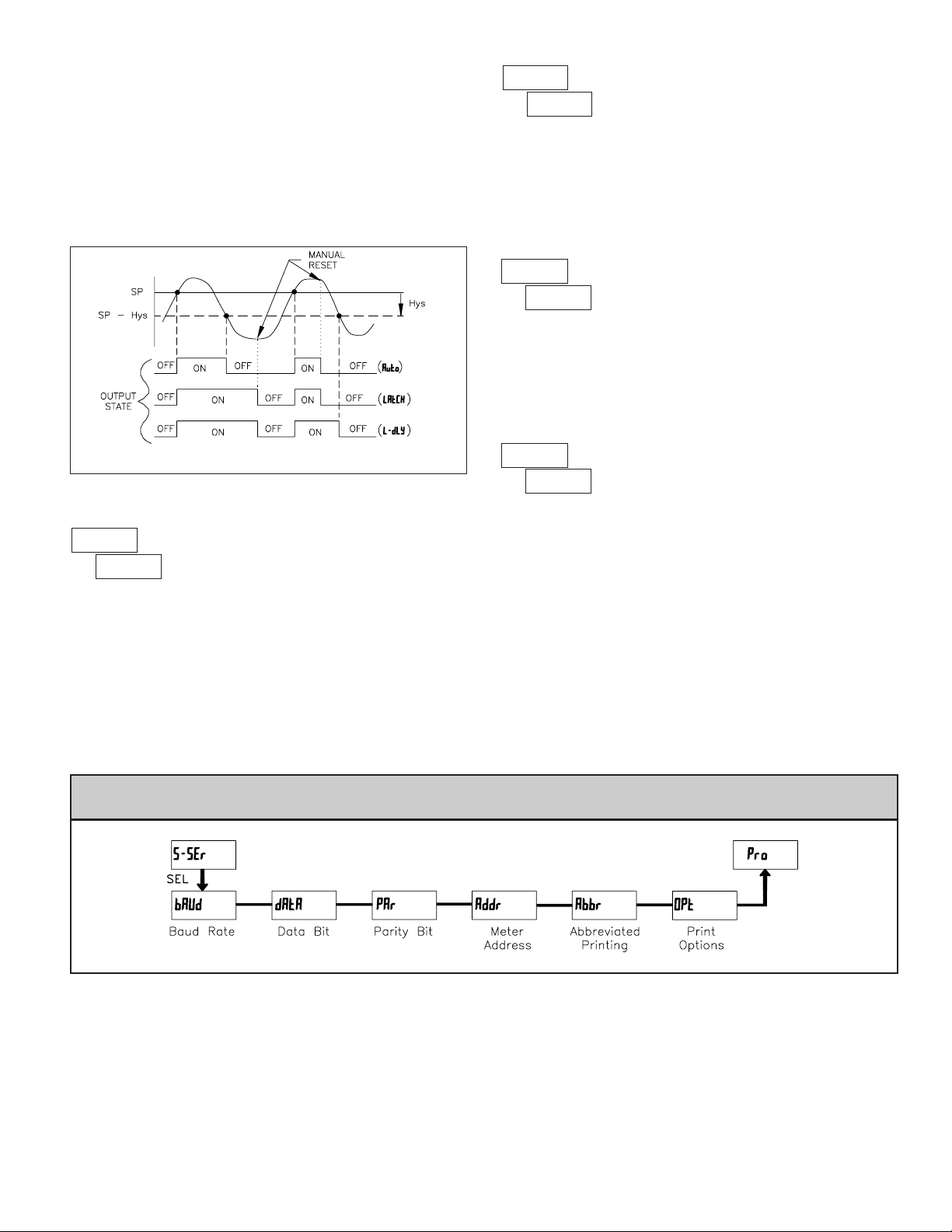

Setpoint Output Reset Actions

ª

«

NO

ChC-n

ª

«

OFF

brn-n

PROGRAMMING QUICK OVERVIEW

Press and hold SEL button

to enter Programming Mode.

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace
period to the normal one (1) year product warranty to cover handling and shipping time. This ensures
that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon
examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge.
OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but
not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or
unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered
with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat,
moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside
of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact
points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA
neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for consequential,
incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity,
medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth
in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and
hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in
such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR)
NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING
DELAYS). The assigned AR number should then be marked on the outside of the return package and on any
correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our
customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2006 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

FOR WARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product
was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems
relative to the product.

FOR NON-

WARRANTY REPAIRS, consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the

repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems

relative to the product.

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

TEMPERATURE

] Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
] Wire: Thermocouple, RTD & Thermistor
] Calibrators & Ice Point References
] Recorders, Controllers & Process Monitors
] Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

] Transducers & Strain Gages
] Load Cells & Pressure Gages
] Displacement Transducers
] Instrumentation & Accessories

FLOW/LEVEL

] Rotameters, Gas Mass Flowmeters & Flow Computers
] Air Velocity Indicators
] Turbine/Paddlewheel Systems
] Totalizers & Batch Controllers

pH/CONDUCTIVITY

] pH Electrodes, Testers & Accessories
] Benchtop/Laboratory Meters
] Controllers, Calibrators, Simulators & Pumps
] Industrial pH & Conductivity Equipment

DATA ACQUISITION

] Data Acquisition & Engineering Software
] Communications-Based Acquisition Systems
] Plug-in Cards for Apple, IBM & Compatibles
] Datalogging Systems
] Recorders, Printers & Plotters

HEATERS

] Heating Cable
] Cartridge & Strip Heaters
] Immersion & Band Heaters
] Flexible Heaters
] Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

] Metering & Control Instrumentation
] Refractometers
] Pumps & Tubing
] Air, Soil & Water Monitors
] Industrial Water & Wastewater Treatment
] pH, Conductivity & Dissolved Oxygen Instruments

M4484/0607
