DP6000 Process Meter Instruction Manual

Page 3

DP6000 Process Meter Instruction Manual

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 37 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal three (3) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product. If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

RETURN REQUEST/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence. The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:

1. Purchase Order number under which the product was PURCHASED,

2. Model and serial number of the product under warranty, and

3. Repair instructions and/or specific problems relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.

© Copyright 2012 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

ARRANTY/DISCLAIMER

FOR NON-WARRANTY REPAIRS, consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems relative to the product.

Page 4

DP6000 Process Meter Instruction Manual

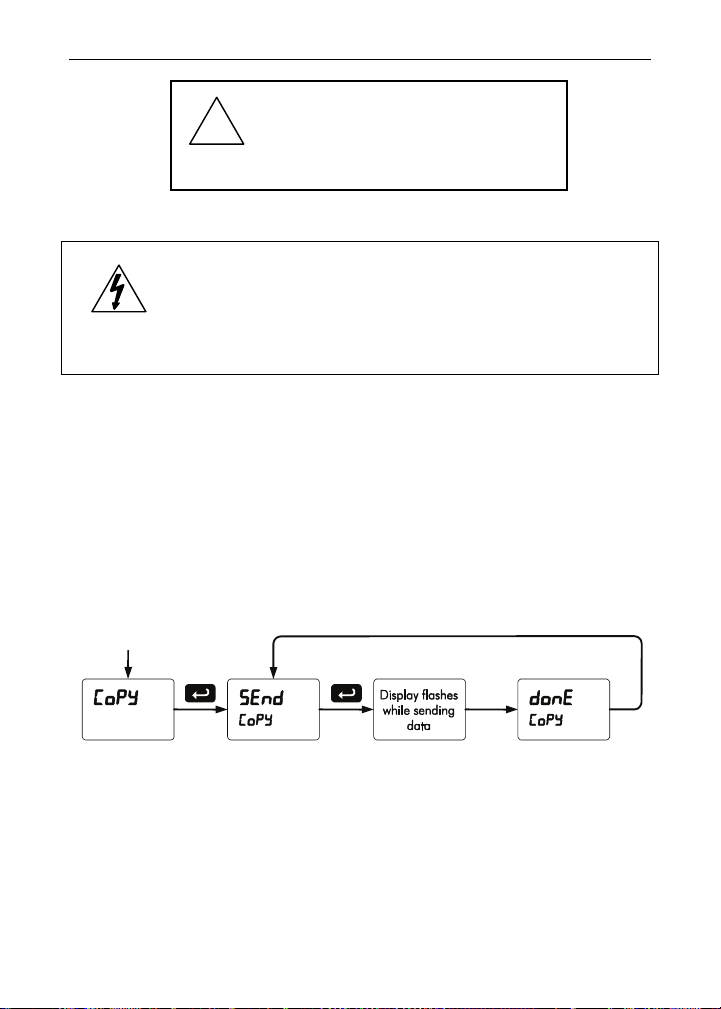

Warning!

CAUTION: Read complete

instructions prior to installation and operation of the meter.

This product is not recommended for life support applications or applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. OMEGA shall not be held liable for damages resulting from such improper use.

WARNING: Risk of electric shock or personal injury.

Page 5

DP6000 Process Meter Instruction Manual

Table of Contents

INTRODUCTION ------------------------------------------------------------ 8 ORDERING INFORMATION --------------------------------------------- 9 SPECIFICATIONS --------------------------------------------------------- 10

General ----------------------------------------------------------------------------- 10 Process Input -------------------------------------------------------------------- 11 Relays ------------------------------------------------------------------------------ 12 Isolated 4-20 mA Transmitter Output ------------------------------------ 13 Modbus® RTU Serial Communications ---------------------------------- 14 COMPLIANCE INFORMATION ---------------------------------------------- 15 Safety ------------------------------------------------------------------------------- 15 Electromagnetic Compatibility --------------------------------------------- 15

SAFETY INFORMATION ------------------------------------------------ 16 INSTALLATION ------------------------------------------------------------ 16

Unpacking ------------------------------------------------------------------------- 16 Panel Mounting Instructions ------------------------------------------------ 16

Mounting Dimensions ------------------------------------------------------- 18

Configuration for 12 or 24 VDC Power Option ------------------------ 19 Connections ---------------------------------------------------------------------- 20

Connectors Labeling --------------------------------------------------------- 21 Power Connections ---------------------------------------------------------- 21 Signal Connections ---------------------------------------------------------- 22 Modbus RTU Serial Communications ----------------------------------- 23 Relay Connections ----------------------------------------------------------- 23 Switching Inductive Loads -------------------------------------------------- 24 F4 Digital Input Connections ----------------------------------------------- 25 4-20 mA Output Connections ---------------------------------------------- 25 Analog Output Transmitter Power Supply ------------------------------ 25 External Relays & Digital I/O Connections ----------------------------- 26 Interlock Relay Feature ----------------------------------------------------- 27

SETUP AND PROGRAMMING ---------------------------------------- 29

Front Panel Buttons and Status LED Indicators --------------------- 30 Display Functions & Messages -------------------------------------------- 31 Main Menu ------------------------------------------------------------------------ 34 Setting Numeric Values ------------------------------------------------------ 35 Setting Up the Meter (setup) ------------------------------------------------ 36

Setting the Input Signal (Input) ------------------------------------------ 37 Setting the Input Units or Custom Tags (units) ---------------------- 38

Page 6

DP6000 Process Meter Instruction Manual

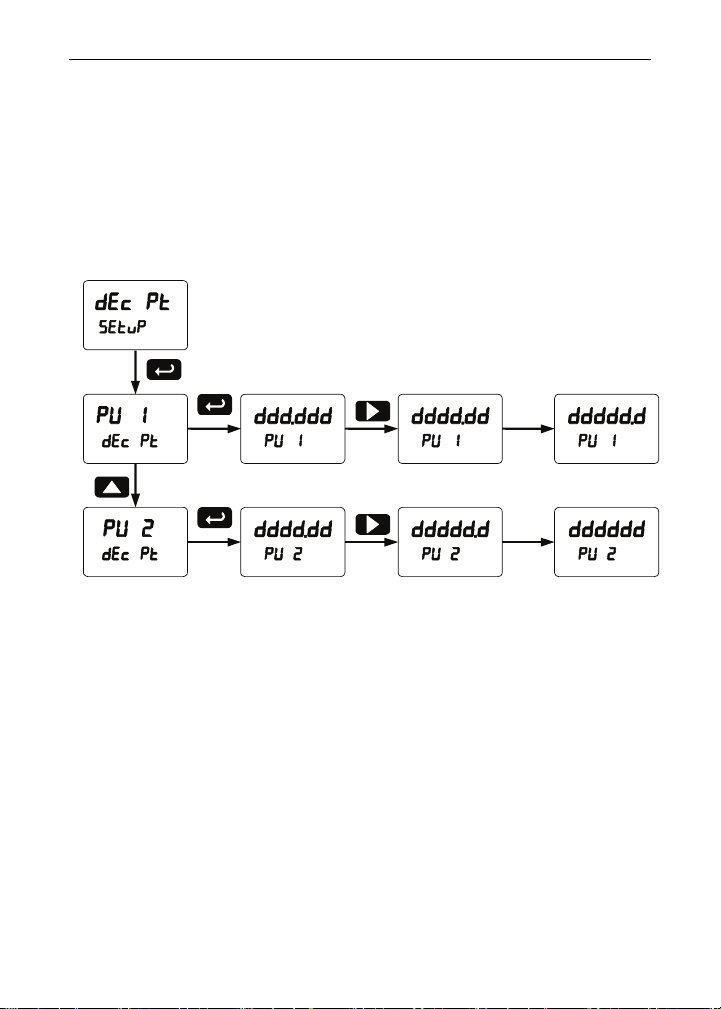

Setting the Decimal Point (dEc pt) -------------------------------------- 39 Programming the Meter (prog) ------------------------------------------- 40

Program Menu for Single Scale Process --------------------------- 40 Program Menu for Dual-Scale Level Applications ---------------- 40 Multi-Point Calibration & Scaling -------------------------------------- 41 DP6000-SOFT Software ------------------------------------------------ 41 Scaling the Meter (SCALE) ---------------------------------------------- 41 Dual-Scale for Level Application -------------------------------------- 42

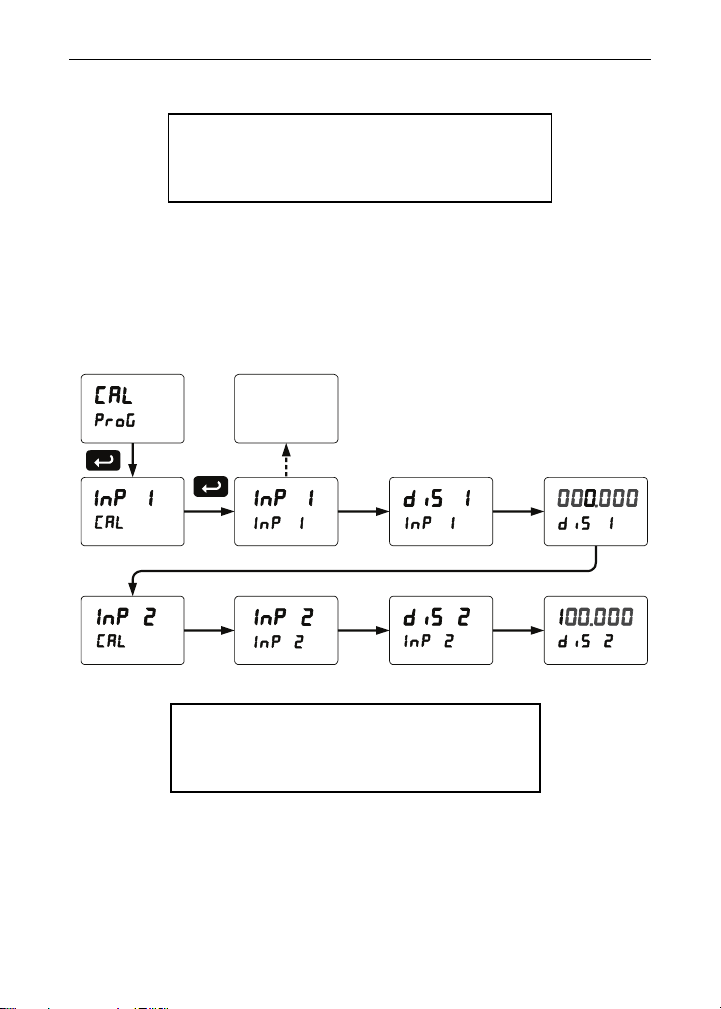

Calibrating the Meter with External Source (Cal) ----------------- 44 Setting the Display Parameter & Intensity (dsplay) ----------------- 45 Display Setup Menu --------------------------------------------------------- 46

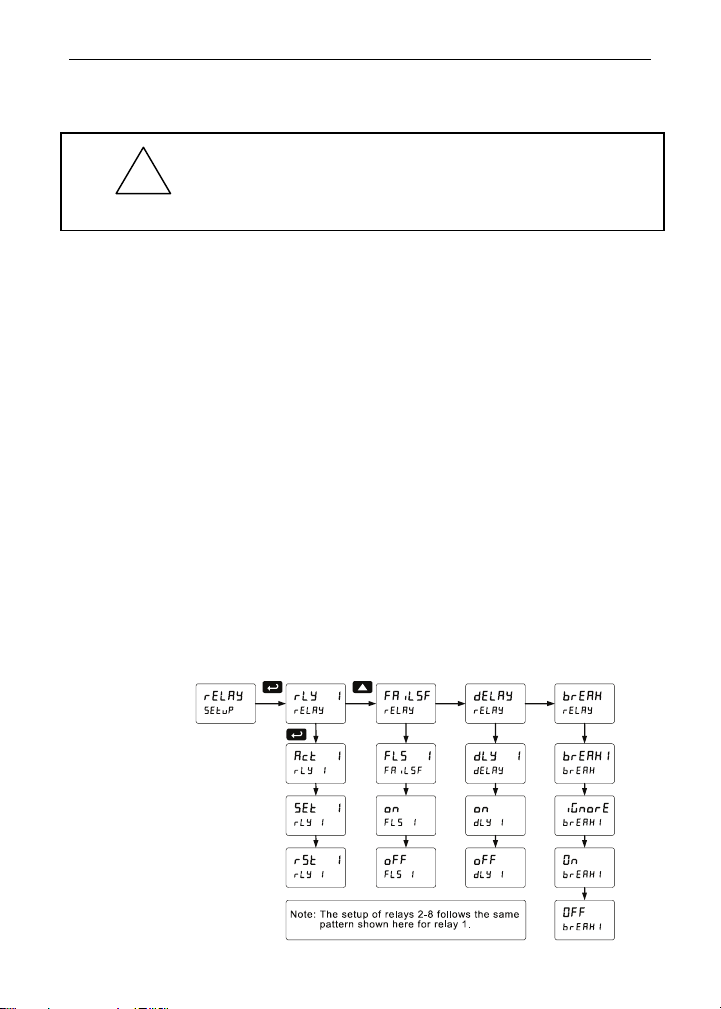

Setting the Relay Operation (relay) ------------------------------------- 47

Setting the Relay Action ---------------------------------------------------- 48 Programming Set and Reset Points ------------------------------------- 49 Setting Fail-Safe Operation ------------------------------------------------ 49 Programming Time Delay -------------------------------------------------- 49 Relay Action for Loss of 4-20 mA Input (Loop Break) --------------- 49

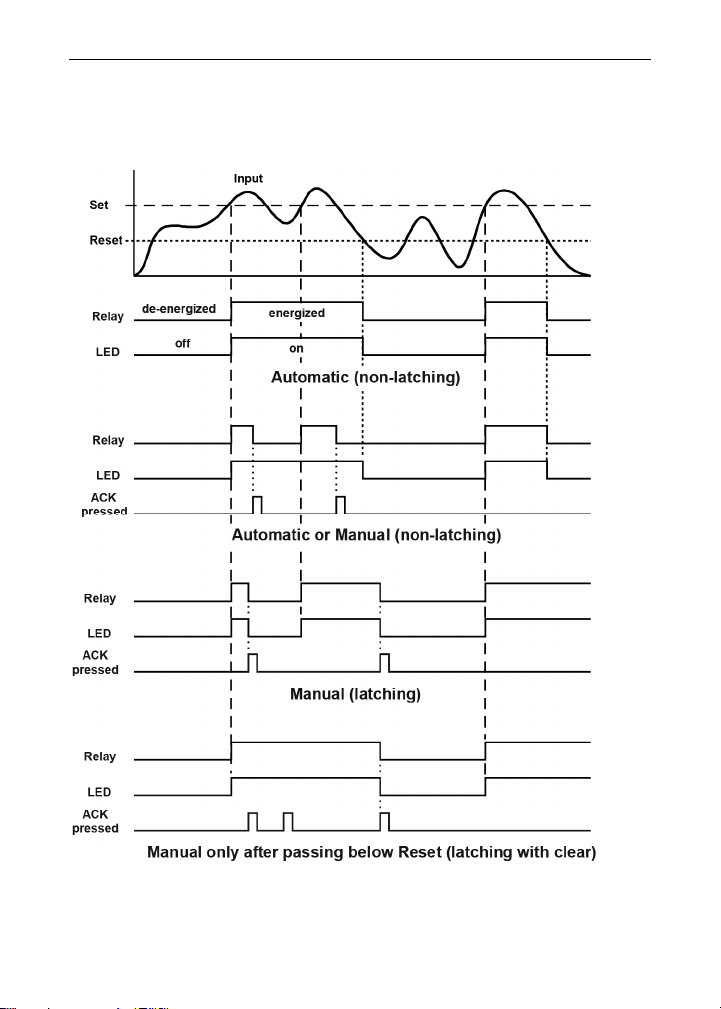

Relay and Alarm Operation Diagrams ----------------------------------- 50

High Alarm Operation (Set > Reset) ------------------------------------- 50 Low Alarm Operation (Set < Reset) -------------------------------------- 51 High Alarm with Fail-Safe Operation (Set > Reset) ------------------ 52 Low Alarm with Fail-Safe Operation (Set < Reset) ------------------- 53 Pump Alternation Control Operation ------------------------------------- 54 Relay Sampling Operation ------------------------------------------------- 55 Signal Loss or Loop Break Relay Operation --------------------------- 56 Time Delay Operation ------------------------------------------------------- 57

Relay Operation Details ------------------------------------------------------ 58

Overview ------------------------------------------------------------------------ 58 Relays Auto Initialization ---------------------------------------------------- 58 Fail-Safe Operation ---------------------------------------------------------- 58 Front Panel LEDs ------------------------------------------------------------- 59 Latching and Non-Latching Relay Operation -------------------------- 59 Non-Latching Relay (Auto) ------------------------------------------------- 60 Non-Latching Relay (A-man) -------------------------------------------- 60 Latching Relay (LatcH) ----------------------------------------------------- 60 Latching Relay (Lt-Clr) ---------------------------------------------------- 61 Acknowledging Relays ------------------------------------------------------ 61 Pump Alternation Control Applications (Altern) --------------------- 62 Setting Up the Interlock Relay (Force On) Feature ------------------ 65

Scaling the 4-20 mA Analog Output (Aout) ---------------------------- 66 Reset Menu (reset) ------------------------------------------------------------ 67 Control Menu (Contrl) -------------------------------------------------------- 67 

Page 7

DP6000 Process Meter Instruction Manual

Setting Up the Password (pass) ------------------------------------------- 68

Protecting or Locking the Meter ------------------------------------------- 68 Making Changes to a Password Protected Meter -------------------- 69 Disabling Password Protection -------------------------------------------- 69

Advanced Features Menu ---------------------------------------------------- 70

Advanced Features Menu & Display Messages ---------------------- 71 Noise Filter (filter) -------------------------------------------------------- 74 Noise Filter Bypass (bypass) ---------------------------------------------- 74 Rounding Feature (round) ------------------------------------------------- 74 Modbus RTU Serial Communications (serial) ---------------------- 75 Select Menu (SElect) ------------------------------------------------------- 76 Signal Input Conditioning (Functn) -------------------------------------- 76 Low-Flow Cutoff (CutofF) -------------------------------------------------- 79 Analog Output Programming (AoutPr) ---------------------------------- 79 Programmable Function Keys User Menu (user) -------------------- 80 Tare (tare) --------------------------------------------------------------------- 81 Internal Source Calibration (ICAL) --------------------------------------- 82 Meter Copy Function (Copy) ----------------------------------------------- 84

METER OPERATION ----------------------------------------------------- 86

Front Panel Buttons Operation -------------------------------------------- 86 Function Keys Operation ---------------------------------------------------- 86 F4 Operation --------------------------------------------------------------------- 87 Maximum/Minimum Readings ---------------------------------------------- 87

TROUBLESHOOTING ---------------------------------------------------- 88

Diagnostics Menu (diag) ----------------------------------------------------- 88

Determining Software Version -------------------------------------------- 88

Reset Meter to Factory Defaults ------------------------------------------- 89

Factory Defaults & User Settings ----------------------------------------- 90

Troubleshooting Tips --------------------------------------------------------- 93 Alphabetical List of Display Functions & Messages --------------- 94



Page 8

DP6000 Process Meter Instruction Manual

Table of Figures

Figure 1. 1/8 DIN Panel Cutout Dimensions ..................................... 17

Figure 2. Panel Mounting Details ...................................................... 17

Figure 3. Meter Dimensions - Side View ........................................... 18

Figure 4. Meter Dimensions - Top View ............................................ 18

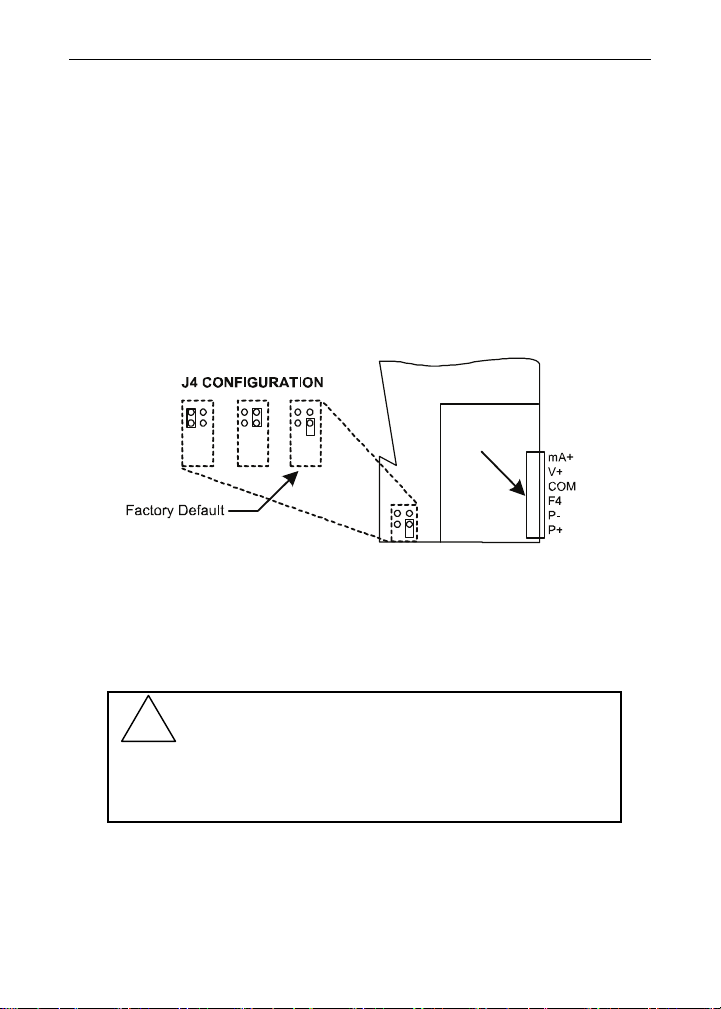

Figure 5. Jumper Configuration for 12/24 VDC Power .................... 19

Figure 6. Transmitter Supply Voltage Selection .............................. 20

Figure 7. Connector Labeling for Fully Loaded DP6000 ................. 21

Figure 8. Power Connections ............................................................ 21

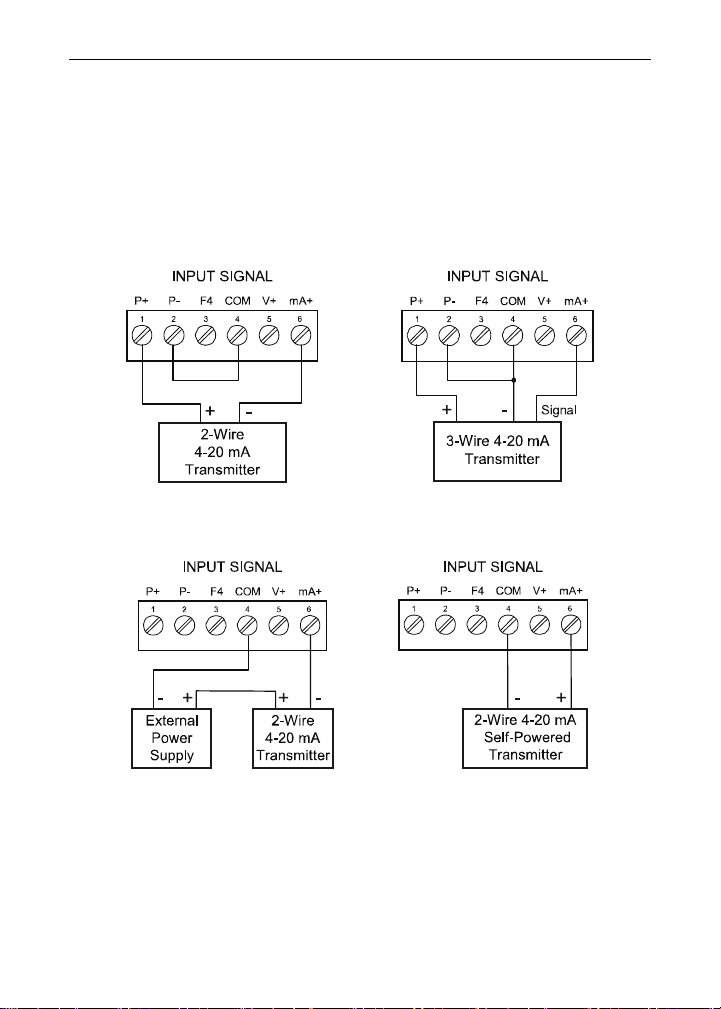

Figure 9. Transmitters Powered by Internal Supply ........................ 22

Figure 10. Transmitter Powered by Ext. Supply or Self-Powered .. 22

Figure 11. Voltage Input Connections .............................................. 23

Figure 12. Relay Connections ........................................................... 23

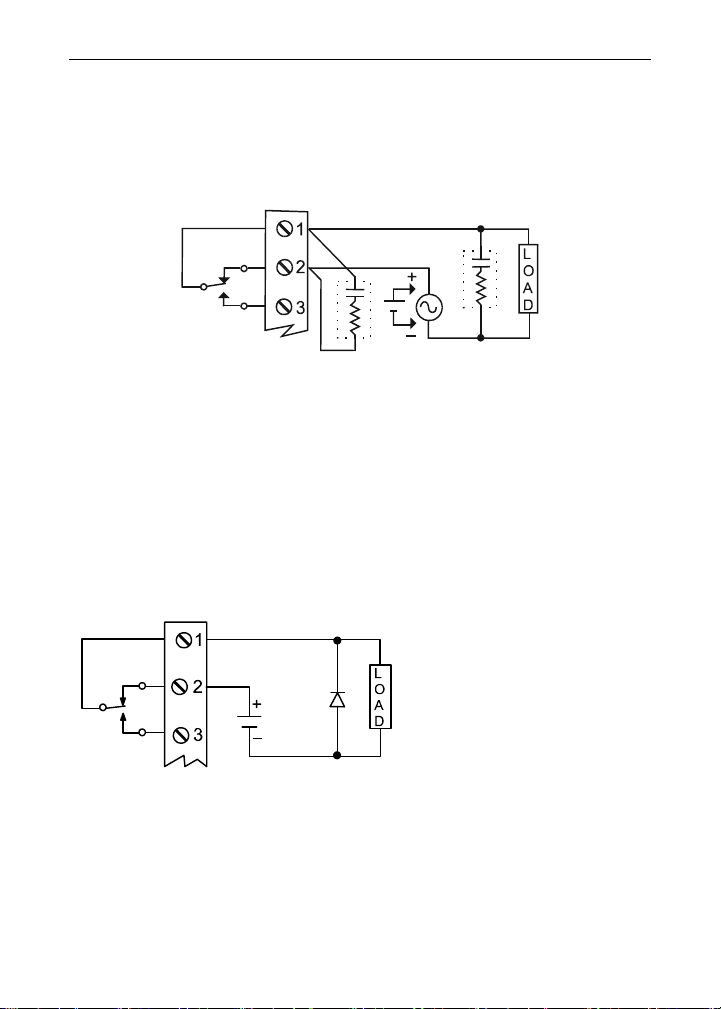

Figure 13. AC and DC Loads Protection ........................................... 24

Figure 14. Low Voltage DC Loads Protection .................................. 24

Figure 15. F4 Digital Input Connections ........................................... 25

Figure 16. 4-20 mA Output Connections .......................................... 25

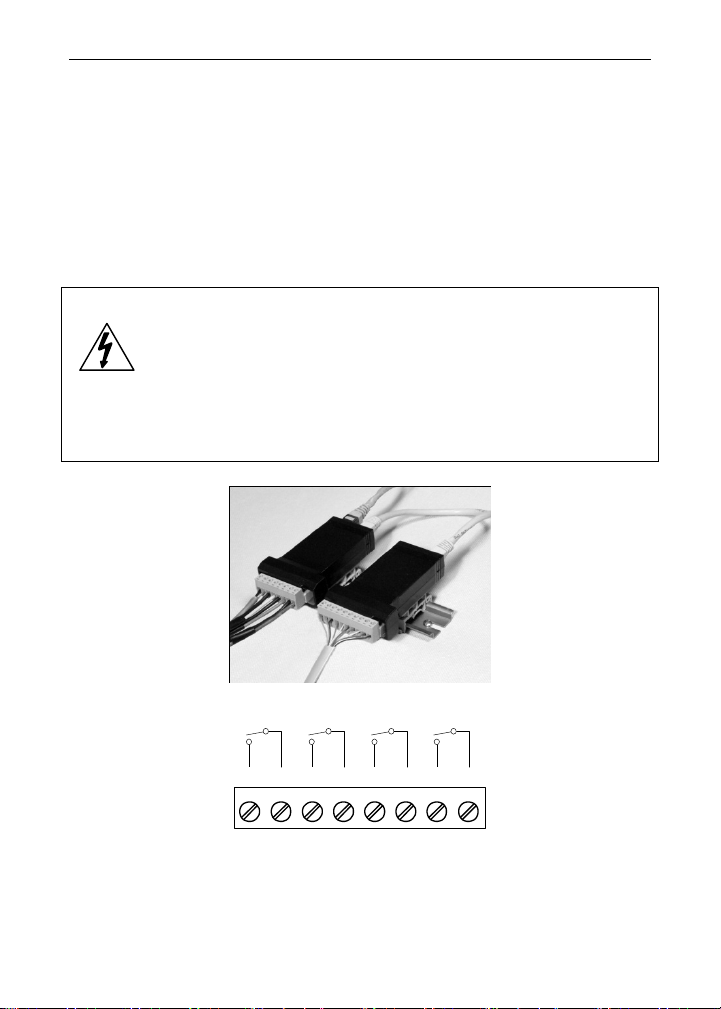

Figure 17. Expansion Modules & DIN Rail Mounting Kit ................. 26

Figure 18. External Relays Module Connections ............................. 26

Figure 19. Digital I/O Module Connections ....................................... 27

Figure 20. Interlock Connections ...................................................... 28

Figure 21. Acknowledge Relays w/Function Key or Digital Input .. 61

INTRODUCTION

The DP6000 is a multi-purpose, easy to use digital process meter ideal for level, flow rate, temperature, or pressure transmitter applications. It accepts current and voltage signals (e.g. 4-20 mA, 0-10 V). Three of the front panel buttons can be customprogrammed for a specific operation. The analog input can be scaled to display the process in two different scales; for example the main display could indicate level in feet and the second display could indicate the volume in gallons.

The basic model includes an isolated 24 VDC transmitter power supply that can be used to power the input transmitter or other devices. An additional isolated 24 VDC power supply is included with the 4-20 mA output option. A digital input is standard.

A fully loaded DP6000 meter has the following: four SPDT relays, 4-20 mA output, and two 24 VDC power supplies. The DP6000 capabilities may be enhanced by adding the following external expansion modules: four SPST relays (creating an eight-relay process meter), two digital I/O modules with four inputs and four outputs each, and USB, RS-232 or RS-485 communication adapters.

The eight relays can be used for alarm indication or process control applications, such as pump alternation control. The 4-20 mA isolated output, Modbus RTU serial communications, and digital I/O options make the DP6000 an excellent addition to any system.

Page 9

DP6000 Process Meter Instruction Manual

ORDERING INFORMATION

Standard Display Models

85-265 VAC Model

DP6000-6R0 DP6000-7R0 No options DP6000-6R2 DP6000-7R2 2 relays DP6000-6R3 DP6000-7R3 4-20 mA output DP6000-6R4 4 relays DP6000-6R5 2 relays & 4-20 mA output DP6000-6R7 4 relays & 4-20 mA output

Sunlight Readable Display Models

85-265 VAC Model

DP6000-6H0 DP6000-7H0 No options DP6000-6H2 DP6000-7H2 2 relays DP6000-6H3 DP6000-7H3 4-20 mA output

Accessories

Model Description

DPA1002 DIN rail mounting kit for two expansion modules DPA1004 4 SPST (Form A) relays DPA1044 4 digital inputs & 4 digital outputs (2 may be connected) DPA1200 Meter copy cable DPA1232 RS-232 serial adapter DPA1485 RS-485 serial adapter DPA7485-I RS-232 to RS-422/485 isolated converter DPA7485-N RS-232 to RS-422/485 non-isolated converter DPA8008 USB serial adapter DPA8232-N USB to RS-232 non-isolated converter DPA8485-I USB to RS-422/485 isolated converter DPA8485-N USB to RS-422/485 non-isolated converter

Enclosures

Model Description

DPA2811 1 Meter Plastic NEMA 4X Enclosure DPA2812 2 Meter Plastic NEMA 4X Enclosure

12/24 VDC Model

Options Installed

Page 10

DP6000 Process Meter Instruction Manual

SPECIFICATIONS

Except where noted all specifications apply to operation at +25°C.

General

DISPLAY Main display: 0.60" (15 mm) high, red LEDs

DISPLAY INTENSITY

DISPLAY UPDATE RATE

OVERRANGE

UNDERRANGE

DISPLAY ASSIGNMENT

PROGRAMMING METHODS

NOISE FILTER Programmable from 2 to 199 (0 will disable filter)

FILTER BYPASS Programmable from 0.1 to 99.9% of calibrated span

RECALIBRATION All ranges are calibrated at the factory. Recalibration is

MAX/MIN DISPLAY

PASSWORD

POWER OPTIONS

ISOLATED TRANSMITTER POWER SUPPLY

NON-VOLATILE MEMORY

FUSE Required external fuse: UL Recognized, 5 A max, slow

Second display: 0.46" (12 mm) high, red LEDs 6 digits each (-99999 to 999999), with lead zero blanking

Eight user selectable intensity levels

5/second (200 ms)

Display flashes

The main (Big) and small (Little) displays may be assigned to PV1, PV2, PCT, d r-u, d gross, d nt-g, max/min, max & min, set points, units (small display only), or Modbus input.

Four front panel buttons, digital inputs, PC and DP6000-SOFT software, Modbus registers, or cloning using Copy function.

recommended at least every 12 months.

Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.

Three programmable passwords restrict modification of programmed settings.

Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs.

85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or jumper selectable 12/24 VDC  10%, 15 W max

Terminals P+ & P-: 24 VDC  10%. 12/24 VDC powered models selectable for 24, 10, or 5 VDC supply (internal jumper J4). 85-265 VAC models rated @ 200 mA max, 12/24 VDC powered models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply.

All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.

blow; up to 6 meters may share one 5 A fuse

999999

-99999

Page 11

DP6000 Process Meter Instruction Manual

NORMAL MODE REJECTION

ISOLATION 4 kV input/output-to-power line

OVERVOLTAGE CATEGORY

ENVIRONMENTAL Operating temperature range: -40 to 65°C

CONNECTIONS Removable screw terminal blocks accept 12 to 22 AWG

ENCLOSURE 1/8 DIN, high impact plastic, UL 94V-0, color: black

MOUNTING 1/8 DIN panel cutout required:

TIGHTENING TORQUE

OVERALL DIMENSIONS

WEIGHT 9.5 oz (269 g)

WARRANTY 3 years parts & labor

Greater than 60 dB at 50/60 Hz

500 V input-to-output or output-to-P+ supply

Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Storage temperature range: -40 to 85°C Relative humidity: 0 to 90% non-condensing

wire, RJ45 for external relays, digital I/O, and serial communication adapters.

3.622" x 1.772" (92 mm x 45 mm) Two panel mounting bracket assemblies are provided.

Screw terminal connectors: 5 lb-in (0.56 Nm)

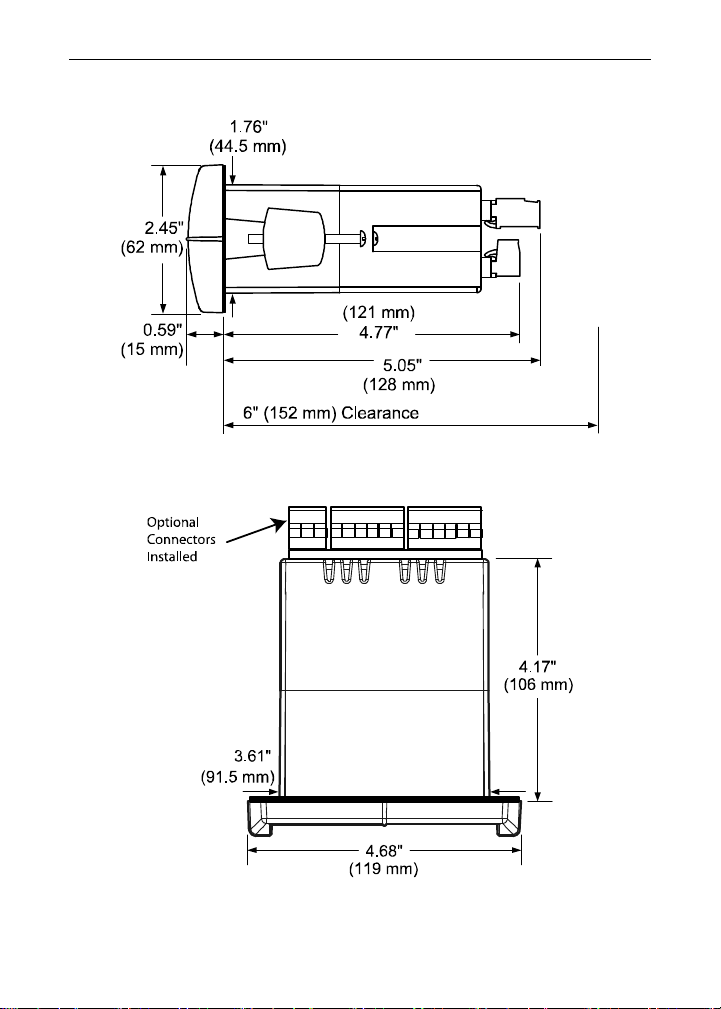

4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D)

Process Input

INPUTS Field selectable:

ACCURACY ±0.03% of calibrated span ±1 count,

TEMPERATURE DRIFT

SIGNAL INPUT CONDITIONING

MULTI-POINT LINEARIZ ATION

PROGRAMMABLE EXPONENT

ROUND H TANK Diameter & Length: 999.999 inch or cm calculates volume

0-20, 4-20 mA, 10 V (0-5, 1-5, 0-10 V), Modbus PV (Slave)

square root & programmable exponent accuracy range: 10-100% of calibrated span

0.005% of calibrated span/C max from 0 to 65C ambient,

0.01% of calibrated span/C max from -40 to 0C ambient Linear, square root, programmable exponent, or

round horizontal tank volume calculation

2 to 32 points for PV or PV1 2 to 8 points for PV2 (Dual-scale Level feature)

1.0001 to 2.9999

in gallons or liters respectively.

Page 12

DP6000 Process Meter Instruction Manual

LOW-FLOW CUTOFF

DECIMAL POINT Up to five decimal places or none:

0-999999 (0 disables cutoff function)

d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd

CALIBRATION RANGE

INPUT IMPEDANCE

INPUT OVERLOAD

F4 DIGITAL INPUT CONTACTS

F4 DIGITAL INPUT LOGIC LEVELS

Input Range

4-20 mA 0.15 mA 10 V 0.10 V An error message will appear if the input 1 and input 2 signals are too close together.

Voltage ranges: greater than 500 k Current ranges: 50 - 100 

Current input protected by resettable fuse, 30 VDC max. Fuse resets automatically after fault is removed.

3.3 VDC on contact. Connect normally open contacts across F4 to COM.

Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC

Minimum Span Input 1 & Input 2

(depending on resettable fuse impedance)

Relays

RATING 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A)

NOISE SUPPRESSION

DEADBAND 0-100% of span, user programmable

HIGH OR LOW ALARM

RELAY OPERATION

RELAY RESET User selectable via front panel buttons or digital inputs

external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads

Noise suppression is recommended for each relay contact switching inductive loads; see page 24 for details.

User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turn off).

Automatic (non-latching) and/or manual reset Latching (requires manual acknowledge) with/without clear Pump alternation control (2 to 8 relays) Sampling (based on time) Off (disable unused relays and enable Interlock feature) Manual on/off control mode

Page 13

DP6000 Process Meter Instruction Manual

TIME DELAY 0 to 999.9 seconds, on & off relay time delays

FAIL-SAFE OPERATION

AUTO INITIALIZATION

1. Automatic reset only (non-latching), when the input passes the reset point.

2. Automatic + manual reset at any time (non-latching)

3. Manual reset only, at any time (latching)

4. Manual reset only after alarm condition has cleared (latching)

Note: Front panel button or digital input may be assigned to

acknowledge relays programmed for manual reset.

Programmable and independent for each relay

Programmable and independent for each relay.

Note: Relay coil is energized in non-alarm condition.

In case of power failure, relay will go to alarm state.

When power is applied to the meter, relays will reflect the state of the input to the meter.

Isolated 4-20 mA Transmitter Output

OUTPUT SOURCE

SCALING RANGE 1.000 to 23.000 mA for any display range

CALIBRATION Factory calibrated: 4.000 to 20.000 = 4-20 mA output

ANALOG OUT PROGRAMMING

ACCURACY ± 0.1% of span ± 0.004 mA

TEMPERATURE DRIFT

ISOLATED TRANSMITTER POWER SUPPLY

EXTERNAL LOOP POWER SUPPLY

OUTPUT LOOP RESISTANCE

35 VDC (external) 100  1200 

Process variable (PV), max, min, set points 1-8, Modbus input, or manual control mode

23.000 mA maximum for all parameters:

Overrange, underrange, max, min, and break

0.4 µA/C max from 0 to 65C ambient,

0.8 µA/C max from -40 to 0C ambient

Note: Analog output drift is separate from input drift.

Terminals I+ & R: 24 VDC  10%. May be used to power the 4-20 mA output or other devices. Refer to Figure 5 on page 19 and Figure 16 on page 25.

All models rated @ 40 mA max.

35 VDC maximum

Power supply Minimum Maximum

24 VDC 10  700 

Page 14

DP6000 Process Meter Instruction Manual

Modbus® RTU Serial Communications

SLAVE ID 1 – 247 (Meter address)

BAUD RATE 300 – 19,200 bps

TRANSMIT TIME DELAY

DATA 8 bit (1 start bit, 1 or 2 stop bits)

PARITY Even, Odd, or None with 1 or 2 stop bits

BYTE-TO-BYTE TIMEOUT

TURN AROUND DELAY

Note: Refer to the Modbus Register Tables located at www.omega.com for details.

Programmable between 0 and 199 ms

0.01 – 2.54 second

Less than 2 ms (fixed)

Page 15

DP6000 Process Meter Instruction Manual

COMPLIANCE INFORMATION Safety

UL & c-UL LISTED USA & Canada

UL FILE NUMBER E356479

FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel gasket provided

LOW VOLTAGE DIRECTIVE

UL 508 Industrial Control Equipment

EN 61010-1:2001 Safety requirements for measurement, control, and laboratory use

Electromagnetic Compatibility

EMISSIONS

Radiated Emissions

AC Mains Conducted Emissions

IMMUNITY

RFI - Amplitude Modulated

Electrical Fast Transients

Electrostatic Discharge

RFI - Conducted AC Surge Surge Power-Frequency

Magnetic Field Voltage Dips

Voltage Interruptions

EN 55022:2006/A1:2007 Class A ITE emissions requirements

Class A

EN 61326-1:2006 Measurement, control, and laboratory equipment

EN 61000-6-2:2005 EMC heavy industrial generic immunity standard

80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)

±2kV AC mains, ±1kV other

±4kV contact, ±8kV air

10V, 0.15-80 MHz, 1kHz 80% AM

±2kV Common, ±1kV Differential

1KV (CM)

3 A/m 70%V for 0.5 period

40%V for 5 & 50 periods 70%V for 25 periods

<5%V for 250 periods

Page 16

DP6000 Process Meter Instruction Manual

Note:

Testing was conducted on DP6000 meters installed through the covers of grounded metal enclosures with cable shields grounded at the point of entry representing installations designed to optimize EMC performance.

Declaration of Conformity available at www.omega.com

SAFETY INFORMATION

Warning!

CAUTION: Read complete

instructions prior to installation and operation of the meter.

Hazardous voltages exist within enclosure. Installation and service should be performed only by trained service personnel.

WARNING: Risk of electric shock or personal injury.

INSTALLATION

There is no need to remove the meter from its case to complete the installation, wiring, and setup of the meter for most applications.

Instructions are provided for setting up a 12/24 VDC powered meter to operate from 12 VDC and for changing the transmitter power supply to output 5 or 10 VDC instead of 24 VDC, see page 19.

Unpacking

Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the meter malfunctions, please contact your supplier or the factory for assistance.

Panel Mounting Instructions

 Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm x

45 mm). Refer to Figure 1 below, for more details.

Page 17

DP6000 Process Meter Instruction Manual

 Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.

 Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).

Recommended minimum panel thickness to maintain Type 4X rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.

 Remove the two mounting brackets provided with the meter (back-off the two

screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the bracket toward the front of the case and remove).

 Insert meter into the panel cutout.

 Install mounting brackets and tighten the screws against the panel. To

achieve a proper seal, tighten the mounting bracket screws evenly until meter is snug to the panel along its short side. DO NOT OVER TIGHTEN, as the rear of the panel may be damaged.

3.622" (92 mm)

1.772"

(45mm)

Square Corners to 0.060"

(1.5mm) Max Radius

Panel Cutout to DIN 43700

Tolerances:

: +0.032 (+0.8mm)

-0.000 (-0.0mm) B: +0.024 (+0.6mm)

-0.000 (-0.0mm)

Refer to page 18 for mounting dimensions

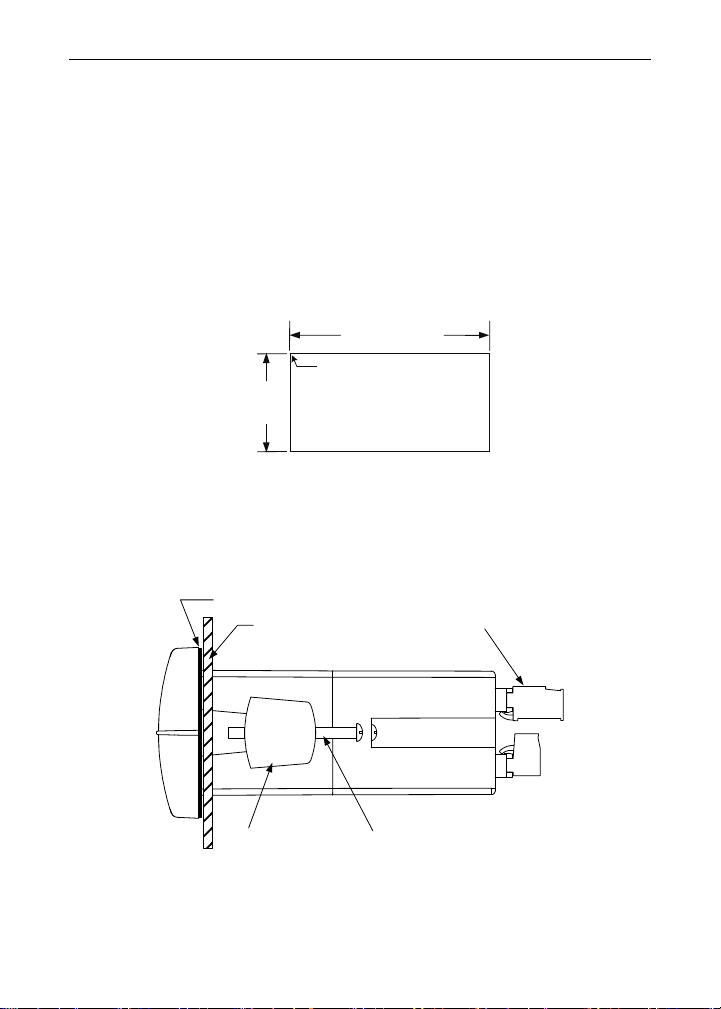

Figure 1. 1/8 DIN Panel Cutout Dimensions

Gasket

Panel

Removable Connectors

Mounting

Bracket

Mounting

Screw

Figure 2. Panel Mounting Details

Page 18

DP6000 Process Meter Instruction Manual

Mounting Dimensions

Figure 3. Meter Dimensions - Side View

Figure 4. Meter Dimensions - Top View

Page 19

DP6000 Process Meter Instruction Manual

Configuration for 12 or 24 VDC Power Option

Do not exceed voltage rating of the selected

Warning!

Meters equipped with the 12/24 VDC power option are shipped from the factory ready to operate from 24 VDC.

To configure the meter for 12 VDC power:

configuration.

1. Remove all the connectors.

2. Unscrew the back cover.

3. Slide the back cover about 1 inch.

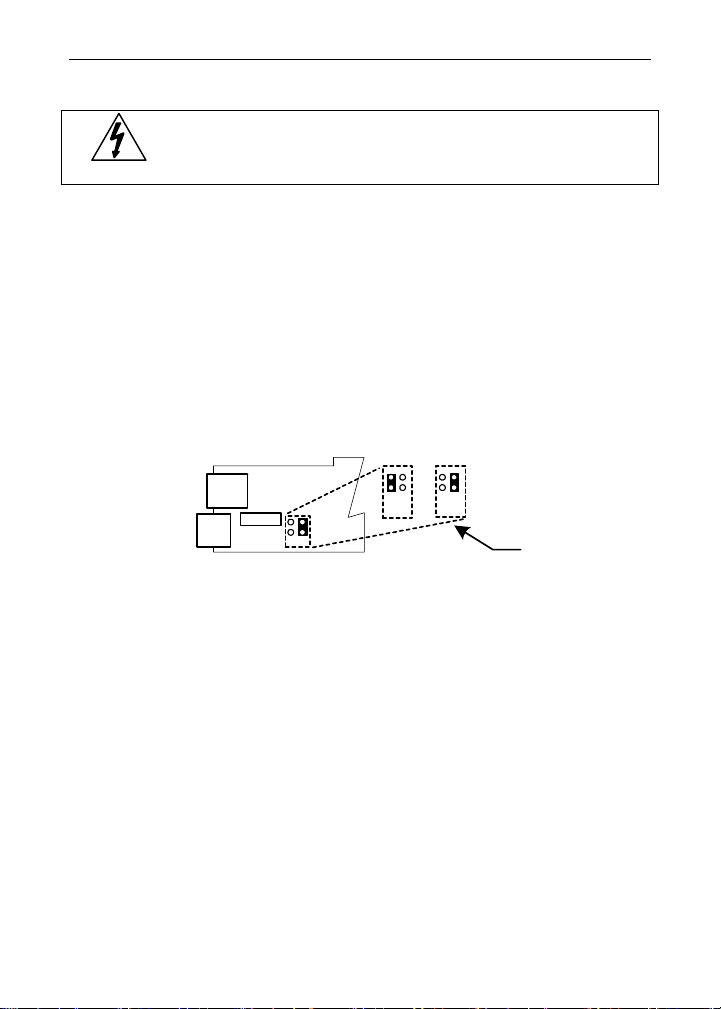

4. Configure the J9 jumper, located behind the power connector, for 12 V as shown below.

J9 CONFIGURATION

+ _

MAIN BOARD

12 V

24 V

Factory Default

M-LINK

24 VDC 12 VDC POWER

Figure 5. Jumper Configuration for 12/24 VDC Power

Page 20

DP6000 Process Meter Instruction Manual

Transmitter Supply Voltage Selection (P+, P-)

All meters, including models equipped with the 12/24 VDC power option, are shipped from the factory configured to provide 24 VDC power for the transmitter or sensor.

If the transmitter requires 5 or 10 VDC excitation, the internal jumper J4 must be configured accordingly.

To access the voltage selection jumper:

1. Remove all the wiring connectors.

2. Unscrew the back cover.

3. Slide out the back cover by about 1 inch.

4. Configure the J4 jumper, located behind the input signal connector, for the desired excitation voltage as shown.

Figure 6. Transmitter Supply Voltage Selection

Connections

All connections are made to removable screw terminal connectors located at the rear of the meter.

Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety

regulations. Electrical wiring should be performed in accordance with all applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

Page 21

DP6000 Process Meter Instruction Manual

Connectors Labeling

The connectors’ label, affixed to the meter, shows the location of all connectors available with requested configuration.

Do not connect any equipment other than OMEGA’s expansion modules, cables, or meters to the RJ45 M-LINK connector. Otherwise damage will occur to the equipment and the

Warning!

meter.

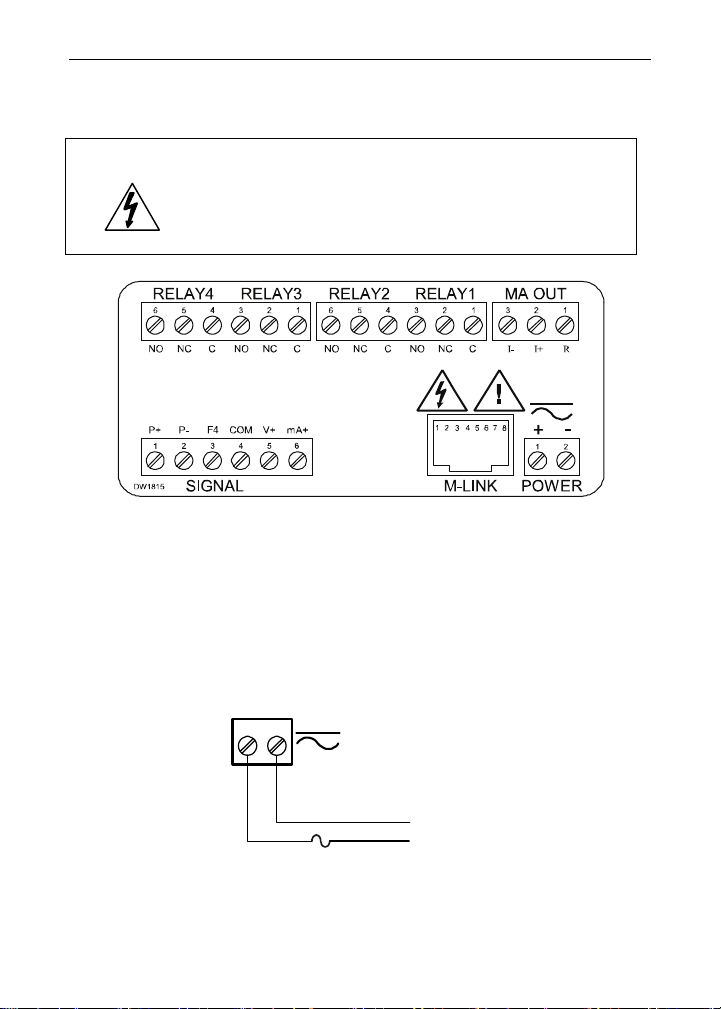

Figure 7. Connector Labeling for Fully Loaded DP6000

Power Connections

Power connections are made to a two-terminal connector labeled POWER on Figure 7 on page 21. The meter will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention.

POWER

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

Figure 8. Power Connections

Page 22

DP6000 Process Meter Instruction Manual

Signal Connections

Signal connections are made to a six-terminal connector labeled SIGNAL on Figure 7. The COM (common) terminal is the return for the 4-20 mA and the 10 V input signals.

Current and Voltage Connections

The following figures show examples of current and voltage connections. There are no switches or jumpers to set up for current and voltage inputs.

Setup and programming is performed through the front panel buttons.

Figure 9. Transmitters Powered by Internal Supply

Figure 10. Transmitter Powered by Ext. Supply or Self-Powered

The current input is protected against current overload by a resettable fuse. The display may or may not show a fault condition depending on the nature of the overload.

The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.

Page 23

DP6000 Process Meter Instruction Manual

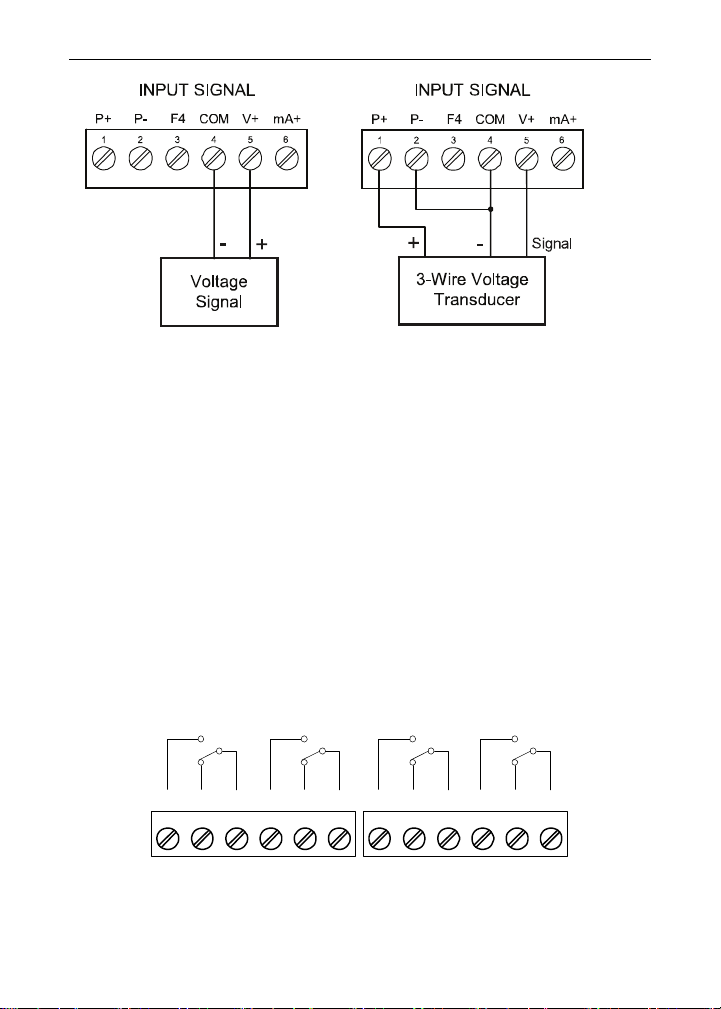

Figure 11. Voltage Input Connections

The meter is capable of accepting any voltage from -10 VDC to +10 VDC.

Modbus RTU Serial Communications

Serial communications connection is made to an RJ45 connector labeled M-LINK on Figure 7. For interfacing to the DP6000, use the DPA1232 for RS-232, the DPA1485 for RS-485, or the DPA8008 for USB. The same port is used for interfacing with all expansion modules (e.g. external relays, digital I/O).

Use the DPA1200 meter copy cable for meter-to-meter interfacing for cloning purposes (i.e. copying settings from one meter to other meters).

Relay Connections

Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4 on Figure 7. Each relay’s C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the corresponding relay. The relays’ C terminals should not be confused with the COM (common) terminal of the INPUT SIGNAL connector.

RELAY4 RELAY3

4365 21

CNONO NC NC C

Figure 12. Relay Connections

RELAY2 RELAY1

4365 21

CNONO NC NC C

Page 24

DP6000 Process Meter Instruction Manual

Switching Inductive Loads

The use of suppressors (snubbers) is strongly recommended when switching inductive loads to prevent disrupting the microprocessor’s operation. The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:

Figure 13. AC and DC Loads Protection

Choose R and C as follows: R: 0.5 to 1 Ω for each volt across the contacts C: 0.5 to 1 µF for each amp through closed contacts

Notes:

1. Use capacitors rated for 250 VAC.

2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.

3. Install the RC network at the meter's relay screw terminals. An RC network may also be installed across the load. Experiment for best results.

Use a diode with a reverse breakdown voltage two to three times the circuit voltage and forward current at least as large as the load current.

Figure 14. Low Voltage DC Loads Protection

Note: Relays are de-rated to 1/14th HP (50 watts) with an inductive load.

Page 25

DP6000 Process Meter Instruction Manual

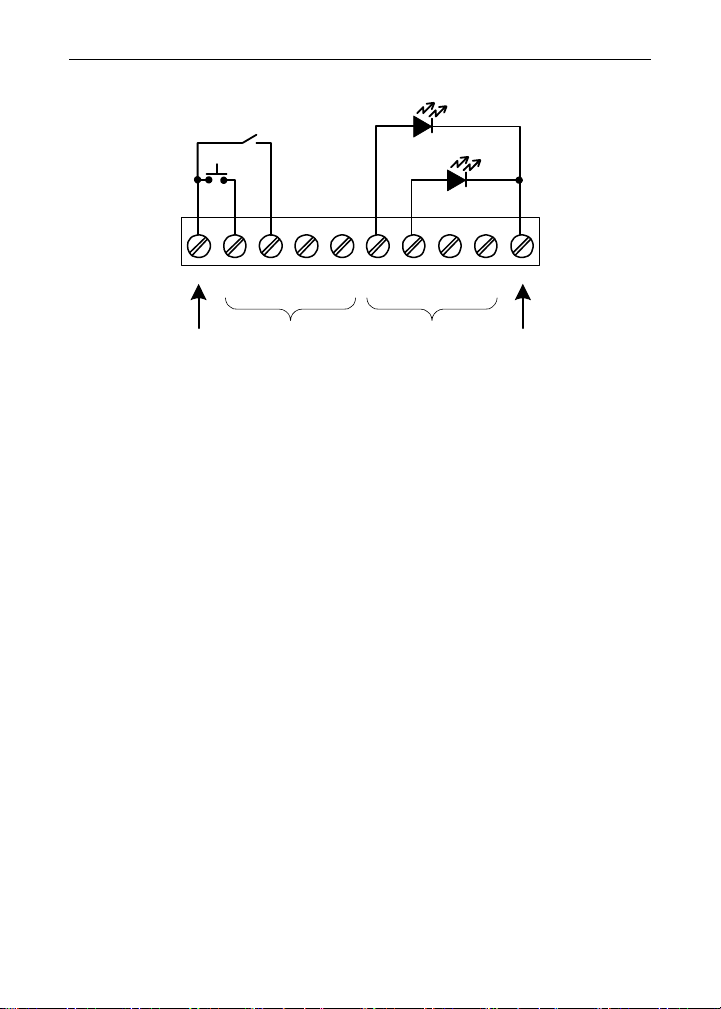

F4 Digital Input Connections

A digital input, F4, is standard on the meter. This digital input is connected with a normally open contact across F4 and COM, or with an active low signal applied to F4.

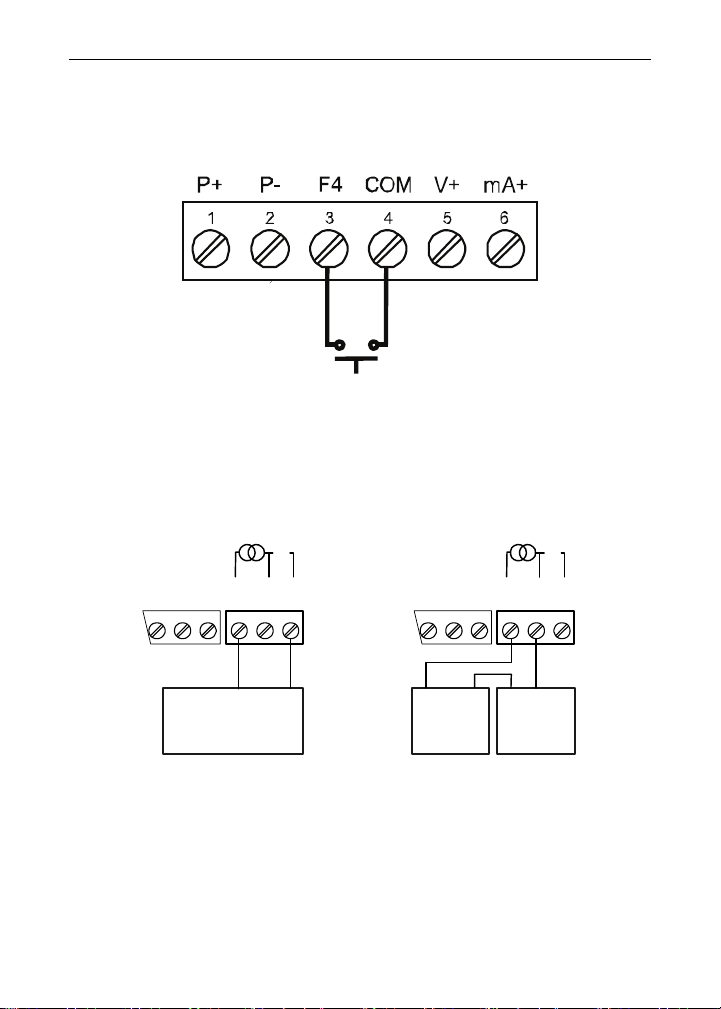

Figure 15. F4 Digital Input Connections

4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connector terminals labeled MA OUT. The 4-20 mA output may be powered internally or from an external power supply.

24 V

MA OUT

12-35 VDC

Power

Supply

RI- I+

132

RELAY1

321

MA OUT

4-20 mA Input

Remote Display,

Chart Recorder, Etc.

24 V

RI- I+

132

RELAY1

321

4-20 mA

Input Meter

Figure 16. 4-20 mA Output Connections

Analog Output Transmitter Power Supply

The internal 24 VDC power supply powering the analog output may be used to power other devices, if the analog output is not used. The I+ terminal is the +24 V and the R terminal is the return.

Page 26

DP6000 Process Meter Instruction Manual

External Relays & Digital I/O Connections

The relay and the digital I/O expansion modules DPA1004 & DPA1044 are connected to the meter using a CAT5 cable provided with each module. The two RJ45 connectors on the expansion modules are identical and interchangeable; they are used to connect additional modules to the system.

Note: The jumper located between the RJ45 connectors of the

DPA1044 must be removed on the second digital I/O module in order for the system to recognize it as module #2.

Warning!

Do not connect or disconnect the expansion modules with the power on!

More detailed instructions are provided with each optional expansion module.

Figure 17. Expansion Modules & DIN Rail Mounting Kit

RLY5 RLY6 RLY7 RLY8

NO C NO C NO C NO C

345678

Figure 18. External Relays Module Connections

Page 27

DP6000 Process Meter Instruction Manual

123456

+5 I1 I2 I3 I4 O1

5 VDC GND

DI 1-4 DO 1-4

O2 O3

910

O4 G

Figure 19. Digital I/O Module Connections

Interlock Relay Feature

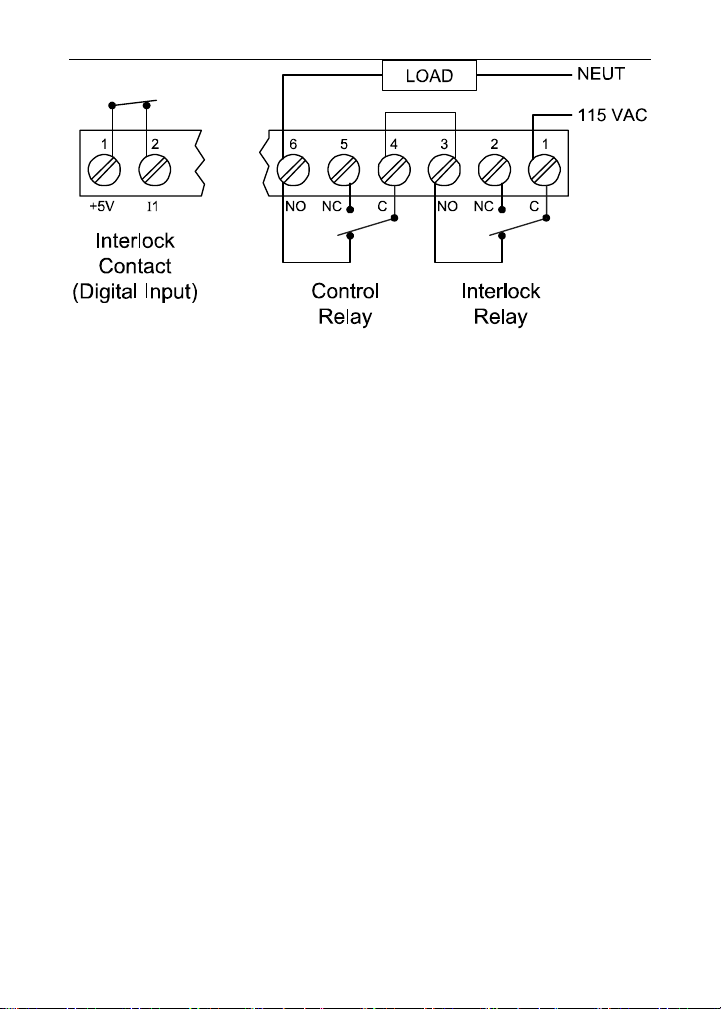

As the name implies, the interlock relay feature reassigns one, or more, alarm/control relays for use as interlock relay(s). Interlock contact(s) are wired to digital input(s) and trigger the interlock relay. This feature is enabled by configuring the relay, and relative digital input(s) (see page

65). In one example, dry interlock contacts are connected in series to

one digital input which will be used to force on (energize) the assigned interlock power relay when all interlock contacts are closed (safe). The interlock relay front panel LED flashes when locked out. The interlock relay would be wired in-series with the load (N/O contact). See below.

Page 28

DP6000 Process Meter Instruction Manual

Figure 20. Interlock Connections

Page 29

DP6000 Process Meter Instruction Manual

SETUP AND PROGRAMMING

The meter is factory calibrated prior to shipment to read in milliamps and volts depending on the input selection. The calibration equipment is certified to NIST standards.

Overview

There are no jumpers to set for the meter input selection. Setup and programming is done through the front panel buttons. After power and input signal connections have been completed and

verified, apply power to the meter.

Page 30

DP6000 Process Meter Instruction Manual

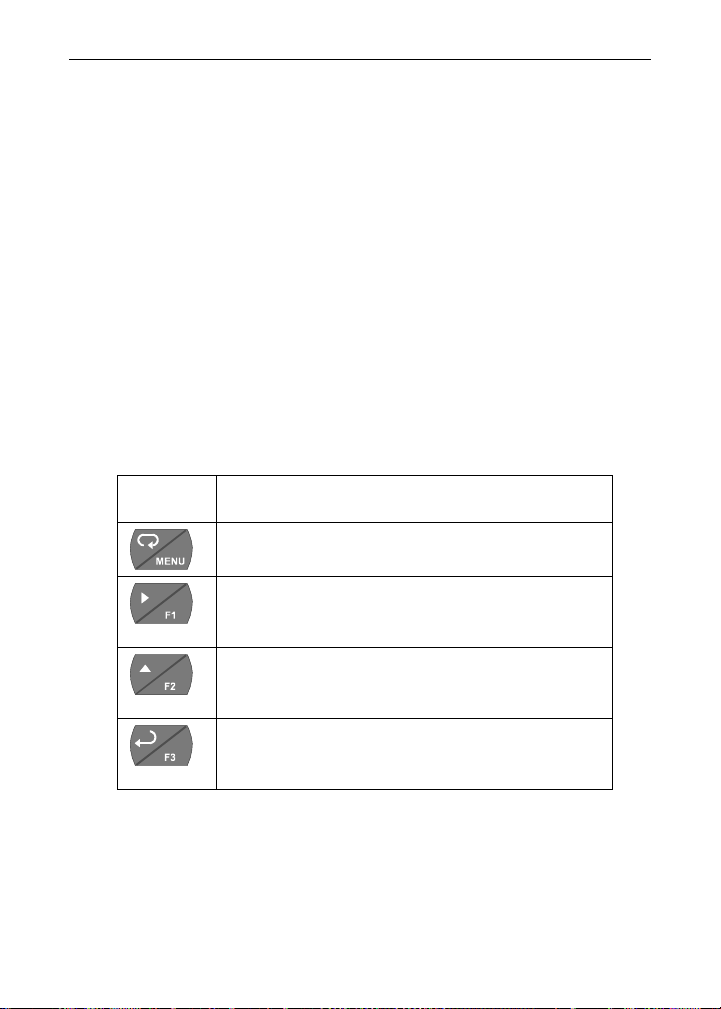

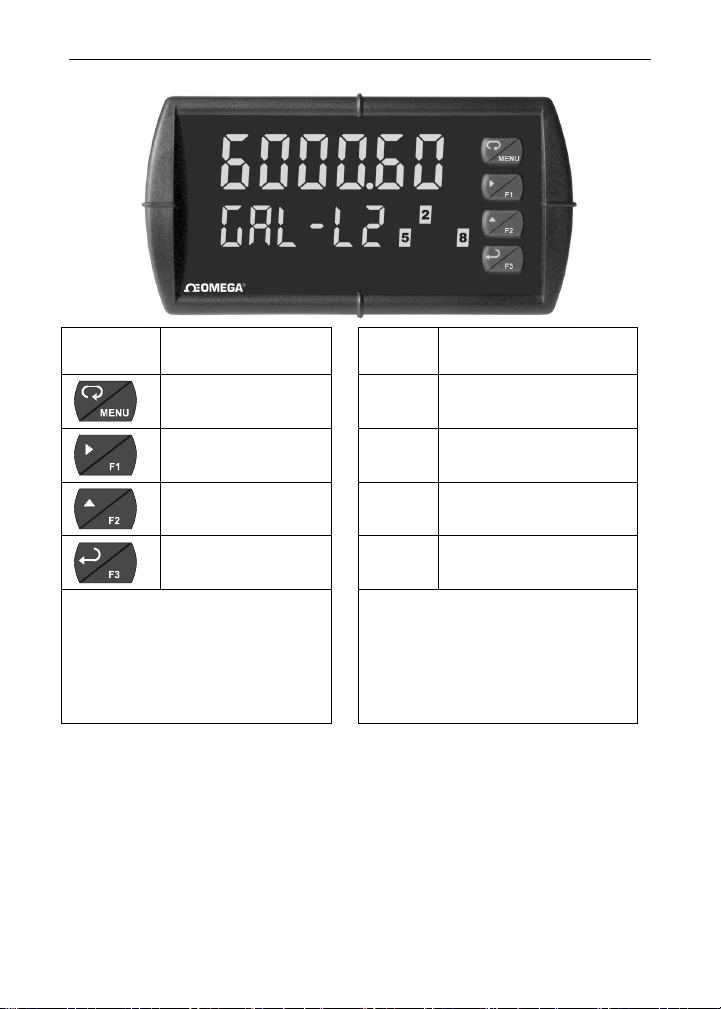

Front Panel Buttons and Status LED Indicators

Button Symbol

Description LED Status

1-8 Alarm 1-8 indicator

Right arrow/F1

Up arrow/F2

1-8 M

T Flashing: Tare

Flashing: Relay in manual control mode

Enter/F3

1-8

Note: F4 is a digital input. Alarms 5-8

are enabled when relay expansion module is installed.

 Press the Menu button to enter or exit the Programming Mode at

any time.

 Press the Right arrow button to move to the next digit during digit or

decimal point programming.

 Press or hold the Up arrow button to scroll through the menus,

decimal point, or to increment the value of a digit.

 Press the Enter button to access a menu or to accept a setting.  Press and hold the Menu button for three seconds to access the

advanced features of the meter.

Note: LEDs for relays in manual mode

flash with the “M” LED every 10 seconds. “M” flashing by itself indicates Aout – manual control is used.

Flashing: Relay interlock switch open

Page 31

DP6000 Process Meter Instruction Manual

Display Functions & Messages

The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.

Display Parameter Action/Setting Description

setup

Input

volt

d-SCAL

units

Dec pt

Pv 1

Pv 2

prog

SCALE

SCAL 1

SCAL 2

Cal

Inp 1

Dis 1

Inp 2

Dis 2

Error

dsplay

big

Little

Setup

Input

4-20 mA

0-10 VDC

Dual-scale

Units

Decimal point

PV1

PV2

Program

Scale

Scale 1

Scale 2

Calibrate

Input 1

Display 1

Input 2

Display 2

Error

Display

Big display

Little display

Enter Setup menu

Enter Input selection menu

Set meter for 4-20 mA input

Set meter for 10 VDC input

Press Enter to select dual-scale display for some level applications (Select Yes or No)

Select the display units/tags

Set decimal point

PV1 decimal point (Level)

PV2 decimal point (Level)

Enter the Program menu

Enter the Scale menu

Enter the Scale menu for PV1

Enter the Scale menu for PV2

Enter the Calibration menu

Calibrate input 1 signal or program input 1 value

Program display 1 value

Calibrate input 2 signal or program input 2 value (up to 32 points)

Program display 2 value (up to 32 points)

Error, calibration not successful, check signal or programmed value

Enter the Display menu

Press Enter to assign the Main display parameter (default: PV)

Press Enter to assign the small display parameter (default: engineering units)

Page 32

DP6000 Process Meter Instruction Manual

d-Inty

RELaY

RLY 1

Act 1

Auto

A-nman

LatCH

Lt-CLr

Altern

Sanmpl

OFF

Set 1

RSt 1 RLY 2

FaiLSF

FLS 1

off

FLS 2

DeLAY

DLY 1

On 1

OFF 1

DLY 2

Display

intensity

Relay

Relay 1

Action 1

Automatic

Auto-manual

Latching

Latchingcleared

Alternate

Sampling

Off

Set 1

Reset 1

Relay 2

Fail-safe

Fail-safe 1

Off

Fail-safe 2

Delay

Delay 1

On 1

Off 1

Delay 2

Set display intensity level from 1 to 8

Enter the Relay menu

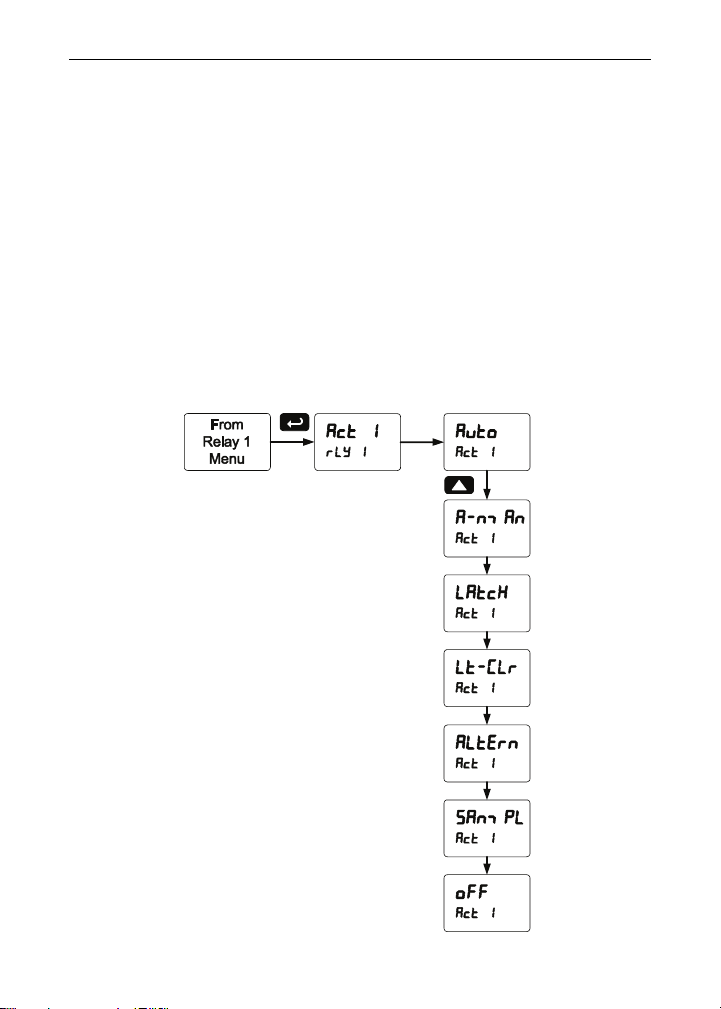

Relay 1 setup

Set relay 1 action

Set relay for automatic reset

Set relay for automatic & manual reset any time

Set relay for latching operation

Set relay for latching operation with manual reset only after alarm condition has cleared

Set relay for pump alternation control

Set relay for sampling operation

Disable relay and front panel status LED (Select Off to enable Interlock feature)

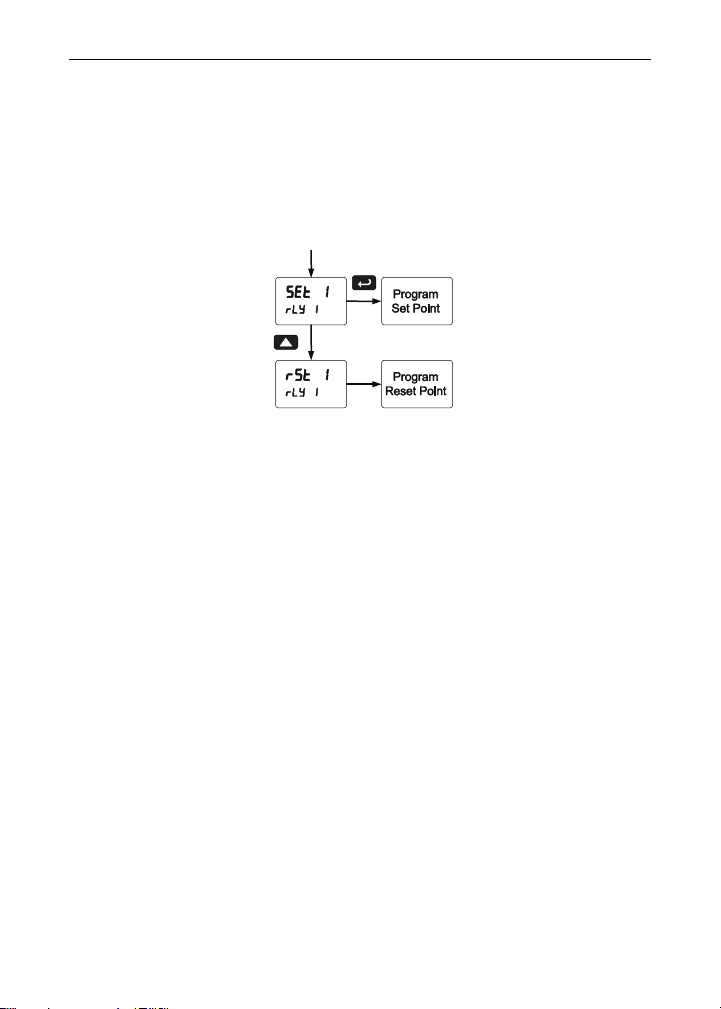

Program set point 1

Program reset point 1

Relays 2-8 setup

Note: Relays 5-8 are shown, only if expansion relay module is installed.

Enter Fail-safe menu

Set relay 1 fail-safe operation

Enable fail-safe operation

Disable fail-safe operation

Set relays 2-8 fail-safe operation

Enter relay Time Delay menu

Enter relay 1 time delay setup

Set relay 1 On time delay

Set relay 1 Off time delay

Enter relays 2-8 time delay setup

Page 33

DP6000 Process Meter Instruction Manual

break

ignore

Aout

Dis 1

Out 1

Dis 2

Out 2

reset

Rst Hi

Rst Lo

Rst HL

Rst tr

Contrl

Auto

mAn

pass

Pass 1

Pass 2

Pass 3

unloc

locd

999999

-99999

Off

Loop break

Ignore

Off

Analog output

Display 1

Output 1

Display 2

Output 2

Reset

Reset high

Reset low

Reset high & low

Reset tare

Control

Automatic

Manual

Password

Password 1

Password 2

Password 3

Unlocked

Locked

Flashing

Set relay condition if loop break detected

Ignore loop break condition (Processed as a low signal condition)

Relay goes to alarm condition when loop break is detected

Relay goes to non-alarm condition when loop break is detected

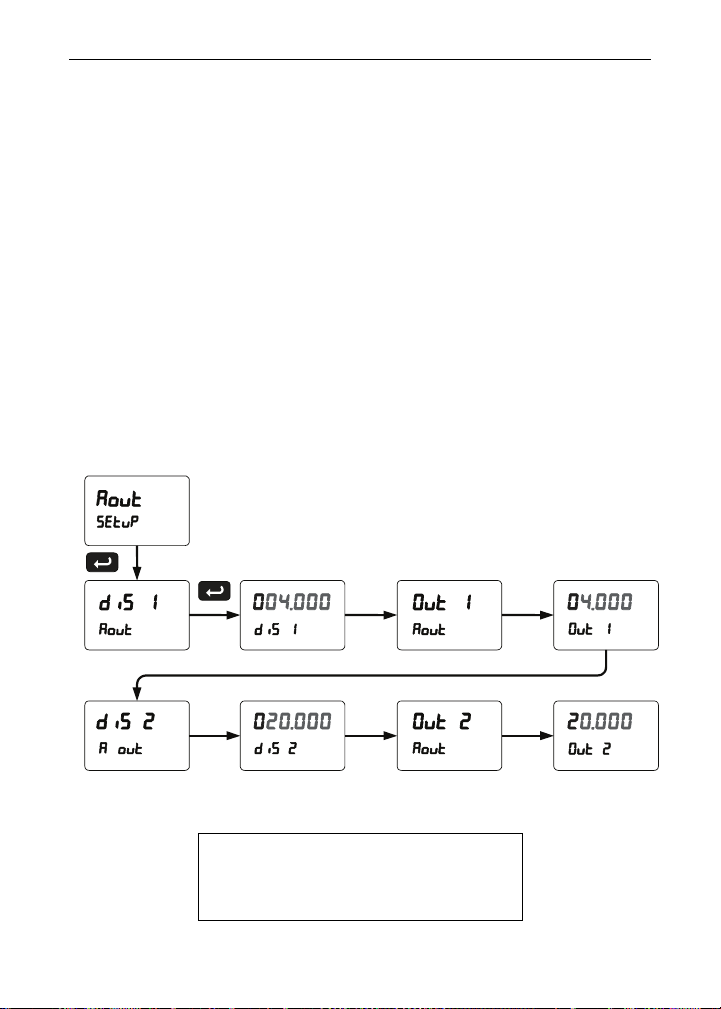

Enter the Analog output scaling menu

Program display 1 value

Program output 1 value (e.g. 4.000 mA)

Program display 2 value

Program output 2 value (e.g. 20.000 mA)

Press Enter to access the Reset menu

Press Enter to reset max display

Press Enter to reset min display

Press Enter to reset max & min displays

Reset tare

Enter Control menu

Press Enter to set meter for automatic operation

Press Enter to manually control relays or analog output operation

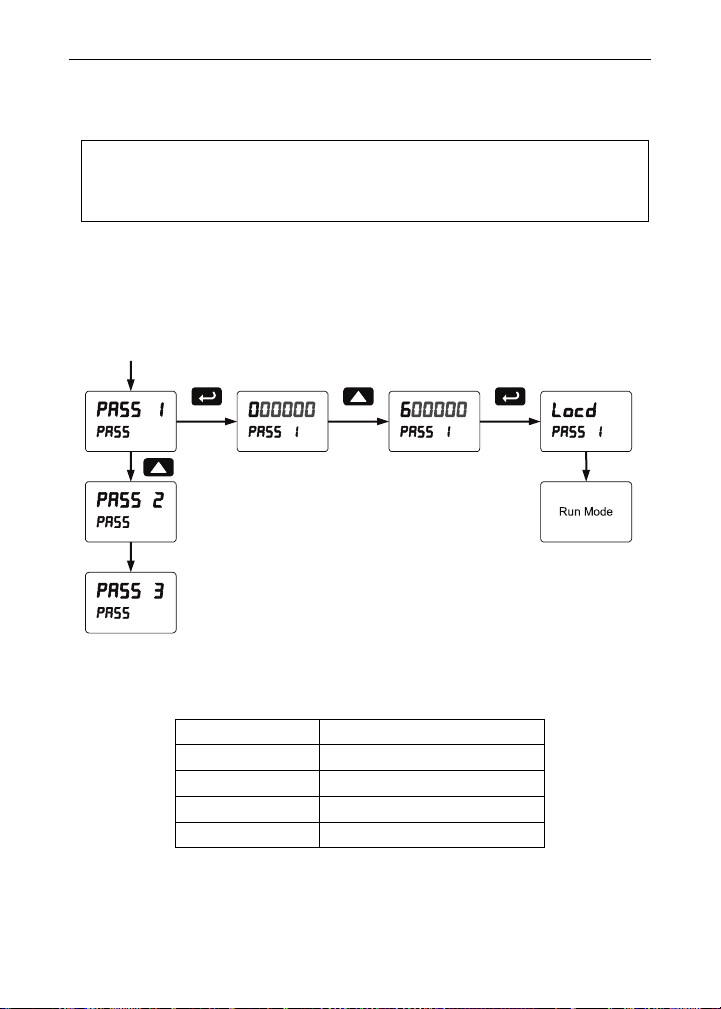

Enter the Password menu

Set or enter Password 1

Set or enter Password 2

Set or enter Password 3

Program password to lock meter

Enter password to unlock meter

Over/under range condition

Page 34

DP6000 Process Meter Instruction Manual

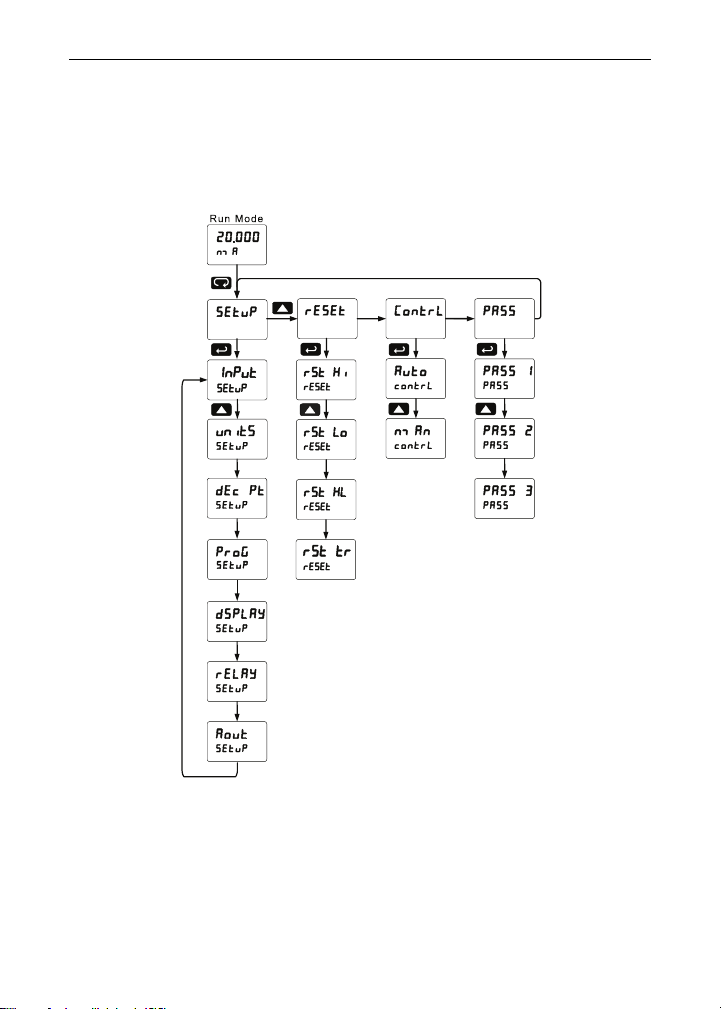

Main Menu

The main menu consists of the most commonly used functions: Setup, Reset, Control, and Password.

 Press Menu button to enter Programming Mode then press the Up

arrow button to scroll main menu.

 Press Menu, at any time, to exit and return to Run Mode. Changes

made to settings prior to pressing Enter are not saved.

 Changes to the settings are saved to memory only after pressing

Enter/F3.

 The display moves to the next menu every time a setting is

accepted by pressing Enter/F3.

Page 35

DP6000 Process Meter Instruction Manual

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit value.

The digit being changed is displayed brighter than the rest. Press and hold up arrow to auto-increment the display value. Press the Enter button, at any time, to accept a setting or Menu button

to exit without saving changes.

000

Select

Next Digit

004

Increment

Digital

Value

004.000

dis 1 dis 1 dis 1

00 5

000

Accept Setting

Setting

Page 36

DP6000 Process Meter Instruction Manual

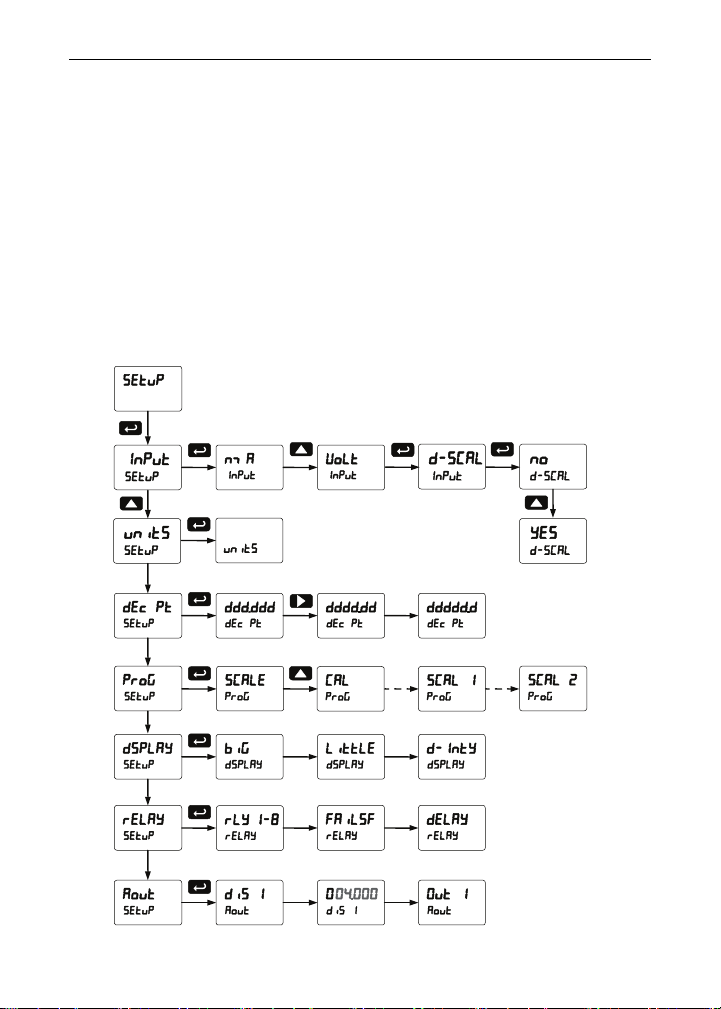

Setting Up the Meter (setup)

The Setup menu is used to select:

1. Input signal the meter will accept

2. Dual-scale feature for some level applications

3. Select the display units/tags

4. Decimal point position

5. Programming Menu

6. Display parameter and intensity

7. Relay operation

8. 4-20 mA analog output scaling

Press the Enter button to access any menu or press Up arrow button to scroll through choices. Press the Menu button to exit at any time.

Note:

Enter custom units here

Use the to activate the dual-scale level feature - PV1 & PV2 (see introduction on page 6). Set displays are to be used fo anything other than PV1 & PV2.

d-SCAL

tono if both

selection

Note:

Scal 1 & Scal 2 are displayed instead o Scale i

d-SCAL

selected under the Setup Input menu. They correspond to the PV1 & PV2 scales.

Page 37

DP6000 Process Meter Instruction Manual

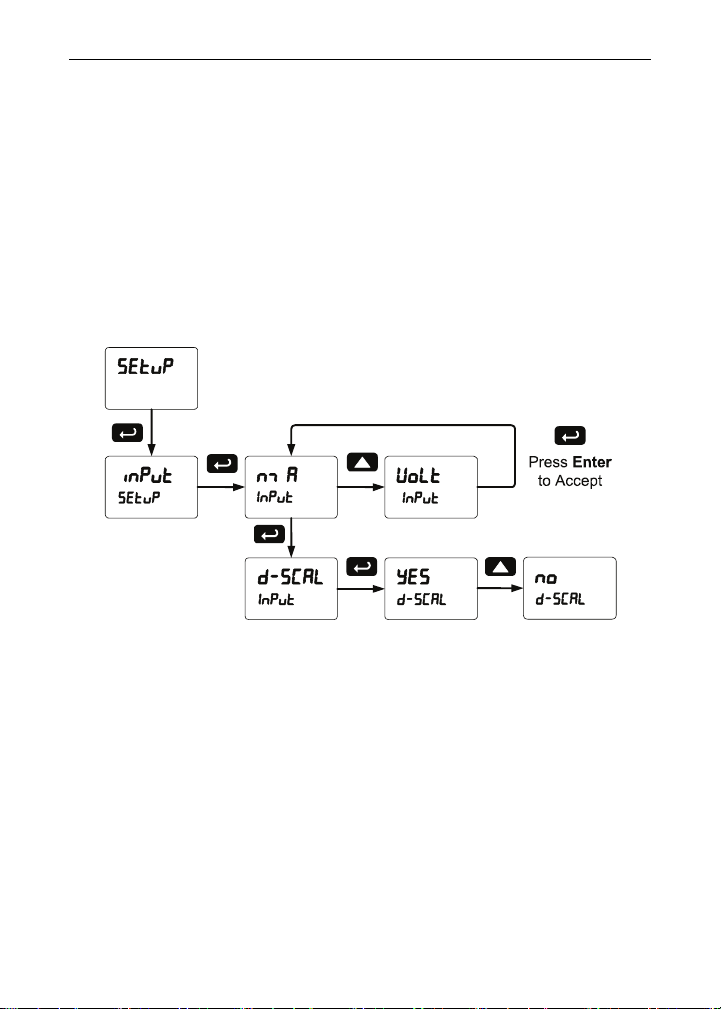

Setting the Input Signal (Input)

Enter the Input menu to set up the meter to display current (mA) or voltage (volt) inputs.

The current input is capable of accepting any signal from 0 to 20 mA. Select current input to accept 0-20 mA or 4-20 mA signals.

The voltage input is capable of accepting any signal from -10 to +10 VDC. Select voltage input to accept 0-5, 1-5, 0-10, or 10 VDC signals.

After selecting mA or Volt input, d-SCAL is displayed; press Enter to select “Yes” or “No”. Selecting “Yes” enables the dual-scale feature, which allows for the Scale (SCALE) and Units (units) menus to be used to scale the same input in two different scales for PV1 & PV2.

Set d-SCAL to no if both displays are to be used for anything other than PV1 & PV2.

Page 38

DP6000 Process Meter Instruction Manual

Setting the Input Units or Custom Tags (units)

Enter the input unit or custom tag that will be displayed if d unit is selected as the little display parameter. See the flow chart on page 46 to access the display menu to show the unit or tag on the little display. The engineering units or custom legends can be set using the following 7segment character set:

Display Character Display Character

0 1 2 3 4 5 6 7 8 9 A b C c d e f g 9 H h I

I j

Notes:

Degree symbol represented by (<) if programming with DP6000-SOFT. The letters “m” and “w” use two 7-segment LEDs each; when selected the

characters to the right are shifted one position. Press and hold up arrow to auto-scroll the characters in the display.

0 1 2 3 4 5 6 7 8 9 A b

d E F G

g H

I i

k l

n O o p q r s t u v

x y z

/ [ ] =

K L

o P q

t u V

X Y Z

]

[ =

Degree(<)

Space

Page 39

DP6000 Process Meter Instruction Manual

Setting the Decimal Point (dEc pt)

The decimal point may be set with up to five decimal places or with no decimal point at all.

Pressing the Right arrow moves the decimal point one place to the right until no decimal point is displayed, and then it moves to the leftmost position. Pressing the Up arrow moves the decimal point one place to the left.

If the dual-scale level feature is selected, the decimal point selections for PV1 & PV2 are enabled.

Page 40

DP6000 Process Meter Instruction Manual

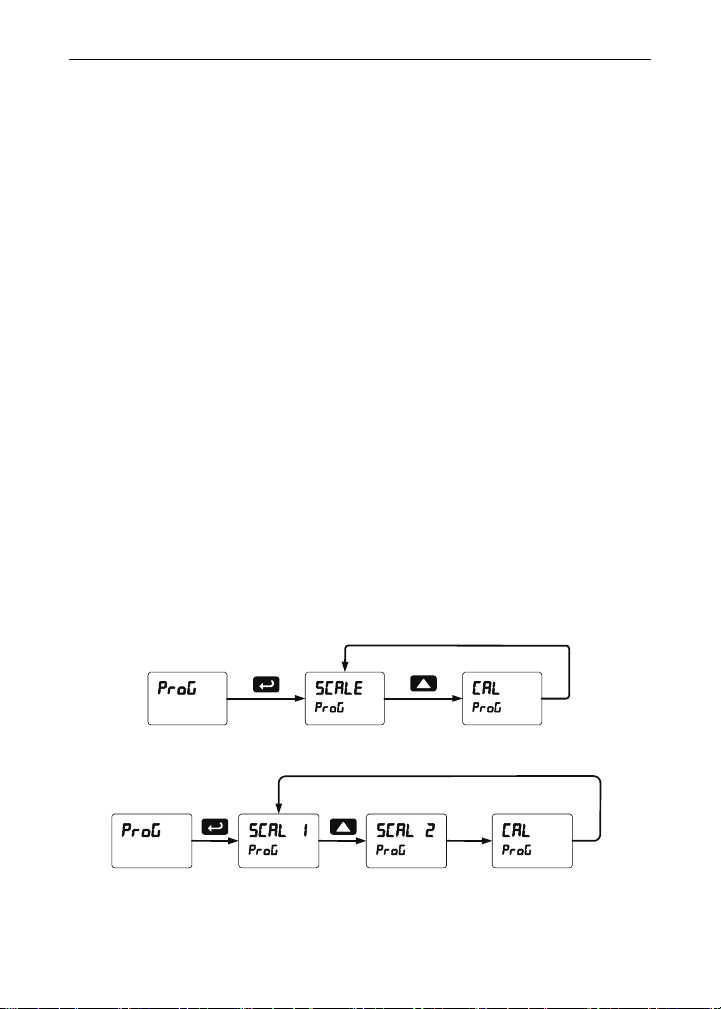

Programming the Meter (prog)

It is very important to read the following information, before proceeding to program the meter:

 The meter is factory calibrated prior to shipment to read in

milliamps and volts depending on the input selection. The calibration equipment is certified to NIST standards.

 Use the Scale menu to scale the process input (e.g. 4-20 mA). A

calibrated signal source is not needed to scale the meter.

 Use the Calibrate menu to apply a signal from a calibrator or a

flowmeter.

 The DP6000 is a single input meter with dual-scale capability.

The Program menu contains the Scale and the Calibrate menus.

Note: The Scale and Calibrate functions are exclusive of each other. The meter uses the last function programmed. Only one of these methods can be employed at a time. The Scale and Calibrate functions can use up to 32 points (default is 2). The number of points should be set in the Advanced menu under the Multi-Point Linearization (Linear) menu selection prior to scaling and calibration of the meter, see page 77 for details.

If the dual-scale level feature is selected in the Setup menu, the Scale 1 and Scale 2 menus are enabled for PV1 & PV2 respectively.

The process input may be calibrated or scaled to any display value within the range of the meter.

Program Menu for Single Scale Process

Program Menu for Dual-Scale Level Applications

Additional parameters, not needed for most applications, are programmed in the Advanced Features menu; see Advanced Features Menu, page 70.

Page 41

DP6000 Process Meter Instruction Manual

Multi-Point Calibration & Scaling

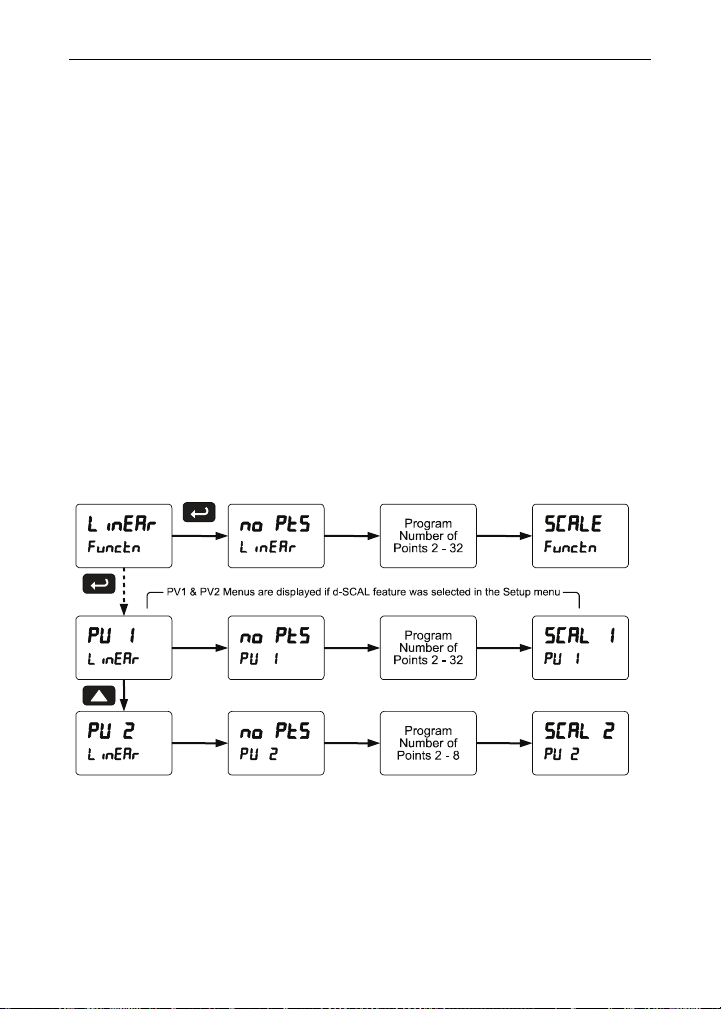

The meter is set up at the factory for 2-point linear calibration. The number of points for multi-point calibration/scaling is set up in the Advanced Features menu. Up to 32 linearization points may be selected for PV1 and up to 8 linearization points may be selected for PV2. See page 77 for details.

DP6000-SOFT Software

The meter can also be programmed using the PC-based DP6000-SOFT software available for free download at www.omega.com.

Data logging for one meter at a time is available with DP6000-SOFT software. More advanced data acquisition may be accomplished by using any Modbus RTU compliant software.

In order to program the meter using a computer, the meter must be connected using a USB, RS-232, or RS-485 serial adapter, see ORDERING INFORMATION on page 9 for details.

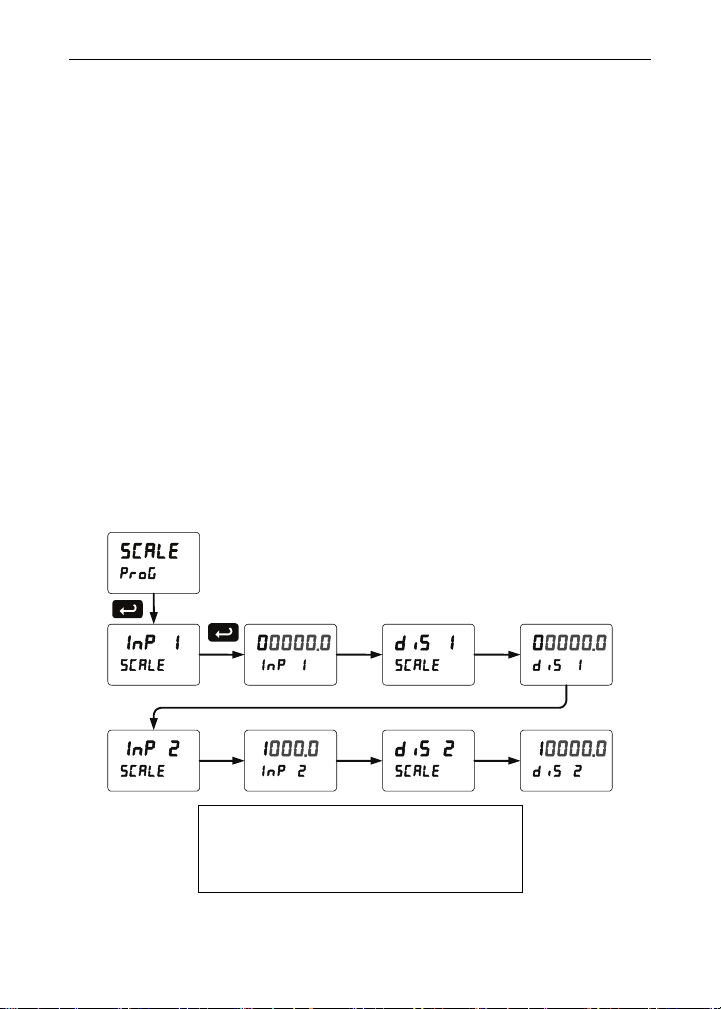

Scaling the Meter (SCALE)

The process input (4-20 mA, 10 VDC) can be scaled to display the process variable in engineering units.

A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.

For instructions on how to program

numeric values see Setting Numeric

Values, page 35.

Page 42

DP6000 Process Meter Instruction Manual

Dual-Scale for Level Application

The analog input can be displayed in two different scales, by enabling the dual-scale feature (d-SCAL) in the Setup-Input menu, see page 36.

To enable the dual-scale feature for some level applications you must select d-SCAL in the Input selection menu.

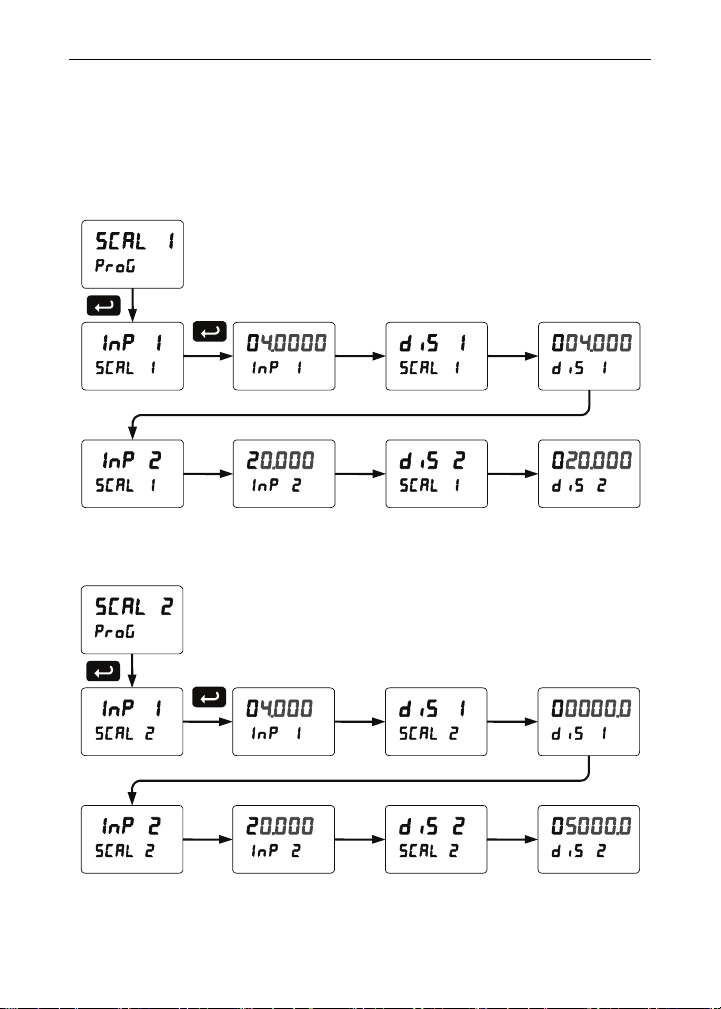

Scaling the Input for PV1 (SCAL 1)

Scaling the Input for PV2 (SCAL 2)

Page 43

DP6000 Process Meter Instruction Manual

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful.

After the error message is displayed, the meter reverts to the input prior to the failure during calibration or scaling and to input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed.

The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is connected backwards.

2. Wrong signal selection in Setup menu.

3. Minimum input span requirements not maintained.

4. Input 1 signal inadvertently applied to calibrate input 2.

Minimum Input Span

The minimum input span is the minimum difference between input 1 and input 2 signals required to complete the calibration or scaling of the meter.

Input Range Input 1 & Input 2 Span

4-20 mA 0.15 mA

10 VDC

0.10 VDC

Page 44

DP6000 Process Meter Instruction Manual

Calibrating the Meter with External Source (Cal)

Note: To scale the meter without a signal source refer to Scaling the Meter (SCALE), page 41.

The meter can be calibrated to display the process variable in engineering units by applying the appropriate input signal and following the calibration procedure.

The use of a calibrated signal source is strongly recommended to calibrate the meter.

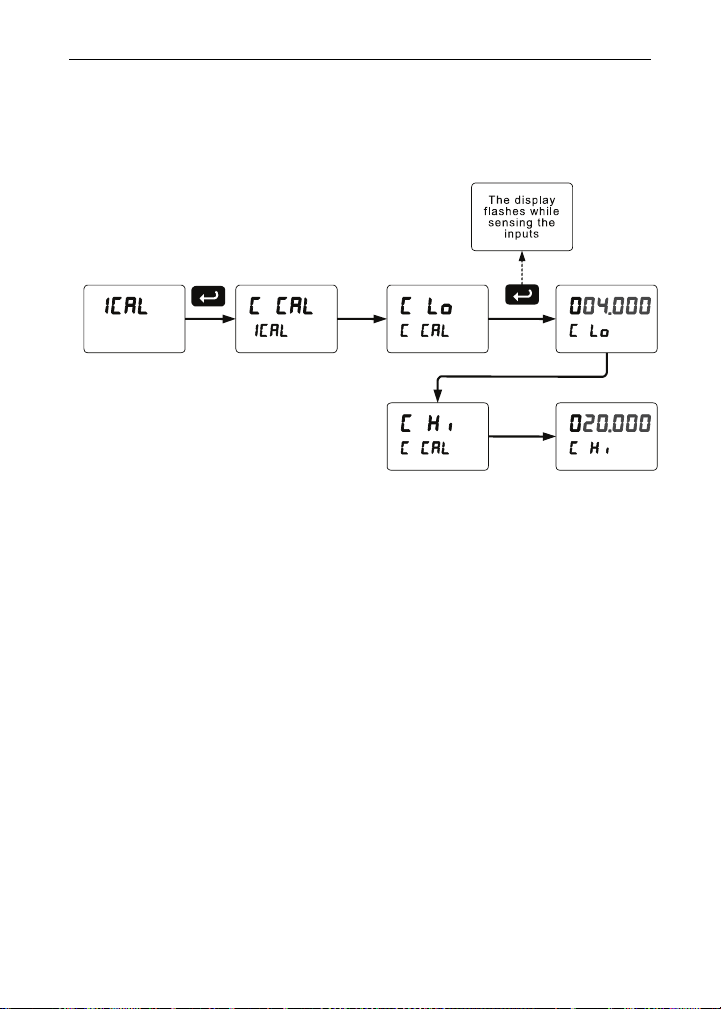

he display flashes

while sensing

the inputs

Warm up the meter for at least 15 minutes

before performing calibration to ensure

specified accuracy.

Page 45

DP6000 Process Meter Instruction Manual

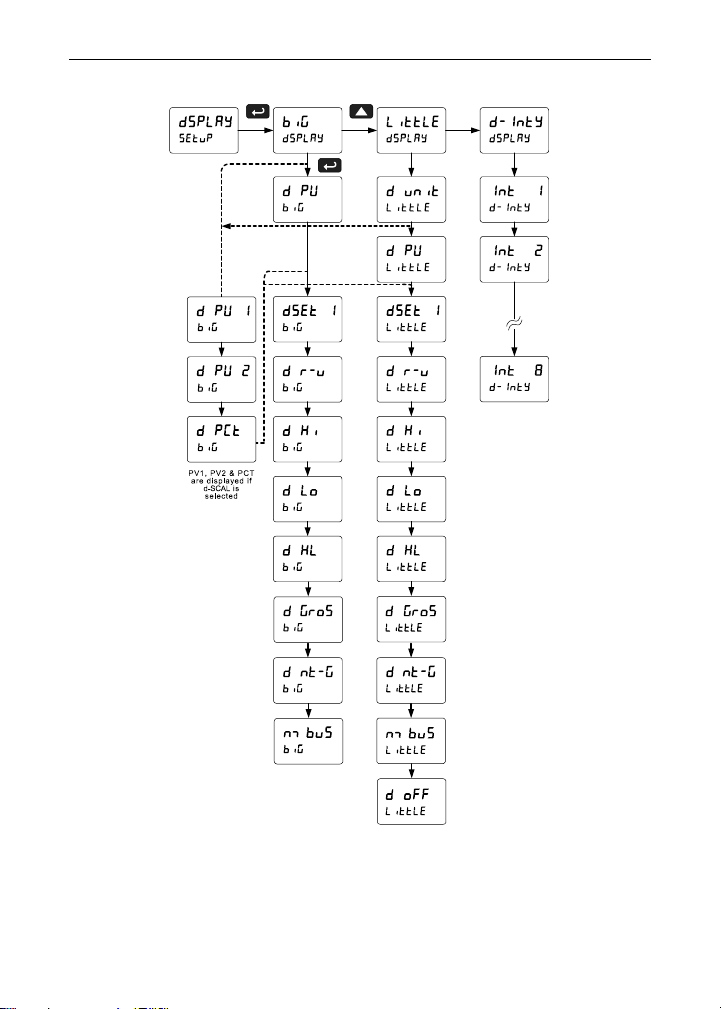

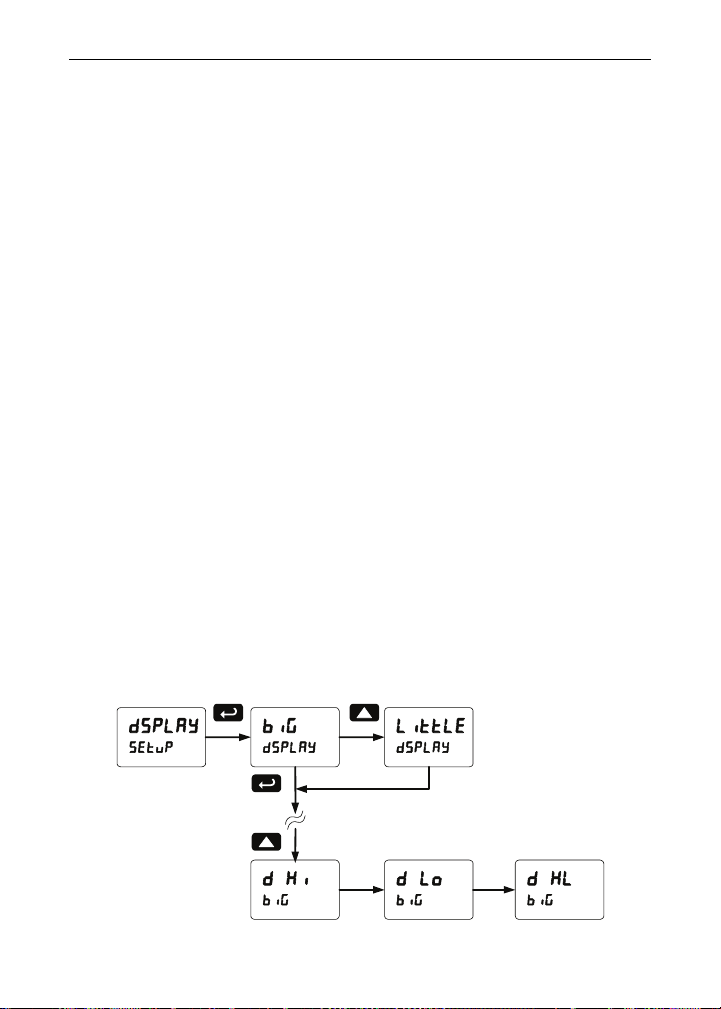

Setting the Display Parameter & Intensity (dsplay)

The main display (Big) can be programmed to display:

1. Process value 1 (PV1)

2. Process value 2 (PV2)

3. Percent of PV1 (PCT)

4. Relay set points

5. Max & min values

6. Modbus input

7. Display reading and units

8. Display gross

9. Toggle net & gross

The small display (Little) can be programmed to display:

1. Unit

2. Process value 1 (PV1)

3. Process value 2 (PV2)

4. Percent of PV1 (PCT)

5. Relay set points

6. Max & min values

7. Engineering units or custom legends

8. Modbus input

9. Off (no display)

10. Toggle reading and units

11. Display gross

12. Toggle net/gross

Display Intensity: The meter has eight display intensity levels to give the best performance under various lighting conditions. Select intensity 8 for outdoor applications. The default intensity setting is 8.

Page 46

DP6000 Process Meter Instruction Manual

Display Setup Menu

After setting up the input and display, press the Menu button to exit programming and skip the rest of the setup menu. Press the Menu button again and the Up arrow to reach the Program menu and complete the scaling or calibration of the meter.

Page 47

DP6000 Process Meter Instruction Manual

Setting the Relay Operation (relay)

This menu is used to set up the operation of the relays.

During setup, the relays do not follow the input and

Caution!

1. Relay action

2. Set point

3. Reset point

4. Fail-safe operation

5. Time delay

6. Relay action for loss (break) of 4-20 mA input (ignore, on, off)

a. Automatic reset only (non-latching) b. Automatic + manual reset at any time (non-latching) c. Latching (manual reset only) d. Latching with Clear (manual reset only after alarm

e. Pump alternation control (automatic reset only) f. Sampling (the relay is activated for a user-specified time) g. Off (relay state controlled by Interlock feature)

a. On (enabled) b. Off (disabled)

a. On delay (0-999.9 seconds) b. Off delay (0-999.9 seconds)

they will remain in the state found prior to entering the Relay menu.

condition has cleared)

Page 48

DP6000 Process Meter Instruction Manual

Setting the Relay Action

Operation of the relays is programmed in the Action menu. The relays may be set up for any of the following modes of operation:

1. Automatic reset (non-latching)

2. Automatic + manual reset at any time (non-latching)

3. Latching (manual reset only, at any time)

4. Latching with Clear (manual reset only after alarm condition

has cleared)

5. Pump alternation control (automatic reset only)

6. Sampling (the relay is activated for a user-specified time)

7. Off (relay state controlled by Interlock feature)

The following graphic shows relay 1 action setup; relay 2-8 are set up in a similar fashion.

Page 49

DP6000 Process Meter Instruction Manual

Programming Set and Reset Points

High alarm indication: program set point above reset point. Low alarm indication: program set point below reset point. The deadband is determined by the difference between set and reset

points. Minimum deadband is one display count. If the set and reset points are programmed with the same value, the relay will reset one count below the set point.

Note: Changes are not saved until the reset point has been accepted.

Setting Fail-Safe Operation

In fail-safe mode of operation, the relay coil is energized when the process variable is within safe limits and the relay coil is de-energized when the alarm condition exists. The fail-safe operation is set independently for each relay. Select on to enable or select off to disable fail-safe operation.

Programming Time Delay

The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay.

The On time delay is associated with the set point. The Off time delay is associated with the reset point.

Relay Action for Loss of 4-20 mA Input (Loop Break)

The loop break feature is associated with the 4-20 mA input. Each relay may be programmed to go to one of the following conditions when the meter detects the loss of the input signal (i.e. < 0.005 mA):

1. Turn On (Go to alarm condition)

2. Turn Off (Go to non-alarm condition)

3. Ignore (Processed as a low signal condition)

Note: This is not a true loop break condition; if the signal drops below

0.005 mA, it is interpreted as a “loop break” condition.

Page 50

DP6000 Process Meter Instruction Manual

Relay and Alarm Operation Diagrams

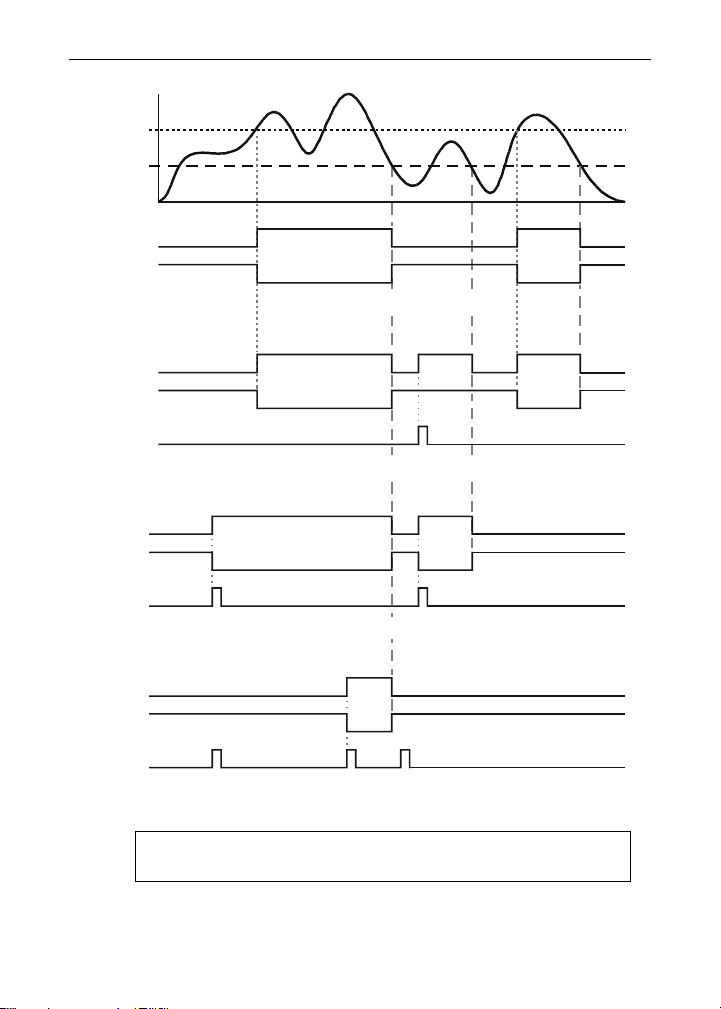

The following graphs illustrate the operation of the relays, status LEDs, and ACK button.

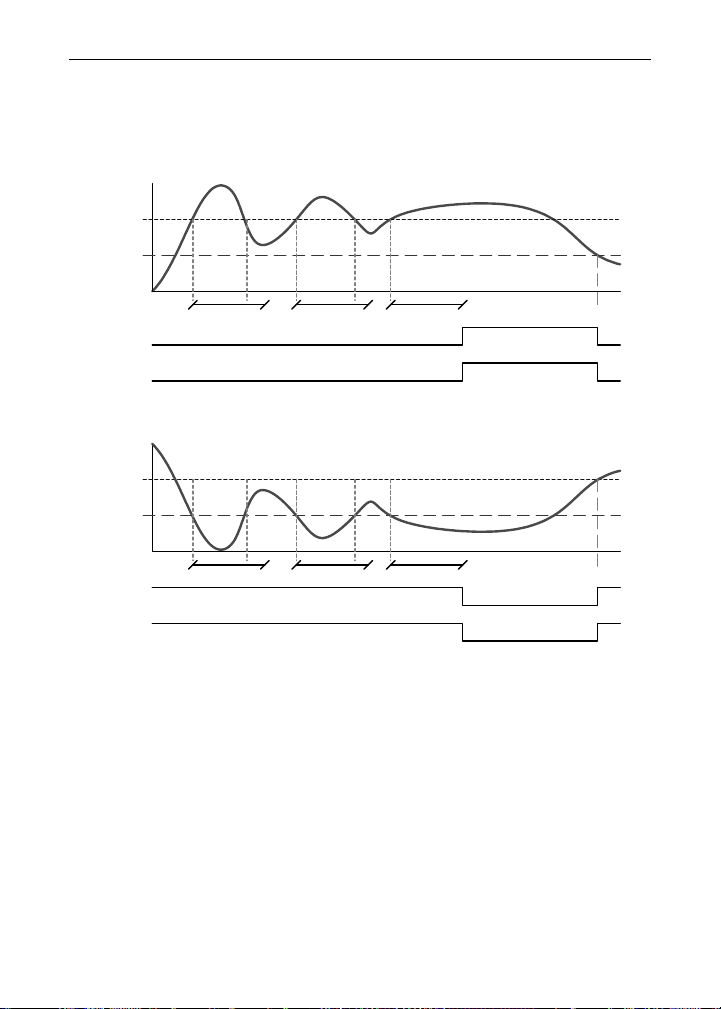

High Alarm Operation (Set > Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

Page 51

DP6000 Process Meter Instruction Manual

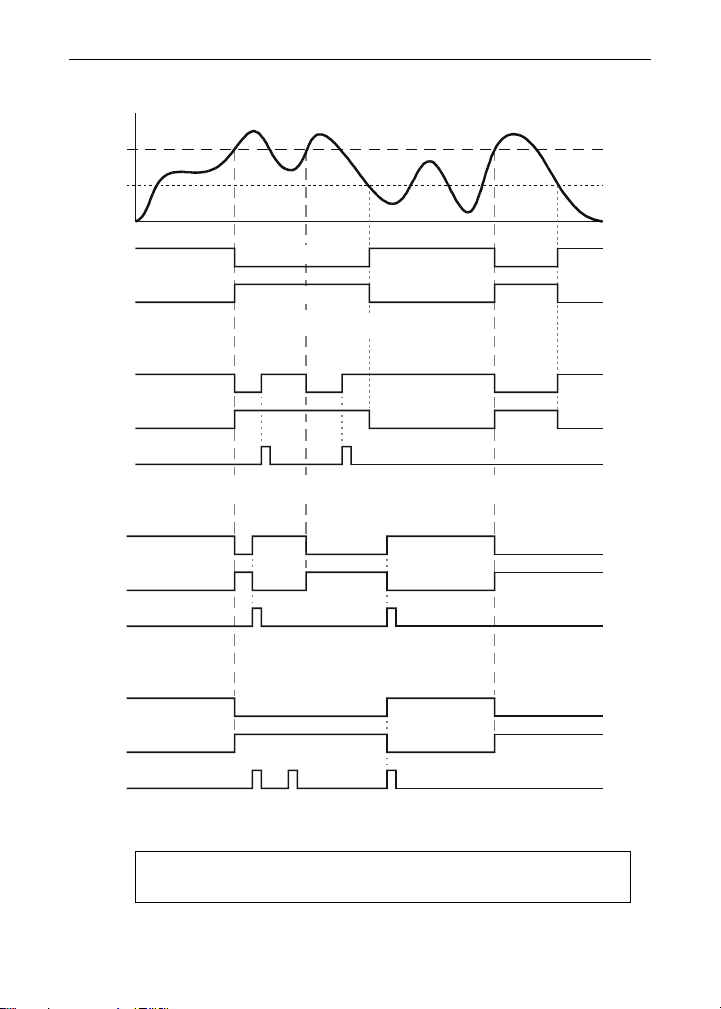

Low Alarm Operation (Set < Reset)

Input

Rese

Set

Rela

LED

energized

de-energized

Automatic (non-latching)

Rela

LED

ACK

pressed

Automatic or Manual (non-latching)

Rela

LED

ACK

pressed

Manual (latching)

Rela

LED

ACK

pressed

Manual only after passing above Reset (latching with clear)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. For relay to turn back “on”, signal must go above set point and then go below it.

Page 52

DP6000 Process Meter Instruction Manual

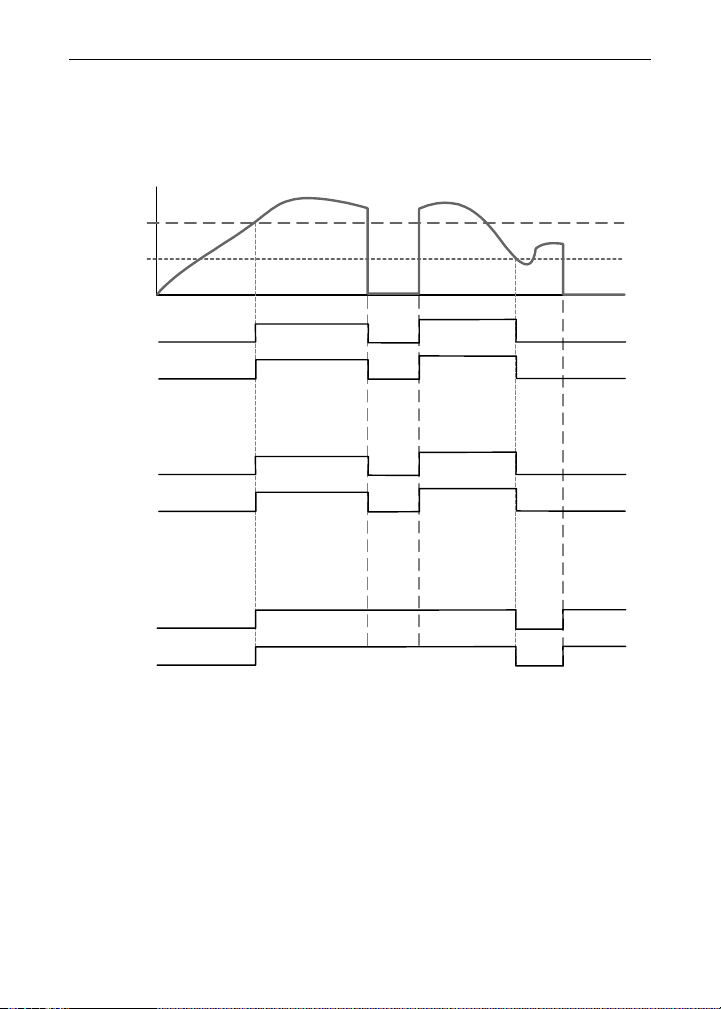

High Alarm with Fail-Safe Operation (Set > Reset)

Input

Set

Rela

LED

Rela

LED

ACK

pressed

Rela

LED

ACK

pressed

Rela

LED

ACK

pressed

energized

de-energized

Automatic (non-latching)

Automatic or Manual (non-latching)

Manual (latching)

Manual only after passing below Reset (latching with clear)

Note: Relay coil is energized in non-alarm condition.

In case of power failure, relay will go to alarm state.

Page 53

DP6000 Process Meter Instruction Manual

Low Alarm with Fail-Safe Operation (Set < Reset)

Input

Rese

Set

Rela

LED

de-energized

energized

Automatic (non-latching)

Rela

LED

ACK

pressed

Automatic or Manual (non-latching)

Rela

LED

ACK

pressed

Manual (latching)

Rela

LED

ACK

pressed

Manual only after passing above Reset (latching with clear)

Note: Relay coil is energized in non-alarm condition.

In case of power failure, relay will go to alarm state.

Page 54

DP6000 Process Meter Instruction Manual

LEDs indicate the relay status

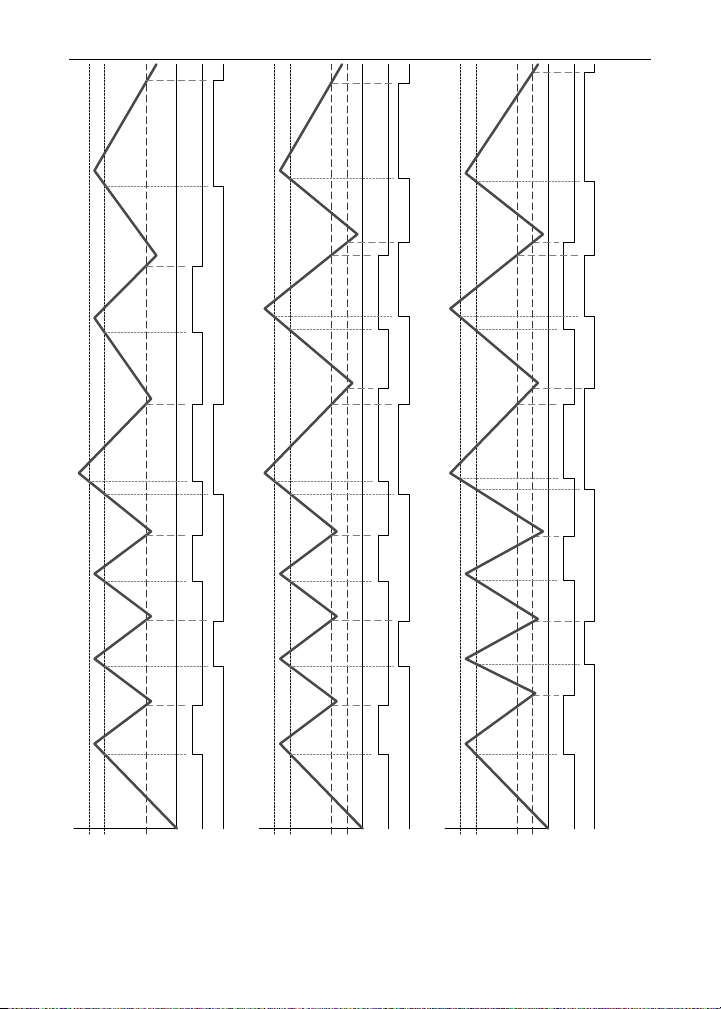

Pump Alternation Control Operation

Input

de-energized energized

Pump 1

Relay1 &

Relay1 Set

Relay2 Set

Relay2 Reset

Pump 2

Relay1 Set

Relay2 Set

de-energized energized

Relay2 Reset

Relay1 Reset

Pump 1

Pump 2

Input

de-energized energized

Pump 2

Relay1 Reset

Relay2 Reset

Pump 1

Relay1 Set

Relay2 Set

Page 55

DP6000 Process Meter Instruction Manual

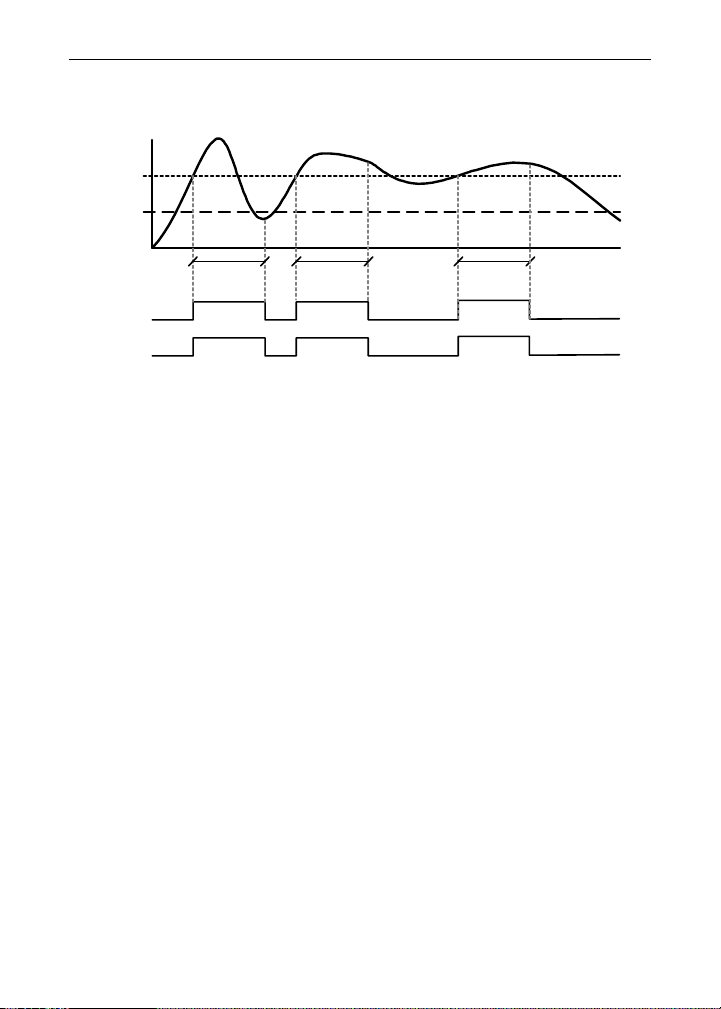

Relay Sampling Operation

Input

Set

Reset

Relay

LED

Sample

Tim e

Sample

Tim e

Sample

Tim e

When the signal crosses the set point, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the set point is crossed, going up for high alarms and going down for low alarms.

The sample time can be programmed between 0.1 and 5999.9 seconds.

Page 56

DP6000 Process Meter Instruction Manual

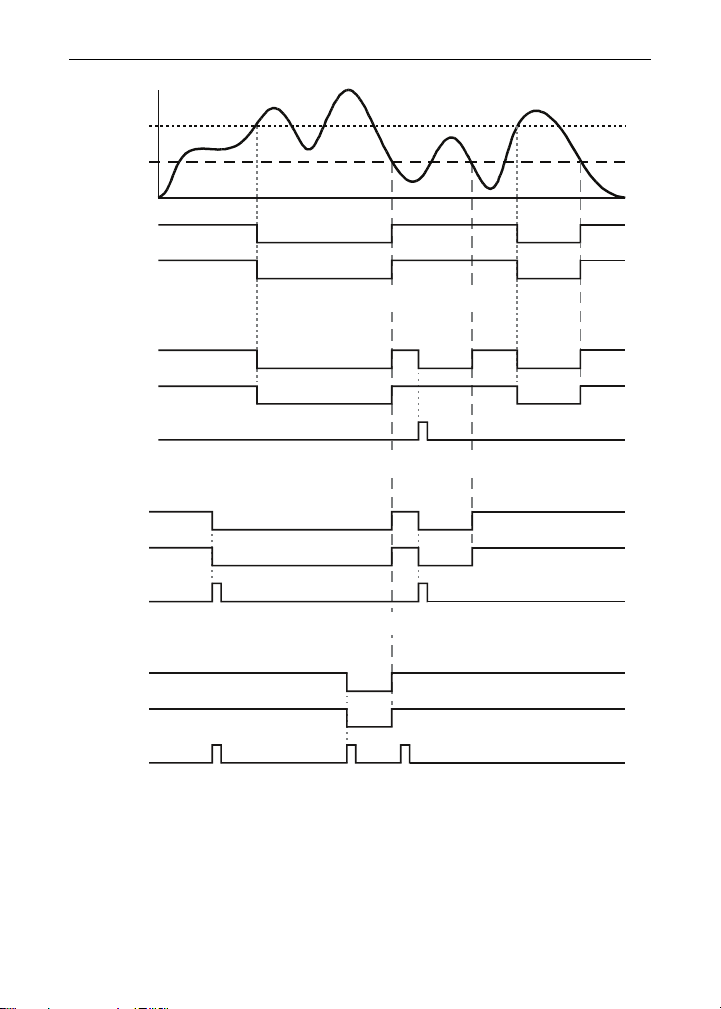

Signal Loss or Loop Break Relay Operation

The following graph shows the loop break relay operation for a high alarm relay.

Input

Set

Reset

de-energized energized

Relay

LED

Relay

LED

Relay

off on

Loop Break = Ignore

Loop Break = Off

LED

Loop Break = On

When the meter detects a break in the 4-20 mA loop, the relay will go to one of the following selected actions:

1. Turn

2. Turn

On (Go to alarm condition) Off (Go to non-alarm condition)

3. Ignore (Processed as a low signal condition)

Page 57

DP6000 Process Meter Instruction Manual

Time Delay Operation

The following graphs show the operation of the time delay function.

Input

Set

Reset

<Tdelay <Tdelay >=Tdelay

Relay

LED

On Time Delay

Input

Set

Reset

<Tdelay <Tdelay >=Tdelay

Relay

LED

Off Time Delay

When the signal crosses the set point, the

On time delay timer starts

and the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the

On time delay timer resets and the relay does not change state. The

same principle applies to the

Off time delay.

Note: If “Automatic or Manual (A-mAn)” reset mode is selected, the

LED follows the reset point and not the relay state when the relay is acknowledged.

Page 58

DP6000 Process Meter Instruction Manual

Relay Operation Details

Overview

The relay capabilities of the meter expand its usefulness beyond simple indication to provide users with alarm and control functions. These capabilities include front panel alarm status LEDs as well as either 2 or 4 optional internal relays and/or 4 external relays expansion module. Typical applications include high or low temperature, level, pressure or flow alarms, control applications such as simple on/off pump control, and pump alternation control for up to 8 pumps. There are four basic ways the relays can be used:

1. High or Low Alarms with Latching or Non-Latching Relays

2. Simple On/Off Control with 100% Adjustable Deadband

3. Sampling (Based on Time)

4. Pump Alternation Control for up to 8 Pumps

Relays Auto Initialization

When power is applied to the meter, the front panel LEDs and alarm relays will reflect the state of the input to the meter. The following table indicates how the alarm LEDs and relays will react on power-up based on the set and reset points:

Alarm # HI or LO

Alarm

1 HI 1000 500 499 Off 2 LO 700 900 499 On 3 LO 250 400 499 Off 4 HI 450 200 499 On

Set

Point

Reset Point

Power-Up

Reading

Fail-Safe Operation

The following table indicates how the relays behave based on the failsafe selection for each relay:

Fail-Safe Selection

Off Open Closed Closed Open Relays go to

On Closed Open Open Closed Relays go to

Note: NO = Normally Open, NC = Normally Closed. This refers to the

Non-Alarm State Alarm State Power Failure

NO NC NO NC

condition of the relay contacts when the power to the meter is off.

Relay &

LED

non-alarm state

alarm state

Page 59

DP6000 Process Meter Instruction Manual

Front Panel LEDs

The LEDs on the front panel provide status indication for the following:

LED Status LED Status

1 Alarm 1 5 Alarm 5 2 Alarm 2 6 Alarm 6 3 Alarm 3 7 Alarm 7 4 Alarm 4 8 Alarm 8

The meter is supplied with four alarm points that include front panel LEDs to indicate alarm conditions. This standard feature is particularly useful for alarm applications that require visual-only indication. The LEDs are controlled by the set and reset points programmed by the user. When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset point the LED will go off. The front panel LEDs respond differently for latching and non-latching relays.

For non-latching relays, the LED is always off during normal condition and always on during alarm condition, regardless of the state of the relay (e.g. Relay acknowledged after alarm condition).

For latching relays, the alarm LEDs reflect the status of the relays, regardless of the alarm condition. The following tables illustrate how the alarm LEDs function in relation to the relays and the acknowledge button (Default: F3 key assigned to ACK):

Latching and Non-Latching Relay Operation

The relays can be set up for latching (manual reset) or non-latching (automatic reset) operation.

Relay terminology for following tables Terminology Relay Condition

On Alarm (Tripped) Off Normal (Reset)

Ack Acknowledged

The On and Off terminology does not refer to the status of the relay’s coil, which depends on the fail-safe mode selected.

Warning!

In latching relay mode, latched relays will reset (unlatch) when power is cycled.

Page 60

DP6000 Process Meter Instruction Manual

Non-Latching Relay (Auto)

Automatic reset only

Condition LED Relay

Normal Off Off Alarm On On Ack (No effect) On On Normal Off Off

In this application, the meter is set up for automatic reset (non-latching relay). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm finally goes away, the relay automatically resets and the LED also goes off.

Non-Latching Relay (A-man)

Automatic + manual reset at any time

Condition LED Relay

Normal Off Off Alarm On On Normal Off Off Next Alarm On On Ack On Off Normal Off Off

In this application, the meter is set up for automatic and manual reset at any time (non-latching relay). The LED and the relay automatically reset when the meter returns to the normal condition. The next time an alarm occurs, the operator acknowledges the alarm manually while the alarm condition still exists. This causes the relay to reset, but the LED stays on until the meter returns to the normal condition.

Latching Relay (LatcH)

Manual reset any time

Condition LED Relay

Normal Off Off Alarm On On

Ack Off Off In this application, the meter is set up for manual reset at any time. Acknowledging the alarm even if the alarm condition is still present resets the relay and turns off the LED.

Page 61

DP6000 Process Meter Instruction Manual

Latching Relay (Lt-Clr)

Manual reset only after alarm condition has cleared

Condition LED Relay

Normal Off Off Alarm On On Ack (No effect) On On Normal On On

Ack Off Off In this application, the meter is set up for manual reset only after the signal passes the reset point (alarm condition has cleared). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm is acknowledged after it returns to the normal state, the LED and the relay go off. Notice that the LED remains on, even after the meter returns to the normal condition. This is because, for latching relays, the alarm LED reflects the status of the relay, regardless of the alarm condition.

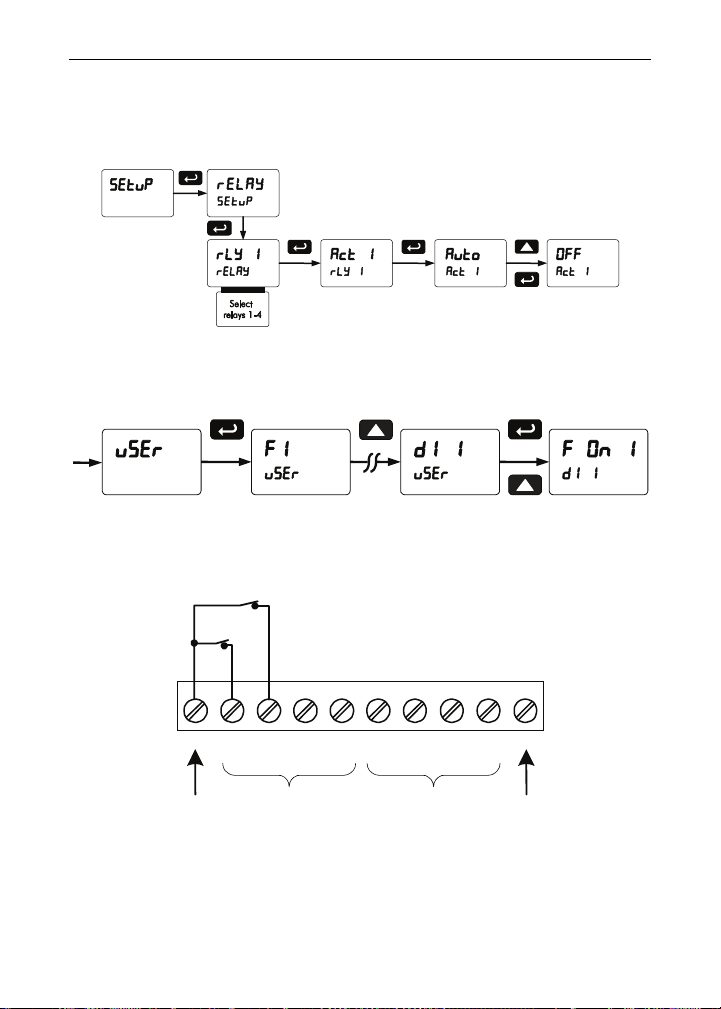

Acknowledging Relays

There are two ways to acknowledge relays programmed for manual reset:

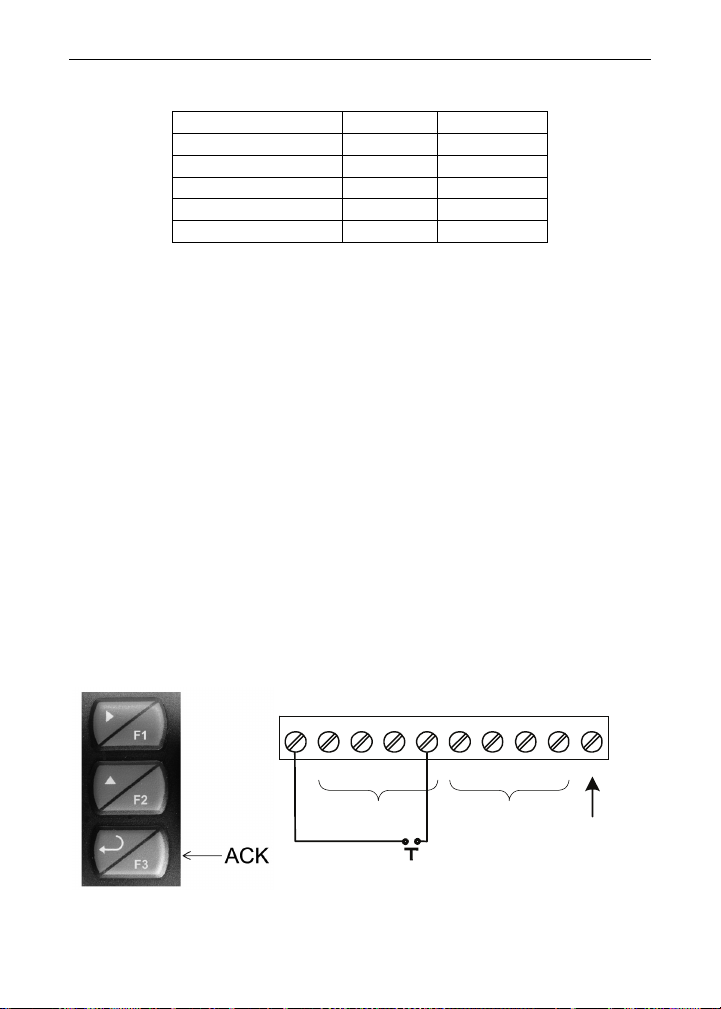

1. Via the programmable front panel function keys F1-F3 (Default: F3 assigned to ACK).

2. Remotely via a normally open pushbutton wired across one of the digital inputs and the +5 V terminals on the digital I/O modules, or using the F4 digital input, which is triggered with a contact closure to COM, or with an active low signal (see page

25).

When the ACK button or the assigned digital input is closed, all relays programmed for manual reset are acknowledged.

DPA1044 Digital I/O Module

1 2 345 6 78910

I1 I2 I3 I4

DI 1-4

Figure 21. Acknowledge Relays w/Function Key or Digital Input

O1 O2 O3 O4 G

DO 1-4

GND

Page 62

DP6000 Process Meter Instruction Manual

Pump Alternation Control Applications (Altern)

For pump control applications where two or more similar pumps are used to control the level of a tank or a well, it is desirable to have all the pumps operate alternately. This prevents excessive wear and overheating of one pump over the lack of use of the other pumps.

Up to 8 relays can be set up to alternate every time an on/off pump cycle is completed. The set points and reset points can be programmed, so that the first pump on is the first pump off.

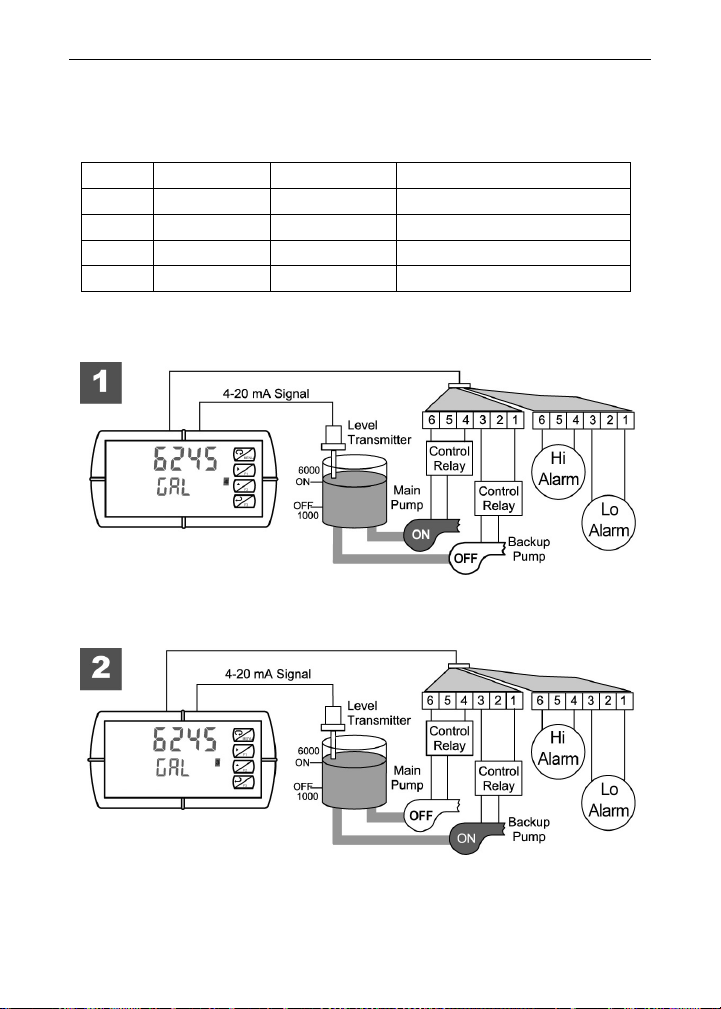

Application #1: Pump Alternation Using Relays 1 & 2

1. Relays 1 and 2 are set up for pump alternation.

2. Relays 3 and 4 are set up for low and high alarm indication.

Set and Reset Point Programming

Relay Set Point Reset Point Function

1 30.000 10.000 Controls pump #1 2 35.000 5.000 Controls pump #2 3 4.000 9.000 Controls low alarm 4 40.000 29.000 Controls high alarm

Pump Alternation Operation

1. Pump #1 turns on when level reaches 30.000, when level drops below 10.000, pump #1 turns off.

2. The next time level reaches 30.000, pump #2 turns on, when level drops below 10.000, pump #2 turns off.

3. If the level doesn’t reach 35.000, pump #1 and pump #2 will be operating alternately.

4. If pump #1 cannot keep the level below 35.000, pump #2 will turn on at 35.000, then as the level drops to10.000, pump #1 turns off, pump #2 is still running and shuts off below 5.000.

5. Notice that with the set and reset points of pump #2 outside the range of pump #1, the first pump on is the first pump to go off. This is true for up to 8 alternating pumps, if setup accordingly.

6. Relay #3 will go into alarm if the level drops below 4.000 and relay #4 will go into alarm if the level exceeds 40.000.

7. Adding the 4 external relays, expansion module allows using the 4 SPDT internal relays for pump alternation and the 4 SPST external relays for high, high-high, low, and low-low alarm indication.

Page 63

DP6000 Process Meter Instruction Manual

Application #2: Pump Alternation Using Relays 3 & 4

1. Relays 1 and 2 are set up for low and high alarm indication.

2. Relays 3 and 4 are set up for pump alternation.

Set and Reset Point Programming

Relay Set Point Reset Point Function

1 495 750 Controls low alarm 2 7500 6900 Controls high alarm 3 7000 900 Controls backup pump 4 6000 1000 Controls main pump

The following graphics provide a visual representation of a typical pump alternation application with high and low alarm monitoring:

1. Relay #4 turns the main pump on at 6000 gallons and turns it off at 1000 gallons.

2. With the Pump Alternation feature activated, the next time the level reaches 6000 gallons, relay #3 transfers and starts the backup pump.

Page 64

DP6000 Process Meter Instruction Manual

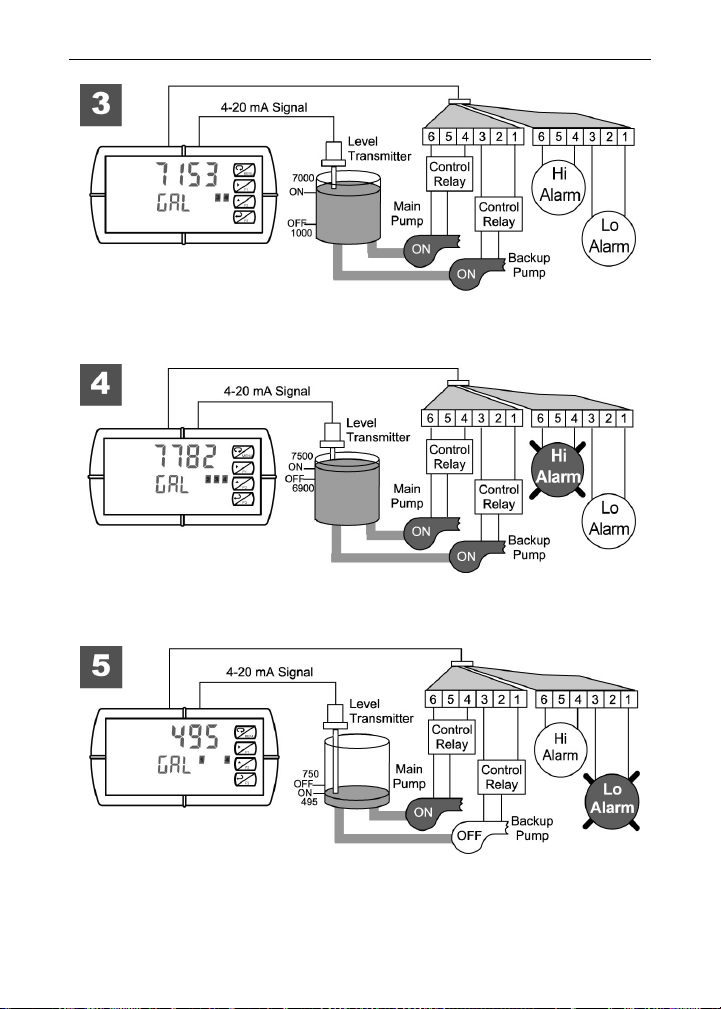

3. If the backup pump is not able to keep up, and the level reaches 7000 gallons, relay #4 transfers and starts the main pump as well.

4. Relay #2 trips the High Level Alarm at 7500 gallons and resets at 6900 gallons.

5. Relay #1 trips the Low Level Alarm at 495 gallons and resets at 750 gallons.

Page 65

DP6000 Process Meter Instruction Manual

Setting Up the Interlock Relay (Force On) Feature

Relays 1-4 can be set up as interlock relays. To set up the relays for the interlock feature:

1. Access the

2. In the Advanced features –

inputs to

3. Connect a switch or dry contact between the +5V terminal and the

corresponding digital input (dI-1 to dI-4) terminal.

Setup – Relay – Action menu and set the action to off.

User menu program any of the digital

Force On any of the internal relays (1-4).

SW2

SW1

12 3 45 6

I1 I2 I3 I4

5 VDC GND

DI 1-4 DO 1-4

7 8

O2 O3

9 10

O4 G

Page 66

DP6000 Process Meter Instruction Manual Interlock Relay Operation Example

Relays 1 & 2 are configured to energize (their front panel LEDs are off) when SW1 & SW2 switches (above) are closed. If the contacts to these digital inputs are opened, the corresponding front panel LEDs flash indicating this condition. The processes being controlled by the interlock relay will stop, and will re-start only after the interlock relay is reactivated by the digital inputs (switches).

Note: If multiple digital inputs are assigned to the same relay, then the corresponding logic is (AND) – i.e. both switches must be closed to trip the relay.

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog output can be scaled to provide a 4-20 mA signal for any display range selected.

No equipment is needed to scale the analog output; simply program the display values to the corresponding mA output signal.

The

Analog Output menu is used to program the 4-20 mA output based

on display values.

For instructions on how to program

numeric values see

Values

Setting Numeric

, page 35.

Page 67

DP6000 Process Meter Instruction Manual

Reset Menu (reset)

The Reset menu is used to reset the maximum or minimum reading (peak or valley) reached by the process; both may be reset at the same time by selecting “reset high & low” ( zero the display may be reset by selecting “reset tare” (

rst HL). The tare value used to

rst tr).

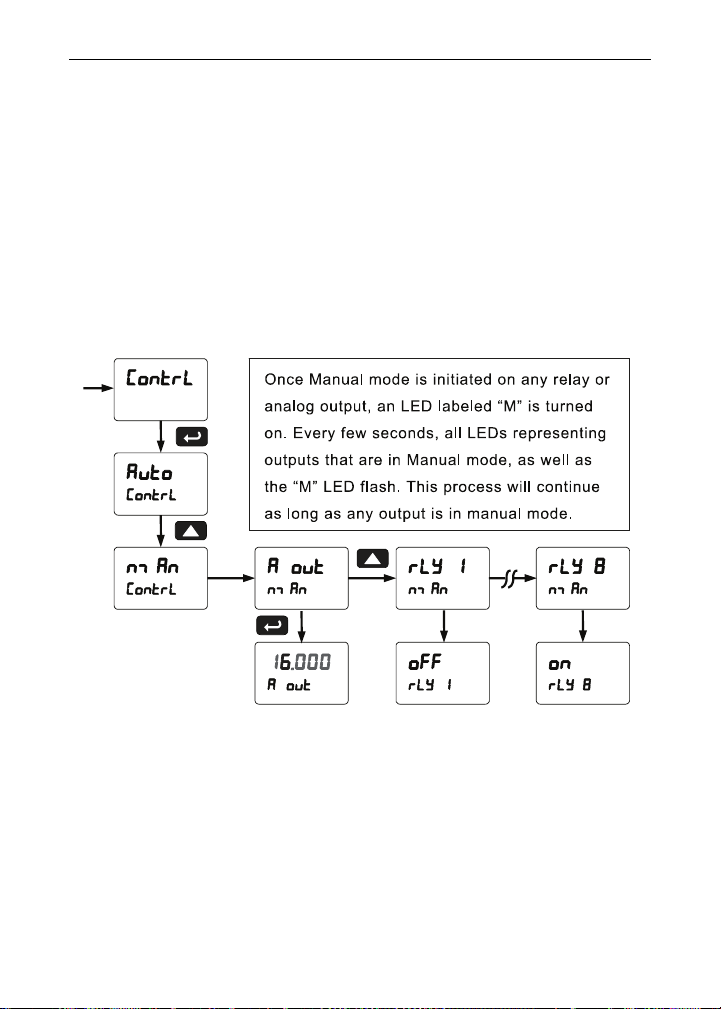

Control Menu (Contrl)

The Control menu is used to control the 4-20 mA analog output and the relays manually, ignoring the input. Each relay and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.

Page 68

DP6000 Process Meter Instruction Manual

Setting Up the Password (pass)

The Password menu is used for programming three levels of security to prevent unauthorized changes to the programmed parameter settings.

Protecting or Locking the Meter

Enter the Password menu and program a six-digit password. For instructions on how to program numeric values see

Values

, page 35.

Setting Numeric

Record the password for future reference. If appropriate, it may be recorded in the space provided.

Model: Serial Number: Password 1: __ __ __ __ __ __ Password 2: __ __ __ __ __ __ Password 3: __ __ __ __ __ __

Page 69

DP6000 Process Meter Instruction Manual

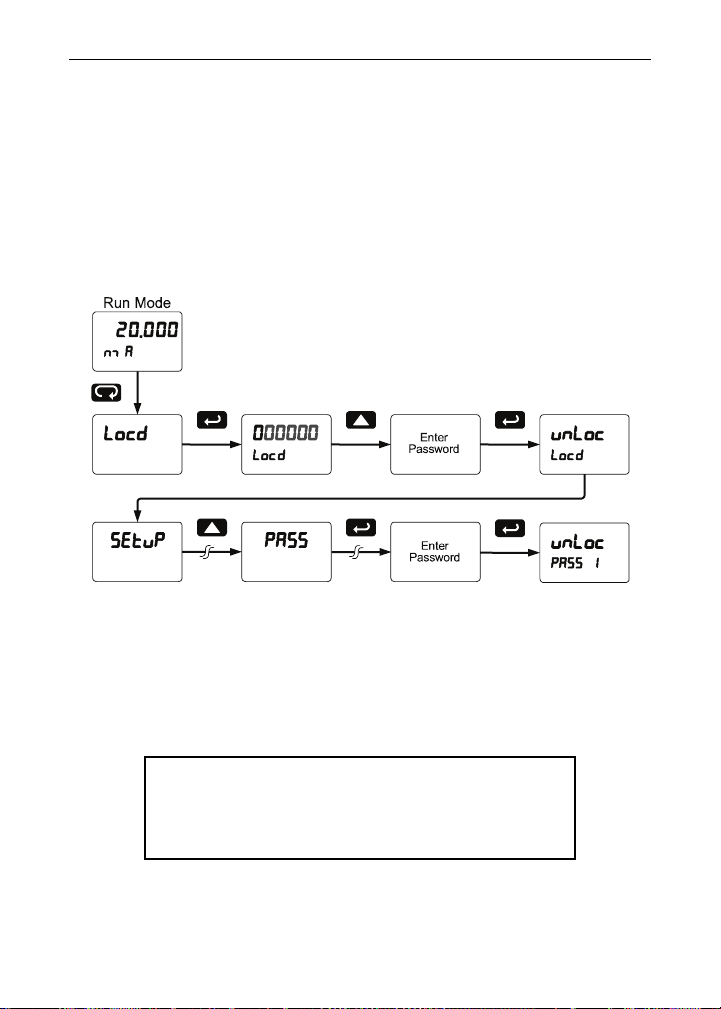

Making Changes to a Password Protected Meter

If the meter is password protected, the meter will display the message

Locd (Locked) when the Menu button is pressed. Press the Enter button

while the message is being displayed and enter the correct password to gain access to the menu. After exiting the programming mode, the meter returns to its password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and enter the correct password twice, as shown below. The meter is now unprotected until a new password is entered.

If the correct six-digit password is entered, the meter displays the message password is programmed.

If the password entered is incorrect, the meter displays the message

Locd (Locked) for about two seconds, and then it returns to Run Mode.

To try again, press Enter while the

unLoc (unlocked) and the protection is disabled until a new

Locked message is displayed.

Did you forget the password?

The password may be disabled by entering a master password once. If you are authorized to make changes, enter the master password 508655 to unlock the meter.

Page 70

DP6000 Process Meter Instruction Manual

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the

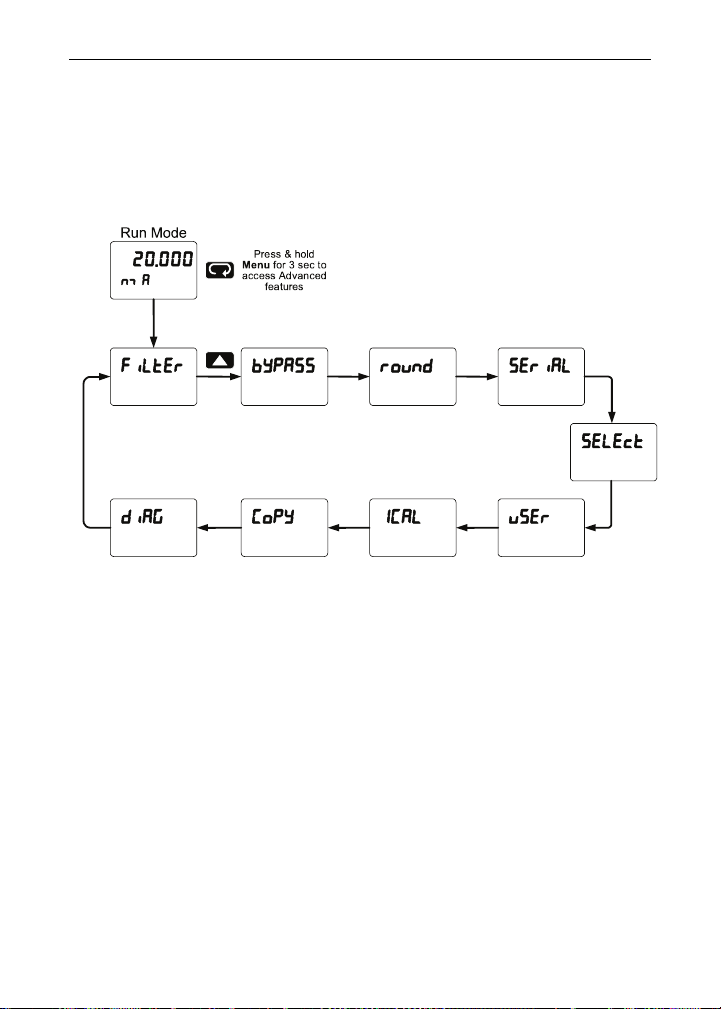

Press and hold the Menu button for three seconds to access the advanced features of the meter.

Advanced Features menu.

Page 71

DP6000 Process Meter Instruction Manual

Advanced Features Menu & Display Messages

The following table shows the functions and messages of the Advanced

Features

Display Parameter Action/Setting

filtEr

bypASs

Round seriAl

SelEct

menu in the order they appear in the menu.

Set noise filter value

Set filter bypass value

Set the rounding value for display variables Set serial communication parameters

Set slave ID or meter address

Select baud rate

Set transmit delay for serial communication

Select parity Even, Odd, or None with 1 or 2 stop bits

Set byte-to-byte timeout

Enter the Select menu (function, cutoff, out)

Select linear, square root, programmable exponent, or round horizontal tank function

Set meter for linear function and select number of linearization points

Select PV1 number of linearization points

Select PV2 number of linearization points

Set PV1 for 2 to 32-point linearization Set PV2 for 2 to 8-point linearization

Set meter for square root extraction

Set meter for programmable exponent and enter exponent value

Set meter for round horizontal tank volume calculation

Calculate volume in gallons

Calculate volume in liters

Enter the tank’s diameter in inches

Enter the tank’s length in inches Set low-flow cutoff

Program analog output parameters

SlaveId

baud

Tr dLY

Parity

t-byt

Functn

Linear

Pv 1

Pv 2

No PtS

Square

Prog E

rht

Inch cm diamr Length CutofF

AoutPr

Filter

Bypass

Round

Serial

Slave ID

Baud rate

Transmit delay

Parity

Time byte

Select

Signal input conditioning

Linear

PV1

PV2

Number of points

Square root

Programmable exponent

Round horizontal tank

Dimension

Diameter

Length

Cutoff

Analog output programming

Page 72

DP6000 Process Meter Instruction Manual

Display Parameter Action/Setting

Source

O-rang

u-rang

break

mAx

min

Calib

4 mA

20 mA

user

F4 dI I

dO 1

ICal

C CAL

C lo

C Hi

v CAL

v Lo

v Hi

Source

Overrange

Underrange

Break

Maximum

Minimum

Calibrate

4 mA output

20 mA output

User I/O

F1 function key

F2 function key

F3 function key

F4 function

Digital input 1

Digital output 1

Internal source calibration

Current calibration

Current low

Current high

Voltage calibration

Voltage low

Voltage high

Select source for the 4-20 mA output

Program mA output for display overrange

Program mA output for display underrange

Set input break condition operation

Program maximum mA output allowed

Program minimum mA output allowed

Calibrate 4-20 mA output (internal reference source used for scaling the output)

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

Assign function keys and digital I/O

Assign F1 function key

Assign F2 function key

Assign F3 function key

Assign F4 function (digital input) Assign digital input 1 – 8, if expansion

modules are connected

Assign digital output 1 – 8, if expansion modules are connected

Enter internal source calibration (used for scaling the meter without a signal source)

Calibrate 4-20 mA current input (internal reference source used for scaling the input)

Calibrate low current input (e.g. 4 mA)

Calibrate high current input (e.g. 20 mA)

Calibrate voltage input

Calibrate low voltage input (e.g. 0 V)

Calibrate high voltage input (e.g. 10 V)

Page 73

DP6000 Process Meter Instruction Manual

Copy

send

done

Diag

Input

units

Filter

ByPASS

Round Functn

SCALE

Cutoff

Dsplay

RELAY

Aout

Aoutpr

SEriaL

LED t

Info

Copy

Send

Done

Diagnostics

Input

Units

Filter

Bypass

Round

Function

Scale

Cutoff

Display

Relays

Analog output

Analog output programming

Serial

LED test

Information

Enter copy function

Send meter settings to another meter

Copy function completed

Display parameter settings

Input selection

Select the display units/tags

Filter value

Bypass value

Round value Function selected

Scaling parameter

Cutoff value

Display assignments

Relay settings

Analog output scaling

Analog output programming

Serial communication settings

Test all LEDs

Display software and S/N information

Page 74

DP6000 Process Meter Instruction Manual

Noise Filter (filter)

The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise filter averages the input signal over a certain period. The filter level determines the length of time over which the signal is averaged. The filter level can be set between 2 and 199. The higher the filter level, the longer the averaging time and so the longer it takes the display to settle to its final value. Setting the filter level to zero disables the filter function.

Noise Filter Bypass (bypass)

The noise filter bypass changes the behavior of the meter so that small variations in the signal are filtered out but large abrupt changes in the input signal are displayed immediately. The bypass value determines the minimum amount of signal change to be displayed immediately. All signal changes smaller than the bypass value are filtered or averaged by the meter. The noise filter bypass may be set between 0.1 and

99.9% of full scale.

Rounding Feature (round)

The rounding feature is used to give the user a steadier display with fluctuating signals. Rounding is used in addition to the filter function.

Rounding causes the display to round to the nearest value according the rounding selected. See examples below:

Rounding Selection

1 12.022 12.022 12.023 12.023

5 12.022 12.020 12.023 12.025

10 12.024 12.020 12.025 12.030

Actual Value

Display Value

Actual Value

Display Value

Page 75

DP6000 Process Meter Instruction Manual

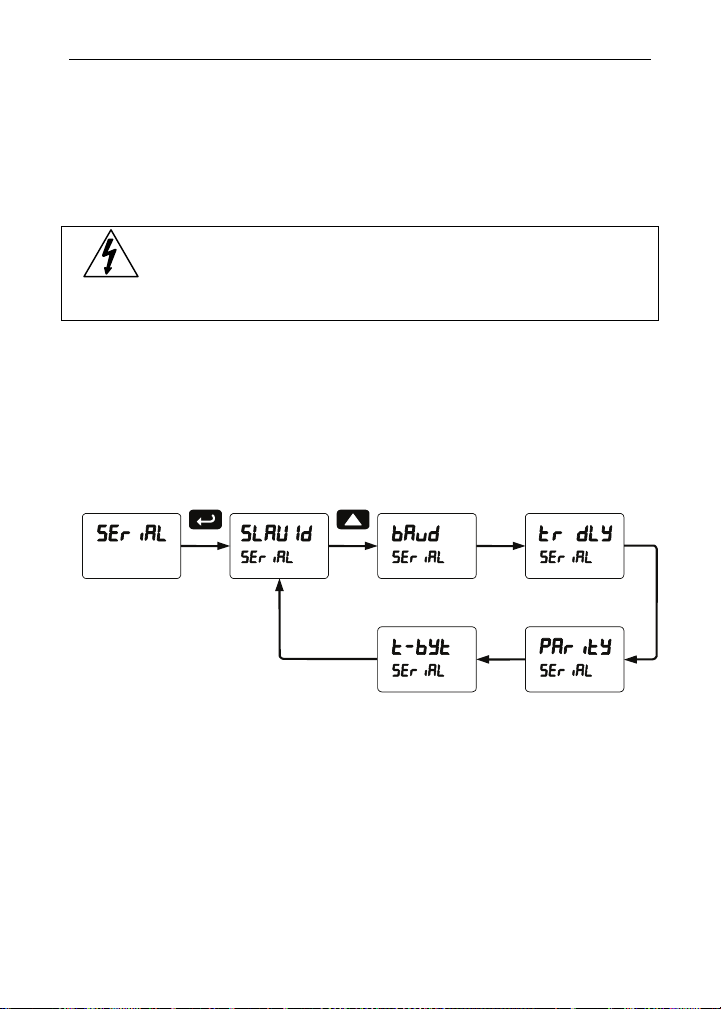

Modbus RTU Serial Communications (serial)

The meter is equipped with serial communications capability as a standard feature using Modbus RTU Serial Communication Protocol.

To communicate with a computer or other data terminal equipment, an RS-232, RS-485, or USB adapter (DPA8008) option is required; see

Ordering Information on page 9 for details.

Do not connect any equipment other than OMEGA’s expansion modules, cables, or meters to the RJ45

Warning!

M-LINK connector. Otherwise damage will occur to the equipment and the meter.

Note: More detailed instructions are provided with each optional serial

communications adapter.

Note: Refer to the Modbus

for details.

When using more than one meter in a multi-drop mode, each meter must be provided with its own unique address. The meter address (Slave ID) may be programmed between 1 and 247. The transmit delay may be set between 0 and 199 ms. The parity can be set to even, odd, or none with 1 or 2 stop bits.

The DP6000 can also be connected to another DP6000 with a special DPA1200 cable, allowing the user to copy all the settings from one meter to another, using the

Copy function.

Page 76

DP6000 Process Meter Instruction Manual

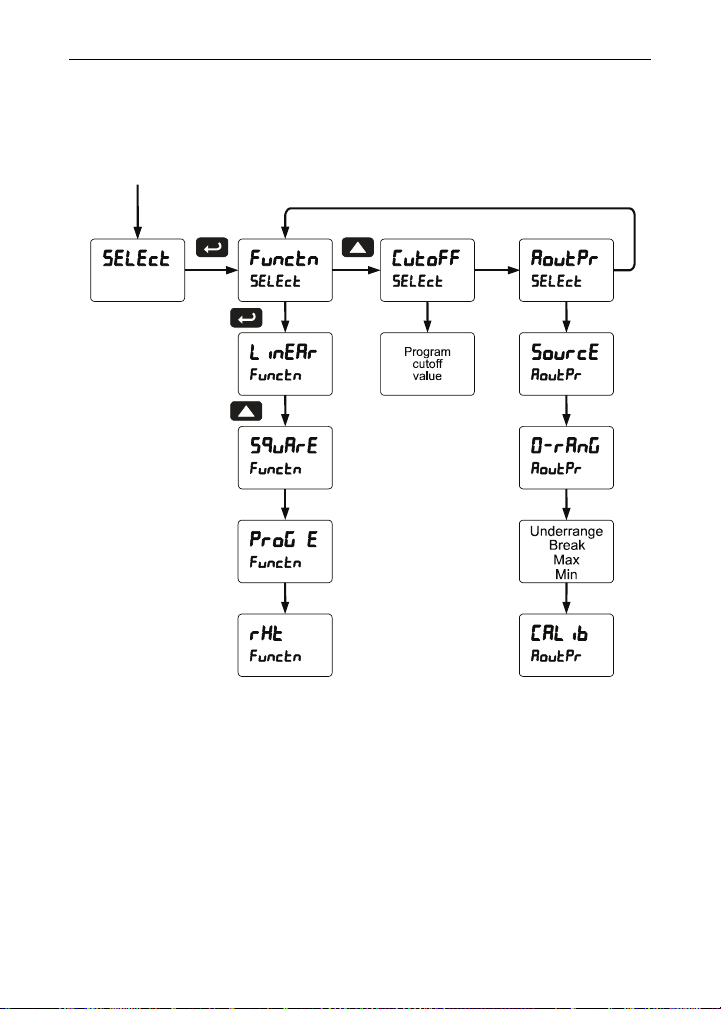

Select Menu (SElect)

The Select menu is used to select the signal input conditioner applied to the input (linear, square root, programmable exponent, or round horizontal tank), low-flow cutoff, and analog output programming. The multi-point linearization is part of the linear function selection.

Signal Input Conditioning (Functn)

The Function menu is used to select the signal input conditioner applied to the input: linear, square root, programmable exponent, or round horizontal tank volume calculation. The multi-point linearization is part of the linear function selection.

Meters are set up at the factory for linear function with 2-point linearization. The linear function provides a display that is linear with respect to the input signal.

Page 77

DP6000 Process Meter Instruction Manual

Square Root Linearization (Square)

The square root function can be used to linearize the signal from a differential pressure transmitter and display flow rate in engineering units.

Programmable Exponent Linearization (Prog E)

The programmable exponent can be used to linearize the signal from level transmitters in open-channel flow applications using weirs and flumes.

Multi-Point Linearization (Linear)

Meters are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected for PV1 under the linear function. The multi-point linearization can be used to linearize the display for non-linear signals such as those from level transmitters used to measure volume in odd-shaped tanks or to convert level to flow using weirs and flumes with complex exponent.

If the dual-scale level feature has been selected, the menus for PV1 & PV2 are enabled. PV2 can be programmed with up to 8 linearization points.

Page 78

DP6000 Process Meter Instruction Manual

Round Horizontal Tank Linearization (rHt)

This function automatically calculates the volume in a round horizontal tank with flat ends.

Set the display for the desired decimal point and engineering units before entering the round horizontal tank function. Select units, inches or cm for the tank dimensions. Enter the diameter and the length in inches and the results are calculated automatically in US gallons.

The meter can be scaled to display the volume in any engineering unit.

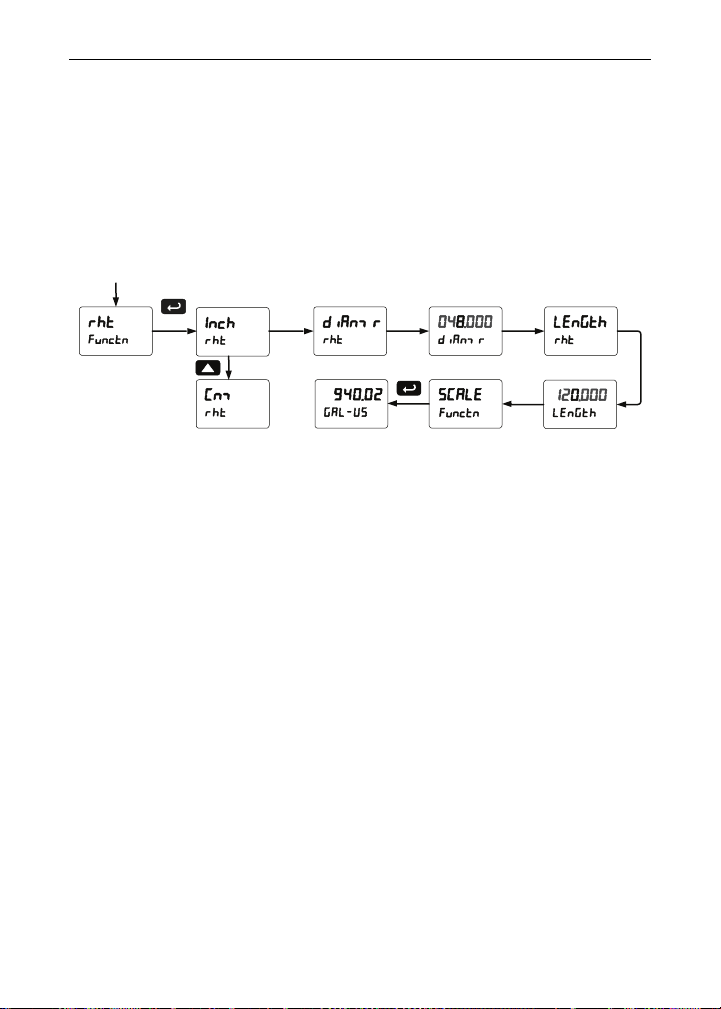

Note: After Scale is displayed continue pressing the Enter button until

the meter completes the scaling of the input and display values.

Changing the Volume from Gallons to Liters

In the above graphic, entering the 48" for the diameter and 120" for the length of the round horizontal tank, the meter automatically calculates that the volume of the tank is 940.02 gallons.

1. Convert gallons to liters

1 US gallon = 3.7854 L

940.02 gal = 3558.4 L

2. Go to the

3. Go to the

Setup menu and change the decimal point to 1 decimal. Program – Scale menu and press Enter until dis 2 is

shown on the main display.

4. Press Enter and change the display 2 value to 3558.4.

5. The meter is now displaying the volume in liters.

Note: The display can be scaled to display the volume in any

engineering units.

Page 79

DP6000 Process Meter Instruction Manual

Low-Flow Cutoff (CutofF)

The low-flow cutoff feature allows the meter to be programmed so that the often-unsteady output from a differential pressure transmitter, at low flow rates, always displays zero on the meter.

The cutoff value may be programmed from 0 to 999999. The meter will display zero below the cutoff value. Programming the cutoff value to zero disables the cutoff feature.

Analog Output Programming (AoutPr)

The Analog Output Programming menu is used to program the behavior of the 4-20 mA output. The following parameters and functions are programmed in this menu:

1. Source: Source for generating the 4-20 mA output (e.g. PV)

2. Overrange: Analog output value with display in overrange condition

3. Underrange: Analog output value with display in underrange condition

4. Break: Analog output value when loop break is detected

5. Max: Maximum analog output value allowed regardless of input

6. Min: Minimum analog output value allowed regardless of input

7. Calibrate: Calibrate the internal 4-20 mA source reference used to scale the 4-20 mA output

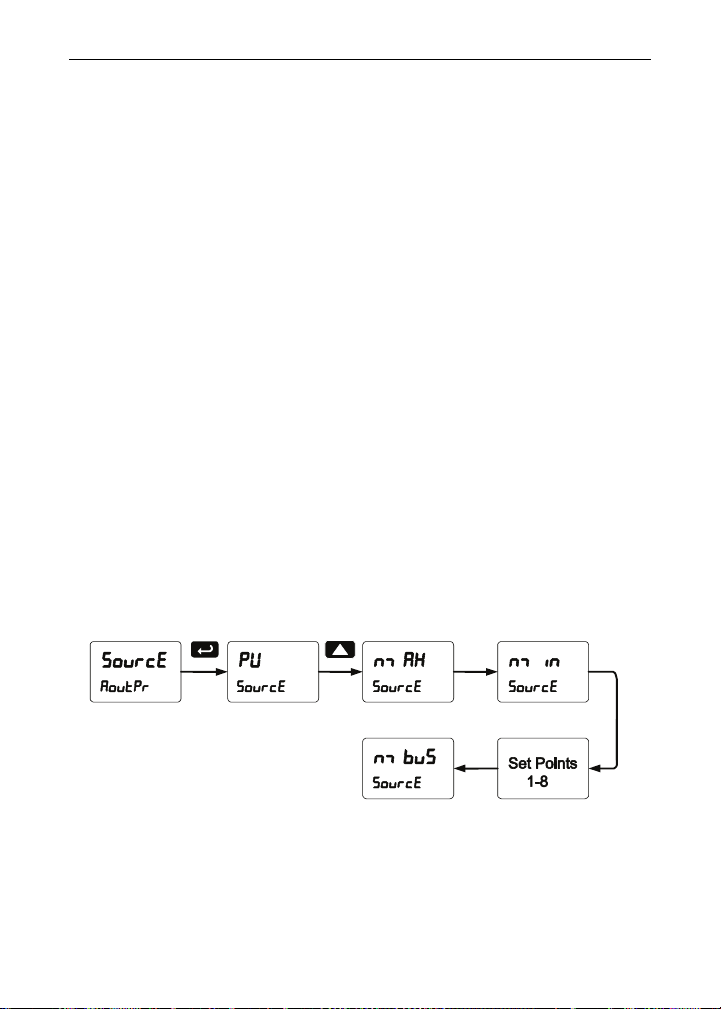

Analog Output Source

The source for generating the 4-20 mA output may be assigned to the process variable, maximum or minimum value reached by the process, one of the set points, or the Modbus PV input.

Analog Output Calibration

To perform the analog output calibration it is recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output current. The values saved internally during this procedure are used for scaling the 4-20 mA output in the

Setup menu.

Page 80

DP6000 Process Meter Instruction Manual

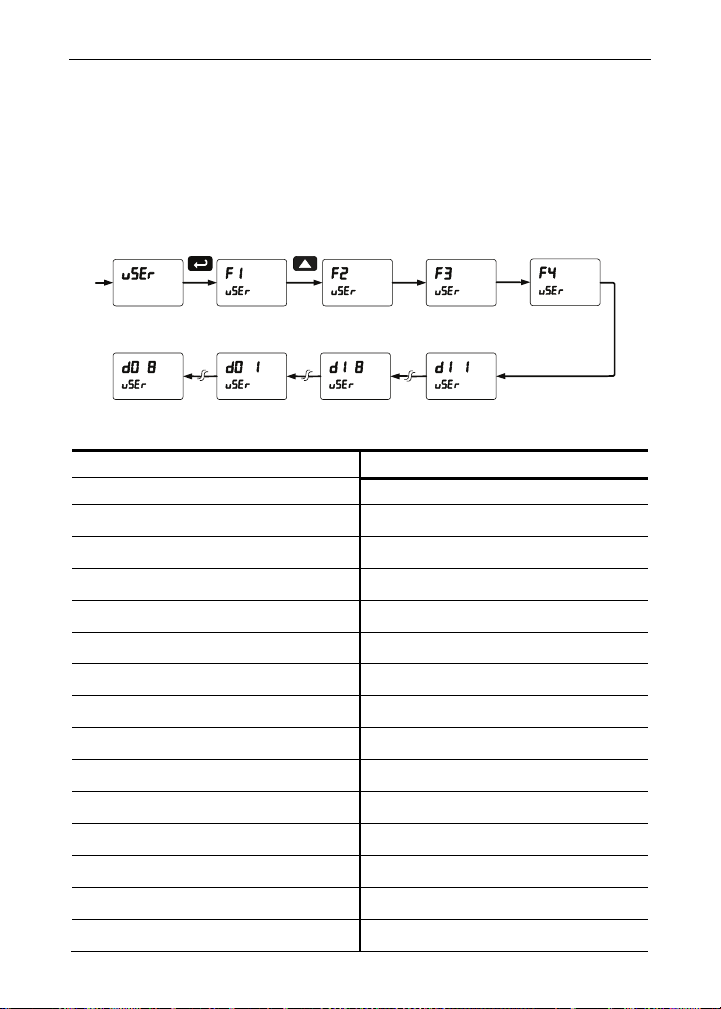

Programmable Function Keys User Menu (user)

The User menu allows the user to assign the front panel function keys F1, F2, and F3, the digital input F4, and up to eight additional digital inputs to access most of the menus or to activate functions immediately (e.g. Reset max & min). F4 is a digital input on the signal input connector. Up to eight digital outputs can be assigned to a number of actions and functions executed by the meter (e.g. Alarms, relay acknowledgement, etc.).

*If installed

Function Keys & Digital I/O Available Settings

Display Description Display Description

Rst HL

tare

Rst tr

relay

Set 1

Rly d

Rly E

O Hold

d Hold

Big Hi

Big Lo

Big HL

Lit Hi

Lit Lo

Lit HL

Reset max & min

Capture tare

Reset tare

Relay menu

Set point 1 - 8

Disable all relays

Enable all relays

Relays & output hold

Display hold

Max on big display

Min on big display

Max/min big display

Max on little display

Min on little display

Max/min little display

Contrl

disabl

AcH

reset

Rst Hi

Rst Lo

Right

Enter

Alm 1

F On 1

F On 2

F On 3

F On 4

Control Menu

Disable function key

Acknowledge relays

Reset Menu

Reset max

Reset min

Menu button

Right arrow button/F1

Up arrow button/F2

Enter button/F3

Alarm 1 – 8

Force relay 1 on

Force relay 2 on

Force relay 3 on

Force relay 4 on

Page 81

DP6000 Process Meter Instruction Manual

Tare (tare)

The tare function zero’s out the display. In the case of scale weight, tare is used to eliminate container weight and provide net weight readings. There are two tare functions; Capture Tare and Reset Tare.

When the capture tare function is used, the display reading is offset by the displayed amount to make the displayed value zero. This modified display value is the net value. The originally displayed value without the tare offset is the gross value. Both may be chosen as a display option.

0.2

lbs

Before tare

Reset tare removes the display offset of the net value, and the gross and net values become the same until a new capture tare is entered.

After capture tare

lbs

0.0

0.2

lbs

After reset tare

Page 82

DP6000 Process Meter Instruction Manual

Internal Source Calibration (ICAL)

The meter is factory calibrated prior to shipment

to read in milliamps and volts depending on the

input selection. The calibration equipment is

The use of calibrated signal sources is necessary to calibrate the internal source of the meter. The meter’s internal source is what allows the user to scale the meter without applying a signal.

Check calibration of the meter at least every 12 months. Each input must be recalibrated separately.

Notes:

Internal calibration menu is part of the Advanced Features menu.

The

1. Press and hold the Menu button for three seconds to access the advanced features of the meter.

2. Press the Up

ICAL) and press Enter.

(

3. The meter displays either current calibration ( calibration ( start the calibration process.

Example of Internal Calibration for current input:

4. The meter displays low input current message (C lo). Apply the low input signal and press Enter. The display flashes for a moment while the meter is accepting the low input signal.

5. After the display stops flashing, a number is displayed with the leftmost digit brighter than the rest. The bright digit is the active digit that can be changed by pressing the Up Right

arrow button to move to the next digit.

6. Set the display value to correspond to the input signal being calibrated, typically 4.000 mA.

certified to NIST standards.

1. If meter is in operation and it is intended to accept only one input type (e.g. 4-20 mA), recalibration of other input is not necessary.

2. Allow the meter to warm up for at least 15 minutes before performing the internal source calibration procedure.

arrow button to scroll to the Internal calibration menu

C CAL) or voltage

v CAL), according to the input setup. Press Enter to

arrow button. Press the

Page 83

DP6000 Process Meter Instruction Manual

7. The display moves to the

high input calibration (C Hi). Apply the

high input signal and press Enter.

8. Set the display for the high input calibration, in the same way as it was set for the low input calibration, typically 20.000 mA.

The graphic above shows the calibration of the current input. The voltage input is calibrated in a similar way.

Tips:

 Low and high input signals can be any valid values within the

range of the meter.

 Observe minimum input span requirements between input 1

and input 2.

 Low input should be less than high input signal.

Page 84

DP6000 Process Meter Instruction Manual

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful.

The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals, or it is connected backwards.

2. Wrong signal selection in

3. Minimum input span requirements not maintained.

Minimum Input Span

The minimum input span is the minimum difference between input 1 and input 2 signals required to complete the calibration or scaling of the meter.

Input Range Input 1 & Input 2 Span 4-20 mA 0.15 mA

10 VDC

Setup menu.

0.10 VDC

Meter Copy Function (Copy)

The Copy function is used to copy (or clone) all the settings from one meter to other meters requiring exactly the same setup and programming ( etc.).

Warning!

i.e. type of input, scaling, decimal point, filter, bypass,

Only the DPA1200 meter copy cable must be used for meter-to-meter interfacing. The DPA1200 is a special eight-conductor flat cable with two wires swapped.

Using standard CAT5 or other cable will cause damage to both meters.

Copy Function Requirements

To successfully copy settings from one meter to another, both meters must have the same software version and baud rate settings. See Determining Software Version, page 88, for instructions.

Page 85

DP6000 Process Meter Instruction Manual

Meter Copy or Cloning Instructions

Do not connect the two meters to

Caution!

1. Connect two meters using a DPA1200 meter copy cable.

Warning!

2. Do not connect the two meters to the same signal source.

3. Power up both meters. Leave Clone meter in Run Mode.

4. Enter the

Advanced Features Menu on page 70.

5. Scroll to the Enter.

6. The meter displays the message flashes while sending data. The message copying is completed.

Using standard CAT5 or other cable will cause damage to both meters. Use DPA1200 meter copy cable only.

Advanced Features menu of the Master meter; see

Copy function using the Up arrow button then press

the same signal source while cloning. Internal calibration may be affected.

Send. Press Enter, the display

done is displayed when

7. The Clone meter displays the message CPY rC while being programmed then the message The meter initializes and returns to Run Mode using the same settings as the Master.

8. If meter to be cloned does not respond to the data being sent, refer

Copy Function Requirements above.

done when copying is completed.

Page 86

DP6000 Process Meter Instruction Manual

METER OPERATION

The meter is capable of accepting current (0-20 mA, 4-20 mA) and voltage signals (0-5 V, 1-5 V, 0-10 V, signals in engineering units from -99999 to 999999 ( signal could be displayed as -50.000 to 50.000).

The dual-line display can be customized by the user to operate in such a way as to satisfy a specific application. Typically the main display is used for the process variable; while the second display is used for engineering units, custom legend, or set point indication.

The analog input can be scaled to display the process in two different scales; for example: with indicate level in feet and the second display could indicate the volume in gallons.

Additionally the meter can be set up to display the analog input on the main display and the Modbus input on the second display. The relays and analog output can be programmed to operate from the Modbus PV input.

d-SCAL enabled, the main display could

Front Panel Buttons Operation

Button Symbol

Description

Press to enter or exit Programming Mode, view settings, or exit max/min readings

Press to reset max/min readings or other parameter/function assigned through the menu

Press to display max/min readings or other parameter/function assigned through the menu

Press to acknowledge relays or other parameters/function assigned through the

User menu

Function Keys Operation

During operation, the programmable function keys operate according to the way they have been programmed in the menu.

The table above shows the factory default settings for F1, F2, and F3.

 10 V) and displaying these

e.g. a 4-20 mA

User

Advanced Features – User

Page 87

DP6000 Process Meter Instruction Manual

F4 Operation

A digital input, F4, is standard on the meter. This digital input is programmed identically to function keys F1, F2, and F3. The input is triggered with a contact closure to COM, or with an active low signal. During operation, F4 operates according to the way it has been programmed in the

Advanced Features – User menu.

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentary:

1. Display briefly by assigning to the F1-F3 function keys or to the

digital inputs in the

2. Display continuously by assigning either display to max/min

through the

Any of the F1-F3 function keys (buttons) and the digital inputs can be programmed to reset the max & min readings. The meters are set at the factory to display the max reading by pressing the Up arrow/F2 button and to use the Right arrow/F1 button to access the

To display max reading using function key with factory defaults:

1. Press Up arrow/F2 button to display maximum reading since the last reset/power-up.

2. To reset max/min press Right arrow/F1 button to access the Reset menu. The max & min displays are reset to actual values.

3. Press Menu to exit max/min display reading.

To display max/min readings continuously:

Assign either display to Max (d Hi), Min (d Lo), or toggle between Max and Min (

d HL) every 10 seconds.

User menu.

Display menu.

Reset menu.

Page 88

DP6000 Process Meter Instruction Manual

TROUBLESHOOTING

The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. However, due to the many features and functions of the meter, it’s possible that the setup of the meter does not agree with what an operator expects to see.

If the meter is not working as expected, refer to the and recommendations below.

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced Features menu, to access

It provides an easy way to view the programmed parameter settings for troubleshooting purposes. Press the Enter and the Menu button to exit at any time.

For a description of the diagnostic messages,

Menu &

To determine the software version of a meter:

Diagnostics menu see Advanced Features Menu, page 70.

button to view the settings

Display Messages, page 71.

Determining Software Version

1. Go to the

2. Press Up arrow button and scroll to Information menu (

3. Press Enter to access the software number (

UER) information. Write down the information as it is displayed.

( Continue pressing Enter until all the information is displayed.

4. The meter returns to Run Mode after displaying all the settings.

Diagnostics menu (diAG) and press Enter button.

Diagnostics menu

see Advanced Features

Info).

SFT) and version

Page 89

DP6000 Process Meter Instruction Manual

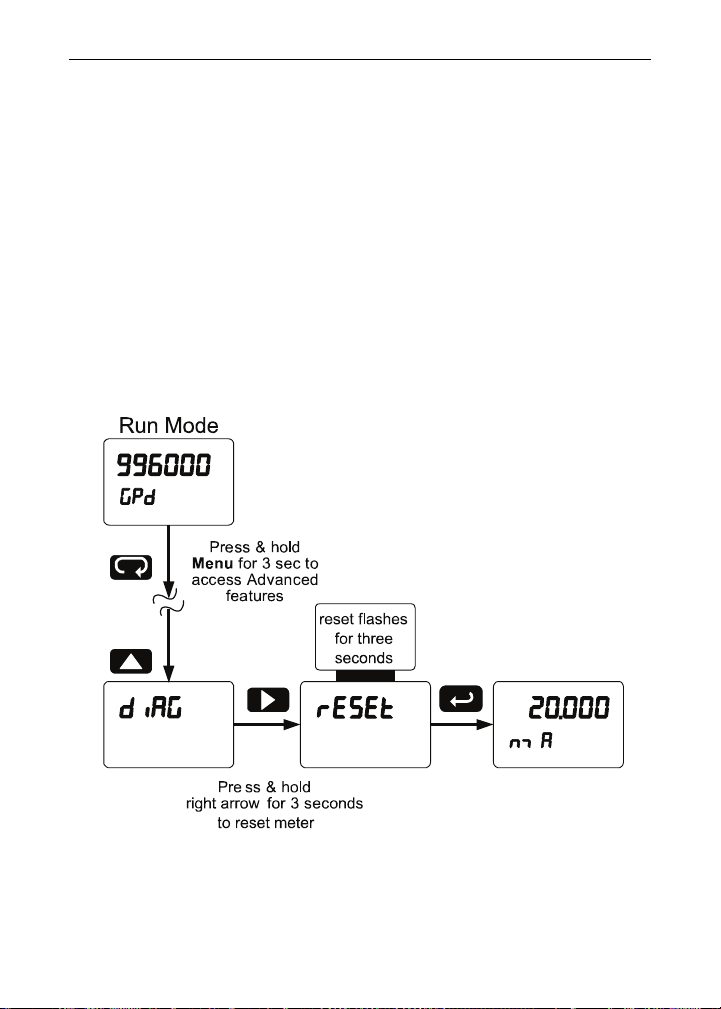

Reset Meter to Factory Defaults

When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced Features menu. See Advanced Features

, page 70.

2. Press Up arrow to go to

3. Press and hold Right arrow for three seconds, press Enter when display flashes Note: If Enter is not pressed within three seconds, the display returns to the

4. The meter goes through an initialization sequence (similar as on power-up), and loads the factory default settings.

Diagnostics menu.

Diagnostics menu

reset.

Note: The dual-scale selection for some level applications (d-SCAL) is

not reset to the single scale factory default. This can be changed using the Setup – Input menu.

Page 90

DP6000 Process Meter Instruction Manual

Factory Defaults & User Settings

The following table shows the factory setting for most of the programmable parameters on the meter. Next to the factory setting, the user may record the new setting for the particular application.

Model: ______________ S/N: _______________ Date: ___________

Parameter Display Default Setting User Setting

Input type

Dual-scale feature

Filter

Bypass

Function

Number of points

Programming

Input 1

Display 1

Input 2

Display 2

Decimal point

Cutoff value

Display assignment

Big display (Main)

Little display (Small)

Display intensity

Relay 1 action

Relay 1 set point

Relay 1 reset point

Relay 2 action

Relay 2 set point

Relay 2 reset point

Relay 3 action

Relay 3 set point

Input

d-SCAL

filter

bypass

Functn

No Pts

prog

InP 1

Dis 1

InP 2

Dis 2

dd.ddd

CutofF

Dsplay

big

Little

d-Inty

Act 1

Set 1

RSt 1

Act 2

Set 2

RSt 2

Act 3

Set 3

4-20 mA

No (Single scale)

0.2

Linear

Scale

4.000 mA

4.000

20.000 mA

20.000

3 places

0.000 (disabled)

PV: Process variable

Eng unit default= mA

Automatic

1.000

0.500

Automatic

2.000

1.500

Automatic

3.000

Page 91

DP6000 Process Meter Instruction Manual

Parameter Display Default Setting User Setting

Relay 3 reset point

Relay 4 action

Relay 4 set point

Relay 4 reset point

Fail-safe relay 1

Fail-safe relay 2

Fail-safe relay 3

Fail-safe relay 4

On delay relay 1

Off delay relay 1

On delay relay 2

Off delay relay 2

On delay relay 3

Off delay relay 3

On delay relay 4

Off delay relay 4

Loop break relay 1

Loop break relay 2

Loop break relay 3

Loop break relay 4

Display 1 analog out

Output 1 value

Display 2 analog out

Output 2 value

Source analog output

Overrange output

Underrange output

Loop break output

Maximum output

RSt 3

Act 4

Set 4

RSt 4

Fls 1

Fls 2

Fls 3

Fls 4

On 1

Off 1

On 2

Off 2

On 3

Off 3

On 4

Off 4

ignore

Dis 1

Out 1

Dis 2

Out 2

Source

O-rang

u-rang

break

mAx

2.500

Automatic

4.000

3.500

Off

0.0 sec

Ignore

4.000

4.000 mA

20.000

20.000 mA

Process Variable

21.000 mA

3.000 mA

1.000 mA

23.000 mA

Page 92

DP6000 Process Meter Instruction Manual

Parameter Display Default Setting User Setting

Minimum output

Slave ID (Address)

Baud rate

Transmit delay

Parity

Byte-to-byte timeout

F1 function key

F2 function key

F3 function key

F4 function

Digital input 1

Digital input 2

Digital input 3

Digital input 4

Digital output 1

Digital output 2

Digital output 3

Digital output 4

Password 1

Password 2

Password 3

min

SlavId

baud

Tr dly

Parity

t-byt

dI 1

dI 2

dI 3

dI 4

dO 1

dO 2

dO 3

dO 4

Pass 1

Pass 2

Pass 3

1.000 mA

247

9600

50 ms

Even

010 (0.1 sec)

Reset max & min

Big display: Max (Hi)

Acknowledge relays

Right arrow

Up arrow

Enter

Alarm 1

Alarm 2

Alarm 3

Alarm 4

000000 (unlocked)

Page 93

DP6000 Process Meter Instruction Manual

Troubleshooting Tips

Symptom Check/Action

No display at all Check power at power connector Not able to change setup or

programming,

Meter displays error message during calibration (

Meter displays

999999

-99999

Display is unstable

Display response is too slow

Display reading is not accurate

Display does not respond to input changes, reading a fixed number

Display alternates between

Hi and a number

Lo and a numbe

Relay operation is reversed

Relay and status LED do not respond to signal

Flashing relay status LEDs

Meter not communicating with application programs

If the display locks up or the meter does not respond at all

Other symptoms not described above

Locd is displayed

Error)

Note: Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and map changes ahead of time, rather than at random.

Meter is password-protected, enter correct six-digit password to unlock

Check:

1. Signal connections

2. Input selected in Setup menu

3. Minimum input span requirements Check:

1. Input selected in

2. Corresponding signal at Signal connector

Check:

1. Input signal stability and value

2. Display scaling vs. input signal

3. Filter and bypass values (increase)

Check filter and bypass values Check:

1. Signal input conditioner selected: Linear, square root, etc.

2. Scaling or calibration

Check:

1. Display assignment, it might be displaying max, min, or set point.

Press Menu to exit max/min display readings.

Check:

1. Fail-safe in Setup menu

2. Wiring of relay contacts

Check:

1. Relay action in

2. Set and reset points

Relays in manual control mode or relay interlock switches opened. Check:

1. Serial adapter and cable

2. Serial settings

3. Meter address and baud rate

Cycle the power to reboot the microprocessor.

Call Technical Support for assistance.

Setup menu

Page 94

DP6000 Process Meter Instruction Manual

Alphabetical List of Display Functions & Messages

Display Parameter Action/Setting Description

20 mA

4 mA

999999

-99999

Ack

Act 1

Alm 1

Altern

A-man

Aout

Aoutpr

Auto

baud

big

Big Hi

Big HL

Big Lo

break

bypASs

C CAL

C Hi

C lo

Tare

20 mA output

4 mA output

Flashing display

Acknowledge

Action 1

Alarm 1

Alternate

Auto-manual

Analog output

Analog output programming

Automatic

Baud rate

Big display

Max on big display

Max/min big display

Min on big display

Loop break

Bypass

Current calibration

Current high

Current low

Capture tare

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

Overrange condition Underrange condition

Acknowledge relays

Set relay 1 action

Assign digital output to Alarm 1-8

Set relay for pump alternation control

Set relay for automatic & manual reset

Enter the Analog output scaling menu

Enter analog output programming

Press Enter to set automatic operation

Select baud rate

Press Enter to assign the main display parameter (default: PV)

Assign digital input to display max on the main display

Assign digital input to toggle max/min on the main display

Assign digital input to display min on the main display

Set relay condition if loop break detected

Set filter bypass value

Calibrate 4-20 mA current input (internal reference source used for scaling the input)

Calibrate high current input (e.g. 20 mA)

Calibrate low current input (e.g. 4 mA)

Capture tare

Page 95

DP6000 Process Meter Instruction Manual

Display Parameter Action/Setting Description

Cal

Calib

Contrl

Copy

CutofF

D Gros

D nt-G

D Hi

D HL

D Hold

D Lo

D PCt

D Pv

D Pv1

D Pv2

D r_u

D unit

Dec pt

DeLAY

dI 1

Diag

diamr

d-Inty

Dis 1

Dis 2

Calibrate

Control

Copy

Cutoff

Display gross

Display net/gross

Display high

Display H&L

Display hold

Display low

Display PCT

Display PV

Display PV1

Display PV2

Display r-u

Display units

Decimal point

Delay

Digital input 1

Diagnostics

Diameter

Display intensity

Display 1

Display 2

Enter the Calibration menu

Calibrate 4-20 mA output (internal reference source used for scaling the output)

Enter Control menu to turn relays on/off, set analog output manually, or return meter to automatic operation

Enter copy function

Set low-flow cutoff

Select to display the gross

Select to display the net/gross

Select to display the max

Select to display the max & min toggling

Display hold

Select to display the min

Select to display percent of PV1 (dual-scale display)

Select to display PV

Select to display PV1 (dual-scale display)

Select to display PV2 (dual-scale display)

Select to display reading and units

Select to display engineering units or label

Set decimal point

Enter relay Time Delay menu

Assign digital input 1-8, if expansion modules are connected

Display parameter settings

Enter the tank’s diameter in inches

Set display intensity level from 1 to 8

Program display 1 value

Program display 2 value (up to 32 points)

Page 96

DP6000 Process Meter Instruction Manual

Display Parameter Action/Setting Description

disabl

DLY 1

dO 1

done

d-SCAL

DSet 1

dsplay

Enter

Error

F On 1

FaiLSF

filter

FLS 1

Force

Functn

ICal

ignore

Info

Inp 1

Inp 2

Disable

Delay 1

Digital output 1

Done

Dual-scale

Display set 1

Display

Enter button

Error

Force On 1

F1 function key

F2 function key

F3 function key

F4 function

Fail-safe

Filter

Fail-safe 1

Force

Signal input conditioner

Internal source calibration

Ignore

Information

Input 1

Input 2

Disable function key

Enter relay 1 time delay setup (1-8)

Assign digital output 1 – 8, if expansion modules are connected

Copy function completed

Enter d-SCAL menu and select Yes for dualscale display or

Select to display set point 1 (1-8)

Enter the Display menu

Assign digital input to Enter button/F3

Error, calibration not successful, check signal or programmed value

Force relay 1 on using digital input (1-8)

Assign F1 function key

Assign F2 function key

Assign F3 function key

Assign F4 function (digital input)

Enter Fail-safe menu

Set noise filter value

Set relay 1 fail-safe operation (1-8)

Force analog output value for loop break

Select linear, square root, programmable exponent, or round horizontal tank function

Enter internal source calibration (used for scaling the meter without a signal source)

Ignore loop break condition

Display software and S/N information

Calibrate input 1 signal or program input 1 value

Calibrate input 2 signal or program input 2 value (up to 32 points)

No for single scale display

Page 97

DP6000 Process Meter Instruction Manual

Display Parameter Action/Setting Description

Input

LatCH

LED t

Length

Linear

Lit Hi

Lit HL

Lit Lo

Little

locd

Lt-CLr

mAn

mAx

mbus

min

No PtS

O Hold

OFF

OFF 1

Input

Latching

LED test

Length

Linear

Max on little display

Max/min little display

Min on little display

Little display

Locked

Latching-cleared

4-20 mA

Manual

Maximum

Modbus Select to display Modbus input or to assign

Menu button Assign digital input to Menu button

Minimum

Number of points

Relays output hold

Off

Off 1

Enter Input selection menu

Set relay for latching operation

Test all LEDs

Enter the tank’s length in inches

Set meter for linear function and select number of linearization points

Assign digital input to display max on the small display

Assign digital input to toggle max/min on the small display

Assign digital input to display min on the small display

Press Enter to assign the small display parameter (default: engineering units)

Enter password to unlock meter

Set relay for latching operation with manual reset only after alarm condition has cleared

Set meter for 4-20 mA input

Press Enter to manually control relays or analog output operation

Program maximum mA output allowed

Modbus input as the analog output source

Program minimum mA output allowed

Set meter for 2 to 32-point linearization

Assign digital input to hold all relays state

Disable relay and front panel status LED, turn relays off, program off time delay

Set relay 1 Off time delay (1-8)

Enable fail-safe operation, turn relays on, program on time delay

Page 98

DP6000 Process Meter Instruction Manual

Display Parameter Action/Setting Description

On 1

O-rang

Out 1

Out 2

pass

Pass 1

Pass 2

Pass 3

prog

Prog E

RELaY

reset

rht

Right

RLY 1

Rly d

Rly E

Round

RSt 1

Rst Hi

Rst HL

Rst Lo

Rst tr

Sampl

On 1

Overrange

Output 1

Output 2

Password

Password 1

Password 2

Password 3

Program

Programmable exponent

Relay

Reset

Round horizontal tank

Right arrow

Relay 1

Disable relay

Enable relay

Round

Reset 1

Reset high

Reset high & low

Reset low

Reset tare

Sampling

Set relay 1 On time delay (1-8)

Program mA output for display overrange

Program output 1 value (e.g. 4.000 mA)

Program output 2 value (e.g. 20.000 mA)

Enter the Password menu

Set or enter Password 1 (Allows use of the F1–F3 function keys)

Set or enter Password 2 (Allows use of the F1–F3 function keys and changing the set/reset points)

Set or enter Password 3 (Restricts all programming & F1–F3 keys)

Enter the Program menu

Set meter for programmable exponent and enter exponent value

Enter the Relay menu

Press Enter to access the Reset menu

Set meter for round horizontal tank volume calculation

Assign digital input to Right arrow button/F1

Relay 1 setup (1-8)

Assign digital input to disable all relays

Assign digital input to enable all relays

Select rounding values for PV display

Program reset point 1 (1-8)

Press Enter to reset max display

Press Enter to reset max & min displays

Press Enter to reset min display

Reset tare

Set relay for sampling operation

Page 99

DP6000 Process Meter Instruction Manual

Display Parameter Action/Setting Description

SCAL 1

SCAL 2

SCALE

SelEct

send

seriAl

Set 1

setup

SlavId

Source

Square

Tare

Tr dLY

units

unloc

u-rang

user

v CAL

v Hi

v Lo

volt

Scale 1

Scale 2

Scale

Select

Send

Serial

Set 1

Setup

Slave ID

Source

Square root

Capture tare

Transmit delay

Units

Unlocked

Up arrow

Underrange

User I/O

Voltage calibration

Voltage high

Voltage low

0-10 VDC

Enter the Scale 1 menu for PV1

Enter the Scale 2 menu for PV2

Enter the Scale menu

Enter Select menu (function, cutoff, output programming)

Send meter settings to another meter

Set serial communication parameters

Program set point 1 (1-8)

Enter Setup menu

Set Slave ID or meter address

Select source for the 4-20 mA output

Set meter for square root extraction

Capture tare

Set transmit delay for serial communication

Select the display units/tags

Program password to lock meter

Assign digital input to Up arrow button/F2

Program mA output for display underrange

Assign function keys and digital I/O

Calibrate voltage input

Calibrate high voltage input (e.g. 10 V)

Calibrate low voltage input (e.g. 0 V)

Set meter for 10 VDC input

Page 100

M-5191

LIM6000OM_A

SFT039 Ver 3.100 & up

07/12
