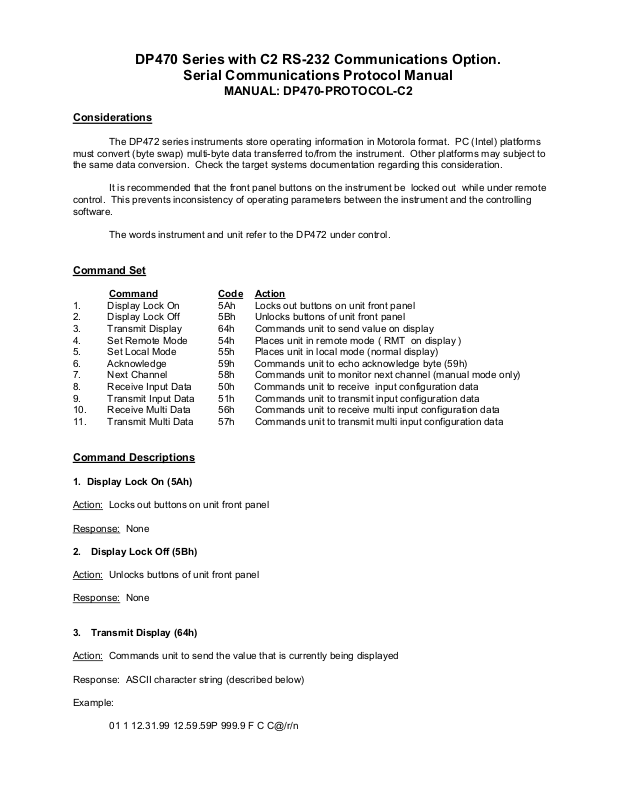

DP470 Series with C2 RS-232 Communications Option.
Serial Communications Protocol Manual
MANUAL: DP470-PROTOCOL-C2
Considerations
The DP472 series instruments store operating information in Motorola format. PC (Intel) platforms
must convert (byte swap) multi-byte data transferred to/from the instrument. Other platforms may subject to
the same data conversion. Check the target systems documentation regarding this consideration.
It is recommended that the front panel buttons on the instrument be locked out while under remote
control. This prevents inconsistency of operating parameters between the instrument and the controlling
software.
The words instrument and unit refer to the DP472 under control.
Command Set
Command Code Action
1. Display Lock On 5Ah Locks out buttons on unit front panel
2. Display Lock Off 5Bh Unlocks buttons of unit front panel
3. Transmit Display 64h Commands unit to send value on display
4. Set Remote Mode 54h Places unit in remote mode ( RMT on display )
5. Set Local Mode 55h Places unit in local mode (normal display)
6. Acknowledge 59h Commands unit to echo acknowledge byte (59h)
7. Next Channel 58h Commands unit to monitor next channel (manual mode only)
8. Receive Input Data 50h Commands unit to receive input configuration data
9. Transmit Input Data 51h Commands unit to transmit input configuration data
10. Receive Multi Data 56h Commands unit to receive multi input configuration data
11. Transmit Multi Data 57h Commands unit to transmit multi input configuration data
Command Descriptions
1. Display Lock On (5Ah)
Action: Locks out buttons on unit front panel
Response: None
2. Display Lock Off (5Bh)
Action: Unlocks buttons of unit front panel
Response: None
3. Transmit Display (64h)
Action: Commands unit to send the value that is currently being displayed
Response: ASCII character string (described below)
Example:
01 1 12.31.99 12.59.59P 999.9 F C C@/r/n
Page 2
Index Name Description
Offset 0: Tag RS232 Communication ID
Offset 3: Channel Multi Input Channel
Offset 5: Date day.month.year
Offset13: AM/PM AM or PM
Offset 15: Time hour.min.sec
Offset 24: Temp Displayed Temperature
Offset 30: ForC Fahrenheit or Celsius
Offset 32: Alarm1 Status Alarm 1 State
Offset 34: Alarm2 Status Alarm 2 State
Offset 35: @ @ Symbol
Offset 36: CR Carriage Return
Offset 37: LF Line Feed
NOTE: The following fields are not currently functioning. They are reserved for future use.
Tag, Date, AM/PM, Time, Alarm1 Status, Alarm2 Status.
4. Set Remote Mode (54h)
Action: Places unit in remote mode ( RMT on display )
Response: None
5. Set Local Mode (55h)
Action: Places unit in local mode (normal display)
Response: None
6. Acknowledge (59h)
Action: Commands unit to echo an acknowledge byte (59h)
Response: (59h)
7. Next Channel (58h)
Action: Commands unit to monitor next channel (manual mode only)
Command is only valid when unit is operating in manual scan mode. The use of this command in automatic mode
may cause erratic operation of the instrument.
Response: None
8. Receive Input Data (50h)
Action: Commands unit to receive input configuration data
This command is send as the first byte of and input configuration data block.
This block is as follows:
Page 3
Offset Parameter Size (bytes) Notes
0 Receive Input Data CD. 1 Command word
1 Sensor Type 1 Thermocouple or RTD type (below)
2 Sensor Configuration 1 Fahrenheit or Celsius, Resolution (below)
3 Option Board Type 1 Option board installed (below)
Sensor Type:
J, K, T, E, S, R, 385 RTD, 392 RTD, Cal
0, 1, 2, 3, 4, 5, 6, 7 , -2
Sensor Configuration:
Bit Purpose
7 not used
6 not used
5 not used
4 not used
3 not used
2 not used
1 0 = 0.1 degree, 1 = 1.0 degree
0 0 = degrees F, 1 = degrees C
Option Board Type (Read Only):
Note: Writing to this location will cause improper operation of unit. This location should always contain the
same data that has been previously read.
Bits 0-7 Option Type
xxx0 01xx alarm no V or C
xxx0 10xx alarm with Voltage
xxx0 11xx alarm with Current
xxx1 00xx multi input TC
xxx1 01xx multi input RTD
Response: None
9. Transmit Input Data (51h)
Action: Commands unit to transmit input configuration data
Response: Input configuration data block
The received data will be in the format described in item 8. The actual data received will not be
preceeded by a command byte. The first byte received will be the Sensor Type.
10. Receive Multi Data (56h)
Action: Commands unit to receive multi input configuration data.
This command is sent as the first byte of a Multiple Input Configuration Block. This block is as follows:
Page 4
Offset Parameter Size (bytes) Notes
0 Multi Input Config Cmd. 1 Multiple Input Configuration Command.
1 Setpoint States 1 Holds the On/Off state of channel setpoints (below)
2 Scan Rate 1 Holds the automatic mode scan rate (below)
3 Current Channel 1 Indicates current channel on unit (read only)
4 Multi Input Mode 1 Holds scan mode (automatic/Manual)
5 Multi Channel States 1 Holds the On/Off state of channels
6 Setpoint Types 1 Holds the type of setpoints (High/Low)
Setpoint States:
Bits 1 through 6 represent the ON/OFF states of setpoints 1 through six. A bit state of 0 indicates that
setpoint is OFF and a bit state of 1 indicates that the setpoint is ON.
Scan Rate:
The rate in seconds that the unit scans the channels whose Setpoint State is ON. Valid scan rates are
value from 5 to 20 seconds. Although other rates can be programmed, it is not reccomended.
Current Channel:
Indicates the channel that the unit is currently monitoring. This value is read only.
Multi Input Mode:
Holds the scan mode for multiple channels. A value of 1h indicates automatic scan mode. A value of 2h
indicates manual scan mode.
Multi Channel States:
Bits 1 through 6 represent the ON/OFF states of channels 1 through six. A bit state of 0 indicates that
channel is OFF and a bit state of 1 indicates that the channel is ON.
Setpoint Types:
Bits 1 through 6 represent the setpoint type for setpoints 1 through 6. A bit state of 0 indicates a low
setpoint type. A bit state of 1 represents a high setpoint type.
11. Transmit Multi Data(57h)
Action: Commands unit to transmit multi input configuration data
Response: Input configuration data block
The received data will be in the format described in item 10. The actual data received will not be
preceeded by a command byte. The first byte received will be the Setpoint States.
