Omega DP26-TC User Manual

Specifications and Main Features

  • Display: A red display comprising four digits and 14 segments.
  • Precision: Error margin of 0.5 °C.
  • Department of Energy Approved Thermocouple Models: J, K, T, DIN J.
  • Alternatives for Energy Supply:
  • Power supply options of 115 or 230 Vac at the frequency range of 50/60 Hz.
  • 10-32 Vdc.
  • 26-56 Vdc.
  • Special Details: Published dimensions, made fit for panel installation (in-text dimensions are not mentioned).
  • Features in The Front Panel:
  • A NEMA 4-Type 4 is included.
  • Includes Automatic Decimal Period Modulation Device.
  • The device contains no-battery back-up dynamic switching on the main memory.
  • Outputs:
  • Dual 5-ampere C form relay outputs that are optional.
  • Analog output that is optional and can be adjustable to operate at varied output currents.
  • The analog output is configurable and can be set up for proportional controlling purpose.
  • Deviation correction configured at the front panel.
  • Matching Averaging Function: The Input 1 thermocouple is combined with the Input 2.
  • Other Features:
  • Ability to recall previously observed parameters.
  • Set-, dead-and and reading configuration (Fahrenheit or Centigrade) settings.
  • Settings for Cold junction compensation.

Frequently Asked Questions

Q: What Types of Thermocouples can be Connected with the DP26-TC?

A: The aforementioned device supports J, K, T and DIN J thermocouple types.

Q: What is the power supply requirement for the DP26-TC?

A: DP26-TC works with an input power of either 26-56Vdc or 10-32Vdc or with a 230V or 115V AC Supply of 50/60Hz frequency.

Q: Does the DP26-TC have a built in power switch?

A: There is no power-on switch on the meter, so the device would work the moment power is provided.

Q: Can I configure setpoints on the DP26-TC?

A: TP26-TC allows configuring deadbands and assigning them to specific temperature inputs, thus allowing one to configure set points as well.

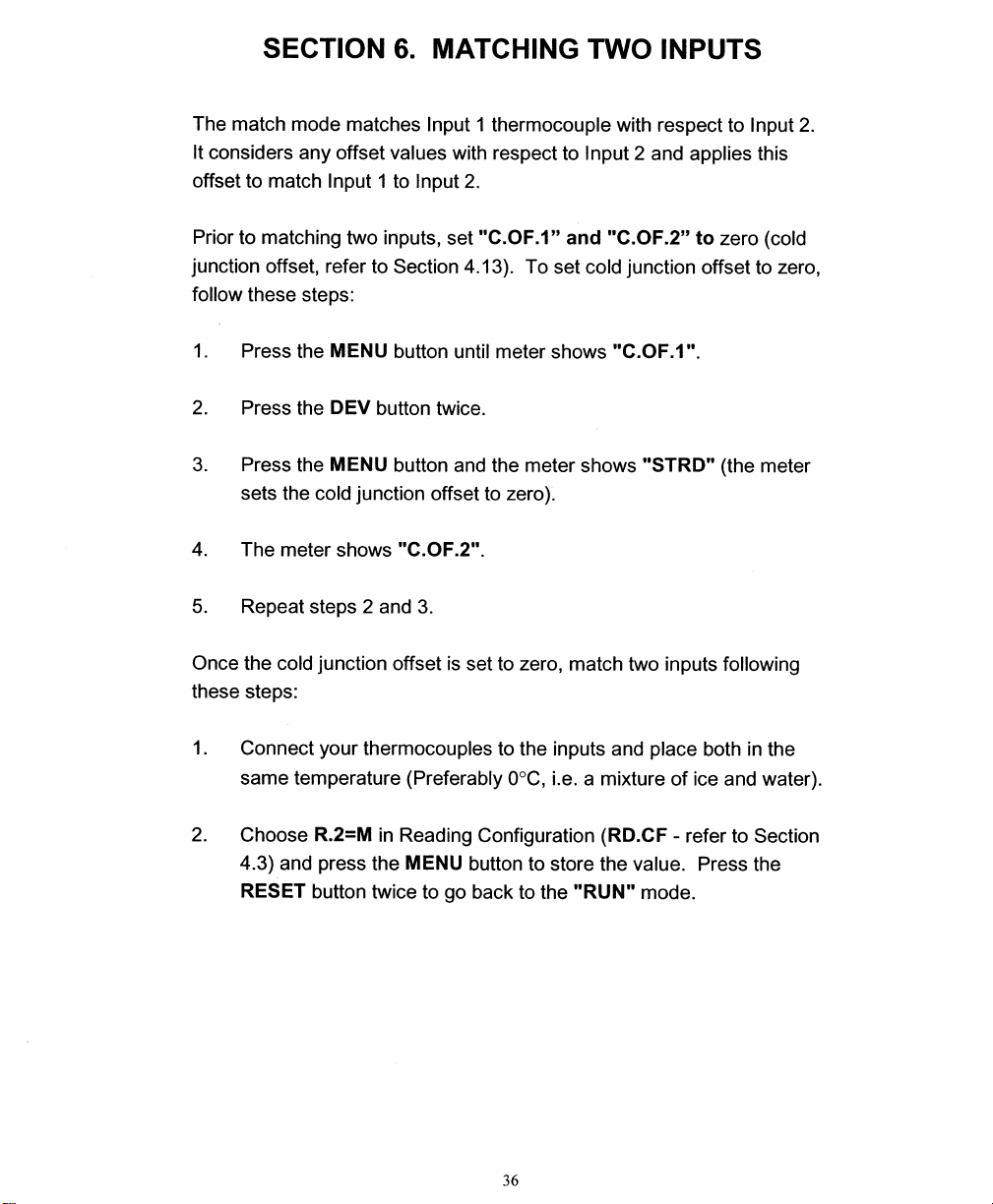

Q: Is there a way to match two thermocouple inputs?

A: The DP26-TC provides the option for match function, which makes it possible to align Input 1 thermocouple with Input 2.

Q: What is the accuracy of the temperature readings?

A: Its accuracy is up to ±0.5 °C.

Q: Can the output of the DP26-TC be scaled?

A: The output of DP26-TC can be scaled and is not limited to just analog, as it can support display or proportional control.

User Manual

DP26-TC
Differential Temperature
Meter with Thermocouple
omega.com
e-mail: info@omega.com
For latest product manuals
omegamanual.info
MADE IN
User’s Guide
Shop on line at
It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.
This device is marked with the international caution symbol. It is important to read the Setup Guide before installing or commissioning this device as the guide contains important information relating to safety and EMC.
This device is marked with the international caution symbol. It is important to read the Setup Guide before installing or commissioning this device as the guide contains important information relating to safety and EMC.
!
®
®
OMEGAnet® On-Line Service
www.omega.com
Internet e-mail
info@omega.com
Servicing North America:
USA: One Omega Drive, P.O. Box 4047
ISO 9001 Certified Stamford CT 06907-0047
TEL: (203) 359-1660 FAX: (203) 359-7700 e-mail: info@omega.com
Canada: 976 Bergar Laval (Quebec) H7L 5A1 TEL: (514) 856-6928 FAX: (514) 856-6886 e-mail: info@omega.ca
For immediate technical or application assistance:
USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA Customer Service: 1-800-622-2378 / 1-800-622-BEST Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN
Mexico and TEL: (001) 203-359-7803 FAX: (001) 203-359-7807 Latin America: e-mail: espanol@omega.com
®
®
®
Servicing Europe:
Benelux: TEL: +31 20 3472121 FAX: +31 20 6434643 Toll Free in Benelux: 0800 0993344 e-mail: sales@omegaeng.nl
Czech Republic: Frystatska 184, 733 01 Karviná TEL: +420 59 6311899 FAX: +420 59 6311114 e-mail: info@omegashop.cz
France: TEL: +33 1 61 37 29 00 FAX: +33 1 30 57 54 27 Toll Free in France: 0800 466 342 e-mail: sales@omega.fr
Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany TEL: +49 7056 9398-0 FAX: +49 7056 9398-29 Toll Free in Germany: 0800 639 7678 e-mail: info@omega.de
United Kingdom: One Omega Drive
ISO 9001 Certified River Bend Technology Centre
Northbank, Irlam Manchester M44 5BD United Kingdom TEL: +44 161 777 6611 FAX: +44 161 777 6622 Toll Free in England: 0800 488 488 e-mail: sales@omega.co.uk
1
SECTION 1. INTRODUCTION
1.1 UNPACKING
Remove the Packing List and verify that all equipment has been received. If
there are any questions about the shipment, use the phone numbers listed on
the back cover to contact the Customer Service Department nearest you. Upon receipt of shipment, inspect the container and equipment for any signs of damage. Take particular note of any evidence of rough handling in transit. Immediately report any damage to the shipping agent.
The carrier will not honor any claims unless all shipping material is saved for their examination. After examining and removing contents, save packing material and carton in the event reshipment is necessary.
Verify that you receive the following items in the shipping box:
QTY DESCRIPTION
1 Differential THermocouple Meter with all applicable connectors
attached.
1 Owner's Manual
1 Set Mounting brackets
1 QuickStart Manual
If you ordered any of the available options (except the "BL" Blank Lens option), they will be shipped in a separate container to avoid any damage to your indicator/controller.
2
1.2 SAFETY CONSIDERATIONS
This device is marked with the international caution symbol. It is important to read this manual before installing or commissioning this device as it contains
important information relating to Safety and EMC (Electromagnetic Compatibility).
This instrument is a panel mount device protected in accordance with EN 61010-1:2001, electrical safety requirements for electrical equipment for measurement, control and laboratory. Installation of this instrument should be done by qualified personnel. In order to ensure safe operation, the following instructions should be followed.
This instrument has no power-on switch. An external switch or circuit- breaker shall be included in the building installation as a disconnecting device. It shall be marked to indicate this function, and it shall be in close proximity to the equipment within easy reach of the operator. The switch or circuit-breaker shall not interrupt the Protective Conductor (Earth wire), and it shall meet the relevant requirements of IEC 947–1 and IEC 947-3 (International Electrotechnical Commission). The switch shall not be incorporated in the main supply cord.
Furthermore, to provide protection against excessive energy being drawn from the main supply in case of a fault in the equipment, an overcurrent protection device shall be installed.
Do not exceed voltage rating on the label located on the top of the instrument housing.
Always disconnect power before changing signal and power connections.
Do not use this instrument on a work bench without its case for safety reasons.
Do not operate this instrument in flammable or explosive atmospheres.
Do not expose this instrument to rain or moisture.
Unit mounting should allow for adequate ventilation to ensure instrument does not exceed operating temperature rating.
Use electrical wires with adequate size to handle mechanical strain and power requirements. Install without exposing bare wire outside the connector to minimize electrical shock hazards.
EMC Considerations
Whenever EMC is an issue, always use shielded cables.
Never run signal and power wires in the same conduit.
Use signal wire connections with twisted-pair cables.
Install Ferrite Bead(s) on signal wires close to the instrument if EMC problems persist.
Failure to follow all instructions and warnings may result in injury!
SECTION 2. ABOUT THE METER
2.1 DESCRIPTION
The Differential Temperature meter with thermocouple is a value packed indicator/ controller. Four full digits allow for an accurate display of your temperature. Select from J, K, T or DIN J thermocouple types. Your meter may be a basic indicator or it may include analog output or dual relay output. Analog or dual relay output must be ordered at time of purchase. Analog output is fully scalable and may be configured as a proportional controller, or to follow your display. Dual 5 amp, form C relays control critical processes. Front panel peak detection and memory is also standard.
2.2 STANDARD FEATURES
The following is a list of features:
* 4-digit, red, 14 segment LED Display * NEMA 4/Type 4 Front Bezel * ±0.5 °C accuracy * Cross channel isolation up to ±5V * Match Capability * Automatic Decimal Adjustment * Non-volatile memory-no battery backup * 115 or 230 Vac 50/60 Hz power supply or
10-32 Vdc or 26-56 Vdc
* T1, T2, T1-T2 display
OPTIONAL FEATURES
* Dual 5 amp, form C relay outputs * Scalable analog output * Analog out proportional control * Front-panel deviation correction * Easy setup for proportional control
3
2.5 BACK OF THE METER
Figure 2-2 shows the connector label mounted at the top of the meter housing. Table 2-2 gives a brief description of each connector at the back of the meter.
Figure 2-2 Connector Label (ac power with dc detail)
9
3.3 PANELMOUNTING
Figure 3-3 Meter - Exploded VIew
1. Cut a hole in your panel, as shown in Figure 3-3. For specific dimensions refer to Figure 3-4.
2. Insert the meter into the hole. Be sure the front bezel gasket is flush to the panel.
3. Slide on mounting bracket to secure.
4. Proceed to Section
3.4 to connect your sensor input and main power.
15
Figure 3-4 Panel Cut-Out
CONNECTOR
LABEL
REAR COVER
(REMOVED)
PANEL
CUT-OUT
"NEW" STYLE
MOUNTING
BRACKET
PRODUCT
LABEL
GASKET
FRONT BEZEL
CASE
"OLDER" STYLE
MOUNTING
BRACKET 2 PCS
49
SECTION 13. SPECIFICATIONS (continued)
ALARM OUTPUTS 2 Form "C" on/off relays. Configurable for latched and
(if applicable) unlatched by software.
Max current: 5 AMPS, resistive load Max voltage: 250 Vac or 30 Vdc
ENVIRONMENT
~~
AC units 115/230 V~(AC) + 10%, 50/60 Hz
7 W max, power consumption (Non-Isolated Analog Out) 8 W max, power consumption (Isolated Analog Out)
DC units 10-32 Vdc or 26-56 Vdc,
6 W max, power consumption (Non-Isolated Analog Out) 7 W max, power consumption (Isolated Analog Out)
External Fuse Required:
IEC 127-2/III
Power Fuse
115 V 125 mA @ 250 (T)
230 V 63 mA @ 250 (T)
UL 248-14 (Listed Fuse)
Power Fuse
115 V 175 mA @ 250 V Slow-Blow
230 V 80 mA @ 250 V Slow-Blow
ENVIRONMENT
Operating temperature: 0° to 50°C (32° to 122°F)
(115/230 V rms +
10%)
Storage temperature: -40° to 85°C (-40° to 185° F)
Relative humidity: 90% at 40°C (non-condensing)
MECHANICAL
Panel cutout: 1/8 DIN 3.62 x 1.78" (45 x 92mm)
Weight: 1.27 lb (575 g)
Case material: Polycarbonate, 94 V-O UL rated
Protection: NEMA-4/Type 4 Front Beze
L
SECTION 13. SPECIFICATIONS (continued)
Figure 13-1 Meter Dimensions
50
20,3 (.80)
151,4 (5.96)
96,0 (3.78)48,0 (1.89)
FRONT BEZEL
RETAINER
CASE
REAR COVER
SIDE VIEW
TOP VIEW
MENU ITEM FACTORY PRESET VALUES
51
SECTION 14. FACTORY PRESET VALUES
Table 14-1. Factory Preset Values
INPT Input Type: K.TC (Type K T/C)
DEC.P Decimal Point Position: FFF.F
RD.CF Reading Configuration:
R.1=F (Fahrenheit)
R.2=D (Shows deviation in “RUN” mode)
S1.CF Setpoint 1 Configuration:
S.1=A (Setpoint is active above)
S.2=U (Setpoint is unlatched)
S.3=0 (Setpoint 1 assigned to T1 - T2)
S2.CF Setpoint 2 Configuration:
S.1=A (Setpoint is active above)
S.2=U (Setpoint is unlatched)
S.3=0 (Setpoint 2 assigned to T1 - T2)
S1.DB Setpoint 1 Deadband: 3.0
S2.DB Setpoint 2 Deadband: 3.0
OT.CF Output Configuration:
O.1=E (Analog output is enabled)
O.2=C (Analog output is current)
O.3=A (Analog output follows the display value)
OUT Analog Output Routing: T1 - T2
OT.S.O Output Scale and Offset:
0-1000 = 4-20 mA dc
C.OF.1 Cold Junction Offset for T1: 000.0
Cold Junction Offset for T2: 000.0
SP1 Setpoint 1 Value: 000.0
SP2 Setpoint 2 Value: 000.0
52
CE APPROVALS INFORMATION
This product conforms to the EMC directive 89/336/EEC amended by 93/68/EEC, and with the European Low Voltage Directive 72/23/EEC.
Electrical Safety EN61010-1:2001
Safety requirements for electrical equipment for measurement, control and laboratory.
Double Insulation Pollution Degree 2 Dielectric withstand Test per 1 min
Power to Input/Output: 2300 Vac (3250 Vdc)
Power to Input/Output: 500 Vac (720 Vdc)
(Low Voltage dc Power Option*)
Power to Relays Output: 2300 Vac (3250 Vdc)
Relay 1 to Relay 2: 2300 Vac (3250 Vdc)
Isolated Analog to Inputs: 1000 Vac (1420 Vdc)
Analog to Inputs: No Isolation
Measurement Category I
Category I are measurements performed on circuits not directly connected to the Mains Supply (power). Maximum Line-to-Neutral working voltage is 50 Vac/dc. This unit should not be used in Measurement Categories II, III, IV.
Transients Overvoltage Surge (1.2 / 50uS pulse)
Input Power: 2500 V
Input Power: 500 V
(Low Voltage dc Power Option*)
Isolated Analog: 500 V
Input/Output Signals: 500 V
Note: *Units configured for external low power dc voltage, 10-32 Vdc (Basic Insulation)
EMC EN61326:1997 + and A1:1998 + A2:2001
Immunity and Emissions requirements for electrical equipment for measurement, control and laboratory.
EMC Emissions Table 4, Class B of EN61326
EMC Immunity** Table 1 of EN61326
Note: **I/O signal and control lines require shielded cables and these cables
must be located on conductive cable trays or in conduits. Furthermore, the length of these cables should not exceed 30 meters
Refer to the EMC and Safety installation considerations (Guidelines) of this manual for additional information.
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of one (1) year from the date of purchase. In addition to OMEGA’s standard warranty period, OMEGA Engineering will extend the warranty period for four (4) additional years if the warranty card enclosed with each instrument is returned to OMEGA.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components which wear are not warranted, including but not limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.
FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:
1. Purchase Order number under which the product was PURCHASED,
2. Model and serial number of the product under warranty, and
3. Repair instructions and/or specific problems relative to the product.
FOR NON-WARRANTY REPAIRS,
consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of product, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.
© Copyright 2007 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.
TRADEMARK NOTICE:
®
,
omega.com
®
and are trademarks of OMEGA Engineering, Inc.
PATENT NOTICE:
This product is covered by one or more of the following patents: U.S. Pat. No. Des. 336,895; 5,274,577; 6,243,021 / CANADA 2052599; 2052600 / ITALY 1249456; 1250938 / FRANCE BREVET No. 91 12756 / SPAIN 2039150; 2048066 / UK PATENT No. GB2 249 837; GB2 248 954 / GERMANY DE 41 34398 C2.
The “Meter Case Bezel Design” is a trademark of
NEWPORT Electronics, Inc., registered in the U.S.
USED UNDER LICENSE. Other US and International Patents pending or
applied for.
®
11797ML-97 Rev C M1677/0307
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop on line at omega.com
TEMPERATURE

Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

Wire: Thermocouple, RTD & Thermistor

Calibrators & Ice Point References

Recorders, Controllers & Process Monitors

Infrared Pyrometers
PRESSURE, STRAIN AND FORCE

Transducers & Strain Gauges

Load Cells & Pressure Gauges

Displacement Transducers

Instrumentation & Accessories
FLOW/LEVEL

Rotameters, Gas Mass Flowmeters & Flow Computers

Air Velocity Indicators

Turbine/Paddlewheel Systems

Totalizers & Batch Controllers
pH/CONDUCTIVITY

pH Electrodes, Testers & Accessories

Benchtop/Laboratory Meters

Controllers, Calibrators, Simulators & Pumps

Industrial pH & Conductivity Equipment
DATA ACQUISITION

Data Acquisition & Engineering Software

Communications-Based Acquisition Systems

Plug-in Cards for Apple, IBM & Compatibles

Datalogging Systems

Recorders, Printers & Plotters
HEATERS

Heating Cable

Cartridge & Strip Heaters

Immersion & Band Heaters

Flexible Heaters

Laboratory Heaters
ENVIRONMENTAL MONITORING AND CONTROL

Metering & Control Instrumentation

Refractometers

Pumps & Tubing

Air, Soil & Water Monitors

Industrial Water & Wastewater Treatment

pH, Conductivity & Dissolved Oxygen Instruments
Loading...
