DP2000-F AC RMS Voltage

DP2000-G AC RMS Current

For latest product manuals

OMEGAROMETER

Process Monitors

Servicing North America:

U.S.A.:

Omega Engineering, Inc., One Omega Drive, P.O. Box 4047

Stamford, CT 06907-0047 USA

Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: [phone] Fax: [phone]
e-mail: [email protected]

For Other Locations Visit www.omega.com/worldwide

omega.com [email protected]

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.

OMEGA CROSS REFERENCE

2
9

0
1
2
3
4
5
6
7
8
9
A
B

0
1
2
3
4
5

0
1
2

3

4
5

DISPLAY RESOLUTION
±1999 counts (3 1/2 digits)
±9999 counts (4 digits)

DISPLAY TYPE & METER POWER
(LCD is only available on DP2000 models)
LED, 120 V ac (50/60 Hz)
LCD, 120 V ac (50/60 Hz)
LED, 240 V ac (50/60 Hz)
LCD, 240 V ac (50/60 Hz)
LED, 9-32 V dc (isolated)
LCD, 9-32 V dc (isolated)
LED, 5 V dc
LCD, 5 V dc
LED, 24 V ac
LCD, 24 V ac
LED, 26-56 V dc (isolated)
LCD, 26-56 V dc (isolated)

ANALOG OUTPUTS
±1 or ±2 V (standard, all models)
0-5 V dc
0-10 V dc
0-1 mA, source or sink
4-20 mA, source or sink
4-20 mA, sink (high compliance)

CONTROL OUTPUTS
None
Dual-setpoint 10 A relays
Proportional 4-20 mA, control, source or sink, plus
drive for time-proportional solid-state relay
Proportional 4-20 mA, control, source or sink, plus
time-proportional solid-state 2 A relay
Parallel BCD (isolated)
Single -setpoint 10 A relay

DP2X
DP9X

DP20 or DP90
DP21
DP22 or DP92
DP23
DP24 or DP94
DP25
DP26 or DP96
DP27
DP28 or DP98
DP29
DP2A or DP9A
DP2B

None
BA01
BA01
BA01
BA01
BA02

None
BDT1
BDP1

BDP2

BDD2
BDS1

TABLE OF CONTENTS

CROSS REFERENCE ................................................................................................iii

SAFETY CONSIDERATIONS ...................................................................................................... ii

_2000 MAIN ASSEMBLY

1.0 Specifications ............................................................................................................. 1

2.0 Mechanical Assembly and Installation ........................................................................ 3

3.0 Power & Signal Input Connections ............................................................................. 4

4.0 Configuration Procedure ........................................................................................... 5

5.0 Configuration Charts .................................................................................................. 5

6.0 Tests and Diagnostics ................................................................................................ 7

7.0 Main Board Connector Pin Assignments ..................................................................... 7

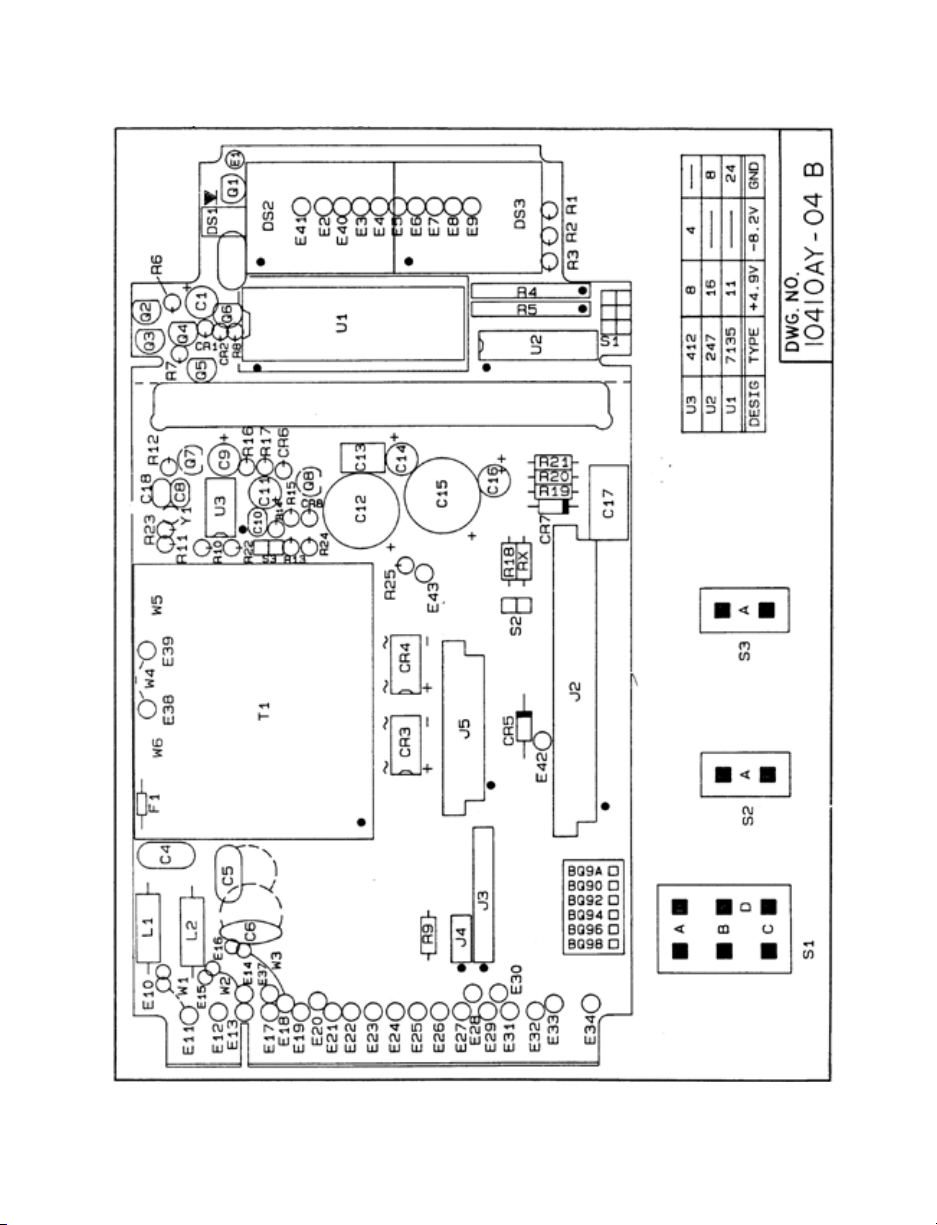

8.0 Drawings .................................................................................................................... 8

_9000 MAIN ASSEMBLY

9.0 Specifications ........................................................................................................... 11

10.0 Mechanical Assembly and Installation ...................................................................... 14

11.0 Power & Signal Input Connections ........................................................................... 15

12.0 Configuration Procedure ......................................................................................... 16

13.0 Configuration Charts ................................................................................................ 16

14.0 Tests and Diagnostics .............................................................................................. 19

15.0 Main Board Connector Pin Assignments ................................................................... 20

16.0 Drawings .................................................................................................................. 21

SIGNAL CONDITIONER INPUT

17.0 Specifications ........................................................................................................... 24

18.0 Signal Input Connections ......................................................................................... 28

19.0 Test and Diagnostics ................................................................................................ 30

20.0 Configuration Procedure .......................................................................................... 30

21.0 Configuration Charts ................................................................................................ 33

22.0 Calibration _2000 F/G ................................................................................................ 35

23.0 Calibration _9000 F/G ................................................................................................ 35

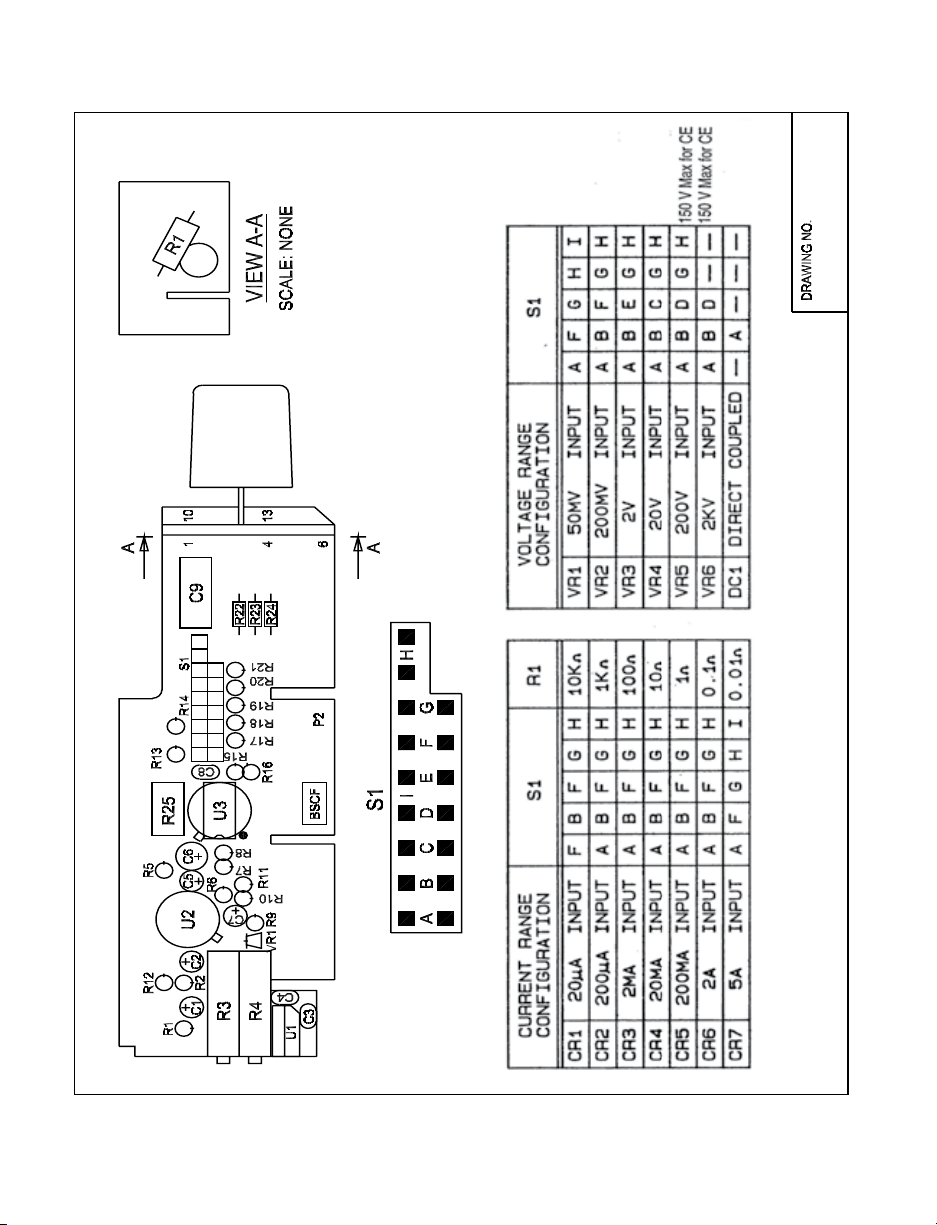

24.0 Drawings .................................................................................................................. 36

INSTALLATION INSTRUCTIONS

25.0 Installation ................................................................................................................ 37

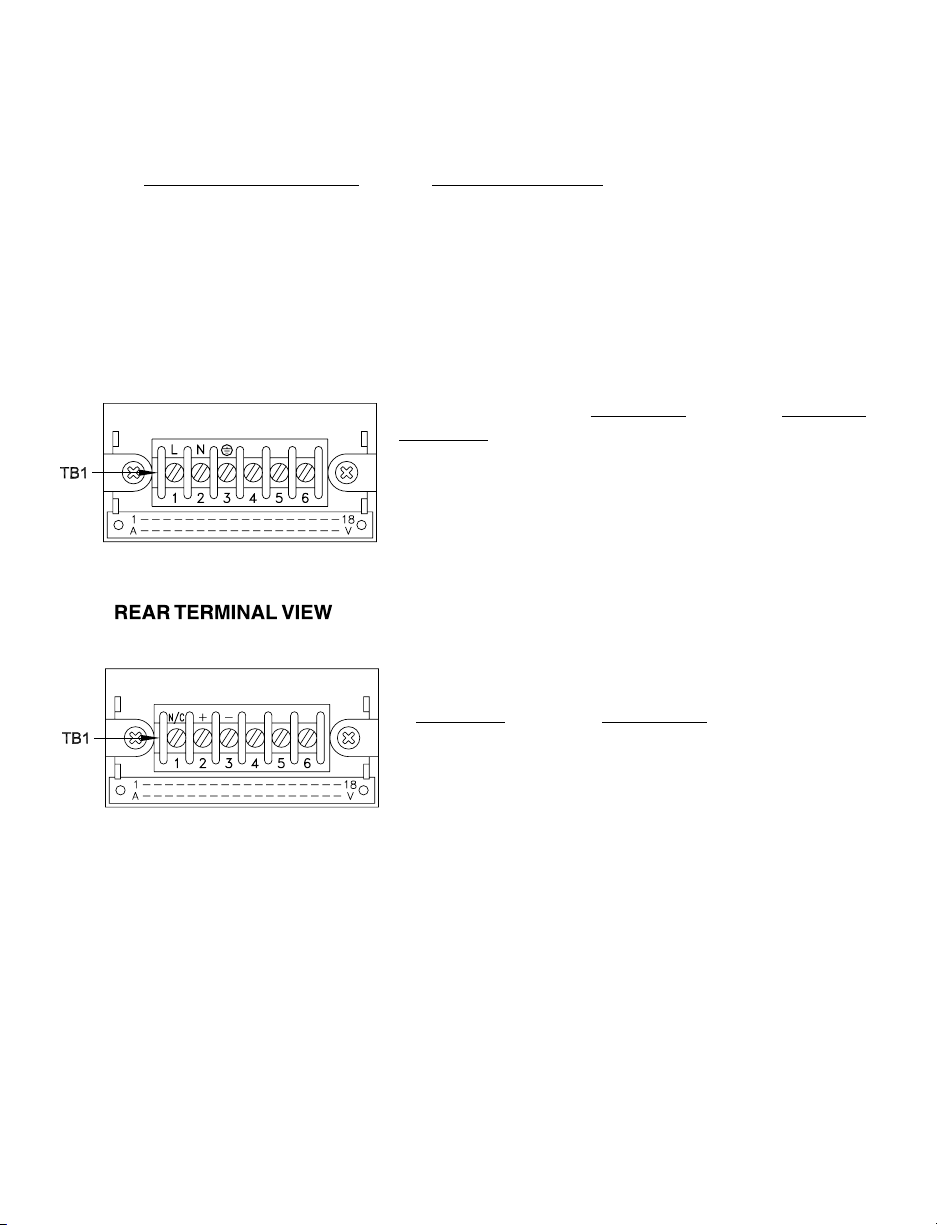

26.0 Signal Input Connections (TB1) ............................................................................... 40

i

SAFETY CONSIDERATIONS

This device is marked with the international Caution symbol. It is important to read this
manual before installing or commissioning this device as it contains important information
relating to Safety and EMC (Electromagnetic Compatibility).

Unpacking & Inspection

Unpack the instrument and inspect for obvious shipping damage. Do not attempt to operate

Note

☞

the unit if damage is found.

This instrument is a panel mount device protected in accordance with Class I of EN 61010
(115/230 AC power connections). Installation of this instrument should be done by Qualified
personnel. In order to ensure safe operation, the following instructions should be followed.

This instrument has no power-on switch. An external switch or circuit-breaker shall be included
in the building installation as a disconnecting device. It shall be marked to indicate this function,
and it shall be in close proximity to the equipment within easy reach of the operator. The switch
or circuit-breaker shall not interrupt the Protective Conductor (Earth wire), and it shall meet the
relevant requirements of IEC 947–1 and IEC 947-3 (International Electrotechnical Commission).
The switch shall not be incorporated in the mains supply cord.

Furthermore, to provide protection against excessive energy being drawn from the mains supply in
case of a fault in the equipment, an overcurrent protection device shall be installed.

• The Protective Conductor must be connected for safety reasons. Check that the power
cable has the proper Earth wire, and it is properly connected. It is not safe to operate
this unit without the Protective Conductor Terminal connected.

• Do not exceed voltage rating on the label located on the top of the instrument

Note

☞

housing.

• Always disconnect power before changing signal and power connections.

• Do not use this instrument on a work bench without its case for safety reasons.

• Do not operate this instrument in flammable or explosive atmospheres.

• Do not expose this instrument to rain or moisture.

• Unit mounting should allow for adequate ventilation to ensure instrument does not
exceed operating temperature rating.

• Use electrical wires with adequate size to handle mechanical strain and power
requirements. Install without exposing bare wire outside the connector to minimize
electrical shock hazards.

EMC Considerations

• Whenever EMC is an issue, always use shielded cables.

• Never run signal and power wires in the same conduit.

• Use signal wire connections with twisted-pair cables.

• Install Ferrite Bead(s) on signal wires close to the
instrument if EMC problems persist.

ii

1.0 MAIN ASSEMBLY - _2000 SPECIFICATIONS

1.1 GENERAL

The _2000 main assemblies are identified by an initial designator (_2) plus a power/ display option
numeral, zero through nine (0-9).

The following table identifies the main assembly types:

Display Type

120 V ac

240 Vac

9-32 V dc

5 V ac

24 V ac

LED

LCD

_20

_21

_22

_23

_24

_25

_26

_27

_28

_29

The Digital Panel Meter/Controller consists of a main assembly, signal conditioner and interface
options (if ordered) all housed in a 1/8 DIN case.
The main assembly consists of a main board and a display board which is permanently attached to it
at a 90 degree angle.
The main board provides mounting for the power supply, circuit components, and connectors for
plugging in the signal conditioner, optional analog card, and optional controller/communications
interface card (requires removal of a bypass push-on jumper).
The display board includes the analog-to-digital converter, the LED or LCD display and the push-on
jumper for programming the decimal points. Decimal point programming may also be done from the
main board connector (J1).

1.2 POWER

AC Models:
Common Mode Voltage:

DC Models

24/120/240 V +10/-15% 47-63 Hz

Vp test (354 Vp per IEC spacing)

1500

5 V ±5% (5 V return common to signal LO)
9-32 V (300 V isolation from 9-32 V return to signal LO)

Source Impedance:
Ripple:
Power Consumption:

3 ohms
250 mV maximum
5 watts maximum

1.3 DISPLAY

LED:
Lens Color:
LCD:
Lens Color:
Range:

14.2 mm (0.56 in), 7-segment light emitting diode Red

12.7 mm (0.50 in), 7-segment liquid crystal
Clear
0 to ±1999
Three least-significant digits blank, "1" or "-1" displayed

Overload Indication:

1.4 CONVERSION

Technique:

Signal Integration Period:

Auto-zero, dual slope, average value
100 ms, nominal

2.5/s, nominal

Reading Rate:

1

1.5 ENVIRONMENTAL

Operating Temp (Ambient): 0 to 60°C
Storage Temp.: -40 to 85°C
Humidity: To 95% RH, non-condensing, 0 to 40°C

1.6 MECHANICAL

Case Material: UL-rated 94 V-0, polycarbonate
Weight: 0.57 kg (with interface board)

CONTROL INTERFACE

BOARD OPTION

INTERCONNECT

LENS

ZERO ADJ.

ANALOG
OUTPUT
BOARD

SPAN ADJ.

CONTROL INTERFACE

EXCITAT ION VOLTAGE
MODEL & POWER
SERIAL NO.

CABLE

CASE, UPPER

CLAMP SCREW

SLIDE CLAMP

TA B

SLIDE CASE
RETAINER

SIGNAL CONDITIONER BOARD

TERMINAL BLOCK
COVER

INPUT POWER

MAIN BOARD

DISPLAY BOARD

CASE, LOWER

DECIMAL POINT SELECT

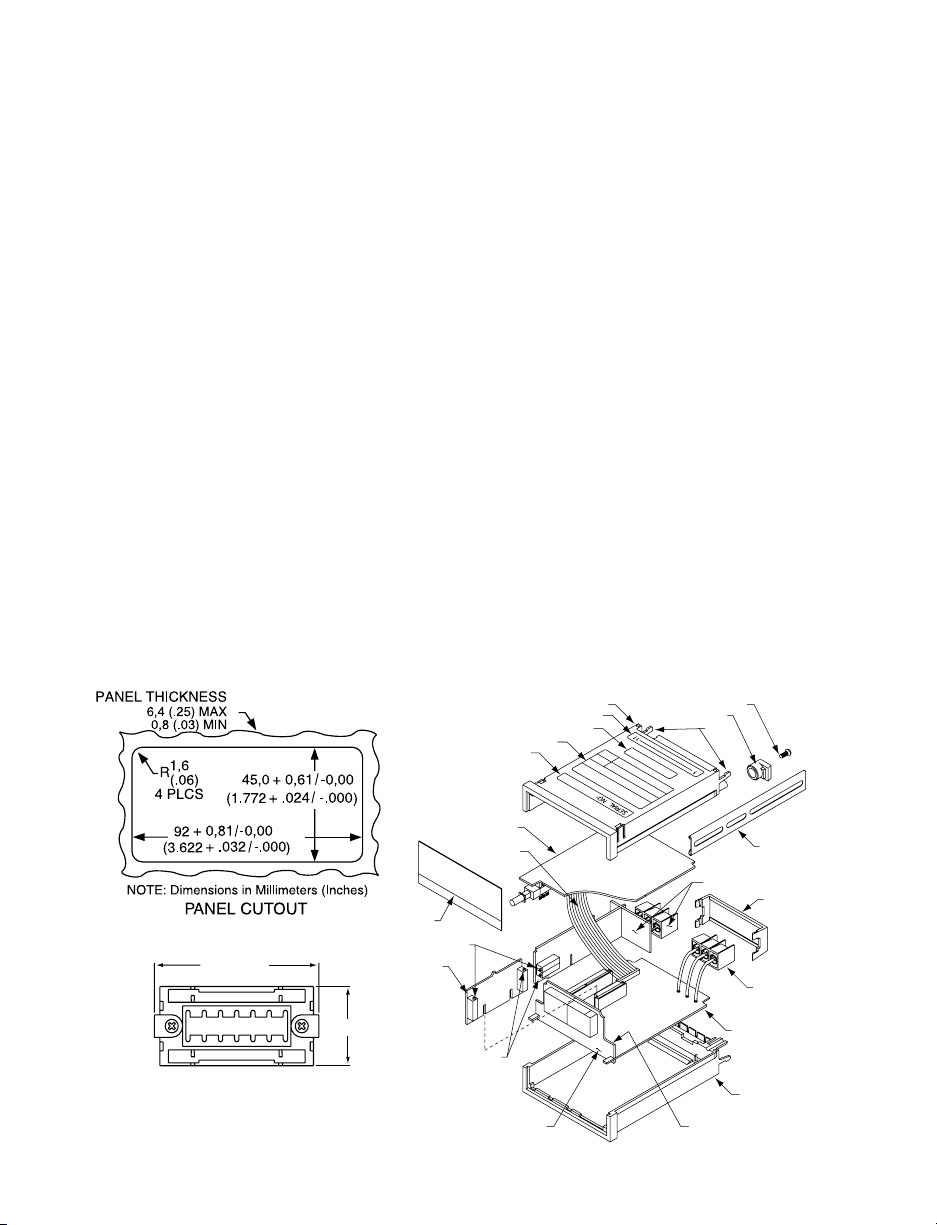

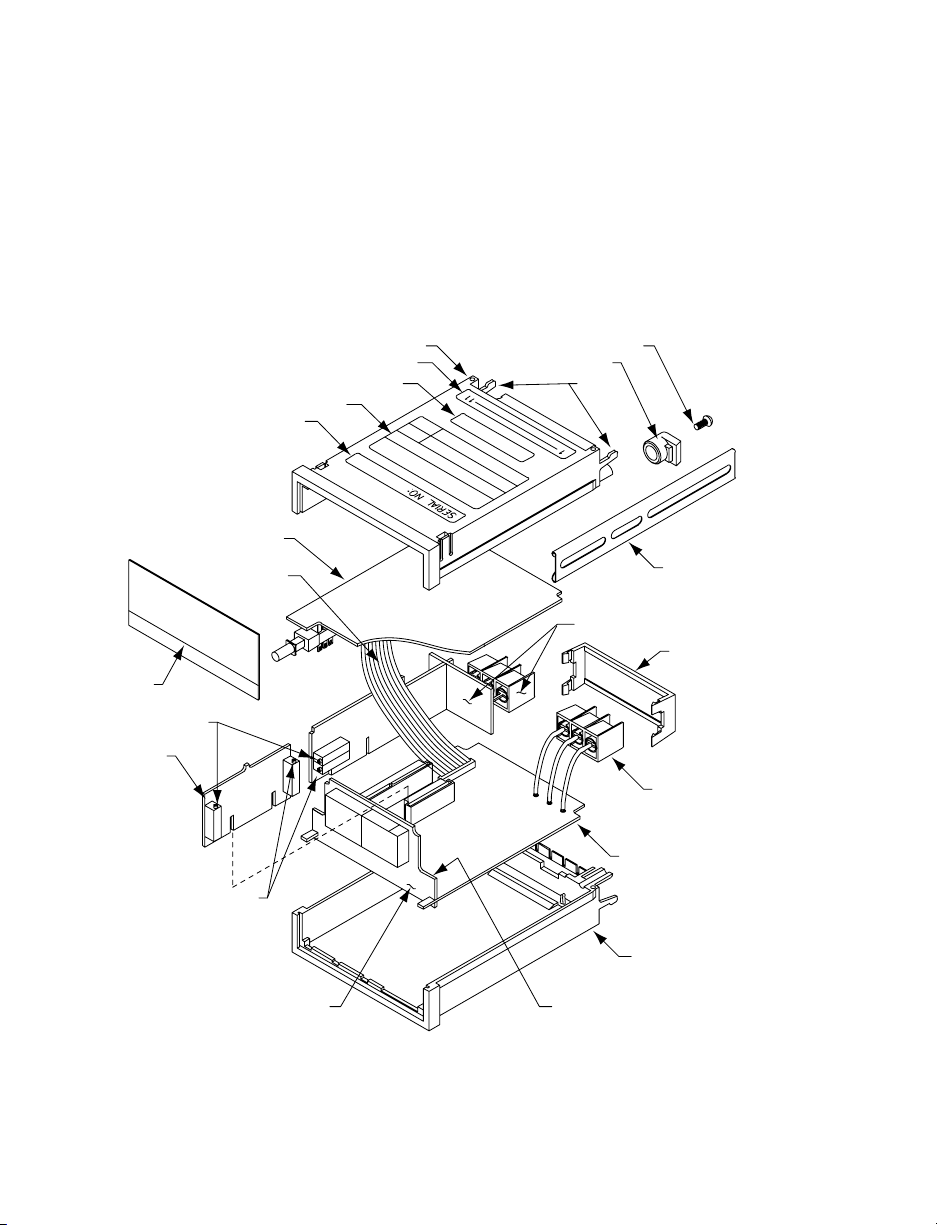

Figure 1 Exploded View

2

2.0 MECHANICAL ASSEMBLY & INSTALLATION

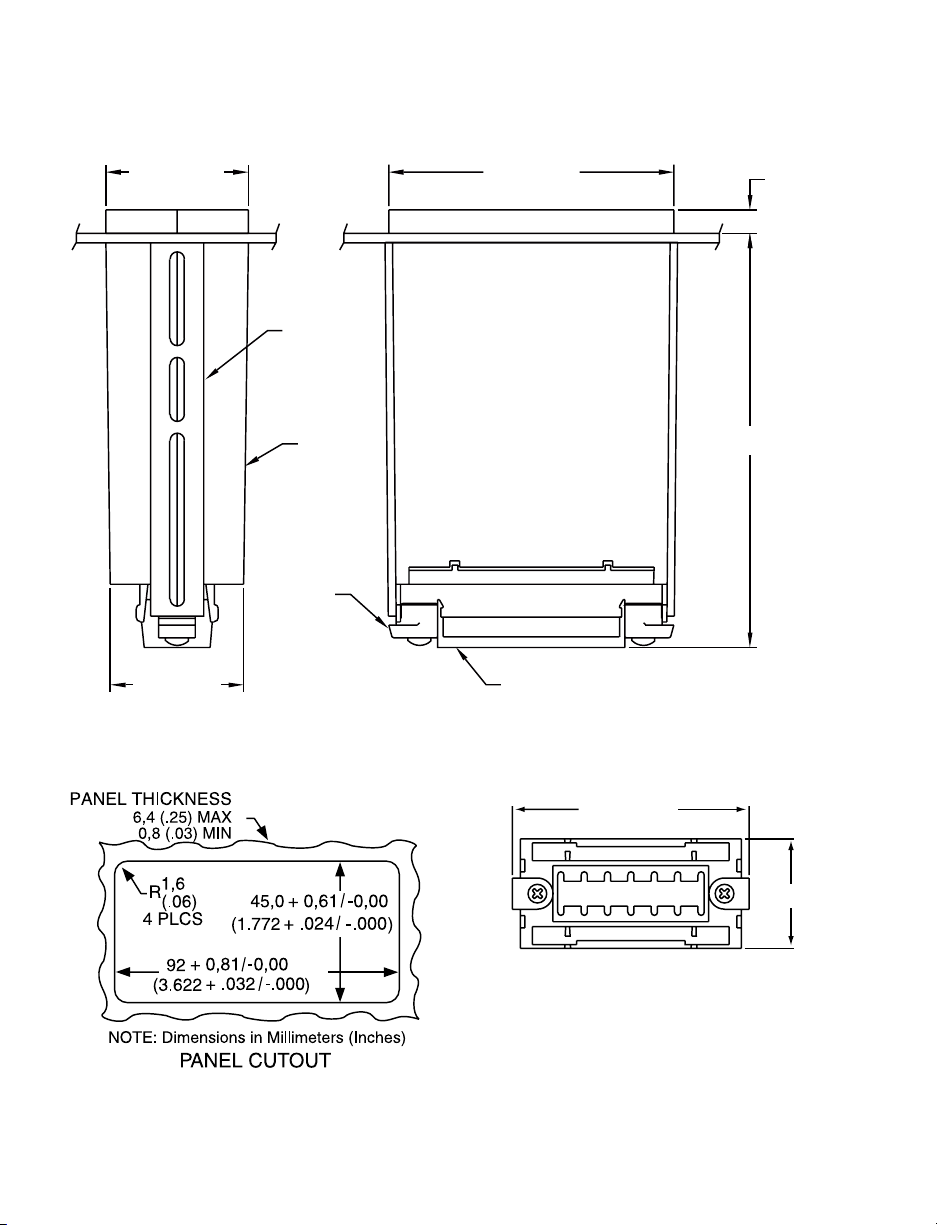

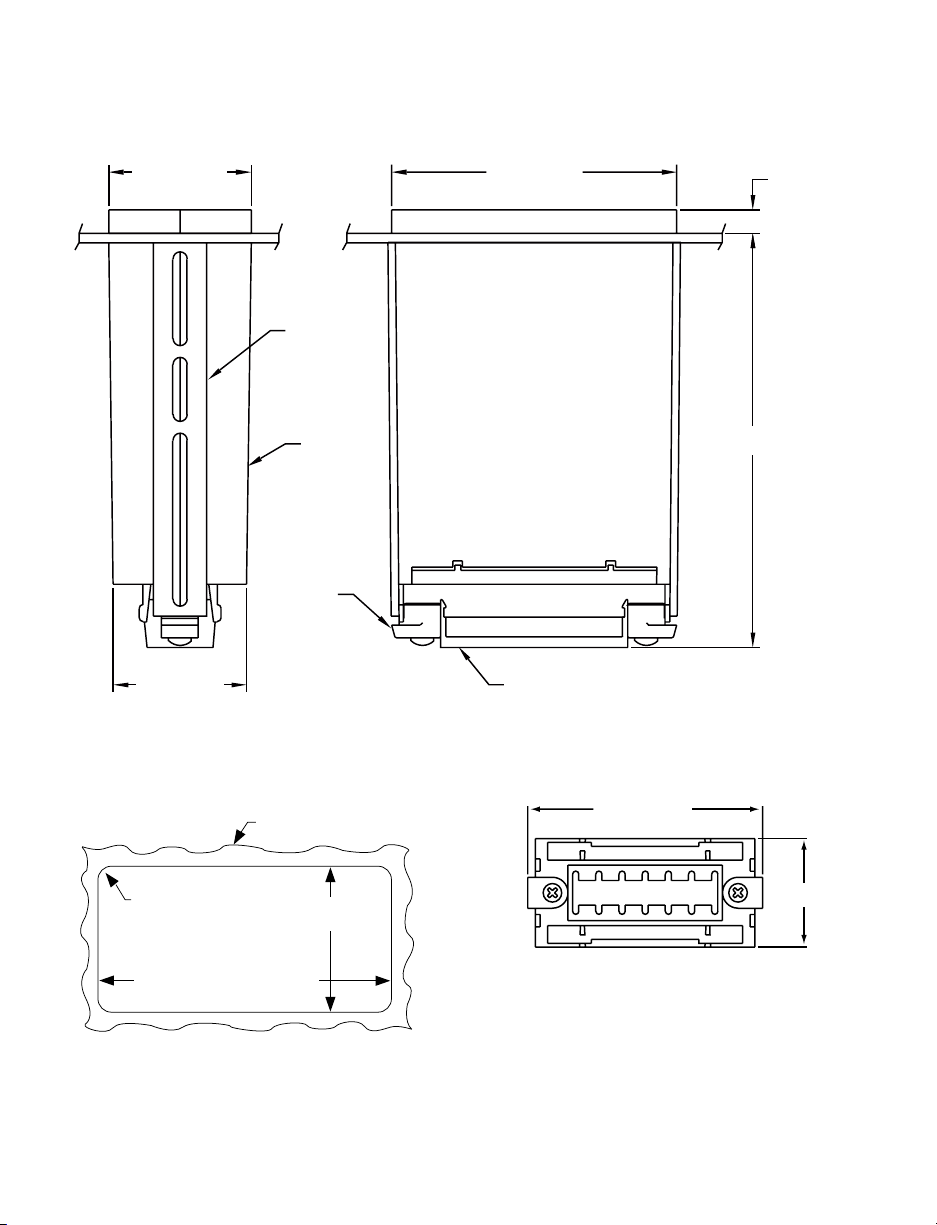

2.1 PANEL MOUNTING PROCEDURE (SEE FIGURE 1)

Remove the main board edge connector (J1), if installed.

Remove the interface board connector (J2), if installed.
Loosed two clamp screws on the rear of the case enough to rotate the two slide clamps.

Slide two slide retainers toward the rear of the case and remove them.

From the front of the panel, insert the meter into the panel cutout.
Slide the slide retainers back into the case and push up tightly against the rear of the panel.

Rotate the slide clamps back into their original position and tighten enough to hold the case in place.
Overtightening can break the clamps.

Install any connectors removed.

2.2 LABELS (SEE FIGURE 2 FOR PLACEMENT)

MODEL & POWER
LABEL

EXCITATION
VOLTAGE

POWER

SIGNAL

SERIAL NO:

1

11

RTN AC

LABELS TO BE READ FROM THE REAR

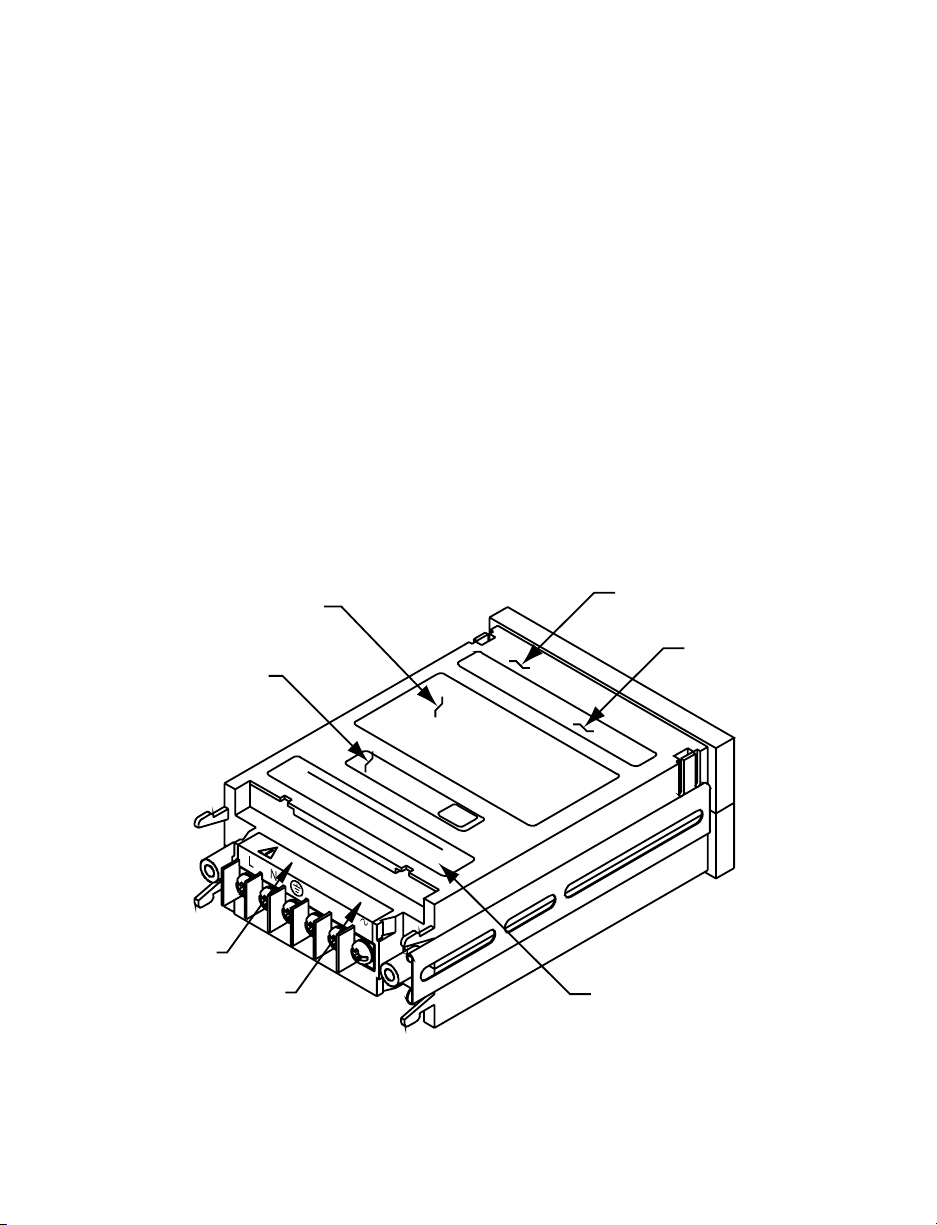

Figure 2 Label Placement

TOP

SERIAL NO.

CONTROL
INTERFACE

3

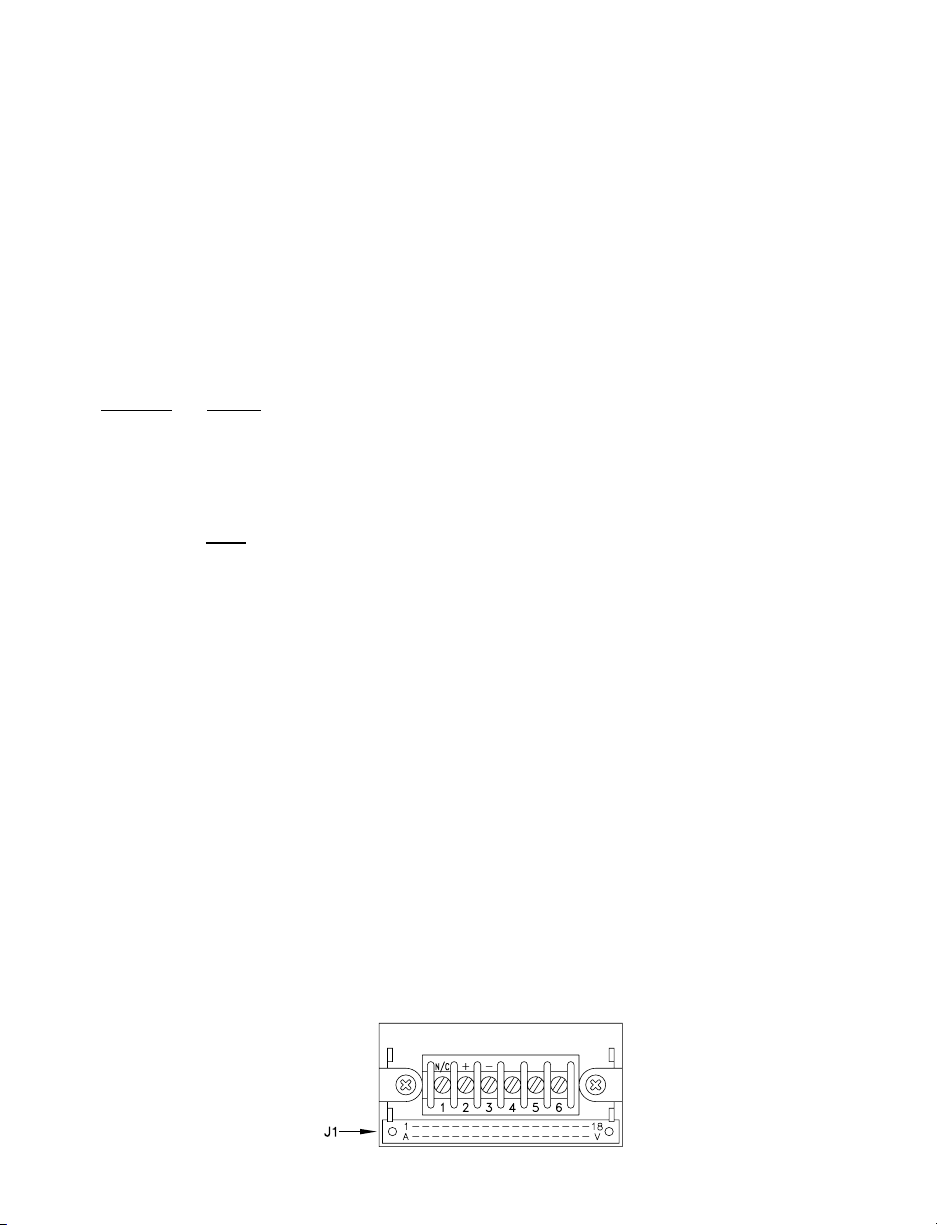

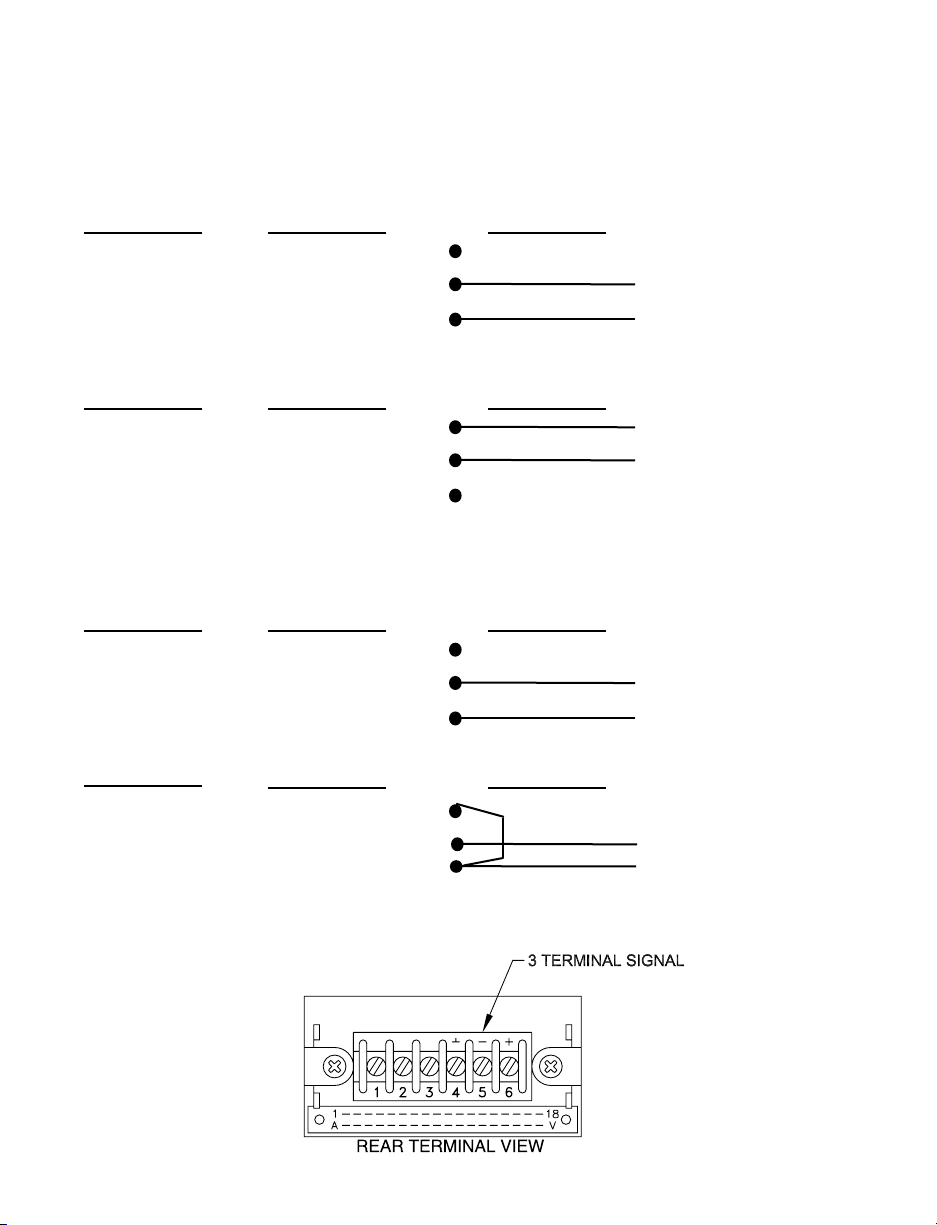

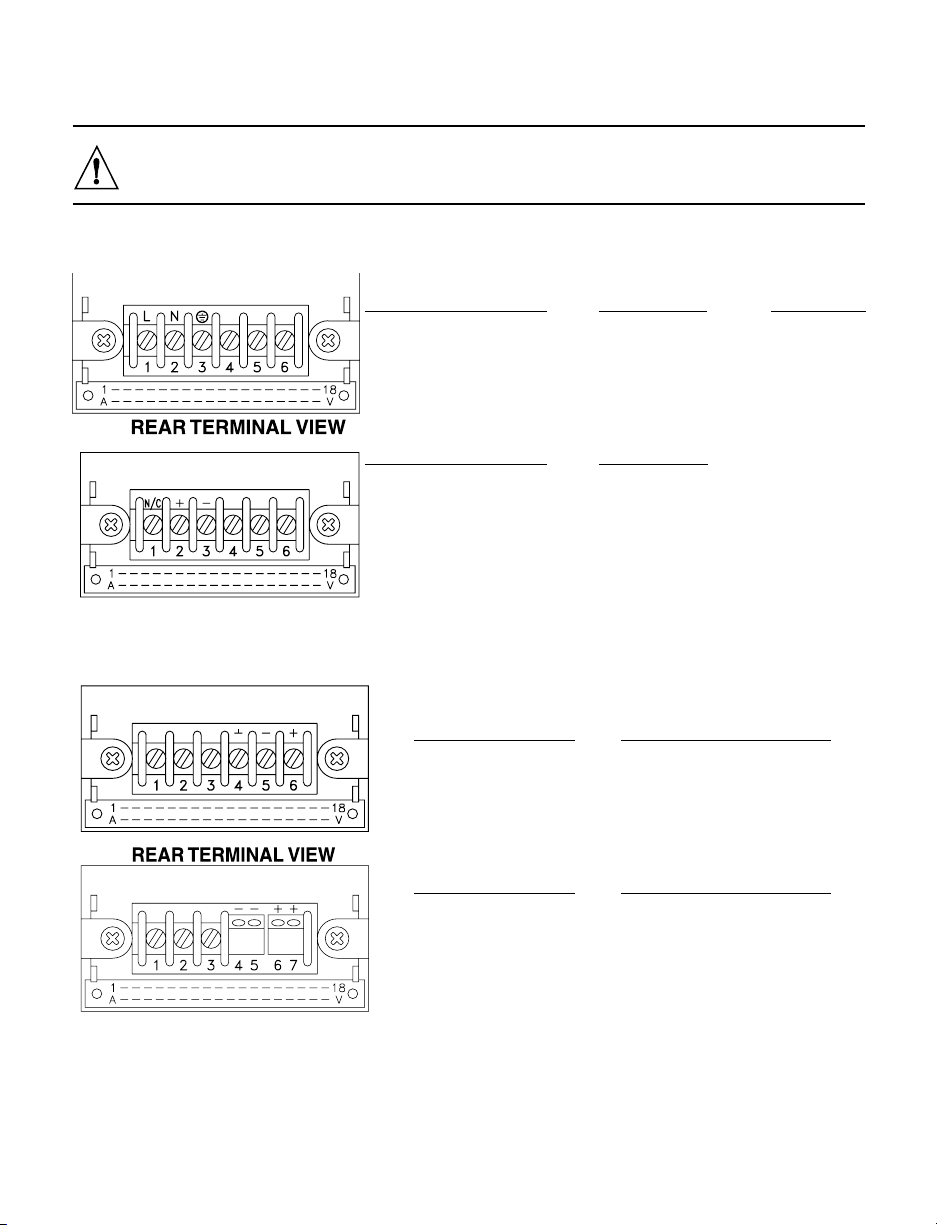

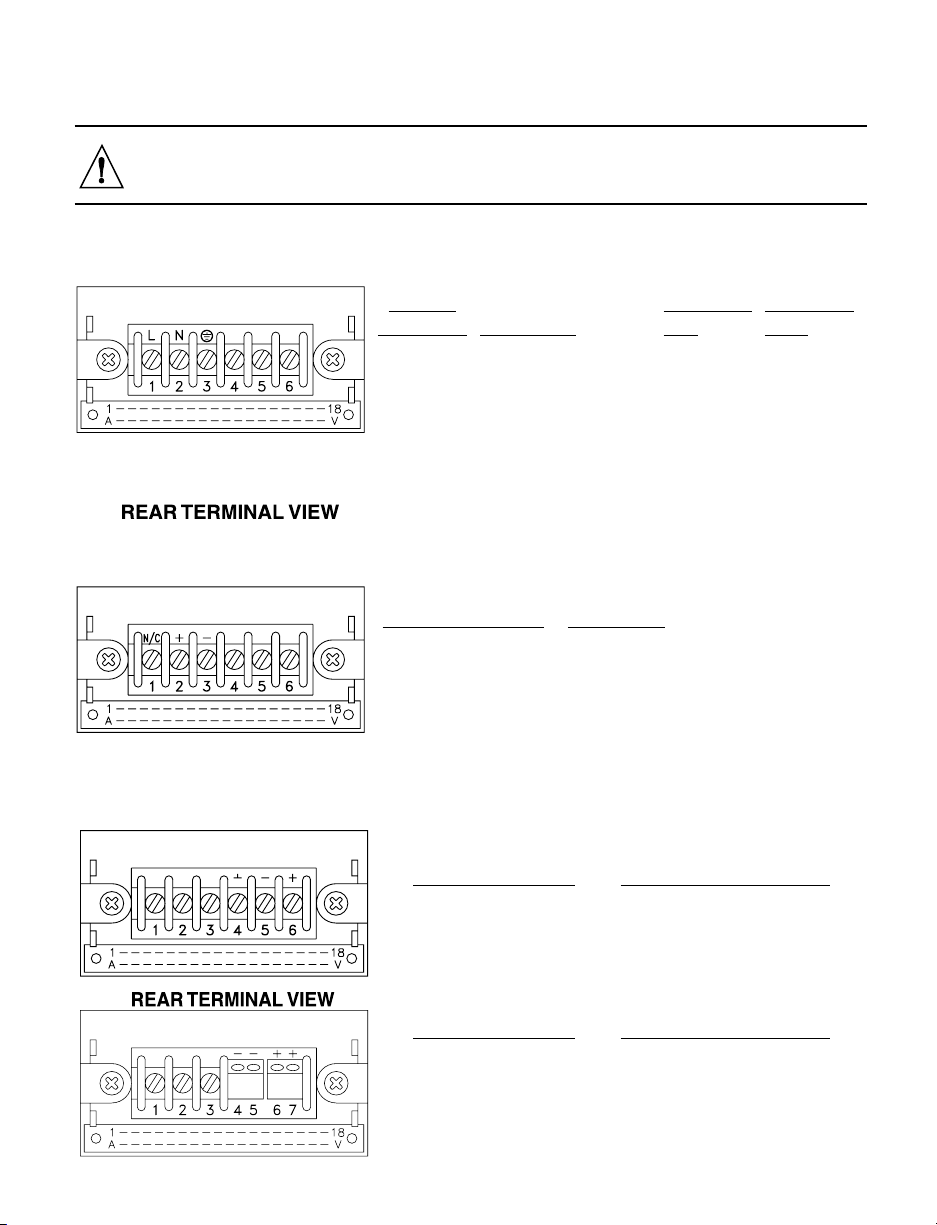

3.0 POWER AND SIGNAL INPUT CONNECTIONS

WARNING: Incorrect power input can damage your PANEL METER

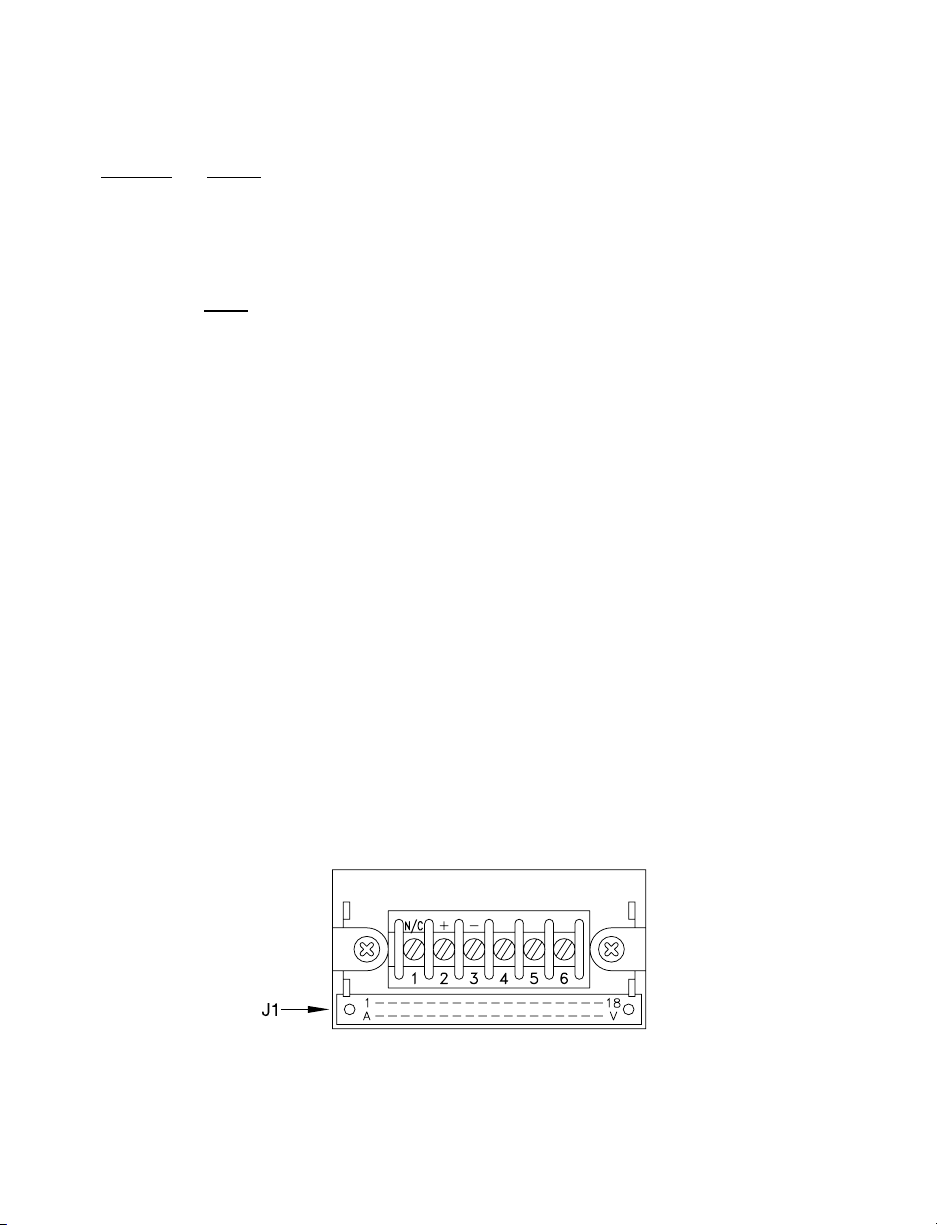

3.1 POWER CONNECTIONS

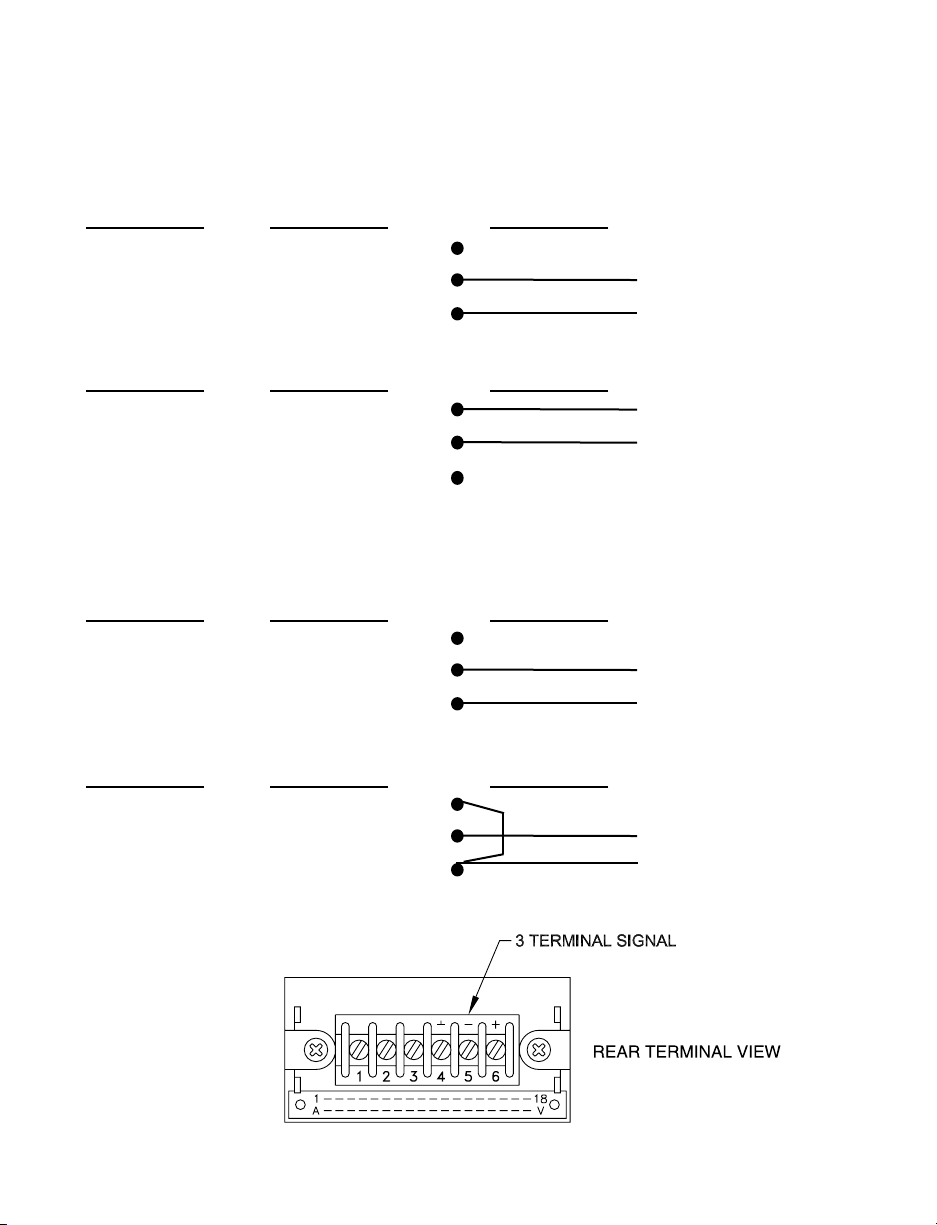

3.2 SIGNAL INPUT CONNECTIONS

Terminal Connection

1
2
3

Terminal Connection

1
2
3

Terminal Connection

4
5
6

AC Versions Wire Color

AC power HI Black
AC power LO (neutral) White
AC power GND Green

DC Versions

No connection
DC power +
DC power - (return)

6 Terminal Versions Signal

Analog GND
Signal LO
Signal HI

Terminal Connection

4
5
6
7

4

7 Terminal Versions Signal

-E (Excitation return)

-S (Signal LO input)
+S (Signal HI input)
+E (Excitation output)

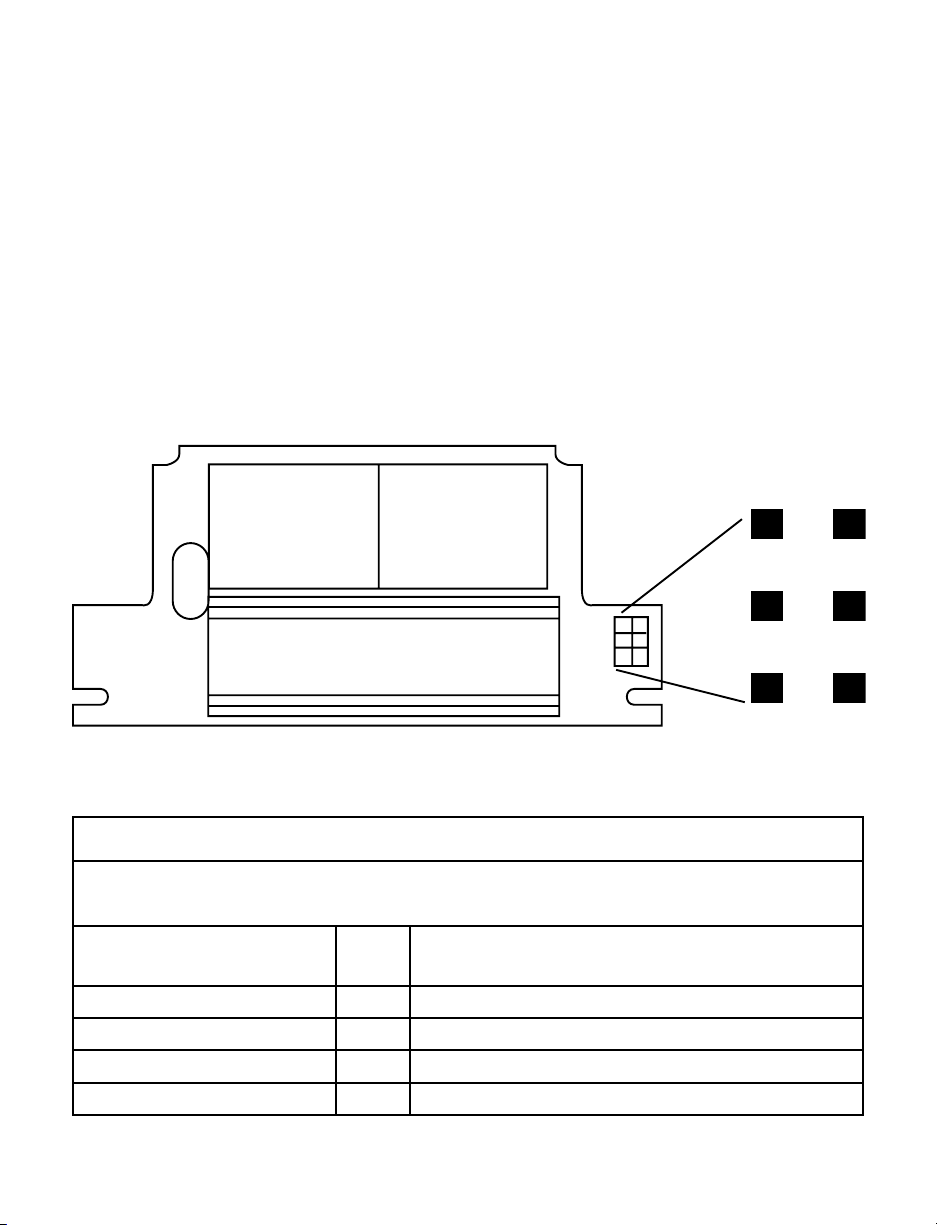

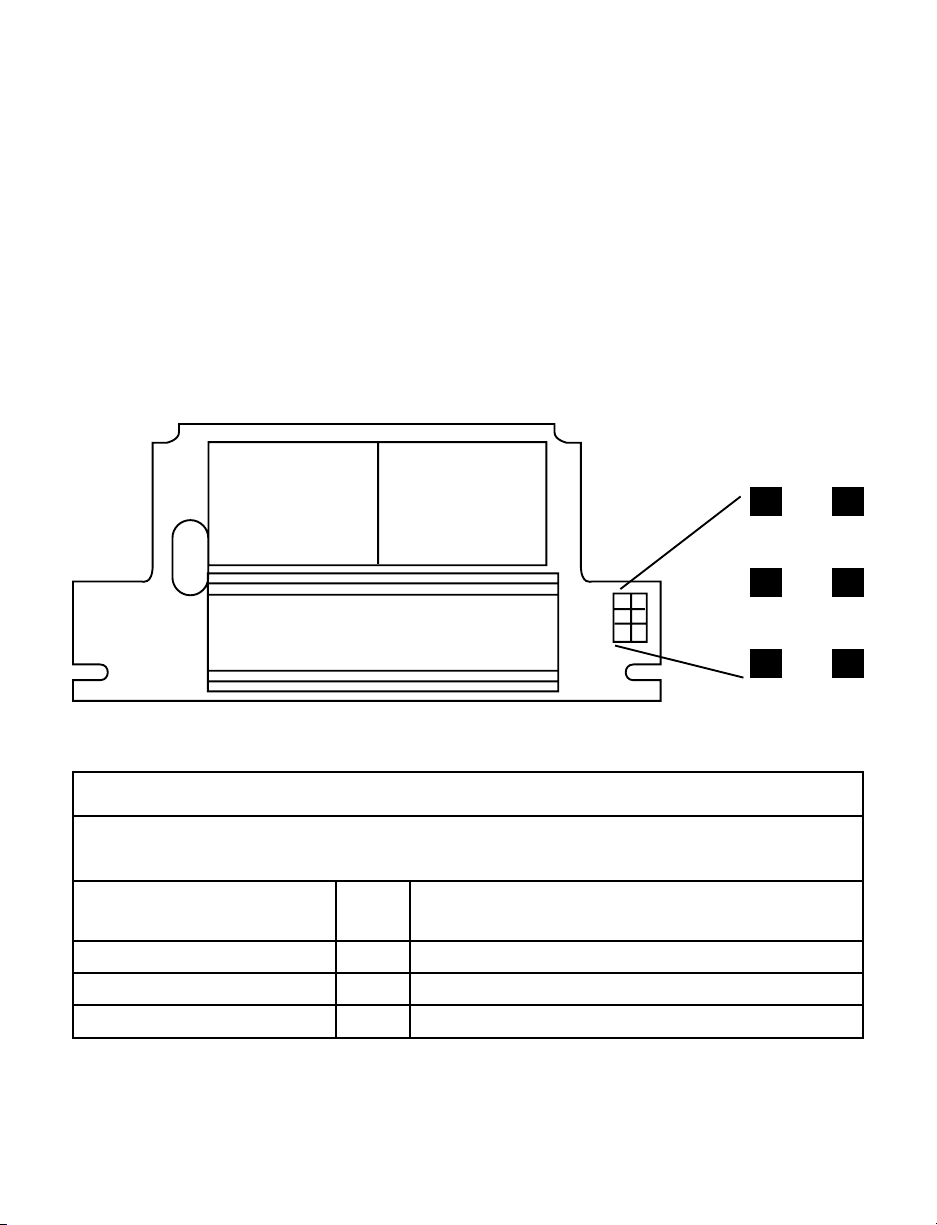

4.0 CONFIGURATION PROCEDURE

A

B

C

D

S1

S1

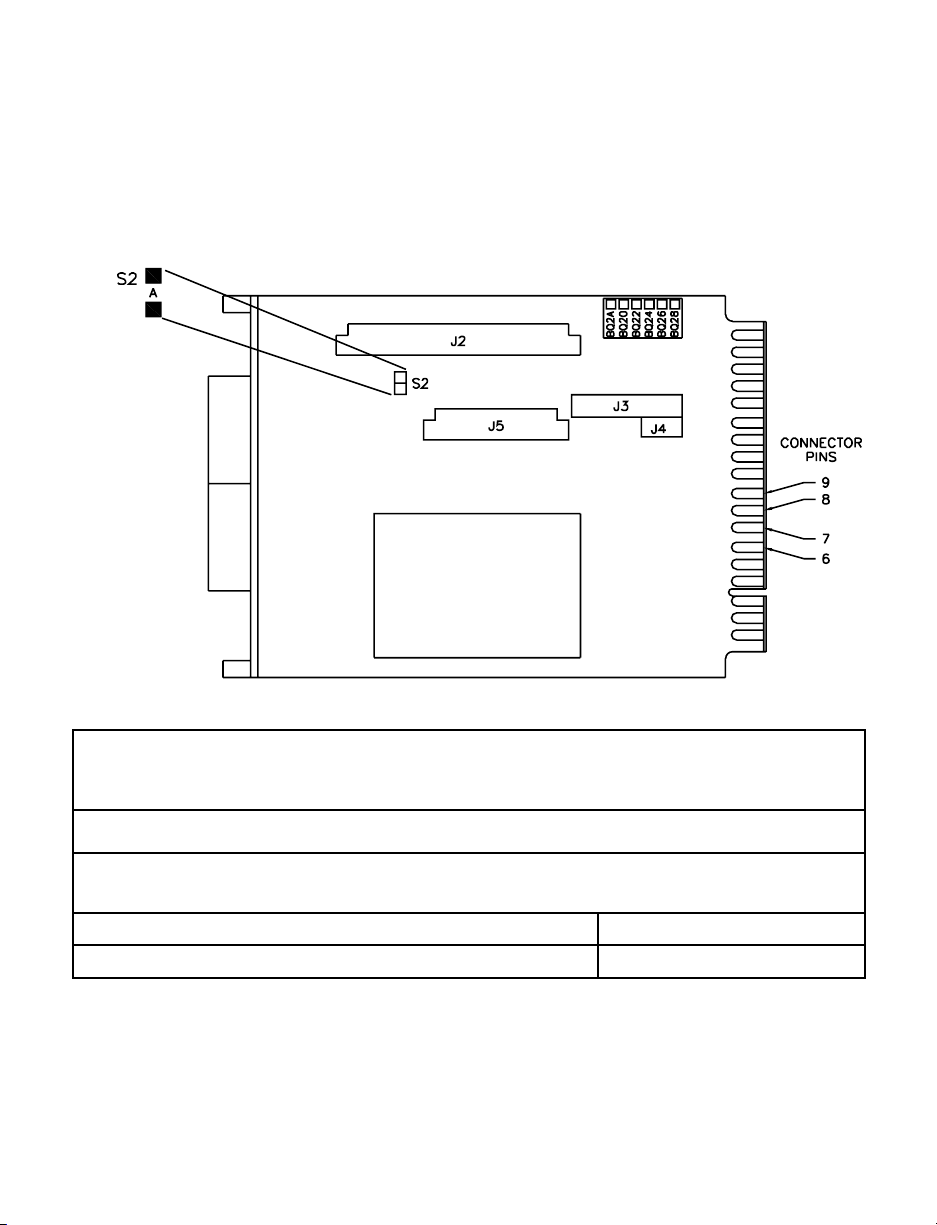

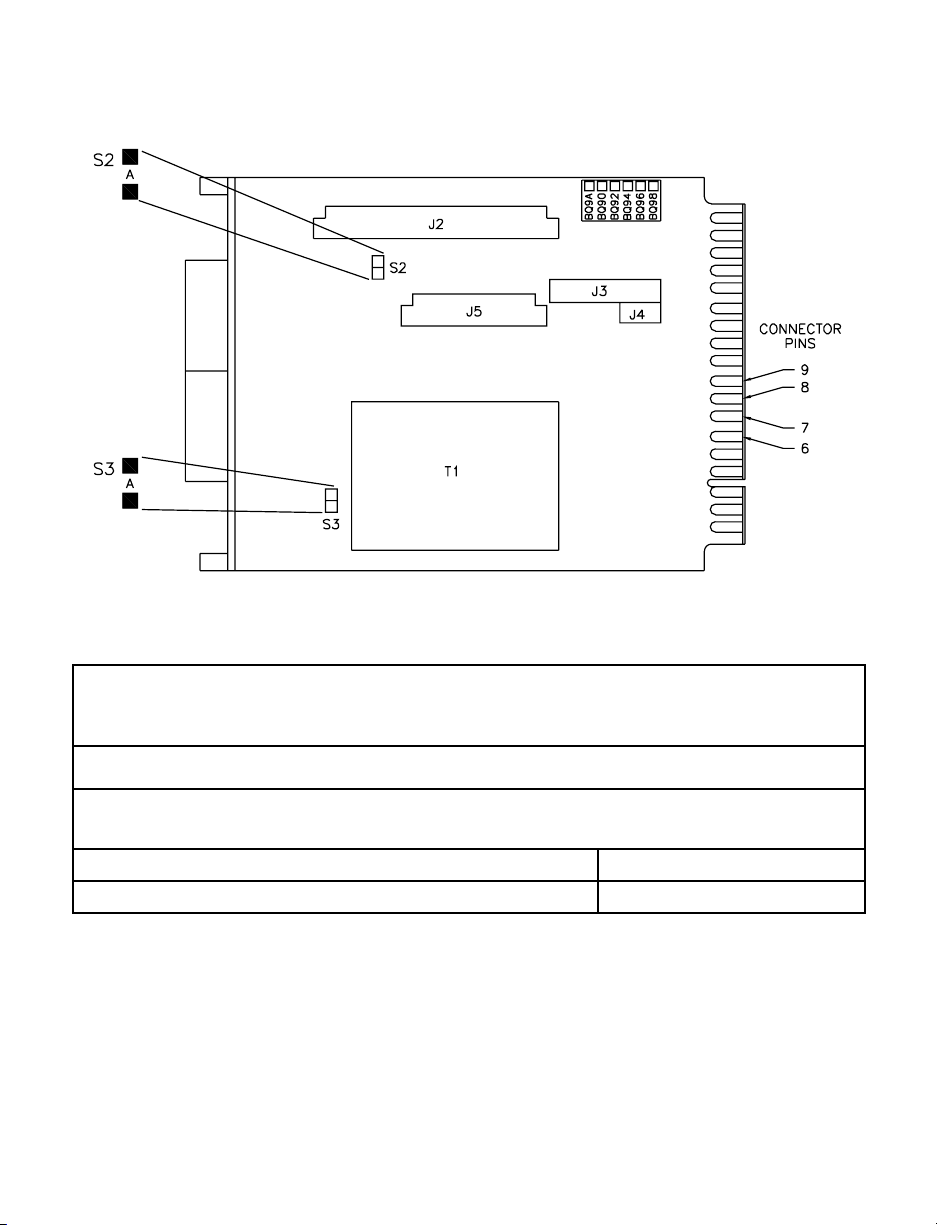

This procedure is used to set the decimal point of the display and interface board signal
bypass selections for the configuration of the _2XXXX Display and power options 20
through 29 (see Cross Reference). For _9XXXX options 90 through 98 see Section 13.

The main assembly's configuration can be changed by using the push-on jumpers
provided. (They may already be positioned on the pin-forests.) Pin-forest designations are
shown below.

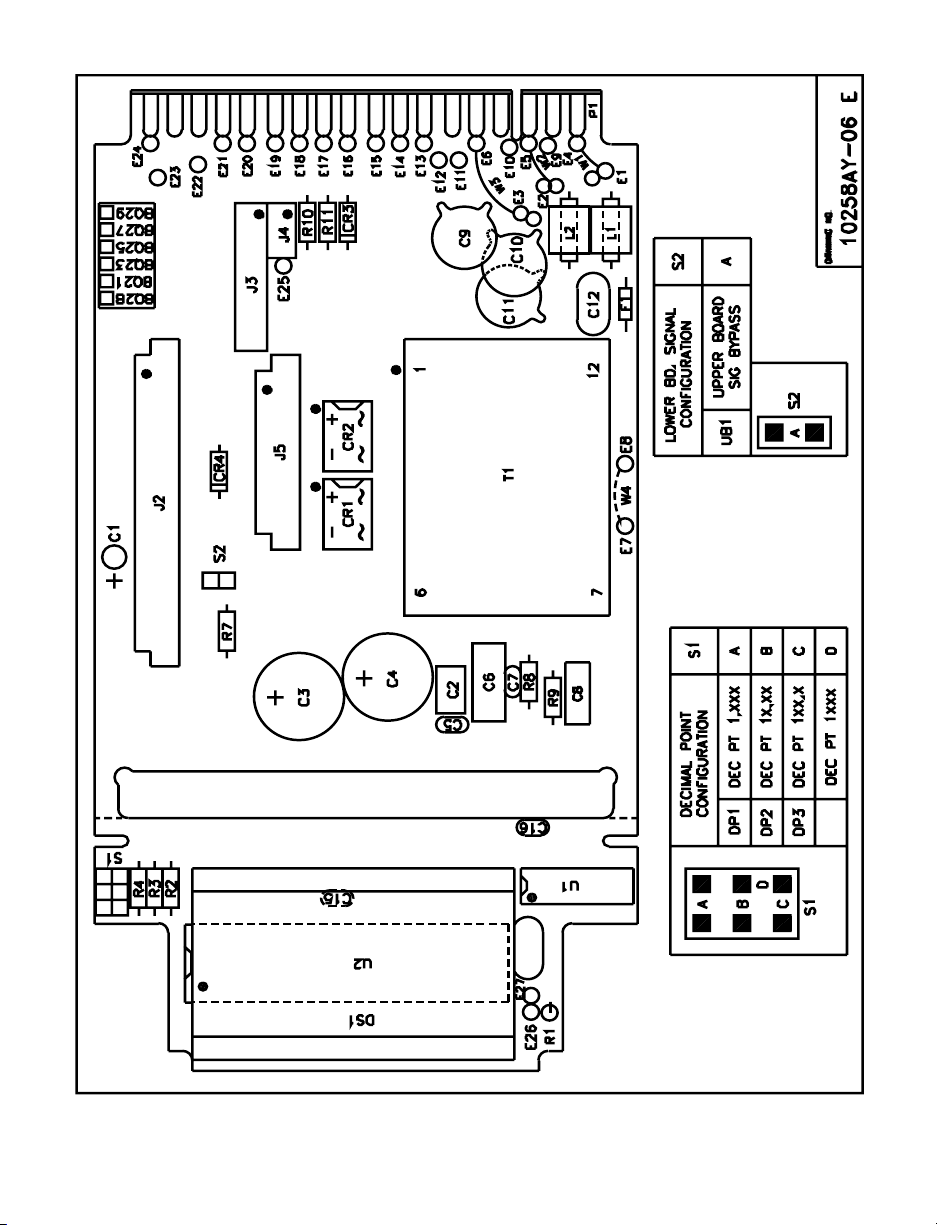

5.0 CONFIGURATION CHARTS

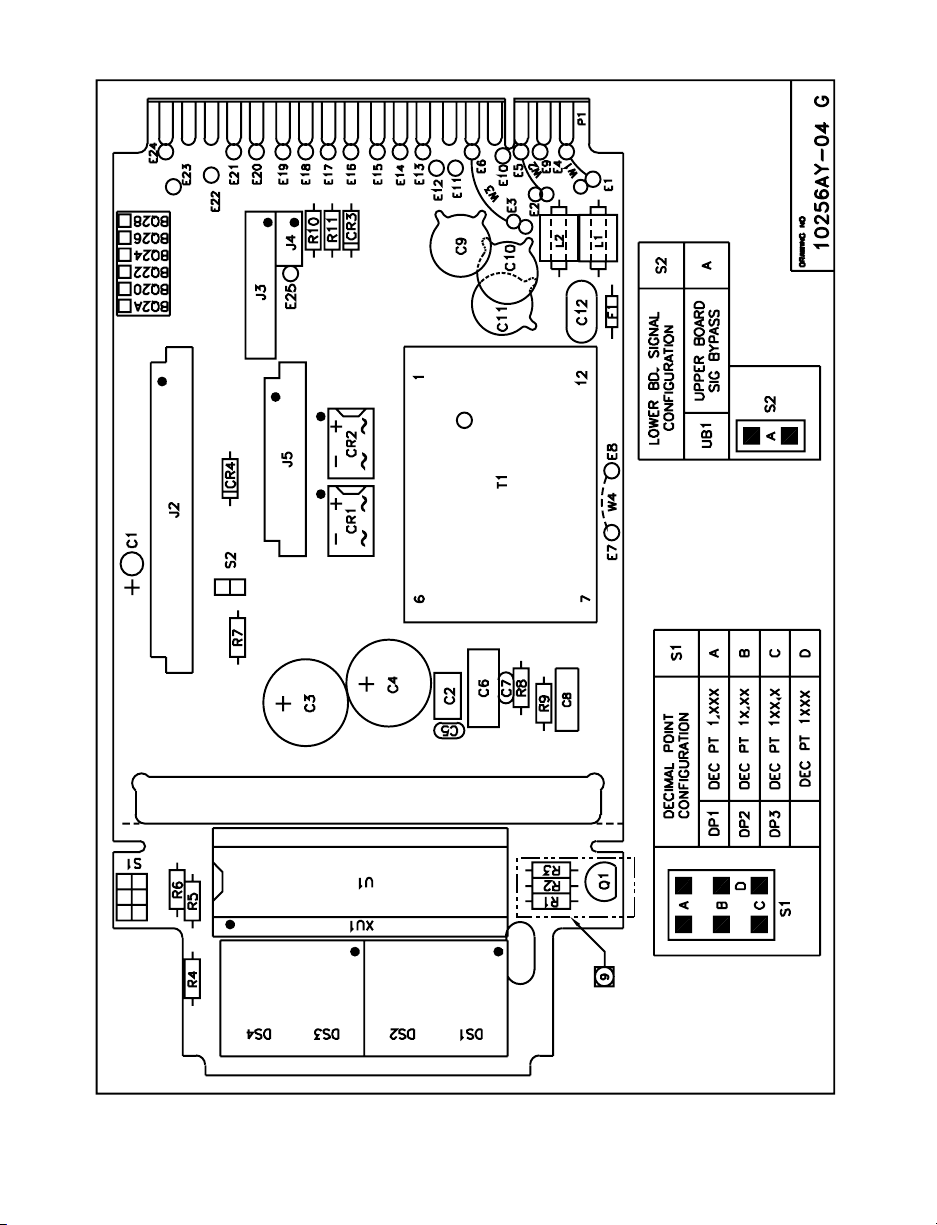

5.1 DECIMAL POINT SELECTION

Step 1: Remove all push-on jumpers not used in the desired configuration(s).

Step 2: Select the desired configuration from the chart below,
and install the push-on jumpers indicated.

Decimal Point Selection S1 Alternate Decimal Point Selection Using Main

Assembly Board (J1) Connector

Decimal Point (1.999) A Connect J1-K/9 to J1-6

Decimal Point (19.99) B Connect J1-J/8 to J1-6

Decimal Point (199.9) C Connect J1-H/7 to J1-6

Decimal Point (1999) D No connection

5

5.2 INTERFACE BOARD SIGNAL BYPASS SELECTION

Step 1: Check your part number for a zero (0) in the following position; _2XX0X.
If there is a zero (0) in that position, interface board signal bypass is
required.

Step 2: Remove all push-on jumpers not used in the desired configuration(s).

Step 3: Select the desired configuration from the chart below, then install the
push-on jumpers indicated.

Interface Board Signal Configuration S2

Interface Board Signal Bypass A

6

6.0 TESTS & DIAGNOSTICS

6.1 TEST CONFIGURATION REQUIREMENTS

The main assembly is designed to function with a signal conditioner board as a minimum
configuration. There is no provision for testing a main assembly alone.

6.2 SIGNAL INPUT REQUIREMENTS

Signal input requirements for your configuration are identified in the signal conditioner section of
this manual.

7.0 MAIN BOARD CONNECTOR PINOUTS (J1)

(Left to right, looking at rear of case)

Connection Function

A - 1 Spare

B Oscillator 40 kHz

2 -8.2 V dc Analog power Analog power

C - 3 Spare

D + Pol (sign) + Polarity sign

4 HOLD LED version only

E - 5 Spare

F Buffer Integrator output

6 Digital Ground

H - 7 199.9 (Decimal point) Use with pin 6

J - 8 19.99 (Decimal point) Use with pin 6

K - 9 1.999 (Decimal point) Use with pin 6

L - 10 Test (LED version only) Use with pin M/11

M - 11 +5 V dc Analog & digital power

N - 12 Analog output Standard 1 mV/count

P - 13 Spare

R - 14 Spare Used with H & S options - Excitation sense

S - 15 Analog Ground

T - 16 Analog Option - Return Used with analog option

U Analog Option - Out Used with analog option

17 +30 V dc Unregulated power

V - 18 Spare Used with S option + Excitation sense

- Indicates common pin

50 mA maximum power available from all internal sources

7

AINERS

REMOVED AS SHOWN FOR INSTALLATION.

8.0 DIMENSIONAL DRAWINGS

1.89 [48.0] 3.78 [96.0]

SLIDE

RETAINER

CASE

CLAMP

RING

1.77 [45.0]

Notes: Dimensions are in inches ±0.01"

with millimeters in [ ] ±0.25 mm.

TERMINAL BLOCK COVER

0.31 [7.9]
MAX

5.50 [139.6]
MAX

92.0 [3.62]

45.0[1.77 ]

REAR VIEW

(TERMINAL BLOCK COVER AND

BEZEL NOT SHOWN FOR CLARITY)

SLIDE CLAMPS ROTATED AND SLIDE RET

8

Assembly Diagram LED Display Used on 20, 22, 24, 26 & 28 (see Cross Reference)

9

Assembly Diagram LCD Display Used on 21, 23, 25, 27 & 29 (see Cross Reference)

10

9.0 MAIN ASSEMBLY _9000 SPECIFICATIONS

9.1 GENERAL

The _9000 main assemblies are identified by an initial designator (_9) plus a power/ display option
numeral: 0, 2, 4, 6 or 8.

The following table identifies the main assembly types:

Display Type 120 V ac 240 V ac 9-32 V dc 5 V ac 24 V ac

LED _90 _92 _94 _96 _98

The Digital Panel Meter/ Controller consists of a main assembly, signal conditioner and interface
options (if ordered) all housed in a 1/8 DIN case.

The main assembly consists of a main board and a display board which is permanently attached to it
at a 90 degree angle.

The main board provides mounting for the power supply, circuit components, and connectors for
plugging in the signal conditioner, optional analog card, and optional controller/ communications
interface card (requires removal of a bypass push-on jumper).

The display board includes the analog-to-digital converter, the LED display and the push-on jumper
for programming the decimal points. Decimal point programming may also be done from the main
board connector (J1).

11

9.2 POWER

AC Models: 24/120/240V +10/-15% 47-63 Hz
Common Mode Voltage: 1500Vp test (354 Vp per IEC spacing),
DC Models: 5V ±5% (5V return common to signal LO)
9 to 32V (300V isolation from 9-32V return to signal LO),
(100Vp per CE)
Source Impedance: 3 ohms
Ripple: 250 mV maximum
Power Consumption: 5 watts maximum

9.3 DISPLAY

LED: 14.2 mm (0.56 in), 7-segment light emitting diode
Lens color: Red
Range: 0 to ±9999, digits flash from 10K to 20K counts
Overload Indication: Four digits flash zero at 20K and above

9.4 CONVERSION

Technique: auto-zero, dual slope, average value
Signal Integration Period: 100 ms, nominal
Reading Rate: 2.5/s, nominal

9.5 ENVIRONMENTAL

Operating Temperature
(Ambient): 0 to 60° C
Storage Temperature: -40 to 85° C
Humidity: To 95% RH, non-condensing, 0 to 40° C

9.6 MECHANICAL

Case Material: UL-rated 94V-0, polycarbonate
Weight: 0.57 kg (with interface board)

12

CONTROL INTERFACE

BOARD OPTION

INTERCONNECT

LENS

ZERO ADJ.

ANALOG
OUTPUT
BOARD

SPAN ADJ.

CONTROL INTERFACE

EXCITAT ION VOLTAGE
MODEL & POWER
SERIAL NO.

CABLE

CASE, UPPER

CLAMP SCREW

SLIDE CLAMP

TA B

SLIDE CASE
RETAINER

SIGNAL CONDITIONER BOARD

TERMINAL BLOCK
COVER

INPUT POWER

MAIN BOARD

DISPLAY BOARD

CASE, LOWER

DECIMAL POINT SELECT

Figure 3 Exploded View

13

10.0 MECHANICAL ASSEMBLY & INSTALLATION

10.1 PANEL MOUNTING PROCEDURE (SEE FIGURE 3)

Remove the main board edge connector (J1), if installed.

Remove the interface board connector (J2), if installed.
Loosed two clamp screws on the rear of the case enough to rotate the two slide clamps.

Slide two slide retainers toward the rear of the case and remove them.

From the front of the panel, insert the meter into the panel cutout.
Slide the slide retainers back into the case and push up tightly against the rear of the panel.

Rotate the slide clamps back into their original position and tighten enough to hold the case in place.
Overtightening can break the clamps.

Install any connectors removed.

10.2 LABELS (SEE FIGURE 4 FOR PLACEMENT)

MODEL & POWER
LABEL

EXCITATION
VOLTAGE

POWER

SIGNAL

SERIAL NO:

1

11

RTN AC

LABELS TO BE READ FROM THE REAR

Figure 4 Label Placement

14

TOP

SERIAL NO.

CONTROL
INTERFACE

11.0 POWER AND SIGNAL INPUT CONNECTIONS

WARNING: Incorrect power input can damage your PANEL METER

11.1 POWER CONNECTIONS

11.2 SIGNAL INPUT CONNECTIONS

Terminal

Connection

1
2
3

AC Versions

AC power HI
AC power LO (neutral)
AC power GND

Terminal Connection

1
2
3

Terminal Connection

4
5
6

Wire Color
USA

Black
White
Green

DC Versions

No connection
DC power +
DC power - (return)

6 Terminal Versions Signal

Analog GND
Signal LO
Signal HI

Wire Color
Other

Brown
Blue
Green

Terminal Connection

4
5
6
7

15

7 Terminal Versions Signal

-E (Excitation return)

-S (Signal LO input)
+S (Signal HI input)
+E (Excitation output)

12.0 CONFIGURATION PROCEDURE

This procedure is used to set the decimal point of the display and interface board signal bypass
selections for the configuration of the _9XXXX display and power options 90 through 98 (see Cross
Reference).

The main assembly's configuration can be configured using the push-on jumpers provided or
already positioned on the pin-forests. Pin-forest designations are shown at the top of every page of
the configuration charts.

13.0 CONFIGURATION CHARTS

13.1 DECIMAL POINT SELECTION

S1

A

B

S1

D

Figure 10

Step 1: Remove all push-on jumpers not used in the desired configuration(s).

Step 2: Select the desired configuration from the chart below,
and install the push-on jumpers indicated.

Decimal Point Selection S1 Alternate Decimal Point Selection Using Main

Assembly Board (J1) Connector

Decimal Point (9.999) A Connect J1-K/9 to J1-6

Decimal Point (99.99) B Connect J1-J/8 to J1-6

Decimal Point (999.9) C Connect J1-H/7 to J1-6

16

C

13.2 INTERFACE BOARD SIGNAL BYPASS SELECTION

Step 1: Check your part number for a zero (0) in the following position; _9XX0X.
If there is a zero (0) in that position, interface board signal bypass is
required.

Step 2: Remove all push-on jumpers not used in the desired configuration(s).

Step 3: Select the desired configuration from the chart below, then install the
push-on jumpers indicated.

Interface Board Signal Configuration S2

Interface Board Signal Bypass A

17

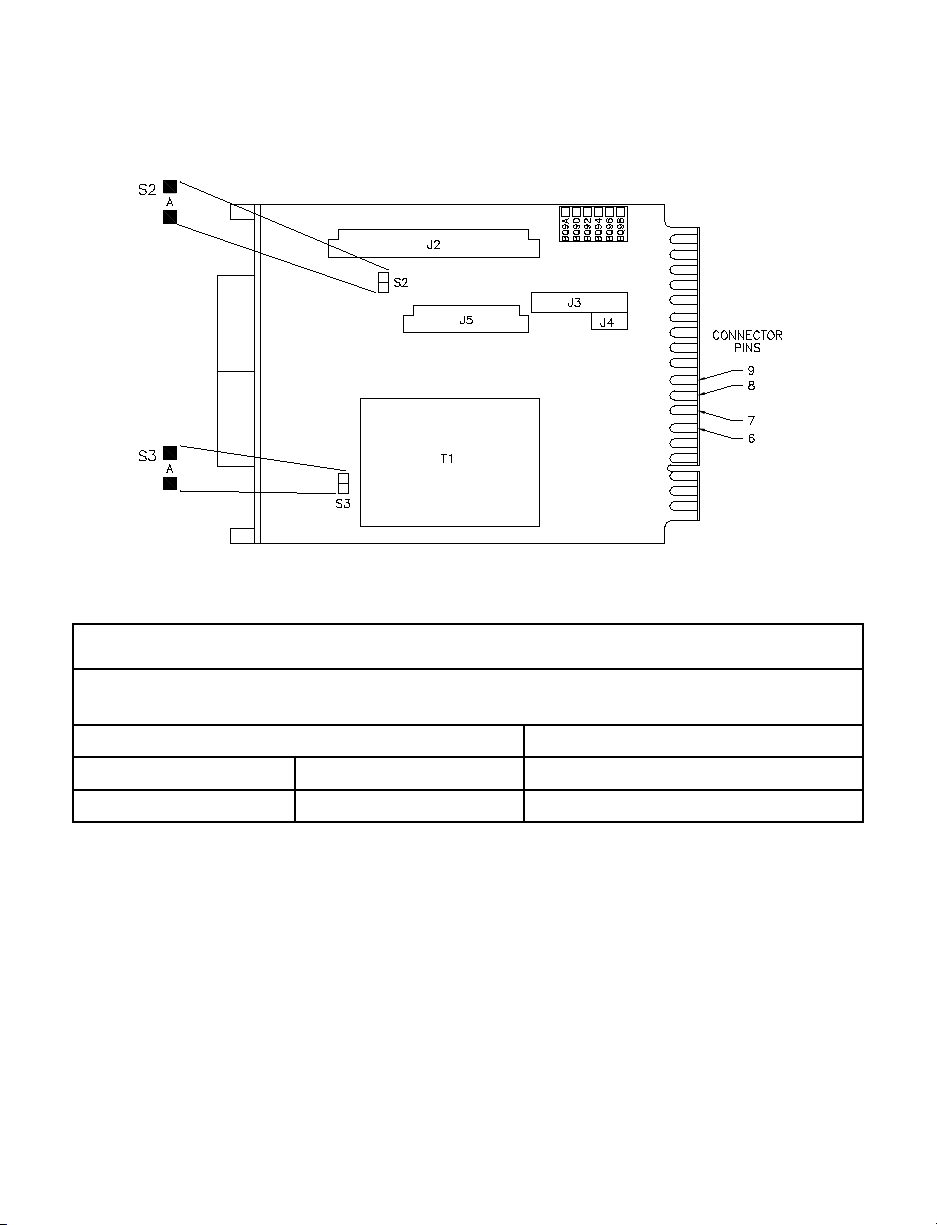

13.3 REFERENCE VOLTAGE (RV1, RV2)

Step 1: Remove all push-on jumpers not used in the desired configuration(s).

Step 2: Select the desired configuration from the chart below, then install the
push-on jumpers indicated.

Reference Voltage Configuration S3

RV1 1 Volt A

RV2 2 Volts -

18

14.0 TESTS & DIAGNOSTICS

14.1 TEST CONFIGURATION REQUIREMENTS

The _9000 main assembly is designed to function with a signal conditioner board as a minimum
configuration. There is no provision for testing a main assembly alone.

14.2 SIGNAL INPUT REQUIREMENTS

Signal input requirements for your configuration are identified in the signal conditioner section of
this manual.

19

15.0 MAIN BOARD CONNECTOR PINOUTS (J1)

(Left to right, looking at rear of case)

Connection Function

A - 1 Spare

B Oscillator 100 kHz

2 -8.2 V dc Analog power

C - 3 Spare

D + Pol (sign) + Polarity sign

4 HOLD Led version only

E - 5 Spare

F Buffer Integrator output

6 Digital Ground

H - 7 999.9 (Decimal point) Use with pin 6

J - 8 99.99 (Decimal point) Use with pin 6

K - 9 9.999 (Decimal point) Use with pin 6

L - 10 Test Use with pin M/11

M - 11 +5 V dc Analog & digital power

N - 12 Analog output Standard 0.1 mV/count

P - 13 Spare

R
14

S - 15 Analog Ground

T - 16 Analog Option - Return Used with analog option

U Analog Option - Out Used with analog option

17 +30 V dc Unregulated power

V - 18 Spare Used with S option + Excitation sense

- Indicates common pin

Spare
Used with H & S options ­Excitation sense

50 mA maximum power available from all internal sources

REAR TERMINAL VIEW

20

16.0 DRAWINGS

PANEL THICKNESS

SLIDE CLAMPS RO

AINERS

REMOVED AS SHOWN FOR INSTALLATION.

16.1 DIMENSIONS

1.89 [48.0] 3.78 [96.0]

SLIDE

RETAINER

CASE

CLAMP

RING

1.77 [45.0]

Notes: Dimensions are in inches ±0.01"

with millimeters in [ ] ±0.25 mm.

TERMINAL BLOCK COVER

0.31 [7.9]
MAX

5.50 [139.6]
MAX

6,4 (.25) MAX
0,8 (.03) MIN

1,5

R(.06)

4 PLCS

92,00 + 0,81/–0,00

45,00 + 0,61/-0,00

(1.772 + .024/–.000)

(3.622 + .032/–.000)

NOTE: Dimensions in Millimeters (Inches)

92.0 [3.62]

45.0[1.77 ]

REAR VIEW

(TERMINAL BLOCK COVER AND

BEZEL NOT SHOWN FOR CLARITY)

TATED AND SLIDE RET

21

16.2 4 DIGIT LED MAIN ASSEMBLY

22

NOTES

23

17.0 17.0 SPECIFICATIONS: BSCF TRUE-RMS VOLTAGE - BSCF/G TRUE RMS CURRENT
(_2000F, _2000G) AC RMS VOLTAGE, AC RMS CURRENT

17.1 GENERAL

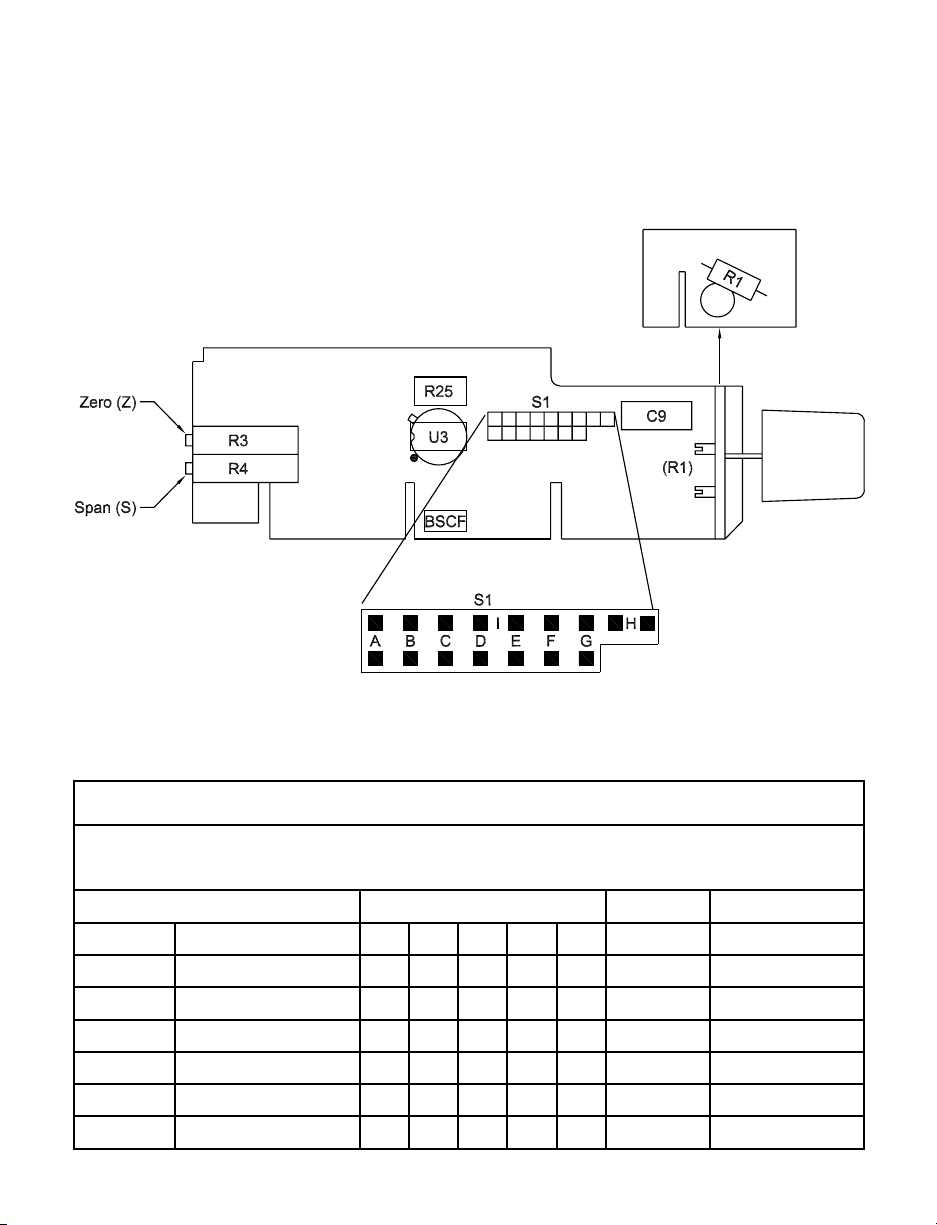

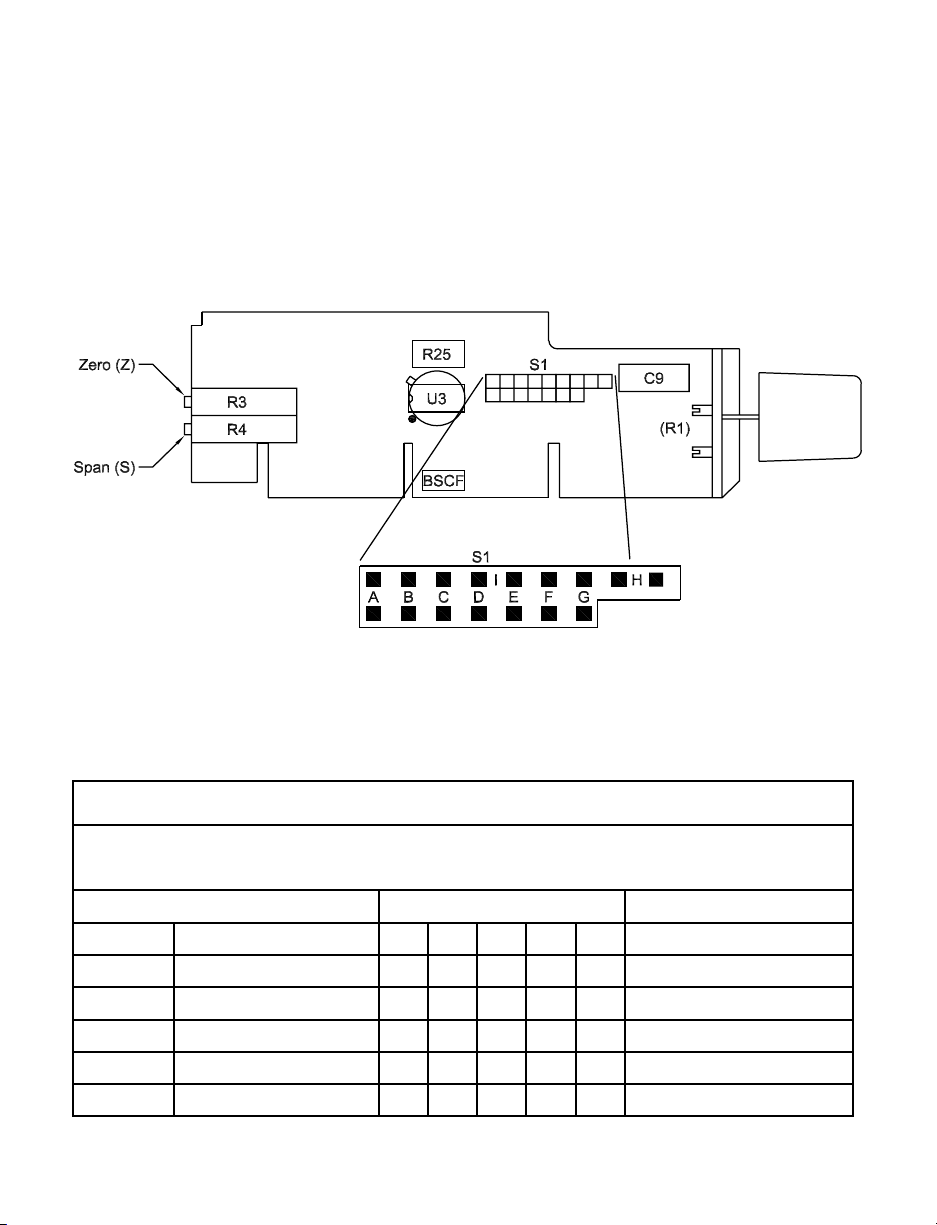

The basic signal conditioner board is identified as a BSCF (_2000F or _9000F) for true-RMS voltage
input. The _2000 and _9000 prefix is determined by the main assembly board used with the BSCF
option board. When the BSCF board is configured differently, it is identified as a BSCF/G (_2000G or
_9000G), used for ac RMS current input.

17.2 BSCF: TRUE-RMS VOLTAGE SIGNAL CONDITIONER

Five full-scale ranges are provided in the _2000F and _9000F series.

See TRUE-RMS VOLTAGE INPUT tables Section 20. The true-RMS -to-DC converter is a monolithic
integrated circuit which computes the true-RMS value of complex input signals containing both AC
and DC components. It converts the true-RMS values to DC outputs or inputs with a crest factor of
2:1 or less.

17.3 BSCF/G: TRUE-RMS CURRENT SIGNAL CONDITIONER

Ten current ranges are provided in this series. Special full-scale (FS) ranges for other current
transformers can be provided on special order. See TRUE-RMS CURRENT INPUT tables in Section

21.

The true-RMS -to-DC converter is a monolithic integrated circuit which computes the true-RMS
value of complex input signals containing both AC and DC components. It converts the RMS values
to DC outputs or inputs with a minimum crest factor of 2:1 at full scale input.

17.4 _2000F & _9000F: AC VOLTAGE INPUT SPECIFICATIONS

Configuration: Single-ended, meter ground common to signal LO
Zero: Automatic

_2000F: TRUE-RMS VOLTAGE INPUT SPECS

RANGE INPUT

RESOLUTION FREQUENCY RANGE

IMPEDANCE

0.1999 V 1.1 M ohm 0.1 mV 47Hz to 1KHz

1.999 V 1.1 M ohm 1 mV 47Hz to 1KHz

19.99 V 1 M ohm 10 mV 47Hz to 1KHz

199.9 V 1 M ohm

100 mV 47Hz to 1KHz

150.0 V for CE

650 V 10 M ohm

1V 47Hz to 1KHz

150 V for CE

Provides true-RMS accuracy for non-sinusoidal inputs with a crest factor of 2:1 or less.

24

_9000F TRUE-RMS VOLTAGE INPUTS

RANGE INPUT

RESOLUTION FREQUENCY RANGE

IMPEDANCE

99.99 mV 1.1 MOhm 10 µV 47 Hz to 1 kHz

999.9 mV 1.1 MOhm 100 µV 47 Hz to 1 kHz

9.999 V 1 MOhm 1 mV 47 Hz to 1 kHz

99.99 V 1 MOhm 10 mV 47 Hz to 1 kHz

650 V 10 MOhm 100 mV 47 Hz to 1 kHz

Provides true-RMS accuracy for non-sinusoidal inputs with a crest factor of 4:1 or less at full scale.

Common Mode

Analog ground to AC power ground

CMR at DC to 60 Hz 120 dB
CMV at DC to 60 Hz ±1500 Vp per HV test
±354 Vp per IEC spacing

Accuracy at 25° C

Maximum errors
(1 to 100% FS)
_2000F ±0.25%R ±1 count
_9000F ±0.25%R ±10 counts

Reading Tempco
Zero Tempco

Warmup to rated accuracy

±0.01% R/°C
±0.1 count/°C

Less than 30 minutes

17.5 _2000G & _9000G: TRUE-RMS CURRENT INPUT SPECIFICATION

Configuration Single-ended, meter ground common to signal low

Please note:
For minimum voltage calibration, do not adjust the zero pot at 0 volts. See calibration procedure for
detail information.

25

_2000G TRUE RMS Current Inputs

Range

Input Impedance (200

mV Shunt)

Resolution

Frequency

Range

19.99 uA 10 kOhm 0.01 uA

199.9 uA 1 kOhm 0.1 uA

1.999 mA 100 Ohm 1 uA

19.99 mA 10 Ohm 10 uA

199.9 mA 1 Ohm 100 uA

47 Hz-1 kHz

1.999 A 0.1 Ohm 1 mA

5.00 A * 0.01 Ohm 2.5 mA

19.99 A 5 A CT 10 mA

199.9 A 5 A CT 100 mA
1999 A 5 A CT 1 A

Provides true RMS accuracy for non-sinusoidal inputs with a crest factor of 2:1 or less.
* 50 mV shunt for a 5 A current transformer input.

_2000G SPECIAL FULL-SCALE COUNTS (50 mV or 5 A FULL-SCALE)

COUNT RANGE R15 (1%) COUNT RANGE R15 (1%)

1900 to 2100 - 525 to 575 15.4 kOHm

1720 to1900 523 kOHm 475 to 525 13.3 kOHm

1560 to 1720 215 kOHm 435 to 475 11.8 kOHm

1415 to 1560 130 kOHm 390 to 435 10.5 kOHm

1285 to 1415 93.1 kOHm 355 to 390 8.87 kOHm

1165 to 1285 69.8 kOHm 325 to 355 7.87 kOHm

1055 to 1165 53.6 kOHm 295 to 325 6.98 kOHm

955 to 1055 47.5 kOHm 270 to 295 6.04 kOHm

860 to 955 38.3 kOHm 250 to 270 5.49 kOHm

775 to 860 29.4 kOHm 230 to 250 4.87 kOHm

700 to 775 24.3 kOHm 210 to 230 4.42 kOHm

635 to 700 20.5 kOHm 190 to 210 3.83 kOHm

575 to 635 18.2 kOHm

26

Q9000G TRUE RMS CURRENT INPUTS

Range

Input Impedance (100

mV Shunt)

Resolution

Frequency

Range

9.999 uA 10 kOhm 1 nA

99.99 uA 1 kOhm 10 nA

999.9 uA 100 Ohm 100 nA

9.999 mA 10 Ohm 1 uA

99.99 mA 1 Ohm 10 uA

47 Hz-1 kHz

0.999 A 0.1 Ohm 100 uA

5.00 A * 0.01 Ohm 500 uA

9.999 A 5 A CT 1 mA

99.99 A 5 A CT 10 mA

999.9 A 5 A CT 100 mA

Provides true RMS accuracy for non-sinusoidal inputs with a crest factor of 4:1 or less.
* 50mV shunt for 5 A current transformer input with main board reference of 2V (from RV2 on
main board

Q9000G SPECIAL FULL-SCALE COUNTS (5 A FULL-SCALE)

COUNT RANGE R15 (1%) COUNT RANGE R15 (1%)

9500 to 10500 - 2625 to 2875 15.4 kOHm

8600 to 9500 523 kOHm 2375 to 2625 13.3 kOHm

7800 to 8600 215 kOHm 2175 to 2375 11.8 kOHm

7075 to 7800 130 kOHm 1950 to 2175 10.5 kOHm

6425 to 7025 93.1 kOHm 1775 to 1950 8.87 kOHm

5825 to 6425 69.8 kOHm 1625 to 1775 7.87 kOHm

5275 to 5825 53.6 kOHm 1475 to 1625 6.98 kOHm

4775 to 5275 47.5 kOHm 1350 to 1475 6.04 kOHm

4300 to 4775 38.3 kOHm 1250 to 1350 5.49 kOHm

3875 to 4300 29.4 kOHm 1150 to 1250 4.87 kOHm

3500 to 3875 24.3 kOHm 1050 to 1150 4.42 kOHm

3175 to 3500 20.5 kOHm 950 to 1050 3.83 kOHm

2875 to 3175 18.2 kOHm

27

Common Mode
Analog ground to ac power ground
CMR @ dc to 60 Hz 120 dB
CMR @ dc to 60 Hz ±1500 Vp per HV test
±354 Vp per IEC spacing

Accuracy @ 25°C
Maximum Error
(1 to 100% of FS)
_2000G ±0.25% R ±1 count
_9000G ±0.25% R ±10 counts
Reading Tempco ±0.01% R/°C
Zero Tempco ±0.1 count/°C
Warmup to rated accuracy 30 minute

28

18.0 SIGNAL INPUT CONNECTIONS (TB1) (SEE FIGURE 5)

18.1 The signal input connections for the BSCF (_2000F) AC RMS Voltage Signal
Conditioner are made at the standard 3-terminal barrier strip:

Terminal

Connection Signal Input

4 Signal HI (dc coupled)

5 Signal LO AC

6 Signal HI (ac coupled) Coupled

Terminal

Connection Signal Input

4 Signal HI (dc coupled) DC

5 Signal LO Coupled

6 Signal HI (ac coupled)

18.2 The signal input connections for the _2000G and _9000G true RMS Current Signal
Conditioner are made at the standard 3-termianl barrier strip:

Terminal

Connection Signal Input

4 Signal HI (dc coupled)

5 Signal LO AC

6 Signal HI (ac coupled) Coupled

Terminal

Connection Signal Input

4 Signal HI (dc coupled) DC *

5 Signal LO Coupled

6 Signal HI (ac coupled)

* Terminals 4 & 6 must be connected. An alternate method is to replace R2 on the signal conditioner
barrier board with a wire.

FIGURE 5. SIGNAL INPUT CONNECTIONS

29

19.0 TESTS & DIAGNOSTICS

The signal conditioner board BSCF is designed to function with a main assembly as a minimum
configuration. There is no provision for testing a signal conditioner board alone.

Signal input requirements for your configuration are identified in the specifications for the BSCF
signal conditioner.

Operating power and connections for your configuration are identified in the Main Assembly Section
of this manual.

Note: If using Main Assembly _2000, refer to Section BQ20/BQ29.
If using Main Assembly _9000 refert to Section BQ90/BQ98

Inspect the panel meter for physical damage. If damage is apparent, resolve the damage with the
shipper or your supplier. Save all packing materials.

19.1 FUNCTIONAL ELECTRICAL TESTING

NOTE: Perform this test after your meter has been configured.

1. Short terminals 4, 5, and 6 on barrier strip (TB1).

2. Apply proper power for your configuration to terminals 1, 2 and 3 on barrier strip (TB1). Display
will read approximately zero (0000).

20.0 CONFIGURATION PROCEDURES

20.1 GENERAL

This procedure is used to determine the configuration of the true RMS voltage (BSCF) or true RMS
current (BSCF/G).

The unit can be configured using the push-on jumpers provided separately or already positioned on
the pin forests. Pin forest designations are shown at the top of every page of configuration.

20.2 GLOSSARY

The chart below explains various terms which appear throughout the following procedure:

Voltage Range

Selection RMS Input Range

FVR1/F1 Voltage Range (0/50 mV RMS Input) (_2000 only)
FVR2/F2 Voltage Range (0/200 mV RMS Input)
FVR3/F3 Voltage Range (0/2 V RMS Input)
FVR4/F4 Voltage Range (0/20 V RMS Input)
FVR5/F5 Voltage Range (0/200 V RMS Input) (0/150 V for CE)
FVR6/F6 Voltage Range (0/650 V RMS Input) (0/150 V for CE)

30

Current Range

Selection RMS Input Range

GCR1/G1 Current Range (0/20 uA RMS Input)
GCR2/G2 Current Range (0/200 uA RMS Input)
GCR3/G3 Current Range (0/2 mA RMS Input)
GCR4/G4 Current Range (0/20 mA RMS Input)
GCR5/G5 Current Range (0/200 mA RMS Input)
GCR6/G6 Current Range (0/2 A RMS Input)
GCR7/G7 Current Range (0/5 A RMS Input)

Abbr Definition
V1 Largest Input Voltage

I1 Largest Input Current

20.3 SELECTION

If the Input is:
Voltage; then go to Section 20.3.1
Current; then go to Section 20.3.2

20.3.1 Input Voltage Range Selection (FVR/F 1, 2 ,3, 4, 5, 6)

Specify the magnitude of the largest input voltage:
V1 = _____________ Volts
Select the required range where V1 is equal to or less than the limit of that range.

FVR1/F1 = 50 mV RMS
FVR2/F2 = 200 mV RMS
FVR3/F3 = 2 V RMS
FVR4/F4 = 20 V RMS
FVR5/F5 = 200 V RMS
FVR6/F6 = 650 V RMS
FVR/F = _____________
Proceed to Installation (Section 20.4)

20.3.2 Input Current Range Selection (GCR/G 1, 2 ,3, 4, 5, 6, 7)

Specify the magnitude of the largest input current:
I1 = _____________ mA
Select the required current range where I1 is equal to or less than the limit of that range.

GCR1/G1 = 20 uA RMS GCR4/G4 = 20 mA RMS
GCR2/G2 = 200 uA RMS GCR5/G5 = 200 mA RMS
GCR3/G3 = 2 mA RMS GCR6/G6 = 2 A RMS
GCR7/G7 = 5 A RMS
GCR/G = _________________

31

Based on the current range selected pick a shunt resistor (R1) from the following:

GCR1/G1 = 10 kOhm, 1%, 1/8W, MF (P/N 8211002)
GCR2/G2 = 1 kOhm, 1%, 1/8W, MF (P/N 8211001)
GCR3/G3 = 100 Ohm, 1%, 1/8W, MF (P/N 8211009)
GCR4/G4 = 10 Ohm, 1%, 1/8W, MF (P/N 8211008)
GCR5/G5 = 1.0 Ohm, 1%, 1/8W, WW (P/N 8710006)
GCR6/G6 = 0.1 Ohm, 1%, 1/2W, WW (P/N 8910005)
GCR7/G7 = 0.01 Ohm, 1%, 2W, WW (P/N 8910004)

Proceed to Installation (Section 20.4)

20.4 INSTALLATION

20.4.1 GENERAL

Select the Voltage Range (FVR1-6/F1-6), or Current Range (GCR1-7/G1-7), required and install the
push-on jumpers per Section 21.1 and 21.2, depending upon which range is required.

20.4.2 REFERENCE VOLTAGE(_9000F OR _9000G ONLY)

Select the Voltage Range RV1 by installing push-on jumper A as per Subsection 13.3 in Main
Assembly Section BQ90/BQ98.

Note: Select the RV2 reference if using the GCR7 range. Remove any jumpers in the S3 position as
per Subsection 13.3.

20.4.2 CURRENT

If a Current Range (GCR1-7/G1-7) is selected, you must install the shunt resistor (R1) chosen.
Install the shunt resistor (R1) per Section 21.2

20.4.3 DECIMAL POINT

If a decimal point is required, refer to the appropiate Main Assembly Section for location and
configuration procedure.

NOTE: If using Main Assembly _2000, refer to Section _20/_29.
If using Main Assembly _9000, refer to Section _20/_98

32

21.0 CONFIGURATION CHARTS

21.1 INPUT VOLTAGE (F1, 2, 3, 4, 5, 6) (FVR1, 2, 3, 4, 5, 6)

Step 1: Remove all push-on jumpers not used in the desired configuration(s).

Step 2: Select the desired configuration from the chart below,
and install the push-on jumpers indicated.

Input Voltage Configuration S1 Used On

FVR1/F1 50 mV F G H I - _2000F/_9000F

FVR2/F2 200 mV A B F H G _2000F/_9000F

FVR3/F3 2 V A B E H G _2000F/_9000F

FVR4/F4 20 V A B C H G _2000F/_9000F

FVR5/F5 200V(150V Max for CE) A B D H G _2000F/_9000F

FVR6/F6 650V(150V Max for CE) A B D - - _2000F/_9000F

33

21.2 INPUT CURRENT(G1, 2, 3, 4, 5, 6, 7) (GCR1, 2, 3, 4, 5, 6, 7)

Step 1: Remove all push-on jumpers not used in the desired configuration(s).

Step 2: Select the desired configuration from the chart below,
and install the push-on jumpers indicated.

Input Current Configuration S1 R1 Used On

GCR1/G1 20 uA Input A B F H G 10 kOhm _2000G/_9000G

GCR2/G2 200 uA Input A B F H G 1 kOhm _2000G/_9000G

GCR3/G3 2 mA Input A B F H G 100 Ohm _2000G/_9000G

GCR4/G4 20 mA Input A B F H G 10 Ohm _2000G/_9000G

GCR5/G5 200 mA Input A B F H G 1.0 Ohm _2000G/_9000G

GCR6/G6 2 A Input A B F H G 0.1 Ohm _2000G/_9000G

GCR7/G7 5 A Input - F H G I 0.01 Ohm _2000G/_9000G

34

22.0 CALIBRATION _2000 F/G

Define the input for full scale (Span pot) and zero (Zero pot) and apply to the calibration procedures
at the bottom of the page.

22.1 VOLTAGE RANGES (FVR1-6/F1-6)

For FVR1-5/F1-5: Full Scale = 2000 counts 1% FS = 20 counts

NOTE: Full Scale for FVR6/F6 is 650 V. Adjust the S pot to display a reading of 650 and Z pot to read

20.

22.2 CURRENT RANGES (GCR1-7/G1-7)

Full Scale = 2000 counts 1% FS = 20 counts

23.0 CALIBRATION _9000 F/G

Define the input for full scale (Span pot) and zero (Zero pot) and apply to the calibration procedures
at the bottom of the page.

23.1 VOLTAGE RANGES (FVR1-6/F1-6)

Full Scale = 10000 counts 1% FS = 100 counts

NOTE: Full Scale for FVR6/F6 is 650 V. Adjust the S pot to display a reading of 650.0 and Z pot to
read 10.0 .

23.2 CURRENT RANGES (GCR1-7/G1-7)

Full Scale = 10000 counts 1% FS = 100 counts

22.3 CALIBRATION PROCEDURES FOR _2000 AND _9000

1. Apply an input equal to 1% of full scale (FS)

2. Null the input amplifier. Adjust the zero (Z) pot, R3 clockwise or counter-clockwise for a
minimum reading on the display. The point where the digits reverse order (lower to higher) will
be the null.

3. After adjusting the null, slowly adjust the internal zero-width (R25) pot to display the proper
reading (1% of full scale).

4. Apply an input signal equal to 95% of the high end of the range selected and adjust the span pot
(S), R4, for the proper reading (95% of full scale).

5. Repeat steps above as required for best overall linearity.

35

10282AY-03 E

24.0 BSCF ASSEMBLY DIAGRAM

Assembly Diagram Used on Signal Conditioner Board BSCF (_2000F & _2000G)

36

25.0 DIGITAL PANEL METER INSTALLATION INSTRUCTIONS

IMPORTANT:

For proper installation, electrical connections must be made according to the model number on the
meter label. Write the model number in the following space and use the appropriate instructions for
your model number.

Power requirement (Section 25.3)

Analog output (see Analog Output Manual)

Control output (see Controller/ Interface Manual)

Signal input (Section 26.0)

Model prefix

Model Number __2 ___ ___ ___ ___

Model Number __9 ___ ___ ___ ___

25.1 UNPACKING & INSPECTION

Your Digital Panel Meter was systematically inspected and tested, then carefully packed before
shipment

Unpack the instrument and inspect for obvious shipping damage. Notify the freight carrier
immediately upon discovery of any shipping damage.

37

25.2 MECHANICAL INSTALLATION

REAR VIEW

92.0 [3.62]

45.0[1.77 ]

(TERMINAL BLOCK COVER AND

BEZEL NOT SHOWN FOR CLARITY)

SLIDE CLAMPS ROTATED AND SLIDE RETAINERS

REMOVED AS SHOWN FOR INSTALLATION.

TERMINAL BLOCK

Insure that the panel cutout dimensions are as shown on Figure 6.

Remove the lower printed circuit board edge connector, (if installed) J1, by pushing two molded
plastic tabs away from the connector body and pulling the connector off the printed circuit board.
Remove the printed circuit board edge connector, J2, if upper board output option was ordered.

Loosen two clamp screws on the rear of the case enough to rotate the two slide clamps.

Slide the two slide retainers toward the rear of the case and remove them.

From the front of the panel, insert the meter into the panel cutout.

Slide the slide retainers back into the case and push up tightly against the rear of the case.

Rotate the slide clamps back into their original position and tighten enough to hold the case in place.
Overtightening can break the clamps.

Install the lower printed circuit board edge connector, if supplied, by pushing it on to the printed
circuit board connections. Install the upper printed circuit board edge connector, if used.

Figure 6 Panel Cutout Dimensions & Installation

LENS

ZERO ADJ.

ANALOG
OUTPUT
BOARD

EXCITATION VOLTAGE
MODEL & POWER
SERIAL NO.

CONTROL INTERFACE

BOARD OPTION

INTERCONNECT

CABLE

SPAN ADJ.

DISPLAY BOARD

38

CASE, UPPER

CONTROL INTERFACE

CLAMP SCREW

SLIDE CLAMP

TAB

SIGNAL CONDITIONER BOARD

MAIN BOARD

DECIMAL POINT SELECT

SLIDE CASE
RETAINER

COVER

INPUT POWER

CASE, LOWER

25.3 POWER REQUIREMENTS & CONNECTIONS (TB1)

25.3.1 The standard meter is wired to operate from one of five power sources

Models Power Requirements

_20XXX, _21XXX, _90XXX 120 V ac (50-60 Hz)
_22XXX, _23XXX, _92XXX 240 V ac (50-60 Hz)
_24XXX, _25XXX, _94XXX 9-32 V dc
_26XXX, _27XXX, _96XXX 5 V dc
_28XXX, _29XXX, _98XXX 24 V ac (50-60 Hz)

25.3.2 Regardless of the power source used, connections are made to the same terminal barrier
strip, TB1, as follows:

Terminal

Connection

1
2

3

TB1 Terminal

Connection

1
2
3

AC Versions Wire Color

AC power HI Black
AC power LO White
(neutral)
AC power ground Green

DC Operation
5 V or 9-32 V

No connection
DC power +
DC power - (return)

39

26.0 SIGNAL INPUT CONNECTIONS (TB1)

26.1 The signal input connections for the BSCF (_2XXXF) AC RMS Voltage Signal Conditioner are
made at the standard 3-terminal barrier strip:

Terminal

Connection Signal Input

4 Signal HI (dc coupled)

5 Signal LO AC

6 Signal HI (ac coupled) Coupled

Terminal

Connection Signal Input

4 Signal HI (dc coupled) DC

5 Signal LO Coupled

6 Signal HI (ac coupled)

26.2 The signal input connections for the _2XXXG AC RMS Current Signal Conditioner are made
at the standard 3-termianl barrier strip:

Terminal

Connection Signal Input

4 Signal HI (dc coupled)

5 Signal LO AC

6 Signal HI (ac coupled) Coupled

Terminal

Connection Signal Input

4 Signal HI (dc coupled) DC *

5 Signal LO Coupled

6 Signal HI (ac coupled)

* Terminals 4 & 6 must be connected. An alternate method is to replace R2 on the signal conditioner
barrier board with a wire.

40

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a peri­od of 13 months from date of purchase. OMEGA Warranty adds an additional one (1) month grace period to
the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s
customers receive maximum coverage on each product.

If the unit should malfunction, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon
examination by OMEGA, if the unit is found to be defective it will be repaired or replaced at no charge.
OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including
but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or
unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered
with or shows evidence of being damaged as a result of excessive corrosion; or current, heat, moisture or
vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s
control. Components which wear are not warranted, including but not limited to contact points, fuses, and
triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither
assumes responsibility for any omissions or errors nor assumes liability for any damages that result from
the use of its products in accordance with information provided by OMEGA, either verbal or written.
OMEGA warrants only that the parts manufactured by it will be as specified and free of defects. OMEGA
MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR
IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION
OF LIABILITY: The remedies of purchaser set forth herein are exclusive and the total liability of OMEGA with
respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or
otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event
shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity,
medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth
in our basic WARRANTY / DISCLAIMER language, and additionally, purchaser will indemnify OMEGA and hold
OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a
manner.

RETURN REQUESTS / INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESS­ING DELAYS). The assigned AR number should then be marked on the outside of the return package and
on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR WARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. P.O. number under which the product
was
PURCHASED,

2. Model and serial number of the product
under warranty, and

3. Repair instructions and/or specific

problems relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This
affords our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2013 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without
prior written consent of OMEGA ENGINEERING, INC.

FOR NON-WARRANTY REPAIRS,

consult
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:

1. P.O. number to cover the COST
of the repair,

2. Model and serial number of product, and

3. Repair instructions and/or specific
problems relative to the product.

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

TEMPERATURE



Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies



Wire: Thermocouple, RTD & Thermistor



Calibrators & Ice Point References



Recorders, Controllers & Process Monitors



Infrared Pyrometers

PRESSURE, STRAIN AND FORCE



Transducers & Strain Gauges



Load Cells & Pressure Gauges



Displacement Transducers



Instrumentation & Accessories

FLOW/LEVEL



Rotameters, Gas Mass Flowmeters & Flow Computers



Air Velocity Indicators



Turbine/Paddlewheel Systems



Totalizers & Batch Controllers

pH/CONDUCTIVITY



pH Electrodes, Testers & Accessories



Benchtop/Laboratory Meters



Controllers, Calibrators, Simulators & Pumps



Industrial pH & Conductivity Equipment

DATA ACQUISITION



Data Acquisition & Engineering Software



Communications-Based Acquisition Systems



Plug-in Cards for Apple, IBM & Compatibles



Datalogging Systems



Recorders, Printers & Plotters

HEATERS



Heating Cable



Cartridge & Strip Heaters



Immersion & Band Heaters



Flexible Heaters



Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL



Metering & Control Instrumentation



Refractometers



Pumps & Tubing



Air, Soil & Water Monitors



Industrial Water & Wastewater Treatment



pH, Conductivity & Dissolved Oxygen Instruments

M0330/1213 10282ML-99J
