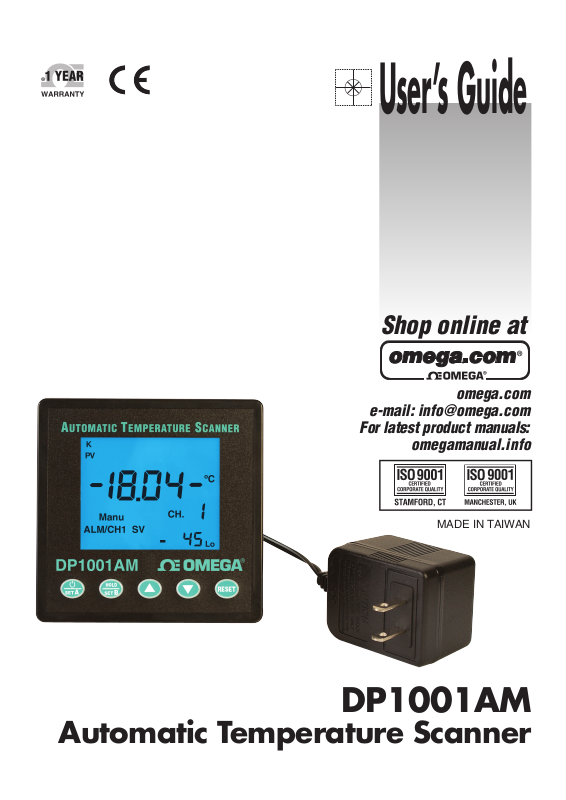

User’s Guide

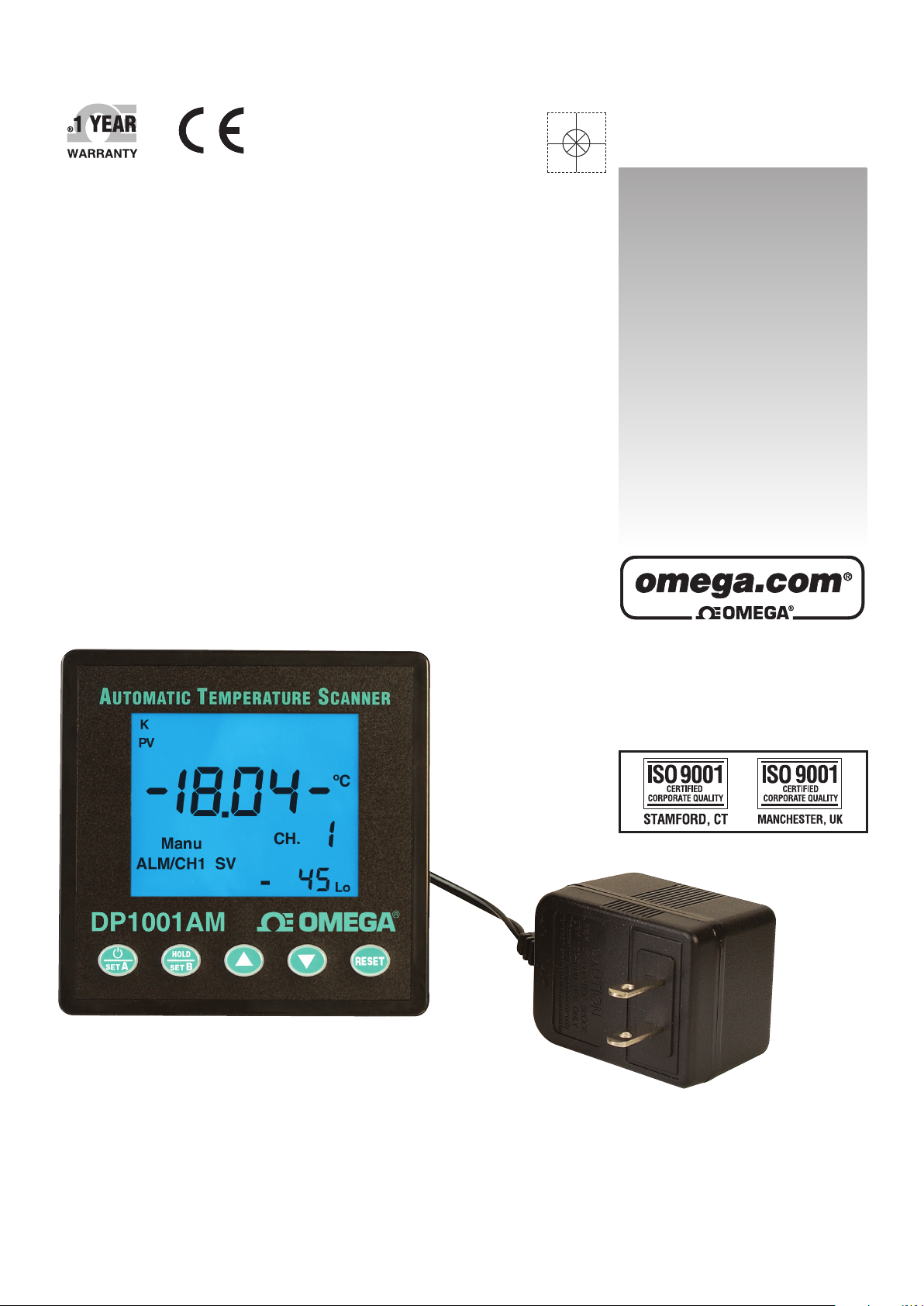

DP1001AM

Automatic Temperature Scanner

Shop online at

MADE IN TAIWAN

Servicing North America:

U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford, CT 06907-0047 USA

Toll Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

Canada: 976 Bergar

Laval (Quebec), H7L 5A1 Canada
Toll-Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

For immediate technical or application assistance:

U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA

®

Customer Service: 1-800-622-2378/1-800-622-BEST

®

Engineering Service: 1-800-872-9436/1-800-USA-WHEN

®

Mexico/ En Español: 001 [phone] FAX: [phone]
Latin America [email protected] e-mail: [email protected]

Servicing Europe:

Benelux: Managed by the United Kingdom Office

Toll-Free: 0800 099 3344 TEL: [phone]
FAX: [phone] e-mail: [email protected]

Czech Republic: Frystatska 184

733 01 Karviná, Czech Republic
Toll-Free: 0800-1-66342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

France: Managed by the United Kingdom Office

Toll-Free: 0800 466 342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

Germany/Austria: Daimlerstrasse 26

D-75392 Deckenpfronn, Germany
Toll-Free: 0800 6397678 TEL: [phone]
FAX: [phone] e-mail: [email protected]

United Kingdom: OMEGA Engineering Ltd.

ISO 9001 Certified One Omega Drive, River Bend Technology Centre, Northbank

Irlam, Manchester M44 5BD United Kingdom
Toll-Free: 0800-488-488 TEL: [phone]
FAX: [phone] e-mail: [email protected]

OMEGAnet®Online Service Internet e-mail

omega.com [email protected]

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.

1

10 channels Temperature Scanner

DP1001AM

Features:

_ Large LCD with backlight displays PV and SV value.
_ Latching Hi/Low alarm 5A(250VAC) with manual reset.
_ Each channel has individual, independent, and programmable alarm

setpoint with alarm indicator.

_ Multi-mode for setting Channel number, °C/°F, Auto/Manual, Scan rate,

K/J/T/E type and Hi/Low

_ RS232 communication for computer interface.

Specifications:

Range

Type K

Type J

Type T

Type E

_

-58 ~ 2498

-58 ~ 1832

-184 ~ 752

-58 ~ 1382

_

-50 ~ 1370

-50 ~ 1000

-120 ~ 400

-50 ~ 750

Resolution

0.1(<1000), 1(>1000)
Accuracy

0.15% of Reading ±1°C or 1.8°F
Power

9V DC
Channel

10 channels
RS232

Yes
Relay

Hi/Low
Scan rate

2 ~ 60 sec.

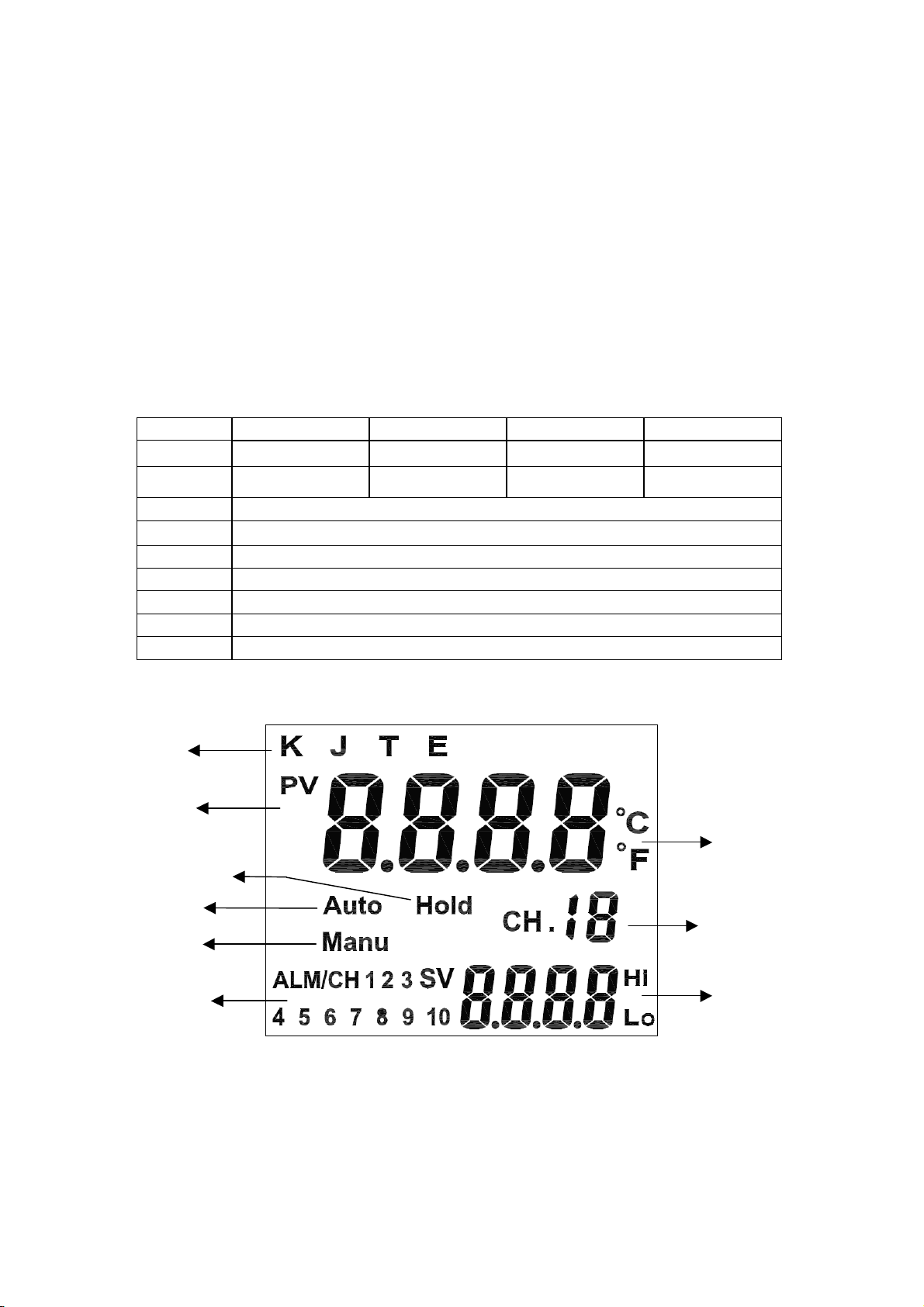

LCD Display:

Type Indicator

Process Value

Channel Holding Indicator

Automatic Scan

Manual Scan

Alarm Channel Indicator

°C/°F Indicator

Channel Indicator

Setting Value
Hi/Low Indicator

2

Functions of Keyboard:

1. Press to turn on or off the power.

2. Press and hold to enter Basic Setting.

1. Press to keep monitoring the value of a certain channel
under automatically scan mode.

2. Press and hold to enter Hi/Low Setting.

1. Switch channels under manually scan mode.

2. Adjust values in Basic and Hi/Low Setting.

1. Press to turn on the backlight for 10 minutes under
backlight-off mode.

2. Press and hold to reset the alarm of each channel.

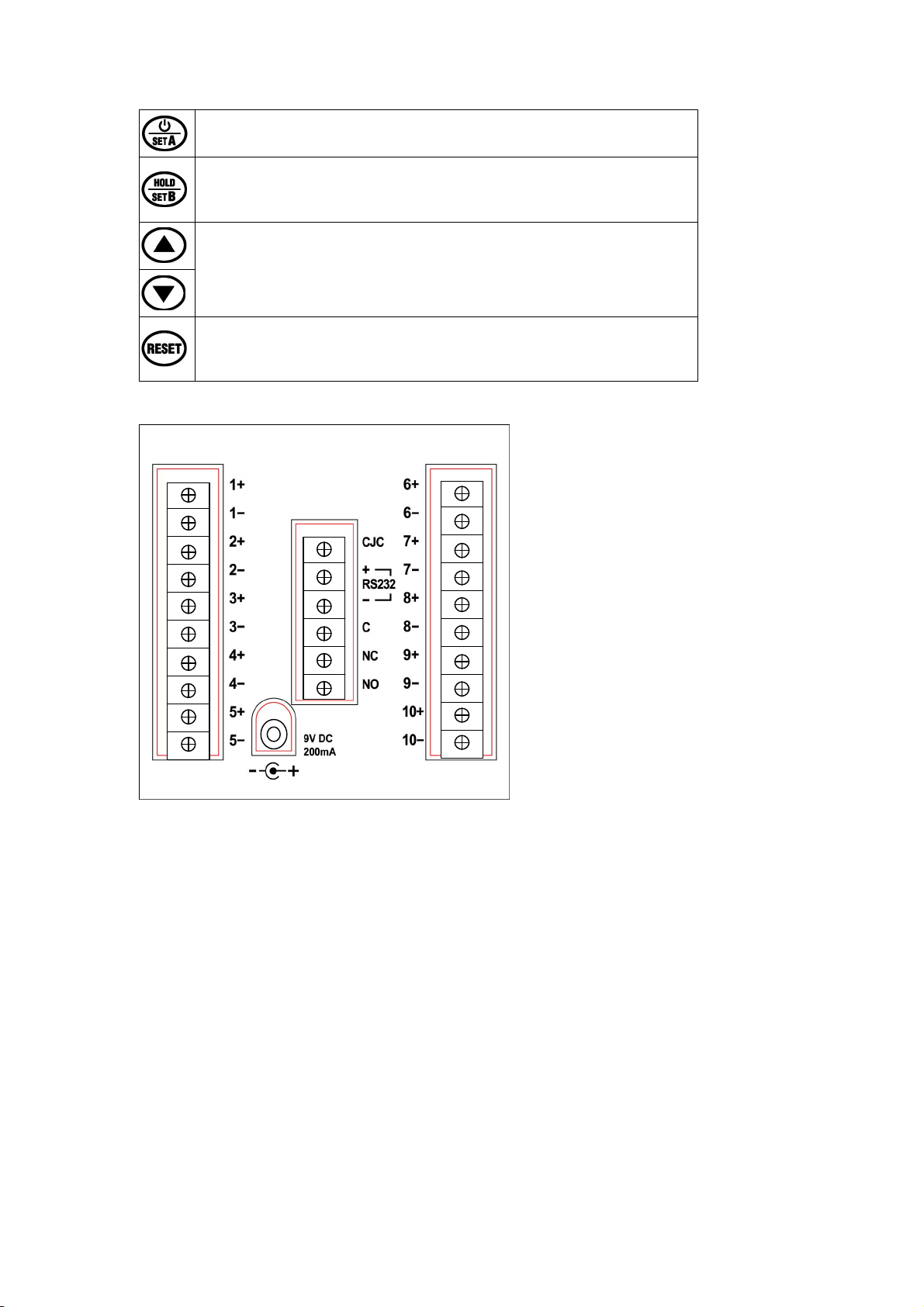

Back Panel Display:

All of the channel labels: Each channel requires a positive and negative

wire. This picture shows which channels represent which input terminals and if
they are negative or positive.
RS232 port: This is the port used when you want to hook up the Automatic
Temperature Scanner to a computer.

C, NC, NO: Common, Normal Closed, Normal Open for relay.
9V DC/200mA: Please use an adaptor with 9V DC/200mA for input power.

3

Basic Setting(SET A):

Press and hold for 3 seconds to enter Basic Setting. During this setting,

please use and to adjust setting values. Press to confirm
setting values and enter next setting.

Hi/Low Setting(SET B):

Press and hold for 3 seconds to enter Hi/Low Setting. During this

setting, please use and to set “Hi” or “Low” and adjust the setting

values for each channel. Press to confirm and enter next setting.

Set K, J, T, or E type

Set °C or °F

Set how many channels will be used.

Turn backlight on or off

Set manual or automatic scan

Set off-set value

Set Scan interval from 2 to 60 sec.

Manual

Automatic

End

4

Connect to PC:
<System Requirement>

OS: Windows 2000, Windows XP, Windows Vista, Windows 7.

<Operations>

1. Copy “GOnDO_Temp.exe” from the CD-ROM to a folder.

2. Double-click “GOnDO_Temp.exe” to start the program.

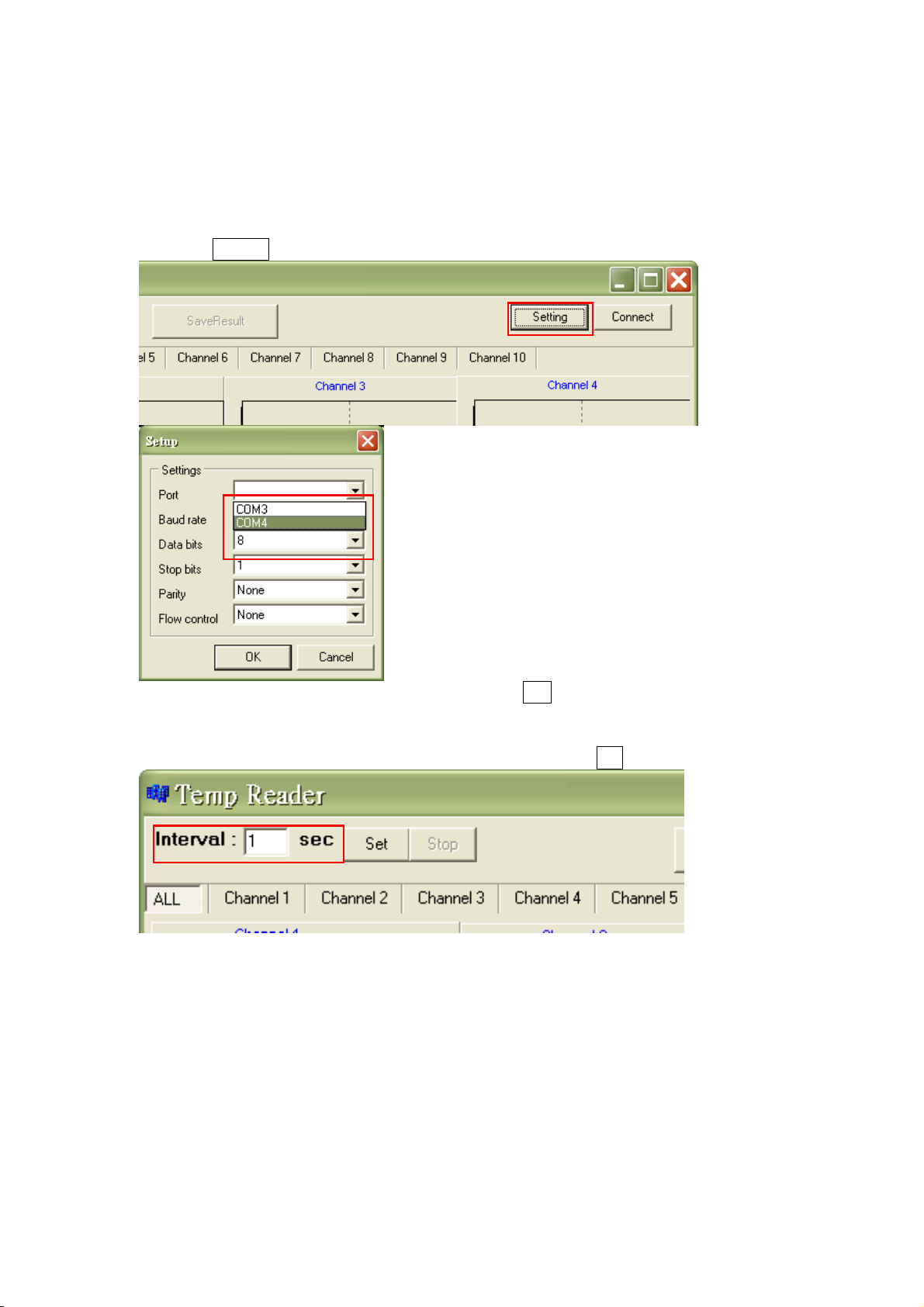

3. Click setting button to set COM port in the Setup window.

Choose the responding Port and then click OK. In normal situation, other
settings do not need to be changed.

4. Fill in desired measuring interval seconds, and click set.

5

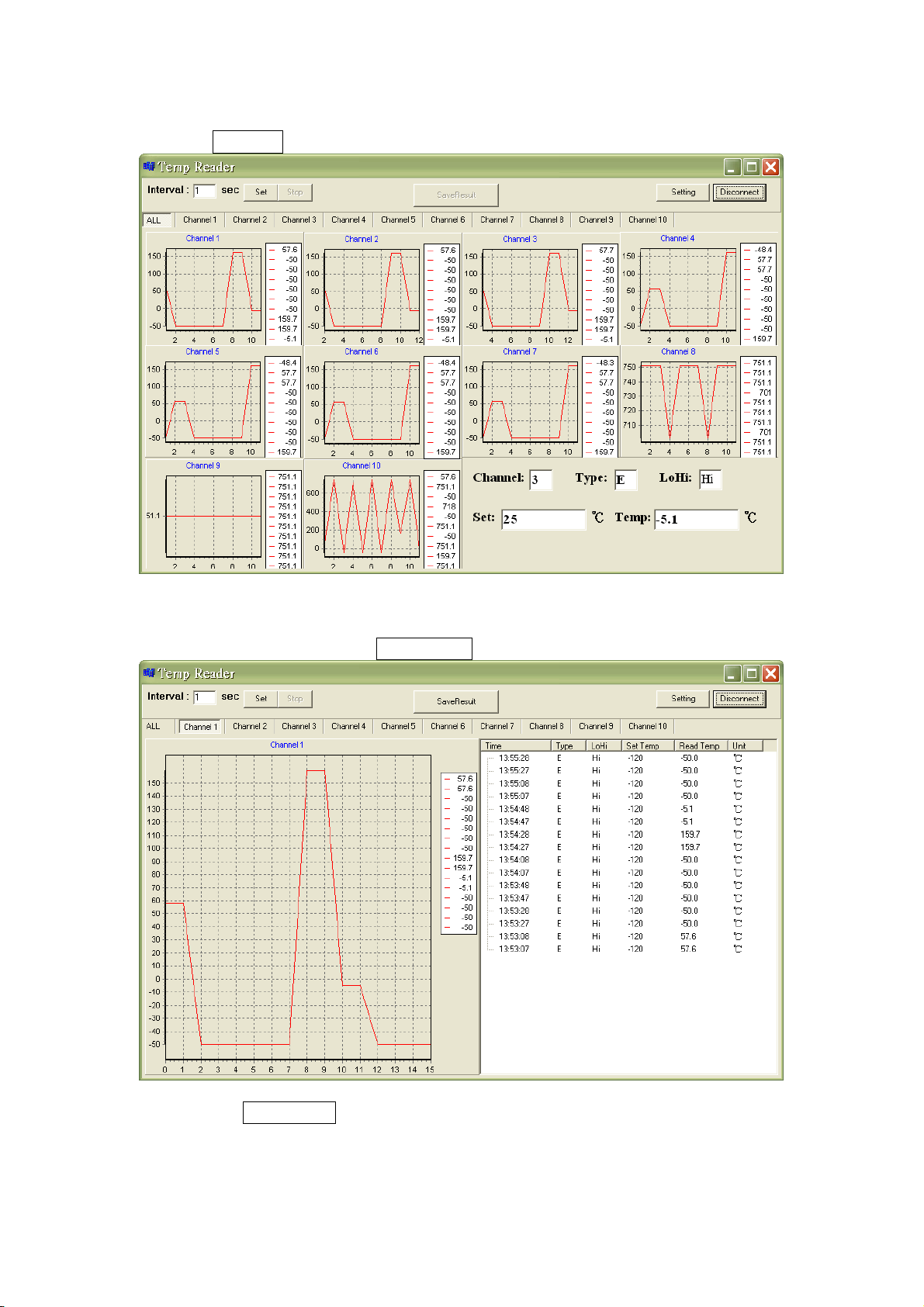

5. Click Connect to get readings and draw the curve.

6. Click the small tab of each channel in the main window can enter a big
window with detail reading information. Click tab ALL to back to the main
window.

7. In each big window, click SaveResult will export the readings to .txt file.

Note:

Please click Disconnect or close the program before turn off power or remove
the RS-232 cable.
