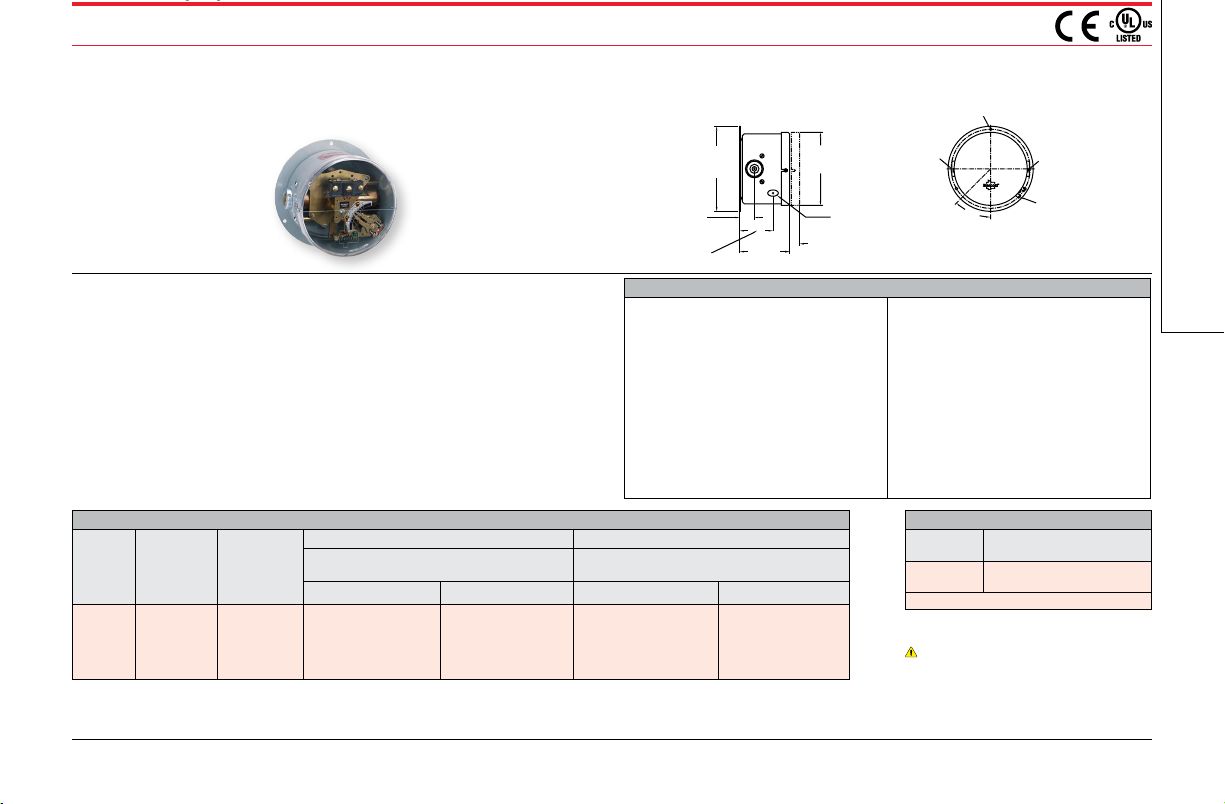

2-55/64
1-13/64
Ø13/64 [5.16] MOUNTING HOLES
N
ADJUSTMENT
[107.95]
[69.85]
[30.94]

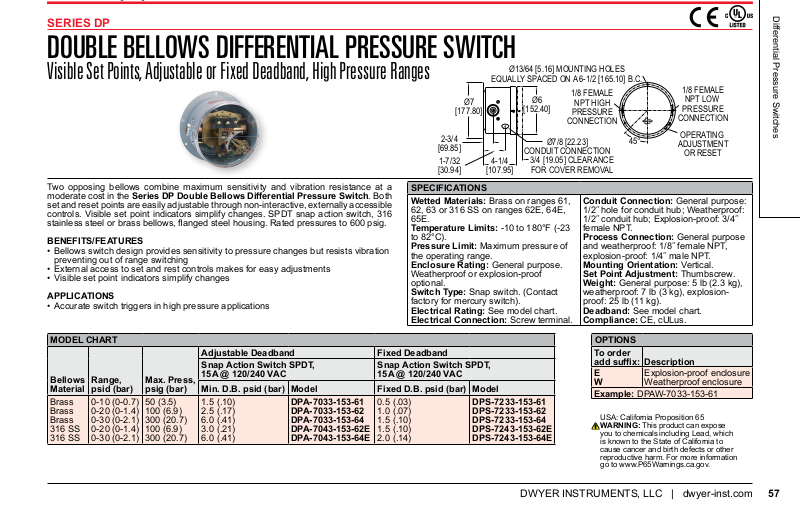

SERIES DP
DOUBLE BELLOWS DIFFERENTIAL PRESSURE SWITCH
Visible Set Points, Adjustable or Fixed Deadband, High Pressure Ranges
Two opposing bellows combine maximum sensitivity and vibration resistance at a
moderate cost in the Series DP Double Bellows Differential Pressure Switch. Both
set and reset points are easily adjustable through non-interactive, externally accessible
controls. Visible set point indicators simplify changes. SPDT snap action switch, 316
stainless steel or brass bellows, anged steel housing. Rated pressures to 600 psig.
BENEFITS/FEATURES
• Bellows switch design provides sensitivity to pressure changes but resists vibration
preventing out of range switching
• External access to set and rest controls makes for easy adjustments
• Visible set point indicators simplify changes
APPLICATIONS
• Accurate switch triggers in high pressure applications
MODEL CHART
Bellows
Material
Brass
Brass
Brass
316 SS
316 SS
Range,
psid (bar)
0-10 (0-0.7)
0-20 (0-1.4)
0-30 (0-2.1)
0-20 (0-1.4)
0-30 (0-2.1)
Max. Press,
psig (bar)
50 (3.5)
100 (6.9)
300 (20.7)
100 (6.9)
300 (20.7)
Adjustable Deadband Fixed Deadband
Snap Action Switch SPDT,
15A @ 120/240 VAC
Min. D.B. psid (bar) Model Fixed D.B. psid (bar) Model
1.5 (.10)
2.5 (.17)
6.0 (.41)
3.0 (.21)
6.0 (.41)
DPA-7033-153-61
DPA-7033-153-62
DPA-7033-153-64
DPA-7043-153-62E
DPA-7043-153-64E
SPECIFICATIONS
Wetted Materials: Brass on ranges 61,
62, 63 or 316 SS on ranges 62E, 64E,
65E.
Temperature Limits: -10 to 180°F (-23
to 82°C).
Pressure Limit: Maximum pressure of
the operating range.
Enclosure Rating: General purpose.
Weatherproof or explosion-proof
optional.
Switch Type: Snap switch. (Contact
factory for mercury switch).
Electrical Rating: See model chart.
Electrical Connection: Screw terminal.
Snap Action Switch SPDT,
15A @ 120/240 VAC
0.5 (.03)
1.0 (.07)
1.5 (.10)
1.5 (.10)
2.0 (.14)
2-3/4
1-7/32
EQUALLY SPACED ON A 6-1/2 [165.10] B.C.
Ø7
[177.80]
4-1/4
DPS-7233-153-61
DPS-7233-153-62
DPS-7233-153-64
DPS-7243-153-62E
DPS-7243-153-64E
1/8 FEMALE
Ø6
[152.40]
CONDUIT CONNECTION
3/4 [19.05] CLEARANCE
FOR COVER REMOVAL
NPT HIGH
PRESSURE
CONNECTION
Ø7/8 [22.23]
Conduit Connection: General purpose:
1/2˝ hole for conduit hub; Weatherproof:
1/2˝ conduit hub; Explosion-proof: 3/4˝
female NPT.
Process Connection: General purpose
and weatherproof: 1/8˝ female NPT,
explosion-proof: 1/4˝ male NPT.
Mounting Orientation: Vertical.
Set Point Adjustment: Thumbscrew.
Weight: General purpose: 5 lb (2.3 kg),
weatherproof: 7 lb (3 kg), explosionproof: 25 lb (11 kg).
Deadband: See model chart.
Compliance: CE, cULus.
OPTIONS
To order
add sufx: Description
E
W
Example: DPAW-7033-153-61
1/8 FEMALE
NPT LOW
PRESSURE
CONNECTIO
45°
USA: California Proposition 65
WARNING: This product can expose
you to chemicals including Lead, which
is known to the State of California to
cause cancer and birth defects or other
reproductive harm. For more information
go to www.P65Warnings.ca.gov.
OPERATING
OR RESET
Explosion-proof enclosure
Weatherproof enclosure
Differential Pressure Switches
