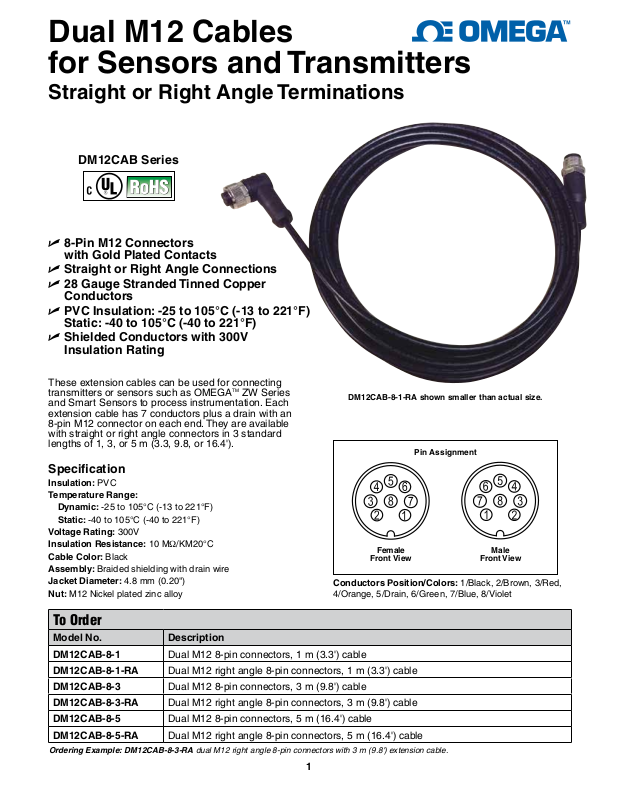

Dual M12 Cables
for Sensors and Transmitters
Straight or Right Angle Terminations
DM12CAB Series
U 8-Pin M12 Connectors
with Gold Plated Contacts
U Straight or Right Angle Connections
U 28 Gauge Stranded Tinned Copper
Conductors
U PVC Insulation: -25 to 105°C (-13 to 221°F)
Static: -40 to 105°C (-40 to 221°F)
U Shielded Conductors with 300V
Insulation Rating
These extension cables can be used for connecting
transmitters or sensors such as OMEGATM ZW Series
and Smart Sensors to process instrumentation. Each
extension cable has 7 conductors plus a drain with an
8-pin M12 connector on each end. They are available
with straight or right angle connectors in 3 standard
lengths of 1, 3, or 5 m (3.3, 9.8, or 16.4').

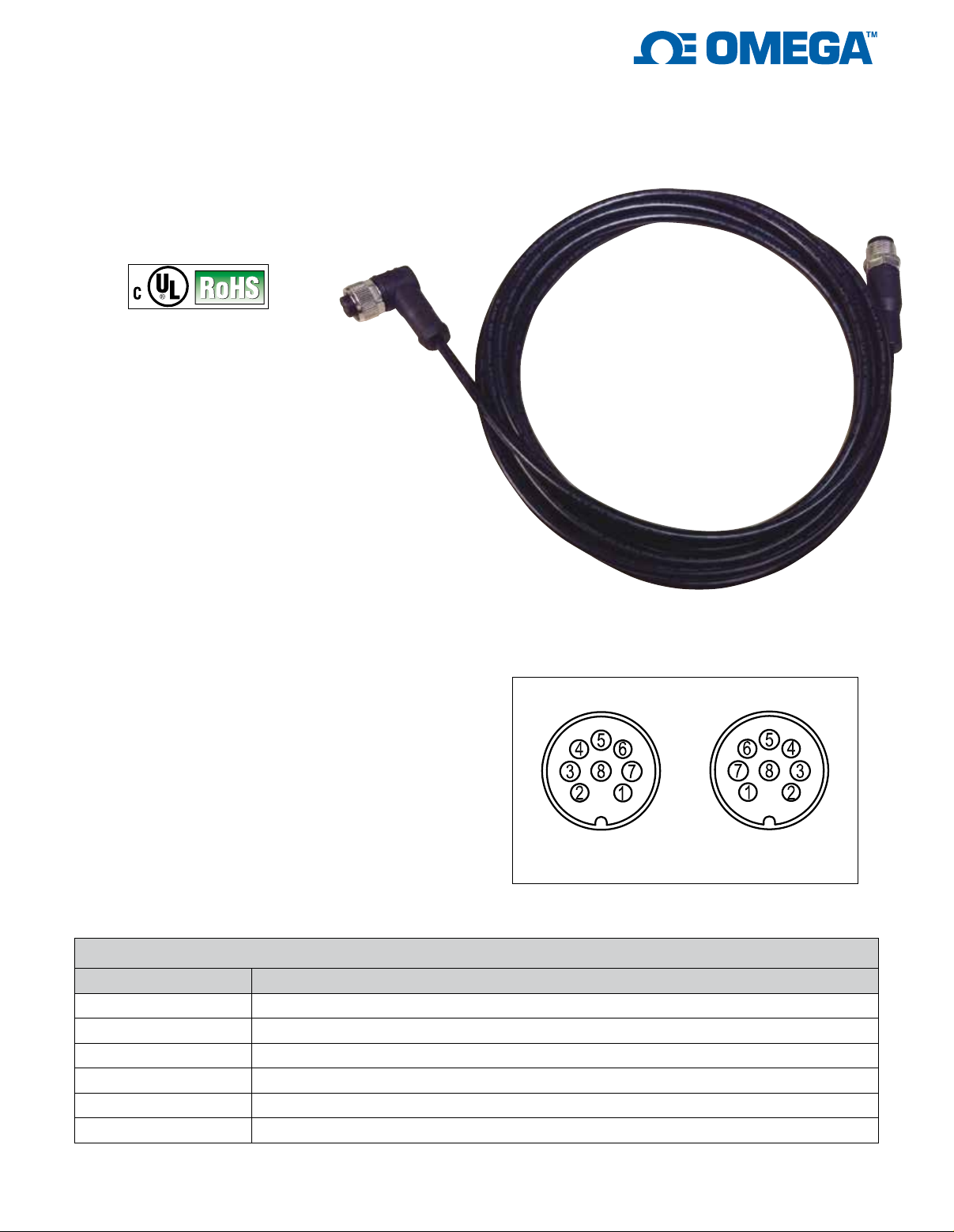

DM12CAB-8-1-RA shown smaller than actual size.
Pin Assignment
Specification
Insulation: PVC
Temperature Range:
Dynamic: -25 to 105°C (-13 to 221°F)
Static: -40 to 105°C (-40 to 221°F)
Voltage Rating: 300V
Insulation Resistance: 10 MΩ/KM20°C
Cable Color: Black
Assembly: Braided shielding with drain wire
Jacket Diameter: 4.8 mm (0.20")
Nut: M12 Nickel plated zinc alloy
Conductors Position/Colors: 1/Black, 2/Brown, 3/Red,
4/Orange, 5/Drain, 6/Green, 7/Blue, 8/Violet
Female
Front View
To Order
Model No. Description
DM12CAB-8-1
DM12CAB-8-1-RA
DM12CAB-8-3
DM12CAB-8-3-RA
DM12CAB-8-5
DM12CAB-8-5-RA
Ordering Example: DM12CAB-8-3-RA dual M12 right angle 8-pin connectors with 3 m (9.8') extension cable.
Dual M12 8-pin connectors, 1 m (3.3') cable
Dual M12 right angle 8-pin connectors, 1 m (3.3') cable
Dual M12 8-pin connectors, 3 m (9.8') cable
Dual M12 right angle 8-pin connectors, 3 m (9.8') cable
Dual M12 8-pin connectors, 5 m (16.4') cable
Dual M12 right angle 8-pin connectors, 5 m (16.4') cable
1
Male
Front View
