SERIES DM-1000

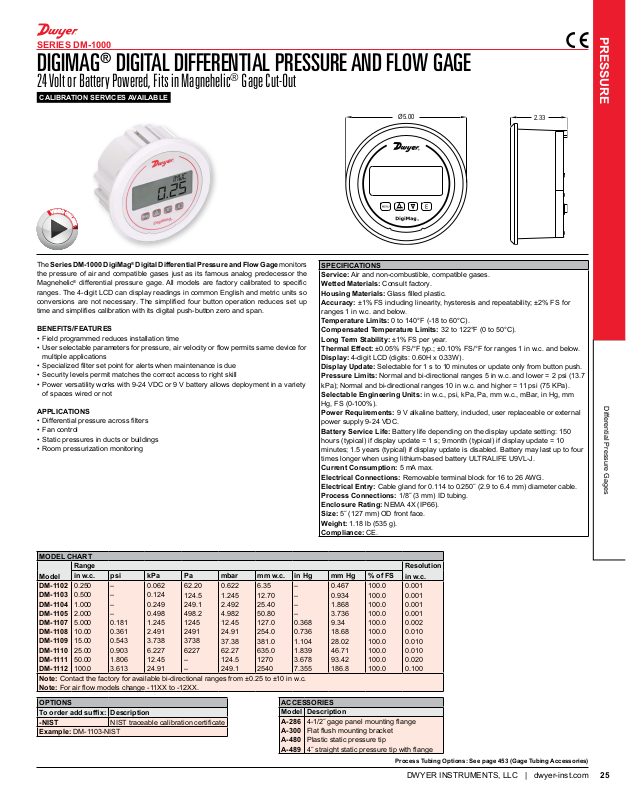

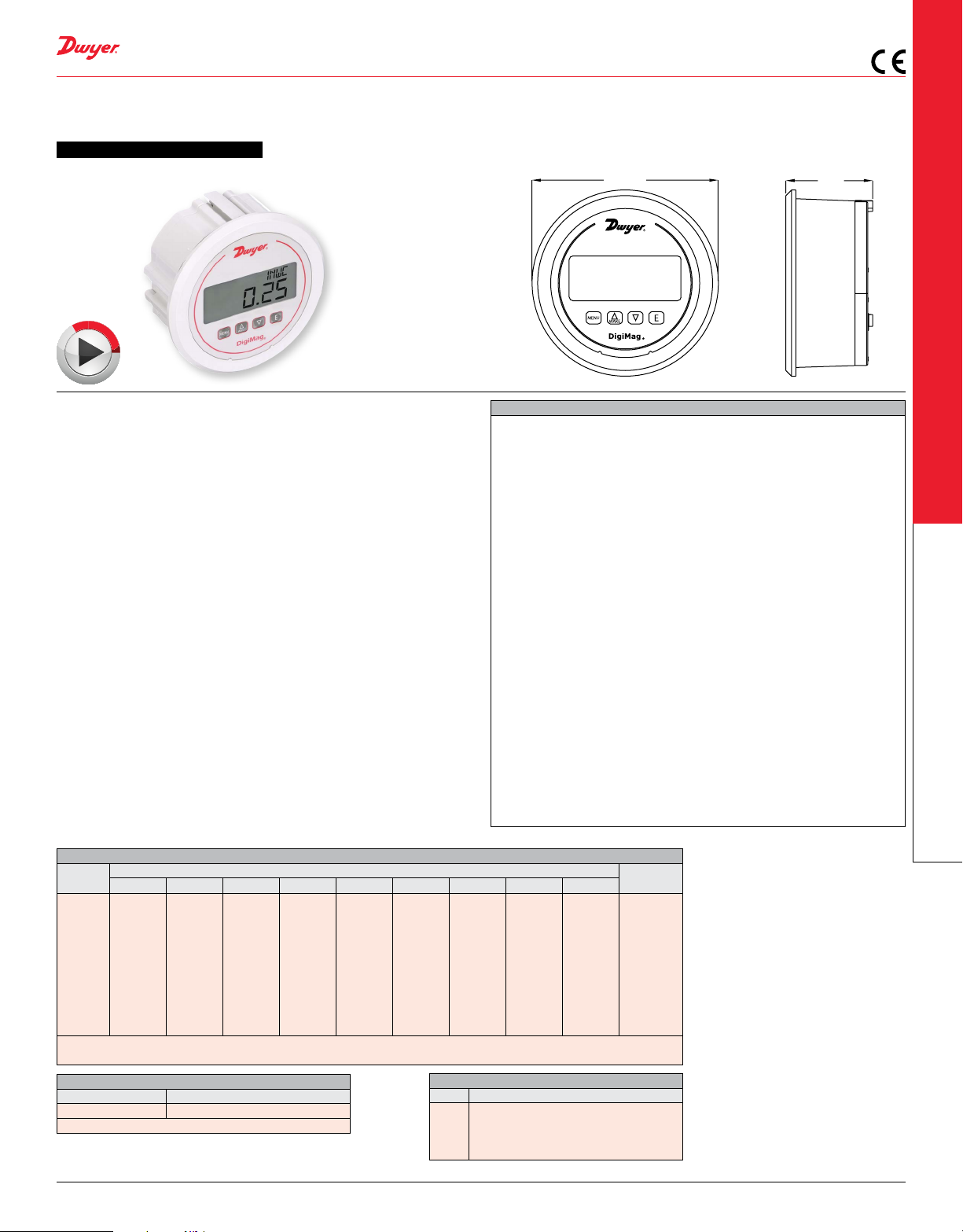

DIGIMAG® DIGITAL DIFFERENTIAL PRESSURE AND FLOW GAGE

24 Volt or Battery Powered, Fits in Magnehelic® Gage Cut-Out

CALIBRATION SERVICES AVAILABLE

PRESSURE

The Series DM-1000 DigiMag® Digital Differential Pressure and Flow Gage monitors the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic

differential pressure gage. All models are factory calibrated to specic

ranges. The 4-digit LCD can display readings in common English and metric units so

conversions are not necessary. The simplied four button operation reduces set up time and simplies calibration with its digital push-button zero and span.

BENEFITS/FEATURES

• Field programmed reduces installation time

• User selectable parameters for pressure, air velocity or ow permits same device for

multiple applications

• Specialized lter set point for alerts when maintenance is due

• Security levels permit matches the correct access to right skill

• Power versatility works with 9-24 VDC or 9 V battery allows deployment in a variety of spaces wired or not

APPLICATIONS

• Differential pressure across lters

• Fan control

• Static pressures in ducts or buildings

• Room pressurization monitoring

MODEL CHART

Range Resolution Model DM-1102

DM-1103 DM-1104 DM-1105 DM-1107 DM-1108 DM-1109 DM-1110 DM-1111 DM-1112 Note: Contact the factory for available bi-directional ranges from ±0.25 to ±10 in w.c.

in w.c. psi kPa Pa mbar mm w.c. in Hg mm Hg % of FS

0.250

0.500

1.000

2.000

5.000

10.00

15.00

25.00

50.00

100.0

– – – –

0.181

0.361

0.543

0.903

1.806

3.613

0.062

0.124

0.249

0.498

1.245

2.491

3.738

6.227

12.45

24.91

62.20

124.5

249.1

498.2 1245 2491 3738 6227

– –

0.622

1.245

2.492

4.982

12.45

24.91

37.38

62.27

124.5

249.1

6.35

12.70

25.40

50.80

127.0

254.0

381.0

635.0 1270 2540

– – – –

0.368

0.736

1.104

1.839

3.678

7.355

Note: For air ow models change -11XX to -12XX.

OPTIONS To order add sufx: Description

-NIST NIST traceable calibration certicate

Example: DM-1103-NIST

ACCESSORIES Model Description A-286 A-300 A-480 A-489

SPECIFICATIONS Service: Air and non-combustible, compatible gases. Wetted Materials: Consult factory. Housing Materials: Glass lled plastic. Accuracy: ±1% FS including linearity, hysteresis and repeatability; ±2% FS for

ranges 1 in w.c. and below.

Temperature Limits: 0 to 140°F (-18 to 60°C). Compensated Temperature Limits: 32 to 122°F (0 to 50°C). Long Term Stability: ±1% FS per year. Thermal Effect: ±0.05% FS/°F typ.; ±0.10% FS/°F for ranges 1 in w.c. and below. Display: 4-digit LCD (digits: 0.60H x 0.33W). Display Update: Selectable for 1 s to 10 minutes or update only from button push. Pressure Limits: Normal and bi-directional ranges 5 in w.c. and lower = 2 psi (13.7

kPa); Normal and bi-directional ranges 10 in w.c. and higher = 11 psi (75 KPa). Selectable Engineering Units: in w.c., psi, kPa, Pa, mm w.c., mBar, in Hg, mm

Hg, FS (0-100%).

Power Requirements: 9 V alkaline battery, included, user replaceable or external power supply 9-24 VDC. Battery Service Life: Battery life depending on the display update setting: 150 hours (typical) if display update = 1 s; 9 month (typical) if display update = 10 minutes; 1.5 years (typical) if display update is disabled. Battery may last up to four times longer when using lithium-based battery ULTRALIFE U9VL-J.

Current Consumption: 5 mA max. Electrical Connections: Removable terminal block for 16 to 26 AWG. Electrical Entry: Cable gland for 0.114 to 0.250˝ (2.9 to 6.4 mm) diameter cable. Process Connections: 1/8˝ (3 mm) ID tubing. Enclosure Rating: NEMA 4X (IP66). Size: 5˝ (127 mm) OD front face. Weight: 1.18 lb (535 g). Compliance: CE.

in w.c.

0.467

0.934

1.868

3.736

9.34

18.68

28.02

46.71

93.42

186.8

100.0

0.001

0.002

0.010

0.020

0.100

4-1/2˝ gage panel mounting ange Flat ush mounting bracket

Plastic static pressure tip

4˝ straight static pressure tip with ange

Process Tubing Options: See page 453 (Gage Tubing Accessories)
