Page 1
3-19/32
HEX
5-3/32

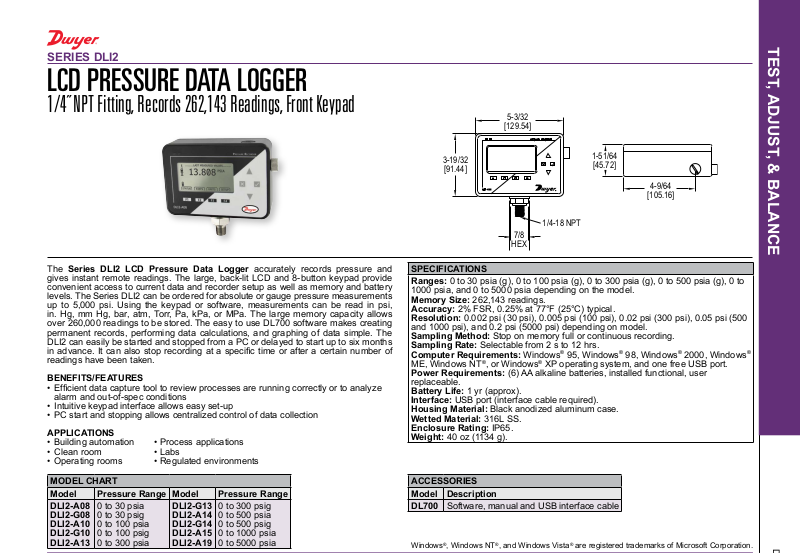

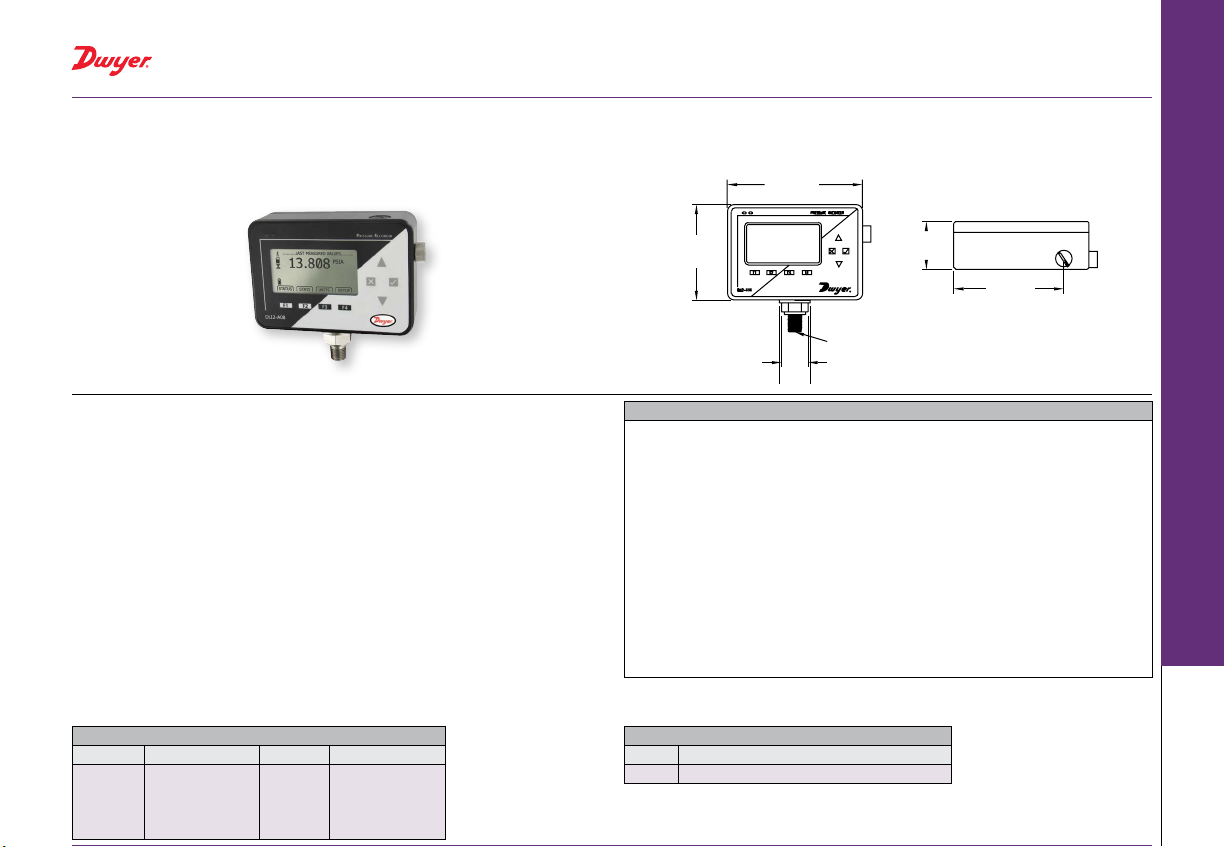

SERIES DLI2
LCD PRESSURE DATA LOGGER
1/4˝ NPT Fitting, Records 262,143 Readings, Front Keypad
[91.44]
[129.54]
7/8
1/4-18 NPT
1-51/64
[45.72]
4-9/64
[105.16]
TEST, ADJUST, & BALANCE
The Series DLI2 LCD Pressure Data Logger accurately records pressure and
gives instant remote readings. The large, back-lit LCD and 8-button keypad provide
convenient access to current data and recorder setup as well as memory and battery
levels. The Series DLI2 can be ordered for absolute or gauge pressure measurements
up to 5,000 psi. Using the keypad or software, measurements can be read in psi,
in. Hg, mm Hg, bar, atm, Torr, Pa, kPa, or MPa. The large memory capacity allows
over 260,000 readings to be stored. The easy to use DL700 software makes creating
permanent records, performing data calculations, and graphing of data simple. The
DLI2 can easily be started and stopped from a PC or delayed to start up to six months
in advance. It can also stop recording at a specic time or after a certain number of
readings have been taken.
BENEFITS/FEATURES
• Efcient data capture tool to review processes are running correctly or to analyze
alarm and out-of-spec conditions
• Intuitive keypad interface allows easy set-up
• PC start and stopping allows centralized control of data collection
APPLICATIONS
• Building automation
• Clean room
• Operating rooms
MODEL CHART
Model Pressure Range Model Pressure Range
DLI2-A08
DLI2-G08
DLI2-A10
DLI2-G10
DLI2-A13
0 to 30 psia
0 to 30 psig
0 to 100 psia
0 to 100 psig
0 to 300 psia
• Process applications
• Labs
• Regulated environments
DLI2-G13
DLI2-A14
DLI2-G14
DLI2-A15
DLI2-A19
0 to 300 psig
0 to 500 psia
0 to 500 psig
0 to 1000 psia
0 to 5000 psia
SPECIFICATIONS
Ranges: 0 to 30 psia (g), 0 to 100 psia (g), 0 to 300 psia (g), 0 to 500 psia (g), 0 to
1000 psia, and 0 to 5000 psia depending on the model.
Memory Size: 262,143 readings.
Accuracy: 2% FSR, 0.25% at 77°F (25°C) typical.
Resolution: 0.002 psi (30 psi), 0.005 psi (100 psi), 0.02 psi (300 psi), 0.05 psi (500
and 1000 psi), and 0.2 psi (5000 psi) depending on model.
Sampling Method: Stop on memory full or continuous recording.
Sampling Rate: Selectable from 2 s to 12 hrs.
Computer Requirements: Windows
ME, Windows NT®, or Windows® XP operating system, and one free USB port.
Power Requirements: (6) AA alkaline batteries, installed functional, user
replaceable.
Battery Life: 1 yr (approx).
Interface: USB port (interface cable required).
Housing Material: Black anodized aluminum case.
Wetted Material: 316L SS.
Enclosure Rating: IP65.
Weight: 40 oz (1134 g).
ACCESSORIES
Model Description
DL700 Software, manual and USB interface cable
®
, Windows NT®, and Windows Vista® are registered trademarks of Microsoft Corporation.
Windows
®
95, Windows® 98, Windows® 2000, Windows®
