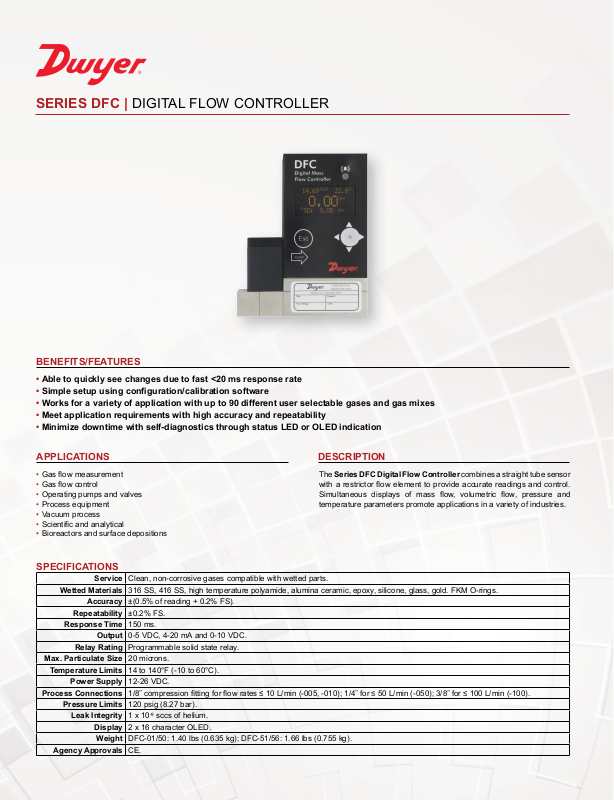

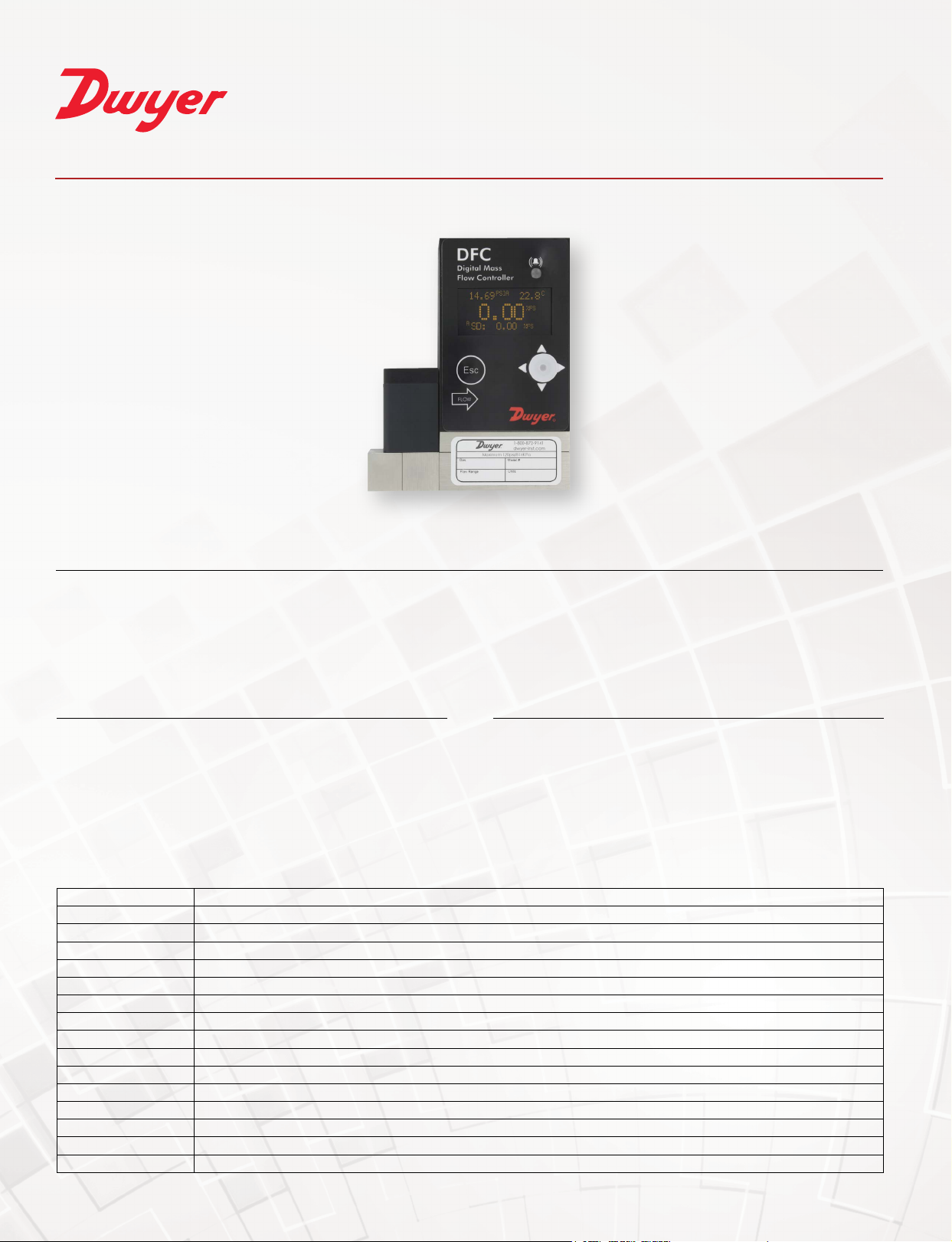

SERIESDFC|DIGITAL FLOW CONTROLLER

BENEFITS/FEATURES

• Able to quickly see changes due to fast <20 ms response rate

•Simplesetupusingconguration/calibrationsoftware

• Works for a variety of application with up to 90 different user selectable gases and gas mixes

• Meet application requirements with high accuracy and repeatability

• Minimize downtime with self-diagnostics through status LED or OLED indication

DESCRIPTIONAPPLICATIONS

• Gas ow measurement

• Gas ow control

• Operating pumps and valves

• Process equipment

• Vacuum process

• Scientic and analytical

• Bioreactors and surface depositions

The Series DFC Digital Flow Controller combines a straight tube sensor

with a restrictor ow element to provide accurate readings and control. Simultaneous displays of mass ow, volumetric ow, pressure and temperature parameters promote applications in a variety of industries.

SPECIFICATIONS

Service Clean, non-corrosive gases compatible with wetted parts.

Wetted Materials 316 SS, 416 SS, high temperature polyamide, alumina ceramic, epoxy, silicone, glass, gold. FKM O-rings.

Accuracy ±(0.5% of reading + 0.2% FS).

Repeatability ±0.2% FS.

ResponseTime 150 ms.

Output 0-5 VDC, 4-20 mA and 0-10 VDC.

RelayRating Programmable solid state relay.

Max.ParticulateSize 20 microns.

Temperature Limits 14 to 140°F (-10 to 60°C).

PowerSupply 12-26 VDC.

ProcessConnections 1/8˝ compression tting for ow rates ≤ 10 L/min (-005, -010); 1/4˝ for ≤ 50 L/min (-050); 3/8˝ for ≤ 100 L/min (-100).

PressureLimits 120 psig (8.27 bar).

Leak Integrity 1 x 10

Display 2 x 16 character OLED.

Weight DFC-01/50: 1.40 lbs (0.635 kg); DFC-51/56: 1.66 lbs (0.755 kg).

Agency Approvals CE.

-9

sccs of helium.

Page 2

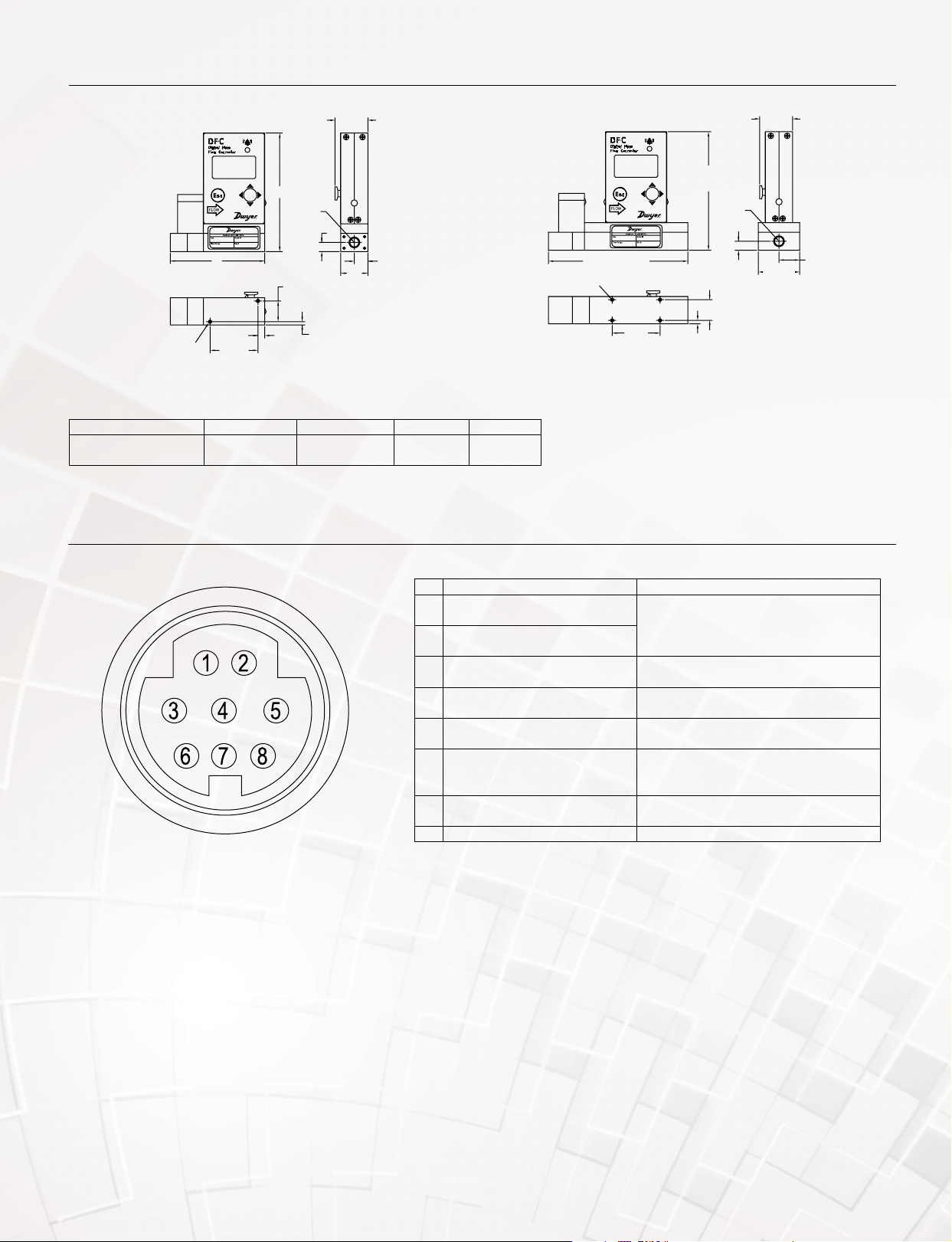

DIMENSIONS

ADDRESS: FF

RS-232 SIGNAL AND GND

[20.32]

1-17/64

[49.89]

Ø0.22 [2] HOLES

[32.26]

D [BOTH SIDES]

1-3/64 [26.67]

17/32

[13.34]

51/64

[20.32]

1/8

17/64

[3.3]

6-32 UNC-2B

Ranges0.5mL/min-20L/min(DFC-01/50) Ranges21L/min-100L/min(DFC-51/56)

1-27/32

[6.73]

Range A B C D

0.5 mL/min-50 mL/min 51 mL/min-20 L/min

3-11/16 [93.47] 3-21/32 [92.96]

4-37/64 [116.33] 4-13/32 [111.76]

11/32 [8.64] 11/32 [8.64]

WIRINGDIAGRAM

10-32 UNF 1/8 NPT

5-7/16 [137.92]

8-32 UNC-2B X 0.30

2-1/2 [63.5]

4-27/32 [123.19]

1-1/4

[31.75]

3/16

[4.57]

1/4-18

NPT

31/64

[12.45]

[32.26]

1-19/32

[40.64]

51/64

DIN connector wiring

PIN Function Note

1 Solid state SPST relay NO

(normally open) contact #1

2 Solid state SPST relay NO

Do not exceed SSR maximum voltage 48 AC peak/DC and maximum load current 400 mA.

(normally open) contact #2

3 Analog set point input (+) (0-5

VDC, 0-10 VDC, 4-20 mA)

4 Analog (0-5 VDC, 0-10 VDC, 4-20

mA) input/output reference (-)

Input impedance: 100K (0-5, 0-10 VDC) 250 Ω (4-20 mA). Common (return) for pins 3 and 6 (0-5 VDC or 0-10 VDC or 4-20 mA).

5 Not assigned. Do not connect! Factory use only. Do not connect any

signals to this pin!

6 Analog (0-5 VDC, 0-10 VDC or

4-20 mA) output (+)

Output. Do not apply external voltage or any current source. Be sure to observe recommended load impedance.

7 Power supply, positive (+) Power input 12-26 VDC. (DFC-01-DFC-53)

or 24-26 VDC (DFC-54-DFC-56).

8 Power supply, common (-) Power input common.

Page 3

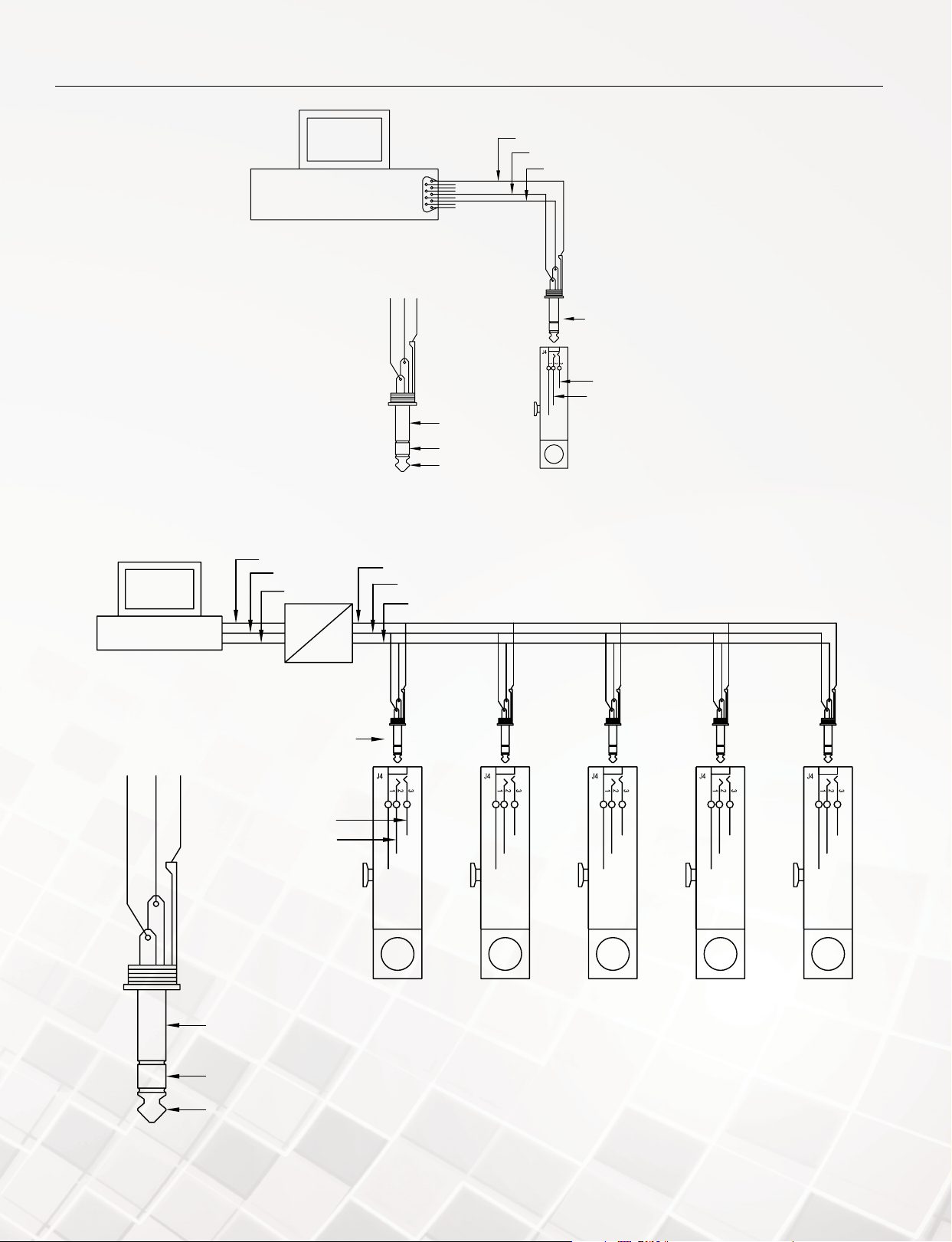

WIRINGDIAGRAM

ADDRESS: FF

RS-232 SIGNAL AND GND

HOST PC

WITH RS-232 INTERFACE

NOTE: CROSSOVER CONNECTION HAS TO BE ESTABLISHED.

RX [-] TX [+] GND

X X X

X X

SLEEVE GND

RING TX [+]

TIP RX [-]

RS-232wiring(default)

RS-232 SIGNAL GND

RS-232 TX

RS-232 RX

PHONEJACK STEREO

RX [-]

TX [+]

HOST PC WITH

RS-232 INTERFACE

RX [-] TX [+] GND

WHITE

RED

SHIELD

SLEEVE GND

RS-232 RX

RS-232 TX

RS-232

RS-485

PHONEJACK STEREO

TX [+]

RX [-]

NOTES:

1. RS-232 TO RS-485 CONVERTER HAS TO BE CONFIGURED FOR 2 WIRE HALF DUPLEX SYSTEM.

2. UP TO 64 DEVICES ON ONE RS-485 SEGMENT, UP TO 2000 FEET.

GND

T [-]

T [+]

DFC #1 DFC #2 DFC #3 DFC #4 DFC #64

ADDRESS: 11 ADDRESS: 12 ADDRESS: 13 ADDRESS: 14

RING TX [+]

TIP RX [-]

RS-485wiring(displayselectable)

Page 4

HOWTOORDER

Use the bold characters from the chart below to construct a product code.

DFC -22 010 -V

SERIES

DFC: Digital ow controller

PRESSURERANGE*

-22: 0 to 100 mL/min

-26: 0 to 200 mL/min

-32: 0 to 500 mL/min

-37: 0 to 1000 mL/min

-39: 0 to 2 L/min

-43: 0 to 5 L/min

-48: 0 to 10 L/min

-56: 0 to 100 L/min

BODYSIZE

005: Very low ow 010: Low ow 050: Medium ow 100: High ow

*Consult factory for ranges from 0-0.5 mL/min up to 0-100 L/min.

ACCESSORIES

L 2-A A

DIGITALINTERFACE

2: RS-232 default (RS-485 display selectable) 3: RS-232 default with Modbus® (RS4-85 display selectable) 3: RS-232 default with Modbus® (RS-485 display selectable), body

size 100

OUTPUTSIGNAL

A: 0-5 VDC default (4-20 mA, 0-10 VDC display selectable)

DISPLAY

L: LED display

FITTINGS

-A: 1/8˝ compression (very low, low)

-B: 1/4˝ compression (medium)

-D: 3/8˝ compression (high)

SEALMATERIAL

-V: Fluoroelastomer

Model Description

GFM-110P GFM-220PE

110 V power supply

220 V power supply Note: 1.5 ft RS-232 interface 3-wire 9-pin D connector included. For RS-485 contact factory for A-DFM-CBL-A485DP 3 ft RS-485 3.5 mm stereo-audio connection with stripped ends available for purchase.

Modbus® is a registered trademark of Schneider Automation, Inc.
