[30.16]

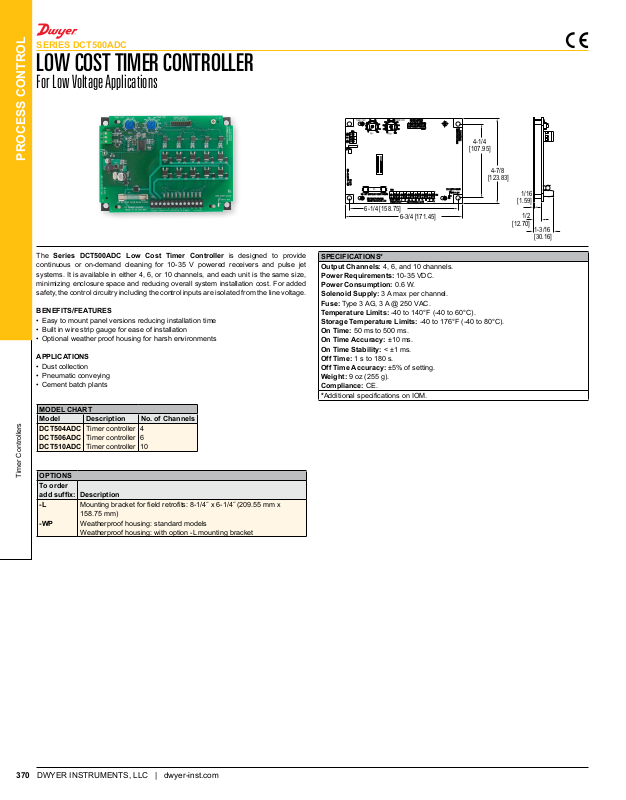

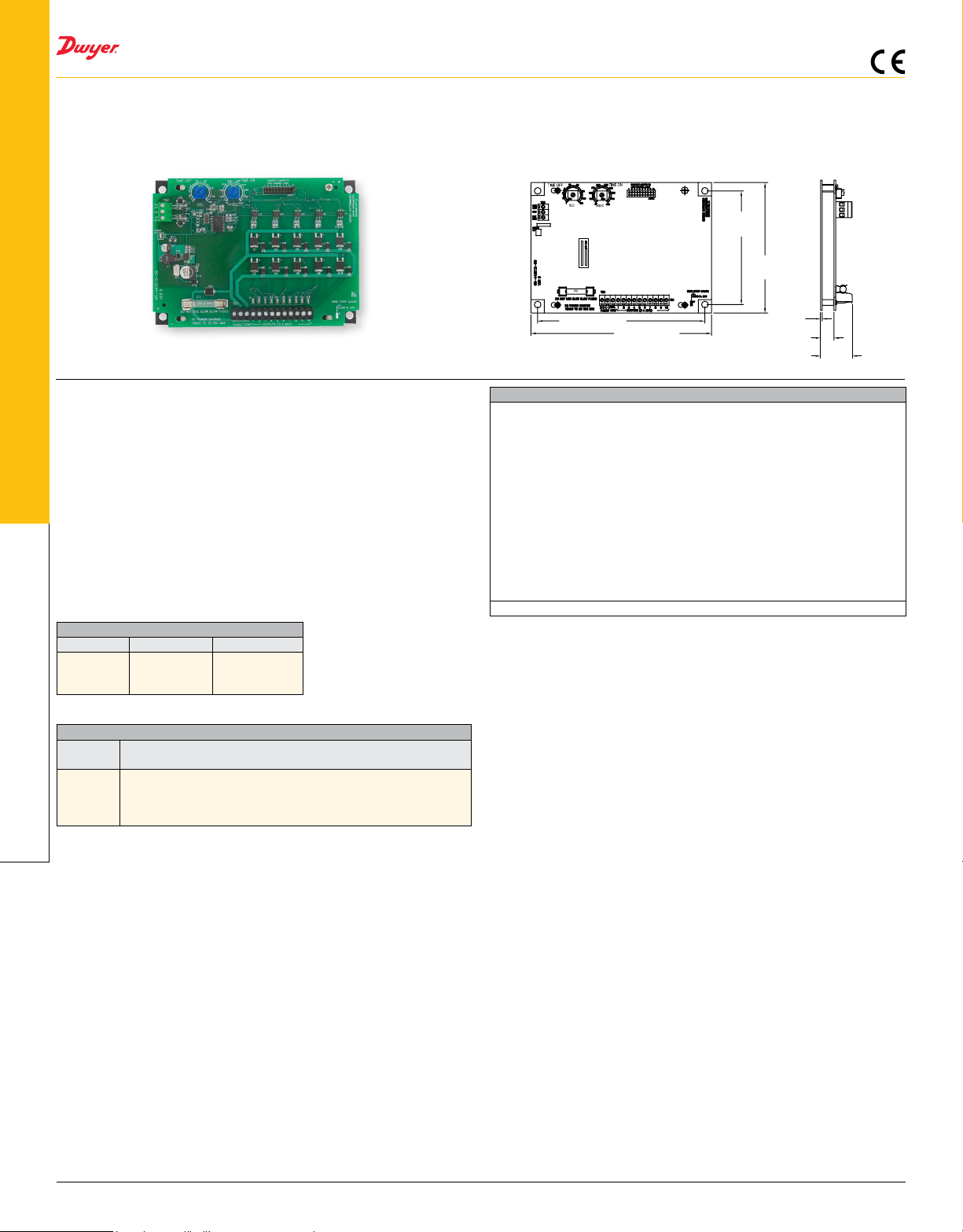

SERIES DCT500ADC
LOW COST TIMER CONTROLLER
For Low Voltage Applications
PROCESS CONTROL
6-1/4 [158.75]
6-3/4 [171.45]
4-1/4
[107.95]
4-7/8
[123.83]
1/16
[1.59]
1/2
[12.70]
1-3/16
The Series DCT500ADC Low Cost Timer Controller is designed to provide
continuous or on-demand cleaning for 10-35 V powered receivers and pulse jet
systems. It is available in either 4, 6, or 10 channels, and each unit is the same size,
minimizing enclosure space and reducing overall system installation cost. For added
safety, the control circuitry including the control inputs are isolated from the line voltage.
BENEFITS/FEATURES
• Easy to mount panel versions reducing installation time
• Built in wire strip gauge for ease of installation
• Optional weather proof housing for harsh environments
APPLICATIONS
• Dust collection
• Pneumatic conveying
• Cement batch plants
MODEL CHART
Model Description No. of Channels
DCT504ADC
DCT506ADC
DCT510ADC
Timer Controllers
OPTIONS
To order
add sufx: Description
-L
-WP
Timer controller
Timer controller
Timer controller
Mounting bracket for eld retrots: 8-1/4˝ x 6-1/4˝ (209.55 mm x
158.75 mm)
Weatherproof housing: standard models
Weatherproof housing: with option -L mounting bracket
4
6
10
SPECIFICATIONS*
Output Channels: 4, 6, and 10 channels.
Power Requirements: 10-35 VDC.
Power Consumption: 0.6 W.
Solenoid Supply: 3 A max per channel.
Fuse: Type 3 AG, 3 A @ 250 VAC.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Storage Temperature Limits: -40 to 176°F (-40 to 80°C).
On Time: 50 ms to 500 ms.
On Time Accuracy: ±10 ms.
On Time Stability: < ±1 ms.
Off Time: 1 s to 180 s.
Off Time Accuracy: ±5% of setting.
Weight: 9 oz (255 g).
Compliance: CE.
*Additional specications on IOM.
DWYER INSTRUMENTS, LLC | dwyer-inst.com370
