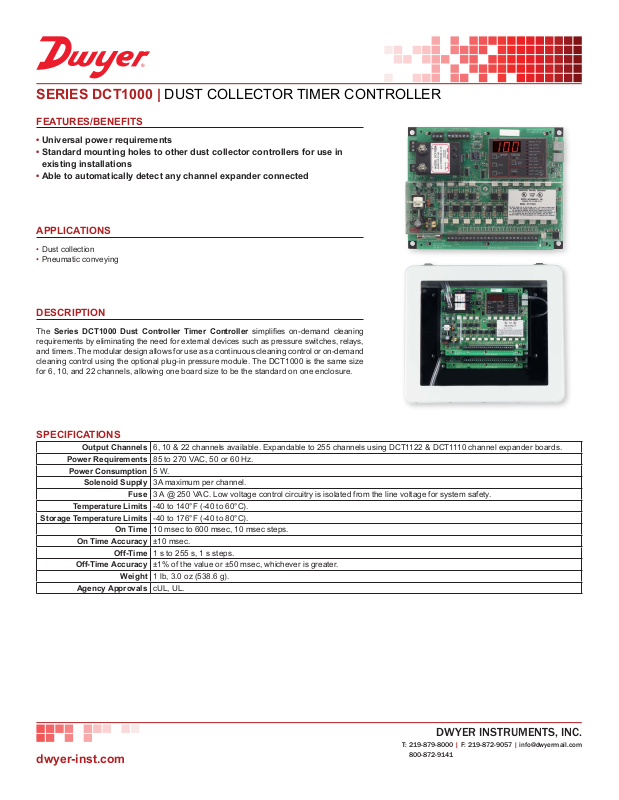

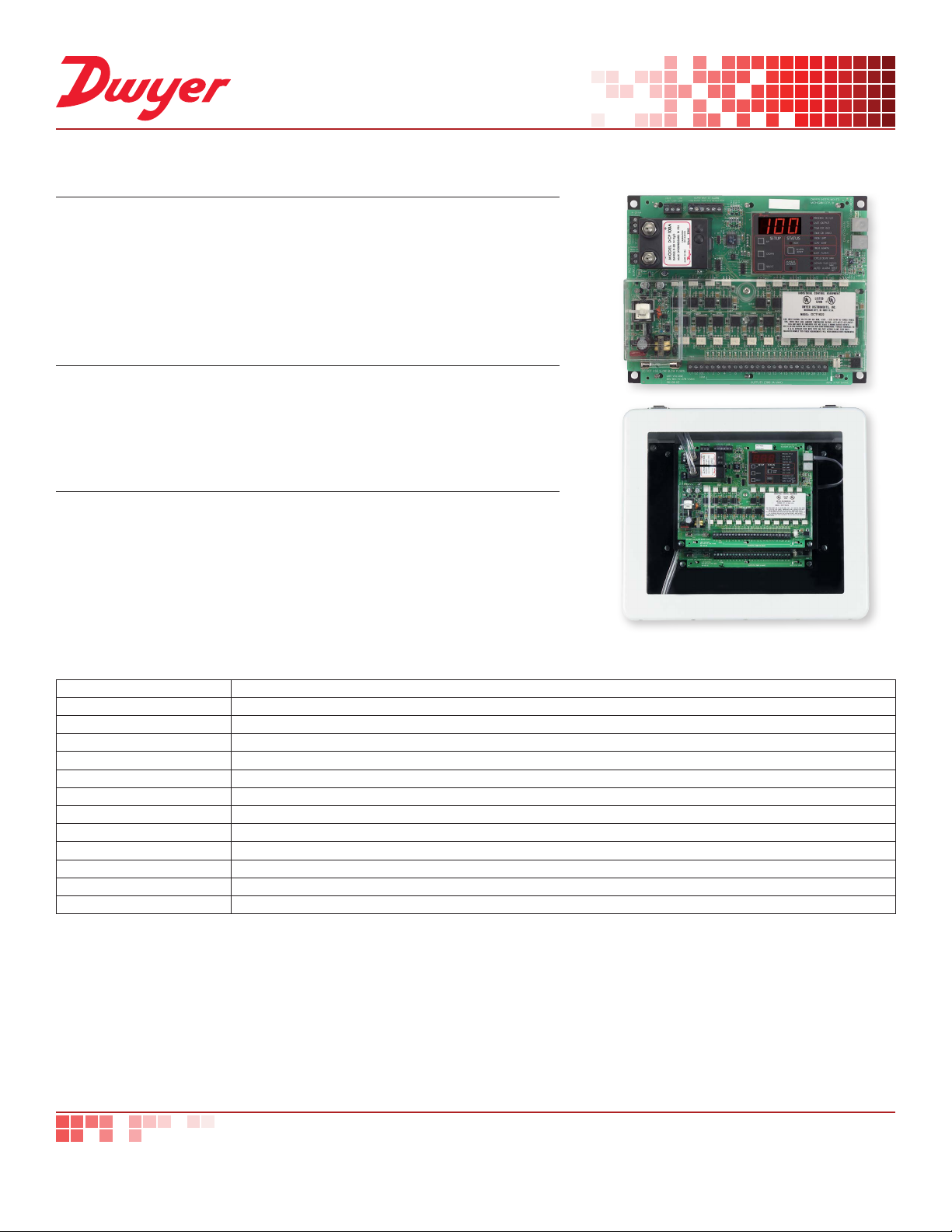

SERIES DCT1000 | DUST COLLECTOR TIMER CONTROLLER
FEATURES/BENEFITS
• Universal power requirements
• Standard mounting holes to other dust collector controllers for use in
existing installations
• Able to automatically detect any channel expander connected
APPLICATIONS
• Dust collection
• Pneumatic conveying
DESCRIPTION
The Series DCT1000 Dust Controller Timer Controller simplies on-demand cleaning
requirements by eliminating the need for external devices such as pressure switches, relays,
and timers. The modular design allows for use as a continuous cleaning control or on-demand
cleaning control using the optional plug-in pressure module. The DCT1000 is the same size
for 6, 10, and 22 channels, allowing one board size to be the standard on one enclosure.
SPECIFICATIONS
Output Channels 6, 10 & 22 channels available. Expandable to 255 channels using DCT1122 & DCT1110 channel expander boards.
Power Requirements 85 to 270 VAC, 50 or 60 Hz.
Power Consumption 5 W.
Solenoid Supply 3A maximum per channel.
Fuse 3 A @ 250 VAC. Low voltage control circuitry is isolated from the line voltage for system safety.
Temperature Limits -40 to 140°F (-40 to 60°C).
Storage Temperature Limits -40 to 176°F (-40 to 80°C).
On Time 10 msec to 600 msec, 10 msec steps.
On Time Accuracy ±10 msec.
Off-Time 1 s to 255 s, 1 s steps.
Off-Time Accuracy ±1% of the value or ±50 msec, whichever is greater.
Weight 1 lb, 3.0 oz (538.6 g).
Agency Approvals cUL, UL.
dwyer-inst.com
DWYER INSTRUMENTS, INC.
T: 219-879-8000 | F: 219-872-9057 | [email protected]
800-872-9141
Page 2
®

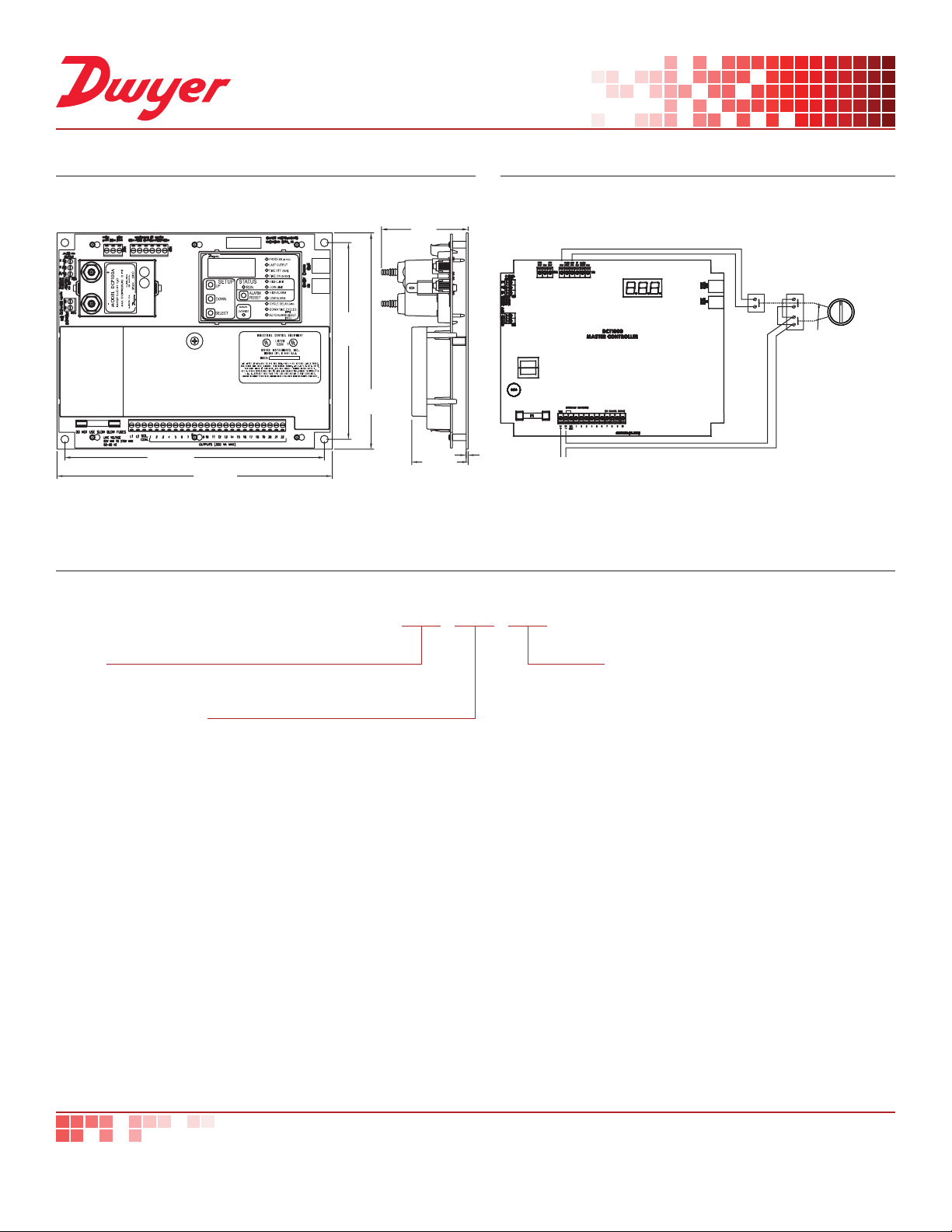

DIMENSIONS WIRING DIAGRAM
2-3/4
L1 LINE
L2 INPUT
MODE
DEMAND
[69.85]
6-1/4
[158.75]
6-7/8
[174.62]
8-1/4
[209.55]
8-3/4
[222.25]
1-13/16
[46.04]
HOW TO ORDER
Use the bold characters from the chart below to construct a product code.
DCT10 06 -WP
SERIES
DCT10: Dust Collector Timer Controller
DCT11: Channel Expander
NUMBER OF CHANNELS
06: 6 channels
10: 10 channels
22: 22 channels
1/16
[1.59]
SELECTION
SWITCH
REAR
FRONT
SECTION
SECTION
OFF
CONTINUOUS
ON
OPTIONS
-AT: Aluminum tag
-COC: Certicate of conformance
-COO: Certicate of US origin
-DCP100A: Pressure module 10 in w.c.
-ST: Stainless steel tag
-DCP200A: Pressure module 20 in w.c.
-WP: Weatherproof housing only
-WPP: Weatherproof housing w/ pressure ports
-WPPS: Weatherproof housing w/ pressure ports,
three position rotary switch
-EXPL: Explosion-proof housing
Important Notice: Dwyer Instruments, Inc. reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the
latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
DWYER INSTRUMENTS, INC.
T: 219-879-8000 | F: 219-872-9057 | [email protected]
dwyer-inst.com
800-872-9141
DS-DCT1000 | 8/18
