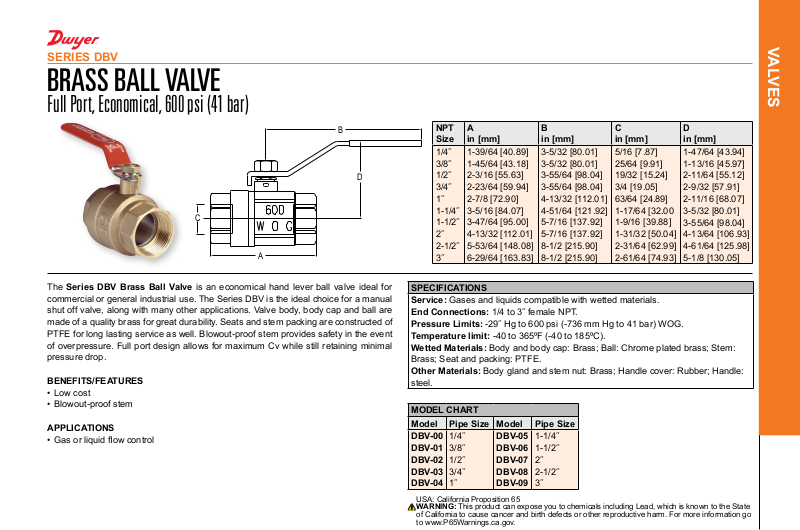

SERIES DBV

BRASS BALL VALVE

Full Port, Economical, 600 psi (41 bar)

VALVES

NPT
SizeAin [mm]

1/4˝

1-39/64[40.89]

3/8˝

1-45/64[43.18]

1/2˝

D

3/4˝
1˝
1-1/4˝
1-1/2˝
2˝
2-1/2˝
3˝

2-3/16[55.63]
2-23/64[59.94]
2-7/8[72.90]
3-5/16[84.07]
3-47/64[95.00]
4-13/32[112.01]
5-53/64[148.08]
6-29/64[163.83]

B
in [mm]

3-5/32[80.01]
3-5/32[80.01]
3-55/64[98.04]
3-55/64[98.04]
4-13/32[112.01]
4-51/64[121.92]
5-7/16[137.92]
5-7/16[137.92]
8-1/2[215.90]
8-1/2[215.90]

C
in [mm]

5/16[7.87]
25/64[9.91]
19/32[15.24]
3/4[19.05]
63/64[24.89]
1-17/64[32.00
1-9/16[39.88]
1-31/32[50.04]
2-31/64[62.99]
2-61/64[74.93]

D
in [mm]

1-47/64[43.94]
1-13/16[45.97]
2-11/64[55.12]
2-9/32[57.91]
2-11/16[68.07]
3-5/32[80.01]
3-55/64[98.04]
4-13/64[106.93]
4-61/64[125.98]
5-1/8[130.05]

The Series DBV Brass Ball Valve is an economical hand lever ball valve ideal for
commercial or general industrial use. The Series DBV is the ideal choice for a manual
shut off valve, along with many other applications. Valve body, body cap and ball are
made of a quality brass for great durability. Seats and stem packing are constructed of
PTFE for long lasting service as well. Blowout-proof stem provides safety in the event
of overpressure. Full port design allows for maximum Cv while still retaining minimal
pressure drop.

BENEFITS/FEATURES

• Low cost

• Blowout-proof stem

APPLICATIONS

• Gasorliquidowcontrol

SPECIFICATIONS
Service: Gases and liquids compatible with wetted materials.
End Connections: 1/4to3˝femaleNPT.
Pressure Limits: -29˝Hgto600psi(-736mmHgto41bar)WOG.
Temperature limit:-40to365ºF(-40to185ºC).
Wetted Materials: Body and body cap: Brass; Ball: Chrome plated brass; Stem:

Brass; Seat and packing: PTFE.

Other Materials: Bodyglandandstemnut:Brass;Handlecover:Rubber;Handle:

steel.

MODEL CHART

Model Pipe Size Model Pipe Size
DBV-00

1/4˝

DBV-01

3/8˝

DBV-02

1/2˝

DBV-03

3/4˝

DBV-04

1˝

USA:CaliforniaProposition65

WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer and birth defects or other reproductive harm. For more information go

towww.P65Warnings.ca.gov.

DBV-05
DBV-06
DBV-07
DBV-08
DBV-09

1-1/4˝
1-1/2˝
2˝
2-1/2˝
3˝
