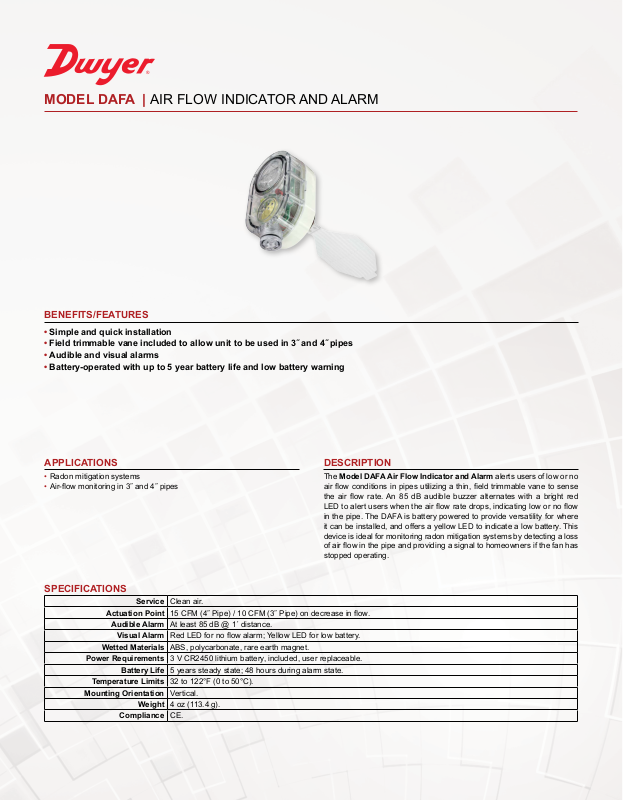

MODEL DAFA | AIR FLOW INDICATOR AND ALARM

BENEFITS/FEATURES

• Simple and quick installation

•Fieldtrimmablevaneincludedtoallowunittobeusedin3˝and4˝pipes

• Audible and visual alarms

• Battery-operated with up to 5 year battery life and low battery warning

APPLICATIONS

• Radon mitigation systems

• Air-ow monitoring in 3˝ and 4˝ pipes

SPECIFICATIONS

Service Clean air.

Actuation Point 15 CFM (4˝ Pipe) / 10 CFM (3˝ Pipe) on decrease in ow.

Audible Alarm At least 85 dB @ 1´ distance.

Visual Alarm Red LED for no ow alarm; Yellow LED for low battery.

Wetted Materials ABS, polycarbonate, rare earth magnet.

Power Requirements 3 V CR2450 lithium battery, included, user replaceable.

Battery Life 5 years steady state; 48 hours during alarm state.

Temperature Limits 32 to 122°F (0 to 50°C).

Mounting Orientation Vertical.

Weight 4 oz (113.4 g).

Compliance CE.

DESCRIPTION

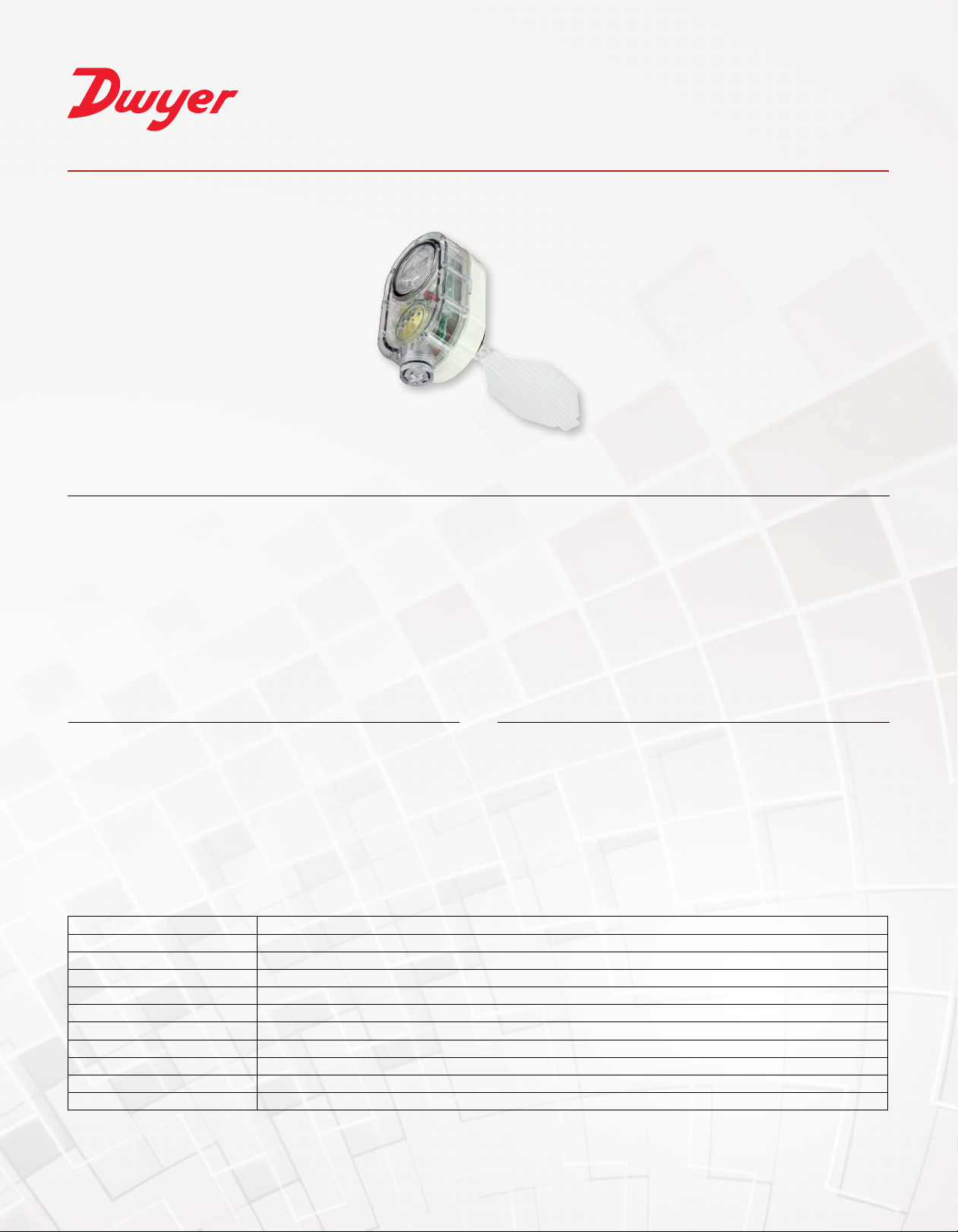

The Model DAFA Air Flow Indicator and Alarm alerts users of low or no

air ow conditions in pipes utilizing a thin, eld trimmable vane to sense the air ow rate. An 85 dB audible buzzer alternates with a bright red LED to alert users when the air ow rate drops, indicating low or no ow in the pipe. The DAFA is battery powered to provide versatility for where it can be installed, and offers a yellow LED to indicate a low battery. This device is ideal for monitoring radon mitigation systems by detecting a loss of air ow in the pipe and providing a signal to homeowners if the fan has stopped operating.

Page 2

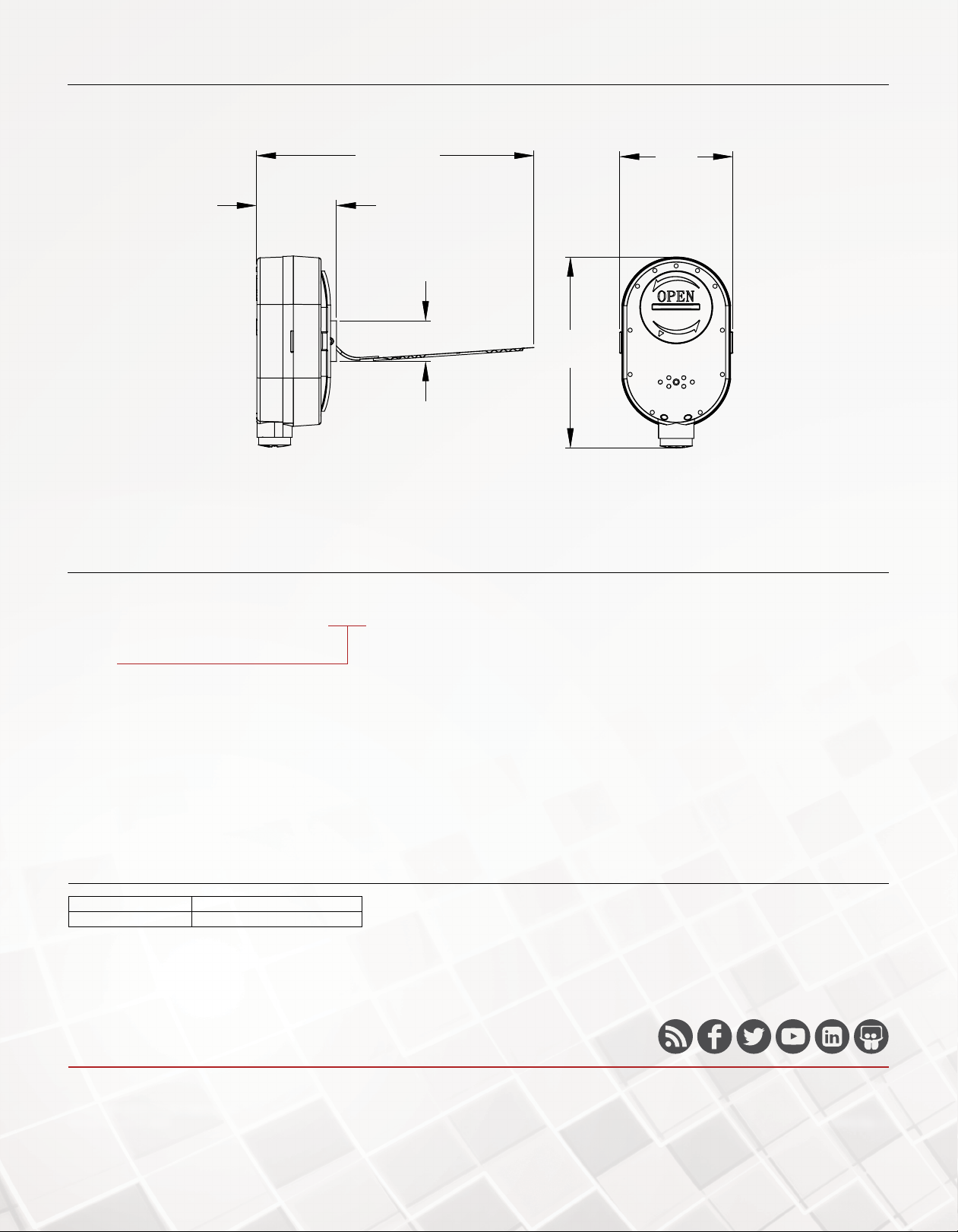

DIMENSIONS

5-1/8 [130.00]

1-15/32

[37.47]

3/4 [19.05]

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

3-33/64

[89.32]

2-3/32 [53.00]

DAFA-1

MODEL

DAFA-1 - Air ow alarm and indicator

ACCESSORIES

Model Description A-DAFA-VANE Replacement trimmable vane
