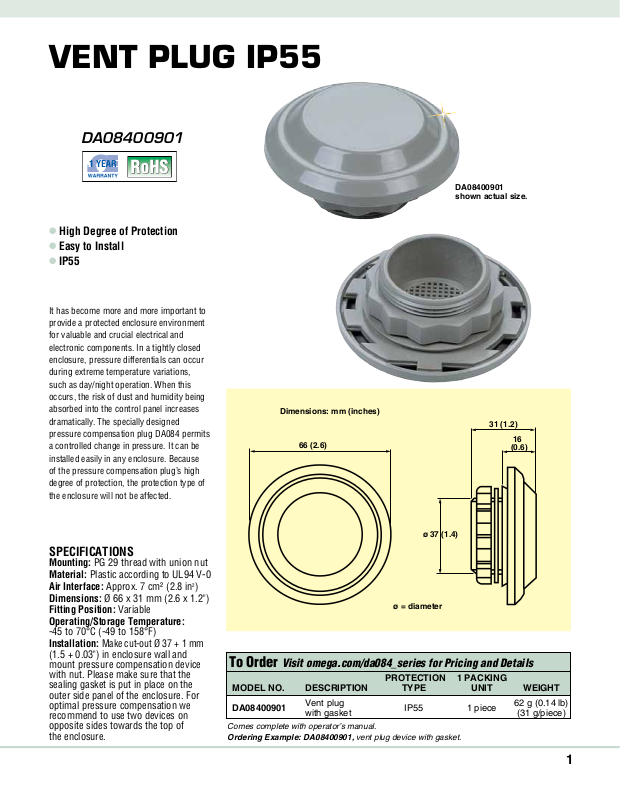

VENT PLUG IP55
DA08400901
l
High Degree of Protection
l
Easy to Install
l
IP55
It has become more and more important to
provide a protected enclosure environment
for valuable and crucial electrical and
electronic components. In a tightly closed
enclosure, pressure differentials can occur
during extreme temperature variations,
such as day/night operation. When this
occurs, the risk of dust and humidity being
absorbed into the control panel increases
dramatically. The specially designed
pressure compensation plug DA084 permits
a controlled change in pressure. It can be
installed easily in any enclosure. Because
of the pressure compensation plug’s high
degree of protection, the protection type of
the enclosure will not be affected.
Dimensions: mm (inches)
66 (2.6)
DA08400901
shown actual size.
31 (1.2)
16
(0.6)
SPECIFICATIONS
Mounting: PG 29 thread with union nut
Material: Plastic according to UL94 V-0
Air Interface: Approx. 7 cm² (2.8 in2)
Dimensions: Ø 66 x 31 mm (2.6 x 1.2")
Fitting Position: Variable
Operating/Storage Temperature:
-45 to 70°C (-49 to 158°F)
Installation:
(1.5 + 0.03") in enclosure wall and
mount pressure compensation device
with nut. Please make sure that the
sealing gasket is put in place on the
outer side panel of the enclosure. For
optimal pressure compensation we
recommend to use two devices on
opposite sides towards the top of
the enclosure.
Make cut-out Ø 37 + 1 mm
ø 37 (1.4)
ø = diameter
To Order Visit omega.com/da084_series for Pricing and Details
PROTECTION 1 PACKING
MODEL NO. DESCRIPTION TYPE UNIT WEIGHT
DA08400901
with gasket (31 g/piece)
Comes complete with operator’s manual.
Ordering Example: DA08400901, vent plug device with gasket.
Vent plug
IP55 1 piece
62 g (0.14 lb)
1
