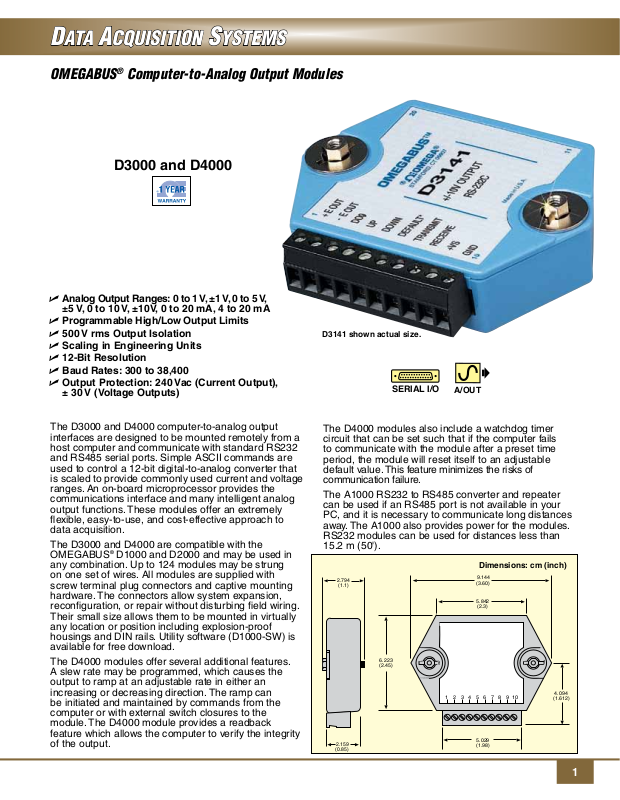

OMEGABUS® Computer-to-Analog Output Modules
1 2 3 4 5 6 7 8 9 10
6.223
(2.45)
9.144
(3.60)
5.842
(2.3)
4.094
(1.612)
5.029
(1.98)
2.794
(1.1)
2.159
(0.85)
1 2 3 4 5 6 7 8 9 10
6.223
(2.45)
9.144
(3.60)
5.842
(2.3)
4.094
(1.612)
5.029
(1.98)
D3000 and D4000
U Analog Output Ranges: 0 to 1 V, ±1 V, 0 to 5 V,
±5 V, 0 to 10 V, ±10V, 0 to 20 mA, 4 to 20 mA
U Programmable High/Low Output Limits
U 500 V rms Output Isolation
U Scaling in Engineering Units
U 12-Bit Resolution
U Baud Rates: 300 to 38,400
U Output Protection: 240 Vac (Current Output),
± 30 V (Voltage Outputs)
D3141 shown actual size.
SERIAL I/O
A/OUT
The D3000 and D4000 computer-to-analog output
interfaces are designed to be mounted remotely from a
host computer and communicate with standard RS232
and RS485 serial ports. Simple ASCII commands are
used to control a 12-bit digital-to-analog converter that
is scaled to provide commonly used current and voltage
ranges. An on-board microprocessor provides the
communications interface and many intelligent analog
output functions. These modules offer an extremely
flexible, easy-to-use, and cost-effective approach to
data acquisition.
The D3000 and D4000 are compatible with the
OMEGABUS
®
D1000 and D2000 and may be used in
any combination. Up to 124 modules may be strung
on one set of wires. All modules are supplied with
screw terminal plug connectors and captive mounting
hardware. The connectors allow system expansion,
reconfiguration, or repair without disturbing field wiring.
Their small size allows them to be mounted in virtually
any location or position including explosion-proof
housings and DIN rails. Utility software (D1000-SW) is
available for free download.
The D4000 modules offer several additional features.
A slew rate may be programmed, which causes the
output to ramp at an adjustable rate in either an
increasing or decreasing direction. The ramp can
be initiated and maintained by commands from the
computer or with external switch closures to the
module. The D4000 module provides a readback
feature which allows the computer to verify the integrity
of the output.
The D4000 modules also include a watchdog timer
circuit that can be set such that if the computer fails
to communicate with the module after a preset time
period, the module will reset itself to an adjustable
default value. This feature minimizes the risks of
communication failure.
The A1000 RS232 to RS485 converter and repeater
can be used if an RS485 port is not available in your
PC, and it is necessary to communicate long distances
away. The A1000 also provides power for the modules.
RS232 modules can be used for distances less than
15.2 m (50').
Dimensions: cm (inch)
1
Page 2

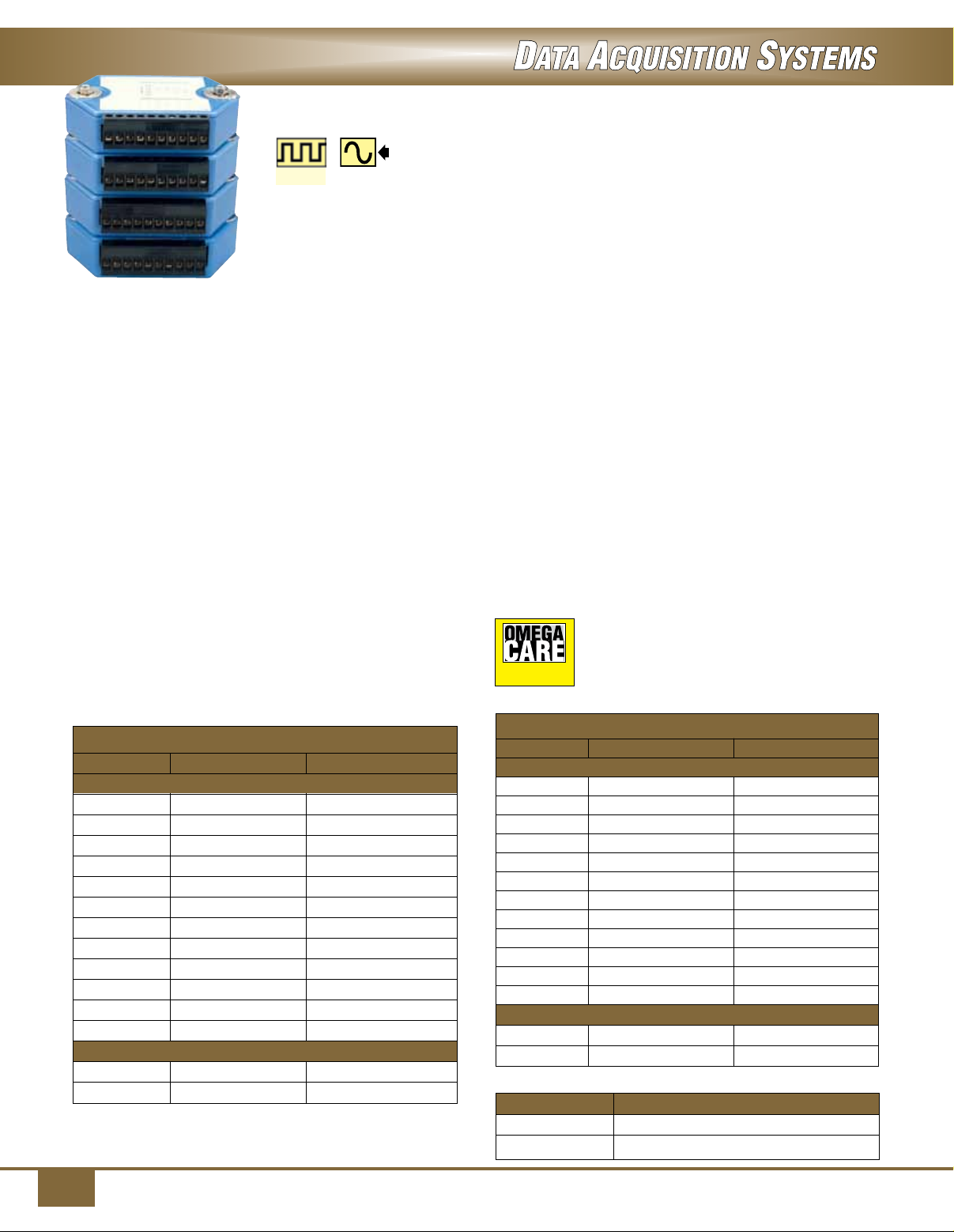

DI/O
The D3000 and D4000
modules may be stacked
for multiple outputs
A/IN
Common Specifications, D3000 and D4000
ANALOG OUTPUT
• Single channel analog output
Voltage: 0 to 1V, ±1V, 0 to 5V, ±5V, 0 to 10V, ±10V
Current: 0 to 20 mA
• Input isolation to 500 V rms
• 12-bit measurement resolution
• Accuracy (integral and differential non-linearity):
0.1% FSR (maximum)
• Zero drift: ±30 mV/°C (voltage output)
±1.0mA/°C (current output)
• 1000 conversions per second
• Settling time to 0.1% FS 300 ms typical
(1 ms maximum)
• Programmable output slew rate: 0.01V/s (mA/s)
to 10,000 V/s (mA/s) (D4000 only)
• Autozero and autocalibration-no adjustment pots
• Voltage compliance: ±12V
• Output current, short circuit current: 5 mA minimum,
10 mA maximum
ANALOG OUTPUT READBACK (D4000)
• 8-bit analog-to-digital converter
DIGITAL INPUTS
• Voltage levels: ±30V without damage
• Three digital inputs (all models)
• Switching levels: High, 3.5V minimum, low,
1.0V maximum
• Internal pull-up resistors for direct switch input
COMMUNICATIONS
• RS232, RS485
• Up to 124 modules with A1000 converter/repeater,
32 without A1000
• User selectable channel address (via software command)
• Selectable baud rates: 300, 600, 1200, 2400, 4800,
9600, 19.2K, 38.4K
• ASCII format command/response protocol
• Parity: odd, even, none
• All communications setups (address, baud rate,parity)
stored in nonvolatile memory using EEPROM
• Checksum can be added to any command or response
• Communications distance up to 10,000 feet with
RS485 modules
Power Requirements: Unregulated 10V to 30 Vdc,
0.75 W maximum (voltage output), 1.0 W maximum
(current output)
Case: ABS with captive mounting hardware
Connectors: Screw terminal barrier plug (supplied)
Temperature Range
Operating: -25 to 70°C (-13 to 158°F)
Storage: -25 to 85°C (-13 to 185°F)
Relative Humidity: 0 to 95% non-condensing
SM
OMEGACARESM extended warranty program is
available for models shown on this page. Ask your
Extended Warranty
Program
sales representative for full details when placing
an order. OMEGACARE
equivalent loaners.
SM
covers parts, labor and
D3000 Series Output Module
To Order
Model No. Output Range Input
Voltage Output
D3121 ± 1V RS232C
D3122 ± 1V RS485
D3131 ± 5V RS232C
D3132 ± 5V RS485
D3141 ± 10V RS232C
D3142 ± 10V RS485
D3161 0 to 1V RS232C
D3162 0 to 1V RS485
D3171 0 to 5V RS232C
D3172 0 to 5V RS485
D3181 0 to 10V RS232C
D3182 0 to 10V RS485
Current Output
D3251 0 to 20 mA RS232C
D3252 0 to 20 mA RS485
Comes complete operator’s manual and Windows setup software on CD.
D1000 Series digital transmitters are also available with Modbus RTU
protocol. To order transmitters Modbus RTU protocol, add suffix “M” at
the end of the model number, no additional charge.
D4000 Series Output Module
To Order
Model No. Output Range Input
Voltage Output
D4121 ± 1V RS232C
D4122 ± 1V RS485
D4131 ± 5V RS232C
D4132 ± 5V RS485
D4141 ± 10V RS232C
D4142 ± 10V RS485
D4161 0 to 1V RS232C
D4162 0 to 1V RS485
D4171 0 to 5V RS232C
D4172 0 to 5V RS485
D4181 0 to 10V RS232C
D4182 0 to 10V RS485
Current Output
D4251 0 to 20 mA RS232C
D4252 0 to 20 mA RS485
Accessories
Model No. Description
A1000 RS232 to RS485 converter
A1000-CABLE RS232 9-pin cable
2
