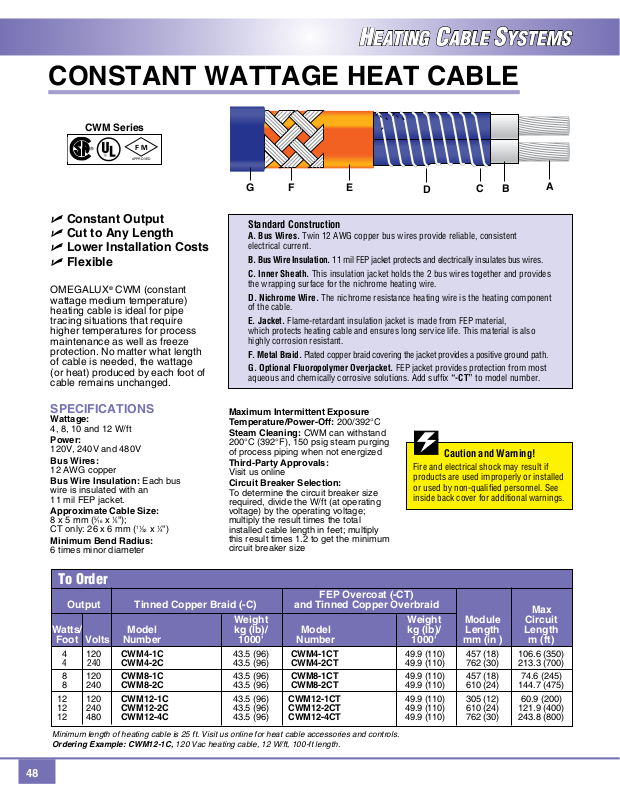

CONSTANT WATTAGE HEAT CABLE
ARTWORK/PRODUCT ART/HEATERS/H-CWM/E ARTWORK
CWM Series
FM
APPROVED
U Constant Output
U Cut to Any Length
U Lower Installation Costs
U Flexible
OMEGALUX® CWM (constant
wattage medium temperature)
heating cable is ideal for pipe
tracing situations that require
higher temperatures for process
maintenance as well as freeze
protection. No matter what length
of cable is needed, the wattage
(or heat) produced by each foot of
cable remains unchanged.
SPECIFICATIONS
Wattage:
4, 8, 10 and 12 W/ft
Power:
120V, 240V and 480V
Bus Wires:
12 AWG copper
Bus Wire Insulation: Each bus
wire is insulated with an
11 mil FEP jacket.
Approximate Cable Size:
8 x 5 mm (
CT only: 26 x 6 mm (11⁄32 x 1⁄4")
Minimum Bend Radius:
6 times minor diameter
5
⁄16 x 1⁄5");
G
F E
B
D
C

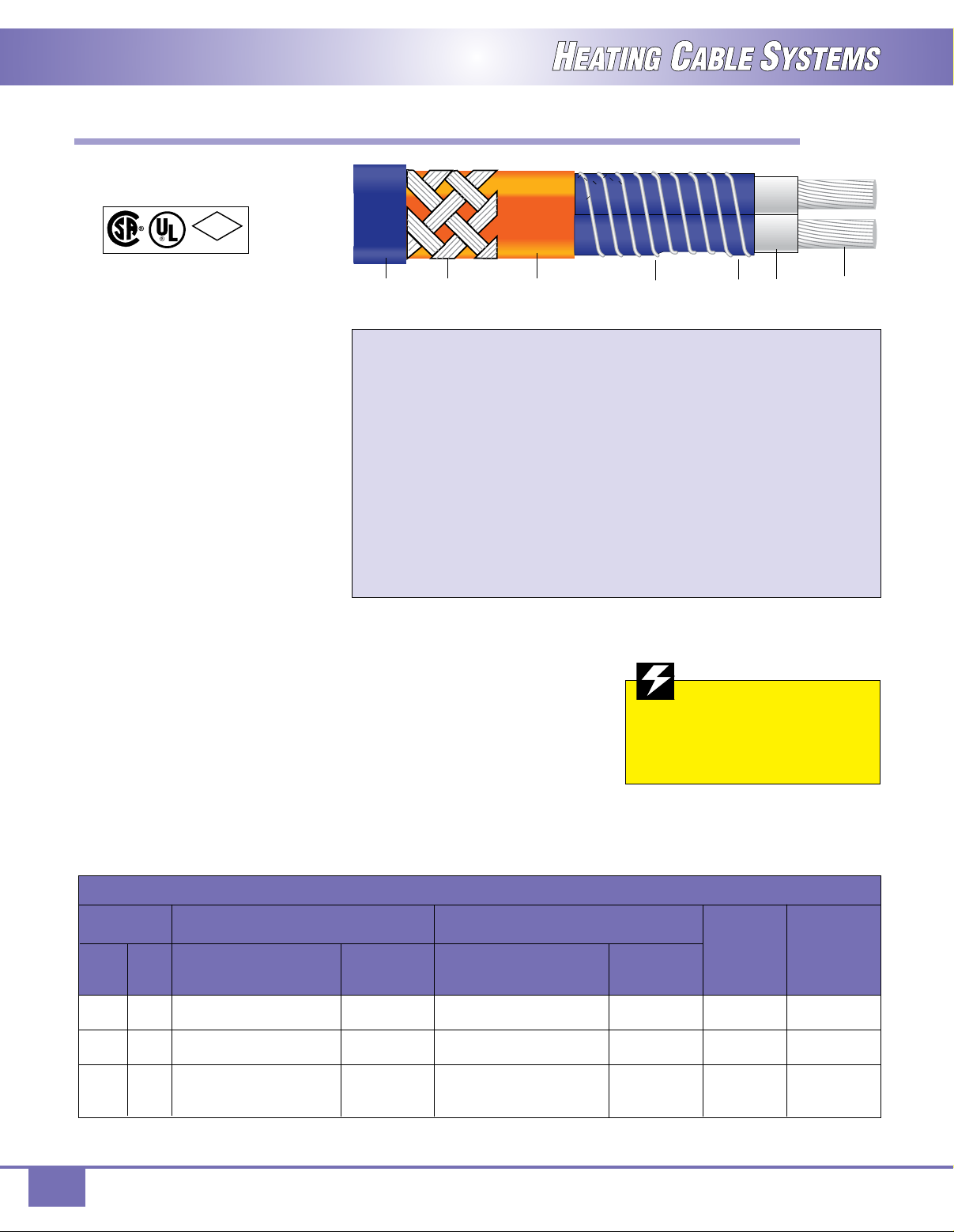

Standard Construction
A. Bus Wires. Twin 12 AWG copper bus wires provide reliable, consistent
electrical current.
B. Bus Wire Insulation. 11 mil FEP jacket protects and electrically insulates bus wires.
C. Inner Sheath. This insulation jacket holds the 2 bus wires together and provides
the wrapping surface for the nichrome heating wire.
D. Nichrome Wire. The nichrome resistance heating wire is the heating component
of the cable.
E. Jacket. Flame-retardant insulation jacket is made from FEP material,
which protects heating cable and ensures long service life. This material is also
highly corrosion resistant.
F. Metal Braid. Plated copper braid covering the jacket provides a positive ground path.
G. Optional Fluoropolymer Overjacket. FEP jacket provides protection from most
aqueous and chemically corrosive solutions. Add suffix “-CT” to model number.
Maximum Intermittent Exposure
Temperature/Power-Off: 200/392°C
Steam Cleaning: CWM can withstand
200°C (392°F), 150 psig steam purging
of process piping when not energized
Third-Party Approvals:
Visit us online
Circuit Breaker Selection:
To determine the circuit breaker size
required, divide the W/ft (at operating
voltage) by the operating voltage;
multiply the result times the total
installed cable length in feet; multiply
this result times 1.2 to get the minimum
circuit breaker size
Caution and Warning!
Fire and electrical shock may result if
products are used improperly or installed
or used by non-qualified personnel. See
inside back cover for additional warnings.
A
To Order
FEP Overcoat (-CT)
Output Tinned Copper Braid (-C) and Tinned Copper Overbraid
Weight Weight Module Circuit
Watts/ Model kg (lb)/ Model kg (lb)/ Length Length
Foot Volts Number 1000' Number 1000' mm (in ) m (ft)
4 120 CWM4-1C 43.5 (96) CWM4-1CT 49.9 (110) 457 (18) 106.6 (350)
4 240 CWM4-2C 43.5 (96) CWM4-2CT 49.9 (110) 762 (30) 213.3 (700)
8 120 CWM8-1C 43.5 (96) CWM8-1CT 49.9 (110) 457 (18) 74.6 (245)
8 240 CWM8-2C 43.5 (96) CWM8-2CT 49.9 (110) 610 (24) 144.7 (475)
12 120 CWM12-1C 43.5 (96) CWM12-1CT 49.9 (110) 305 (12) 60.9 (200)
12 240 CWM12-2C 43.5 (96) CWM12-2CT 49.9 (110) 610 (24) 121.9 (400)
12 480 CWM12-4C 43.5 (96) CWM12-4CT 49.9 (110) 762 (30) 243.8 (800)
Minimum length of heating cable is 25 ft. Visit us online for heat cable accessories and controls.
Ordering Example: CWM12-1C, 120 Vac heating cable, 12 W/ft, 100-ft length.
48
