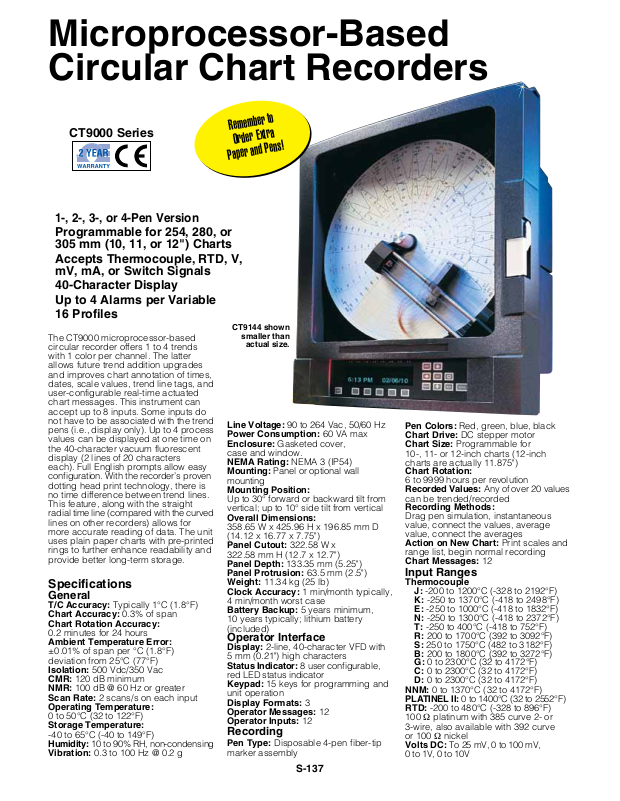

Microprocessor-Based
Circular Chart Recorders
CT9000 Series
Remember to
Order Extra
Paper and Pens!
U 1-, 2-, 3-, or 4-Pen Version
U Programmable for 254, 280, or
305 mm (10, 11, or 12") Charts
U Accepts Thermocouple, RTD, V,
mV, mA, or Switch Signals
U 40-Character Display
U Up to 4 Alarms per Variable
U 16 Profiles

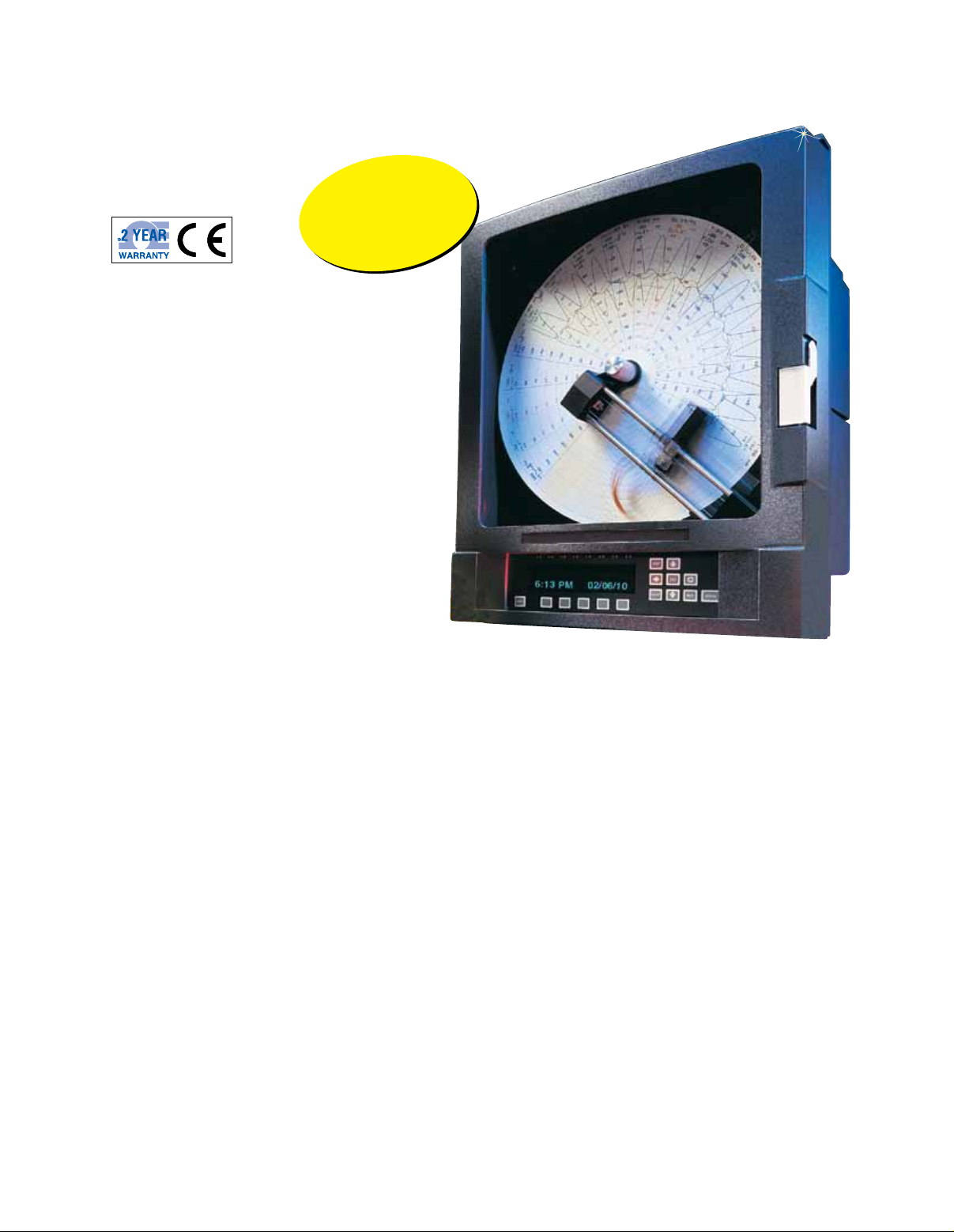

CT9144 shown
The CT9000 microprocessor-based
circular recorder offers 1 to 4 trends
with 1 color per channel. The latter
allows future trend addition upgrades
and improves chart annotation of times,
dates, scale values, trend line tags, and
user-configurable real-time actuated
chart messages. This instrument can
accept up to 8 inputs. Some inputs do
not have to be associated with the trend
pens (i.e., display only). Up to 4 process
values can be displayed at one time on
the 40-character vacuum fluorescent
display (2 lines of 20 characters
each). Full English prompts allow easy
configuration. With the recorder’s proven
dotting head print technology, there is
no time difference between trend lines.
This feature, along with the straight
radial time line (compared with the curved
lines on other recorders) allows for
more accurate reading of data. The unit
uses plain paper charts with pre-printed
rings to further enhance readability and
provide better long-term storage.
Specifications
General
T/C Accuracy: Typically 1°C (1.8°F)
Chart Accuracy: 0.3% of span
Chart Rotation Accuracy:
0.2 minutes for 24 hours
Ambient Temperature Error:
±0.01% of span per °C (1.8°F)
deviation from 25°C (77°F)
Isolation: 500 Vdc/350 Vac
CMR: 120 dB minimum
NMR: 100 dB @ 60 Hz or greater
Scan Rate: 2 scans/s on each input
Operating Temperature:
0 to 50°C (32 to 122°F)
Storage Temperature:
-40 to 65°C (-40 to 149°F)
Humidity: 10 to 90% RH, non-condensing
Vibration: 0.3 to 100 Hz @ 0.2 g
Line Voltage: 90 to 264 Vac, 50/60 Hz
Power Consumption: 60 VA max
Enclosure: Gasketed cover,
case and window.
NEMA Rating: NEMA 3 (IP54)
Mounting: Panel or optional wall
mounting
Mounting Position:
Up to 30° forward or backward tilt from
vertical; up to 10° side tilt from vertical
Overall Dimensions:
358.65 W x 425.96 H x 196.85 mm D
(14.12 x 16.77 x 7.75")
Panel Cutout: 322.58 W x
322.58 mm H (12.7 x 12.7")
Panel Depth: 133.35 mm (5.25")
Panel Protrusion: 63.5 mm (2.5")
Weight: 11.34 kg (25 lb)
Clock Accuracy: 1 min/month typically,
4 min/month worst case
Battery Backup: 5 years minimum,
10 years typically; lithium battery
(included)
Operator Interface
Display: 2-line, 40-character VFD with
5 mm (0.21") high characters
Status Indicator: 8 user configurable,
red LED status indicator
Keypad: 15 keys for programming and
unit operation
Display Formats: 3
Operator Messages: 12
Operator Inputs: 12
Recording
Pen Type: Disposable 4-pen fiber-tip
marker assembly
smaller than
actual size.
Pen Colors: Red, green, blue, black
Chart Drive: DC stepper motor
Chart Size: Programmable for
10-, 11- or 12-inch charts (12-inch
charts are actually 11.875")
Chart Rotation:
6 to 9999 hours per revolution
Recorded Values: Any of over 20 values
can be trended/recorded
Recording Methods:
Drag pen simulation, instantaneous
value, connect the values, average
value, connect the averages
Action on New Chart: Print scales and
range list, begin normal recording
Chart Messages: 12
Input Ranges
Thermocouple
J: -200 to 1200°C (-328 to 2192°F)
K: -250 to 1370°C (-418 to 2498°F)
E: -250 to 1000°C (-418 to 1832°F)
N: -250 to 1300°C (-418 to 2372°F)
T: -250 to 400°C (-418 to 752°F)
R: 200 to 1700°C (392 to 3092°F)
S: 250 to 1750°C (482 to 3182°F)
B: 200 to 1800°C (392 to 3272°F)
G: 0 to 2300°C (32 to 4172°F)
C: 0 to 2300°C (32 to 4172°F)
D: 0 to 2300°C (32 to 4172°F)
NNM: 0 to 1370°C (32 to 4172°F)
PLATINEL II: 0 to 1400°C (32 to 2552°F)
RTD: -200 to 480°C (-328 to 896°F)
100 Ω platinum with 385 curve 2- or
3-wire, also available with 392 curve
or 100 Ω nickel
Volts DC: To 25 mV, 0 to 100 mV,
0 to 1V, 0 to 10V
S-137
Page 2
mA DC: 0 to 20 mA or 4 to 20 mA with
internal 50 Ω shunt
Contact Closure:
Open/closed switch sensing without
external voltages or resistors
Processing: Square root and
exponential functions for linear inputs
Value Cutoff: None, at value, to zero
below value, to zero near zero
Measurement Error: ±0.025% of
measurement span reference accuracy
Cold-Junction Compensation
Accuracy: ±0.2°C @ 25°C
(±0.36°F @ 77°F)
Cold-Junction Compensation
Rejection:
0.04°/° deviation from 25°C (77°F)
Thermocouple Linearization Error:
±0.25°C (1.45°F) typical, ±0.5°C (0.9°F)
worst case with exceptions; RTD: ±0.1°C
(0.18°F) typical, ±0.3°C (0.54°F) worst
case
Sensor Fault Detection: Sensor break
on all T/Cs, RTDs, 1V, 1 to 5V, 4 to
20 mA and mV ranges; sensors high
and low on all inputs, 5% above or
below range
Sensor Break: Up-scale or down-scale
On/Off Outputs
On/Off Actuators:
Any of over 100 digital values/states
can be used to actuate on/off outputs
Relays: SPDT contacts rated
5 A resistive @ 115 Vac
Solid State Relays:
Open-collector output, can provide
40 mA @ 3 Vdc or 20 mA @ 4 Vdc
Pulsed Outputs: 50 ms pulse when
used with totalizer pulsed outputs
Current Outputs
Drivers: Any of 20 values can be used
to drive analog outputs
Output Span:
To 20 mA or 4 to 20 mA, nominal
Resolution:
12 bits based on 0 to 25.6 mA span
Accuracy: ±0.1% of 20 mA span
Compliance: 650 Ω load
Totalizers:
Number: 4 are included in the option
Digits: 9, displayable with or
without commas
Types: Continuous, prelude count
down, and pulse counting
Presets: 1 per totalizer
Pulsed Outputs: Fully configurable
computing capabilities
Derived Variables: 12
Math Functions: Add, subtract,
multiply, divide, average, exponential,
log 10, log e, power 10, power e
Built-In Equations: Linear, polynomial,
°C to °F, °F to °C, linear mass flow, DP
mass flow, BTU, RH, FO, ZrO
Other Functions: High select, low
select, high peak, low peak, track and
hold, 1 of 2 selector, convert actuator
Custom Curves: Four 20-point curves,
usable in multiple calculations
2
Logic Capabilities
Actuators:
Over 100 digital values are accessible
Derived Actuators:
24 combinations of 24 items
Logic Operators:
NOT, OR, AND, parentheses
Timers: 4
Time/Date Combination Actuators: 6
Alarms
Number: Up to 4 alarms for each of
4 process variables
Type: Process high or low,
rate rising or falling
Hysteresis: Fully adjustable
SM
Extended Warranty
Program
OMEGACARESM extended warranty
program is available for models shown on
this page. Ask your sales representative
for full details when placing an order.
OMEGACARE
equivalent loaners.
SM
covers parts, labor and

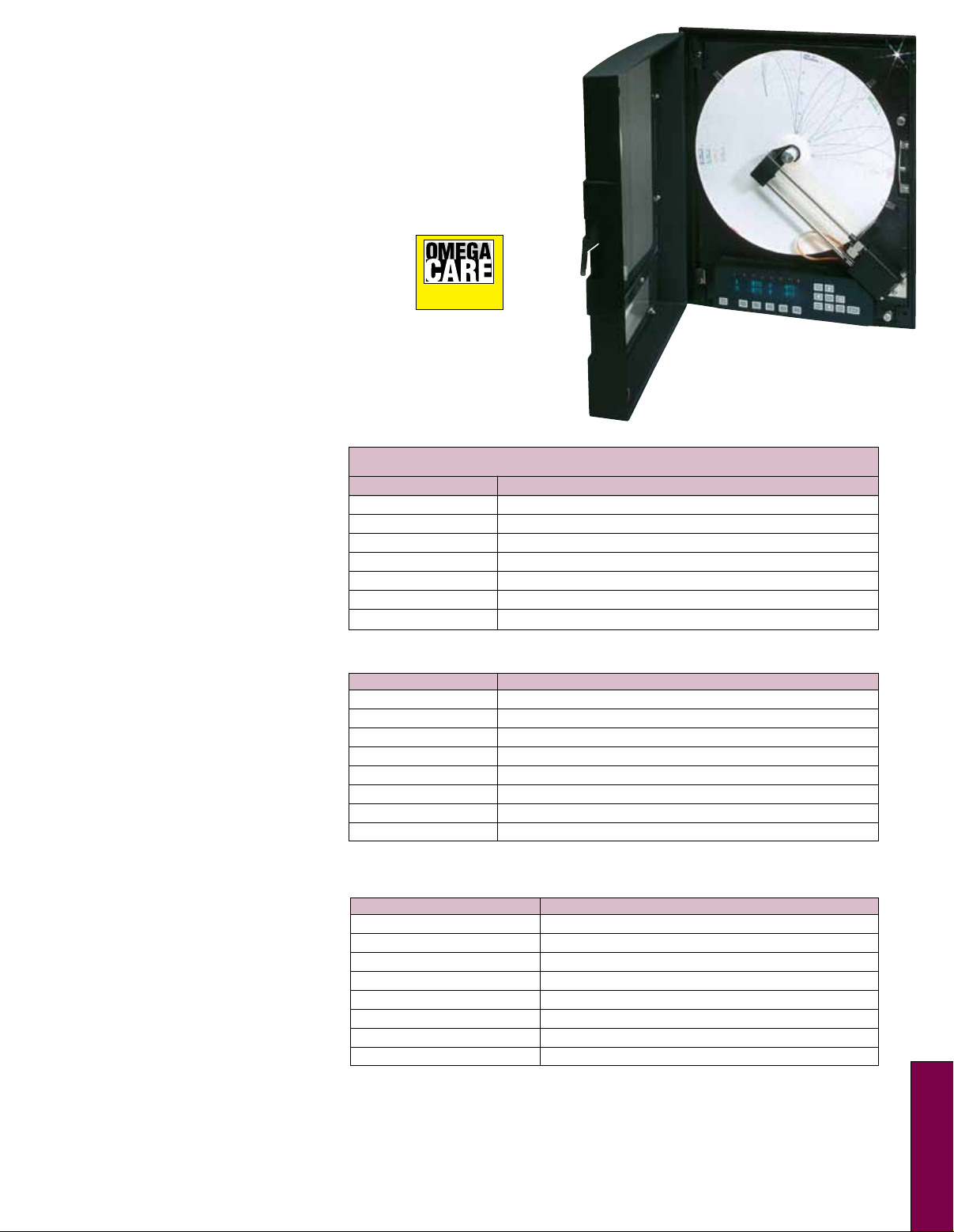

CT9173 shown smaller
than actual size.
To Order
Model No.* Description
CT9111 1-pen, 1-color recorder with 1 input
CT9122 2-pen, 2-color recorder with 2 inputs
CT9133 3-pen, 3-color recorder with 3 inputs
CT9144 4-pen, 4-color recorder with 4 inputs
CT9151 1-pen, 4-color recorder with 1 input
CT9162 2-pen, 4-color recorder with 2 inputs
CT9173 3-pen, 4-color recorder with 3 inputs
Options
Order Suffix Description
-AL** 2, 4, 6 or 8 relay outputs
-SR
** 2, 4, 6 or 8 SSRs
-MA1 One 4 to 20 mA output
-MA2 Two 4 to 20 mA outputs
-MT1 Math (computing and logic capabilities)
-MT2 Totalizer
-MT3 Math and totalizer
-EN3 Plastic window (glass is standard)
Total relays and SSRs may not exceed 8.
**
Accessories
Model No. Description
CT9000C-RC-GR Pen cartridge—green/red
CT9000C-RC-GRB Pen cartridge—green/red/blue
CT9000C-RC-GRBB Pen cartridge—green/red/blue/black
CT9000C-12-100 Paper, 305 mm (12"), 100 div. 100 sheets
CT9000C-12-70 Paper, 305 mm (12"), 70 div. 100 sheets
CT9000C-10-100 Paper, 254 mm (10"), 100 div. 100 sheets
CT9000C-11-100 Paper, 280 mm (11"), 100 div. 100 sheets
CT9000-WALL Wall mounting brackets
Comes complete with a package of charts, pen cartridge and operator’s manual.
Ordering Examples: CT9111, single-pen programmable recorder.
For additional universal inputs, change last digit of base number to 2, 3, 4, 6, or 8, representing
*
the total number of inputs for an additional cost per input beyond standard number offered
(e.g., CT9144, 4-pen recorder with 4 inputs.) OCW-1 OMEGACARESM extends
standard 2-year warranty to a total of 3 years. CT9151, 1-pen, 4-color recorder.
