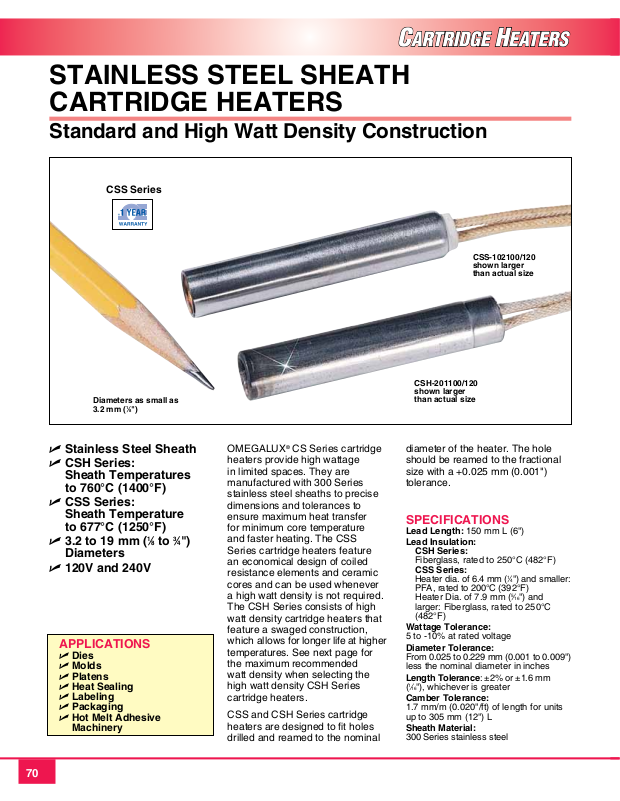

Page 1
STAINLESS STEEL SHEATH
CARTRIDGE HEATERS
Standard and High Watt Density Construction
CSS Series

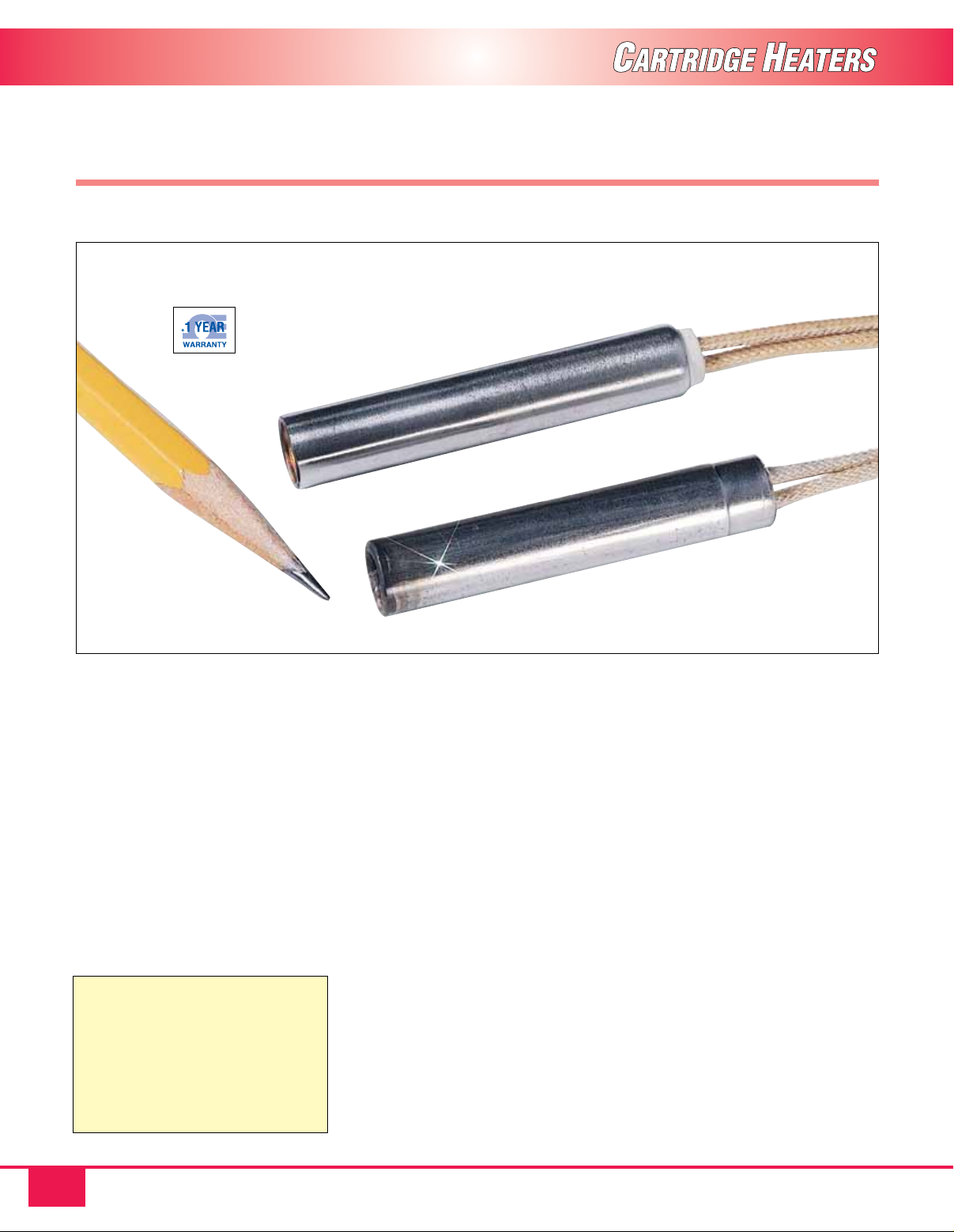

CSS-102100/120
shown larger
than actual size
Diameters as small as
3.2 mm (1⁄8")
U Stainless Steel Sheath
U CSH Series:
Sheath Temperatures
to 760°C (1400°F)
U CSS Series:
Sheath Temperature
to 677°C (1250°F)
1
U 3.2 to 19 mm (
⁄8 to 3⁄4")
Diameters
U 120V and 240V
APPLICATIONS
U Dies
U Molds
U Platens
U Heat Sealing
U Labeling
U Packaging
U Hot Melt Adhesive
Machinery
®
OMEGALUX
heaters provide high wattage
in limited spaces. They are
manufactured with 300 Series
stainless steel sheaths to precise
dimensions and tolerances to
ensure maximum heat transfer
for minimum core temperature
and faster heating. The CSS
Series cartridge heaters feature
an economical design of coiled
resistance elements and ceramic
cores and can be used whenever
a high watt density is not required.
The CSH Series consists of high
watt density cartridge heaters that
feature a swaged construction,
which allows for longer life at higher
temperatures. See next page for
the maximum recommended
watt density when selecting the
high watt density CSH Series
cartridge heaters.
CSS and CSH Series cartridge
heaters are designed to fit holes
drilled and reamed to the nominal
CS Series cartridge
CSH-201100/120
shown larger
than actual size
diameter of the heater. The hole
should be reamed to the fractional
size with a +0.025 mm (0.001")
tolerance.
SPECIFICATIONS
Lead Length: 150 mm L (6")
Lead Insulation:
CSH Series:
Fiberglass, rated to 250°C (482°F)
CSS Series:
Heater dia. of 6.4 mm (
PFA, rated to 200°C (392°F)
Heater Dia. of 7.9 mm (5⁄16") and
larger: Fiberglass, rated to 250°C
(482°F)
Wattage Tolerance:
5 to -10% at rated voltage
Diameter Tolerance:
From 0.025 to 0.229 mm (0.001 to 0.009")
less the nominal diameter in inches
Length Tolerance: ±2% or ±1.6 mm
1
(
⁄16"), whichever is greater
Camber Tolerance:
1.7 mm/m (0.020"/ft) of length for units
up to 305 mm (12") L
Sheath Material:
300 Series stainless steel
1
⁄4") and smaller:
70
Page 2

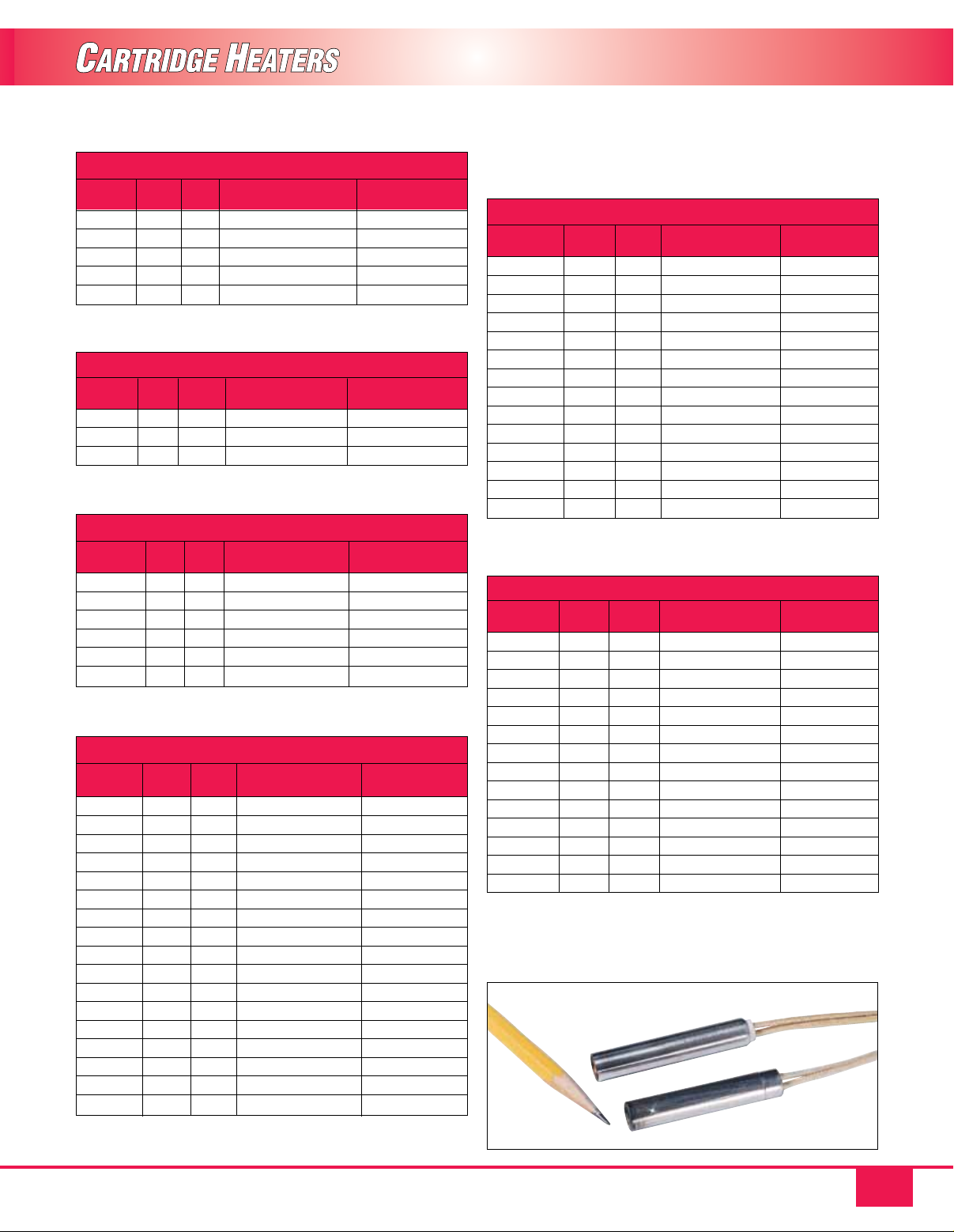

3.18 mm (1⁄8") Diameter CSS Series Cartridge Heaters
(Actual Dia: 0.124 to 0.120")
To Order
Length Weight
mm (in) Watts W/in2 Model Number g (lb)
25 (1.00) 10 35 CSS-01110/120 5 (0.01)
25 (1.00) 15 50 CSS-01115/120 5 (0.01)
38 (1.50) 20 40 CSS-01120/120 14 (0.03)
38 (1.50) 25 50 CSS-01125/120 14 (0.03)
51 (2.00) 35 50 CSS-01235/120 27 (0.06)
4 mm (5⁄32") Diameter CSS Series Cartridge Heaters
(Actual Dia: 0.155 to 0.152")
To Order
Length Weight
mm (in) Watts W/in2 Model Number g (lb)
25 (1.00) 10 25 CSS-02110/120 23 (0.05)
38 (1.50) 20 35 CSS-02120/120 32 (0.07)
51 (2.00) 35 40 CSS-02235/120 41 (0.09)
4.76 mm (3⁄16") Diameter CSS Series Cartridge Heater
(Actual Dia: 0.186 to 0.183")
To Order
Length Weight
mm (in) Watts W/in2 Model Number g (lb)
38 (1.50) 30 40 CSS-03130/120 32 (0.07)
51 (2.00) 35 35 CSS-03235/120 41 (0.09)
76 (3.00) 65 40 CSS-03365/120 50 (0.11)
102 (4.00) 90 40 CSS-03490/120 59 (0.13)
102 (4.00) 60 25 CSS-03460/120 59 (0.13)
102 (4.00) 100 45 CSS-034100/120 59 (0.13)
6.35 mm (1⁄4") Diameter CSS and CSH Series
Cartridge Heaters (Actual Dia: 0.249 to 0.245")
To Order
Length Weight
mm (in) Watts W/in2 Model Number g (lb)
25 (1.00) 20 35 CSS-10120/120 5 (0.01)
25 (1.00) 100 250 CSH-101100/120 9 (0.02)
32 (1.25) 20 25 CSS-101201/120 5 (0.01)
32 (1.25) 100 165 CSH-1011001/120 9 (0.02)
38 (1.50) 30 30 CSS-10130/* 9 (0.02)
38 (1.50) 50 50 CSS-10150/* 9 (0.02)
38 (1.50) 70 85 CSH-10170/120 9 (0.02)
38 (1.50) 120 150 CSH-101120/120 9 (0.02)
51 (2.00) 50 35 CSS-10250/120 14 (0.03)
51 (2.00) 100 85 CSH-102100/120 14 (0.03)
51 (2.00) 150 125 CSH-102150/120 14 (0.03)
64 (2.50) 65 35 CSS-10265/* 18 (0.04)
64 (2.50) 135 85 CSH-102135/120 14 (0.03)
64 (2.50) 185 115 CSH-102185/120 14 (0.03)
76 (3.00) 100 45 CSS-103100/240 23 (0.05)
76 (3.00) 170 90 CSH-103170/120 18 (0.04)
76 (3.00) 220 115 CSH-103220/120 18 (0.04)
More 6.35 mm (1⁄4") diameter CSS and CSH Series cartridge heaters at
top right, this page.
* Insert “120” or “240” to indicate desired operating voltage.
6.35 mm (1⁄4") Diameter CSS and CSH Series
Cartridge Heaters (cont.)
To Order
Length Weight
mm (in) Watts W/in2 Model Number g (lb)
89 (3.50) 90 35 CSS-10390/* 27 (0.06)
89 (3.50) 200 85 CSH-103200/* 18 (0.04)
89 (3.50) 260 110 CSH-103260/* 18 (0.04)
102 (4.00) 110 40 CSS-104110/* 32 (0.07)
102 (4.00) 235 85 CSH-104235/* 18 (0.04)
102 (4.00) 300 110 CSH-104300/* 18 (0.04)
102 (4.00) 400 150 CSH-104400/* 18 (0.04)
114 (4.50) 70 21 CSH-10470/120 23 (0.05)
114 (4.50) 110 30 CSS-1041101/* 36 (0.08)
114 (4.50) 270 85 CSH-104270/* 23 (0.05)
114 (4.50) 350 110 CSH-104350/* 23 (0.05)
127 (5.00) 305 85 CSH-105305/* 27 (0.06)
127 (5.00) 400 115 CSH-105400/* 27 (0.06)
178 (7.00) 150 30 CSS-107150/120 54 (0.12)
9.53 mm (3⁄8") Diameter CSS and CSH Series
Cartridge Heaters (Actual Dia: 0.374 to 0.370")
To Order
Length Weight
mm (in) Watts W/in2 Model Number g (lb)
25 (1.00) 30 40 CSS-20130/120 18 (0.04)
25 (1.00) 100 165 CSH-201100/120 18 (0.04)
32 (1.25) 100 110 CSH-2011001/120 18 (0.04)
32 (1.25) 150 165 CSH-201150/120 18 (0.04)
38 (1.50) 50 40 CSS-20150/* 32 (0.07)
38 (1.50) 150 125 CSH-2015150/120 23 (0.05)
38 (1.50) 200 105 CSH-201200/* 23 (0.05)
51 (2.00) 70 35 CSS-20270/* 41 (0.09)
51 (2.00) 100 50 CSS-202100/120 41 (0.09)
51 (2.00) 150 85 CSH-202150/* 27 (0.06)
51 (2.00) 200 110 CSH-202200/* 27 (0.06)
51 (2.00) 250 135 CSH-202250/* 27 (0.06)
64 (2.50) 100 40 CSS-2021001/* 54 (0.12)
64 (2.50) 200 85 CSH-202200/120 32 (0.07)
More 9.53 mm (
Ordering Example: CSS-01120/120, 3.18 mm (1⁄8") diameter
cartridge heater, 120 Vac.
CSH-103220/120, 6.35 mm (1⁄4") diameter cartridge heater, 120 Vac.
3
⁄8") diameter CSS and CSH Series online.
71
Page 3

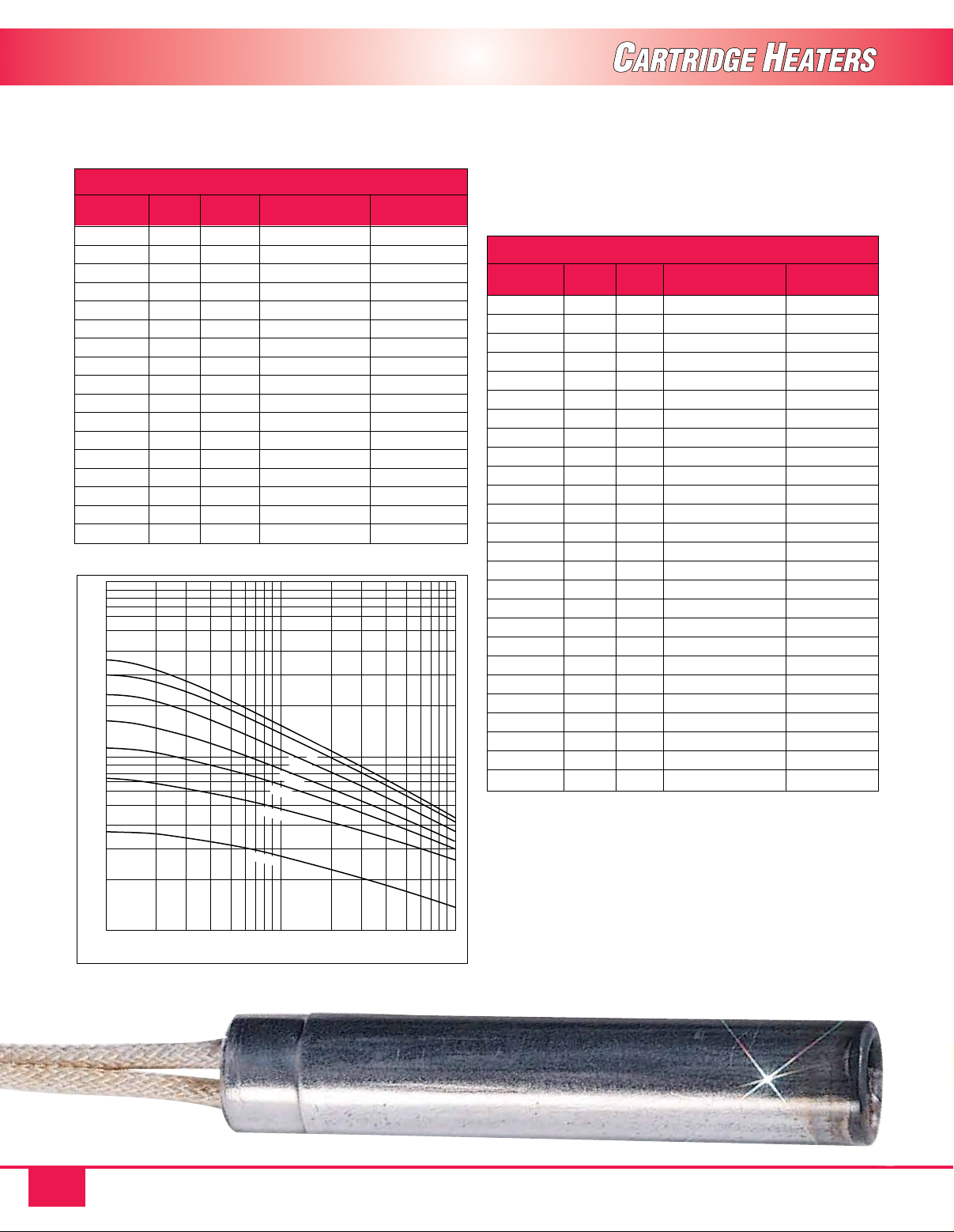

H-CSW/sgin curves
MAXIMUM WATTS/SQUARE INCH WITH
VARIOUS INCREASING TEMPERATURES
AND HOLE TOLERANCES
9.53 mm (3⁄8") Diameter CSS and CSH Series
Cartridge Heaters (continued from page 71)
To Order
Length Weight
mm (in) Watts W/in2 Model Number g (lb)
64 (2.50) 300 125 CSH-202300/* 32 (0.07)
76 (3.00) 75 25 CSS-20375/* 68 (0.15)
76 (3.00) 250 85 CSH-203250/* 36 (0.08)
76 (3.00) 400 135 CSH-203400/* 36 (0.08)
89 (3.50) 150 50 CSS-203150/* 82 (0.18)
89 (3.50) 300 85 CSH-203300/* 41 (0.09)
89 (3.50) 450 130 CSH-203450/120 82 (0.18)
102 (4.00) 75 20 CSS-20475/120 91 (0.20)
102 (4.00) 220 50 CSS-204220/* 91 (0.20)
102 (4.00) 350 85 CSH-204350/* 45 (0.10)
102 (4.00) 500 120 CSH-204500/* 45 (0.10)
114 (4.50) 250 50 CSS-204250/* 104 (0.23)
127 (5.00) 280 50 CSS-205280/* 122 (0.27)
127 (5.00) 500 95 CSH-205500/* 50 (0.11)
140 (5.50) 100 15 CSS-205100/240 141 (0.31)
152 (6.00) 350 50 CSS-206350/* 163 (0.36)
152 (6.00) 600 90 CSH-206600/* 59 (0.13)
* Insert “120” or “240” to indicate desired operating voltage.
1000
800
600
500
400
300
200
100
80
60
50
WATTS PER SQUARE INCH
40
30
20
200ϒF
400ϒF
600ϒF
800ϒF
1000ϒF
1200ϒF
1400ϒF
12.7 mm (1⁄2") Diameter CSS and CSH Series
Cartridge Heaters (Actual Dia: 0.499 to 0.494")
To Order
Length Weight
mm (in) Watts W/in2 Model Number g (lb)
38 (1.50) 75 50 CSS-30175/* 32 (0.07)
38 (1.50) 90 60 CSS-30190/120 32 (0.07)
38 (1.50) 135 85 CSH-301135/* 32 (0.07)
38 (1.50) 335 210 CSH-301335/120 32 (0.07)
51 (2.00) 120 50 CSS-302120/* 50 (0.11)
51 (2.00) 200 85 CSH-302200/* 36 (0.08)
51 (2.00) 400 165 CSH-302400/120 36 (0.08)
64 (2.50) 80 25 CSS-30280/120 64 (0.14)
64 (2.50) 150 50 CSS-302150/* 64 (0.14)
64 (2.50) 270 85 CSH-302270/* 41 (0.09)
64 (2.50) 470 150 CSH-302470/* 41 (0.09)
76 (3.00) 200 50 CSS-303200/* 77 (0.17 )
76 (3.00) 335 85 CSH-303335/* 45 (0.10)
76 (3.00) 535 135 CSH-303535/* 45 (0.10)
102 (4.00) 275 50 CSS-304275/* 104 (0.23)
102 (4.00) 470 85 CSH-304470/* 50 (0.11)
127 (5.00) 350 50 CSS-305350/* 122 (0.27)
127 (5.00) 500 70 CSH-305500/* 59 (0.13)
152 (6.00) 425 50 CSS-306425/* 150 (0.33)
152 (6.00) 735 85 CSH-306735/* 68 (0.15)
178 (7.00) 550 55 CSS-307550/* 218 (0.48)
203 (8.00) 650 55 CSS-308650/* 240 (0.53)
203 (8.00) 1000 85 CSH-3081000/* 77 (0.17)
254 (10.00) 850 55 CSS-310850/* 281 (0.62)
254 (10.00) 1200 80 CSH-3101200/240 100 (0.22)
305 (12.00) 1000 55 CSS-3121000/* 313 (0.69)
* Insert “120” or “240” to indicate desired operating voltage.
Note for CSS and CSH Series heaters: the watt densities are based
on a unit installed in mild steel. Different materials affect the above
values, i.e., the lower the thermal conductivity of the material, the
lower the maximum allowable watts per square inch.
20
.001
.002
.003
.006
.005
.008
.010
.020
.004
HOLE SIZE OVER NOMINAL FRACTIONAL SIZE
Maximum watts per square inch with various
increasing temperatures and hole tolerances
72
.030
.040
.050
.060
.080
.100

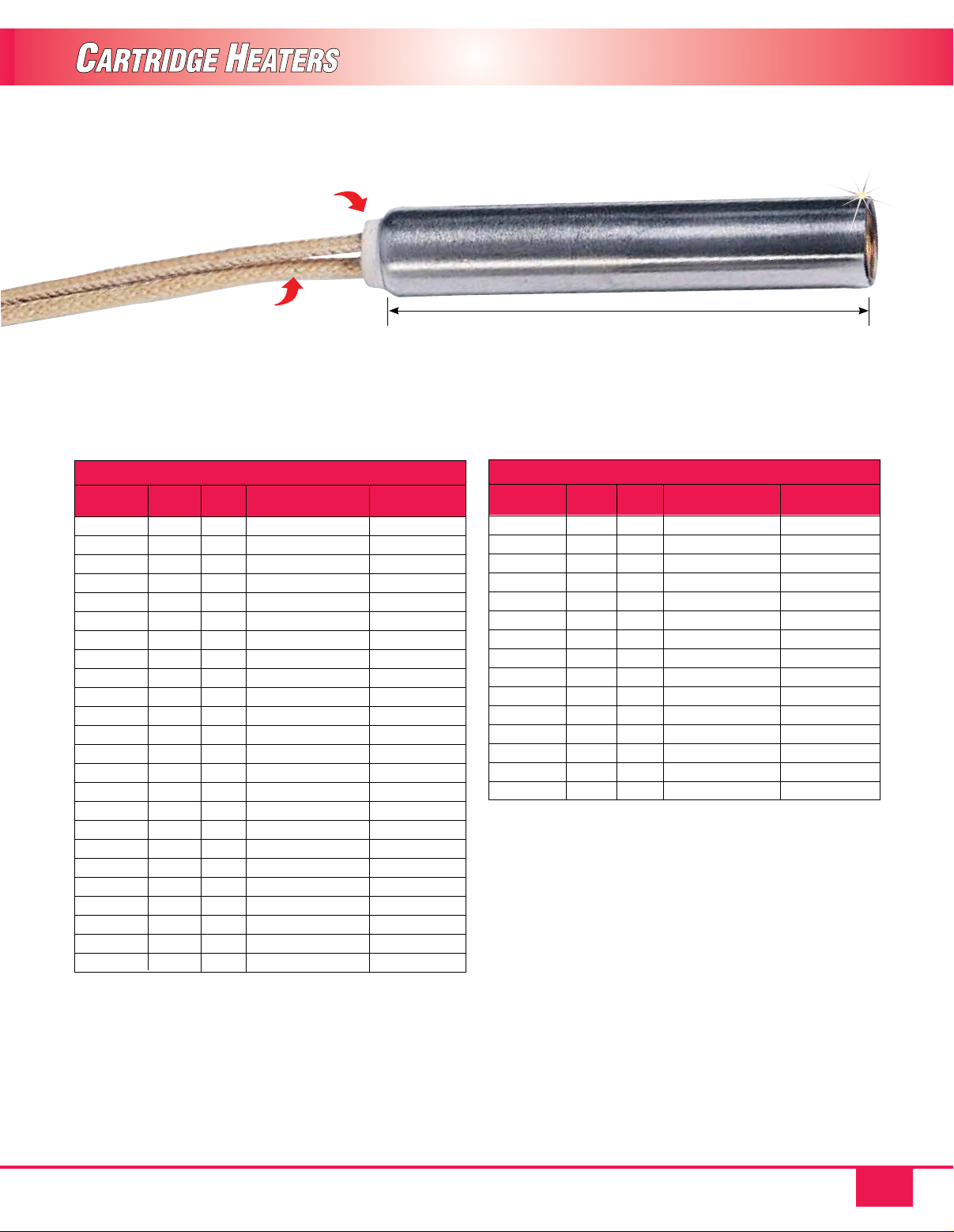

High watt density construction CSH Series
Page 4
Diameter tolerance from
0.001 to 0.009" less than the
nominal diameter in inches
Standard Construction CSS Series
CSS Series: 150 mm (6") long leads
standard, with PFA
6.35 mm (1⁄4") and smaller models,
fiberglass insulation on 7.94 mm
(5⁄16") and larger models
CSH Series: fiberglass insulation
insulation on
Compact design provides high wattage in small spaces.
15.9 mm (5⁄8") Diameter CSS and CSH Series
Cartridge Heaters (Actual Dia: 0.624 to 0.619")
To Order
Length Weight
mm (in) Watts W/in2 Model Number g (lb)
51 (2.00) 250 85 CSH-402250/* 59 (0.13)
64 (2.50) 75 20 CSS-40275/240 68 (0.15)
64 (2.50) 200 50 CSS-402200/* 68 (0.15)
64 (2.50) 335 85 CSH-402335/* 68 (0.15)
76 (3.00) 250 50 CSS-403250/* 95 (0.21)
76 (3.00) 415 85 CSH-403415/* 77 (0.17)
89 (3.50) 300 50 CSS-403300/* 113 (0.25)
89 (3.50) 350 60 CSS-403350/120 113 (0.25)
102 (4.00) 350 50 CSS-404350/* 132 (0.29)
102 (4.00) 585 85 CSH-404585/* 91 (0.20)
127 (5.00) 450 50 CSS-405450/* 159 (0.35)
152 (6.00) 350 30 CSS-406350/120 200 (0.44)
152 (6.00) 400 30 CSS-406400/120 200 (0.44)
152 (6.00) 540 50 CSS-406540/* 200 (0.44)
152 (6.00) 920 85 CSH-406920/* 136 (0.30)
178 (7.00) 635 50 CSS-407635/* 259 (0.57)
203 (8.00) 750 57 CSS-408750/* 249 (0.55)
203 (8.00) 1000 70 CSH-4081000/240 181 (0.40)
203 (8.00) 1500 100 CSH-4081500/240 181 (0.40)
229 (9.00) 950 55 CSS-409950/* 286 (0.63)
254 (10.00) 1000 53 CSS-4101000/* 308 (0.68)
254 (10.00) 1600 85 CSH-4101600/240 318 (0.70)
305 (12.00) 1200 53 CSS-4121200/240 340 (0.75)
305 (12.00) 1750 80 CSH-4121750/240 363 (0.80)
* Insert “120” or “240” to indicate desired operating voltage.
All cartridge heaters are rated by wattage and watt
density (watts per square inch) for either 120 or 240
volt operation. In some applications it may be useful to
derate the wattage by operating the cartridge heater at
a lower voltage. When operating at lower voltages, the
wattage is derated using the following formula:
(Operating Voltage/Rated Voltage)
x Wattage at Rated Voltage = Derated Wattage
2
±2% or ±1.6 mm (1⁄16") length tolerance
(whichever is greater).
19 mm (3⁄4") Diameter CSS and CSH Series
Cartridge Heaters (Actual Dia: 0.749 to 0.741")
To Order
Length Weight
mm (in) Watts W/in2 Model Number g (lb)
64 (2.50) 230 50 CSS-502230/* 95 (0.21)
89 (3.50) 350 50 CSS-503350/* 132 (0.29)
127 (5.00) 500 50 CSS-505500/* 195 (0.43)
152 (6.00) 650 50 CSS-506650/* 222 (0.49)
152 (6.00) 1000 80 CSH-5061000/240 200 (0.44)
152 (6.00) 1500 115 CSH-5061500/240 200 (0.44)
178 (7.00) 760 50 CSS-507760/* 259 (0.57)
203 (8.00) 750 40 CSS-508750/120 318 (0.70)
203 (8.00) 885 50 CSS-508885/* 318 (0.70)
203 (8.00) 1500 85 CSH-5081500/240 263 (0.58)
203 (8.00) 2000 110 CSH-5082000/240 263 (0.58)
254 (10.00) 1100 45 CSS-5101100/240 363 (0.80)
254 (10.00) 2000 90 CSH-5102000/240 204 (0.45)
305 (12.00) 1300 45 CSS-5121300/240 417 (0.92)
305 (12.00) 2200 80 CSH-512220/240 454 (1.00)
Ordering Example: CSS-403250/240, 15.9 mm (
76 mm (3") long cartridge heater, 240 Vac.
CSH-4081500/240, 15.9 mm (5⁄8") diameter, 203 mm (8") long cartridge
heater, 240 Vac.
CSS-502230/120, 19 mm (3⁄4") diameter, 64 mm (2.50") long cartridge
heater, 120 Vac.
Example: The CSH-5102000/240 cartridge heater
is rated at 2000 watts and 90 watts per square inch
at 240 volts. To determine the derated wattage when
operating on 120 volts:
2
(120 Volts/240 Volts)
x 2000 Watts = 500 Watts
When operating on 120 volts, the watt density of this
heater would also be reduced by a factor of 4 from
90 watts per square inch to approximately 22 watts
per square inch.
5
⁄8") diameter,
73
Loading...
