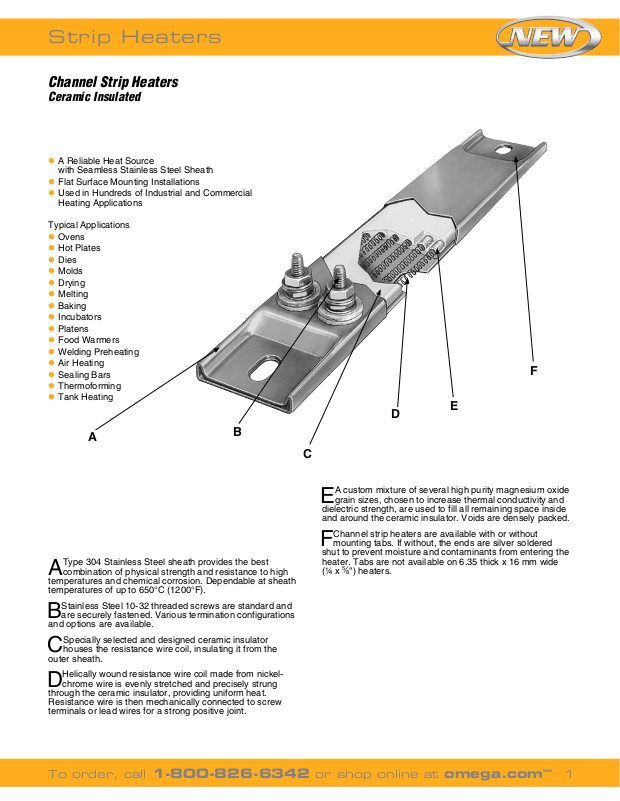

Omega CSH3 Specification

Strip Heaters

Channel Strip Heaters

Ceramic Insulated

l A Reliable Heat Source

with Seamless Stainless Steel Sheath

l

Flat Surface Mounting Installations

l Used in Hundreds of Industrial and Commercial

Heating Applications

Typical Applications

l Ovens
l Hot Plates
l Dies
l Molds
l Drying
l Melting
l Baking
l Incubators
l Platens
l Food Warmers
l Welding Preheating
l Air Heating
l Sealing Bars
l Thermoforming
l Tank Heating

F

E

D

A

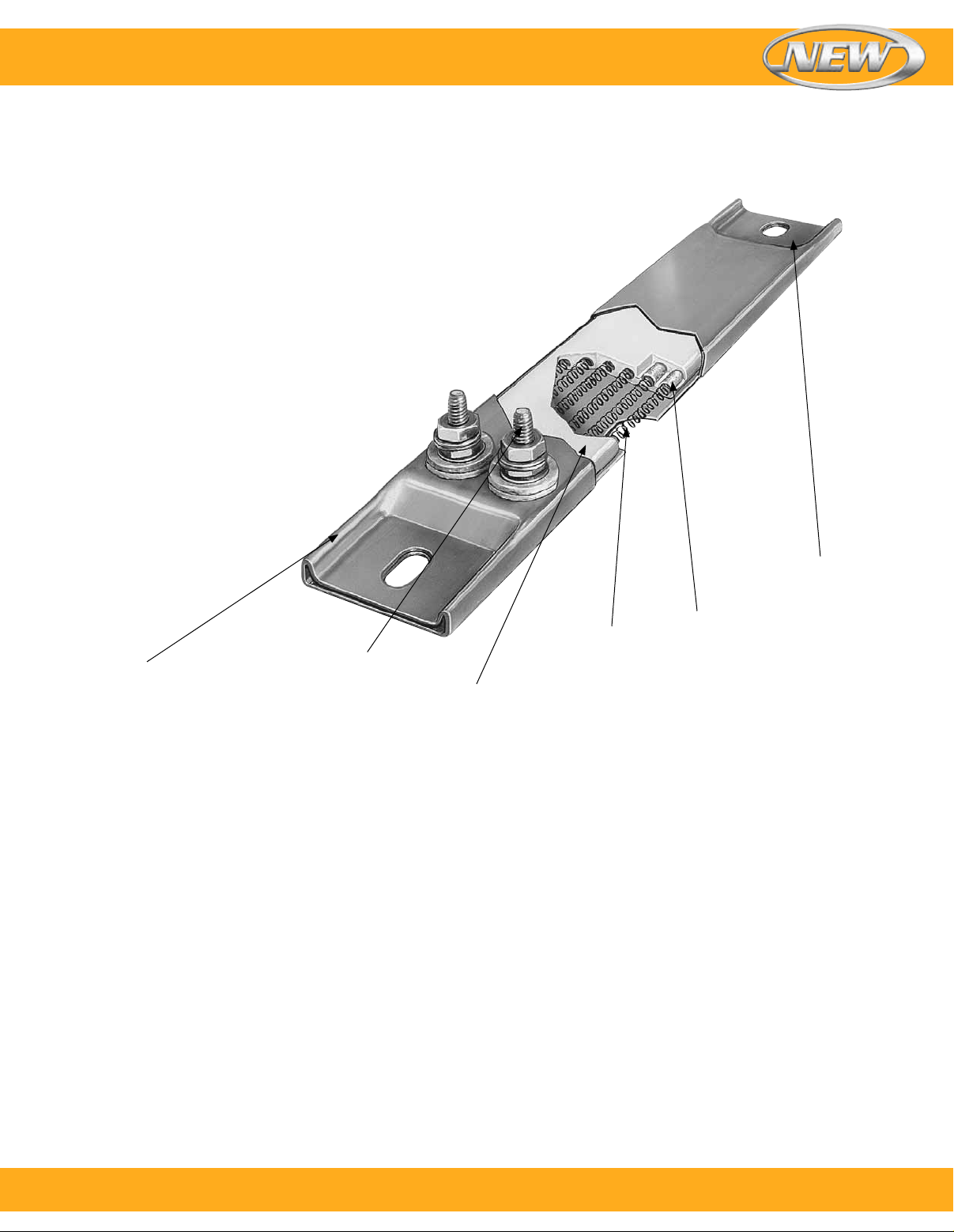

Type 304 Stainless Steel sheath provides the best

A

combination of physical strength and resistance to high
temperatures and chemical corrosion. Dependable at sheath
temperatures of up to 650°C (1200°F).

Stainless Steel 10-32 threaded screws are standard and

B

are securely fastened. Various termination configurations

and options are available.

Specially selected and designed ceramic insulator

C

houses the resistance wire coil, insulating it from the
outer sheath.

Helically wound resistance wire coil made from nickel-

D

chrome wire is evenly stretched and precisely strung
through the ceramic insulator, providing uniform heat.
Resistance wire is then mechanically connected to screw
terminals or lead wires for a strong positive joint.

B

C

A custom mixture of several high purity magnesium oxide

E

grain sizes, chosen to increase thermal conductivity and
dielectric strength, are used to fill all remaining space inside
and around the ceramic insulator. Voids are densely packed.

Channel strip heaters are available with or without

F

mounting tabs. If without, the ends are silver soldered
shut to prevent moisture and contaminants from entering the
heater. Tabs are not available on 6.35 thick x 16 mm wide

5

⁄

(¼ x

8") heaters.

To order, call 1-800-826-6342 or shop online at omega.com

SM

1

Strip Heaters

Channel Strip Heaters

Ceramic Insulated

Channel Strip Heaters have proven to be extremely efficient
and dependable as a heat source for surface heating in
hundreds of industrial and commercial applications. The
rectangular tube gives full surface contact when used in a
milled slot to provide maximum heat transfer area.

For surface mounting installations, channel strip heaters
must be securely clamped along their entire length to a
smooth metal surface. When supported by mounting tabs,
the terminal end should be secured firmly. Opposite end
should be loose to allow for thermal expansion.

PERFORMANCE RATINGS

Maximum Sheath Temperature: 650°C (1200°F)
Nominal Watt Density: 20 Watts/in
Maximum Watt Density: 45 Watts/in

parameters)

ELECTRICAL SPECIFICATIONS

Maximum Voltage: 480 Vac (dependent on design

parameters)

Maximum Recommended Voltage with Leads: 480V
Maximum Amperage:

Lead Wire Termination: 10 amp
Screw Terminations: 10-32UNF—25 amp

Resistance Tolerance: 10%, -5%
Wattage Tolerance: 5%, -10%

PHYSICAL SIZE CONSTRUCTION LIMITATIONS

Width:

16 mm (
25 mm and 38 mm (1 and 1
+0.000, -0.010"

Thickness:
6 mm (

8 and 10 mm (
[10 mm (

Length:
Up to 24": ±
Over 24": ±

Mounting Slot Size: Standard 8 x 13 mm (
Special Bushings: 13 x 16 mm (

5

⁄

8") Wide Heaters: +0.000, -0.005"

1

⁄

4") Thick Heaters: +0.000, –0.005"

5

3

⁄

⁄

16 and

3

⁄

8") thick heaters have radius corners]

1

⁄

16"

1

⁄

8 "

8") Thick Heaters: +0.000, –0.008"

2

(3.1 Watts/cm2)

2

(dependent on design

1

⁄

2") Wide Heaters:

5

1

⁄

⁄

16 ×

1

⁄

2 ×

5

⁄

8")

2")

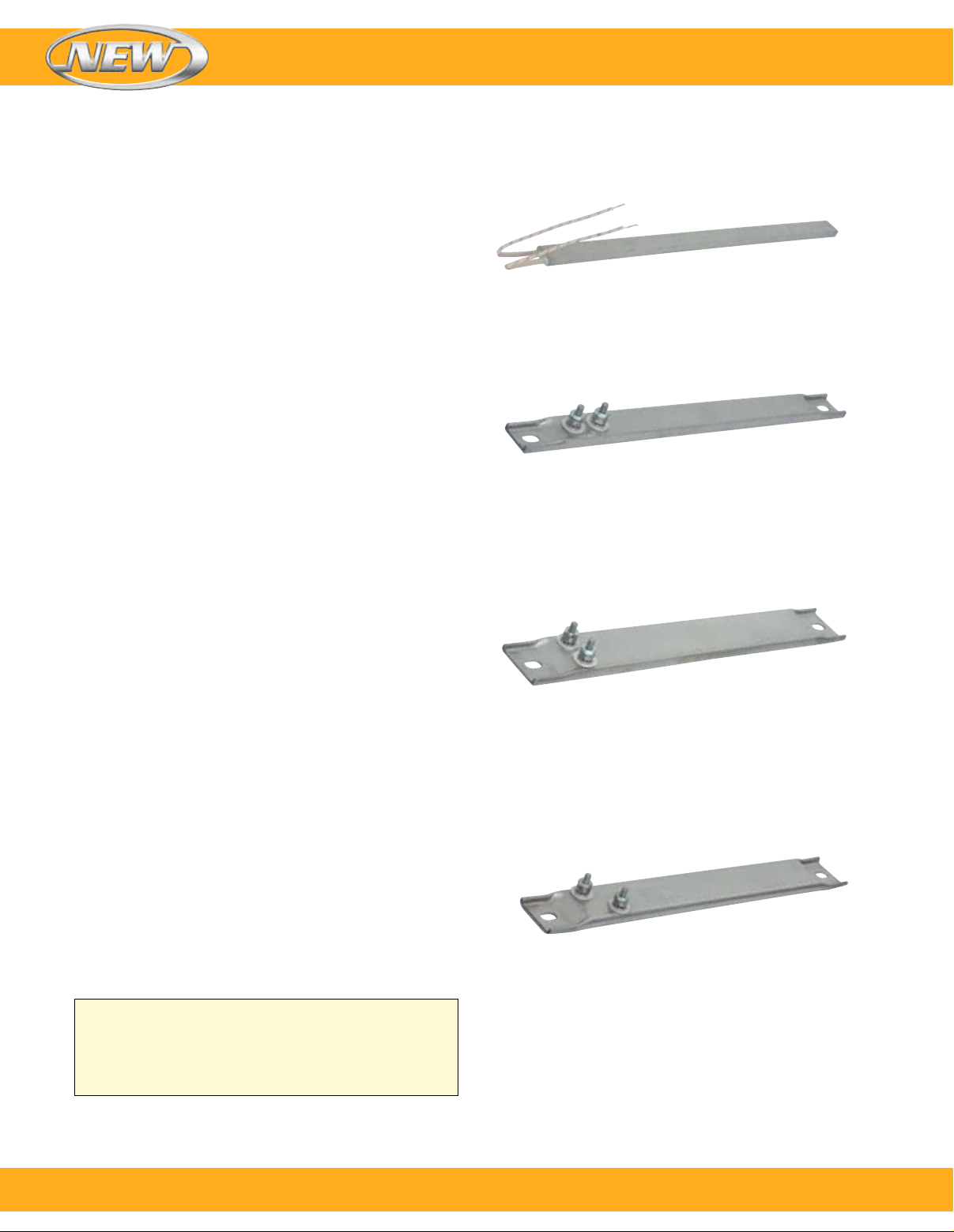

OMEGA Offers Channel Strip Heaters in Four
Rectangular Sizes

5

1

⁄

16 W x 6 mm thick (
Available without mounting tabs only.

25 W x 8 mm thick (1" x
Available with or without mounting tabs. When
supplied with Type L lead wire termination, mounting
tabs are not available.

38 W x 8 mm thick (1
Available with or without mounting tabs. When
supplied with Type L lead wire termination,
mounting tabs are not available.

38 W x 10 mm thick (1
Available with or without mounting tabs. When supplied
with Type L lead wire termination, mounting tabs are not
available. [10 mm (

⁄

8" x

4").

5

⁄

16").

1

5

⁄

⁄

2" x

16").

1

3

⁄

⁄

2" x

8").

3

⁄

8") thick heaters have radius corners]

2

Standard Specifications and Tolerances of Channel
Strip Heaters If tighter tolerances are required,
consult OMEGA.

To order, call 1-800-826-6342 or shop online at omega.com

SM

Strip Heaters

Channel Strip Heaters

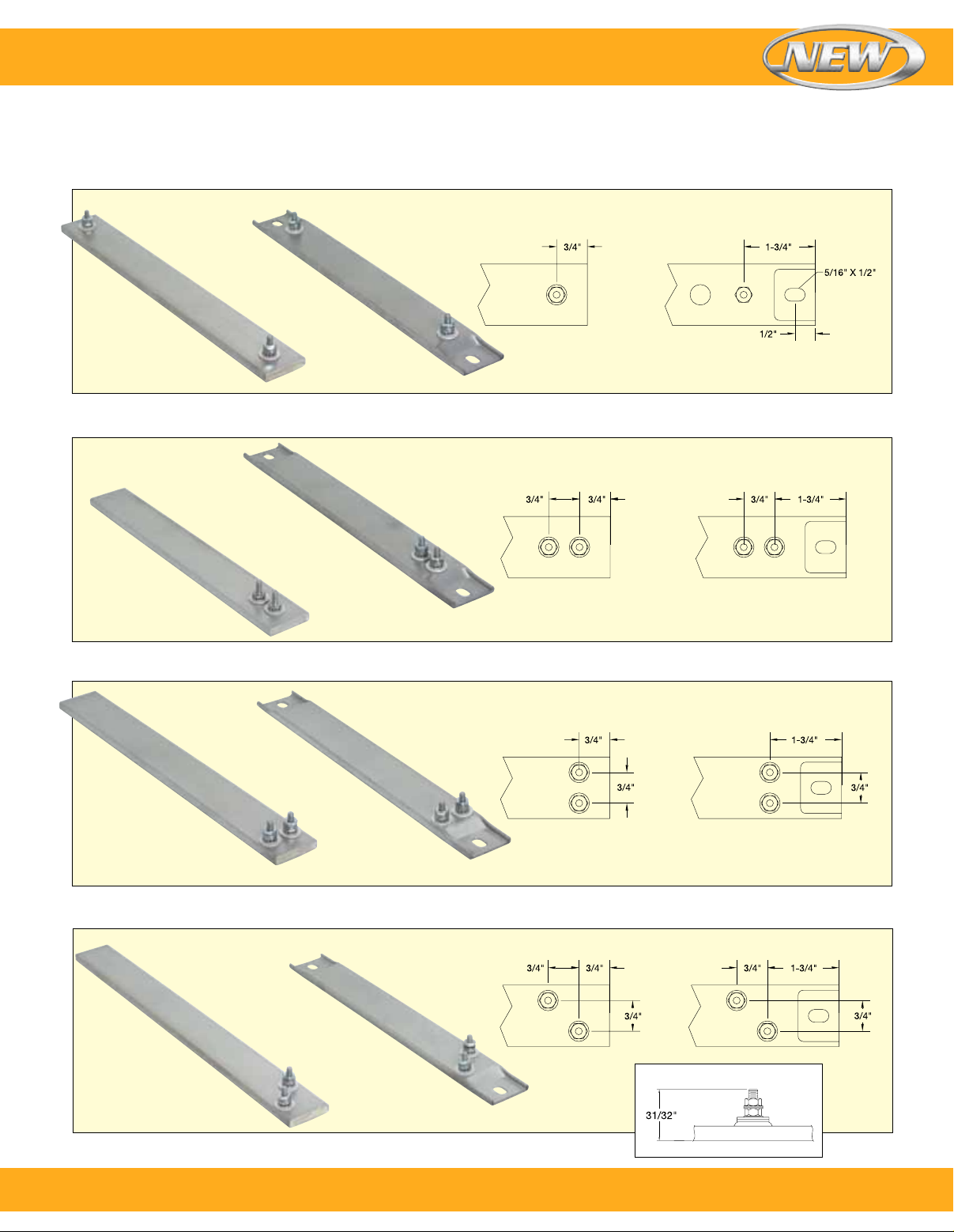

Screw Terminal Terminations

1

Type T1 10-32 Screw Terminals at each end Available on 25 and 38 mm (1 and 1

With Mounting TabsNo Mounting Tabs

Type T2 10-32 Screw Terminals (Tandem) at one end Available on 25 and 38 mm (1 and 1

⁄

2") wide heaters

1

⁄

2

") wide heaters

With Mounting TabsNo Mounting Tabs

Type T3 10-32 Screw Terminals (Parallel) at one end Available on 38 mm (1

With Mounting TabsNo Mounting Tabs

Type T4 10-32 Terminals offset at one end Available on 38 mm (1

1

⁄

2 ") wide heaters only

1

⁄

2") wide heaters only

With Mounting TabsNo Mounting Tabs

Height

To order, call 1-800-826-6342 or shop online at omega.com

SM

3

Channel Strip Heaters

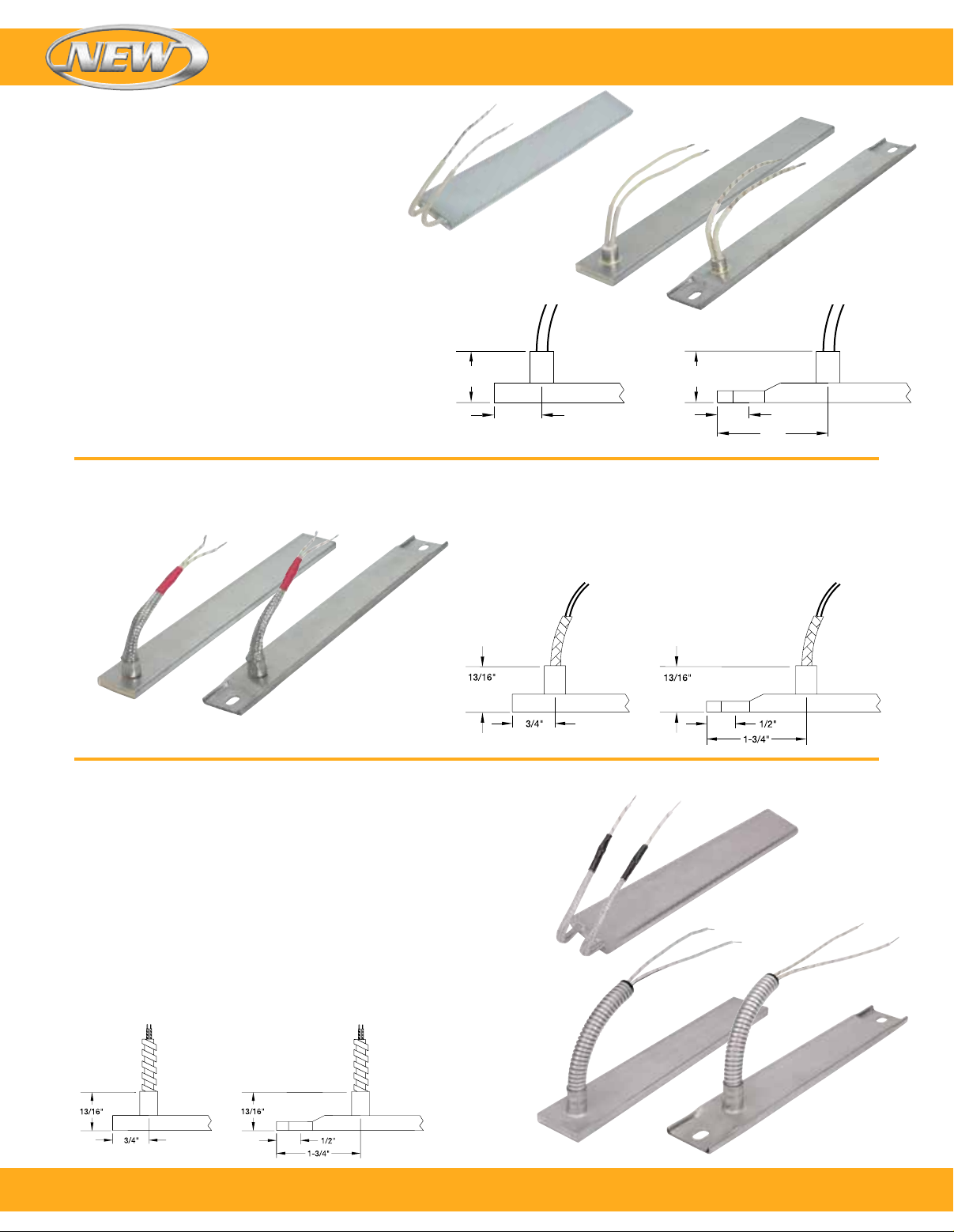

Lead Wire Terminations

Type L

Type L

Flexible lead wires exit from end of heater. 254 mm (10")
long leads standard; if longer leads are required, specify.
Recommended only for tight quarters or where flexibility of
the lead wire is required. Not available on heaters with tabs.

Maximum Amps: 10 at 240 Vac Maximum Volts: 480

Type L1

Flexible lead wires exit from top of heater. 254 mm (10")
long leads standard; if longer leads are required, specify.

Maximum Amps: 10 at 240 Vac Maximum Volts: 480

Type W1

Strip Heaters

With Mounting TabsNo Mounting Tabs

13/16"

3/4"

Type W1

Wire braid provides strength and protection to the lead wire
insulation, offering sharp bending not possible with armor
cable. 254 mm (10") of wire braid over 12" long leads is
standard; if longer leads or braid are required, specify.

Maximum Amps: 10 at 240 Vac Maximum Volts: 480

13/16"

1/2"

1-3/4"

Type L1

Type W2

Stainless steel braid over each lead wire offers sharp
bending not possible with armor cable, as well as abrasion
protection. 254 mm (10") long leads standard; if longer leads
are required, specify. Not available on heaters with tabs.

Maximum Amps: 10 at 240 Vac Maximum Volts: 480

Type R1

Armor cable provides strength and prevents contamination
from getting into the heater. 254 mm (10") of armor over
305 mm (12") long leads are standard; if longer leads or armor
are required, please specify.

Maximum Amps: 10 at 240 Vac Maximum Volts: 480

Type R1A: Galvanized cable Type R2A: Stainless steel cable

With Mounting TabsNo Mounting Tabs

Type W2

4

With Mounting TabsNo Mounting Tabs

Type R1

To order, call 1-800-826-6342 or shop online at omega.com

SM

Strip Heaters

Channel Strip Heaters

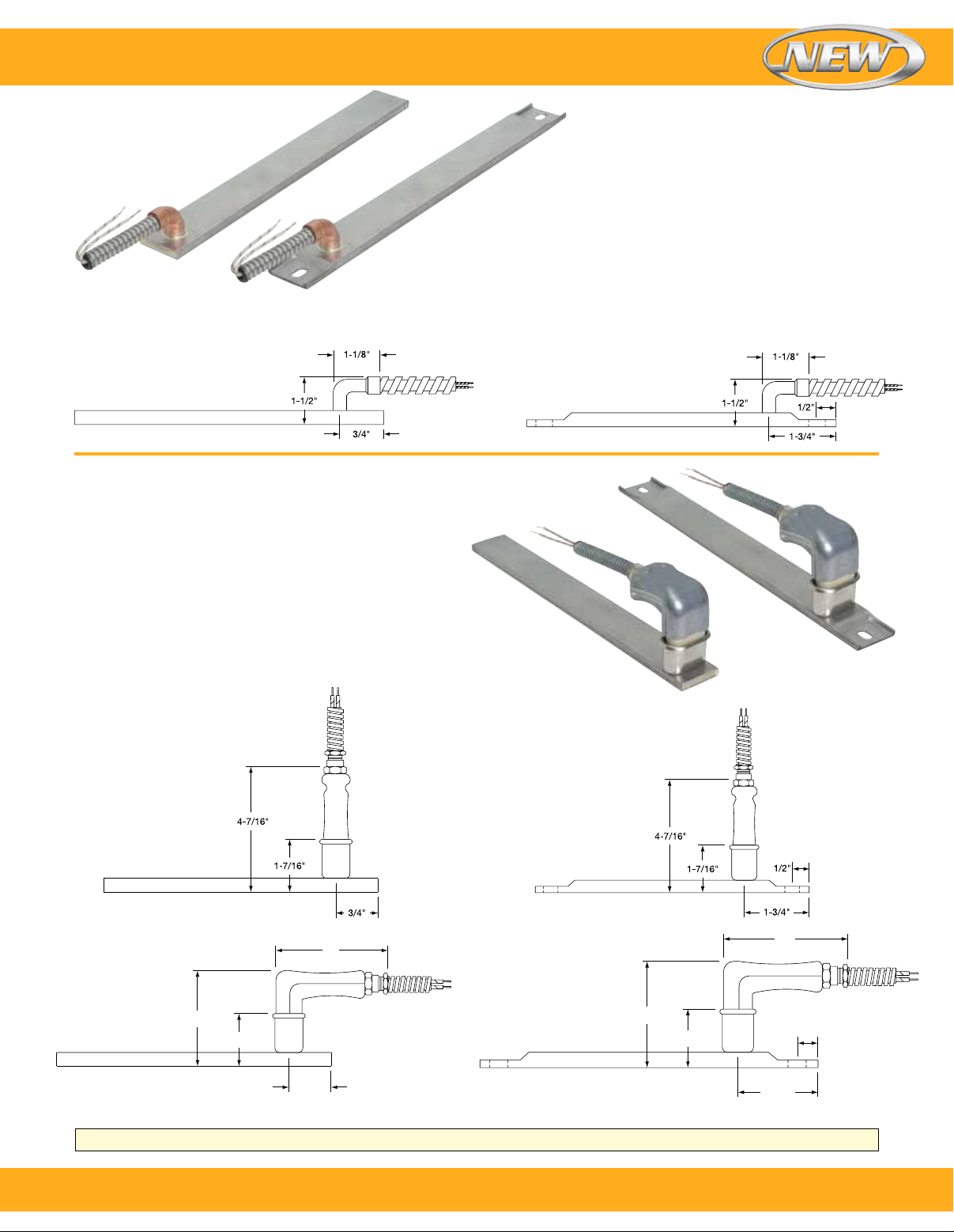

Lead Wire Terminations

Type R2

Type R2

Right-angle armor cable prevents contamination from
getting into the heater. 254 mm (10") of armor over 305 mm
(12") long leads is standard; if longer leads or armor are
required, please specify.

Maximum Amps: 10 at 240 Vac Maximum Volts: 480

Type R2A Galvanized cable
Type R2B Stainless steel cable
Type R2C Elbow and leads only (no cable)

No Mounting Tabs

Terminal Protection

Type P

High-Temperature Quick Disconnect Plug. If armor
protected lead wires are required, specify armor
and lead length. Available on 38 mm (1

Maximum Amps: 10 at 240 Vac Maximum Volts: 250

Type P1A Cup only (UT900)
Type P1B Cup and straight plug (H900)
Type P1C Cup and 90° plug (HW900)
Type P1D Cup, straight plug and galvanized cable
Type P1G Cup, 90° plug and galvanized cable

1

⁄

2") wide heaters only.

With Mounting Tabs

Type P

No Mounting Tabs (type P1D)

2-7/8"

1-7/16"

No Mounting Tabs (type P1G)

Caution: Exposed electrical wiring on Strip Heaters is a violation of electrical safety codes, including O.S.H.A.

3"

3/4"

With Mounting Tabs (type P1D)

2-7/8"

1-7/16"

With Mounting Tabs (type P1G)

3"

1/2"

1-3/4"

To order, call 1-800-826-6342 or shop online at omega.com

SM

5

2-1/2" 1-1/8"

Channel Strip Heaters

Terminal Protection

Strip Heaters

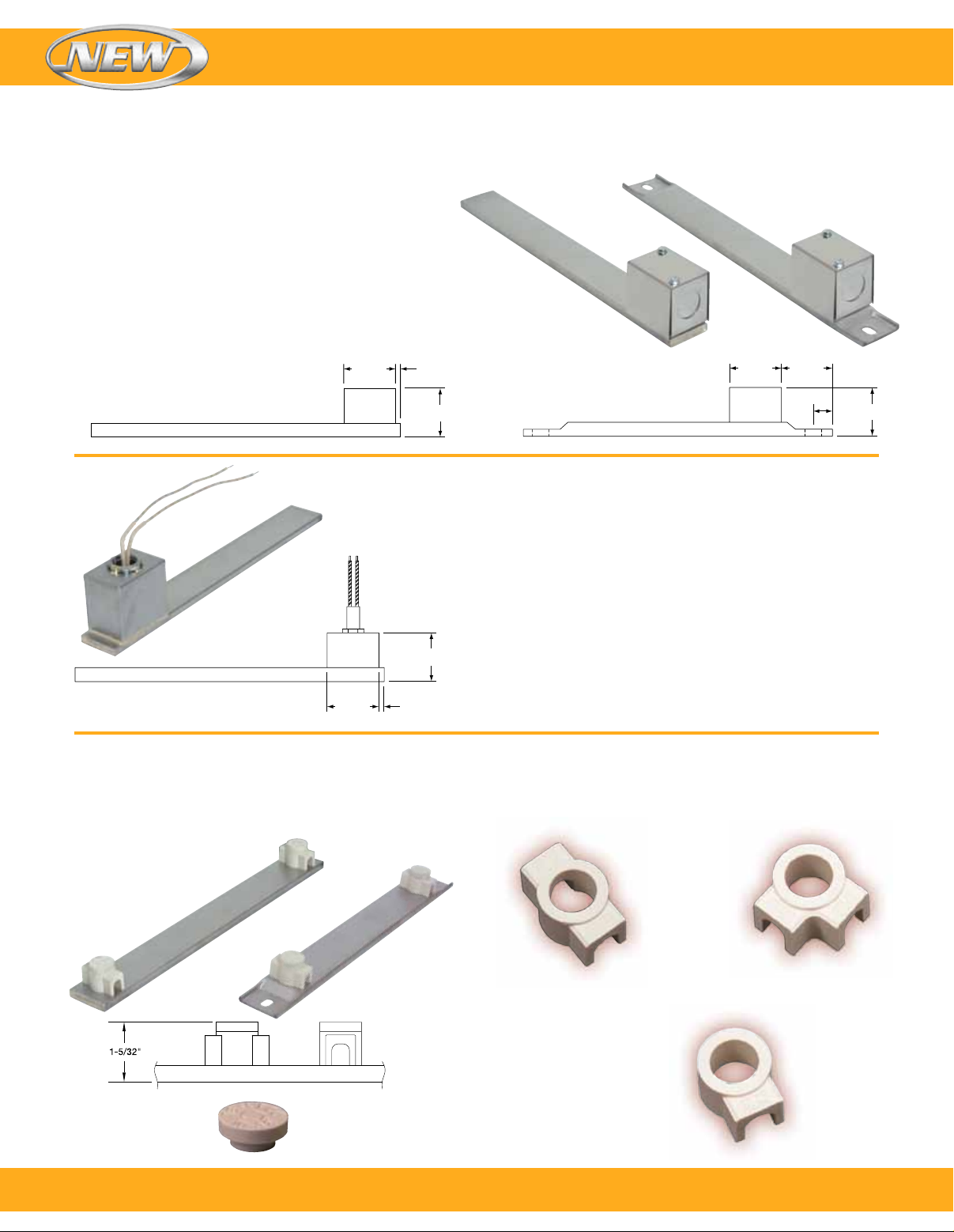

Type C

Type C

1

Terminal box has a 13 mm (
(actual diameter 22 mm (

⁄

2") trade size knockout

7

⁄

8"). Box provides excellent

protection to exposed terminals. If armor-protected
lead wires are required, specify armor and lead length.
Available on 25 and 38 mm (1 and 1

1

⁄

2") wide heaters.

Type CA No cable or braid
Type CB Galvanized cable
Type CC Stainless steel cable
Type CD Wire braid

2-1/2"

No Mounting Tabs

Type MP

2-1/2" 1/8"

1/8"

1-7/8"

1-7/8"

With Mounting Tabs

1/2"

1-7/8"

Type MP

Specially designed box is welded to the Channel Strip
Heater and potted with epoxy. The ends of the heater are
also welded. Leads exit through a 1/2 NPT nut that can be
located at the top or in the front of the box. Armor cable
can be supplied with the male fitting, providing a completely
sealed channel strip. Available on 38 mm (1

1

⁄2") wide

heaters only.

254 mm (10") long leads standard; if longer leads are
required, specify.

Maximum Amps: 25 Maximum Volts: 480

Ceramic Covers for Insulating Terminals

Igloo™ Ceramic terminal covers consist of two individual ceramic parts. With a tight-fitting cap and a solid
base, an Igloo cover will fully insulate any standard 10-32 terminal lug used for electrical wiring hookups.
Igloo covers can be assembled on all Channel Strip heaters with Type 1 and Type 4 screw terminals.

Type C6
Double Port In-Line
Part Number: CER-101-104

Three different types of Igloo
bases are available for your
wiring convenience. Double
Port In-Line, Double Port 90°
and Single Port.

When ordering, specify the
type of Igloo.

6

Ceramic Cap

Thread 10-32
Part Number
CER-102-101

To order, call 1-800-826-6342 or shop online at omega.com

Type C7
Double Port 90°
Part Number: CER-101-106

Type C8
Single Port
Part Number:
CER-101-107

SM

Strip Heaters

Channel Strip

5

38.1 × 7.94 mm (1½ ×

Part numbers shown are for heaters with T4 Terminals and
Mounting Tabs

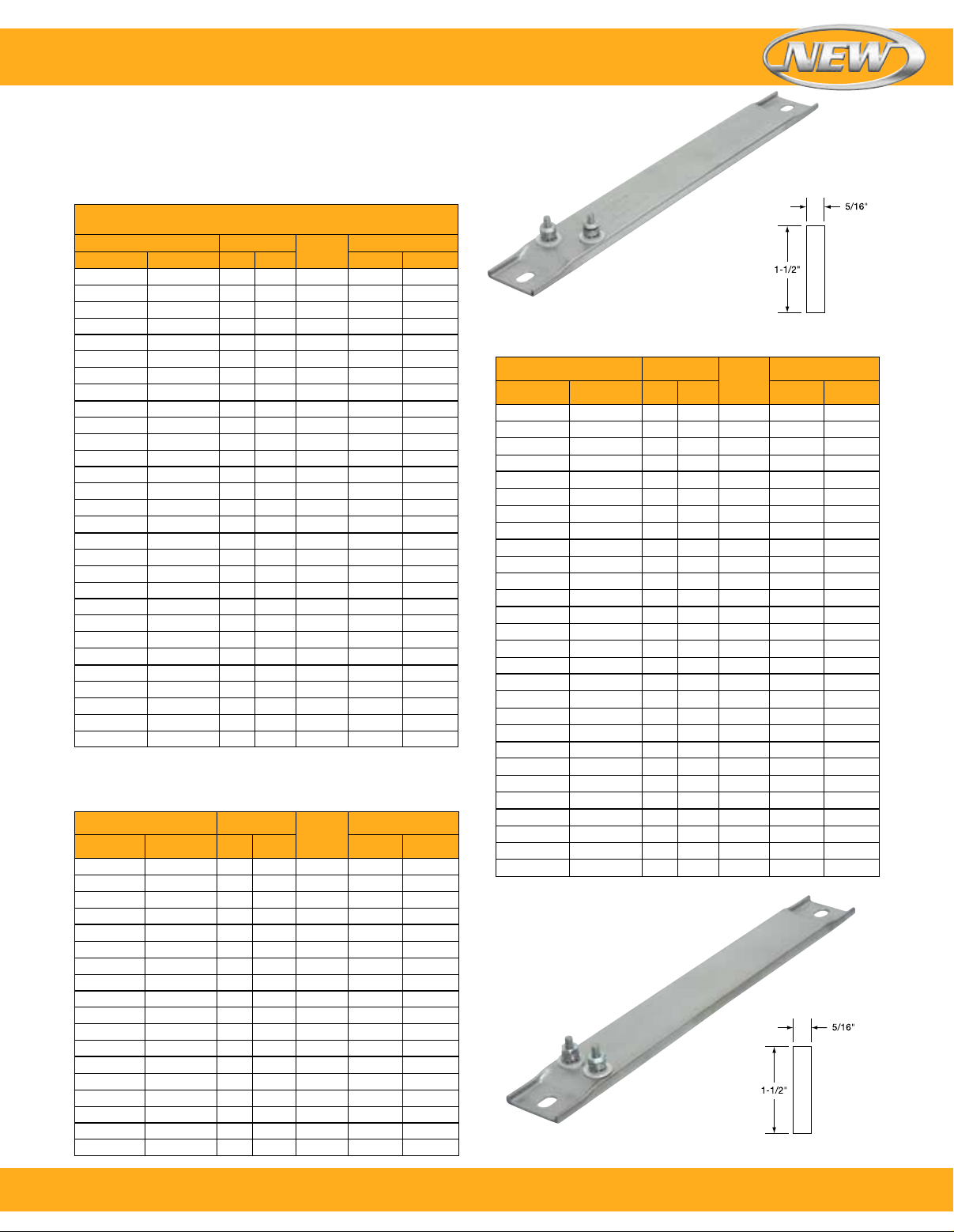

To Order Visit omega.com/csh3_series for Pricing and Details

Model No. Length Watt Density

120V 240V inch mm
CSH00338 CSH00339
CSH00318 CSH00321
CSH00054 CSH00055
CSH00056 CSH00057
CSH00058 CSH00059
CSH00060 CSH00061
CSH00062 CSH00063
CSH00064 CSH00065
CSH00066 CSH00067
CSH00068 CSH00069
CSH00070 CSH00071
CSH00072 CSH00073
CSH00074 CSH00075
CSH00076 CSH00077
CSH00078 CSH00079
CSH00080 CSH00081
CSH00082 CSH00083
CSH00084 CSH00085
CSH00086 CSH00087
CSH00088 CSH00089
CSH00090 CSH00091
CSH00092 CSH00093
CSH00094 CSH00095
CSH00096 CSH00097
CSH00098 CSH00099
CSH00100 CSH00101
CSH00102 CSH00103
CSH00104 CSH00105
CSH00329 CSH00333

Part numbers shown are for heaters with T3 Terminals and
Mounting Tabs.

Model No. Length Watt Density

120V 240V inch mm
CSH00336 CSH00337

CSH00159 CSH00160
CSH00161 CSH00162
CSH00163 CSH00164
CSH00165 CSH00166
CSH00167 CSH00168
CSH00169 CSH00170
CSH00323 CSH00324
CSH00172 CSH00173
CSH00346 CSH00174
CSH00175 CSH00176
CSH00177 CSH00178
CSH00328 CSH00332
CSH00179 CSH00180
CSH00181 CSH00182
CSH00183 CSH00184
CSH00185 CSH00186
CSH00187 CSH00188

⁄

16")

51⁄4133.4

6

152.4
71⁄2190.5
71⁄2190.5

8

203.2

8

203.2

8

203.2

8

203.2

8

203.2

101⁄2266.7
101⁄2266.7
101⁄2266.7

12

304.8
12

304.8
12

304.8
14

355.6
14

355.6

151⁄4387.4
151⁄4387.4
177⁄8454.2
177⁄8454.2
177⁄8454.2
177⁄8454.2
177⁄8454.2
191⁄2495.3
191⁄2495.3
191⁄2495.3
191⁄2495.3
191⁄2495.3

Wattage

Wattage

Watt/in2Watt/cm

125 28 4
150 21 3
150 15 2
200 20 3
150 13 2
175 15 2
250 21 3
400 34 5
500 42 7
250 12 2
350 17 3
400 19 3
250 10 1
350 13 2
500 19 3
300 9 1
500 15 2
325 9 1
500 13 2
350 7 1
375 8 1
500 11 2
750 16 2

1000 21 3

350 7 1
500 9 1

750 14 2
1000 19 3
1200 23 4

Watt/in2Watt/cm

51⁄4133.4 125 28 4
51⁄2139.7 125 23 4
51⁄2139.7 250 46 7
53⁄4146.1 300 47 7

6 152.4 150 21 3
6 152.4 300 41 6
8 203.2 150 10 2
8 203.2 500 32 5

101⁄2266.7 250 11 2

12 304.8 350 12 2

14 355.6 500 14 2
177⁄8454.2 750 15 2
191⁄2495.3 1200 21 3
233⁄4603.3 750 10 2

1

29

⁄

743.0 750 8 1

4

345⁄8879.5 1000 9 1
357⁄8911.4 1000 9 1
371⁄4946.2 1500 12 2

2

Part numbers shown are for heaters with T4 Terminals and
Mounting Tabs

2

Model No. Length Watt Density

120V 240V inch mm

CSH00106 CSH00107
CSH00108 CSH00109
CSH00110 CSH00111
CSH00112 CSH00113
CSH00114 CSH00115
CSH00116 CSH00117
CSH00118 CSH00119
CSH00120 CSH00121
CSH00122 CSH00123
CSH00124 CSH00125
CSH00126 CSH00127
CSH00128 CSH00129
CSH00130 CSH00131
CSH00132 CSH00133
CSH00134 CSH00135

—

CSH00136
CSH00137 CSH00138
CSH00139 CSH00140
CSH00141 CSH00142
CSH00143 CSH00144
CSH00145 CSH00146
CSH00147 CSH00148
CSH00149 CSH00150
CSH00151 CSH00152
CSH00153 CSH00154
CSH00155 CSH00156

— CSH00157
— CSH00158

21

21
233⁄4603.3
233⁄4603.3
233⁄4603.3
233⁄4603.3
251⁄2647.7
251⁄2647.7
251⁄2647.7
263⁄4679.5
263⁄4679.5
263⁄4679.5
291⁄4743.0
301⁄2774.7
301⁄2774.7
301⁄2774.7
331⁄2850.9
345⁄8879.5
357⁄8911.4
357⁄8911.4
371⁄4946.2
381⁄2977.9
381⁄2977.9
381⁄2977.9
421⁄21079.5
421⁄21079.5
477⁄81216.2
477⁄81216.2

Wattage

533.4

533.4

Watt/in2Watt/cm

500 8 1
750 13 2
500 7 1

750 11 2
1000 15 2
1500 22 3

500 7 1

750 10 2
1000 13 2

700 9 1

750 9 1
1000 13 2

750 8 1

750 8 1
1000 11 2
1250 13 2

750 7 1
1000 9 1
1000 9 1
1500 13 2
1500 13 2

800 7 1
1000 8 1
1500 12 2
1250 9 1
1500 11 2
1350 9 1
2250 14 2

2

To order, call 1-800-826-6342 or shop online at omega.com

SM

7
