2-1/2

1-13/32

]

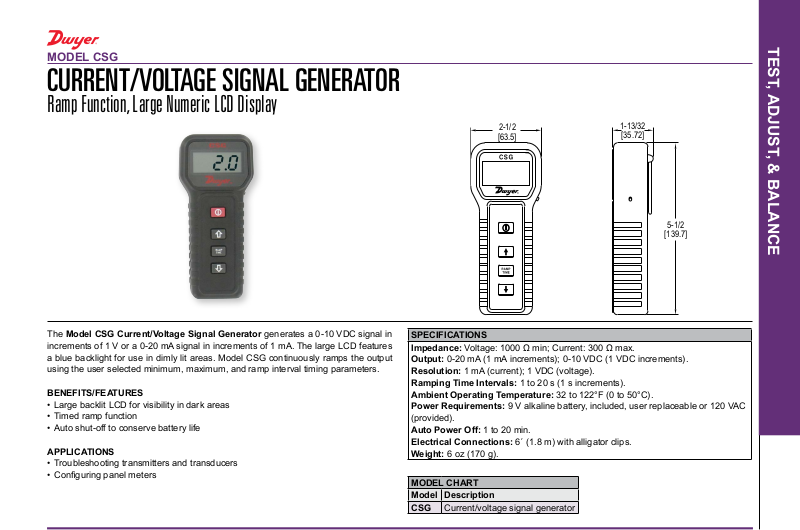

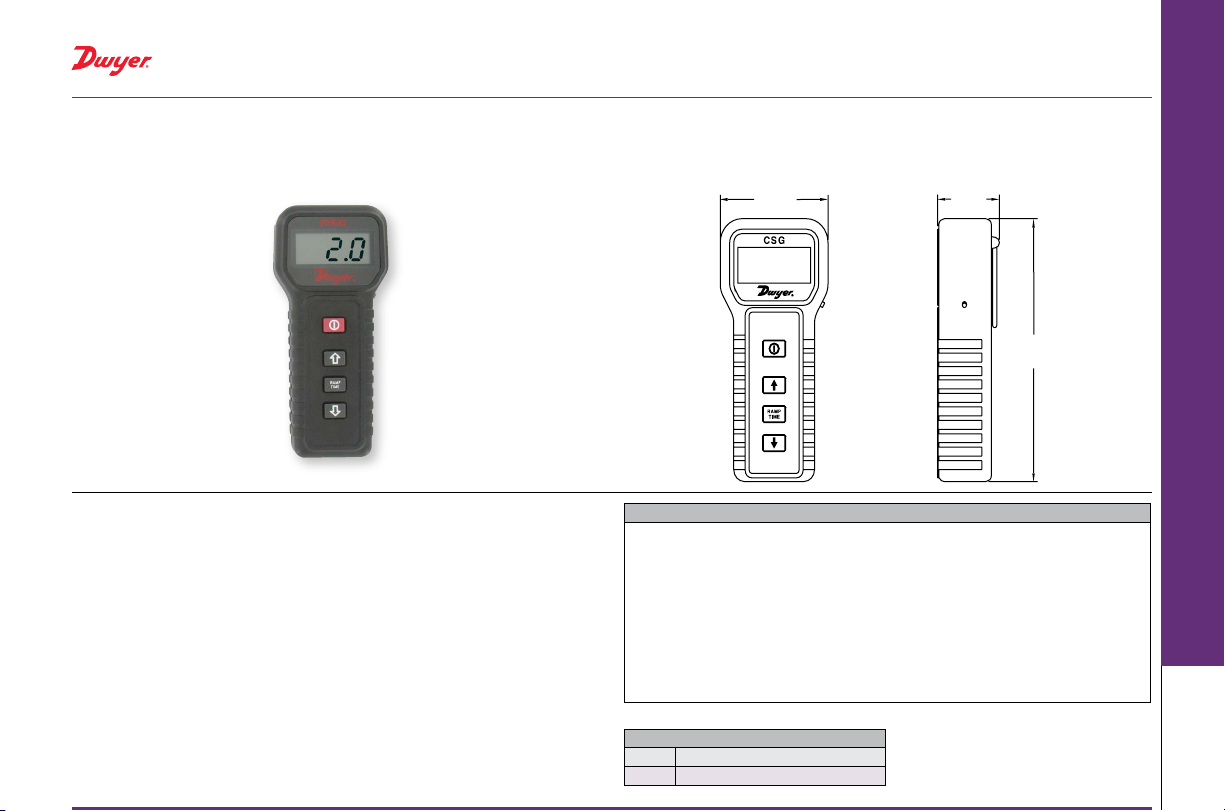

MODEL CSG

CURRENT/VOLTAGE SIGNAL GENERATOR

Ramp Function, Large Numeric LCD Display

TEST, ADJUST, & BALANCE

The Model CSG Current/Voltage Signal Generator generates a 0-10 VDC signal in increments of 1 V or a 0-20 mA signal in increments of 1 mA. The large LCD features a blue backlight for use in dimly lit areas. Model CSG continuously ramps the output using the user selected minimum, maximum, and ramp interval timing parameters.

BENEFITS/FEATURES

• Large backlit LCD for visibility in dark areas

• Timed ramp function

• Auto shut-off to conserve battery life

APPLICATIONS

• Troubleshooting transmitters and transducers

• Conguringpanelmeters

[63.5]

SPECIFICATIONS Impedance:Voltage:1000Ωmin;Current:300Ωmax. Output:0-20mA(1mAincrements);0-10VDC(1VDCincrements). Resolution:1mA(current);1VDC(voltage). Ramping Time Intervals: 1 to 20 s (1 s increments). Ambient Operating Temperature:32to122°F(0to50°C). Power Requirements: 9 V alkaline battery, included, user replaceable or 120 VAC

(provided).

Auto Power Off: 1 to 20 min. Electrical Connections: 6´ (1.8 m) with alligator clips. Weight: 6 oz (170 g).

MODEL CHART Model Description CSG Current/voltage signal generator

[35.72]

5-1/2

[139.7
