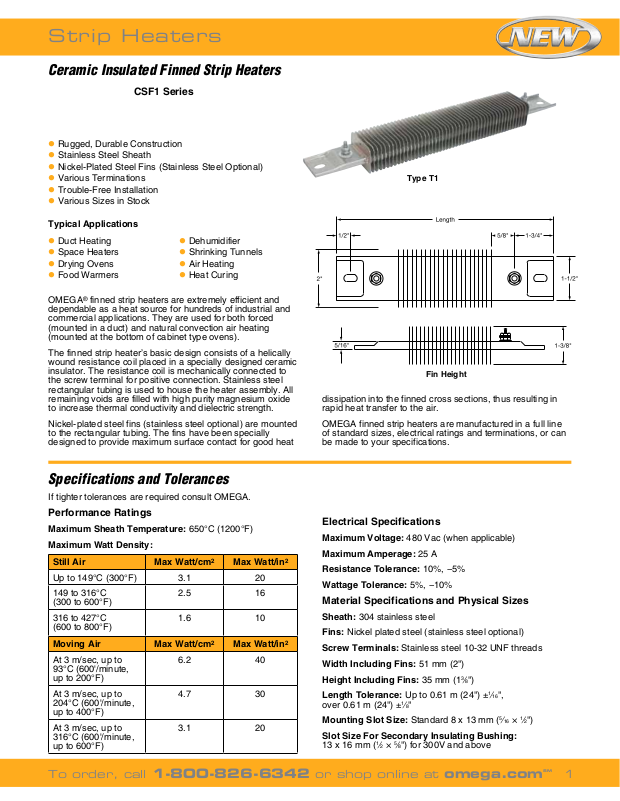

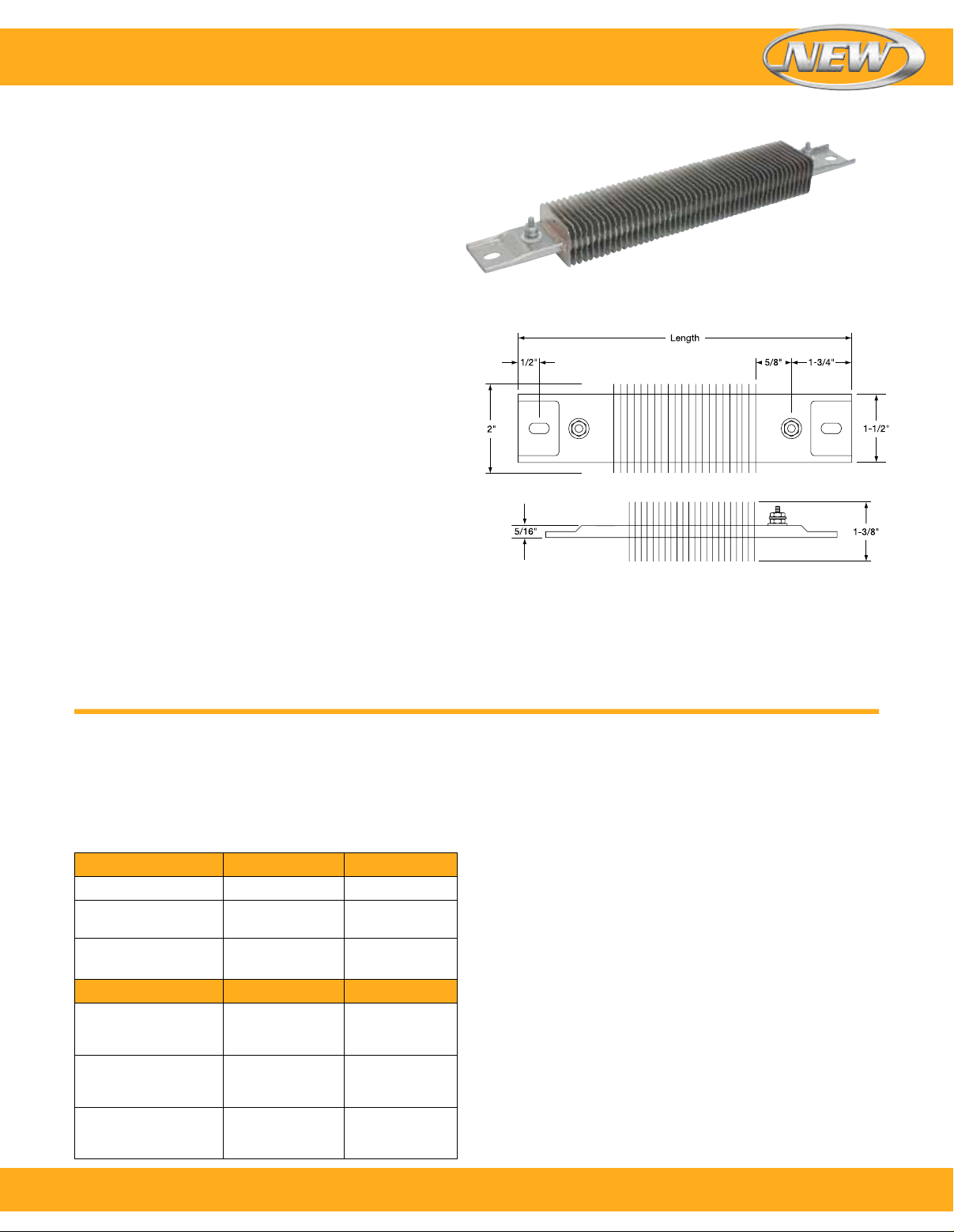

Strip Heaters
Ceramic Insulated Finned Strip Heaters
CSF1 Series
l Rugged, Durable Construction
l Stainless Steel Sheath
l Nickel-Plated Steel Fins (Stainless Steel Optional)
l Various Terminations
l Trouble-Free Installation
l Various Sizes in Stock
Typical Applications
l Duct Heating
l Space Heaters
l Drying Ovens
l Food Warmers
OMEGA® finned strip heaters are extremely efficient and
dependable as a heat source for hundreds of industrial and
commercial applications. They are used for both forced
(mounted in a duct) and natural convection air heating
(mounted at the bottom of cabinet type ovens).
The finned strip heater’s basic design consists of a helically
wound resistance coil placed in a specially designed ceramic
insulator. The resistance coil is mechanically connected to
the screw terminal for positive connection. Stainless steel
rectangular tubing is used to house the heater assembly. All
remaining voids are filled with high purity magnesium oxide
to increase thermal conductivity and dielectric strength.
Nickel-plated steel fins (stainless steel optional) are mounted
to the rectangular tubing. The fins have been specially
designed to provide maximum surface contact for good heat
l Dehumidifier
l Shrinking Tunnels
l Air Heating
l Heat Curing
Type T1
Fin Height
dissipation into the finned cross sections, thus resulting in
rapid heat transfer to the air.
OMEGA finned strip heaters are manufactured in a full line
of standard sizes, electrical ratings and terminations, or can
be made to your specifications.
Specifications and Tolerances
If tighter tolerances are required consult OMEGA.
Performance Ratings
Maximum Sheath Temperature: 650°C (1200°F)
Maximum Watt Density:
Still Air Max Watt/cm
Up to 149°C (300°F) 3.1 20
149 to 316°C
(300 to 600°F)
316 to 427°C
(600 to 800°F)
Moving Air Max Watt/cm
At 3 m/sec, up to
93°C (600'/minute,
up to 200°F)
At 3 m/sec, up to
204°C (600'/minute,
up to 400°F)
At 3 m/sec, up to
316°C (600'/minute,
up to 600°F)
2.5 16
1.6 10
6.2 40
4.7 30
3.1 20
2
2
Max Watt/in
Max Watt/in
2
2
To order, call 1-800-826-6342 or shop online at omega.com
Electrical Specifications
Maximum Voltage: 480 Vac (when applicable)
Maximum Amperage: 25 A
Resistance Tolerance: 10%, −5%
Wattage Tolerance: 5%, −10%
Material Specifications and Physical Sizes
Sheath: 304 stainless steel
Fins: Nickel plated steel (stainless steel optional)
Screw Terminals: Stainless steel 10-32 UNF threads
Width Including Fins: 51 mm (2")
Height Including Fins: 35 mm (13⁄8")
Length Tolerance: Up to 0.61 m (24") ±1⁄16",
over 0.61 m (24") ±1⁄8"
Mounting Slot Size: Standard 8 x 13 mm (5⁄16 × 1⁄2")
Slot Size For Secondary Insulating Bushing:
13 x 16 mm (1⁄2 × 5⁄8") for 300V and above
SM
1
Page 2

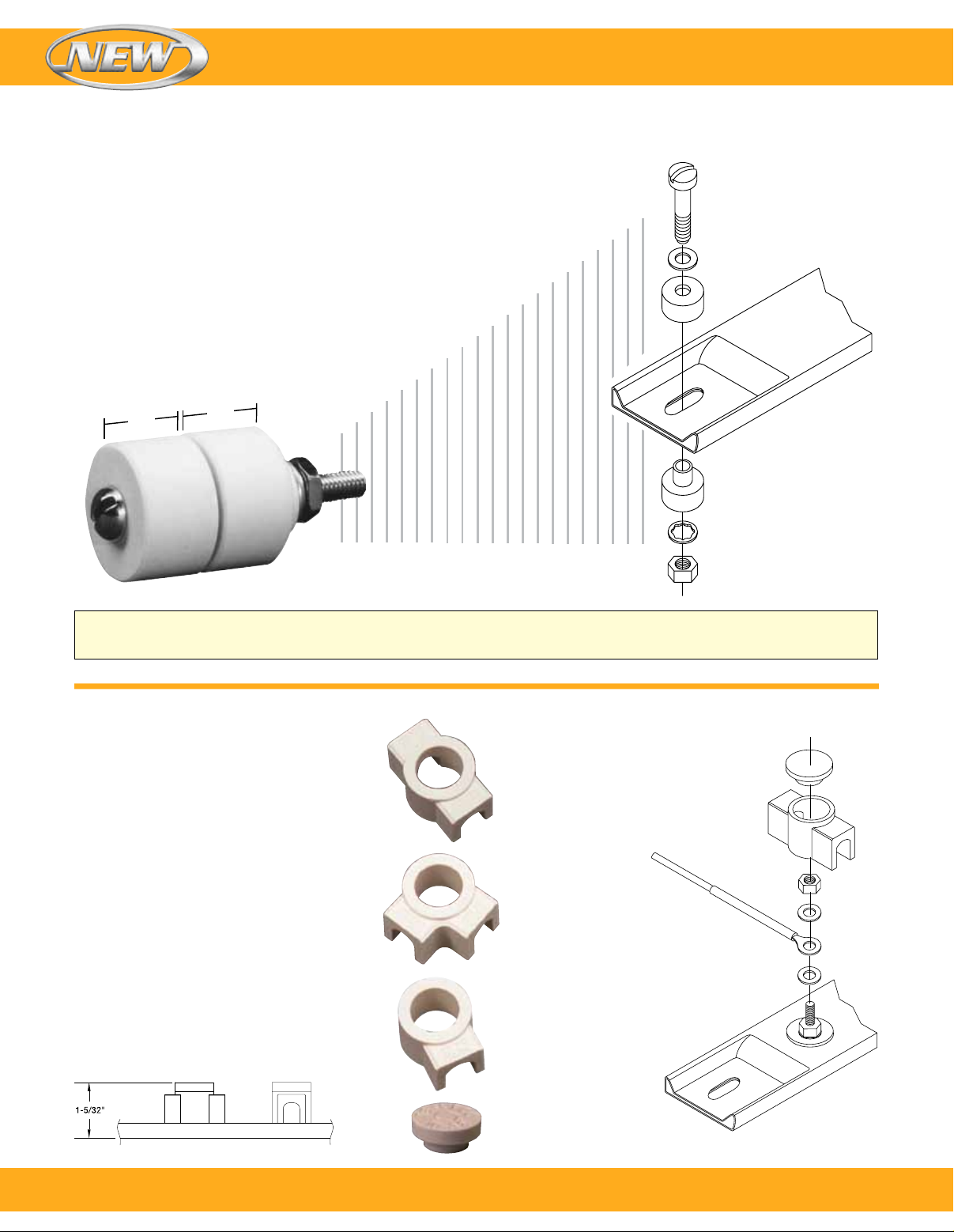

Secondary Insulating Bushings
Secondary insulating ceramic bushings increase the
effective space between the heater and grounded surface
for electrical clearance at high voltages. They must be used
on the mounting tabs when the finned heater is connected in
series or in direct line voltage above 300V.
When insulating bushings are required, a 13 x 16 (1⁄2 × 5⁄8")
slot is substituted for the standard slot size 8 x 13 mm
(5⁄16 × 1⁄2").
Insulating Bushing Assembly
Model Number: CERR-1001
Note: Two assemblies are required for each heater.
1
1
⁄2"
⁄2"
Strip Heaters
CAUTION: When using secondary insulating bushings, the heater must be guarded to avoid any accidental contact. The guard
must be electrically isolated from the heater and must be properly grounded.
Ceramic Covers for Insulating
Screw Terminals
Igloo™ Ceramic Covers
Igloo ceramic terminal covers consist
of two individual ceramic parts. With
a tight-fitting cap and a solid base,
an Igloo cover will fully insulate any
standard 10-32 terminal lug used for
electrical wiring hookups.
Igloo covers can be assembled on all
channel strip and finned strip heaters
with Type T1 and Type T4 screw
terminals. Mica strip heaters with screw
terminals that have a minimum center
to center distance of 22 mm (
also be assembled with Igloo covers.
Three different types of Igloo bases are
available for your wiring convenience.
Double port in-line, double port 90°
and single port.
7
⁄8") can
Type C6
Double Port In-Line
Model Number:
CER-101-104
Type C7
Double Port 90°
Model Number:
CER-101-106
Type C8
Single Port
Model Number:
CER-101-107
2
Ceramic Cap
Thread 10-32
Model Number:
CER-102-101
To order, call 1-800-826-6342 or shop online at omega.com
SM
Page 3

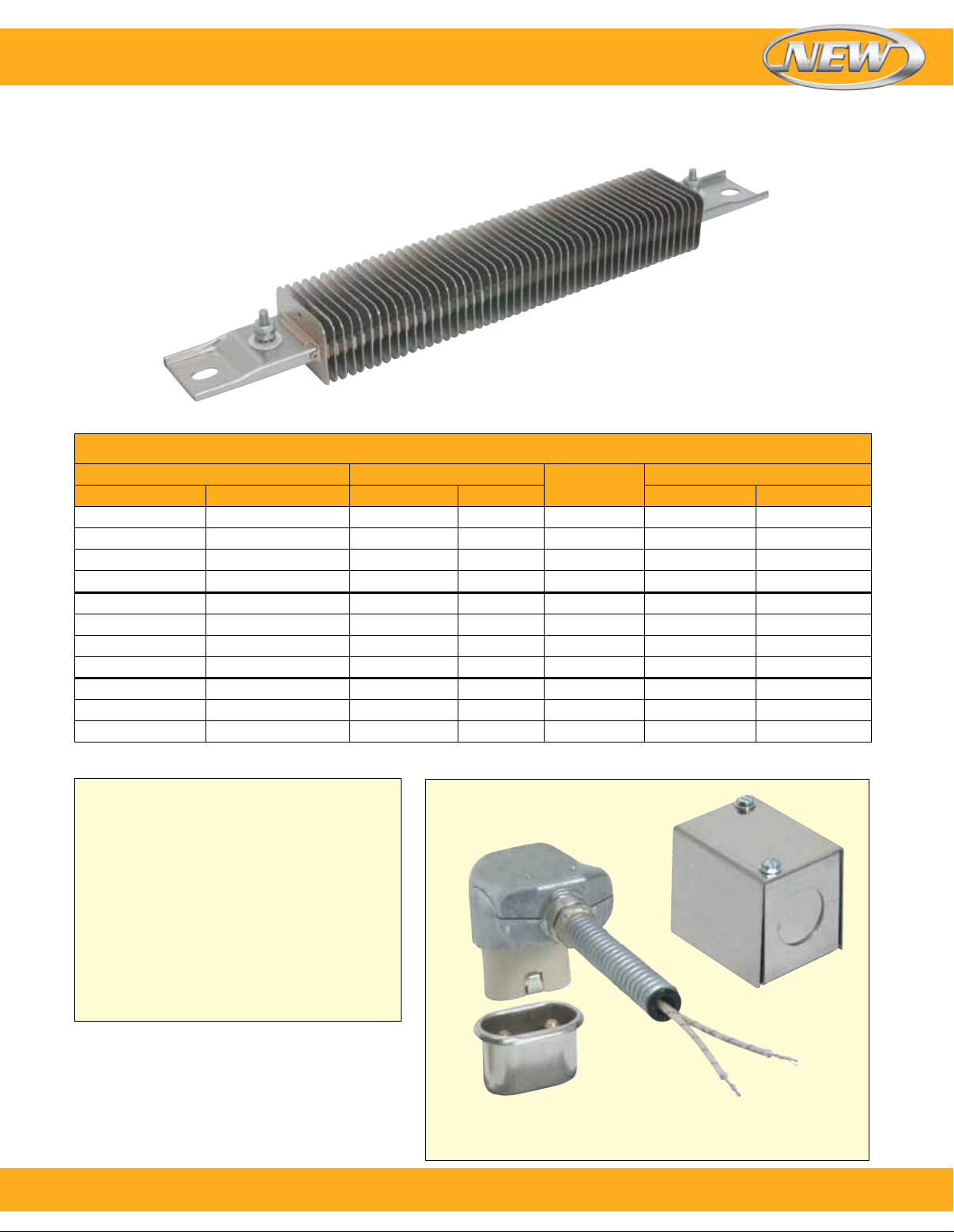

Strip Heaters
Finned Strip Heaters —T1 Termination
To Order Visit omega.com/csf1 for Pricing and Details
Model No. Length
120V 240V mm inch Watt/cm
CSF00121 CSF00122
CSF00123 CSF00124
CSF00131 CSF00132
CSF00232 CSF00249
CSF00135 CSF00136
CSF00139 CSF00140
CSF00144 CSF00145
— CSF00159
— CSF00165
— CSF00176
— CSF00217
Ordering Example: CSF00121, 500 watt, 120 Vac, finned strip heater.
266.7 10
266.7 10
304.8 12 900 6 40
355.6 14 750 4 28
355.6 14 1100 6 37
387.4 15
454.0 17
603.3 23
647.7 25
774.7 30
1079.5 42
1
⁄2 500 5 34
1
⁄2 725 7 45
1
⁄4 1250 6 37
7
⁄8 1550 6 38
3
⁄4 2200 5 30
1
⁄2 2400 5 35
1
⁄2 2800 5 29
1
⁄2 4150 5 31
Watts
Watt Density
2
Watt/in
2
Custom Engineered/Manufactured Heaters
An electric heater can be very application
specific; for sizes and ratings not listed, OMEGA
will design and manufacture a finned strip
heater to meet your requirements.
Please Specify the Following:
l Type of Application
l Termination Type
l Length
l Secondary Bushings (see page 2)
l Wattage
l Igloo™ Ceramic Terminal Covers
l Voltage
Type C – Terminal Box and Type P – H igh Temperature Quick
Disconnect Plug are available. Visit omega.com
