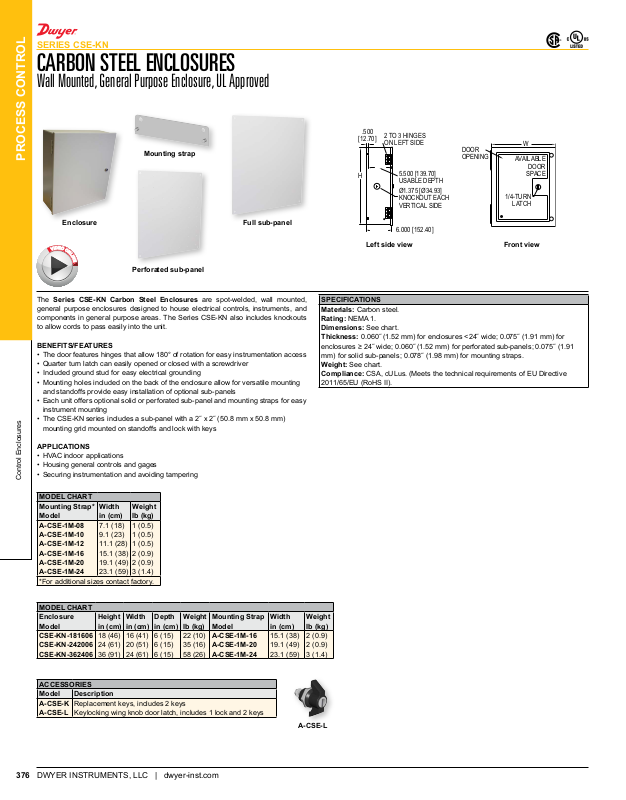

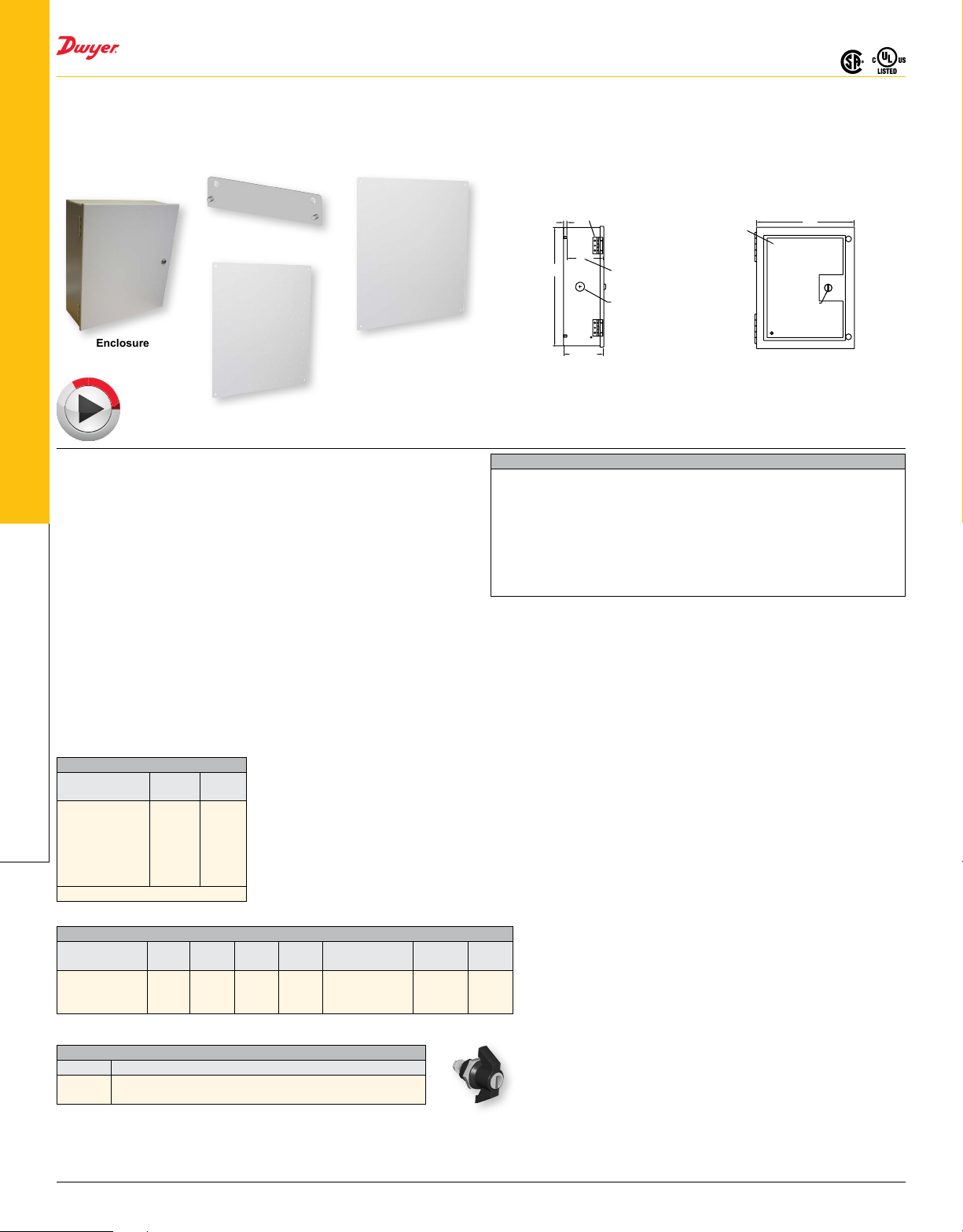

SERIES CSE-KN

CARBON STEEL ENCLOSURES

Wall Mounted, General Purpose Enclosure, UL Approved

PROCESS CONTROL

Mounting strap

.500

[12.70]

2 TO 3 HINGES ON LEFT SIDE

5.500 [139.70] USABLE DEPTH

Ø1.375 [Ø34.93] KNOCKOUT EACH VERTICAL SIDE

DOOR OPENING

AVAILABLE

1/4-TURN

LATCH

DOOR

SPACE

Full sub-panelEnclosure

Perforated sub-panel

The Series CSE-KN Carbon Steel Enclosures are spot-welded, wall mounted, general purpose enclosures designed to house electrical controls, instruments, and components in general purpose areas. The Series CSE-KN also includes knockouts to allow cords to pass easily into the unit.

BENEFITS/FEATURES

• The door features hinges that allow 180° of rotation for easy instrumentation access

• Quarter turn latch can easily opened or closed with a screwdriver

• Included ground stud for easy electrical grounding

• Mounting holes included on the back of the enclosure allow for versatile mounting and standoffs provide easy installation of optional sub-panels

• Each unit offers optional solid or perforated sub-panel and mounting straps for easy instrument mounting

• TheCSE-KNseriesincludesasub-panelwitha2˝x2˝(50.8mmx50.8mm)

mounting grid mounted on standoffs and lock with keys

APPLICATIONS

• HVAC indoor applications

• Housing general controls and gages

• Securing instrumentation and avoiding tampering

Control Enclosures

MODEL CHART Mounting Strap* Model A-CSE-1M-08 A-CSE-1M-10 A-CSE-1M-12 A-CSE-1M-16 A-CSE-1M-20 A-CSE-1M-24

*For additional sizes contact factory.

Width in (cm)

7.1(18)

9.1(23)

11.1(28)

15.1(38)

19.1(49)

23.1(59)

Weight lb (kg)

1(0.5) 1(0.5) 1(0.5) 2(0.9) 2(0.9) 3(1.4)

6.000 [152.40]

Left side view Front view

SPECIFICATIONS Materials: Carbon steel. Rating: NEMA 1. Dimensions: See chart. Thickness: 0.060˝(1.52mm)forenclosures<24˝wide;0.075˝(1.91mm)for

enclosures≥24˝wide;0.060˝(1.52mm)forperforatedsub-panels;0.075˝(1.91 mm)forsolidsub-panels;0.078˝(1.98mm)formountingstraps.

Weight: See chart. Compliance: CSA,cULus.(MeetsthetechnicalrequirementsofEUDirective

2011/65/EU(RoHSII).

MODEL CHART Enclosure Model CSE-KN-181606 CSE-KN-242006 CSE-KN-362406

ACCESSORIES Model Description A-CSE-K A-CSE-L

DWYERINSTRUMENTS,LLC|dwyer-inst.com376

Height in (cm)

18(46) 24(61) 36(91)

Replacementkeys,includes2keys

Keylocking wing knob door latch, includes 1 lock and 2 keys

Width in (cm)

16(41) 20(51) 24(61)

Depth in (cm)

6(15) 6(15) 6(15)

Weight lb (kg)

22(10) 35(16) 58(26)

Mounting Strap Model A-CSE-1M-16 A-CSE-1M-20 A-CSE-1M-24

Width in (cm)

15.1(38)

19.1(49)

23.1(59)

Weight lb (kg)

2(0.9) 2(0.9) 3(1.4)

A-CSE-L
