H
TOP DEPTH

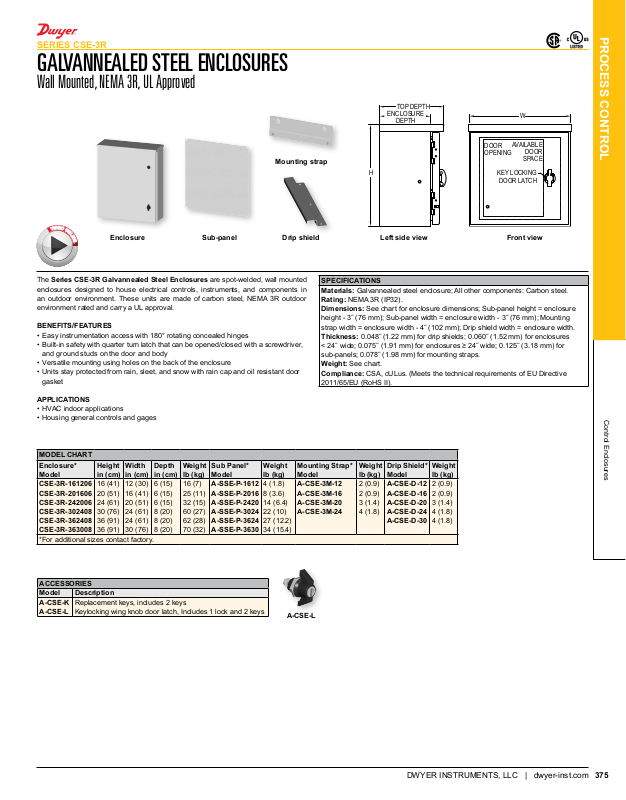

SERIES CSE-3R
E
GALVANNEALED STEEL ENCLOSURES
Wall Mounted, NEMA 3R, UL Approved
PROCESS CONTROL
Mounting strap
E
O
D
I
V
O
N
L
I
N
The Series CSE-3R Galvannealed Steel Enclosures are spot-welded, wall mounted
enclosures designed to house electrical controls, instruments, and components in
an outdoor environment. These units are made of carbon steel, NEMA 3R outdoor
environment rated and carry a UL approval.
BENEFITS/FEATURES
• Easy instrumentation access with 180° rotating concealed hinges
• Built-in safety with quarter turn latch that can be opened/closed with a screwdriver,
and ground studs on the door and body
• Versatile mounting using holes on the back of the enclosure
• Units stay protected from rain, sleet, and snow with rain cap and oil resistant door
gasket
APPLICATIONS
• HVAC indoor applications
• Housing general controls and gages
Sub-panelEnclosure
Drip shield
ENCLOSURE
DEPTH
DOOR
OPENING
Left side view Front view
SPECIFICATIONS
Materials: Galvannealed steel enclosure; All other components: Carbon steel.
Rating: NEMA 3R (IP32).
Dimensions: See chart for enclosure dimensions; Sub-panel height = enclosure
height - 3˝ (76 mm); Sub-panel width = enclosure width - 3˝ (76 mm); Mounting
strap width = enclosure width - 4˝ (102 mm); Drip shield width = enclosure width.
Thickness: 0.048˝ (1.22 mm) for drip shields; 0.060˝ (1.52 mm) for enclosures
< 24˝ wide; 0.075˝ (1.91 mm) for enclosures ≥ 24˝ wide; 0.125˝ (3.18 mm) for
sub-panels; 0.078˝ (1.98 mm) for mounting straps.
Weight: See chart.
Compliance: CSA, cULus. (Meets the technical requirements of EU Directive
2011/65/EU (RoHS II).
W
AVAILABLE
DOOR
SPACE
KEY LOCKING
DOOR LATCH
Control Enclosures
MODEL CHART
Enclosure*
Model
CSE-3R-161206
CSE-3R-201606
CSE-3R-242006
CSE-3R-302408
CSE-3R-362408
CSE-3R-363008
*For additional sizes contact factory.
ACCESSORIES
Model Description
A-CSE-K
A-CSE-L
Height
Width
Depth
Weight
in (cm)
in (cm)
12 (30)
16 (41)
20 (51)
24 (61)
24 (61)
30 (76)
in (cm)
6 (15)
6 (15)
6 (15)
8 (20)
8 (20)
8 (20)
16 (41)
20 (51)
24 (61)
30 (76)
36 (91)
36 (91)
Replacement keys, includes 2 keys
Keylocking wing knob door latch, Includes 1 lock and 2 keys
lb (kg)
16 (7)
25 (11)
32 (15)
60 (27)
62 (28)
70 (32)
Sub Panel*
Model
A-SSE-P-1612
A-SSE-P-2016
A-SSE-P-2420
A-SSE-P-3024
A-SSE-P-3624
A-SSE-P-3630
Weight
lb (kg)
4 (1.8)
8 (3.6)
14 (6.4)
22 (10)
27 (12.2)
34 (15.4)
Mounting Strap*
Model
A-CSE-3M-12
A-CSE-3M-16
A-CSE-3M-20
A-CSE-3M-24
A-CSE-L
Weight
lb (kg)
2 (0.9)
2 (0.9)
3 (1.4)
4 (1.8)
Drip Shield*
Model
A-CSE-D-12
A-CSE-D-16
A-CSE-D-20
A-CSE-D-24
A-CSE-D-30
Weight
lb (kg)
2 (0.9)
2 (0.9)
3 (1.4)
4 (1.8)
4 (1.8)
DWYER INSTRUMENTS, LLC | dwyer-inst.com
375
