Section 1 - Introduction
Your CSC32 series Benchtop controller is ideal for laboratory use and
applications requiring portable temperature or process control. Pre-wired
input and output receptacles on the rear panel enable quick and easy
connections to main ac power, signal input, control output and two way digital
communications. These controllers are factory configured and calibrated for
a dedicated input type by model number. It is important that you read this
manual and controller manual number M2897 completely and follow all safety
precautions in both manuals before operating this unit.
1.1 Precautions
• Follow all safety precautions and operating instructions outlined in this
manual.
• Keep out of reach of all children.
• Do not operate in flammable or explosive environments.
• Never operate with a power cord other than the one provided with your unit.
• Remove and/or disconnect main power cord before attempting any
maintenance or fuse replacement.
Introduction
1
• Do not connect and/or operate this unit to a non-grounded, non-polarized
outlet or power source.
• Do not reconfigure the input type factory set in the controllers program.
Incorrect readings and/or control may result.
NOTE:
There are no user serviceable parts inside your unit. Attempting to repair or service your unit
may void your warranty.
1.2 Safety Warnings and IEC Symbols
This device is marked with international safety and hazard symbols in
accordance with IEC 1010. It is important to read and follow all precautions and
instructions in this manual before operating or commissioning this device as it
contains important information relating to safety and EMC. Failure to follow all
safety precautions may result in injury and or damage to your calibrator. Use of
this device in a manor not specified by the manufacturer may impair protection
provided within the unit.
Caution, risk of electric shock Caution, refer
to accompanying documents
Figure 1. IEC Symbols
1-1
Page 6
1
Introduction
1.3 Statement on CE Marking
It is the policy of OMEGA to comply with all world-wide safety and EMI/
EMC regulations that apply. OMEGA is constantly pursuing certification of its
products to the European New Approach Directives. OMEGA will add the CE
mark to every appropriate device upon verification of compliance.
Your unit is not CE marked.
1.4 Available Models
Available Input Control
Models Type Output Range
CSC32J J -0 to 800°C/32 to 1472°F
NOTE:
CSC32K K -50 to -1200°C/-58 to 2192°F
CSC32E E 0 to 600°C/32 to 1112°F
CSC32T T -200 to -250°C/-273 to 482°F
CSC32R R DUAL 5 AMP SSR -50 to 40°C/40 to 1768°F
CSC32S S 0 to 1600°C/32 to 2912°F
CSC32RTD RTD -200 to 400°C/-273 to 752°F
CSC32MV MV 0 to 20 mV (-250 to 3000 Max. Scale)
CSC32MA MA 0 to 20 mA (-250 to 3000 Max. Scale)
1-2
Page 7
Section 2 - Installation
2.1 Unpacking
Remove the packing list and verify that you have received all your equipment.
If you have any questions about the shipment, please call our Customer Service
Department at
1-800-622-2378 or 203-359-1660. We can also be reached on the Internet at omega.
com
e-mail: [email protected]
When you receive the shipment, inspect the container and equipment for any
signs of damage. Note any evidence of rough handling in transit. Immediately
report any damage to the shipping agent.
The carrier will not honor any damage claims unless all shipping material is saved for
inspection. After examining and removing contents, save packing material and carton in the
event reshipment is necessary.
NOTE:
Installation
2
The following items are supplied in the box:
• CSC32 Series benchtop Controller (1 each)
• This Users Guide and Controller Manual #M2897, CN9300/CN9500 Autotune
Temperature Controllers. (1 each)
• Power Cord (1 each)
• Mating Input Connector(s),
• Thermocouple Models: (1 each) standard OST Series male and (1 each)
miniature SMP Series male.
• RTD, MA and MV Models: (1 each) Omega Model TA3F
• DB9, DB25 Adapter/RJ12 Cable (1 set) Communication models only.
• CN9-SW Communication Software (1 each) Communication models only
• Software Communications Manual #M2896 (1 each) Communications models
only.
2.2 Power Connection
2.2.1 108-125 VAC ~, 50/60 Hz
Your Benchtop Controller comes with a standard North American 3-prong AC
power cord. Do not use any other power cord other than the one provided. This
cord provides the proper grounding and has been safety tested by the proper
safety agencies.
CAUTION:
Electrical connections and wiring should be performed only by suitably trained personnel.
2-1
Page 8
3
Operation
Section 3 - Operation
3.1 Front Panel Controls, Indicators and Connections
1/32 DIN PID CONTR
SINGLE INPUT
, DU
OLLER
AL OUTPUT.
F1
CONTROLLER POWER SWITCH
300
*
CONTROLLER FUSE

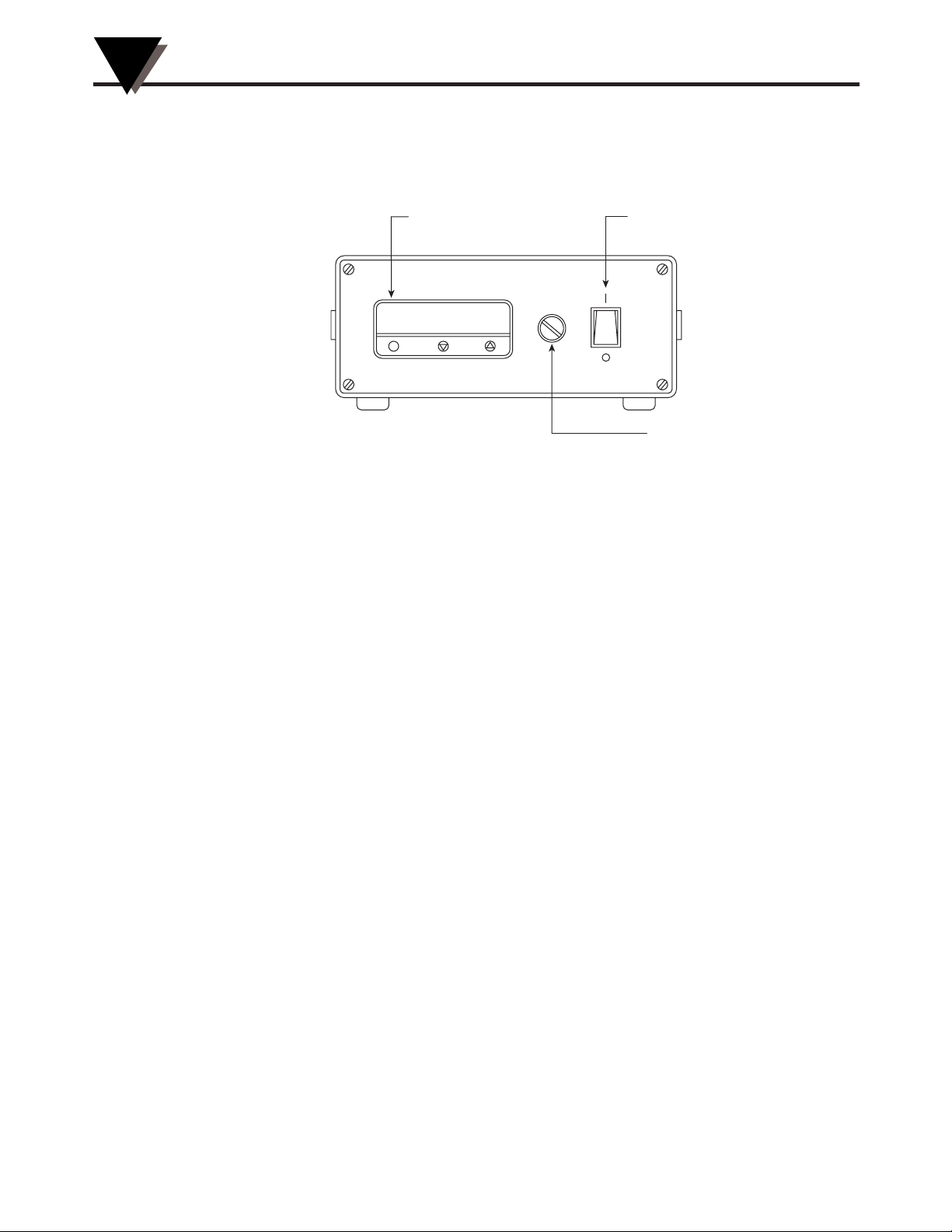

Figure 2a. Front Panel (108-125 Vac Models)
3-1
Page 9
Operation
3.2 The Universal Thermocouple Panel Jack shown is patented.
NOTE:
The Universal Thermocouple Panel Jack Shown is patented.
3
OUTPUT 1 (FUSE:
F5A, 250V (FAST BLOW)
5mm DIA. X 20mm LONG
OUTPUT 1
5 AMP, 120V MAX.
600 WATTS
F2)
OUTPUT 2 (FUSE:
F5A, 250V (FAST BLOW)
5mm DIA. X 20mm LONG
OUTPUT 2
5 AMP, 120V MAX.
600 WATTS
F3)
RS232/485 OPTION PORT
RJ12 JACK
(MODELS -C2 OR -C4 ONLY)
AC MAINS RECEPT
108-120 VAC (50/60 Hz)
POWER CORD PROVIDED
CONTROLLER
MODELS: CSC32K
CSC32J
CSC32E
CSC32T
CSC32R
CSC32S
CSC32N
J
CONST -
IRON +
CLE
A
REAR PANEL VIEW FOR THE FOLLOWING MODEL
MODELS: CSC32K-C2
CSC32J-C2
CSC32E-C2
CSC32T-C2
CSC32R-C2
CSC32S-C2
CSC32N-C2
THERMOCOUPLE FEMALE JACK
ACCEPTS BOTH MINIA
STANDARD SIZE MALE THERMOCOUPLE CONNECT
(1 EA. STANDARD SIZE CONNECT
(1 EA. MINIA
J
CONST -
IRON +
TURE AND
TURE SIZE CONNECTOR INCLUDED)
CAUTION:
CONTROLLER INPUT TYPE IS
CALIBRATED TO THE MODEL NUMBER YOU HAVE ORDERED.
DO NOT CHANGE THE CONTR
TYPE PROGRAMMING.
INCORRECT READINGS AND/OR CONTROL WILL RESULT.
MODELS: CSC32K-C4
CSC32J-C4
CSC32E-C4
CSC32T-C4
CSC32R-C4
CSC32S-C4
CSC32N-C4
OR AND
CALIBRATION TYPE
+ WIRE
- WIRE
CTORY SET AND
FA
'S THERMOCOUPLE INPUT
OLLER
S
ORS
THERMOCOUPLE
PROBE

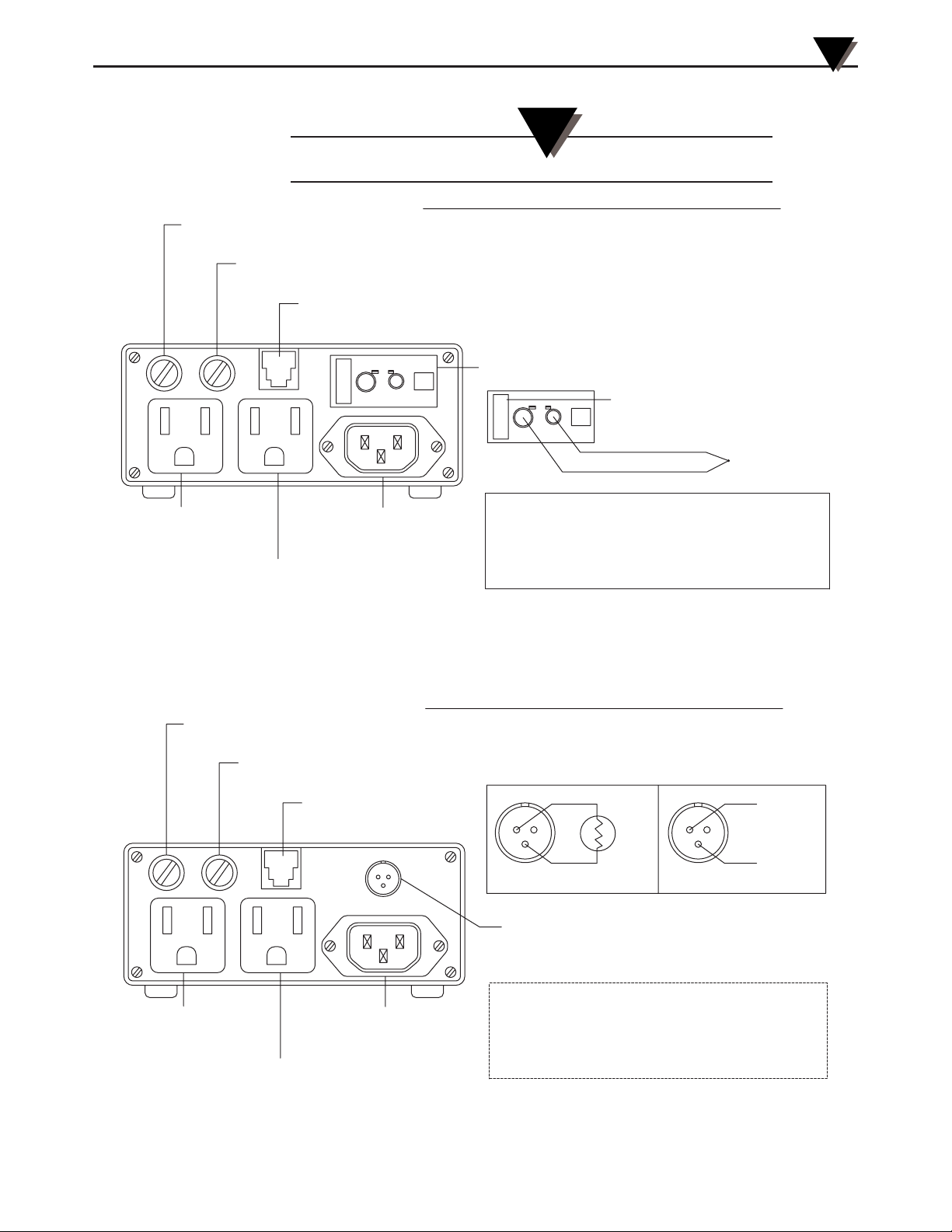

Figure 2b. Rear Panel (Thermocouple Models)
3.3 Rear Panel (RTD, MV, MA Models)
OUTPUT 1 (FUSE:
F5A (250V)
5mm DIA. X 20mm LONG
OUTPUT 1
5 AMP, 120V MAX.
600 WATTS
F2)
OUTPUT 2 (FUSE:
F5A (250V)
5mm DIA. X 20mm LONG
OUTPUT 2
5 AMP, 120V MAX.
600 WATTS
F3)
RS232/485 OPTION PORT
RJ12 JACK
(MODELS -C2 OR -C4 ONLY)
AC MAINS RECEPT
POWER CORD PROVIDED
108-120 VAC (50/60 Hz)
MODELS: CSC32RTD
CSC32MV
CSC32MA
CLE
A
BENCH TOP CONTROLLER REAR PANEL VIEW
MODELS: CSC32RTD-C2
CSC32MV-C2
CSC32MA-C2
INPUT CONNECTOR WIRING
123
RTD INPUT MODELS
TB3M RECEPTACLE, ALL RTD,MV OR MA MODELS
ECCEPTS OMEGA MODEL NO. TA3F LOCKING CONNECT
(1 EA. INCLUDED)
CAUTION:
CONTROLLER INPUT TYPE IS
CALIBRATED TO THE MODEL NUMBER Y
DO NOT CHANGE THE CONTR
TYPE PROGRAMMING.
INCORRECT READINGS AND/OR CONTROL WILL RESULT.
RTD
2-WIRE
FACTORY SET AND
OLLER
MODELS: CSC32RTD-C4
CSC32MV-C4
CSC32MA-C4
123
MV OR MA INPUT MODELS
VE ORDERED.
OU HA
S INPUT
+ INPUT
- INPUT
OR.
Figure 2c. Rear Panel (RTD, MV and MA Models)
3-2
Page 10
3
Operation
3.4 Controller Setup and Programming
3.4.1 Input Type Setup
No setup or programming is required. Your unit has been manufactured,
programmed and calibrated for the input type you ordered by model number.
Do not change or reprogram the controllers input type. Incorrect readings and/
or control will occur.
3.4.2 Output Type Setup
No setup or programming is required. Your unit has been manufactured and
programmed for dual dc pulse outputs to drive the internal dual solid state relay
built into your unit. Do not change or reprogram the controller’s output type.
Incorrect control and/or damage to your unit may occur.
3.4.3 Changing the Temperature/Process Setpoint
The CSC32 incorporates a PID digital setpoint controller. In the default
mode the digital display indicates the temperature or process known as (PV)
Process Variable. Holding down the “MODIFY” key causes the display to
show the current programmed setpoint known as (SV) Setpoint Variable. To
make changes to setpoint press and hold the “MODIFY” key, then press the
“INCREASE” or “DECREASE” key to make the your change. In this mode,
holding the “INCREASE” or “DECREASE” key for an extended period will
cause the setpoint to advance more rapidly the longer you hold it.
Modify Key Decrease Key Increase Key
Press/hold to view Press in conjunction Press in conjunction
change setpoint with Modify Key with Modify Key
to decrease setpoint. to increase setpoint.
3.4.4 All Other Settings and Programming
For all other settings such as… Units, Decimal, Setpoint, Autotune, Control
Parameters and Communication refer to the controller’s manual # M2897,
CN9300/CN9500 Autotune Temperature Controllers. For -C2 (RS-232) or –C4
(RS-485) models with the communication option refer to the communication
manual for settings and programming.
3-3
Page 11
RS-232 or RS-484 Communications (Optional)
Section 4 - RS-232 or RS-485 Communication (Optional)
4.1 Communication Cable Connections
Your controller unit has been factory pre-wired and configured for ease of use
with an RJ12 rear panel connection that will requires no additional wiring. An
interface cable, Part No. DB25-R12 is included with your unit for easy connection
between your benchtop controller and PC.

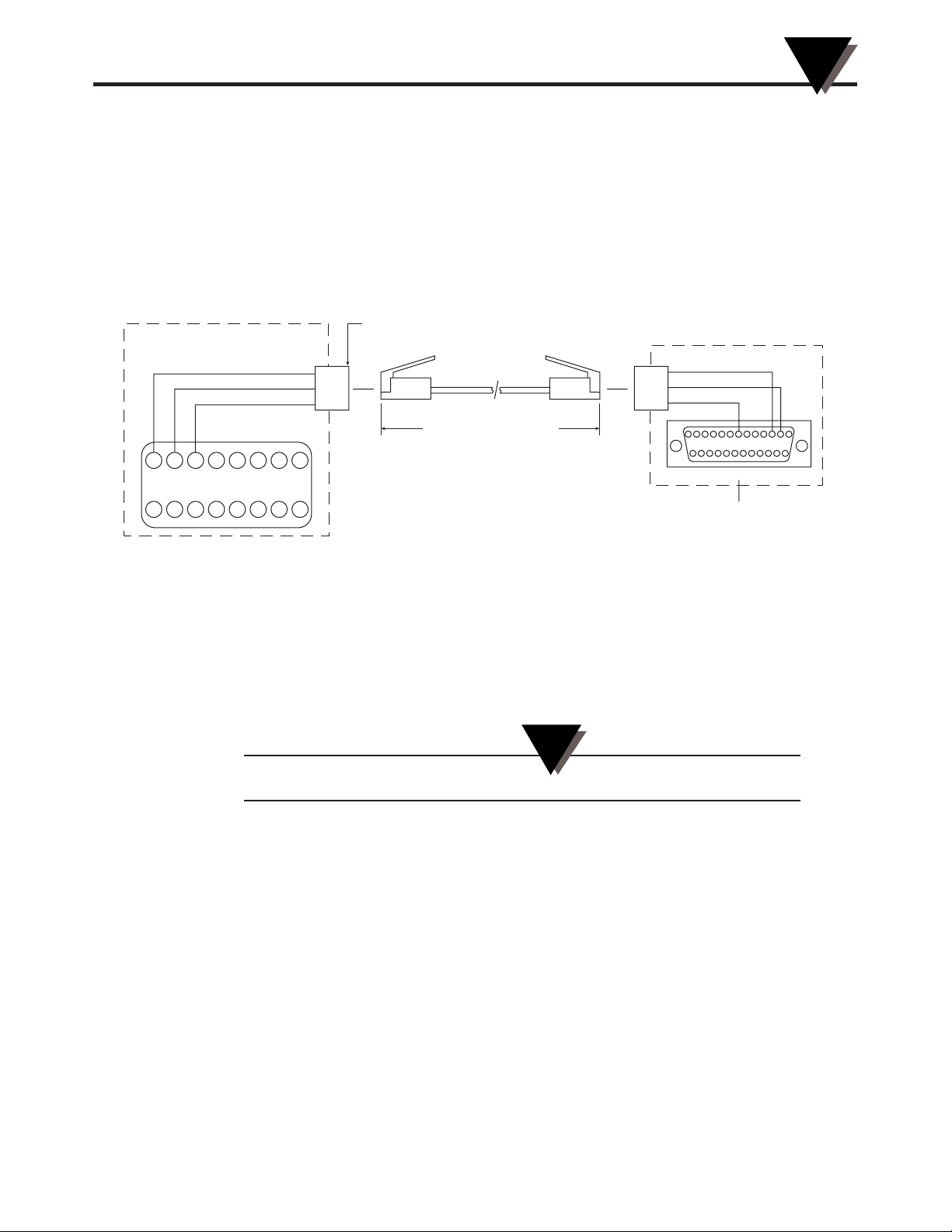

BENCHTOP CONTROLLER
INTERNAL WIRING
GREEN
RED
BLACK
REAR PANEL
RJ12 CONNECTOR
RJ12 TO DB-25 OR DB-9 ADAPTER
RX
TX
GN
4
CONTROLLER – REAR
161514131211109
87654321
1.8 METERS (6 FEET)
Figure 3. Communications Cable Connections
4.2 CN9-SW Communication Software
Benchtop controllers with the –C2 or –C4 option come complete with
communication software, Omega part number CN9-SW. The software is
designed to interface with your benchtop controller when the optional
communication hardware has been factory installed in your unit.
NOTE:
The CN9-SW software is Windows® 95/98/NT/ME/2000/XP compatible.
4.3 Communication Settings and Programming
732
CONNECT TO PC
Refer to the Software Communication Manual (M2896) for factory default
settings and for making changes to the communication settings and
programming.
4-1
Page 12
5
Maintenance
Section 5 Maintenance
5.1 Calibration
This unit has been fine tuned and factory calibrated to give optimum
performance over its full operating range for the input type you have selected
by model number. It is recommended that the unit be returned annually for
recalibration.
Remove all electrical connections and power before attempting any maintenance or cleaning.
5.2 Cleaning
Lightly dampen a soft clean cloth with a mild cleaning solution and gently clean
the benchtop controller.
5.3 Fuse replacement
CAUTION:
WARNING:
Disconnect all power from source before attempting fuse replacement.
CAUTION:
For continued protection against the risk of fire, replace fuses with only the same size, type
and rating indicated here and on the rear panel of your unit.
5.3.1 108-125 VAC ~, 50/60 Hz Models
Controller Power Fuse: 1 each F.250A, 250 VAC, (Fast-Acting, 0.250 Amp)
(Front Panel) F1 UL./CSA/VDE APPROVED (5mm dia. x 20 mm long).
Output Fuse: 2 each F5A, 250 VAC, (Fast-Acting, 5 Amp)
(Rear Panel) F2, F3 UL./CSA/VDE APPROVED
(5 mm dia. x 20 mm long).
5-1
Page 13
Section 6 - Troubleshooting Guide
Problem Solution
1. Unit will not turn on. a. Check all electrical connections
b. Check front panel fuses.
c. Unit requires service, contact our
Troubleshooting Guide
customer service department.
6
2. Unit turns on, but will not control.
b. Check rear panel fuses.
c. Check that you have programmed and
set all the correct parameters for your
application. Ref. Manual No. M2897
d. Contact our application engineering-
3. Rear Panel Output Fuse(s)
keeps blowing.
c. Check that your output load does not
exceed the 5 Amp (600 watts) maximum
limit.
d. Contact our application-engineering
b. Check rear panel fuses for correct rating.
a. Check all electrical connections.
a. Check all electrical connections.
department for help.
department for help.
6-1
Page 14
7
Specifications
Section 7 - Specifications
7.1 Benchtop Configuration
Accuracy
Thermocouple Models: ±.25% full scale ±1.5°C
(J, K, T, E, R, S, N)
RTD, MA, MV Models: ±0.25% full scale
Power
Standard Models: 108-125 Vac, 50/60 Hz.
Input Connection
Thermocouple Models: Universal Female Panel Jack (Patented)
(J, K, T, E, R, S, N) (Accepts both standard or miniature male
thermocouple connector)
RTD, MA, MV Models: Omega T-Series Model No. TB3M (Male)
(Accepts Omega T-Series Model No. TA3F
(Female) Keyed 3-pin Locking Connector)
Output Connection
Outputs: 2
Output Rating 5 Amp (120 Vac) Max
Output Connections: Standard 3-Prong Grounded
Enclosure
Material: Painted Aluminum
Size: 135 W x 59 H x 159 mm L (5.3 W x 2.4 H x 6.5" L)
Weight: 0.91 kg. (2 lbs.)
7.2 Controller Model CN9522 Specifications
See User Manual #M2897, CN9300/CN9500 Autotune Temperature Controllers
for complete controller specifications and programming.
7-1
Page 15
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 25 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal two (2) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for
any damages that result from the use of its products in accordance with information provided
by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED
RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.
FOR WARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:
1. Purchase Order number under which the product
was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2013 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.
FOR NON-WARRANTY REPAIRS,
for current repair charges. Have the following
information available BEFORE contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
consult OMEGA
Page 16
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
TEMPERATURE
MU
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
MU
Wire: Thermocouple, RTD & Thermistor
MU
Calibrators & Ice Point References
MU
Recorders, Controllers & Process Monitors
MU
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
MU
Transducers & Strain Gages
MU
Load Cells & Pressure Gages
MU
Displacement Transducers
MU
Instrumentation & Accessories
FLOW/LEVEL
MU
Rotameters, Gas Mass Flowmeters & Flow Computers
MU
Air Velocity Indicators
MU
Turbine/Paddlewheel Systems
MU
Totalizers & Batch Controllers
SM
pH/CONDUCTIVITY
MU
pH Electrodes, Testers & Accessories
MU
Benchtop/Laboratory Meters
MU
Controllers, Calibrators, Simulators & Pumps
MU
Industrial pH & Conductivity Equipment
DATA ACQUISITION
MU
Data Acquisition & Engineering Software
MU
Communications-Based Acquisition Systems
MU
Plug-in Cards for Apple, IBM & Compatibles
MU
Data Logging Systems
MU
Recorders, Printers & Plotters
HEATERS
MU
Heating Cable
MU
Cartridge & Strip Heaters
MU
Immersion & Band Heaters
MU
Flexible Heaters
MU
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
MU
Metering & Control Instrumentation
MU
Refractometers
MU
Pumps & Tubing
MU
Air, Soil & Water Monitors
MU
Industrial Water & Wastewater Treatment
MU
pH, Conductivity & Dissolved Oxygen Instruments
M3506/0512
Loading...
