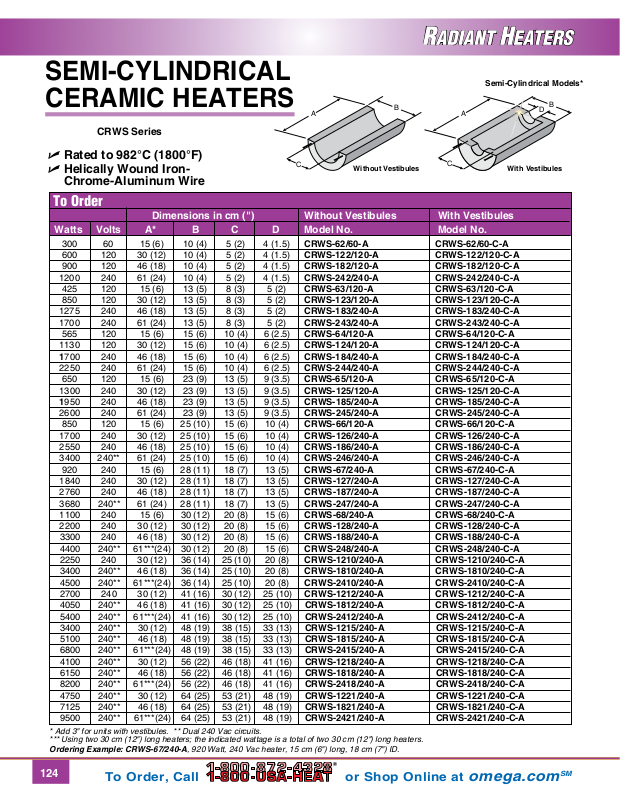

SEMI-CYLINDRICAL
Semi-Cylindrical Models*
CERAMIC HEATERS
A
B
A
B
D
CRWS Series
U Rated to 982°C (1800°F)
U Helically Wound Iron-
C
Without Vestibules
C
With Vestibules
Chrome-Aluminum Wire
To Order
Dimensions in cm (") Without Vestibules With Vestibules
Watts Volts A* B C D Model No. Model No.
300 60 15 (6) 10 (4) 5 (2) 4 (1.5) CRWS-62/60-A CRWS-62/60-C-A
600 120 30 (12) 10 (4) 5 (2) 4 (1.5) CRWS-122/120-A CRWS-122/120-C-A
900 120 46 (18) 10 (4) 5 (2) 4 (1.5) CRWS-182/120-A CRWS-182/120-C-A
1200 240 61 (24) 10 (4) 5 (2) 4 (1.5) CRWS-242/240-A CRWS-242/240-C-A
425 120 15 (6) 13 (5) 8 (3) 5 (2) CRWS-63/120-A CRWS-63/120-C-A
850 120 30 (12) 13 (5) 8 (3) 5 (2) CRWS-123/120-A CRWS-123/120-C-A
1275 240 46 (18) 13 (5) 8 (3) 5 (2) CRWS-183/240-A CRWS-183/240-C-A
1700 240 61 (24) 13 (5) 8 (3) 5 (2) CRWS-243/240-A CRWS-243/240-C-A
565 120 15 (6) 15 (6) 10 (4) 6 (2.5) CRWS-64/120-A CRWS-64/120-C-A
1130 120 30 (12) 15 (6) 10 (4) 6 (2.5) CRWS-124/120-A CRWS-124/120-C-A
1700 240 46 (18) 15 (6) 10 (4) 6 (2.5) CRWS-184/240-A CRWS-184/240-C-A
2250 240 61 (24) 15 (6) 10 (4) 6 (2.5) CRWS-244/240-A CRWS-244/240-C-A
650 120 15 (6) 23 (9) 13 (5) 9 (3.5) CRWS-65/120-A CRWS-65/120-C-A
1300 240 30 (12) 23 (9) 13 (5) 9 (3.5) CRWS-125/120-A CRWS-125/120-C-A
1950 240 46 (18) 23 (9) 13 (5) 9 (3.5) CRWS-185/240-A CRWS-185/240-C-A
2600 240 61 (24) 23 (9) 13 (5) 9 (3.5) CRWS-245/240-A CRWS-245/240-C-A
850 120 15 (6) 25 (10) 15 (6) 10 (4) CRWS-66/120-A CRWS-66/120-C-A
1700 240 30 (12) 25 (10) 15 (6) 10 (4) CRWS-126/240-A CRWS-126/240-C-A
2550 240 46 (18) 25 (10) 15 (6) 10 (4) CRWS-186/240-A CRWS-186/240-C-A
3400 240** 61 (24) 25 (10) 15 (6) 10 (4) CRWS-246/240-A CRWS-246/240-C-A
920 240 15 (6) 28 (11) 18 (7) 13 (5) CRWS-67/240-A CRWS-67/240-C-A
1840 240 30 (12) 28 (11) 18 (7) 13 (5) CRWS-127/240-A CRWS-127/240-C-A
2760 240 46 (18) 28 (11) 18 (7) 13 (5) CRWS-187/240-A CRWS-187/240-C-A
3680 240** 61 (24) 28 (11) 18 (7) 13 (5) CRWS-247/240-A CRWS-247/240-C-A
1100 240 15 (6) 30 (12) 20 (8) 15 (6) CRWS-68/240-A CRWS-68/240-C-A
2200 240 30 (12) 30 (12) 20 (8) 15 (6) CRWS-128/240-A CRWS-128/240-C-A
3300 240 46 (18) 30 (12) 20 (8) 15 (6) CRWS-188/240-A CRWS-188/240-C-A
4400 240** 61***(24) 30 (12) 20 (8) 15 (6) CRWS-248/240-A CRWS-248/240-C-A
2250 240 30 (12) 36 (14) 25 (10) 20 (8) CRWS-1210/240-A CRWS-1210/240-C-A
3400 240** 46 (18) 36 (14) 25 (10) 20 (8) CRWS-1810/240-A CRWS-1810/240-C-A
4500 240** 61***(24) 36 (14) 25 (10) 20 (8) CRWS-2410/240-A CRWS-2410/240-C-A
2700 240 30 (12) 41 (16) 30 (12) 25 (10) CRWS-1212/240-A CRWS-1212/240-C-A
4050 240** 46 (18) 41 (16) 30 (12) 25 (10) CRWS-1812/240-A CRWS-1812/240-C-A
5400 240** 61***(24) 41 (16) 30 (12) 25 (10) CRWS-2412/240-A CRWS-2412/240-C-A
3400 240** 30 (12) 48 (19) 38 (15) 33 (13) CRWS-1215/240-A CRWS-1215/240-C-A
5100 240** 46 (18) 48 (19) 38 (15) 33 (13) CRWS-1815/240-A CRWS-1815/240-C-A
6800 240** 61***(24) 48 (19) 38 (15) 33 (13) CRWS-2415/240-A CRWS-2415/240-C-A
4100 240** 30 (12) 56 (22) 46 (18) 41 (16) CRWS-1218/240-A CRWS-1218/240-C-A
6150 240** 46 (18) 56 (22) 46 (18) 41 (16) CRWS-1818/240-A CRWS-1818/240-C-A
8200 240** 61***(24) 56 (22) 46 (18) 41 (16) CRWS-2418/240-A CRWS-2418/240-C-A
4750 240** 30 (12) 64 (25) 53 (21) 48 (19) CRWS-1221/240-A CRWS-1221/240-C-A
7125 240** 46 (18) 64 (25) 53 (21) 48 (19) CRWS-1821/240-A CRWS-1821/240-C-A
9500 240** 61***(24) 64 (25) 53 (21) 48 (19) CRWS-2421/240-A CRWS-2421/240-C-A
* Add 3" for units with vestibules. ** Dual 240 Vac circuits.
*** Using two 30 cm (12") long heaters; the indicated wattage is a total of two 30 cm (12") long heaters.
Ordering Example: CRWS-67/240-A, 920 Watt, 240 Vac heater, 15 cm (6") long, 18 cm (7") ID.
