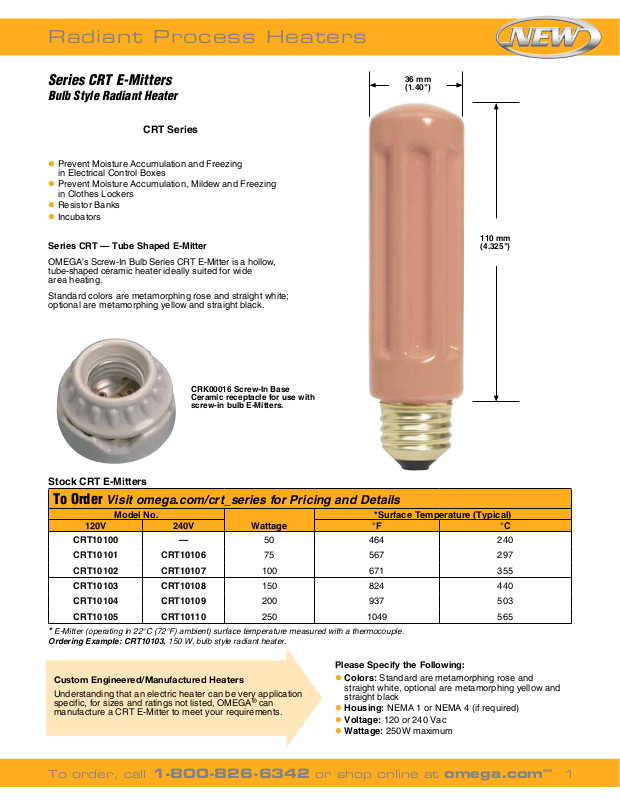

Radiant Process Heaters
Series CRT E-Mitters
Bulb Style Radiant Heater
CRT Series
l Prevent Moisture Accumulation and Freezing
in Electrical Control Boxes
l Prevent Moisture Accumulation, Mildew and Freezing
in Clothes Lockers
l Resistor Banks
l Incubators
Series CRT — Tube Shaped E-Mitter
OMEGA’s Screw-In Bulb Series CRT E-Mitter is a hollow,
tube-shaped ceramic heater ideally suited for wide
area heating.
Standard colors are metamorphing rose and straight white;
optional are metamorphing yellow and straight black.
36 mm
(1.40")
110 mm
(4.325")
CRK00016 Screw-In Base
Ceramic receptacle for use with
screw-in bulb E-Mitters.
Stock CRT E-Mitters
To Order Visit omega.com/crt_series for Pricing and Details
Model No. *Surface Temperature (Typical)
120V 240V Wattage °F °C
CRT10100
CRT10101
CRT10102
CRT10103
CRT10104
CRT10105
E-Mitter (operating in 22°C (72°F) ambient) surface temperature measured with a thermocouple.
*
Ordering Example: CRT10103, 150 W, bulb style radiant heater.
Custom Engineered/Manufactured Heaters
Understanding that an electric heater can be very application
specific, for sizes and ratings not listed, OMEGA® can
manufacture a CRT E-Mitter to meet your requirements.
—
CRT10106
CRT10107
CRT10108
CRT10109
CRT10110
50 464 240
75 567 297
100 671 355
150 824 440
200 937 503
250 1049 565
Please Specify the Following:
l Colors: Standard are metamorphing rose and
straight white, optional are metamorphing yellow and
straight black
l Housing: NEMA 1 or NEMA 4 (if required)
l Voltage: 120 or 240 Vac
l Wattage: 250W maximum
To order, call 1-800-826-6342 or shop online at omega.com
