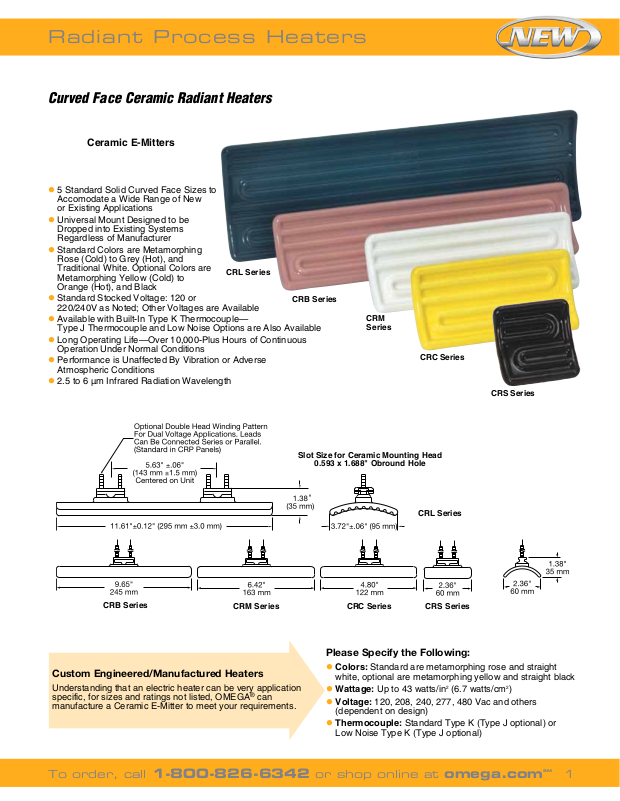

Page 1
Radiant Process Heaters
Curved Face Ceramic Radiant Heaters
Ceramic E-Mitters
l 5 Standard Solid Curved Face Sizes to
Accomodate a Wide Range of New
or Existing Applications
l Universal Mount Designed to be
Dropped into Existing Systems
Regardless of Manufacturer
l Standard Colors are Metamorphing
Rose (Cold) to Grey (Hot), and
Traditional White. Optional Colors are
Metamorphing Yellow (Cold) to
Orange (Hot), and Black
l Standard Stocked Voltage: 120 or
220/240V as Noted; Other Voltages are Available
l Available with Built-In Type K Thermocouple—
Type J Thermocouple and Low Noise Options are Also Available
l Long Operating Life—Over 10,000-Plus Hours of Continuous
Operation Under Normal Conditions
l Performance is Unaffected By Vibration or Adverse
Atmospheric Conditions
l 2.5 to 6 µm Infrared Radiation Wavelength
CRL Series
CRB Series
CRM
Series
CRC Series
CRS Series
CRB Series
CRM Series CRC Series CRS Series
Custom Engineered/Manufactured Heaters
Understanding that an electric heater can be very application
specific, for sizes and ratings not listed, OMEGA® can
manufacture a Ceramic E-Mitter to meet your requirements.
Slot Size for Ceramic Mounting Head
0.593 x 1.688" Obround Hole
CRL Series
Please Specify the Following:
l Colors: Standard are metamorphing rose and straight
white, optional are metamorphing yellow and straight black
l Wattage: Up to 43 watts/in
l Voltage: 120, 208, 240, 277, 480 Vac and others
(dependent on design)
l Thermocouple: Standard Type K (Type J optional) or
Low Noise Type K (Type J optional)
2
(6.7 watts/cm2)
To order, call 1-800-826-6342 or shop online at omega.com
SM
1
Page 2
Curved Face Ceramic E-Mitters
60 x 60 mm (2.36 x 2.36")
CRS Series E-Mitters
Optional Features
l Additional Power or Thermocouple Lead Lengths
l Two-Piece Wave Mounting Clip
l Reflectors and Other Accessories
l Arrays and Power/Temperature Control Panels
Radiant Process Heaters
CRS Series in rose (cold) to grey
(hot) shown actual size.
E-Mitters listed have 88.9 mm (3.5") ceramic bead insulated leads, #8-10 spade terminals, and a one-piece spring clip for mounting.
To Order Visit omega.com/crs_series for Pricing and Details
Model Number
Without Thermocouple
CRS00002 CRS00009
CRS00005 CRS00012
CRS00003 CRS00010
CRS00006 CRS00013
*Watt density calculated using heater face surface area.
Ordering Example: CRS00009, radiant heater with K thermocouple, 162 W, 120 Vac, white color.
2
To order, call 1-800-826-6342 or shop online at omega.com
Standard Type K
Thermocouple Watts/in
Wattage Voltage Color
162 120 White 28.07 4.35
162 220/240 White 28.07 4.35
250 120 White 43.18 6.69
250 220/240 White 43.18 6.69
Watt Density*
2
Watts/cm
2
SM
