Page 1

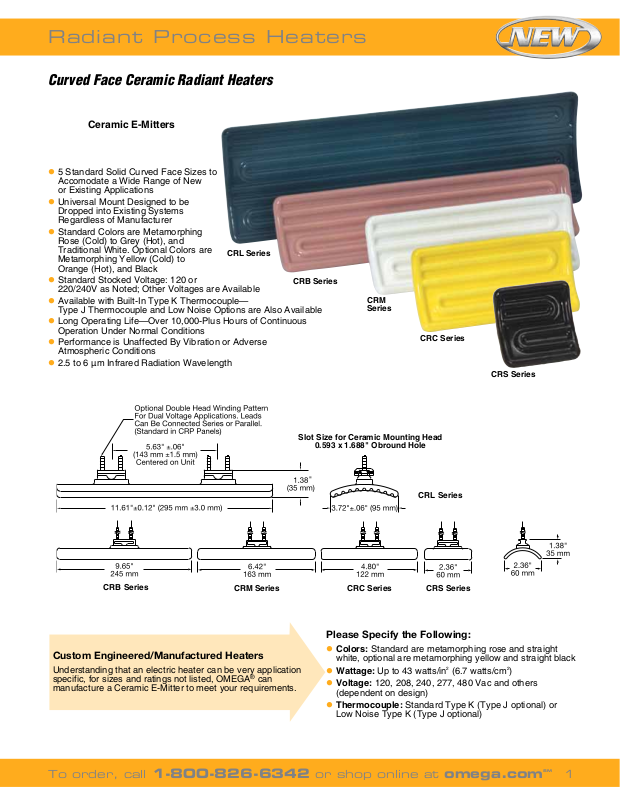

Radiant Process Heaters

Curved Face Ceramic Radiant Heaters

Ceramic E-Mitters

l 5 Standard Solid Curved Face Sizes to

Accomodate a Wide Range of New or Existing Applications

l Universal Mount Designed to be

Dropped into Existing Systems Regardless of Manufacturer

l Standard Colors are Metamorphing

Rose (Cold) to Grey (Hot), and Traditional White. Optional Colors are Metamorphing Yellow (Cold) to Orange (Hot), and Black

l Standard Stocked Voltage: 120 or

220/240V as Noted; Other Voltages are Available

l Available with Built-In Type K Thermocouple—

Type J Thermocouple and Low Noise Options are Also Available

l Long Operating Life—Over 10,000-Plus Hours of Continuous

Operation Under Normal Conditions

l Performance is Unaffected By Vibration or Adverse

Atmospheric Conditions

l 2.5 to 6 µm Infrared Radiation Wavelength

CRL Series

CRB Series

CRM Series

CRC Series

CRS Series

CRB Series

CRM Series CRC Series CRS Series

Custom Engineered/Manufactured Heaters

Understanding that an electric heater can be very application specific, for sizes and ratings not listed, OMEGA® can manufacture a Ceramic E-Mitter to meet your requirements.

Slot Size for Ceramic Mounting Head

0.593 x 1.688" Obround Hole

CRL Series

Please Specify the Following:

l Colors: Standard are metamorphing rose and straight

white, optional are metamorphing yellow and straight black

l Wattage: Up to 43 watts/in l Voltage: 120, 208, 240, 277, 480 Vac and others

(dependent on design)

l Thermocouple: Standard Type K (Type J optional) or

Low Noise Type K (Type J optional)

(6.7 watts/cm2)

To order, call 1-800-826-6342 or shop online at omega.com

Page 2

Radiant Process Heaters

Curved Face Ceramic E-Mitters

95 x 295 mm (3.72 x 11.61")

CRL Series

Optional Features

l Additional Power or Thermocouple

Lead Lengths

l Two-Piece Wave Mounting Clip l Reflectors and Other Accessories l Arrays and Power/Temperature

Control Panels

E-Mitters listed have 152 mm (6") ceramic bead insulated leads, #8-10 spade terminals, and one-piece spring clips for mounting in 20 or 22 gauge sheet metal.

To Order Visit omega.com/crl_series for Pricing and Details

Model Number

Without

Thermocouple

CRL20021 — CRL20022

CRL10009 CRL10010 —

CRL00009 CRL00010 —

CRL20023 — CRL20024

CRL20025 — CRL20026

CRL10011 CRL10012 —

CRL00011 CRL00012 —

CRL20027 — CRL20028

CRL10001 CRL10002 —

CRL00001 CRL00002 —

CRL10013 CRL10014 —

CRL00013 CRL00014 —

CRL20029 — CRL20030

CRL10003 CRL10004

CRL00003 CRL00004 —

CRL20031 — CRL20032

CRL10015 CRL10016 —

CRL00015 CRL00016 —

CRL20033 — CRL20034

CRL10017 CRL10018 —

CRL00017 CRL00018 —

CRL10019 CRL10020 —

CRL00019 CRL00020 —

* Watt density calculated using heater face surface area. ** E-Mitter heater body temperature as measured with internal thermocouple when mounted facedown in stock CRK reflector and operating in 22°C (72°F) room ambient. *** Peak infrared radiation wavelength as calculated from Wien’s Law, for operating temperature shown. Expressed in microns (µm).

Notes: All 240/480V heaters have two windings for dual voltage use. (Parallel connected for 240V and series connected for 480V) 120V heaters are single winding designs

Units with an internal “low noise” style thermocouple have 12" leads. Standard Type “K” thermocouple units also available. Heaters with yellow to orange color are exact replacements for heaters in CRP Modular 12 × 12 CRP Radiant Panels.

Ordering Example: CRL10010, radiant heater with K thermocouple, 120 Vac, yellow to orange color.

Standard

Type K

Thermocouple

Low Noise

Type K

Thermocouple W/in2W/cm

Wattage

500 120

500 220 to 240 11.9 1.9 796 424 4.15

500 240/480 11.9 1.9 796 424 4.15

750 120

750 220 to 240 17.9 2.8 956 513 3.68

750 240/480 17.9 2.8 956 513 3.68

950 220 to 240

950 220 to 240 22.7 3.5 1053 567 3.45

1000 220 to 240 23.9 3.7 1076 580 3.40

1000 240/480

1150 220 to 240 27.5 4.3 1145 618 3.25

1250 240/480 29.9 4.6 1191 644 3.16

1400 480

1400 480 33.5 5.2 1262 683 3.03

1500 240/480 35.9 5.6 1308 709 2.95

1600 480 38.2 5.9 1351 733 2.88

1600 480

1800 480 43.0 6.7 1418 770 2.78

Voltage

Vac Color

Yellow to Orange

Rose to Grey

White

Yellow to Orange

Rose to Grey

White

Yellow to Orange

Rose to Grey

White

Rose to Grey

White

Yellow to Orange

Rose to Grey

White

Yellow to Orange

Rose to Grey

White

Yellow to Orange

Rose to Grey

White

Rose to Grey

White

CRL Series in rose (cold) to grey (hot) shown smaller than actual size.

Heater Body

Temperature**

Watt Density*

11.9 1.9 796 424 4.15

17.9 2.8 956 513 3.68

22.7 3.5 1053 567 3.45

23.9 3.7 1076 580 3.40

33.5 5.2 1262 683 3.03

38.2 5.9 1351 733 2.88

(Typical

Operating)

°F °C

Peak Emitted

Wavelength***
