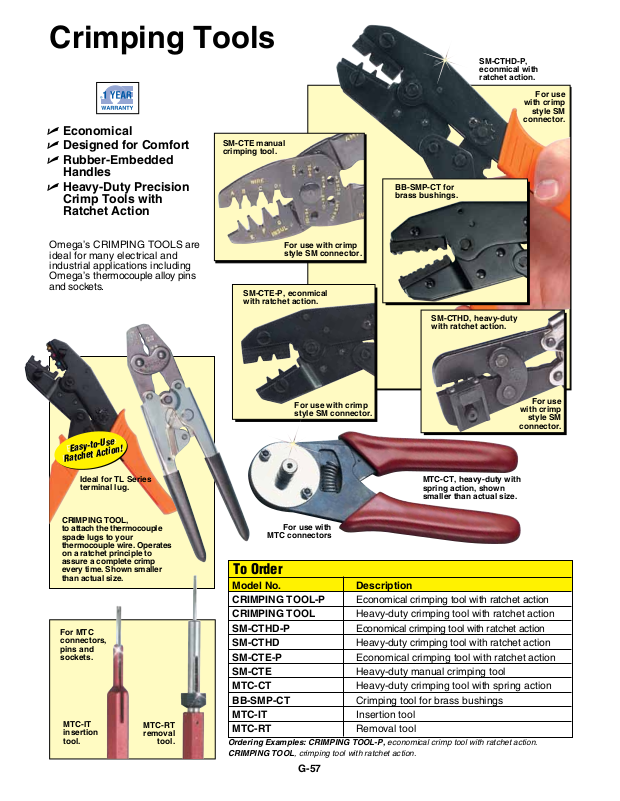

Crimping Tools
U Economical
U Designed for Comfort
U Rubber-Embedded
Handles
U Heavy-Duty Precision
Crimp Tools with
Ratchet Action
SM-CTE manual
crimping tool.
SM-CTHD-P,
econmical with
ratchet action.
For use
with crimp
style SM
connector.
BB-SMP-CT for
brass bushings.
Omega’s CRIMPING TOOLS are
ideal for many electrical and
industrial applications including
Omega’s thermocouple alloy pins
and sockets.
Easy-to-Use
Easy-to-Use
Ratchet Action!
Ratchet Action!
Ideal for TL Series
terminal lug.
CRIMPING TOOL,
to attach the thermocouple
spade lugs to your
thermocouple wire. Operates
on a ratchet principle to
assure a complete crimp
every time. Shown smaller
than actual size.
For MTC
connectors,
pins and
sockets.
MTC-IT
insertion
tool.
MTC-RT
removal
tool.
For use with crimp
style SM connector.
SM-CTE-P, econmical
with ratchet action.
SM-CTHD, heavy-duty
with ratchet action.
For use with crimp
style SM connector.
MTC-CT, heavy-duty with
spring action, shown
smaller than actual size.
For use with
MTC connectors
For use
with crimp
style SM
connector.
To Order
Model No. Description
CRIMPING TOOL-P Economical crimping tool with ratchet action
CRIMPING TOOL Heavy-duty crimping tool with ratchet action
SM-CTHD-P Economical crimping tool with ratchet action
SM-CTHD Heavy-duty crimping tool with ratchet action
SM-CTE-P Economical crimping tool with ratchet action
SM-CTE Heavy-duty manual crimping tool
MTC-CT Heavy-duty crimping tool with spring action
BB-SMP-CT Crimping tool for brass bushings
MTC-IT Insertion tool
MTC-RT Removal tool
Ordering Examples: CRIMPING TOOL-P, economical crimp tool with ratchet action.
CRIMPING TOOL, crimping tool with ratchet action.
G-57
