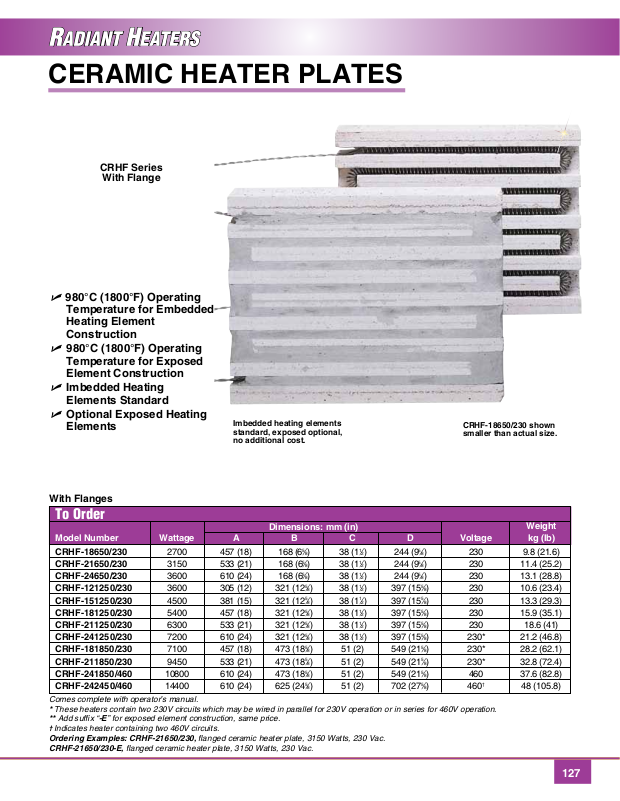

CERAMIC HEATER PLATES
CRHF Series
With Flange
U 980°C (1800°F) Operating
Temperature for Embedded
Heating Element
Construction
U 980°C (1800°F) Operating
Temperature for Exposed
Element Construction
U Imbedded Heating
Elements Standard
U Optional Exposed Heating
Elements
Imbedded heating elements
standard, exposed optional,
no additional cost.

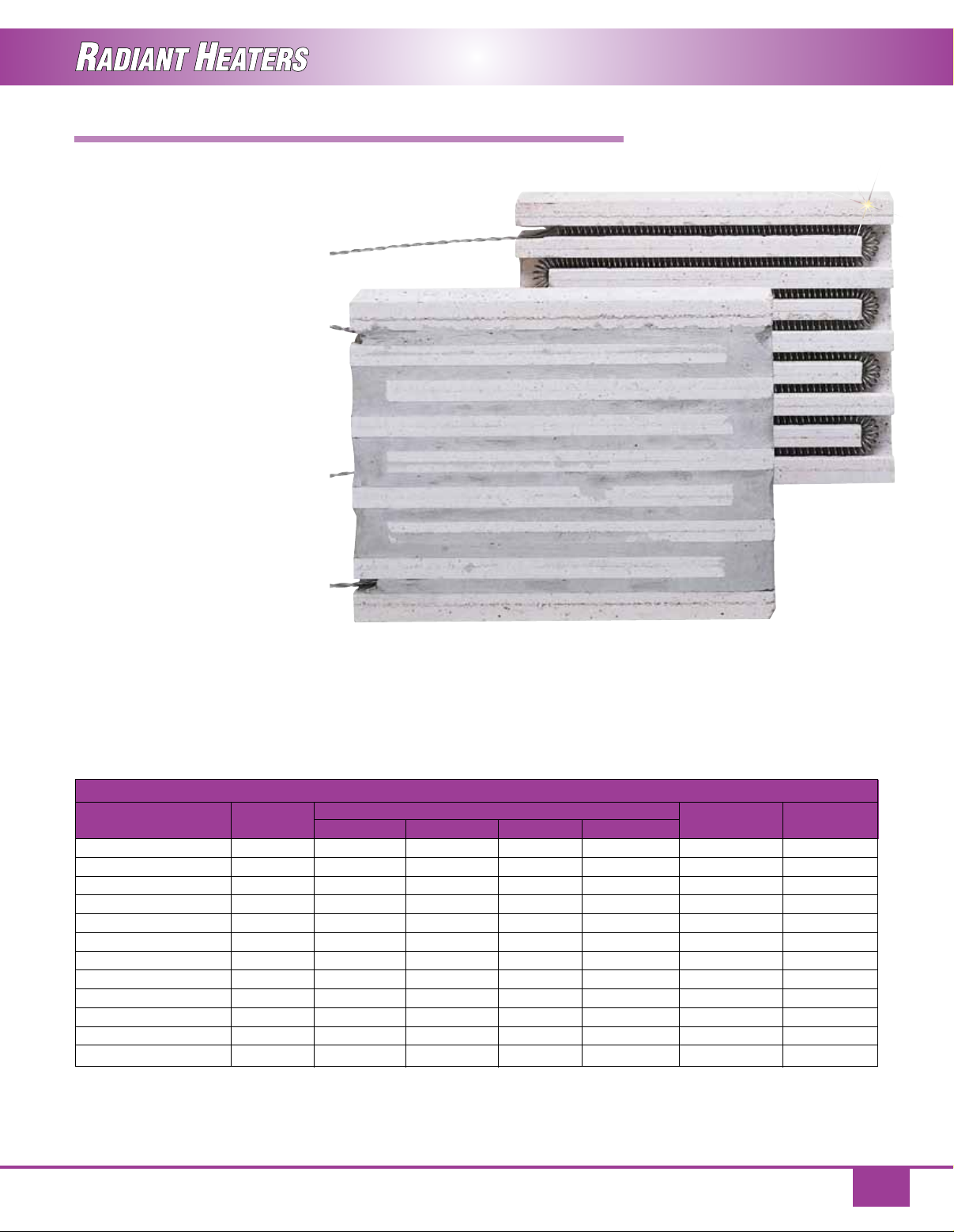

CRHF-18650/230 shown
smaller than actual size.
With Flanges
To Order
Model Number Wattage A B C D Voltage kg (lb)
CRHF-18650/230 2700 457 (18) 168 (6
CRHF-21650/230 3150 533 (21) 168 (65⁄8) 38 (11⁄2) 244 (95⁄8) 230 11.4 (25.2)
CRHF-24650/230 3600 610 (24) 168 (65⁄8) 38 (11⁄2) 244 (95⁄8) 230 13.1 (28.8)
CRHF-121250/230 3600 305 (12) 321 (125⁄8) 38 (11⁄2) 397 (155⁄8) 230 10.6 (23.4)
CRHF-151250/230 4500 381 (15) 321 (125⁄8) 38 (11⁄2) 397 (155⁄8) 230 13.3 (29.3)
CRHF-181250/230 5400 457 (18) 321 (125⁄8) 38 (11⁄2) 397 (155⁄8) 230 15.9 (35.1)
CRHF-211250/230 6300 533 (21) 321 (125⁄8) 38 (11⁄2) 397 (155⁄8) 230 18.6 (41)
CRHF-241250/230 7200 610 (24) 321 (125⁄8) 38 (11⁄2) 397 (155⁄8) 230* 21.2 (46.8)
CRHF-181850/230 7100 457 (18) 473 (185⁄8) 51 (2) 549 (215⁄8) 230* 28.2 (62.1)
CRHF-211850/230 9450 533 (21) 473 (185⁄8) 51 (2) 549 (215⁄8) 230* 32.8 (72.4)
CRHF-241850/460 10800 610 (24) 473 (185⁄8) 51 (2) 549 (215⁄8) 460 37.6 (82.8)
CRHF-242450/460 14400 610 (24) 625 (245⁄8) 51 (2) 702 (275⁄8) 460† 48 (105.8)
Comes complete with operator’s manual.
* These heaters contain two 230V circuits which may be wired in parallel for 230V operation or in series for 460V operation.
** Add suffix “-E” for exposed element construction, same price.
†
Indicates heater containing two 460V circuits.
Ordering Examples: CRHF-21650/230, flanged ceramic heater plate, 3150 Watts, 230 Vac.
CRHF-21650/230-E, flanged ceramic heater plate, 3150 Watts, 230 Vac.
Dimensions: mm (in)
Weight
5
⁄8) 38 (11⁄2) 244 (95⁄8) 230 9.8 (21.6)
127
Page 2

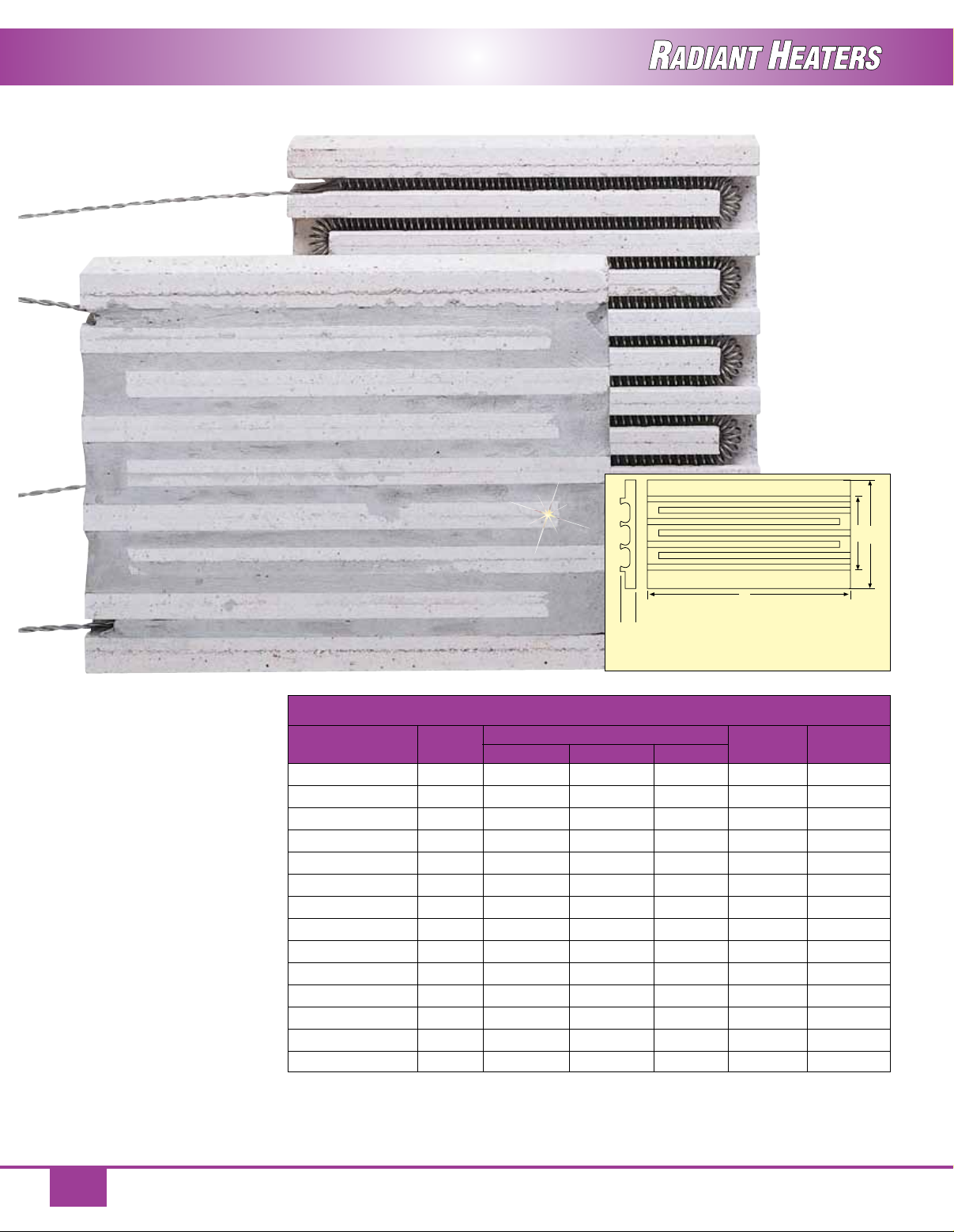

CRHP Series
Without Flange
A
C
Heating Surfaces up to 24 x 24 inches.
Optional Exposed Construction Shown**
D
B
OMEGALUX
®
ceramic
heater plates provide surface
temperatures of up to 980°C
(1800°F). The large, 16 mm
(5⁄8") ID grooves permit the
use of exceptionally heavy
gauge heating wire for low
element watt densities and
high wattage per square inch
of radiating surface. The
elements can be imbedded
in ceramic, or exposed,
depending on requirements.
Special sizes, shapes,
wattages, voltages,
thermocouple access
holes and extra long
braided leads are available.
Contact OMEGALUX Sales
department for ordering
information.
Without Flanges
To Order
Dimensions: mm (in)
Model Number Wattage A B C Voltage lb (kg)
CRHP-12650/230 1800 305 (12) 168 (6
CRHP-15650/230 2250 381 (15) 168 (6
CRHP-18650/230 2700 457 (18) 68 (6
CRHP-21650/230 3150 533 (21) 68 (6
CRHP-24650/230 3600 610 (24) 68 (6
5
5
5
CRHP-121250/230 3600 305 (12) 321 (12
CRHP-151250/230 4500 381 (15) 321 (12
CRHP-181250/230 5400 457 (18) 321 (12
CRHP-211250/230 4500 533 (21) 321 (12
CRHP-241250/230 7200 610 (24) 321 (12
CRHP-181850/230 7100 457 (18) 473 (18
CRHP-211850/230 9450 533 (21) 473 (18
CRHP-241850/460 10800 610 (24) 473 (18
CRHP-242450/460 14400 610 (24) 625 (24
Comes complete with operator’s manual.
* These heaters contain two 230V circuits which may be wired in parallel for 230V operation or in
series for 460V operation.
**Add suffix “-E” for exposed element construction, same price.
†
Indicates heater containing two 460V circuits.
Ordering Example: CRHP-21650/230, ceramic heater plate, 3150 Watts, 230 Vac.
5
⁄8) 38 (11⁄2) 230 4.5 (9.9)
5
⁄8) 38 (11⁄2) 230 5.6 (12.4)
Wt.
⁄8) 38 (11⁄2) 230 6.8 (14.9)
⁄8) 38 (11⁄2) 230 7.9 (17.5)
⁄8) 38 (11⁄2) 230 9 (19.8)
5
⁄8) 38 (11⁄2) 230 8.6 (18.9)
5
⁄8) 38 (11⁄2) 230 10.8 (23.8)
5
⁄8) 38 (11⁄2) 230 12.8 (28.4)
5
⁄8) 38 (11⁄2) 230 15 (33.1)
5
⁄8) 38 (11⁄2) 230* 17.1 (37.8)
5
⁄8) 51 (2) 230* 24.3 (53.6)
5
⁄8) 51 (2) 230* 28.4 (62.6)
5
⁄8) 51 (2) 460 32.3 (71.3)
5
⁄8) 51 (2) 460† 42.8 (94.3)
