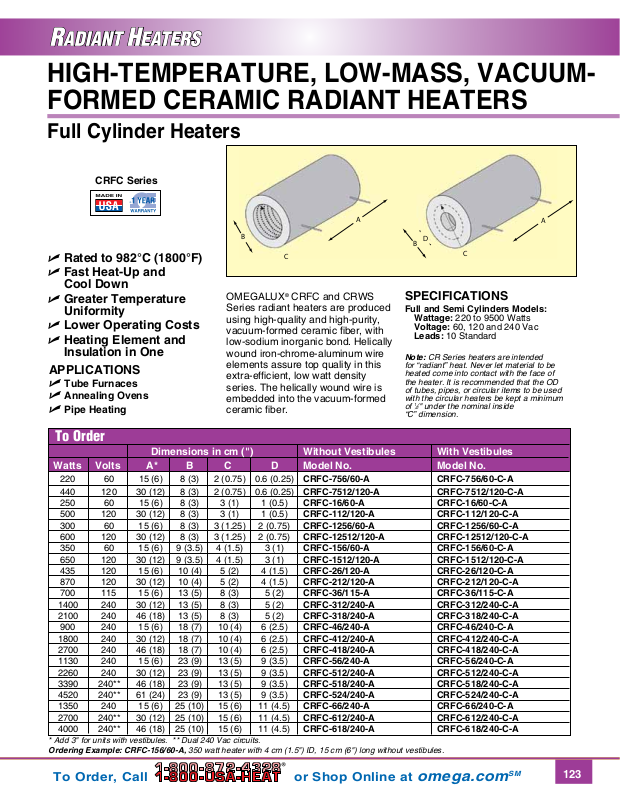

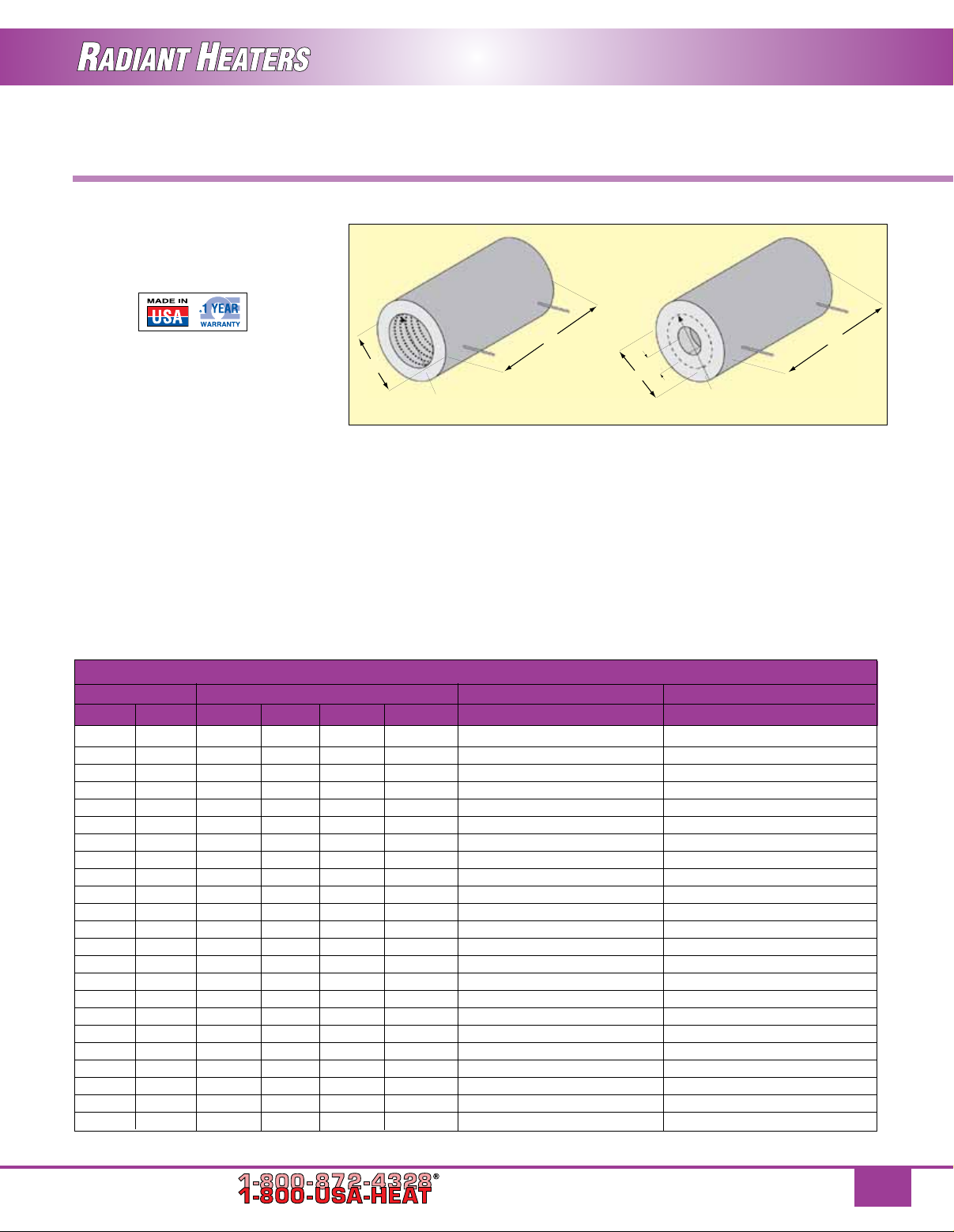

HIGH-TEMPERATURE, LOW-MASS, VACUUMFORMED CERAMIC RADIANT HEATERS
Full Cylinder Heaters
CRFC Series
U Rated to 982°C (1800°F)
A
B
C
D
B
C
A
U Fast Heat-Up and
Cool Down
U Greater Temperature
Uniformity
U Lower Operating Costs
U Heating Element and
Insulation in One
APPLICATIONS
U Tube Furnaces
U Annealing Ovens
U Pipe Heating
OMEGALUX® CRFC and CRWS
Series radiant heaters are produced
using high-quality and high-purity,
vacuum-formed ceramic fiber, with
low-sodium inorganic bond. Helically
wound iron-chrome-aluminum wire
elements assure top quality in this
extra-efficient, low watt density
series. The helically wound wire is
embedded into the vacuum-formed
ceramic fiber.
SPECIFICATIONS
Full and Semi Cylinders Models:
Wattage: 220 to 9500 Watts
Voltage: 60, 120 and 240 Vac
Leads: 10 Standard
Note: CR Series heaters are intended
for “radiant” heat. Never let material to be
heated come into contact with the face of
the heater. It is recommended that the OD
of tubes, pipes, or circular items to be used
with the circular heaters be kept a minimum
of 1⁄2" under the nominal inside
“C” dimension.
To Order
Dimensions in cm (") Without Vestibules With Vestibules
Watts Volts A* B C D Model No. Model No.
220 60 15 (6) 8 (3) 2 (0.75) 0.6 (0.25) CRFC-756/60-A CRFC-756/60-C-A
440 120 30 (12) 8 (3) 2 (0.75) 0.6 (0.25) CRFC-7512/120-A CRFC-7512/120-C-A
250 60 15 (6) 8 (3) 3 (1) 1 (0.5) CRFC-16/60-A CRFC-16/60-C-A
500 120 30 (12) 8 (3) 3 (1) 1 (0.5) CRFC-112/120-A CRFC-112/120-C-A
300 60 15 (6) 8 (3) 3 (1.25) 2 (0.75) CRFC-1256/60-A CRFC-1256/60-C-A
600 120 30 (12) 8 (3) 3 (1.25) 2 (0.75) CRFC-12512/120-A CRFC-12512/120-C-A
350 60 15 (6) 9 (3.5) 4 (1.5) 3 (1) CRFC-156/60-A CRFC-156/60-C-A
650 120 30 (12) 9 (3.5) 4 (1.5) 3 (1) CRFC-1512/120-A CRFC-1512/120-C-A
435 120 15 (6) 10 (4) 5 (2) 4 (1.5) CRFC-26/120-A CRFC-26/120-C-A
870 120 30 (12) 10 (4) 5 (2) 4 (1.5) CRFC-212/120-A CRFC-212/120-C-A
700 115 15 (6) 13 (5) 8 (3) 5 (2) CRFC-36/115-A CRFC-36/115-C-A
1400 240 30 (12) 13 (5) 8 (3) 5 (2) CRFC-312/240-A CRFC-312/240-C-A
2100 240 46 (18) 13 (5) 8 (3) 5 (2) CRFC-318/240-A CRFC-318/240-C-A
900 240 15 (6) 18 (7) 10 (4) 6 (2.5) CRFC-46/240-A CRFC-46/240-C-A
1800 240 30 (12) 18 (7) 10 (4) 6 (2.5) CRFC-412/240-A CRFC-412/240-C-A
2700 240 46 (18) 18 (7) 10 (4) 6 (2.5) CRFC-418/240-A CRFC-418/240-C-A
1130 240 15 (6) 23 (9) 13 (5) 9 (3.5) CRFC-56/240-A CRFC-56/240-C-A
2260 240 30 (12) 23 (9) 13 (5) 9 (3.5) CRFC-512/240-A CRFC-512/240-C-A
3390 240** 46 (18) 23 (9) 13 (5) 9 (3.5) CRFC-518/240-A CRFC-518/240-C-A
4520 240** 61 (24) 23 (9) 13 (5) 9 (3.5) CRFC-524/240-A CRFC-524/240-C-A
1350 240 15 (6) 25 (10) 15 (6) 11 (4.5) CRFC-66/240-A CRFC-66/240-C-A
2700 240** 30 (12) 25 (10) 15 (6) 11 (4.5) CRFC-612/240-A CRFC-612/240-C-A
4000 240** 46 (18) 25 (10) 15 (6) 11 (4.5) CRFC-618/240-A CRFC-618/240-C-A
* Add 3" for units with vestibules. ** Dual 240 Vac circuits.
Ordering Example: CRFC-156/60-A, 350 watt heater with 4 cm (1.5") ID, 15 cm (6") long without vestibules.
To Order, Call or Shop Online at omega.com
