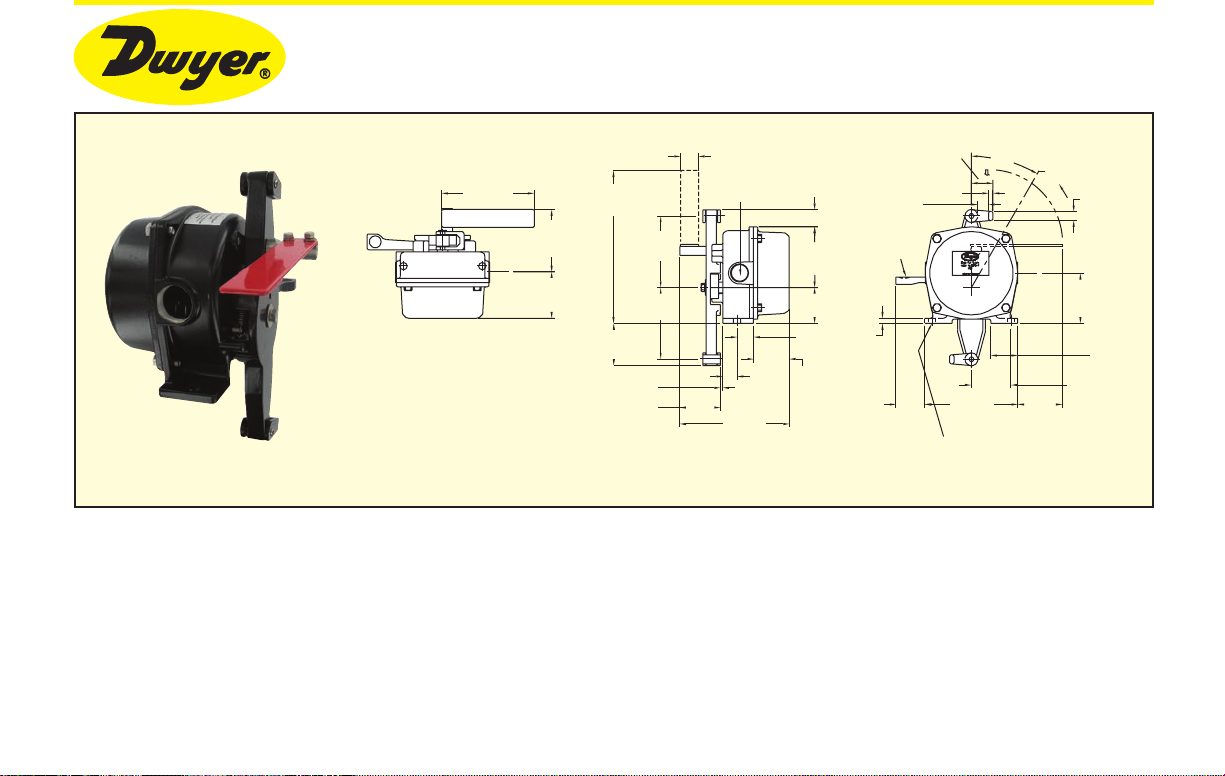

5-9/16
[141.29]
TOUCH
PULLEY
29/32 [25.02]
9/32
[7.14]
75°
5-21/64
[135.33]
5-49/64
[70.25]
2X 1-1/2
[38.1]
5-1/8
[130.18]
2X 2-11/64
[55.17]
3-43/64
[93.27]
2X 13/32
[10.32]
MOUNTING
HOLES
1-15/32 [37.31]
1-63/64
[50.4]
10-9/16
[268.29]
3-11/32
[84.93]
2X 3/4˝ NPT
3/16 [4.76]
51/64 [20.24]
1/4 [6.35]
2-9/16
[65.09]
2-9/16
[65.09]
ø2-3/8
[ø60.33]
Model
5-1/8
[130.18]
3-7/16
[87.31]
2-9/16
[65.09]
1-1/8
[28.58]
19/32
[15.03]
RESETTING
LEVER
63/64
[25]
61/64
[24.21]
3-23/64
[85.33]
1-31/32 [50]
29/32
[23.02]
1-31/32
[50]
51/64
[20.24]
6-1/16
[153.99]
1/8 [3.18]
2-21/64
[59.13]
3-15/16
[100.01]
2X 3/4˝
NPT
3-15/16
[100.01]
8-7/16
[214.31]
2-15/64 [5.95]
1/4
[6.35]
30°
LOCK POSITION
31/64
[12.3]
2-49/64
[70.25]
2X 2-11/64
[55.17]
2-9/16
[65.09]
2X 1-1/2
[38.1]
5-1/8
[130.18]
1-37/64
[40.08]
9/32
[7.14]
ø13/32
[10.32]
MOUNTING
HOLES
OPERATING
DIRECTION
CPS

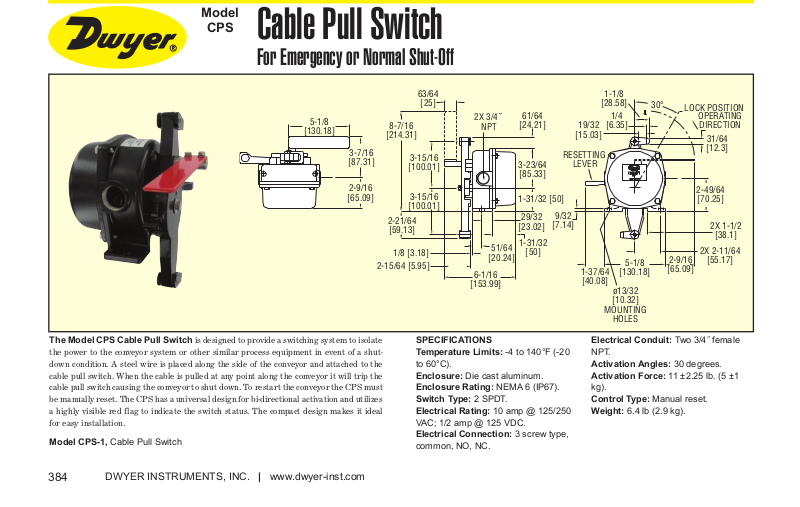

Cable Pull Switch
For Emergency or Normal Shut-Off
The Model CPS Cable Pull Switch is designed to provide a switching system to isolate
the power to the conveyor system or other similar process equipment in event of a shutdown condition. A steel wire is placed along the side of the conveyor and attached to the
cable pull switch. When the cable is pulled at any point along the conveyor it will trip the
cable pull switch causing the conveyor to shut down. To restart the conveyor the CPS must
be manually reset. The CPS has a universal design for bi-directional activation and utilizes
a highly visible red flag to indicate the switch status. The compact design makes it ideal
for easy installation.
Model CPS-1, Cable Pull Switch
384
DWYER INSTRUMENTS, INC. | www.dwyer-inst.com
SPECIFICATIONS
Temperature Limits: -4 to 140°F (-20
to 60°C).
Enclosure: Die cast aluminum.
Enclosure Rating: NEMA 6 (IP67).
Switch Type: 2 SPDT.
Electrical Rating: 10 amp @ 125/250
VAC; 1/2 amp @ 125 VDC.
Electrical Connection: 3 screw type,
common, NO, NC.
Electrical Conduit: Two 3/4˝ female
NPT.
Activation Angles: 30 degrees.
Activation Force: 11 ±2.25 lb. (5 ±1
kg).
Control Type: Manual reset.
Weight: 6.4 lb (2.9 kg).
