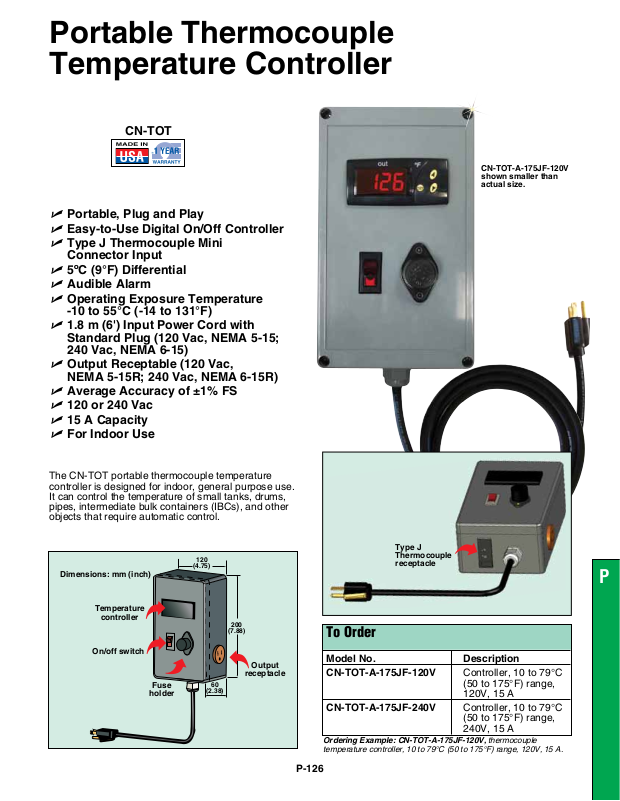

Page 1
Portable Thermocouple
Temperature Controller
CN-TOT
U Portable, Plug and Play
U Easy-to-Use Digital On/Off Controller
U Type J Thermocouple Mini
Connector Input
U 5ºC (9°F) Differential
U Audible Alarm
U Operating Exposure Temperature
-10 to 55°C (-14 to 131°F)
U 1.8 m (6') Input Power Cord with
Standard Plug (120 Vac, NEMA 5-15;
240 Vac, NEMA 6-15)
U Output Receptable (120 Vac,
NEMA 5-15R; 240 Vac, NEMA 6-15R)
U Average Accuracy of ±1% FS
U 120 or 240 Vac
U 15 A Capacity
U For Indoor Use
CN-TOT-A-175JF-120V
shown smaller than
actual size.
The CN-TOT portable thermocouple temperature
controller is designed for indoor, general purpose use.
It can control the temperature of small tanks, drums,
pipes, intermediate bulk containers (IBCs), and other
objects that require automatic control.
120
Dimensions: mm (inch)
Temperature
controller
On/off switch
Fuse
holder
(4.75)
60
(2.38)
200
(7.88)
Output
receptacle
Type J
Thermocouple
receptacle
P
To Order
Model No. Description
CN-TOT-A-175JF-120V Controller, 10 to 79°C
(50 to 175°F) range,
120V, 15 A
CN-TOT-A-175JF-240V Controller, 10 to 79°C
(50 to 175°F) range,
240V, 15 A
Ordering Example: CN-TOT-A-175JF-120V, thermocouple
temperature controller, 10 to 79°C (50 to 175°F) range, 120V, 15 A.
P-126
