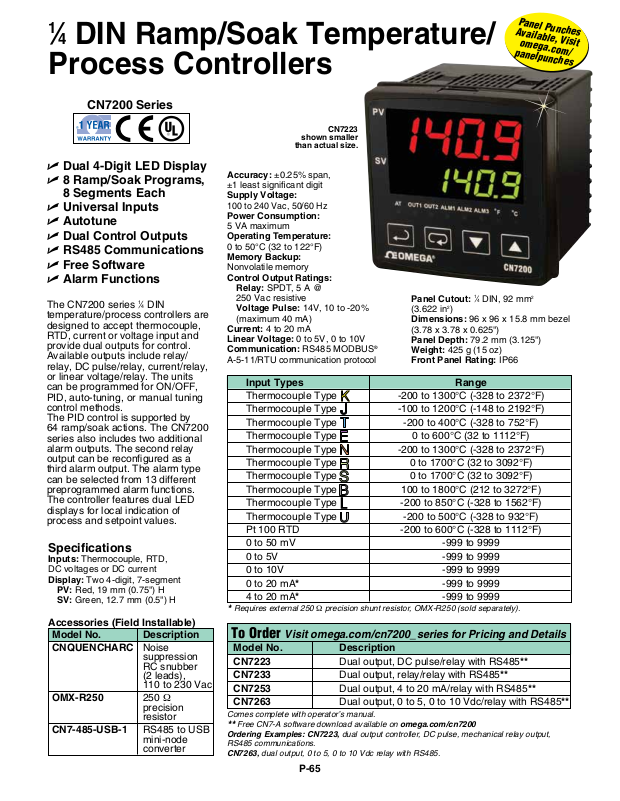

⁄4 DIN Ramp/Soak Temperature/
Process Controllers
CN7200 Series

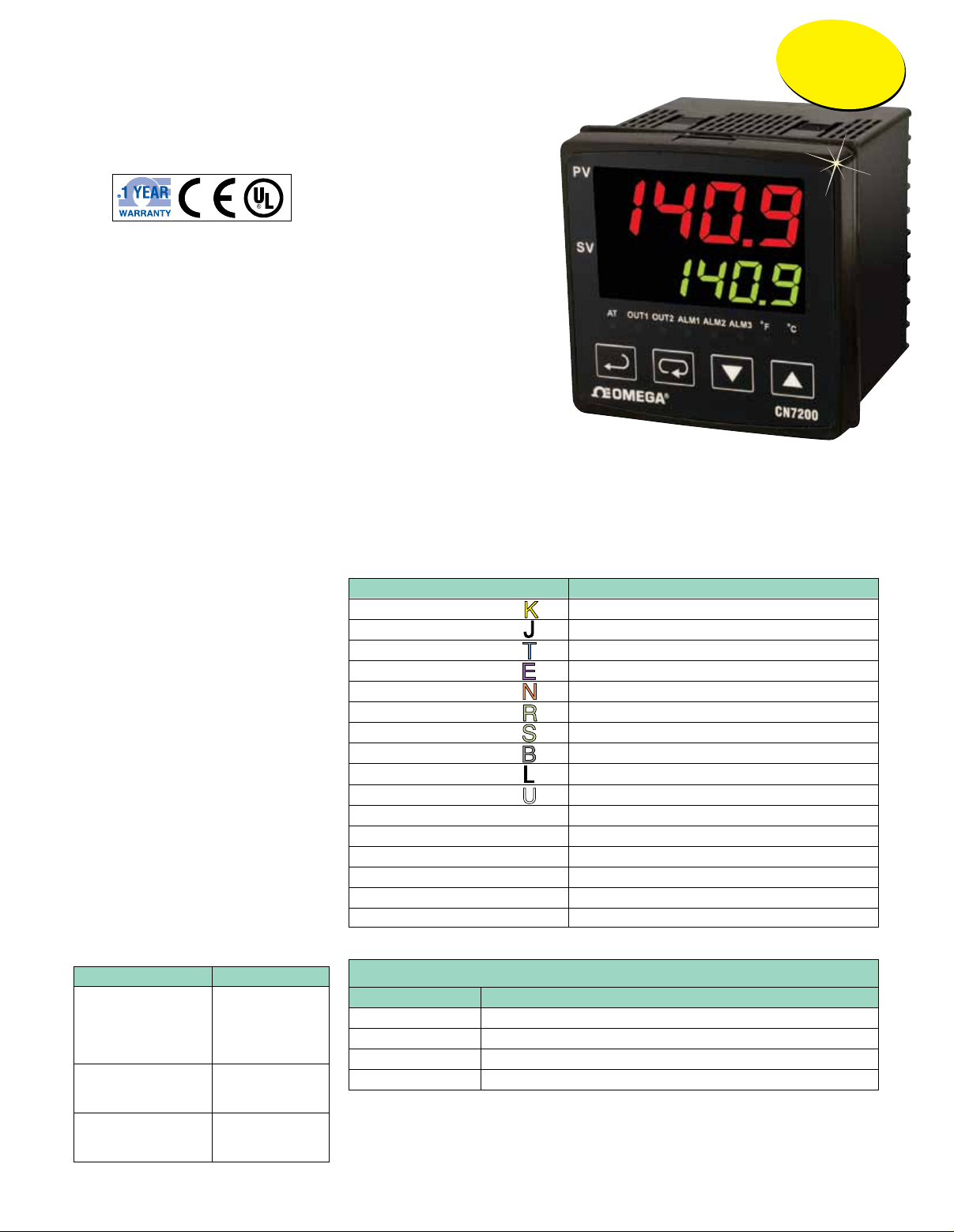

CN7223
shown smaller
than actual size.
Panel Punches
Available, Visit
omega.com/
panelpunches
U Dual 4-Digit LED Display
U 8 Ramp/Soak Programs,
8 Segments Each
U Universal Inputs
U Autotune
U Dual Control Outputs
U RS485 Communications
U Free Software
U Alarm Functions
The CN7200 series 1⁄4 DIN
temperature/process controllers are
designed to accept thermocouple,
RTD, current or voltage input and
provide dual outputs for control.
Available outputs include relay/
relay, DC pulse/relay, current/relay,
or linear voltage/relay. The units
can be programmed for ON/OFF,
PID, auto-tuning, or manual tuning
control methods.
The PID control is supported by
64 ramp/soak actions. The CN7200
series also includes two additional
alarm outputs. The second relay
output can be reconfigured as a
third alarm output. The alarm type
can be selected from 13 different
preprogrammed alarm functions.
The controller features dual LED
displays for local indication of
process and setpoint values.
Specifications
Inputs: Thermocouple, RTD,
DC voltages or DC current
Display: Two 4-digit, 7-segment
PV: Red, 19 mm (0.75") H
SV: Green, 12.7 mm (0.5") H
Accessories (Field Installable)
Model No. Description
CNQUENCHARC Noise
suppression
RC snubber
(2 leads),
110 to 230 Vac
OMX-R250 250 Ω
precision
resistor
CN7-485-USB-1 RS485 to USB
mini-node
converter
Accuracy: ±0.25% span,
±1 least significant digit
Supply Voltage:
100 to 240 Vac, 50/60 Hz
Power Consumption:
5 VA maximum
Operating Temperature:
0 to 50°C (32 to 122°F)
Memory Backup:
Nonvolatile memory
Control Output Ratings:
Relay: SPDT, 5 A @
250 Vac resistive
Voltage Pulse: 14V, 10 to -20%
(maximum 40 mA)
Current: 4 to 20 mA
Linear Voltage: 0 to 5V, 0 to 10V
Communication: RS485 MODBUS
A-5-11/RTU communication protocol
Input Types Range
Thermocouple Type -200 to 1300°C (-328 to 2372°F)
Thermocouple Type -100 to 1200°C (-148 to 2192°F)
Thermocouple Type -200 to 400°C (-328 to 752°F)
Thermocouple Type 0 to 600°C (32 to 1112°F)
Thermocouple Type -200 to 1300°C (-328 to 2372°F)
Thermocouple Type 0 to 1700°C (32 to 3092°F)
Thermocouple Type 0 to 1700°C (32 to 3092°F)
Thermocouple Type 100 to 1800°C (212 to 3272°F)
Thermocouple Type -200 to 850°C (-328 to 1562°F)
Thermocouple Type -200 to 500°C (-328 to 932°F)
Pt 100 RTD -200 to 600°C (-328 to 1112°F)
0 to 50 mV -999 to 9999
0 to 5V -999 to 9999
0 to 10V -999 to 9999
0 to 20 mA* -999 to 9999
4 to 20 mA* -999 to 9999
Requires external 250 Ω precision shunt resistor, OMX-R250 (sold separately).
*
To Order
Model No. Description
CN7223 Dual output, DC pulse/relay with RS485**
CN7233 Dual output, relay/relay with RS485**
CN7253 Dual output, 4 to 20 mA/relay with RS485**
CN7263 Dual output, 0 to 5, 0 to 10 Vdc/relay with RS485**
Comes complete with operator’s manual.
Free CN7-A software download available on omega.com/cn7200
**
Ordering Examples: CN7223, dual output controller, DC pulse, mechanical relay output,
RS485 communications.
CN7263, dual output, 0 to 5, 0 to 10 Vdc relay with RS485.
Visit omega.com/cn7200_series for Pricing and Details
P-65
Panel Cutout: 1⁄4 DIN, 92 mm2
(3.622 in
Dimensions: 96 x 96 x 15.8 mm bezel
(3.78 x 3.78 x 0.625")
®
Panel Depth: 79.2 mm (3.125")
Weight: 425 g (15 oz)
Front Panel Rating: IP66
