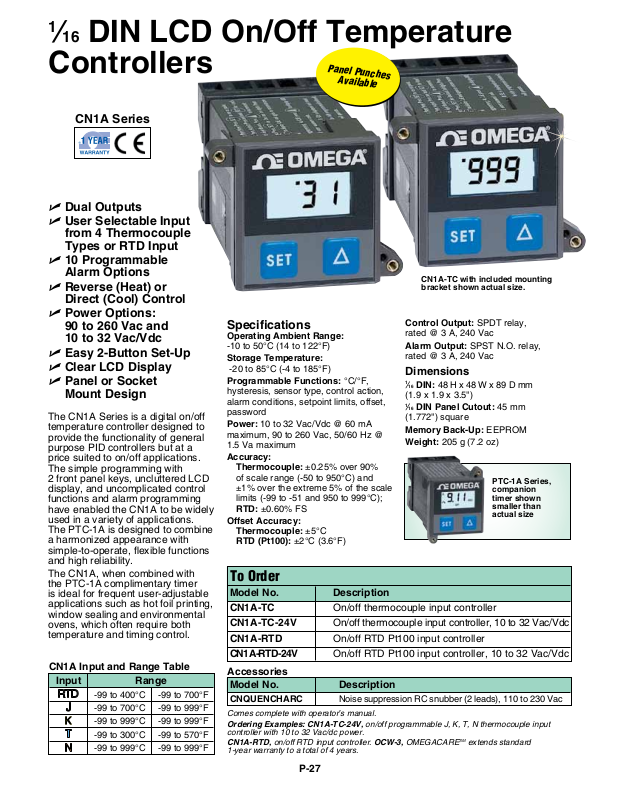

1
⁄16 DIN LCD On/Off Temperature
Controllers
CN1A Series
U Dual Outputs
U User Selectable Input
from 4 Thermocouple
Types or RTD Input
U 10 Programmable
Alarm Options
U
Reverse (Heat) or
Direct (Cool) Control
Power Options:
U
90 to 260 Vac and
10 to 32 Vac/Vdc
U
Easy 2-Button Set-Up
U Clear LCD Display
Panel or Socket
U
Mount Design
The CN1A Series is a digital on/off
temperature controller designed to
provide the functionality of general
purpose PID controllers but at a
price suited to on/off applications.
The simple programming with
2 front panel keys, uncluttered LCD
display, and uncomplicated control
functions and alarm programming
have enabled the CN1A to be widely
used in a variety of applications.
The PTC-1A is designed to combine
a harmonized appearance with
simple-to-operate, flexible functions
and high reliability.
The CN1A, when combined with
the PTC-1A complimentary timer
is ideal for frequent user-adjustable
applications such as hot foil printing,
window sealing and environmental
ovens, which often require both
temperature and timing control.
CN1A Input and Range Table
Input Range
-99 to 400°C -99 to 700°F
-99 to 700°C -99 to 999°F
-99 to 999°C -99 to 999°F
-99 to 300°C -99 to 570°F
-99 to 999°C -99 to 999°F
Panel Punches
Available

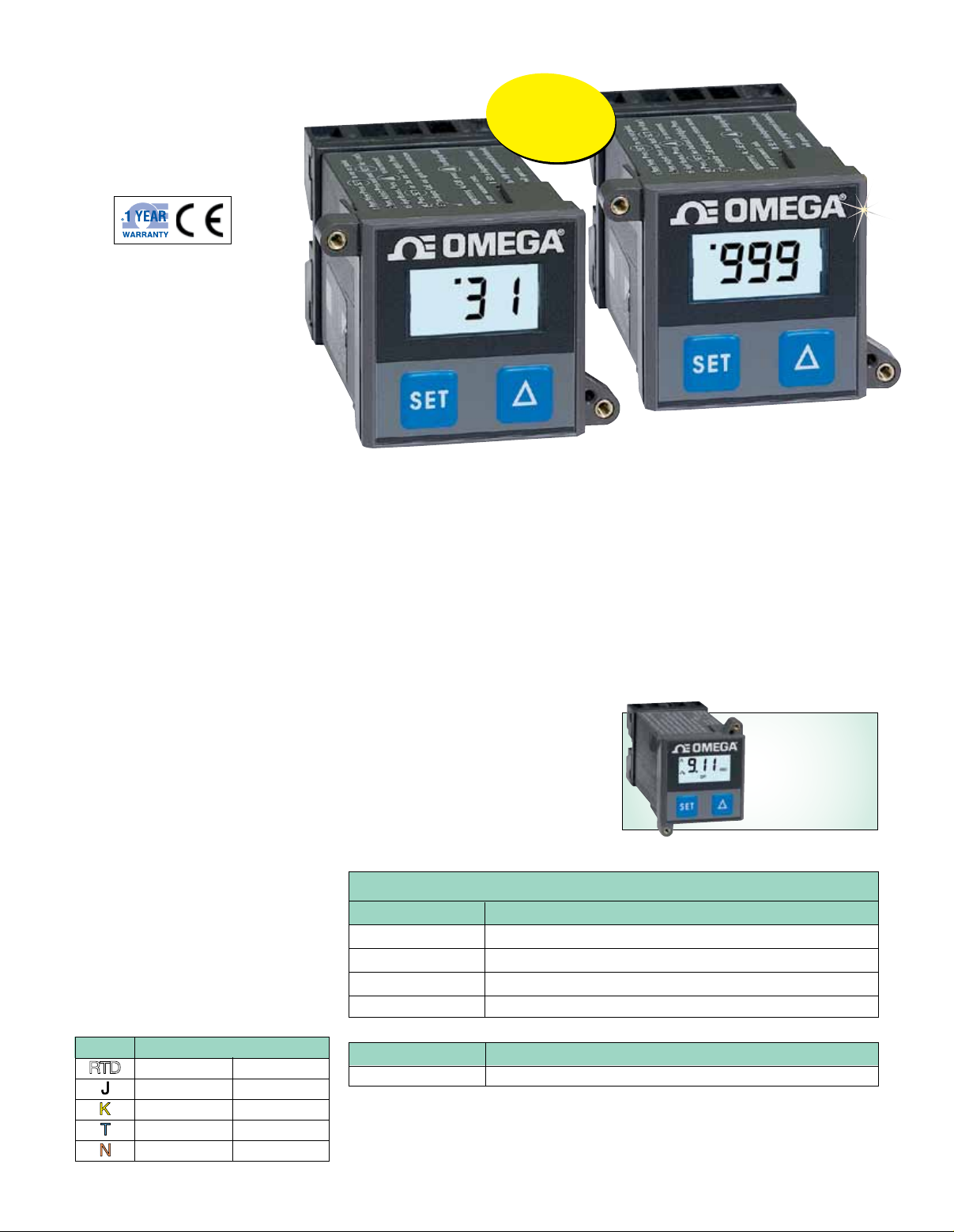

CN1A-TC with included mounting
bracket shown actual size.
Specifications
Operating Ambient Range:
-10 to 50°C (14 to 122°F)
Storage Temperature:
-20 to 85°C (-4 to 185°F)
Programmable Functions: °C/°F,
hysteresis, sensor type, control action,
alarm conditions, setpoint limits, offset,
password
Power: 10 to 32 Vac/Vdc @ 60 mA
maximum, 90 to 260 Vac, 50/60 Hz @
1.5 Va maximum
Accuracy:
Thermocouple: ±0.25% over 90%
of scale range (-50 to 950°C) and
±1% over the extreme 5% of the scale
limits (-99 to -51 and 950 to 999°C);
RTD: ±0.60% FS
Offset Accuracy:
Thermocouple: ±5°C
RTD (Pt100): ±2°C (3.6°F)
Control Output: SPDT relay,
rated @ 3 A, 240 Vac
Alarm Output: SPST N.O. relay,
rated @ 3 A, 240 Vac
Dimensions
1
⁄16 DIN: 48 H x 48 W x 89 D mm
(1.9 x 1.9 x 3.5")
1
⁄16 DIN Panel Cutout: 45 mm
(1.772") square
Memory Back-Up: EEPROM
Weight: 205 g (7.2 oz)
PTC-1A Series,
companion
timer shown
smaller than
actual size
To Order
Model No. Description
CN1A-TC On/off thermocouple input controller
CN1A-TC-24V On/off thermocouple input controller, 10 to 32 Vac/Vdc
CN1A-RTD On/off RTD Pt100 input controller
CN1A-RTD-24V On/off RTD Pt100 input controller, 10 to 32 Vac/Vdc
Accessories
Model No. Description
CNQUENCHARC Noise suppression RC snubber (2 leads), 110 to 230 Vac
Comes complete with operator’s manual.
Ordering Examples: CN1A-TC-24V, on/off programmable J, K, T, N thermocouple input
controller with 10 to 32 Vac/dc power.
CN1A-RTD, on/off RTD input controller. OCW-3, OMEGACARESM extends standard
1-year warranty to a total of 4 years.
P-27
