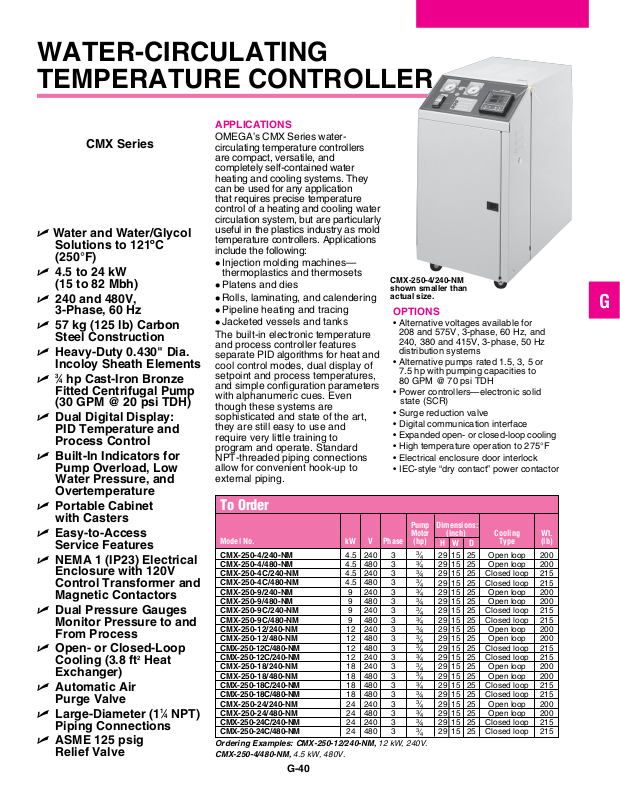

Page 1
WATER-CIRCULATING
TEMPERATURE CONTROLLER
APPLICATIONS
CMX Series
U Water and Water/Glycol
Solutions to 121ºC
(250°F)
U 4.5 to 24 kW
(15 to 82 Mbh)
U 240 and 480V,
3-Phase, 60 Hz
U 57 kg (125 lb) Carbon
Steel Construction
U Heavy-Duty 0.430" Dia.
Incoloy Sheath Elements
3
U
⁄4 hp Cast-Iron Bronze
Fitted Centrifugal Pump
(30 GPM @ 20 psi TDH)
U Dual Digital Display:
PID Temperature and
Process Control
U Built-In Indicators for
Pump Overload, Low
Water Pressure, and
Overtemperature
U Portable Cabinet
with Casters
U Easy-to-Access
Service Features
U NEMA 1 (IP23) Electrical
Enclosure with 120V
Control Transformer and
Magnetic Contactors
U Dual Pressure Gauges
Monitor Pressure to and
From Process
U Open- or Closed-Loop
Cooling (3.8 ft
2
Heat
Exchanger)
U Automatic Air
Purge Valve
U Large-Diameter (1
1
⁄4 NPT)
Piping Connections
U ASME 125 psig
Relief Valve
OMEGA’s CMX Series watercirculating temperature controllers
are compact, versatile, and
completely self-contained water
heating and cooling systems. They
can be used for any application
that requires precise temperature
control of a heating and cooling water
circulation system, but are particularly
useful in the plastics industry as mold
temperature controllers. Applications
include the following:
l Injection molding machines—
thermoplastics and thermosets
l Platens and dies
l Rolls, laminating, and calendering
l Pipeline heating and tracing
l Jacketed vessels and tanks
The built-in electronic temperature
and process controller features
separate PID algorithms for heat and
cool control modes, dual display of
setpoint and process tem per a tures,
and simple configuration parameters
with alphanumeric cues. Even
though these systems are
so phis ti cat ed and state of the art,
they are still easy to use and
require very little training to
program and operate. Standard
NPT-threaded piping connections
allow for convenient hook-up to

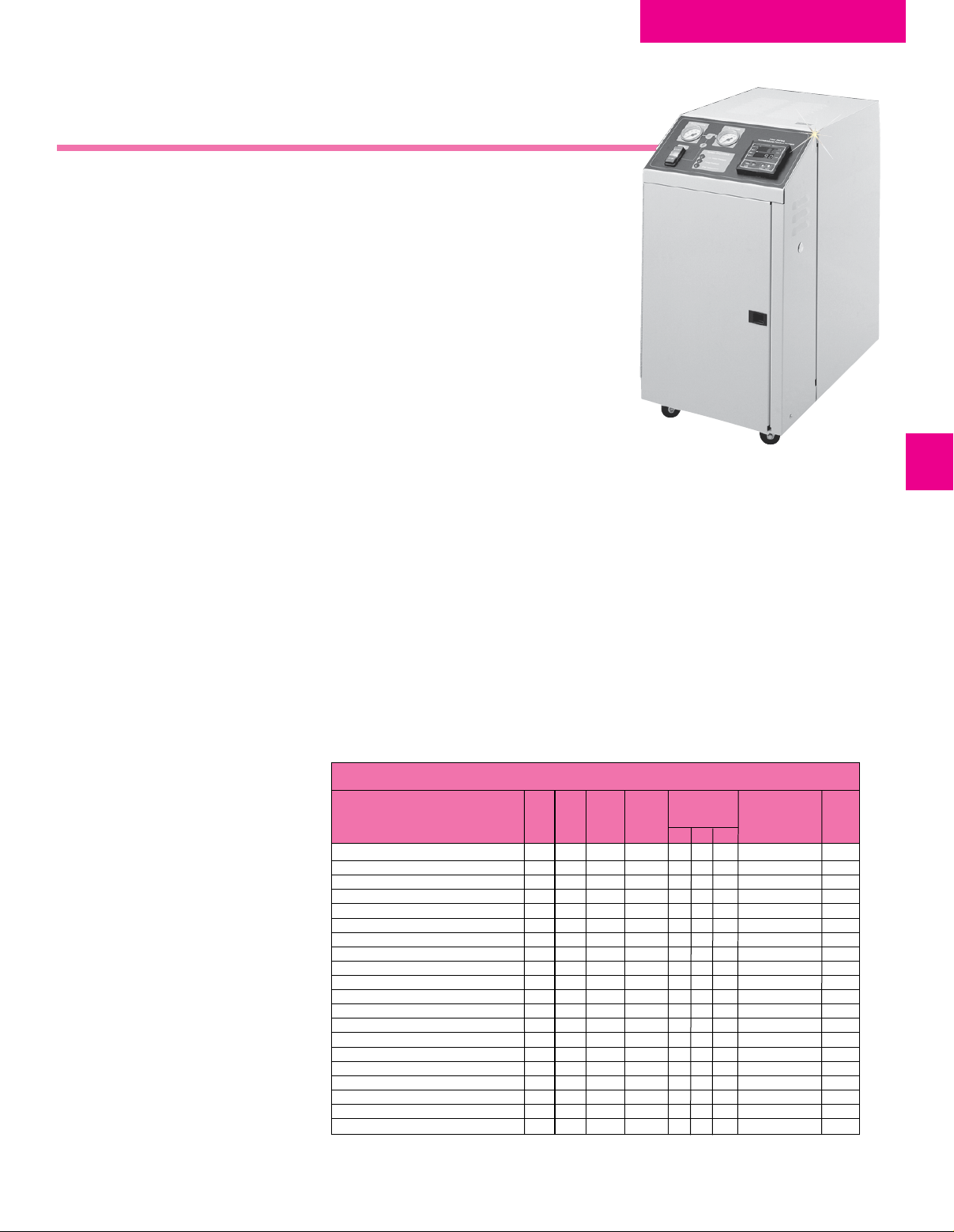

CMX-250-4/240-NM
shown smaller than
actual size.
OPTIONS
• Alternative voltages available for
208 and 575V, 3-phase, 60 Hz, and
240, 380 and 415V, 3-phase, 50 Hz
distribution systems
• Alternative pumps rated 1.5, 3, 5 or
7.5 hp with pumping capacities to
80 GPM @ 70 psi TDH
• Power controllers—electronic solid
state (SCR)
• Surge reduction valve
• Digital communication interface
• Expanded open- or closed-loop cooling
• High temperature operation to 275°F
• Electrical enclosure door interlock
• IEC-style “dry contact” power contactor
external piping.
To Order
Pump Dimensions:
Motor (inch) Cooling Wt.
Model No.
CMX-250-4/240-NM 4.5 240 3
CMX-250-4/480-NM 4.5 480 3
CMX-250-4C/240-NM 4.5 240 3
CMX-250-4C/480-NM 4.5 480 3
CMX-250-9/240-NM 9 240 3
CMX-250-9/480-NM 9 480 3
CMX-250-9C/240-NM 9 240 3
CMX-250-9C/480-NM 9 480 3
CMX-250-12/240-NM 12 240 3
CMX-250-12/480-NM 12 480 3
CMX-250-12C/480-NM 12 480 3
CMX-250-12C/240-NM 12 240 3
CMX-250-18/240-NM 18 240 3
CMX-250-18/480-NM 18 480 3
CMX-250-18C/240-NM 18 480 3
CMX-250-18C/480-NM 18 480 3
CMX-250-24/240-NM 24 240 3
CMX-250-24/480-NM 24 480 3
CMX-250-24C/240-NM 24 240 3
CMX-250-24C/480-NM 24 480 3
Ordering Examples: CMX-250-12/240-NM, 12 kW, 240V.
CMX-250-4/480-NM, 4.5 kW, 480V.
G-40
kW V Phase (hp)
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
29 15 25 Open loop 200
⁄
4
29 15 25 Open loop 200
⁄
4
29 15 25 Closed loop 215
⁄
4
29 15 25 Closed loop 215
⁄
4
29 15 25 Open loop 200
⁄
4
29 15 25 Open loop 200
⁄
4
29 15 25 Closed loop 215
⁄
4
29 15 25 Closed loop 215
⁄
4
29 15 25 Open loop 200
⁄
4
29 15 25 Open loop 200
⁄
4
29 15 25 Closed loop 215
⁄
4
29 15 25 Closed loop 215
⁄
4
29 15 25 Open loop 200
⁄
4
29 15 25 Open loop 200
⁄
4
29 15 25 Closed loop 215
⁄
4
29 15 25 Closed loop 215
⁄
4
29 15 25 Open loop 200
⁄
4
29 15 25 Open loop 200
⁄
4
29 15 25 Closed loop 215
⁄
4
29 15 25 Closed loop 215
⁄
4
H W D
G
Type (lb)
