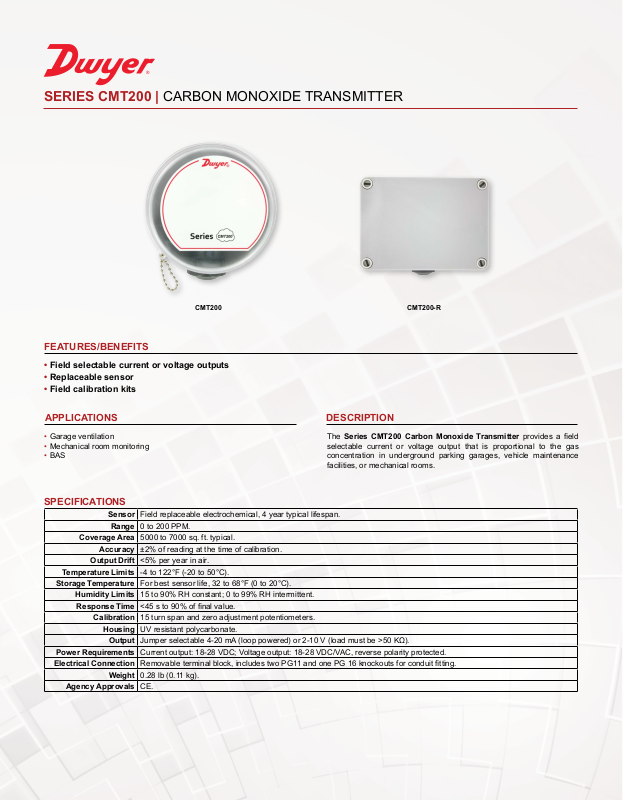

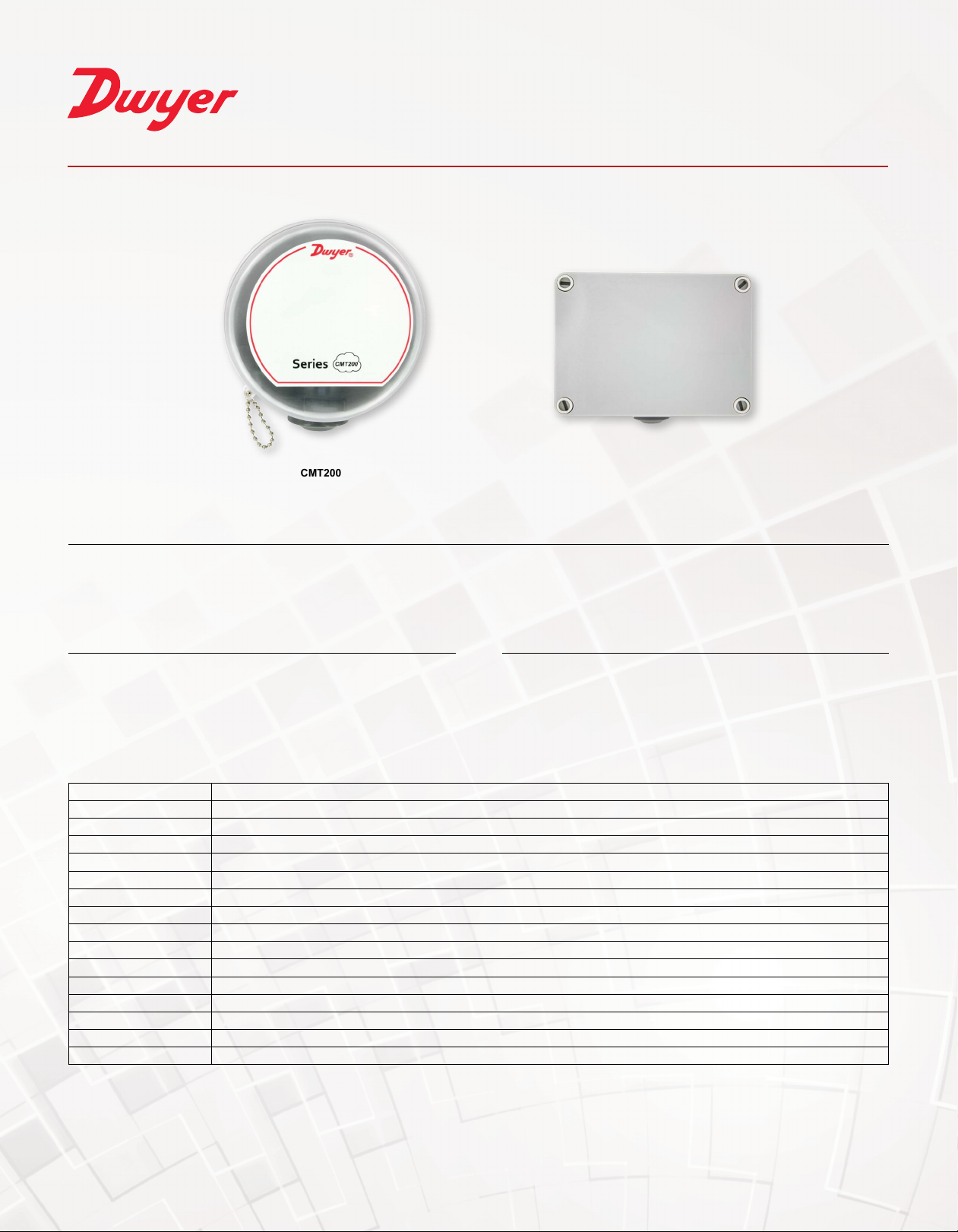

SERIES CMT200 | CARBON MONOXIDE TRANSMITTER

CMT200

CMT200-R

FEATURES/BENEFITS

• Field selectable current or voltage outputs

• Replaceable sensor

• Field calibration kits

DESCRIPTIONAPPLICATIONS

• Garage ventilation

• Mechanical room monitoring

• BAS

The Series CMT200 Carbon Monoxide Transmitter provides a eld

selectable current or voltage output that is proportional to the gas concentration in underground parking garages, vehicle maintenance facilities, or mechanical rooms.

SPECIFICATIONS

Sensor Field replaceable electrochemical, 4 year typical lifespan.

Range 0 to 200 PPM.

Coverage Area 5000 to 7000 sq. ft. typical.

Accuracy ±2% of reading at the time of calibration.

Output Drift <5% per year in air.

Temperature Limits -4 to 122°F (-20 to 50°C).

Storage Temperature For best sensor life, 32 to 68°F (0 to 20°C).

Humidity Limits 15 to 90% RH constant; 0 to 99% RH intermittent.

Response Time <45 s to 90% of nal value.

Calibration 15 turn span and zero adjustment potentiometers.

Housing UV resistant polycarbonate.

Output Jumper selectable 4-20 mA (loop powered) or 2-10 V (load must be >50 KΩ).

Power Requirements Current output: 18-28 VDC; Voltage output: 18-28 VDC/VAC, reverse polarity protected.

Electrical Connection Removable terminal block, includes two PG11 and one PG 16 knockouts for conduit tting.

Weight 0.28 lb (0.11 kg).

Agency Approvals CE.

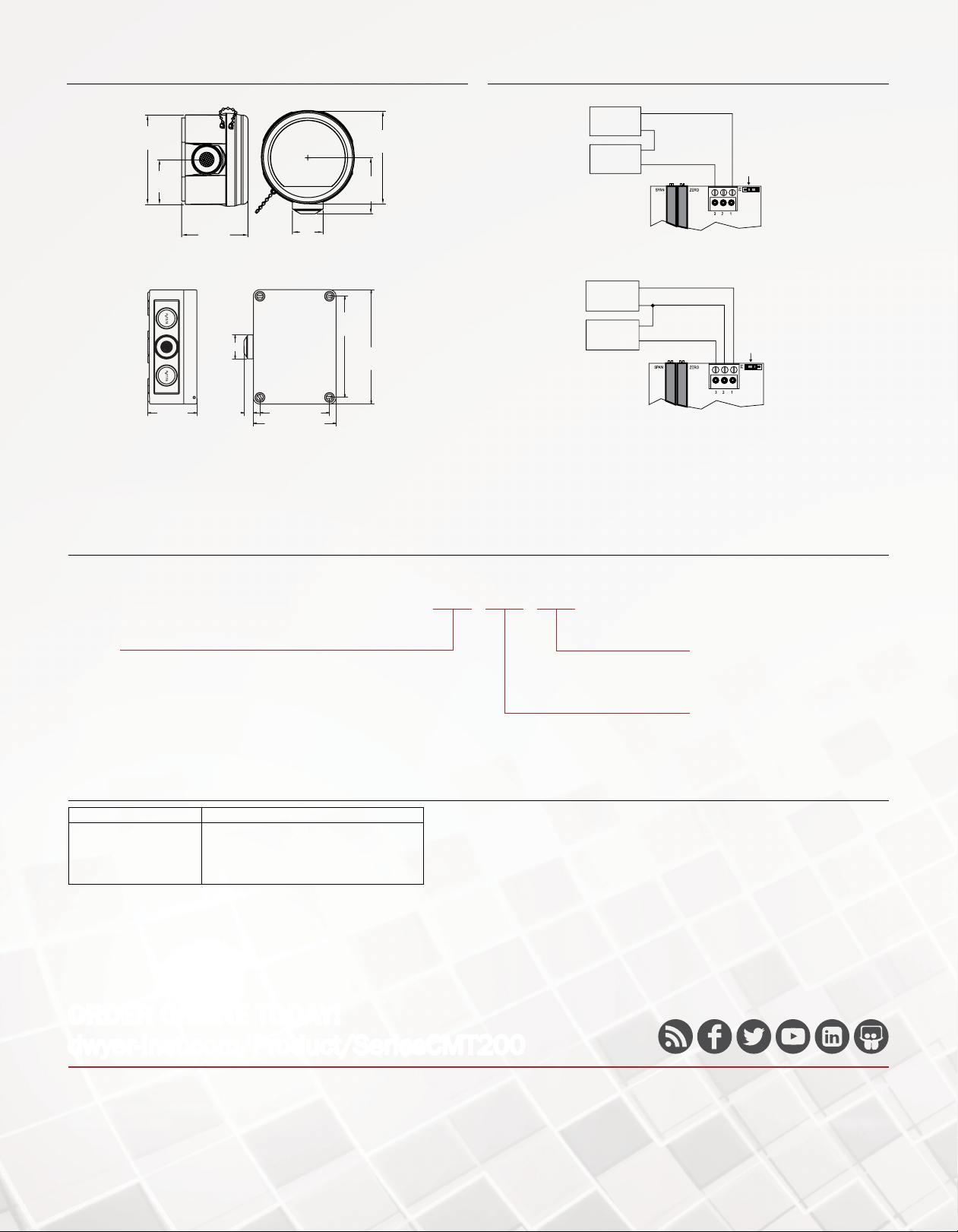

Page 2

3-9/64 [79.78]

DIMENSIONS WIRING DIAGRAM

P1 JUMPER

WIRING AND P1 SETTING

POWER

P1 JUMPER

WIRING AND P1 SETTING

SUPPLY

RECEIVER

1-37/64

[39.89]

1-31/32

[50.20]

Ø3-1/4 [82.71]

SET FOR CURRENT

Ø1-5/64

[27.32]

4-17/32 [115.09]

5-7/64

[129.78]

2-15/64

[56.75]

2-21/64

[59.07]

1-5/64 [27.38]

21/64 [8.33]

CMT200

3-1/8 [79.38]

3-45/64 [94.06]

CMT200-R

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

CMT 200 -R

SERIES

CMT: Carbon monoxide transmitter

POWER SUPPLY

RECEIVER

CURRENT OUTPUT -

VOLTAGE OUTPUT -

SET FOR CURRENT

HOUSING

-R: Rectangular housing BLANK: Round housing

RANGE

200: 0 to 200 PPM

ACCESSORIES

Model Description A-GSTA-SE GCK-200CO-2000CO2 A-505 A-507A

Security enclosure Calibration gas Replacement carbon monoxide sensor Calibration adaptor

ORDER ONLINE TODAY!

dwyer-inst.com/Product/SeriesCMT200
