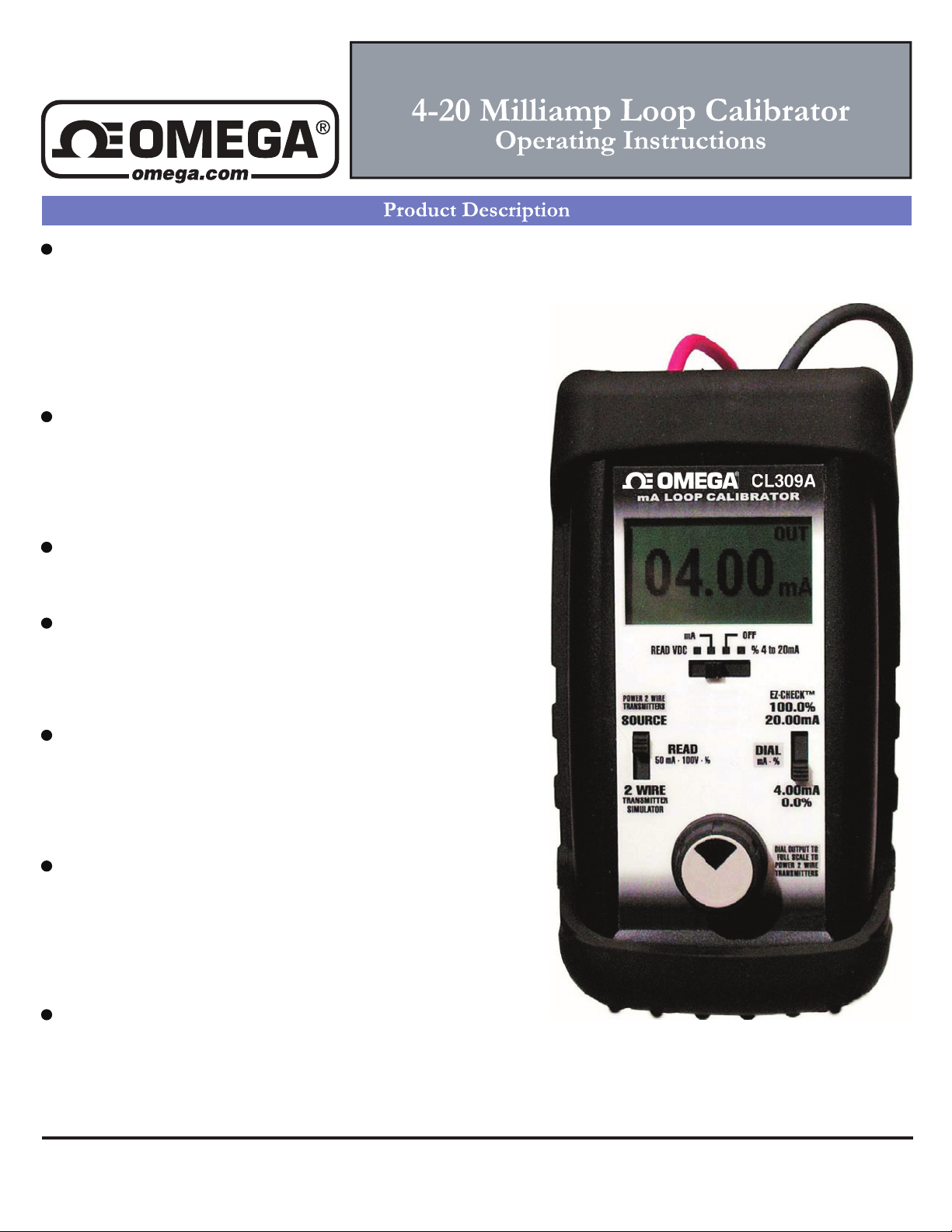

EASY TO USE
With the OMEGA CL309A you can check, calibrate and
measure all your current signal instruments in a 4 to 20 milliamp
DC loop. It can be used at any access point in your loop.
Source & Read 0.00 to 24.00 mA, Simulate a 2 Wire Transmitter
or use the Model CL309A to simultaneously power your 2 Wire
Transmitter and measure its output. When desired the Model
CL3309A can display current in milliamps or percent of 4 to 20.
SOURCE MILLIAMPS
Calibrate recorders, digital indicators, stroke valves or any
instruments that get their input from a 4 to 20 mA loop. Easily
set any value quickly to within 0.01 mA with the adjustable
digital potentiometer “DIAL” or use preset 4.00 mA (0.0%) and
20.00 mA (100.0%) EZ-CHECK™ settings.
RECALL OUTPUT SETTINGS
The EZ CHECK™ switch provides rapid checking of 4.00, 20.00
and any convenient third point between 0.00 to 24.00 mA.
CALIBRATE USING LOOP POWER
Check loop wiring and receivers by using the Model CL309A in
place of a 2 Wire transmitter. Simulate a changing process input
to check loop response and control settings. The Model CL309A
uses any loop power from 2 to 100V DC.
READ LOOP CURRENT
Check controller outputs or measure the milliamp signal
anywhere in the loop. The Model CL309A measures 0.00 to
52.00 mA signals with greater accuracy than a typical
multimeter. The Model CL309A can be easily switched to
display milliamps or percent of 4 to 20.
POWER & MEASURE 2 WIRE TRANSMITTERS
The Model CL309A can simultaneously output 24V DC to power
any and all devices in a process loop using the internal batteries
and the internal switching power supply, while measuring the
output of a 2 Wire Transmitter and any other loop devices. This
is handy for checking the functionality of transmitters in the field
or on the bench.
READ DC VOLTS
The Model CL309A can measure from -99.99 to +99.99 VDC
with 10mV resolution. Use it to check loop power supplies, I/V
converters, chart recorders, 1 to 5 Volt signals, and any other
voltages within this range making it unnecessary to carry an
additional multimeter.
CL309A
1
1
Page 4
OMEGA Model CL309A Operating Instructions

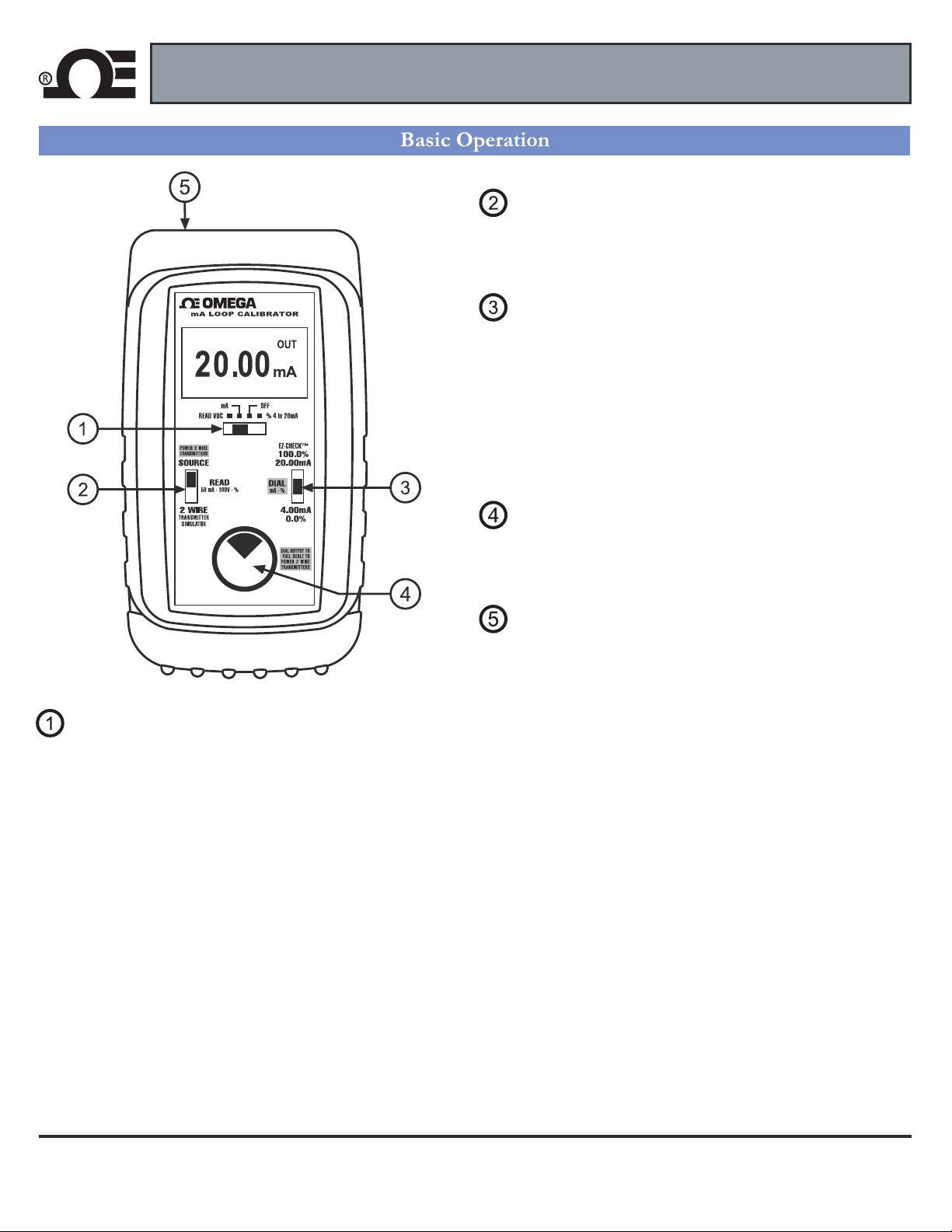

SOURCE / READ / 2 WIRE SWITCH
Select “SOURCE” to output in milliamps or percent.
Select “READ” for reading in milliamps or percent.
Select “2 WIRE” to simulate a 2 Wire Transmitter.
®
CL309A
EZ-CHECK™ SWITCH
Instantly output 4.00 mA or 20.00 mA by moving the
EZ-CHECK™ switch to the “4.00mA” / “0.0%” position or
20.00mA” / “100.0%” position. For fast three point checks
select the “DIAL” position. The Model CL309A will
remember the last “DIAL” value, even with the power off.
Note: The same “DIAL” value is stored for both mA and
%. The recalled value will be displayed in the units
selected.
DIAL KNOB
Turn the knob to adjust output level. Turn clockwise to
increase the output, counter clockwise to decrease the
output.
POWER SWITCH
Select “mA” to display and calibrate in milliamps.
Select “% 4 to 20 mA” to display and calibrate in
percent. Select “READ VDC” to read volts DC. Return
the slide switch to the “OFF” position when not in use.
Tech Note:
Percent mode can also be used with chart recorders,
valves or current trips that display in percent.
100.0% 20.00 mA
75.0% 16.00 mA
50.0% 12.00 mA
25.0% 8.00 mA
0.0% 4.00 mA
To convert from Milliamps to Percent
Percent = (Milliamps - 4) / 0.16
To convert from Percent to Milliamps
Milliamps = Percent / 6.25 + 4
EXTERNAL POWER JACK (Not Shown)
When used in conjunction with the optional AC Adaptor,
the external power jack will eliminate the drain on your
batteries. This is very handy for applications that require
extended use of the Model CL309A. Please see the
section on Accessories for ordering information.
Note: This feature does not charge the batteries, it only
supplies power to the Model CL309A.
CHANGING BATTERIES
Low battery is indicated by “BAT” on the display.
Approximately one to four hours of typical operation
remain before the CL309A will automatically turn off. To
change the batteries; remove the rubber boot, remove
the battery door from the back of the unit by sliding the
door downward. This will allow access to the battery
compartment. Replace with four (4) “AA” 1.5V batteries
being careful to check the polarity. Place the battery door
back on the unit and replace the rubber boot.
Note: Alkaline batteries are supplied and recommended
for maximum battery life and performance.
2
Page 5

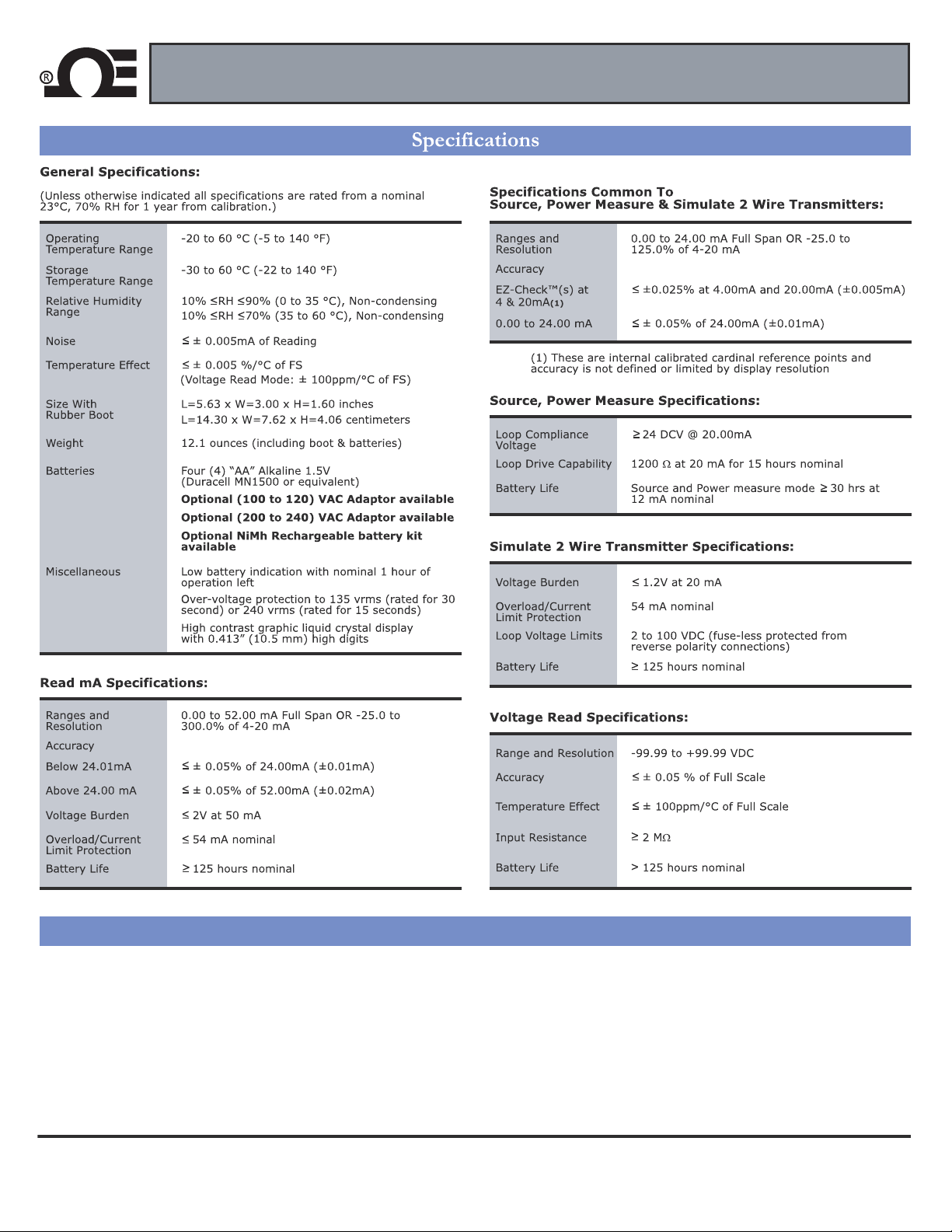

OMEGA Model CL309A Operating Instructions
0.3522
3
Page 6

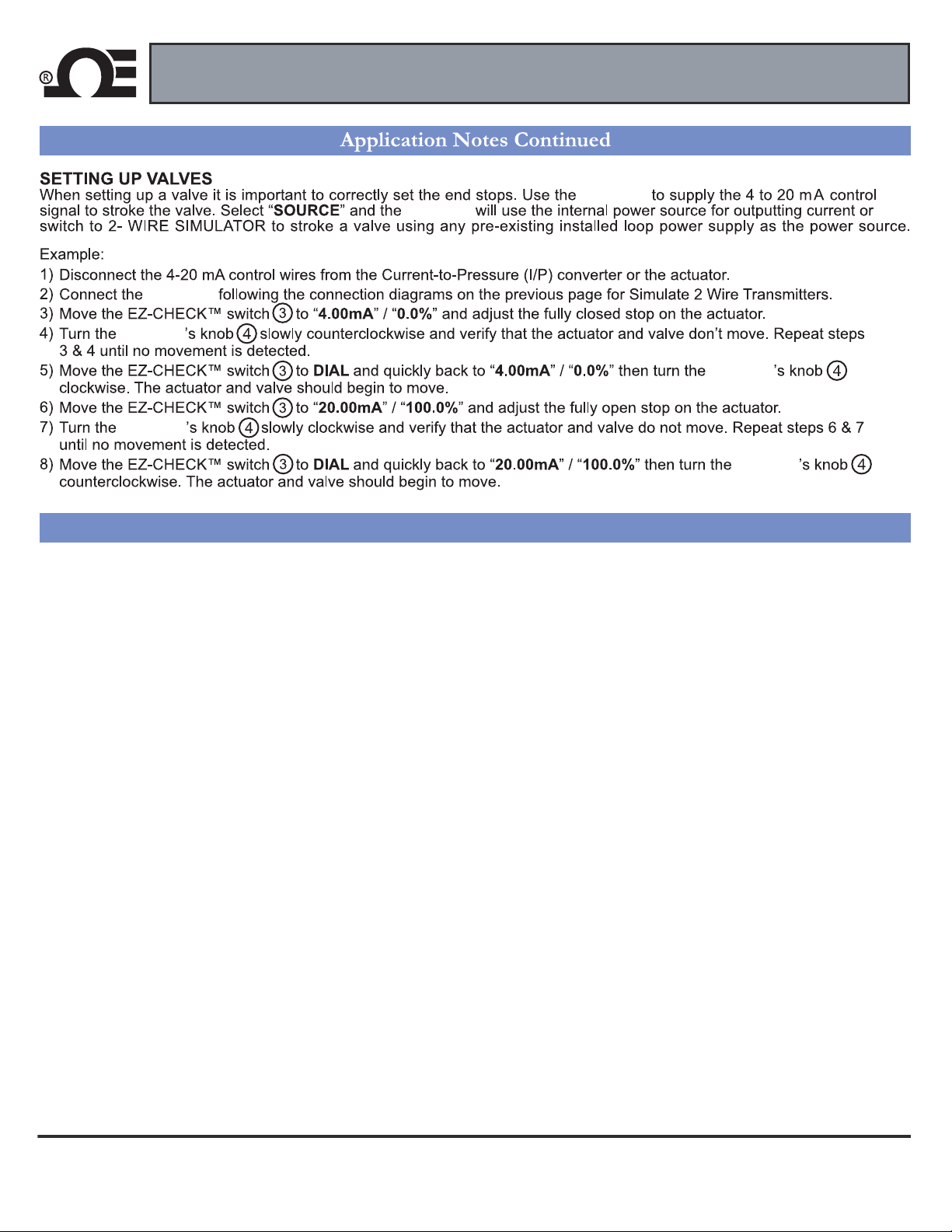

OMEGA Model CL309A Operating Instructions
CL309A
CL309A
CL309A
CL309A
CL309A
CL309A
CL309A
4
Page 7
OMEGA Model CL309A Operating Instructions

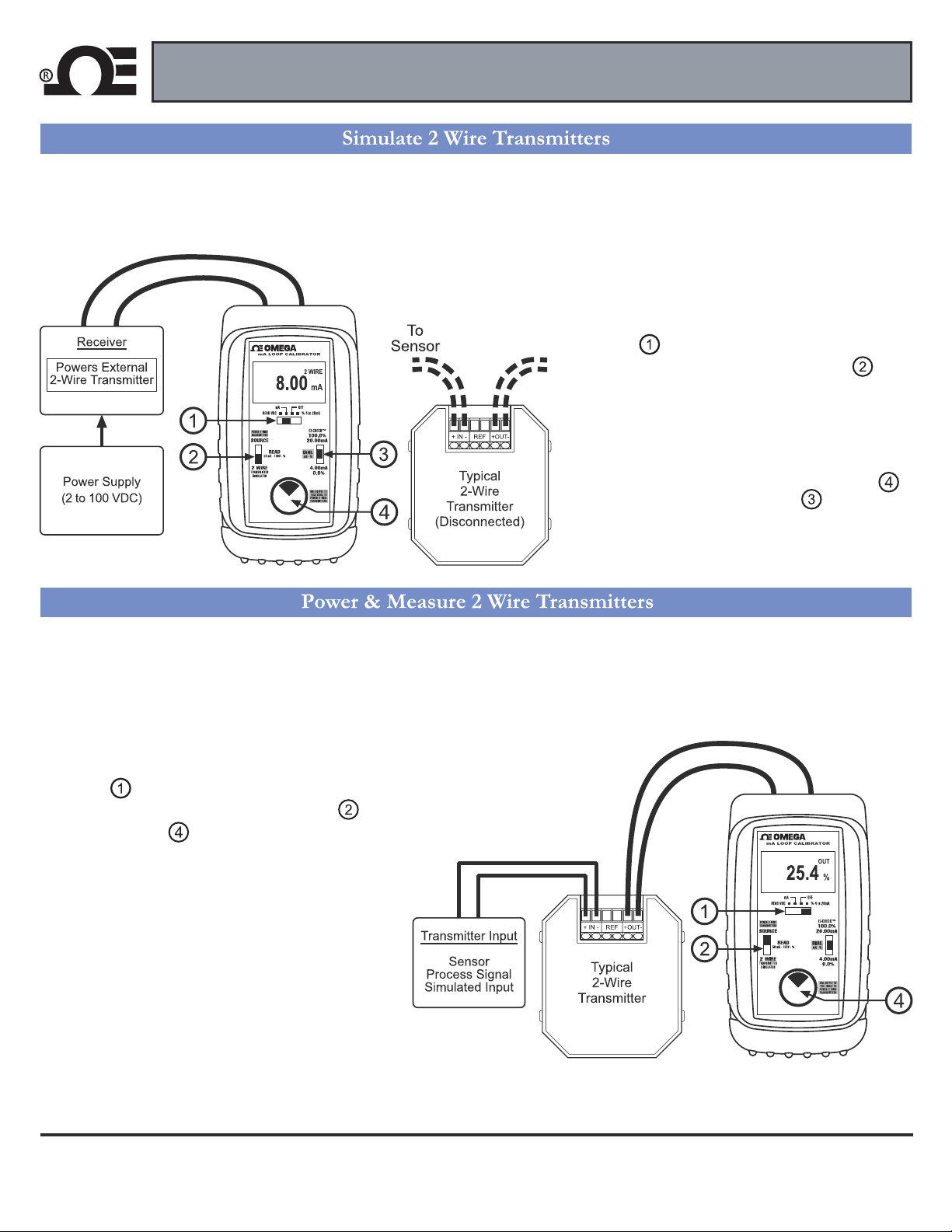

2 Wire mA, 2 Wire % (Percent of 4 to 20 mA)
Choose this function to simulate a 2 Wire Transmitter output from 0.00 to 24.00 milliamps. Operates in loops with
power supply voltages from 2 to 100 VDC
1)
Disconnect one or both input wires from
the device to be calibrated.
2)
Select “mA” or “% 4 to 20mA” with slide
®
CL309A
switch .
3)
Select “2 WIRE” using slide switch .
4)
Connect the red input lead of the PIE
Model 334 to the plus (+) input of the field
connections and the black lead to the
minus (-).
Loop current is adjusted by turning knob
while the EZ-CHECK™ switch is in the
“DIAL” position, or the current can be set at
the fixed points of 4.00mA (0.0%) or
20.00mA (100.0%) with switch (3).
mA OUT, % OUT (Percent of 4 to 20 mA)
Choose this function to simultaneously supply power to a 2 Wire Transmitter while displaying the 4 to 20 mA output
of the transmitter.
1)
Disconnect one or both input wires from
the device to be calibrated.
2)
Select “mA” or “% 4 to 20mA” with slide
switch .
3)
Select “SOURCE” using slide switch .
4)
Turn the knob clockwise several times
®
CL309A
until full scale output (24.00 mA/125.0%)
is obtained (this can be verified by clipping
the output leads together and checking
that the display indicates “FULL SCALE”).
5)
Connect the red source lead of the
OMEGA CL309A to the plus (+) input of
the device and the black source lead to
the minus (-).
The Model CL309A supplies a nominal 24
volts DC at 24 mA to the 2 Wire Transmitter.
The current passed by the transmitter will be
accurately displayed by the Model CL309A.
Calibrate the transmitter in the usual manner
and disconnect the Model CL309A.
5
Page 8

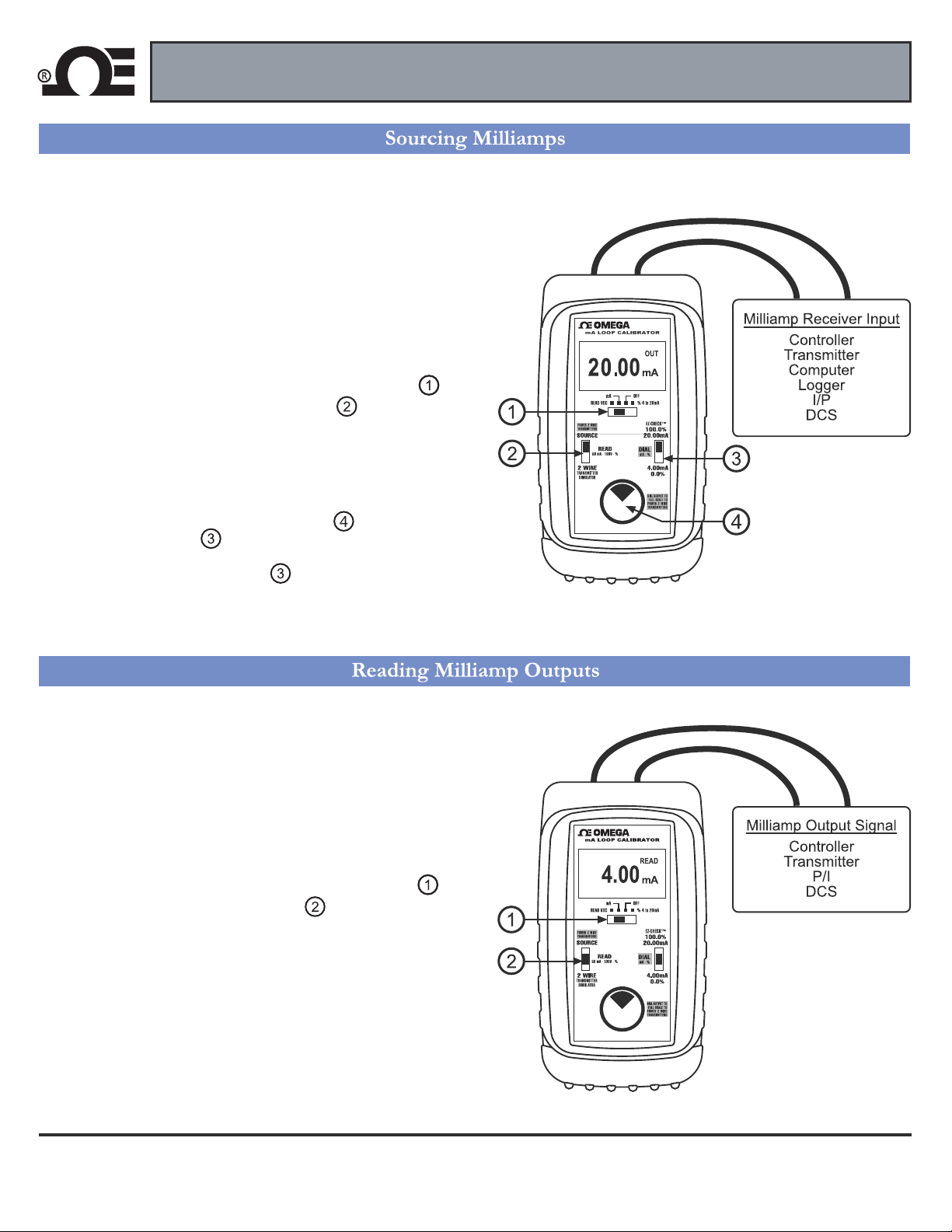

OMEGA Model CL309A Operating Instructions
mA OUT, % OUT (Percent of 4 to 20 mA)
Choose this function to provide an output from 0.00 to
24.00 milliamps. The compliance voltage is a nominal 24
VDC to provide the driving power to your milliamp
receivers.
Disconnect one or both input wires from the device to
1)
be calibrated.
Select “mA” or “% 4 to 20mA” with slide switch .
2)
Select “SOURCE” using slide switch .
3)
Connect the output leads of the Model CL309A to the
4)
inputs of the device being calibrated, making sure to
check polarity. Red lead to the plus (+) input and black
lead to the minus (-) input.
The output is adjusted by turning knob while the
EZ-CHECK™ switch is in the “DIAL” position, or the
current can be set at the fixed points of 4.00mA (0.0%) or
20.00mA (100.0%) with switch .
®
CL309A
READ mA, READ % (Percent of 4 to 20 mA)
Choose this function to measure from 0.00 to +52.00
milliamps or -25.0 to 300.0%.
1)
Open the current loop at any convenient point along
the signal path.
2)
Select “mA” or “% 4 to 20mA” with slide switch .
3)
Select “Read” using slide switch .
4)
Connect the red input lead (+) of the Model CL309A to
the more positive point of the break and the black input
lead (-) to the more negative point of the break.
Signals below 0 mA or open circuits are indicated by 0.00
mA (-25.0%) on the display. Signals above 52 mA are
current limited by protection circuitry.
6
®
CL309A
Page 9

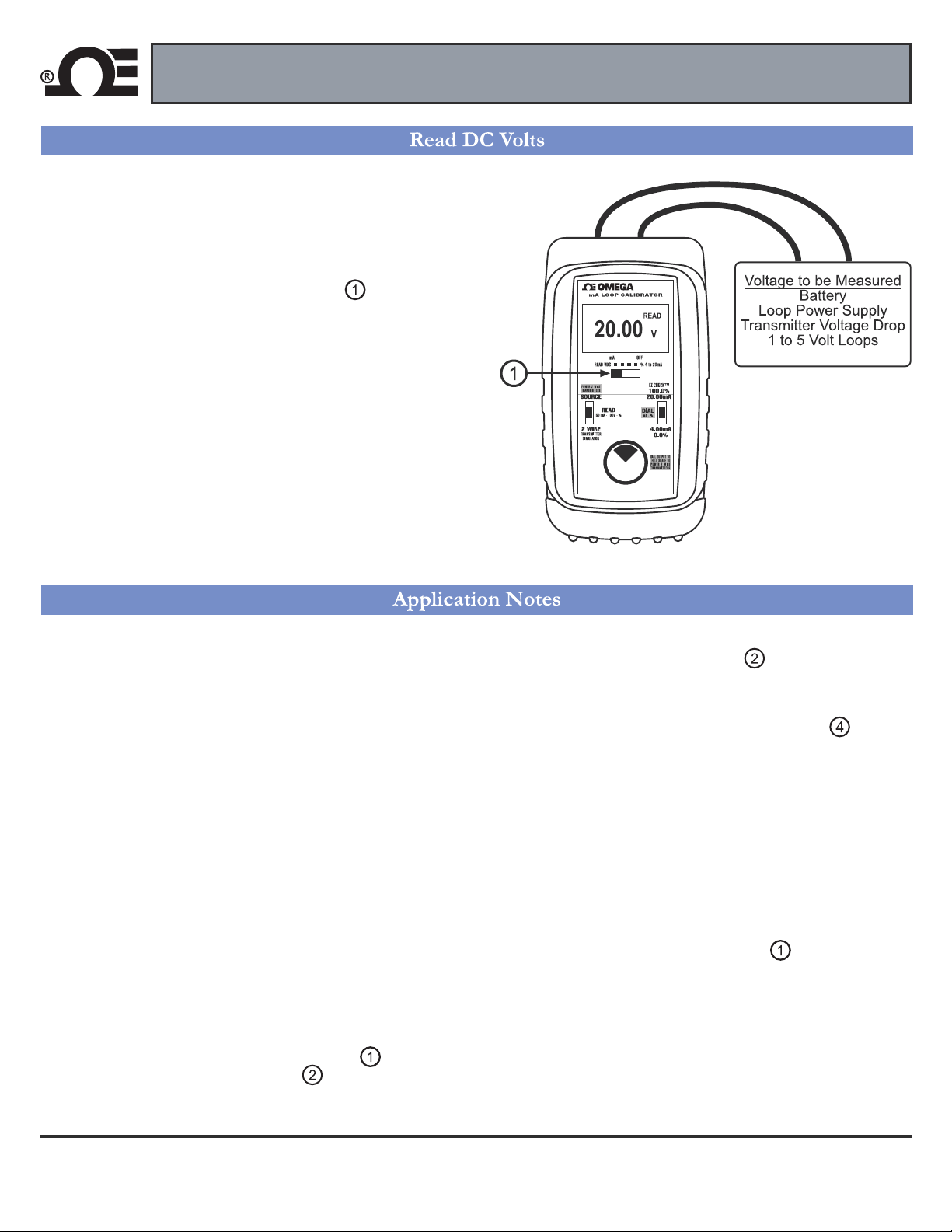

OMEGA Model CL309A Operating Instructions
READ V
Choose this function to measure from -99.99 to +99.99V DC.
1)
Select “READ VDC” with slide switch .
2)
Connect the red (+) and black (-) leads of the Model
CL309A across the voltage source to be measured.
Any DC voltage from -99.99 to +99.99 volts may be
measured. Loop power supplies, signal voltages at
receivers, batteries and transmitter voltage drops may
be measured. Signals exceeding ±99.99 VDC will be
indicated by OVRLD on the display.
®
CL309A
OUT OF RANGE SIGNALS
Signals below 0 mA or open circuits are indicated by 0.00 mA
(-25.0%) on the display. Signals above 52 mA are current limited
by protection circuitry to approximately 54 mA.
KEEPING THE PROCESS GOING
When an instrument in a critical control loop develops a problem
it is important to maintain control of the process. The CL309A
can be substituted for a faulty controller or transmitter to provide
temporary manual control of the process. One technician takes
manual control of the process while a second technician retrieves,
installs and configures a replacement instrument.
OPEN LOOPS
The display will indicate 0.00 mA or -25.0% if there is an open
loop or if the polarity is reversed. Check all the connections in
the loop or try reversing the leads.
POWER TRANSMITTER
Adjusting the SOURCE output to full scale supplies a nominal
24V DC to power a 2 Wire Transmitter while simultaneously
displaying the 4 to 20 mA output of the transmitter.
READ MILLIAMPS
Select READ milliamps by moving slide switch to “mA” or “%
4 to 20mA” and moving slide switch to “READ”. Place the
Model CL309A in the loop in series with the current to be
measured.
SOURCE MILLIAMPS or 2-WIRE SIMULATOR
Select “SOURCE” using slide switch to output from 0.00 to
24.00 milliamps using the Model CL309A’s internal power
source. This will provide 24V DC. Select “2-WIRE” to control
the current in loop that is using an existing power supply. To
change the output current adjust the dial knob . Turning
clockwise will increase the output value, turning
counter-clockwise will decrease the output value. The output
is adjustable in all EZ-CHECK™ positions. When returning to
the “4.00mA”/“0.0%” and “20.00mA”/”100%” positions they will
always return to 4.00 (0.0%) and 20.00 (100.0%) mA. This
method is superior to keypad units. The zero and full scale
positions can be adjusted smoothly making easy valve end
stop testing, trip point testing, alarm testing, etc. There is virtually
no overshoot/undershoot and no automated modes that need
to be learned.
READ DC VOLTS
Select “READ VDC” using slide switch to read volts DC.
Clip the leads across the voltage to be measured.
7
Page 10
NOTES:
8
Page 11
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 37 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal three (3) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for
any damages that result from the use of its products in accordance with information provided
by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set
forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA
and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s)
in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and
on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.
FOR WARRANTY RETURNS, please have the
following information available BEFORE contacting
OMEGA:
1. Purchase Order number under which the product
was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2016 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.
FOR NON-WARRANTY REPAIRS,
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
consult
Page 12
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
TEMPERATURE
MU
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
MU
Wire: Thermocouple, RTD & Thermistor
MU
Calibrators & Ice Point References
MU
Recorders, Controllers & Process Monitors
MU
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
MU
Transducers & Strain Gages
MU
Load Cells & Pressure Gages
MU
Displacement Transducers
MU
Instrumentation & Accessories
FLOW/LEVEL
MU
Rotameters, Gas Mass Flowmeters & Flow Computers
MU
Air Velocity Indicators
MU
Turbine/Paddlewheel Systems
MU
Totalizers & Batch Controllers
SM
pH/CONDUCTIVITY
MU
pH Electrodes, Testers & Accessories
MU
Benchtop/Laboratory Meters
MU
Controllers, Calibrators, Simulators & Pumps
MU
Industrial pH & Conductivity Equipment
DATA ACQUISITION
MU
Data Acquisition & Engineering Software
MU
Communications-Based Acquisition Systems
MU
Plug-in Cards for Apple, IBM & Compatibles
MU
Data Logging Systems
MU
Recorders, Printers & Plotters
HEATERS
MU
Heating Cable
MU
Cartridge & Strip Heaters
MU
Immersion & Band Heaters
MU
Flexible Heaters
MU
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
MU
Metering & Control Instrumentation
MU
Refractometers
MU
Pumps & Tubing
MU
Air, Soil & Water Monitors
MU
Industrial Water & Wastewater Treatment
MU
pH, Conductivity & Dissolved Oxygen Instruments
M4434/0116
Loading...
