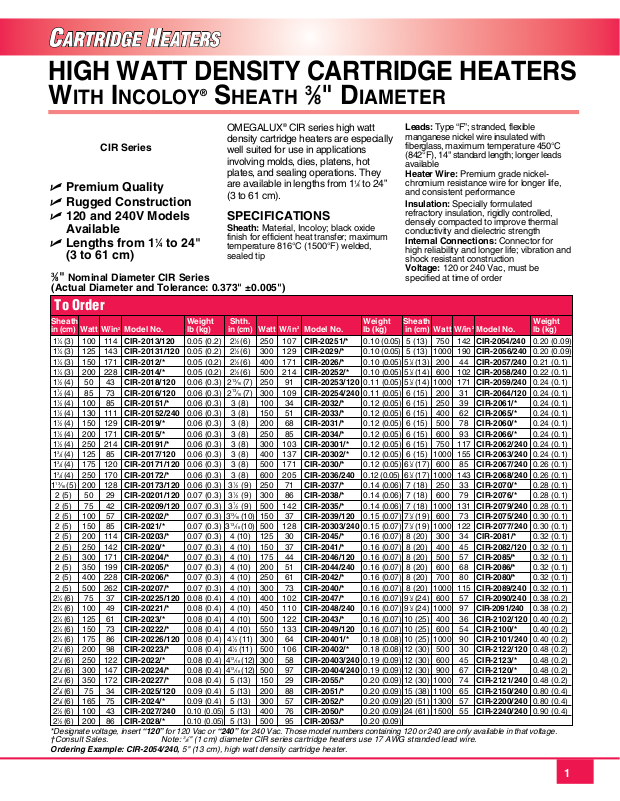

Omega CIR-38 Specification

HIGH WATT DENSITY CARTRIDGE HEATERS
W

ith Incoloy

®

Sheath 3⁄8" Diameter

CIR Series

U Premium Quality
U Rugged Construction
U 120 and 240V Models

Available

U Lengths from 11⁄4 to 24"

(3 to 61 cm)

3

⁄8" Nominal Diameter CIR Series

OMEGALUX

®

CIR series high watt
density cartridge heaters are especially
well suited for use in applications
involving molds, dies, platens, hot
plates, and sealing operations. They
are available in lengths from 11⁄4 to 24”
(3 to 61 cm).

SPECIFICATIONS

Sheath: Material, Incoloy; black oxide

finish for efficient heat transfer; maximum
temperature 816°C (1500°F) welded,
sealed tip

Leads: Type “F”; stranded, flexible
manganese nickel wire insulated with
fiberglass, maximum temperature 450°C
(842°F), 14" standard length; longer leads
available
Heater Wire: Premium grade nickel­chromium resistance wire for longer life,
and consistent performance

Insulation: Specially formulated
refractory insulation, rigidly controlled,
densely compacted to improve thermal
conductivity and dielectric strength
Internal Connections: Connector for
high reliability and longer life; vibration and
shock resistant construction
Voltage: 120 or 240 Vac, must be
specified at time of order

(Actual Diameter and Tolerance: 0.373" ±0.005")

To Order

Sheath Weight Shth.
in

(cm) Watt W/in2 Model No. lb (kg) in

11⁄4 (3) 100 114 CIR-2013/120 0.05 (0.2) 21⁄2 (6) 250 107 CIR-20251/* 0.10 (0.05) 5 (13) 750 142 CIR-2054/240
11⁄4 (3) 125 143 CIR-20131/120 0.05 (0.2) 21⁄2 (6) 300 129 CIR-2029/* 0.10 (0.05) 5 (13) 1000 190 CIR-2056/240

11⁄4 (3) 150 171 CIR-2012/* 0.05 (0.2) 21⁄2 (6) 400 171 CIR-2026/* 0. 10 (0.05) 51⁄4 (13) 200 44 CIR-2057/240 0.21 (0.1)

11⁄4 (3) 200 228 CIR-2014/* 0.05 (0.2) 21⁄2 (6) 500 214 CIR-20252/* 0.10 (0.05) 51⁄2 (14) 600 102 CIR-2058/240 0.22 (0.1)
11⁄2 (4) 50 43 CIR-2018/120 0.06 (0.3) 213⁄16 (7) 250 91 CIR-20253/120 0.1 1 (0.05) 51⁄2 (14) 1000 171 CIR-2059/240 0.24 (0.1)
11⁄2 (4) 85 73 CIR-2016/120 0.06 (0.3) 213⁄16 (7) 300 109 CIR-20254/240 0.11 (0.05) 6 (15) 200 31 CIR-2064/120 0.24 (0.1)
11⁄2 (4) 100 85 CIR-20151/* 0.06 (0.3) 3 (8) 100 34 CIR-2032/* 0.12 (0.05) 6 (15) 250 39 CIR-2061/* 0.24 (0.1)
11⁄2 (4) 130 111 CIR-20152/240 0.06 (0.3) 3 (8) 150 51 CIR-2033/* 0.12 (0.05) 6 (15) 400 62 CIR-2065/* 0.24 (0.1)
11⁄2 (4) 150 129 CIR-2019/* 0.06 (0.3) 3 (8) 200 68 CIR-2031/* 0.12 (0.05) 6 (15) 500 78 CIR-2060/* 0.24 (0.1)
11⁄2 (4) 200 171 CIR-2015/* 0.06 (0.3) 3 (8) 250 85 CIR-2034/* 0.12 (0.05) 6 (15) 600 93 CIR-2066/* 0.24 (0.1)
11⁄2 (4) 250 214 CIR-20191/* 0.06 (0.3) 3 (8) 300 103 CIR-20301/* 0.12 (0.05) 6 (15) 750 117 CIR-2062/240 0.24 (0.1)
13⁄4 (4) 125 85 CIR-2017/120 0.06 (0.3) 3 (8) 400 137 CIR-20302/* 0.12 (0.05) 6 (15) 1000 155 CIR-2063/240 0.24 (0.1)
13⁄4 (4) 175 120 CIR-20171/120 0.06 (0.3) 3 (8) 500 171 CIR-2030/* 0.12 (0.05) 61⁄2 (17) 600 85 CIR-2067/240 0.26 (0.1)
13⁄4 (4) 250 170 CIR-20172/* 0.06 (0.3) 3 (8) 600 205 CIR-2036/240 0.12 (0.05) 61⁄2 (17) 1000 143 CIR-2068/240 0.26 (0.1)
113⁄16 (5) 200 128 CIR-20173/120 0.06 (0.3) 31⁄2 (9) 250 71 CIR-2037/* 0.14 (0.06) 7 (18) 250 33 CIR-2070/* 0.28 (0.1)
2 (5) 50 29 CIR-20201/120 0.07 (0.3) 31⁄2 (9) 300 86 CIR-2038/* 0.14 (0.06) 7 (18) 600 79 CIR-2076/* 0.28 (0.1)
2 (5) 75 42 CIR-20209/120 0.07 (0.3) 31⁄2 (9) 500 142 CIR-2035/* 0.14 (0.06) 7 (18) 1000 131 CIR-2079/240 0.28 (0.1)
2 (5) 100 57 CIR-20202/* 0.07 (0.3) 313⁄16 (10) 150 37 CIR-2039/120 0.15 (0.07) 71⁄2 (19) 600 73 CIR-2075/240 0.30 (0.1)

2 (5) 150 85 CIR-2021/* 0.07 (0.3) 313⁄16 (10) 500 128 CIR-20303/240 0.15 (0.07) 71⁄2 (19) 1000 122 CIR-2077/240 0.30 (0.1)
2 (5) 200 114 CIR-20203/* 0.07 (0.3) 4 (10) 125 30 CIR-2045/* 0.16 (0.07) 8 (20) 300 34 CIR-2081/* 0.32 (0.1)

2 (5) 250 142 CIR-2020/* 0.07 (0.3) 4 (10) 150 37 CIR-2041/* 0.16 (0.07) 8 (20) 400 45 CIR-2082/120 0.32 (0.1)
2 (5) 300 171 CIR-20204/* 0.07 (0.3) 4 (10) 175 44 CIR-2046/120 0.16 (0.07) 8 (20) 500 57 CIR-2085/* 0.32 (0.1)
2 (5) 350 199 CIR-20205/* 0.07 (0.3) 4 (10) 200 51 CIR-2044/240 0.16 (0.07) 8 (20) 600 68 CIR-2086/* 0.32 (0.1)
2 (5) 400 228 CIR-20206/* 0.07 (0.3) 4 (10) 250 61 CIR-2042/* 0.16 (0.07) 8 (20) 700 80 CIR-2080/* 0.32 (0.1)
2 (5) 500 262 CIR-20207/* 0.07 (0.3) 4 (10) 300 73 CIR-2040/* 0.16 (0.07) 8 (20) 1000 115 CIR-2089/240 0.32 (0.1)
21⁄4 (6) 75 37 CIR-20225/120 0.08 (0.4) 4 (10) 400 102 CIR-2047/* 0.16 (0.07) 91⁄2 (24) 600 57 CIR-2090/240 0.38 (0.2)
21⁄4 (6) 100 49 CIR-20221/* 0.08 (0.4) 4 (10) 450 110 CIR-2048/240 0.16 (0.07) 91⁄2 (24) 1000 97 CIR-2091/240 0.38 (0.2)
21⁄4 (6) 125 61 CIR-2023/* 0.08 (0.4) 4 (10) 500 122 CIR-2043/* 0.16 (0.07) 10 (25) 400 36 CIR-2102/120 0.40 (0.2)
21⁄4 (6) 150 73 CIR-20222/* 0.08 (0.4) 4 (10) 550 133 CIR-2049/120 0.16 (0.07) 10 (25) 600 54 CIR-2100/* 0.40 (0.2)
21⁄4 (6) 175 86 CIR-20226/120 0.08 (0.4) 41⁄2 (11) 300 64 CIR-20401/* 0.18 (0.08) 10 (25) 1000 90 CIR-2101/240 0.40 (0.2)
21⁄4 (6) 200 98 CIR-20223/* 0.08 (0.4) 41⁄2 (11) 500 106 CIR-20402/* 0.18 (0.08) 12 (30) 500 30 CIR-2122/120 0.48 (0.2)
21⁄4 (6) 250 122 CIR-2022/* 0.08 (0.4) 413⁄16 (12) 300 58 CIR-20403/240 0.19 (0.09) 12 (30) 600 45 CIR-2123/* 0.48 (0.2)
21⁄4 (6) 300 147 CIR-20224/* 0.08 (0.4) 413⁄16 (12) 500 97 CIR-20404/240 0.19 (0.09) 12 (30) 900 67 CIR-2120/* 0.48 (0.2)
21⁄4 (6) 350 172 CIR-20227/* 0.08 (0.4) 5 (13) 150 29 CIR-2055/* 0.20 (0.09) 12 (30) 1000 74 CIR-2121/240 0.48 (0.2)

23⁄8 (6) 75 34 CIR-2025/120 0.09 (0.4) 5 (13) 200 88 CIR-2051/* 0.20 (0.09) 15 (38) 1100 65 CIR-2150/240 0.80 (0.4)
23⁄8 (6) 165 75 CIR-2024/* 0.09 (0.4) 5 (13) 300 57 CIR-2052/* 0.20 (0.09) 20 (51) 1300 57 CIR-2200/240 0.80 (0.4)
21⁄2 (6) 100 43 CIR-2027/240
21⁄2 (6) 200 86 CIR-2028/*

*Designate voltage, insert “120” for 120 Vac or “240” for 240 Vac. Those model numbers containing 120 or 240 are only available in that voltage.
†Consult Sales. Note: 3⁄8" (1 cm) diameter CIR series cartridge heaters use 17 AWG stranded lead wire.

Ordering Example: CIR-2054/240, 5" (13 cm), high watt density cartridge heater.

0.10 (0.05)

0.10 (0.05)

(cm)

Watt W/in2 Model No. lb (kg) in

5 (13) 400 76 CIR-2050/* 0.20 (0.09) 24 (61) 1500 55 CIR-2240/240 0.90 (0.4)
5 (13) 500 95 CIR-2053/* 0.20 (0.09)

Weight

Sheath Weight

(cm) Watt W/in2 Model No.

lb (kg)

0.20 (0.09)

0.20 (0.09)
