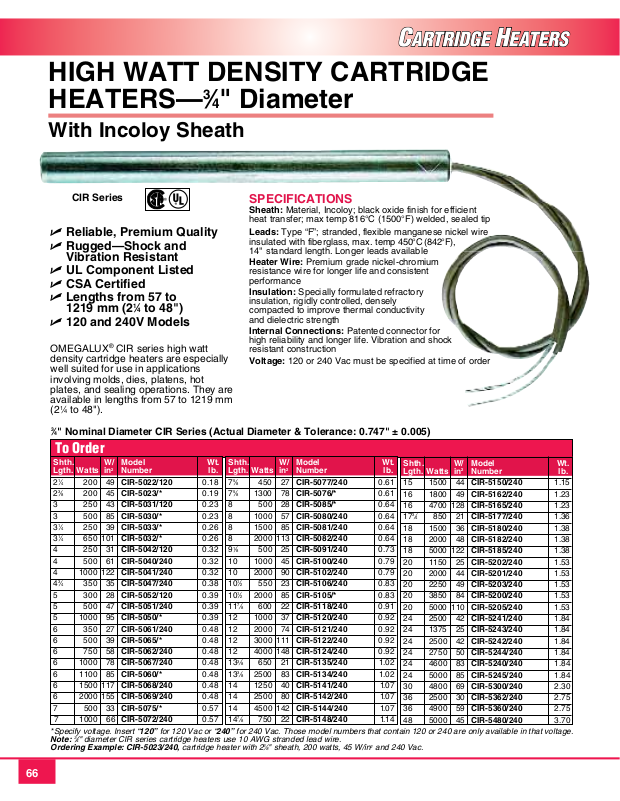

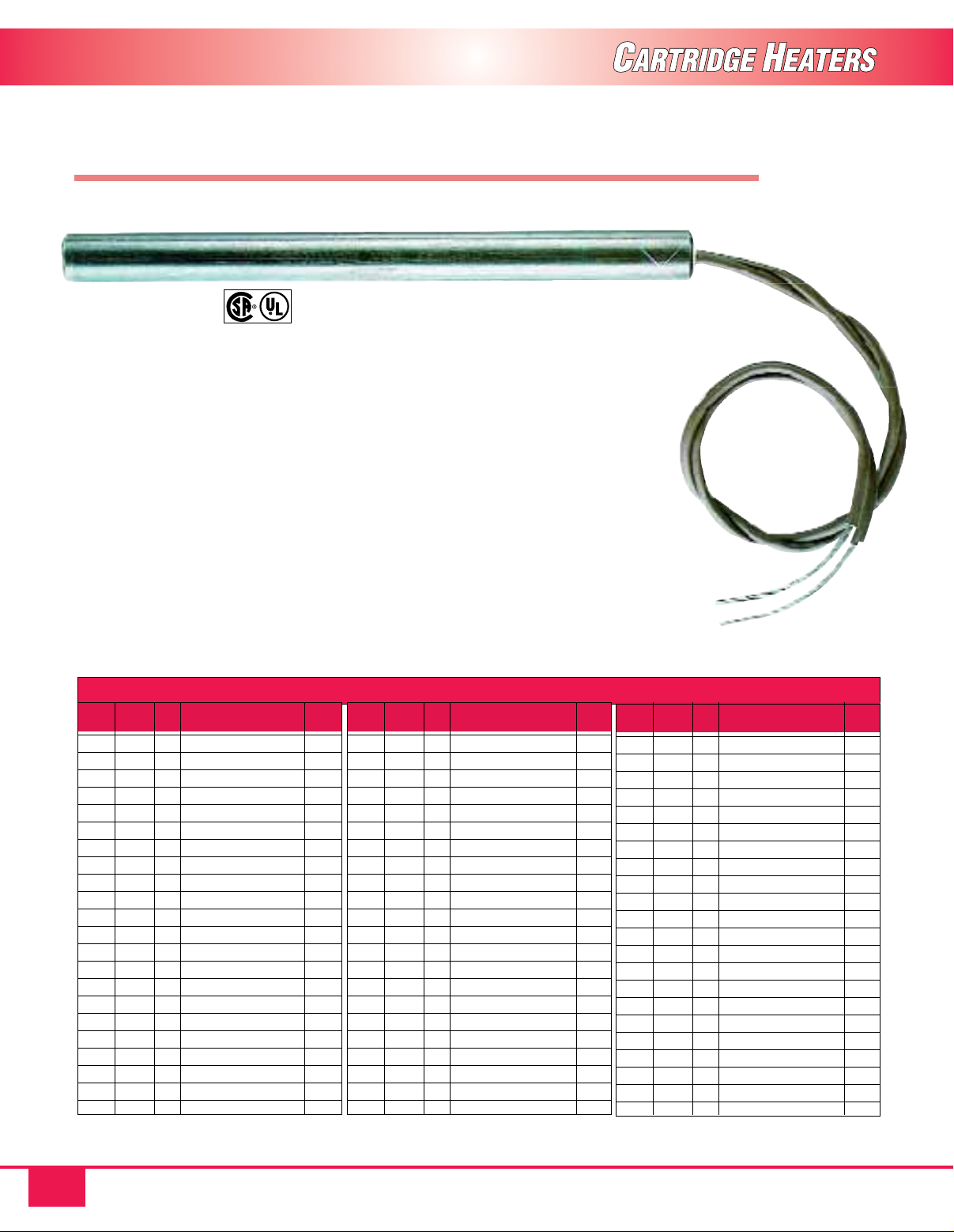

HIGH WATT DENSITY CARTRIDGE
HEATERS—3⁄4" Diameter
With Incoloy Sheath
CIR Series
U Reliable, Premium Quality
U Rugged—Shock and
Vibration Resistant
U UL Component Listed
U CSA Certified
U Lengths from 57 to
1219 mm (2
1
⁄4 to 48")
U 120 and 240V Models
OMEGALUX® CIR series high watt
density cartridge heaters are especially
SPECIFICATIONS
Sheath: Material, Incoloy; black oxide finish for efficient
heat transfer; max temp 816°C (1500°F) welded, sealed tip
Leads: Type “F”; stranded, flexible manganese nickel wire
insulated with fiberglass, max. temp 450°C (842°F),
14" standard length. Longer leads available
Heater Wire: Premium grade nickel-chromium
resistance wire for longer life and consistent
performance
Insulation: Specially formulated refractory
insulation, rigidly controlled, densely
compacted to improve thermal conductivity
and dielectric strength
Internal Connections: Patented connector for
high reliability and longer life. Vibration and shock
resistant construction
Voltage: 120 or 240 Vac must be specified at time of order
well suited for use in applications
involving molds, dies, platens, hot
plates, and sealing operations. They are
available in lengths from 57 to 1219 mm
(21⁄4 to 48").
3
⁄4" Nominal Diameter CIR Series (Actual Diameter & Tolerance: 0.747" ± 0.005)
To Order
Shth. W/ Model Wt.
Lgth. Watts in2 Number lb.
21⁄4 200 49 CIR-5022/120 0.18
23⁄8 200 45 CIR-5023/* 0.19
3 250 43 CIR-5031/120 0.23
3 500 85 CIR-5030/* 0.23
31⁄4 250 39 CIR-5033/* 0.26
31⁄4 650 101 CIR-5032/* 0.26
4 250 31 CIR-5042/120 0.32
4 500 61 CIR-5040/240 0.32
4 1000 122 CIR-5041/240 0.32
43⁄4 350 35 CIR-5047/240 0.38
5 300 28 CIR-5052/120 0.39
5 500 47 CIR-5051/240 0.39
5 1000 95 CIR-5050/* 0.39
6 350 27 CIR-5061/240 0.48
6 500 39 CIR-5065/* 0.48
6 750 58 CIR-5062/240 0.48
6 1000 78 CIR-5067/240 0.48
6 1100 85 CIR-5060/* 0.48
6 1500 117 CIR-5068/240 0.48
6 2000 155 CIR-5069/240 0.48
7 500 33 CIR-5075/* 0.57
7 1000 66 CIR-5072/240 0.57
*Specify voltage. Insert “120” for 120 Vac or “240” for 240 Vac. Those model numbers that contain 120 or 240 are only available in that voltage.
Note: 3⁄4" diameter CIR series cartridge heaters use 10 AWG stranded lead wire.
Ordering Example: CIR-5023/240, cartridge heater with 23⁄8" sheath, 200 watts, 45 W/in2 and 240 Vac.
Shth. W/ Model Wt.
Lgth. Watts in2 Number lb.
75⁄8 450 27 CIR-5077/240 0.61
75⁄8 1300 78 CIR-5076/* 0.61
8 500 28 CIR-5085/* 0.64
8 1000 57 CIR-5080/240 0.64
8 1500 85 CIR-5081/240 0.64
8 2000 113 CIR-5082/240 0.64
91⁄8 500 25 CIR-5091/240 0.73
10 1000 45 CIR-5100/240 0.79
10 2000 90 CIR-5102/240 0.79
101⁄2 550 23 CIR-5106/240 0.83
101⁄2 2000 85 CIR-5105/* 0.83
117⁄8 600 22 CIR-5118/240 0.91
12 1000 37 CIR-5120/240 0.92
12 2000 74 CIR-5121/240 0.92
12 3000 111 CIR-5122/240 0.92
12 4000 148 CIR-5124/240 0.92
133⁄8 650 21 CIR-5135/240 1.02
133⁄8 2500 83 CIR-5134/240 1.02
14 1250 40 CIR-5141/240 1.0 7
14 2500 80 CIR-5142/240 1.0 7
14 4500 142 CIR-5144/240 1.0 7
147⁄8 750 22 CIR-5148/240 1.1 4
Shth. W/ Model Wt.
Lgth. Watts in2 Number lb.
15 1500 44 CIR-5150/240 1.15
16 1800 49 CIR-5162/240 1.23
16 4700 128 CIR-5165/240 1.23
173⁄4 850 21 CIR-5177/240 1.36
18 1500 36 CIR-5180/240 1.38
18 2000 48 CIR-5182/240 1.38
18 5000 122 CIR-5185/240 1.38
20 1150 25 CIR-5202/240 1.53
20 2000 44 CIR-5201/240 1.53
20 2250 49 CIR-5203/240 1.53
20 3850 84 CIR-5200/240 1.53
20 5000 110 CIR-5205/240 1.53
24 2500 42 CIR-5241/240 1.84
24 1375 25 CIR-5243/240 1.84
24 2500 42 CIR-5242/240 1.84
24 2750 50 CIR-5244/240 1.84
24 4600 83 CIR-5240/240 1.84
24 5000 85 CIR-5245/240 1.84
30 4800 69 CIR-5300/240 2.30
36 2500 30 CIR-5362/240 2.75
36 4900 59 CIR-5360/240 2.75
48 5000 45 CIR-5480/240 3.70
66
