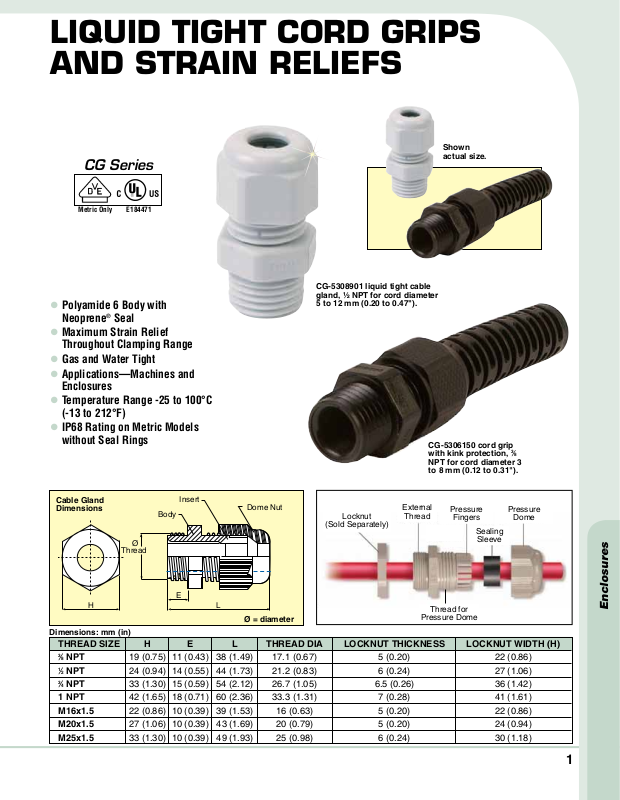

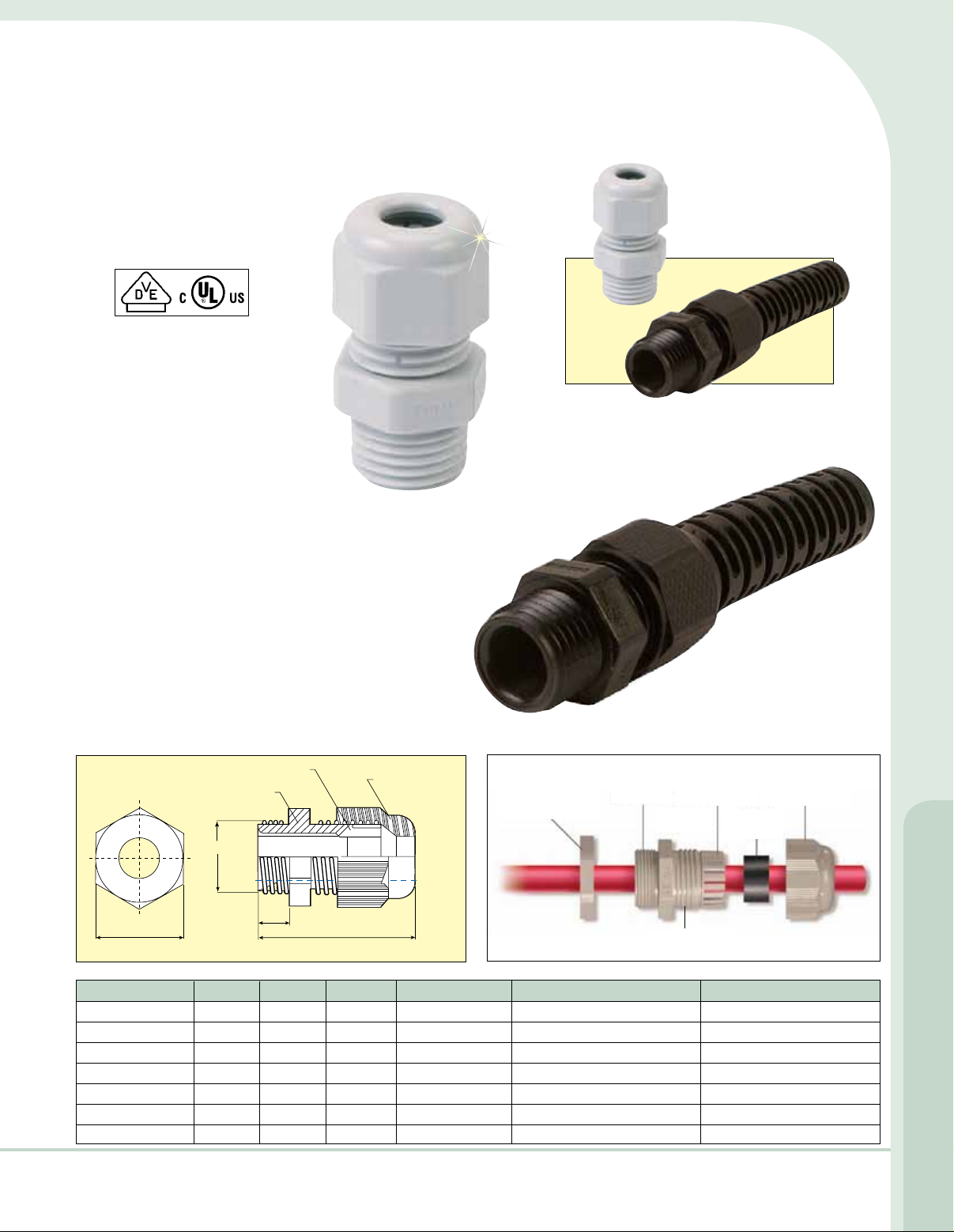

Page 1
liquid tight cord griPS
H L
E
Body
Insert
Dome Nut
Thread
Ø
and Strain reliefS
Shown
actual size.
CG Series
Metric Only
E184471
l Polyamide 6 Body with
®
Neoprene
Seal
l Maximum Strain Relief
Throughout Clamping Range
l Gas and Water Tight
l Applications—Machines and
Enclosures
l Temperature Range -25 to 100°C
(-13 to 212°F)
l IP68 Rating on Metric Models
without Seal Rings
Cable Gland
Dimensions
CG-5308901 liquid tight cable
gland, ½ NPT for cord diameter
5 to 12 mm (0.20 to 0.47").
CG-5306150 cord grip
with kink protection,
NPT for cord diameter 3
to 8 mm (0.12 to 0.31").
External
Locknut
(Sold Separately)
Thread
External
Pressure
Thread
Fingers
External
Sealing
Thread
Sleeve
3
⁄8
Pressure
Dome
Thread for
Ø = diameter
Dimensions: mm (in)
THREAD SIZE H E L THREAD DIA LOCKNUT THICKNESS LOCKNUT WIDTH (H)
3
⁄8 NPT 19 (0.75) 11 (0.43) 38 (1.49) 17.1 (0.67) 5 (0.20) 22 (0.86)
1
⁄2 NPT 24 (0.94) 14 (0.55) 44 (1.73) 21.2 (0.83) 6 (0.24) 27 (1.06)
3
⁄4 NPT 33 (1.30) 15 (0.59) 54 (2.12) 26.7 (1.05) 6.5 (0.26) 36 (1.42)
1 NPT 42 (1.65) 18 (0.71) 60 (2.36) 33.3 (1.31) 7 (0.28) 41 (1.61)
M16x1.5 22 (0.86) 10 (0.39) 39 (1.53) 16 (0.63) 5 (0.20) 22 (0.86)
M20x1.5 27 (1.06) 10 (0.39) 43 (1.69) 20 (0.79) 5 (0.20) 24 (0.94)
M25x1.5 33 (1.30) 10 (0.39) 49 (1.93) 25 (0.98) 6 (0.24) 30 (1.18)
Pressure Dome
Enclosures
1

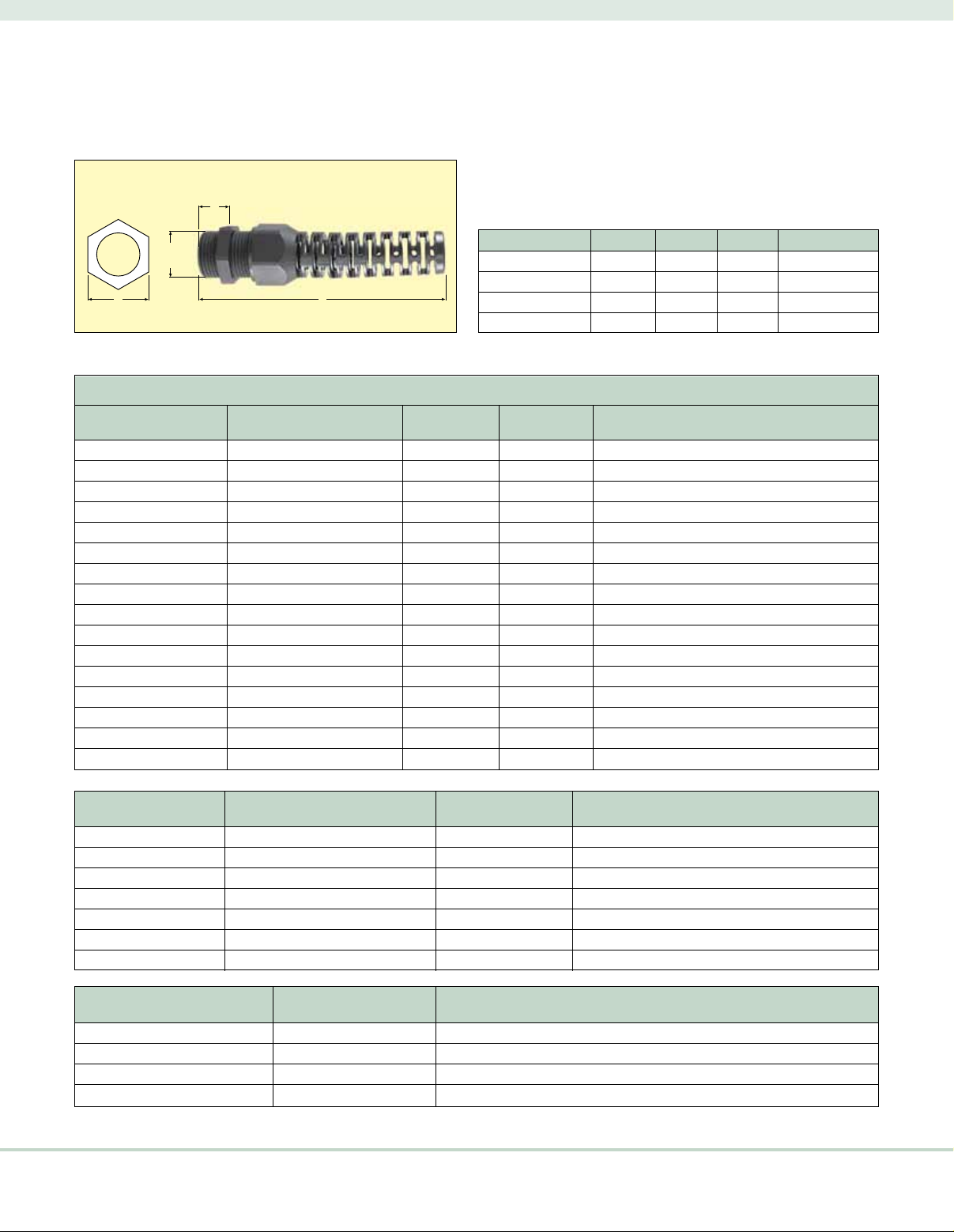

Page 2
H L
Ø
E
Cord Grip
Dimensions
Ø = diameter
Dimensions: mm (in)
THREAD SIZE H E L THREAD DIA
3
⁄8 NPT 22 (0.86) 15 (0.59) 64 (2.52) 17.1 (0.67)
1
⁄2 NPT 24 (0.94) 15 (0.59) 88 (3.46) 21.2 (0.83)
M16x1.5 19 (0.75) 6 (0.24) 64 (2.52) 16 (0.63)
M20x1.5 24 (0.94) 8 (0.31) 88 (3.46) 20 (0.79)
To Order
GRAY BLACK CLAMPING RANGE
MODEL NO. MODEL NO. THREAD mm DESCRIPTION
CG-5306050 CG-5306150
CG-5306051 CG-5306151
CG-5306052 CG-5306152
CG-5306031 CG-5306131 M16 3 to 8 Cord grip with strain relief
CG-5306032 CG-5306132 M20 3 to 7 Cord grip with strain relief
CG-5306033 CG-5306133 M20 5.5 to 12 Cord grip with strain relief
CG-5308904 CG-5308924
CG-5308900 CG-5308920
CG-5308905 CG-5308925
CG-5308901 CG-5308921
CG-5308906 CG-5308926
CG-5308902 CG-5308922
CG-5308903 CG-5308923 1 NPT 14 to 25 Cable gland strain relief
CG-5308951 CG-5308941 M16 3.5 to 10 Cable gland strain relief
CG-5308952 CG-5308942 M20 7 to 14 Cable gland strain relief
CG-5308953 CG-5308943 M25 9 to 18 Cable gland strain relief
3
⁄8 NPT 3 to 8 Cord grip with strain relief
1
⁄2 NPT 3 to 7 Cord grip with strain relief
1
⁄2 NPT 5.5 to 12 Cord grip with strain relief
3
⁄8 NPT 1.5 to 6 Cable gland strain relief
3
⁄8 NPT 2.5 to 8 Cable gland strain relief
1
⁄2 NPT 3 to 9 Cable gland strain relief
1
⁄2 NPT 5 to 12 Cable gland strain relief
3
⁄4 NPT 7 to 16 Cable gland strain relief
3
⁄4 NPT 9 to 18 Cable gland strain relief
GRAY BLACK
MODEL NO. MODEL NO. THREAD DESCRIPTION
CG-7211485 CG-7211495
CG-7211486 CG-7211496
CG-7211487 CG-7211497
3
⁄8 NPT Locknut
1
⁄2 NPT Locknut
3
⁄4 NPT Locknut
CG-7211488 CG-7211498 1 NPT Locknut
CG-7211980 CG-7211975 M16 Locknut
CG-7211981 CG-7211976 M20 Locknut
CG-7211982 CG-7211977 M25 Locknut
GRAY
MODEL NO. THREAD DESCRIPTION
CG-8113303
CG-8113305
CG-8113306
CG-8113307 1 NPT Neoprene seal ring
Ordering Examples: CG-5306051, ½ NPT cord grip for 3 to 7 mm diameter cord, gray, and CG-7211486, ½ NPT lock nut, gray.
CG-5308952, M20 thread cable gland strain relief for 4 to 7 mm diameter cable, gray, and CG-7211981, M20 gray nut.
3
⁄8 NPT Neoprene seal ring
1
⁄2 NPT Neoprene seal ring
3
⁄4 NPT Neoprene seal ring
2
