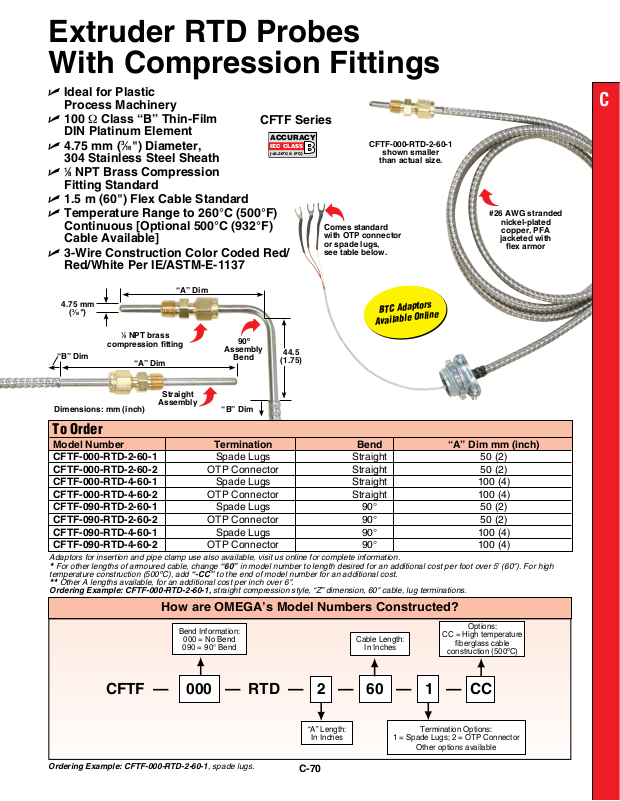

Extruder RTD Probes
With Compression Fittings
U Ideal for Plastic
Process Machinery
U 100 Ω Class “B” Thin-Film
DIN Platinum Element
3
U 4.75 mm (
⁄16") Diameter,
304 Stainless Steel Sheath
1
⁄8 NPT Brass Compression
U
CFTF Series
ACCURACY
IEC CLASS
(±0.30ºC @ 0ºC)
Fitting Standard
U 1.5 m (60") Flex Cable Standard
U Temperature Range to 260°C (500°F)
Continuous [Optional 500°C (932°F)
Cable Available]
U 3-Wire Construction Color Coded Red/
Red/White Per IE/ASTM-E-1137

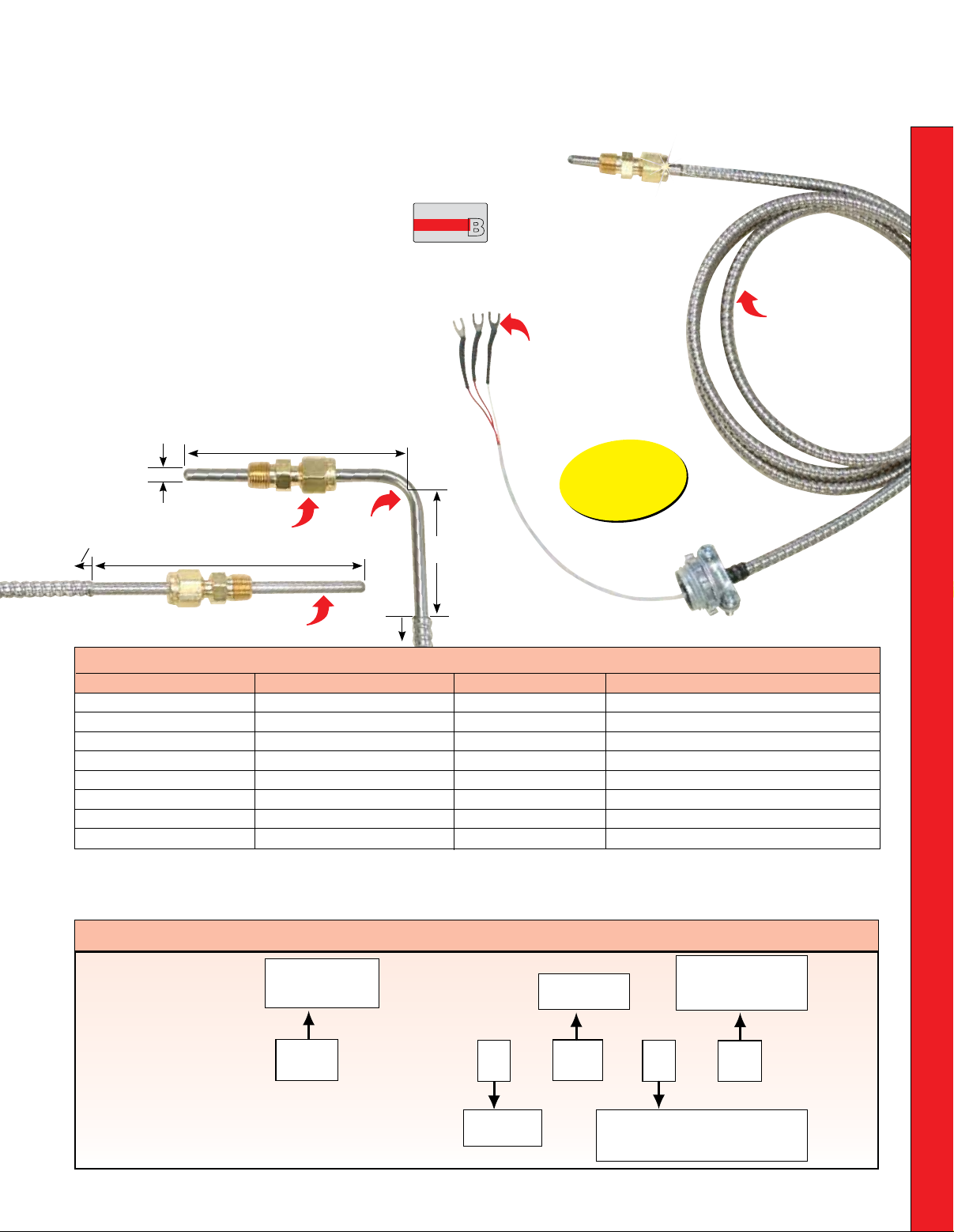

“A” Dim
4.75 mm
(3⁄16")
1
“B” Dim
⁄8 NPT brass
compression fitting
“A” Dim
90º
Assembly
Bend
(1.75)
44.5
B
Comes standard
with OTP connector
or spade lugs,
see table below.
C
CFTF-000-RTD-2-60-1
shown smaller
than actual size.
#26 AWG stranded
nickel-plated
copper, PFA
jacketed with
flex armor
BTC Adaptors
Available Online
Straight
Dimensions: mm (inch)
Assembly
“B” Dim
To Order
Model Number Termination Bend “A” Dim mm (inch)
CFTF-000-RTD-2-60-1 Spade Lugs Straight 50 (2)
CFTF-000-RTD-2-60-2 OTP Connector Straight 50 (2)
CFTF-000-RTD-4-60-1 Spade Lugs Straight 100 (4)
CFTF-000-RTD-4-60-2 OTP Connector Straight 100 (4)
CFTF-090-RTD-2-60-1 Spade Lugs 90° 50 (2)
CFTF-090-RTD-2-60-2 OTP Connector 90° 50 (2)
CFTF-090-RTD-4-60-1 Spade Lugs 90° 100 (4)
CFTF-090-RTD-4-60-2 OTP Connector 90° 100 (4)
Adaptors for insertion and pipe clamp use also available, visit us online for complete information.
For other lengths of armoured cable, change “60” in model number to length desired for an additional cost per foot over 5' (60"). For high
*
temperature construction (500ºC), add “-CC” to the end of model number for an additional cost.
Other A lengths available, for an additional cost per inch over 6".
**
Ordering Example: CFTF-000-RTD-2-60-1, straight compression style, “Z” dimension, 60" cable, lug terminations.
How are OMEGA’s Model Numbers Constructed?
Bend Information:
000 = No Bend
090 = 90° Bend
Cable Length:
In Inches
Options:
CC = High temperature
fiberglass cable
construction (500ºC)
CFTF — 000 — RTD — 2 — 60 — 1 — CC
Ordering Example: CFTF-000-RTD-2-60-1, spade lugs.
“A” Length:
In Inches
C-70
Termination Options:
1 = Spade Lugs; 2 = OTP Connector
Other options available
