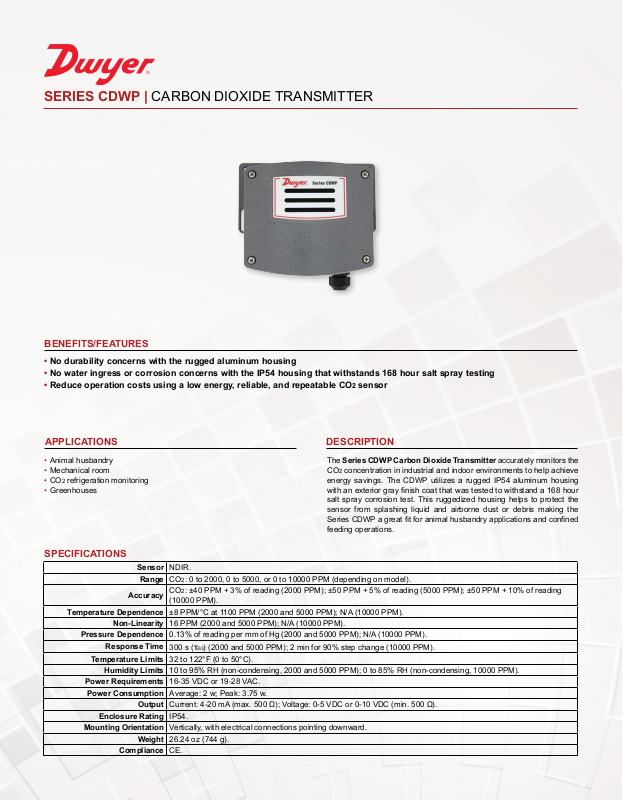

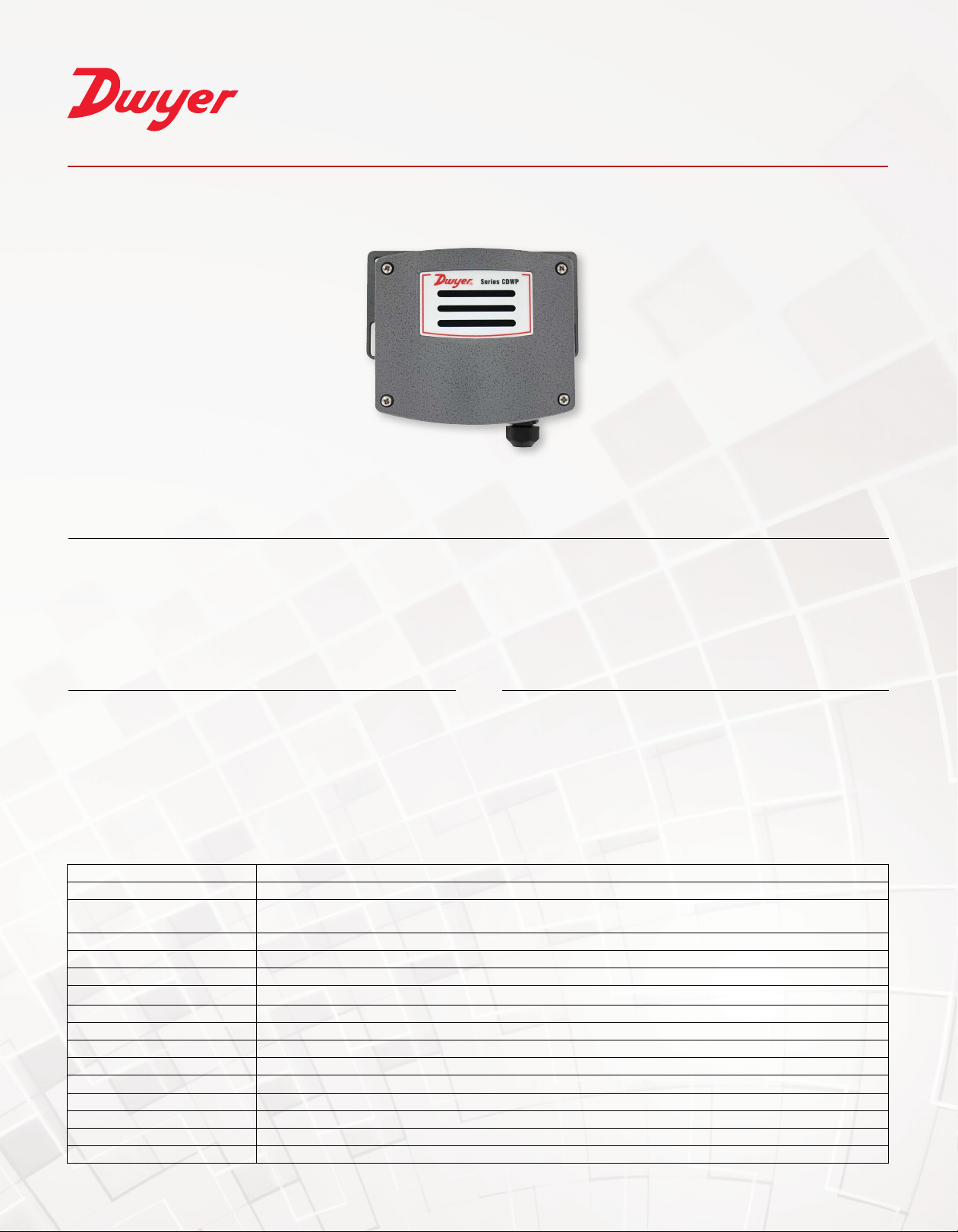

SERIES CDWP | CARBON DIOXIDE TRANSMITTER
®
BENEFITS/FEATURES
• No durability concerns with the rugged aluminum housing
•
No water ingress or corrosion concerns with the IP54 housing that withstands 168 hour salt spray testing
•
Reduce operation costs using a low energy, reliable, and repeatable CO2 sensor
DESCRIPTIONAPPLICATIONS
• Animal husbandry
• Mechanical room
• CO2 refrigeration monitoring
• Greenhouses
The Series CDWP Carbon Dioxide Transmitter accurately monitors the
CO2 concentration in industrial and indoor environments to help achieve
energy savings. The CDWP utilizes a rugged IP54 aluminum housing
with an exterior gray nish coat that was tested to withstand a 168 hour
salt spray corrosion test. This ruggedized housing helps to protect the
sensor from splashing liquid and airborne dust or debris making the
Series CDWP a great t for animal husbandry applications and conned
feeding operations.
SPECIFICATIONS
Sensor NDIR.
Range CO
Accuracy
Temperature Dependence ±8 PPM/°C at 1100 PPM (2000 and 5000 PPM); N/A (10000 PPM).
Non-Linearity 16 PPM (2000 and 5000 PPM); N/A (10000 PPM).
Pressure Dependence 0.13% of reading per mm of Hg (2000 and 5000 PPM); N/A (10000 PPM).
Response Time
Temperature Limits 32 to 122°F (0 to 50°C).
Humidity Limits 10 to 95% RH (non-condensing, 2000 and 5000 PPM); 0 to 85% RH (non-condensing, 10000 PPM).
Power Requirements 16-35 VDC or 19-28 VAC.
Power Consumption Average: 2 w; Peak: 3.75 w.
Output Current: 4-20 mA (max. 500 Ω); Voltage: 0-5 VDC or 0-10 VDC (min. 500 Ω).
Enclosure Rating IP54.
Mounting Orientation Vertically, with electrical connections pointing downward.
Weight 26.24 oz (744 g).
Compliance CE.
2: 0 to 2000, 0 to 5000, or 0 to 10000 PPM (depending on model).
CO
2: ±40 PPM + 3% of reading (2000 PPM); ±50 PPM + 5% of reading (5000 PPM); ±50 PPM + 10% of reading
(10000 PPM).
300 s (
t63) (2000 and 5000 PPM); 2 min for 90% step change (10000 PPM).
Page 2

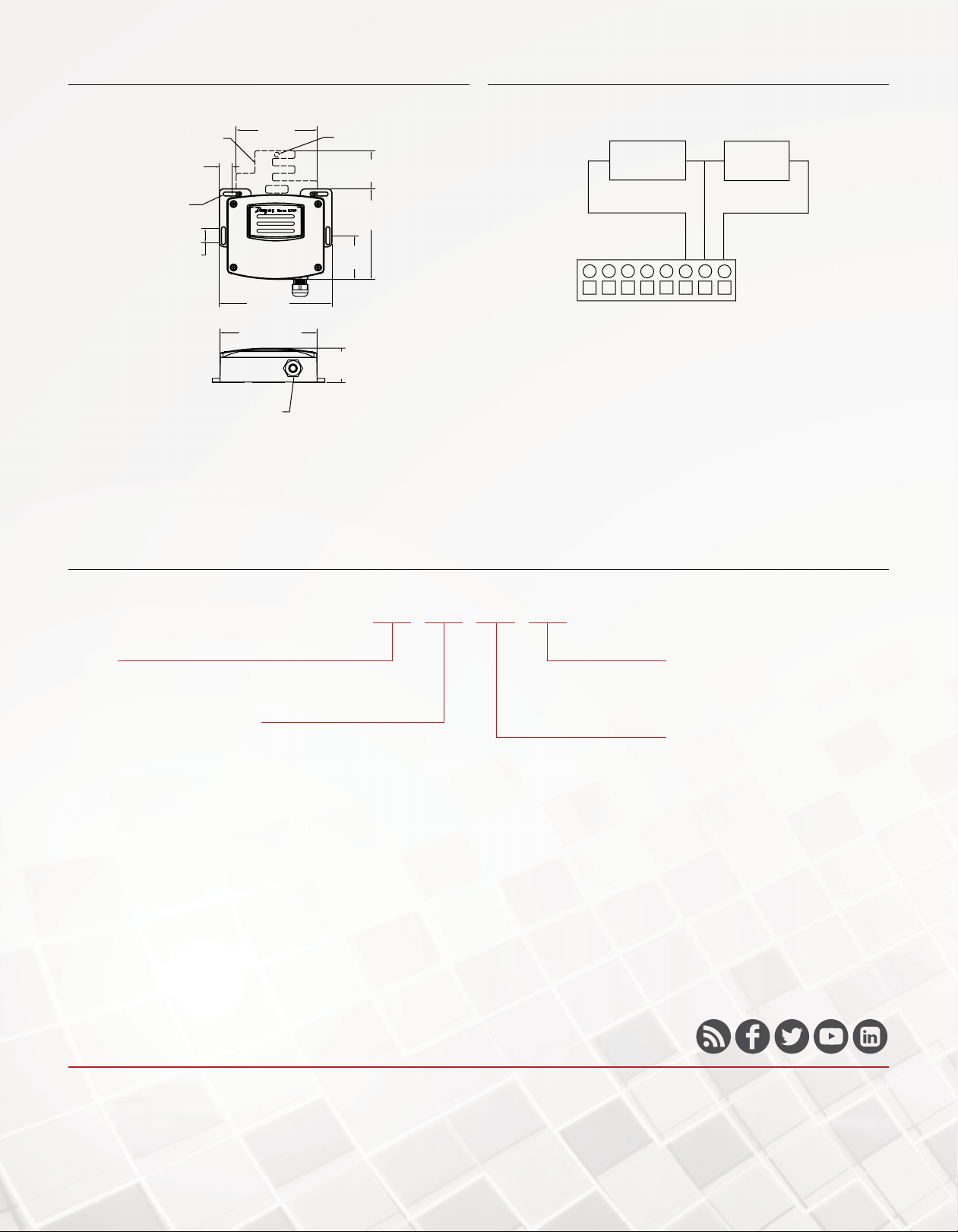

DIMENSIONS WIRING DIAGRAM
4-11/32
[122.23]
M12 CONNECTION]
11
[OPTIONAL
SUSPENSION
BRACKET]
/16 [17.46]
8 X Ø3/16
[4.76]
4 X 3/4
[19.05]
[OPTIONAL 4-6 MM OR 6-8 MM
HOW TO ORDER
[110.32]
6 [152.40]
5-5/32 [130.96]
1-6 MM OR 5-10 MM
CABLE GLAND
Ø1/4 [6.35]
2-5/16
[58.73]
1-27/32
[46.82]
2-1/32
[51.59]
4-13/16
8
RECEIVER
7 6
CO2
--
5
4
3
OUT1
2
COMM
1
PWR
POWER
SUPPLY
++
Use the bold characters from the chart below to construct a product code.
CDWP -02 W -C1
SERIES
CDWP: Industrial carbon dioxide transmitter
ELECTRICAL CONNECTION
-C1: Cable gland 1 to 6 mm cable
-C5: Cable gland 5 to 8 mm cable
GAS CONCENTRATION RANGE
-02: 2000PPM
-05: 5000 PPM
MOUNTING METHOD
W: Wall mount
-10: 10000 PPM
DWYER INSTRUMENTS, INC.
©Copyright 2023 Dwyer Instruments, Inc.
Printed in U.S.A. 9/23 DS-CDWP Rev. 3
