CDTX-45T

Toroidal Conductivity Monitor

Page 2

Page 3

Table of Contents

PART 1 - INTRODUCTION ........................................................................................................................... - 1 -

1.1 General ............................................................................................................................................... - 1 -

1.2 Features .............................................................................................................................................. - 2 -

1.3 CDTX-45T System Specifications ....................................................................................................... - 4 -

1.4 CDTX-45T Performance Specifications............................................................................................... - 6 -

PART 2 – ANALYZER MOUNTING ................................................................................................................. 7

2.1 General ................................................................................................................................................... 7

Figure 2-1 CDTX Enclosure Dimensions, AC Powered Units ........................................................................ 8

Figure 2-2 CDTX Enclosure Dimensions, 2-Wire and Battery Units .............................................................. 9

2.2 Wall or Pipe Mount ............................................................................................................................... 10

Figure 2-3 Wall or Pipe mount Bracket ....................................................................................................... 10

Figure 2-4 Wall Mounting Diagram ........................................................................................................... 11

Figure 2-5 Pipe Mounting Diagram ............................................................................................................. 11

2.3 Panel Mount, AC Powered Monitor ....................................................................................................... 12

Figure 2-6 115/230 VAC Panel Mount and Cut-out ..................................................................................... 12

PART 3 – SENSOR MOUNTING ..................................................................................................................... 13

3.1 General ................................................................................................................................................. 13

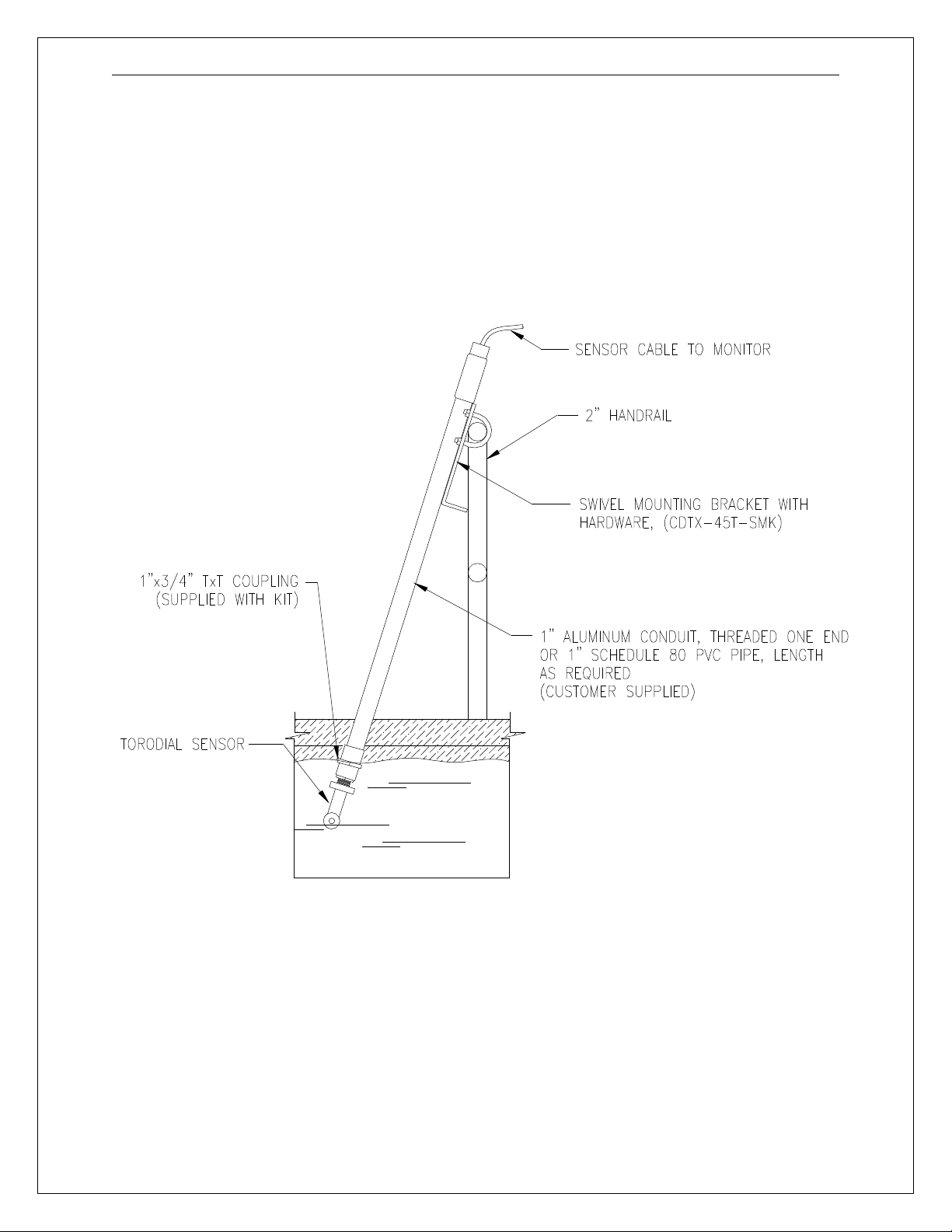

Figure 3-1 Submersible Sensor Mounting Assembly .................................................................................... 13

3.2 Tee Mounting ....................................................................................................................................... 14

Figure 3-2 Sensor Mounting - Tee Assembly ............................................................................................... 14

3.3 Submersion Mounting ........................................................................................................................... 15

PART 4 – ELECTRICAL INSTALLATION .................................................................................................... 16

4.1 General ................................................................................................................................................. 16

4.2 Two-Wire ............................................................................................................................................. 17

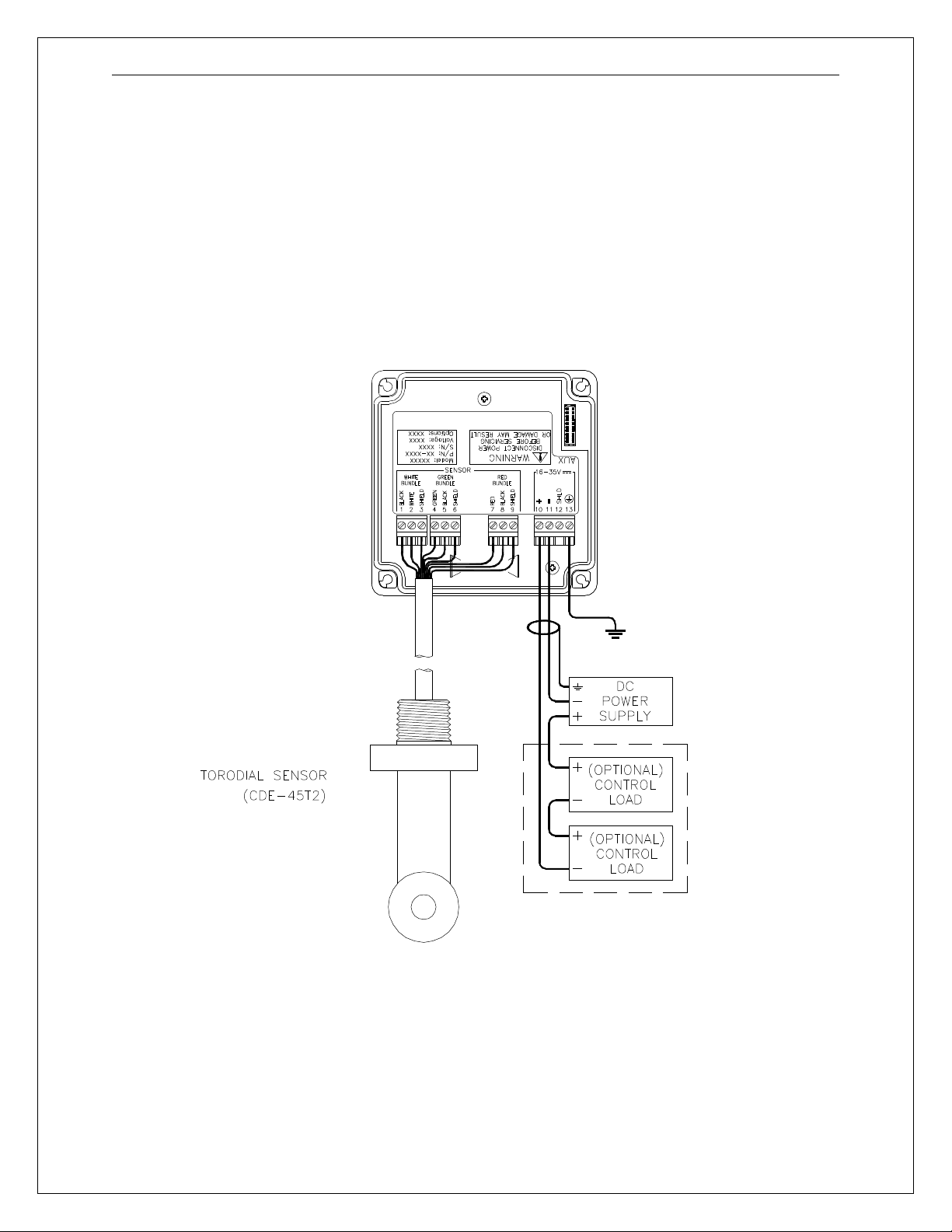

Figure 4-1 Loop-Power Connection, CDTX-45T Transmitter ..................................................................... 17

4.21 Load Drive............................................................................................................................................ 18

4.3 115/230 VAC w/Relays......................................................................................................................... 18

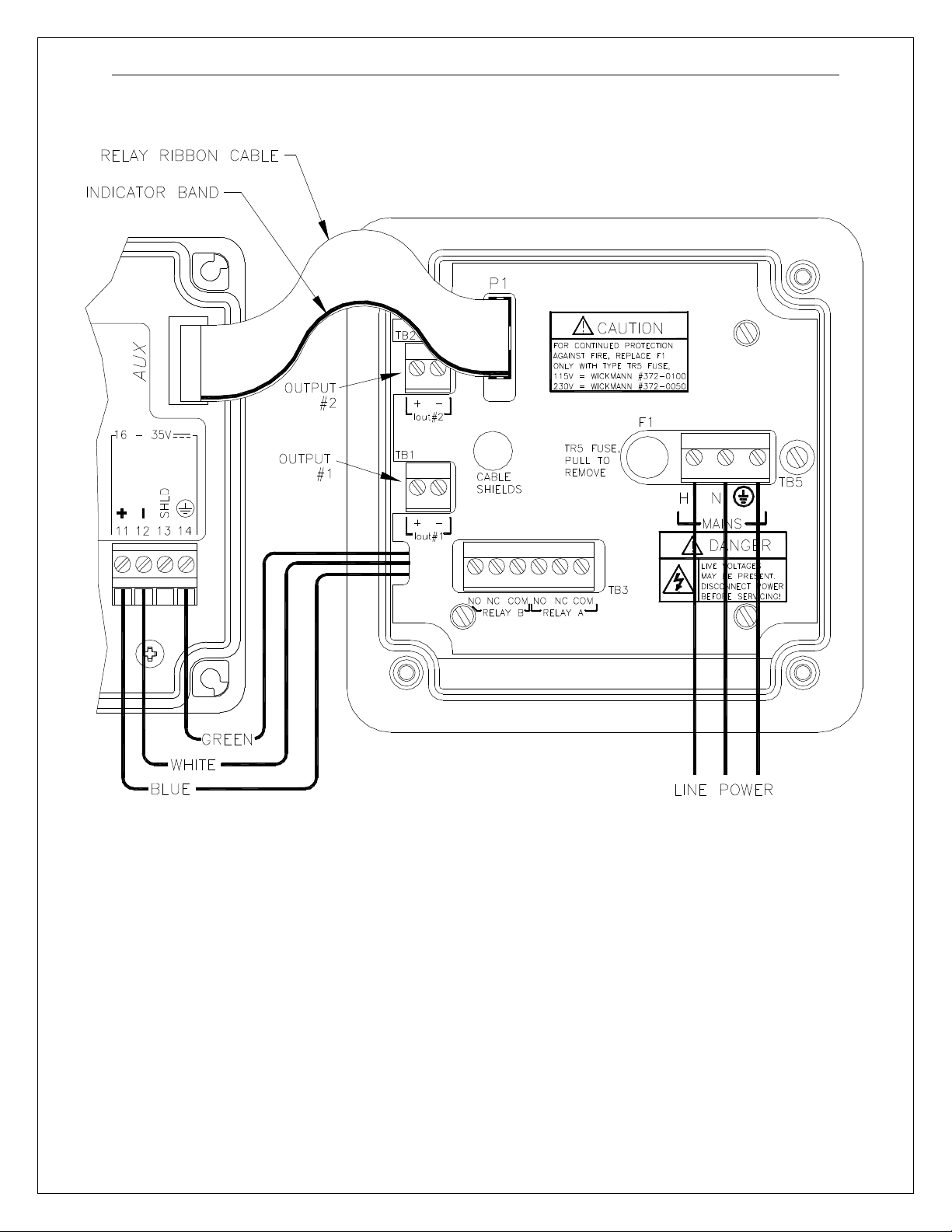

Figure 4-2 Line Power Connection .............................................................................................................. 20

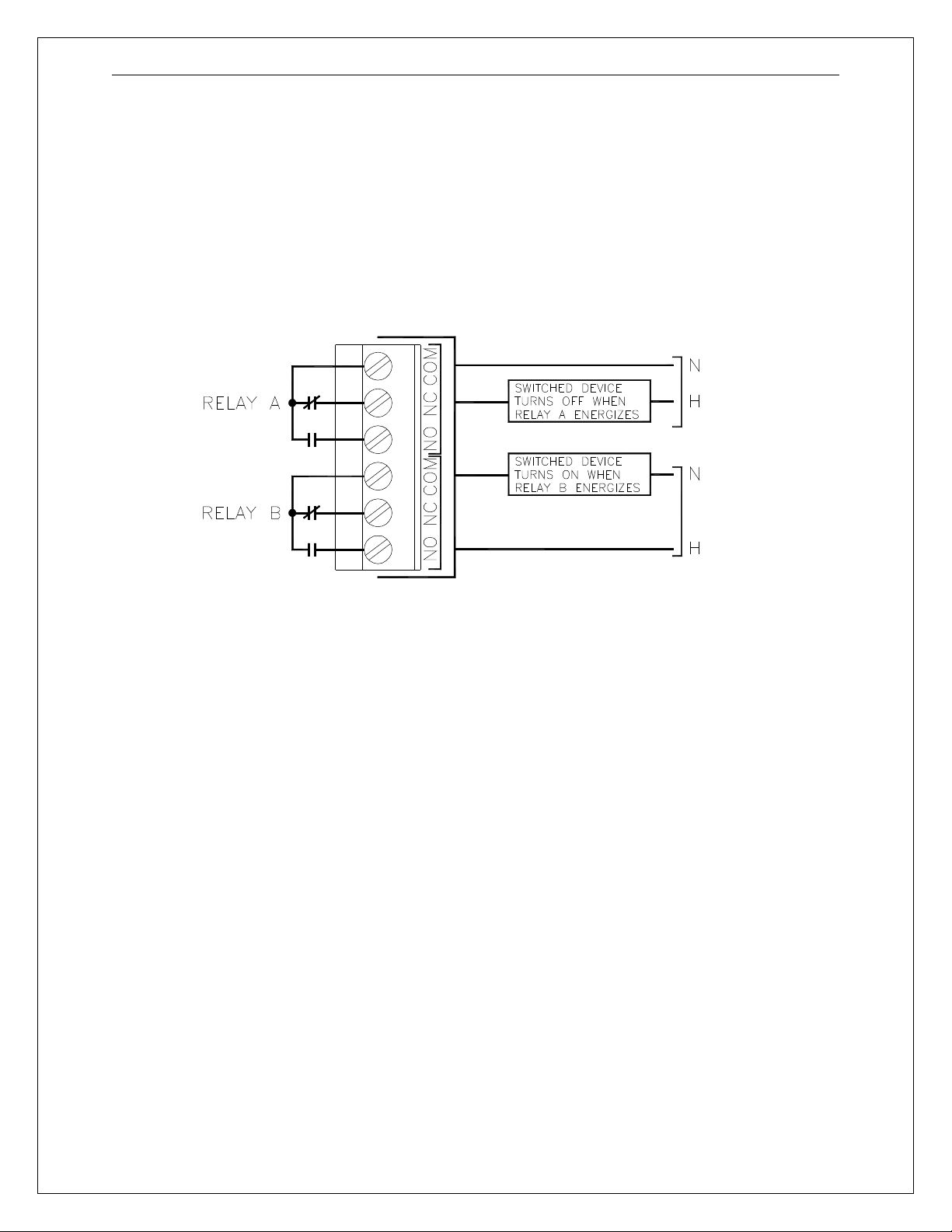

Figure 4-3 Relay Contacts .......................................................................................................................... 21

4.4 Sensor Wiring ....................................................................................................................................... 21

4.5 Direct Sensor Connection ...................................................................................................................... 21

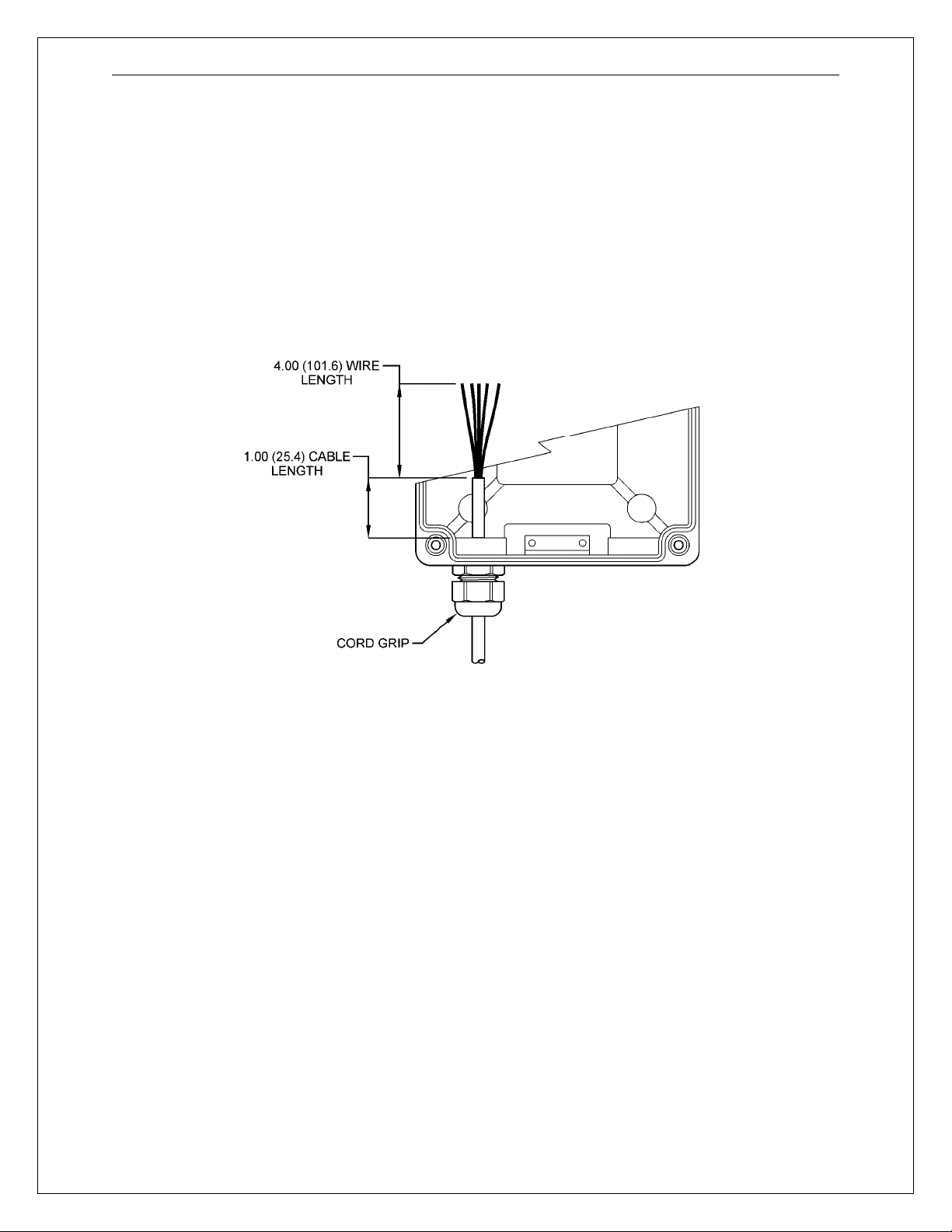

Figure 4-4 Sensor Cable Preparation .......................................................................................................... 22

4.6 Sensor Junction Box .................................................................................................................................. 22

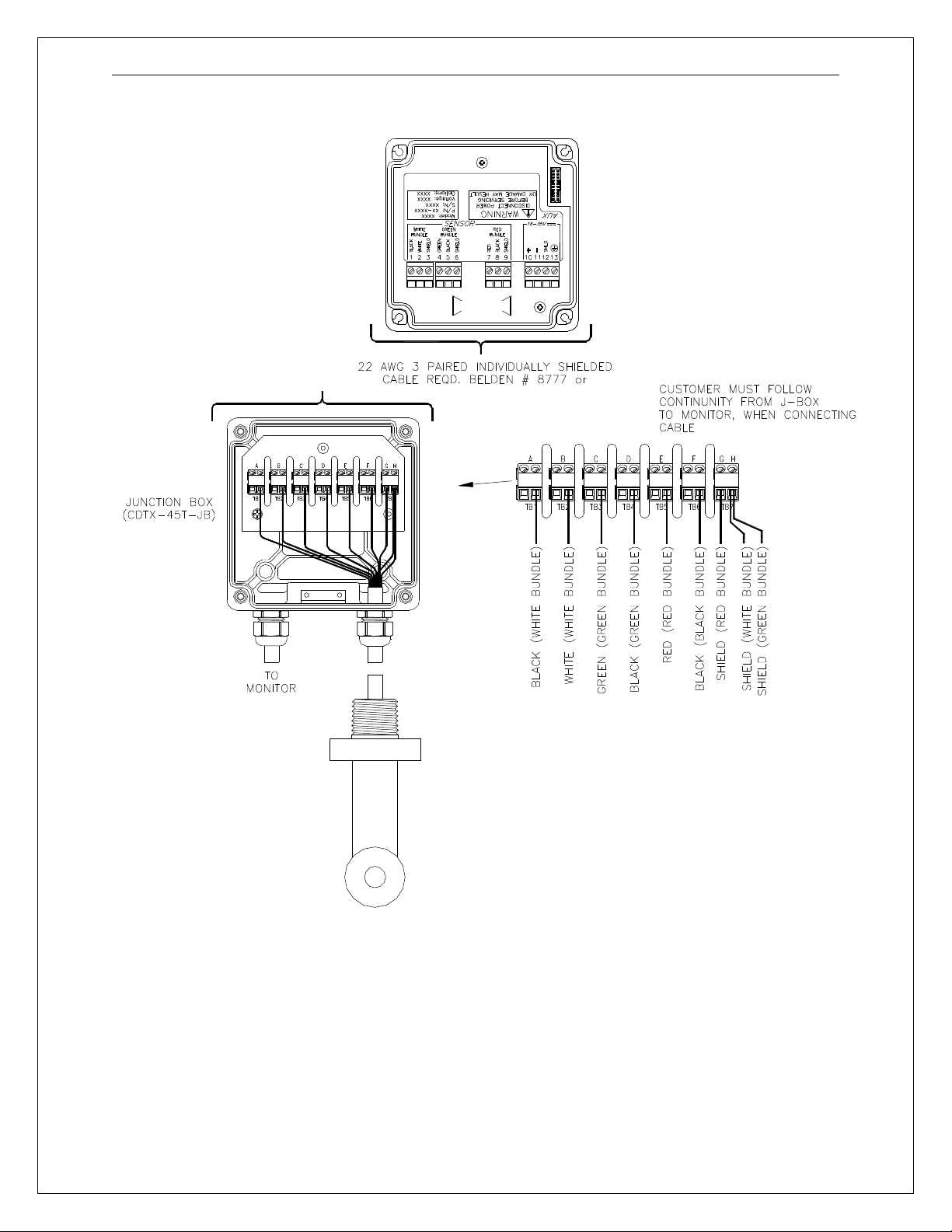

Figure 4-5 Junction Box Wiring ................................................................................................................. 23

PART 5 – CONFIGURATION .......................................................................................................................... 24

5.1 User Interface ....................................................................................................................................... 24

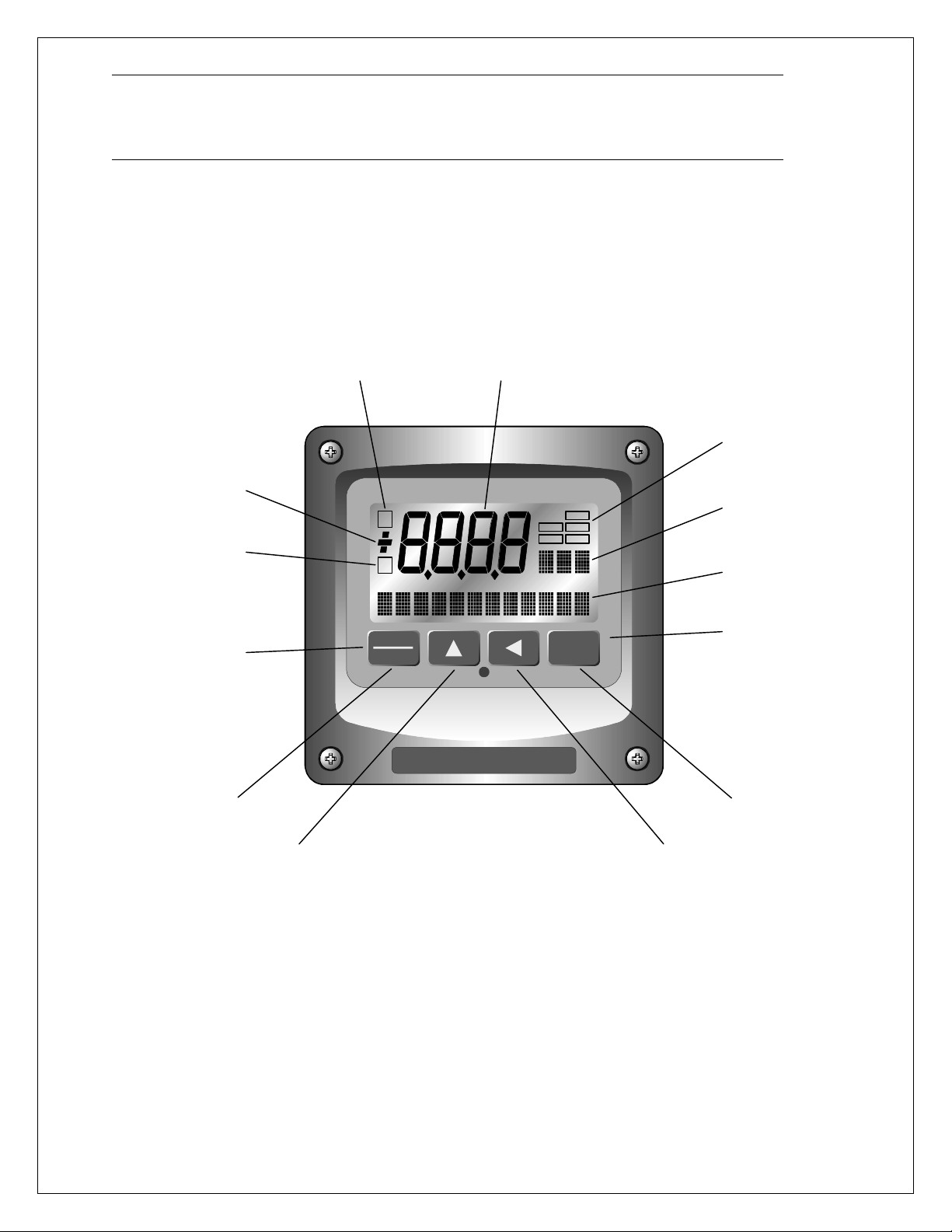

Figure 5-1 User Interface ........................................................................................................................... 24

5.11 Keys ..................................................................................................................................................... 25

5.12 Display ................................................................................................................................................. 25

5.2 Software ............................................................................................................................................... 27

5.21 Software Navigation............................................................................................................................. 27

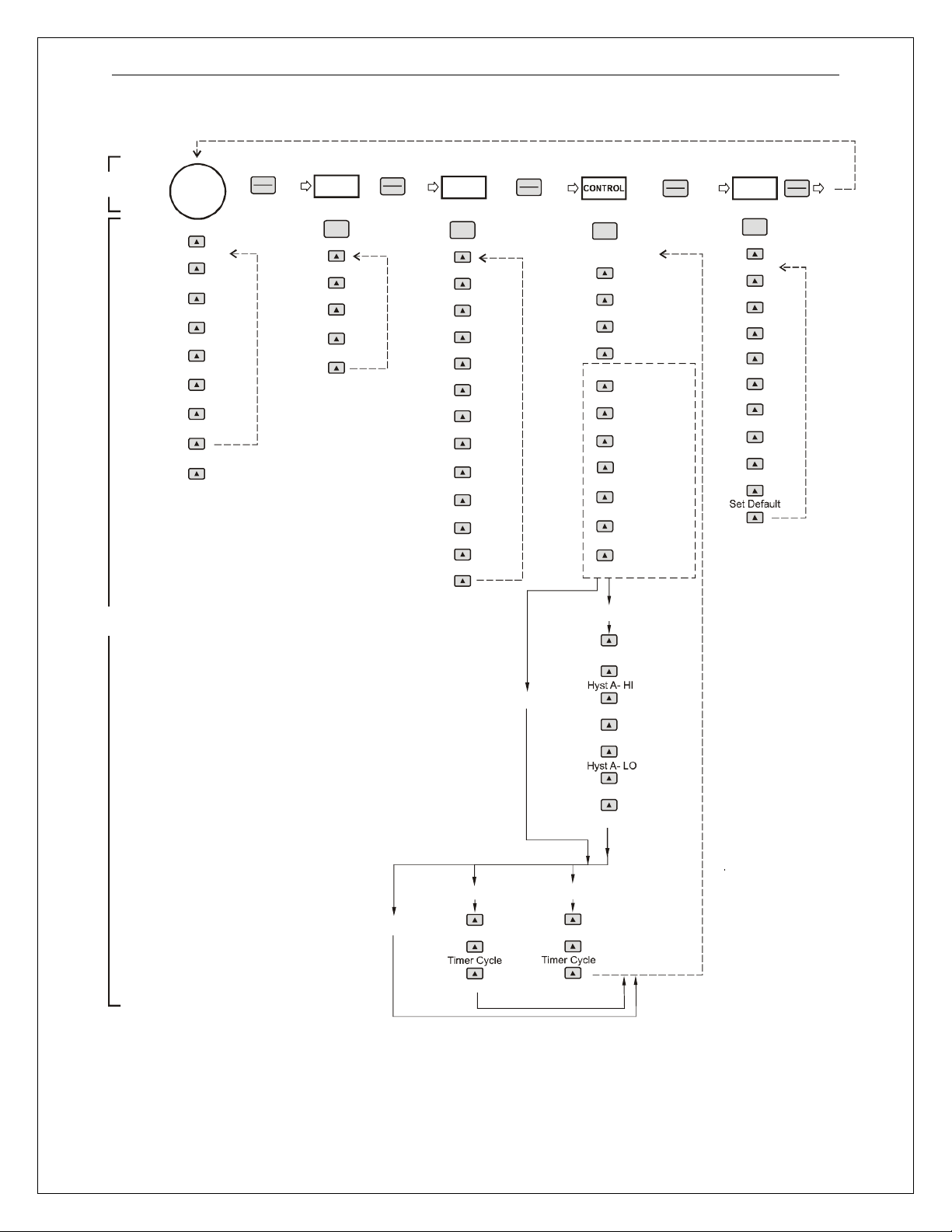

Figure 5-2 Software Map ........................................................................................................................... 29

5.22 Measure Menu [MEASURE]................................................................................................................. 30

5.23 Calibration Menu [CAL] .......................................................................................................................... 31

5.24 Configuration Menu [CONFIG] ............................................................................................................ 32

Page 4

PART 6 - CONTROL ......................................................................................................................................... 37

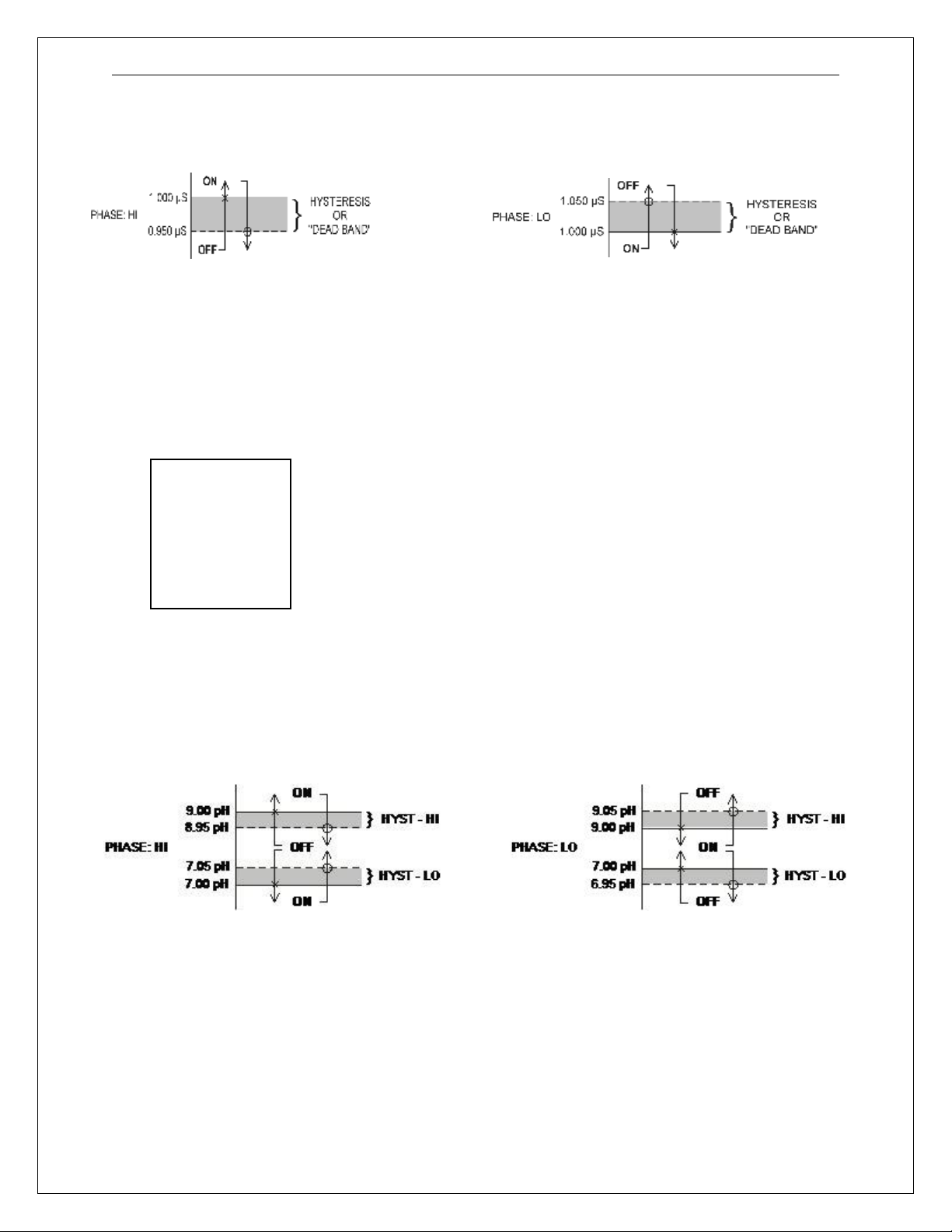

Figure 6-1 Control Relay Example, Hysteresis and Two Opposite Phase Options ........................................ 39

Figure 6-2 Alarm Relay Example ............................................................................................................... 39

PART 7 – CALIBRATION ................................................................................................................................ 41

7.1 Overview and Methods ......................................................................................................................... 41

7.11 1-Point Calibration Explained ............................................................................................................... 41

7.12 Zero Cal Calibration Explained ............................................................................................................. 41

7.2 Performing a Sensor Zero Calibration .................................................................................................... 42

7.3 Performing a 1-Point Calibration ........................................................................................................... 42

Figure 7-1 NaCl Reference Solution for Calibration ................................................................................... 43

7.4 Temperature Calibration........................................................................................................................ 44

PART 8 – PID CONTROLLER DETAILS ....................................................................................................... 46

8.1 PID Description .................................................................................................................................... 46

8.2 PID Algorithm ...................................................................................................................................... 46

Figure 8-1 CDTX-45T (Ideal) PID Equation ............................................................................................... 47

8.3 Classical PID Tuning ............................................................................................................................ 48

8.4 Common PID Pitfalls ............................................................................................................................ 49

PART 9 – SYSTEM MAINTENANCE .............................................................................................................. 50

9.1 System Checks ...................................................................................................................................... 50

9.2 Instrument Checks ................................................................................................................................ 50

9.3 Sensor Tests .......................................................................................................................................... 51

Figure 9-1 Pt1000 RTD Table ..................................................................................................................... 52

9.4 Display Messages ................................................................................................................................. 52

Page 5

CDTX-45T Toroidal Conductivity System Part 1 – Introduction

Part 1 - Introduction

1.1 General

The Model CDTX-45T Conductivity monitor/analyzer provides an extremely versatile measurement system for monitoring and control of conductivity over the range of 20 µS/cm to 2.000 Siemen/cm. The instrument is offered standard as a loop-powered transmitter for 2-wire DC applications. Since this system configuration operates over only two low-voltage wires, it is ideal for remote monitoring applications where line power is either unavailable or prohibitively expensive to run.

With the optional 115/230 VAC power supply, the instrument may also be configured for AC operation. This configuration is ideal when line power is located close to the point of installation, and dual relay outputs and two 4-20 mA outputs (one for conductivity and one for temperature) are required.

An optional battery card is available that converts the instrument into a robust, portable measurement system that operates on one 9 VDC battery. In this configuration, all of the standard features of the basic 2-wire transmitter are functional with the exception that the instrument has two voltage outputs. The 9V unit is available either with or without a built-in data logger. Since this system utilizes the same high performance sensor as the standard configurations, it is a very robust portable monitoring system. It can be used on its own, or it can be used with other permanently installed CDTX-45T continuous monitoring systems to simplify calibration by using the calibrate-by-reference method.

In all configurations, the CDTX-45T displays conductivity on the main display, and total dissolved solids (TDS), sensor temperature, and output loop current on the secondary line of the custom display.

WARNING: Not following operating instructions may impair safety.

NOTE: Due to the high degree of flexibility of the CDTX-45T system

options, it is important to note areas of the operating manual that detail these optional features. The software features for the relay output option and battery option only appear when those modules are connected and the system has been re-powered.

O&M Manual

- 1 -

Page 6

CDTX-45T Toroidal Conductivity System Part 1 – Introduction

1.2 Features

• Standard CDTX-45T electronic transmitters are designed to be a fully isolated, loop powered instruments for 2-wire DC applications. Optional integral power supply card for 115/230 VAC operation, and optional battery power supply card for portable datalogging applications are available.

• High accuracy, high sensitivity system, measures from 20 to 2,000,000 uS through 7 internal automatic ranges. User display ranges include 2000 us, 2000 mS, 20.00 mS, or 200.0 mS, 2000 mS, or 2.000 S.

• Output Hold, Output Simulate, Output Alarm, and Output Delay Functions. All forced changes in output condition include bumpless transfer to provide gradual return to on-line signal levels and to avoid system control shocks on both analog outputs.

• AC power option provides dual SPDT relay operation and one additional isolated analog output. Software settings for relay control include setpoint, deadband, phase, delay, and failsafe. Software controls automatically appear in menu list when hardware option card is plugged in and system power is applied.

• Selectable PID controller on main analog output. PID controller can operate with instrument configured as loop-power transmitter, or as one of the two outputs on the AC powered instrument. PID includes manual operation feature, and diagnostic “stuck-controller” timer feature for relay notification of control problems.

• Configurable for TDS display and signal output on one analog output.

• Two analog outputs on the relay version may be configured to track conductivity

and temperature, conductivity and conductivity, or conductivity and TDS. Both analog outputs can be individually programmed to fail to specific values.

• Selectable Output Fail Alarm feature on Relay B allows system diagnostic failures to be sent to external monitoring systems.

• Large, high contrast, custom Super-Twist display provides excellent readability even in low light conditions. The secondary line of display utilizes 5x7 dot matrix characters for clear message display. Two of the four measured parameters may be on the display simultaneously.

• Diagnostic messages provide a clear description of any problem with no confusing error codes to look up. Messages are also included for diagnosing calibration problems.

O&M Manual

- 2 -

Page 7

CDTX-45T Toroidal Conductivity System Part 1 – Introduction

• Quick and easy one-point calibration method and sensor zero-cal. To provide high accuracy, all calibration methods include stability monitors that check temperature and main parameter stability before accepting data.

• High accuracy Pt1000 temperature input. Temperature element can be user calibrated.

• Security lock feature to prevent unauthorized tampering with transmitter settings. All settings can be viewed while locked, but they cannot be changed.

• High reliability, microprocessor-based system with non-volatile memory back-up that utilizes no batteries. Low mass, surface mount PCB construction containing no adjustment potentiometers. All factory calibrations stored in non-volatile EEPROM.

O&M Manual

- 3 -

Page 8

CDTX-45T Toroidal Conductivity System Part 1 – Introduction

1.3 CDTX-45T System Specifications (Common to all variations)

Displayed Parameters Main input, 0 uS to 2S (2,000,000 uS)

Sensor temperature, -10.0 to 210.0 °C (23 to 410 ºF) Loop current, 4.00 to 20.00 mA Sensor slope Model number and software version PID Controller Status

Main Parameter Ranges Automatic or Manual selection of one of the following

display ranges,

0 to 2000 uS

0.0 to 2.000 mS

0.00 to 20.00 mS

0.0 to 200.0 mS

0 to 2000 mS

0.000 to 2.000 S

Display Large, high-contrast, Super-Twist (STN) LCD; 4-digit main display with sign, 0.75" (19.1 mm) seven-

segment characters

12-digit secondary display, 0.3" (7.6 mm) 5x7 dot matrix

characters

Keypad 4-key membrane type with tactile feedback, polycarbonate

with UV coating

Weight DC transmitter configuration: 1 lb. (0.45 kg) Line powered unit: 1.5 lb. (0.68 kg)

Ambient Temperature Analyzer Service, -20 to 60 °C (-4 to 140 ºF) Storage, -30 to 70 °C (-22 to 158 ºF)

Ambient Humidity 0 to 95%, indoor/outdoor use, non-condensing to rated

ambient temperature range

EMI/RFI Influence Designed to EN 61326-1 Output Isolation 600 V galvanic isolation Filter Adjustable 0-9.9 minutes additional damping to 90% step

Temperature Input Pt1000 RTD with automatic compensation Sensor Fully isolated, toroidal electrode sensor design for direct

O&M Manual

- 4 -

input

measurement. ¾” NPT process connection.

Page 9

CDTX-45T Toroidal Conductivity System Part 1 – Introduction

Sensor Materials Noryl Sensor Pressure 150 psig maximum Sensor Temperature Noryl, 0 to 105°C (32 to 221ºF) Sensor Cable 20 ft. (6.1 meter) 6-conductor cable. CPVC jacket rated to

105 °C dry and 70 °C wet.

Max. Sensor-to-Analyzer Distance 200 feet (61 meters), with special OMEGA junction box

(NOT common to all variations)

Standard 2-Wire (Loop-powered) Transmitter:

Power 18-35 VDC (2-wire device) Enclosure: NEMA 4X, polycarbonate, stainless steel hardware,

weatherproof and corrosion resistant,

HWD: 4.4" (112 mm) x 4.4" (112 mm) x 3.5" (89 mm) Mounting Options Wall or pipe mount bracket standard. Bracket suitable for

either 1.5” or 2” I.D. U-Bolts for pipe mounting.

Conduit Openings Two Pg-9 openings with gland seals, One 1” NPT opening

with plug.

DC Cable Type Belden twisted-pair, shielded, 22 gauge or larger Insertion Loss 18 VDC

115/230 VAC + Dual Relay Option:

Power 115/230 VAC ± 10%, 50/60 Hz, 10 VA max Enclosure, AC Powered NEMA 4X, polycarbonate, stainless steel hardware,

weatherproof and corrosion resistant,

HWD: 4.9" (124 mm) x 4.9" (124 mm) x 5.5" (139 mm) Mounting Options Wall or pipe mount bracket standard. Bracket suitable for

either 1.5” or 2” I.D. U-Bolts for pipe mounting.

Panel mount adapter optional. Conduit Openings Three ½” NPT openings. Gland seals supplied but not

installed.

Relays, Electromechanical: Two SPDT, 6 amp @ 250 VAC, 5 amp @ 24 VDC

contacts. Software selection for setpoint, phase, delay,

O&M Manual

- 5 -

Page 10

CDTX-45T Toroidal Conductivity System Part 1 – Introduction

deadband, hi-lo alarm, and failsafe. A-B indicators on main LCD.

Analog Outputs Two 4-20 mA outputs. Output one programmable for

conductivity or PID. Output 2 programmable for conductivity, temperature, or TDS. Max load 500 Ohms for each output. Outputs ground isolated and isolated from each other.

1.4 CDTX-45T Performance Specifications

(Common to all variations)

Accuracy 0.5% of user range, or better (± 2 μS) Repeatability 0.2% of user range, or better (± 2 μS) Sensitivity 0.05% of user ranges (± 2 μS) Stability 0.2% of user range per 24 hours, non-cumulative

Warm-up Time 7 seconds to rated performance Supply Voltage Effects DC version only, ± 0.05% of user range Instrument Response Time 6 seconds to 90% of step input at lowest setting Temperature Drift Span or zero, 0.04% of span/°C

O&M Manual

- 6 -

Page 11

CDTX-45T Torodial Conductivity System Part 2 – Analyzer Mounting

Part 2 – Analyzer Mounting

2.1 General

All CDTX-45T Series instruments offer maximum mounting flexibility. A bracket is included with each unit that allows mounting to walls or pipes. In all cases, choose a location that is readily accessible for calibrations. Also consider that it may be necessary to utilize a location where solutions can be used during the calibration process. To take full advantage of the high contrast display, mount the instrument in a location where the display can be viewed from various angles and long distances.

Locate the instrument in close proximity to the point of sensor installation - this will allow easy access during calibration. The standard cable length of the conductivity sensor is 20 feet. For sensor cables longer than 20 feet, use the optional junction box (07-0100) and sensor interconnect cable (31-0057).

Due to the flexibility of the instrument design, some of the mounting features change based on the configuration that was ordered. For example, the 2-wire transmitter version is different for the 115/230 VAC controller because the rear of the enclosure is much deeper when the AC powered unit is used. In addition, the AC powered unit has an integrated panel mount flange requiring a single cutout for flush mounting. Refer to Figures 2-1 and 2-2 for detailed dimensions of each type of system.

O&M Manual

Page 12

CDTX-45T Toroidal Conductivity System Part 2 – Analyzer Mounting

ESC

ENTER

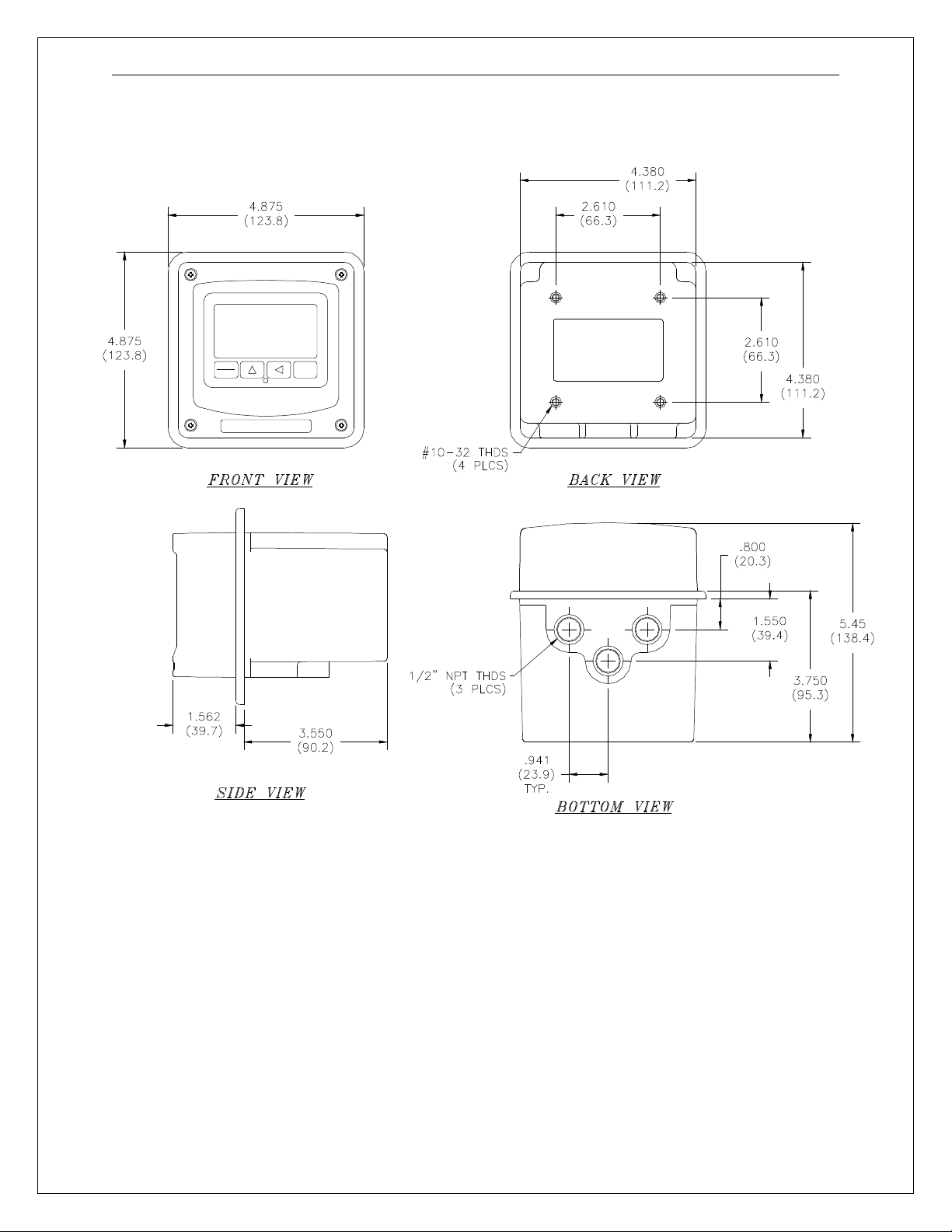

Figure 2-1 CDTX Enclosure Dimensions, AC Powered Units

O&M Manual

Page 13

CDTX-45T Toroidal Conductivity System Part 2 – Analyzer Mounting

4.38

(111.2)

2.61

(66.3)

4.38

(111.2)

#10-32 UNF (4 PLACES)

2.61

(66.3)

FRONT VIEW

BACK VIEW

1" NPT

.82

(20.8)

1.68

(42.7)

3.45

(87.6)

1.23

(31.2)

SIDE VIEW

1.23

(31.2)

BOTTOM VIEW

PG-9 PORT

(2 PLACES)

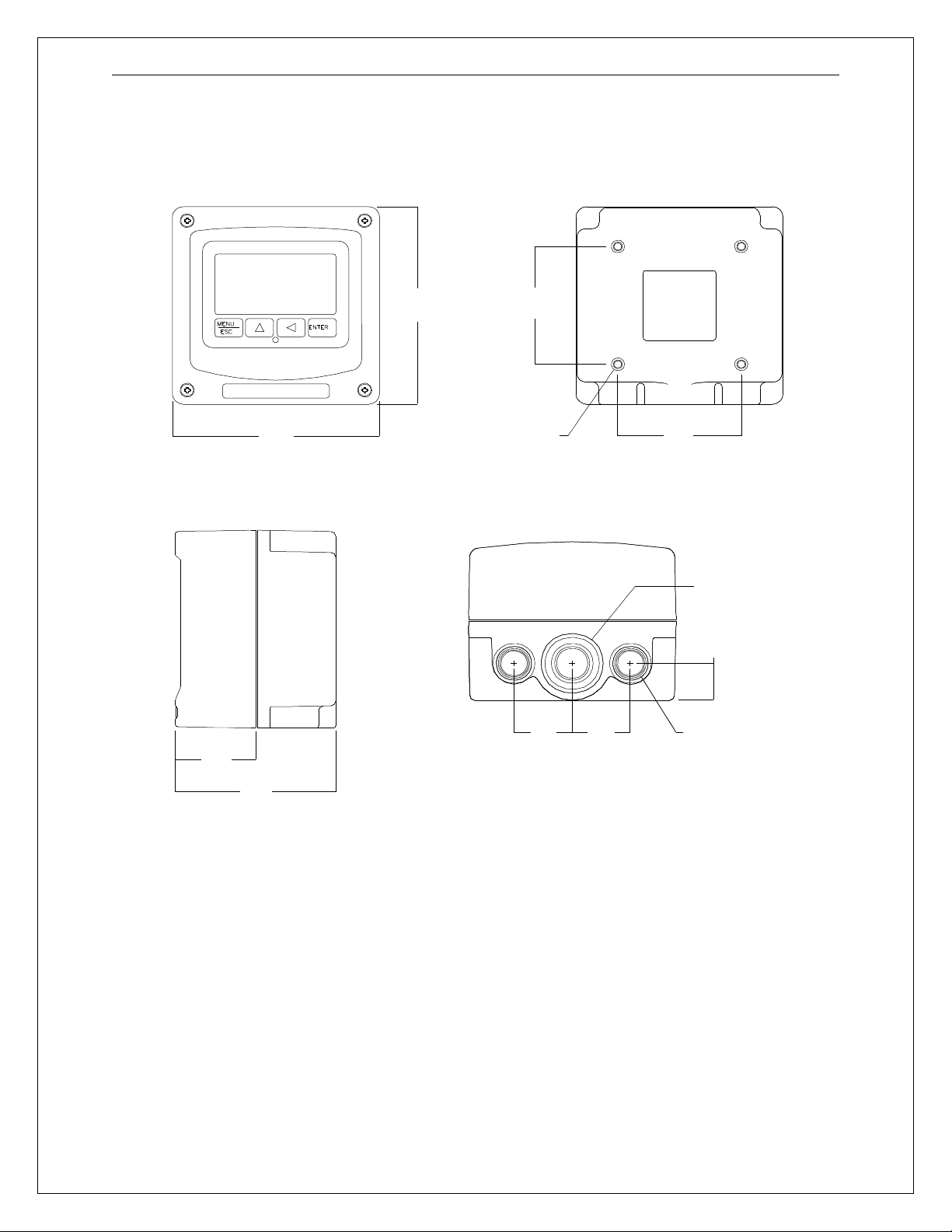

Figure 2-2 CDTX Enclosure Dimensions, 2-Wire and Battery Units

O&M Manual

Page 14

CDTX-45T Toroidal Conductivity System Part 2 – Analyzer Mounting

2.2 Wall or Pipe Mount

A PVC mounting bracket with attachment screws is supplied with each transmitter (see Figure 2-3 for dimensions). The multi-purpose bracket is attached to the rear of the enclosure using the four flat head screws. The instrument is then attached to the wall using the four outer mounting holes in the bracket. These holes are slotted to accommodate two sizes of u-bolt that may be used to pipe mount the unit. Slots will accommodate u-bolts designed for 1½ “or 2” pipe. The actual center to center dimensions for the u-bolts are shown in the drawing. Note that these slots are for u-bolts with ¼-20 threads. The 1½” pipe u-bolt (2” I.D. clearance) is available from Omega in type 304 stainless steel under part number

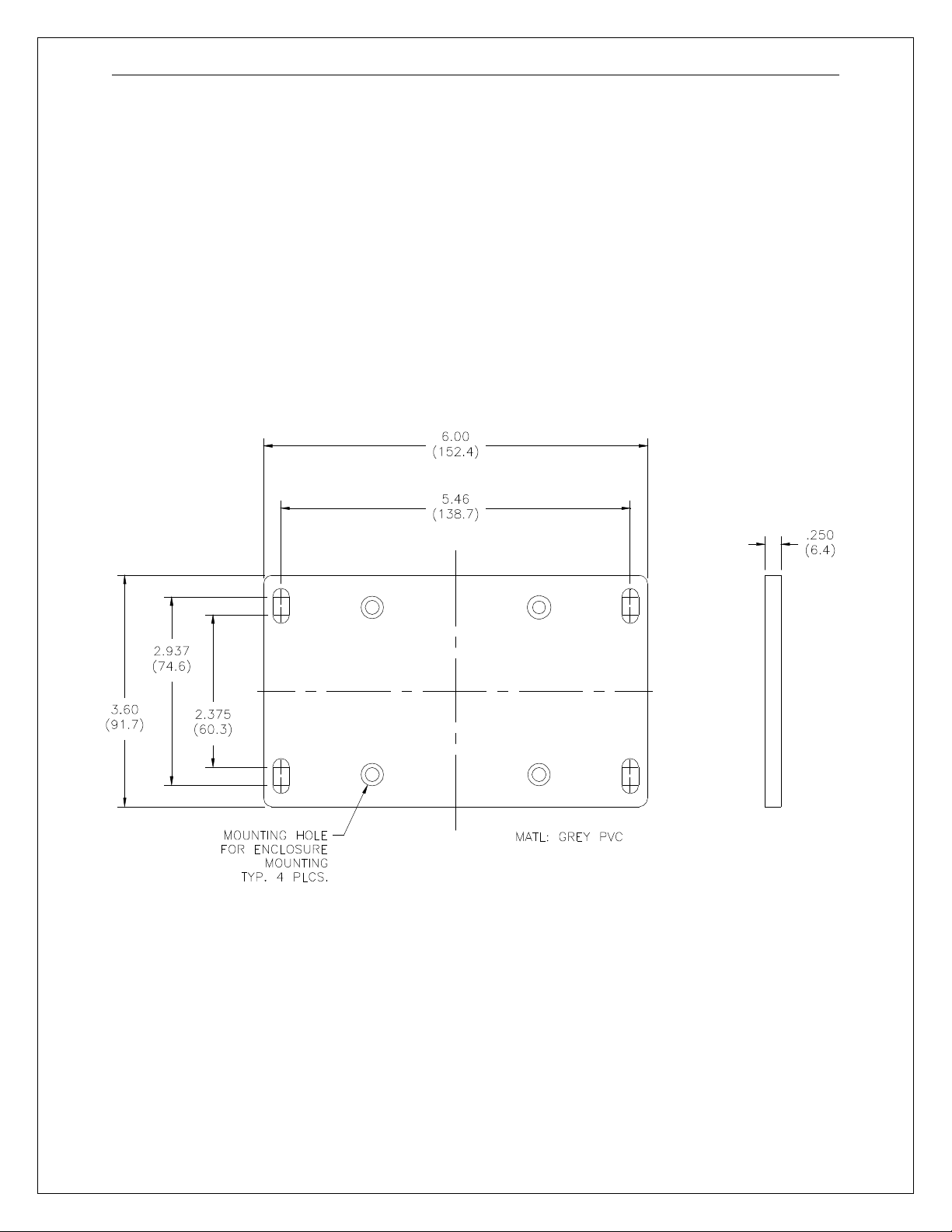

Figure 2-3 Wall or Pipe mount Bracket

O&M Manual

Page 15

CDTX-45T Toroidal Conductivity System Part 2 – Analyzer Mounting

ESC

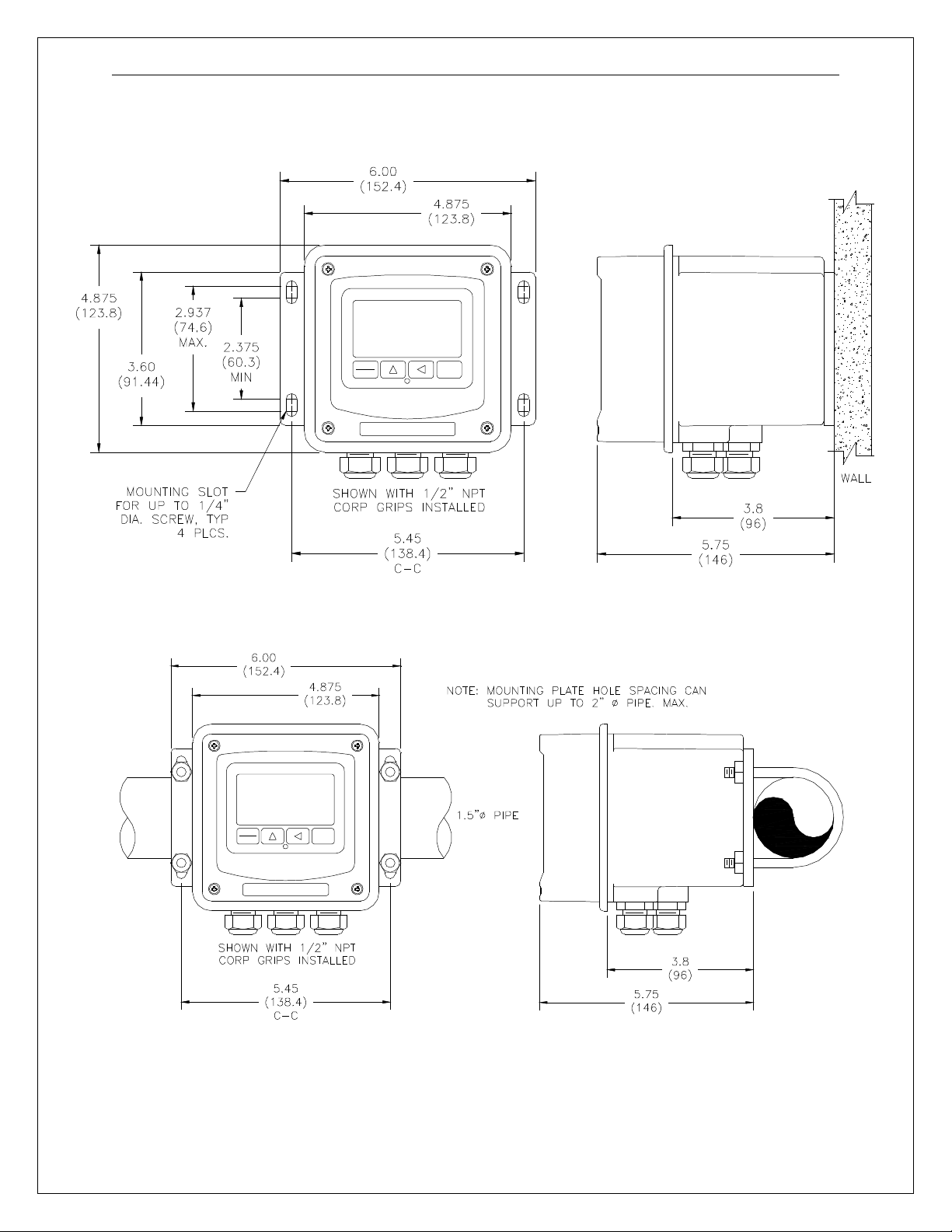

Figure 2-4 Wall Mounting Diagram

ENTER

ESC

ENTER

Figure 2-5 Pipe Mounting Diagram

O&M Manual

Page 16

CDTX-45T Toroidal Conductivity System Part 2 – Analyzer Mounting

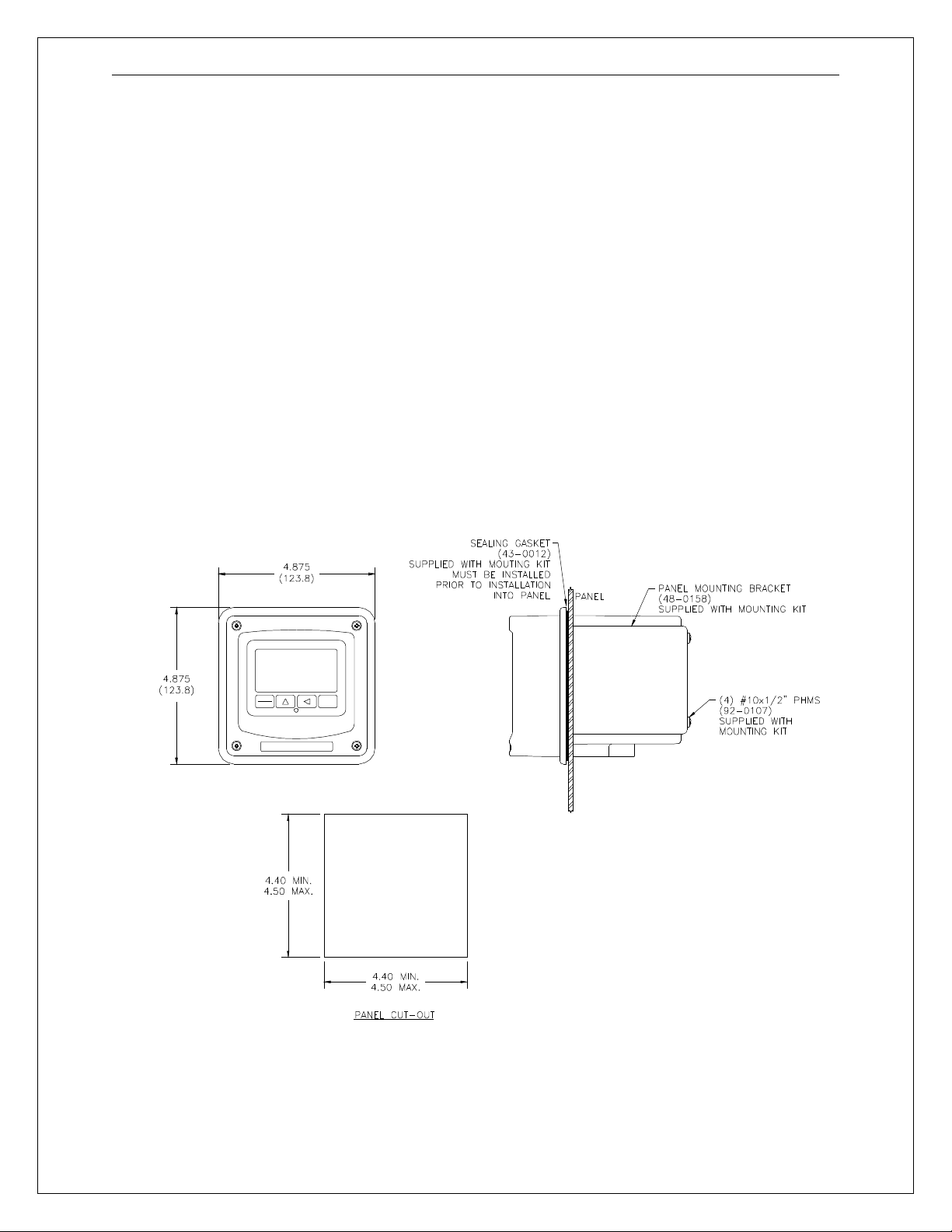

2.3 Panel Mount, AC Powered Monitor

Panel mounting of an AC powered monitor uses the panel mounting flange molded into the rear section of the enclosure. Figure 2-6 provides dimensions for the panel cutout required for mounting.

The panel mounting bracket kit CDTX-45T-PMK must be ordered separately. This kit contains a metal retainer bracket that attaches to the rear of the enclosure, 4 screws for attachment of this bracket, and a sealing gasket to insure that the panel mounted monitor provides a water tight seal when mounted to a panel.

The sealing gasket must first be attached to the enclosure. The gasket contains an adhesive on one side so that it remains in place on the enclosure. Remove the protective paper from the adhesive side of the gasket and slide the gasket over the back of the enclosure so that the adhesive side lines up with the back of the enclosure flange. Once in place, you can proceed to mount the monitor in the panel.

ESC

ENTER

Figure 2-6 115/230 VAC Panel Mount and Cut-out

O&M Manual

Page 17

CDTX-45T Toroidal Conductivity System Part 3 – Sensor Mounting

Part 3 – Sensor Mounting

3.1 General

Select a location within the maximum sensor cable length for mounting of the sensor. In non-tee applications, it is recommended that the sensor face be kept at least 2” away from any nearby walls, pipes, etc. when mounted.

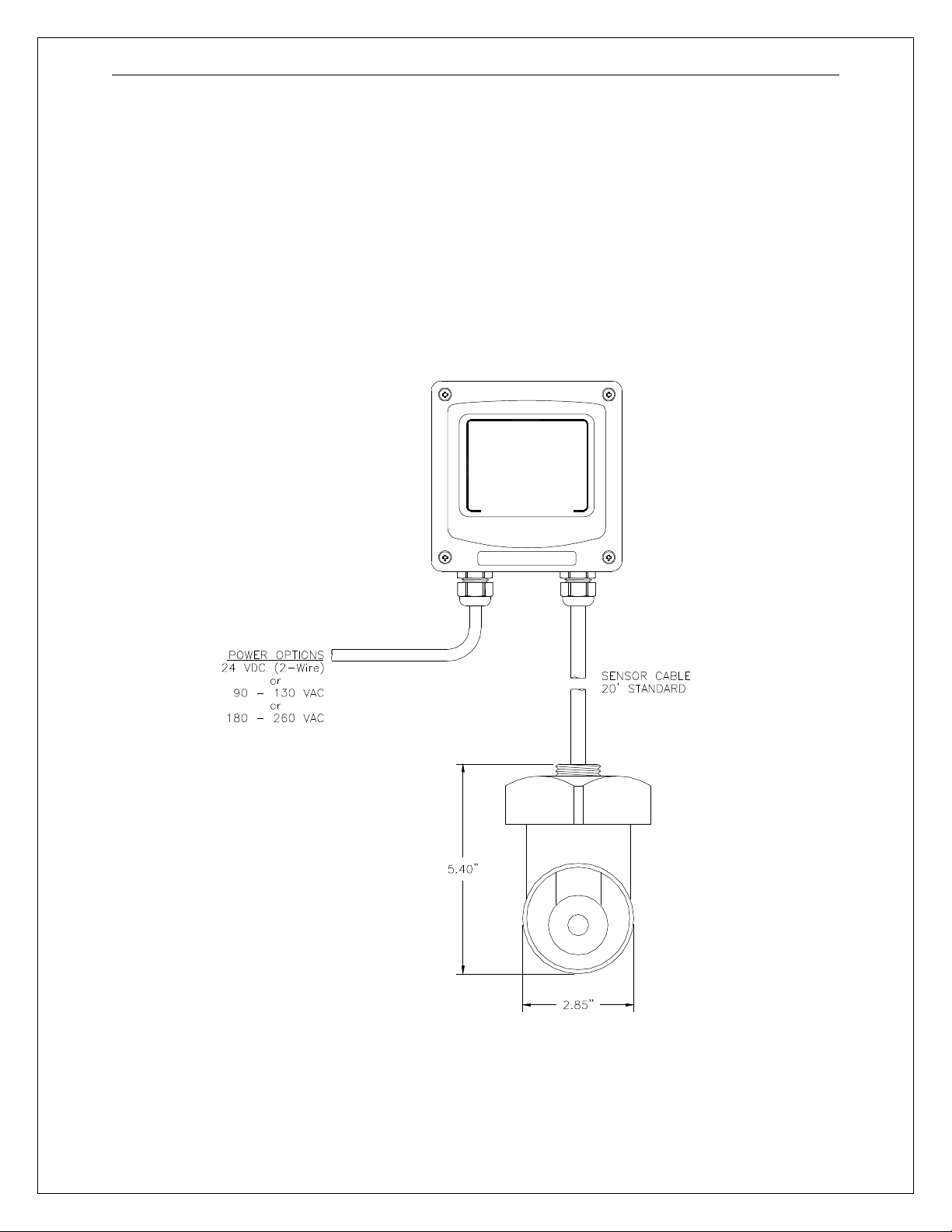

Figure 3-1, below, shows the dimensions and features of the toroidal sensor.

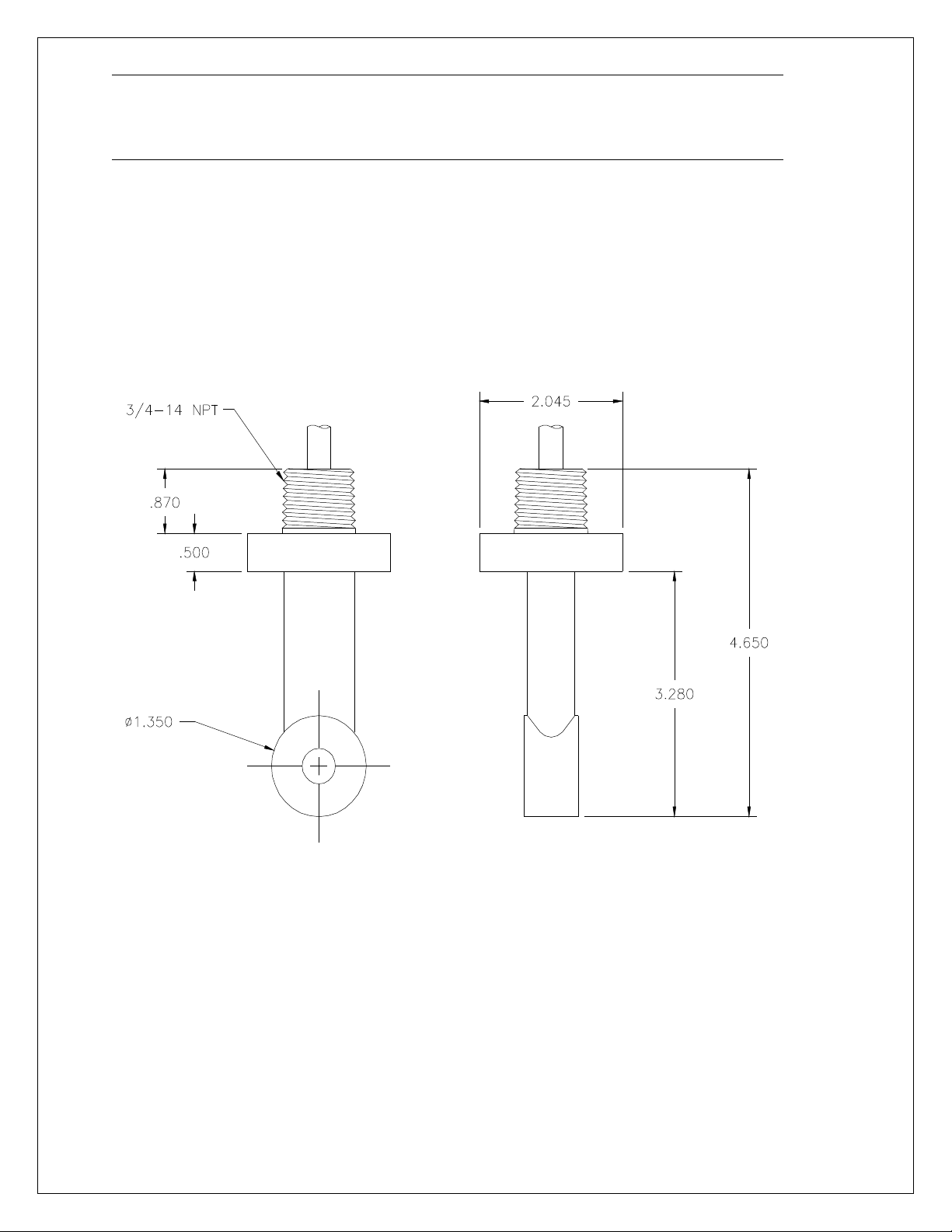

Figure 3-1 Submersible Sensor Mounting Assembly

O&M Manual

Page 18

CDTX-45T Toroidal Conductivity System Part 3 – Sensor Mounting

3.2 Tee Mounting

The toroidal sensors are mounted in a 2" pipe using an optional pipe adapter. The tee fitting is keyed so the sensor is oriented in the process as shown in Figure 3-2, below. The sensor bore opening should be aligned so that flow passes directly through the open sensor bore. A positioning notch is located on the upper sensor collar to aid in this alignment. This orientation is used to ensure a representative sample is being measured and to keep the sensor bore clean.

Note that sensor must be zero-calibrated before final mounting in tee.

2-WIRE TOROIDAL

CONDUCTIVITY TRANSMITTER

Figure 3-2 Sensor Mounting - Tee Assembly

O&M Manual

Page 19

CDTX-45T Toroidal Conductivity System Part 3 – Sensor Mounting

3.3 Submersion Mounting

Some applications are much easier done using the submersible sensor. Submersible sensors are mounted to a 1" pipe using a standard 1" PVC thread by thread pipe coupling. The mounting pipe can be secured to standard 1½" pipe rail using a mounting bracket kit (00-0628) available from Omega, as shown in Figure 3-3. Maintain a minimum 2” distance from sensor face to any nearby walls, pipes, etc.

Figure 3-3 Submersible Sensor Mounting Assembly

O&M Manual

Page 20

CDTX-45T Toroidal Conductivity System Part 4 – Electrical Installation

Part 4 – Electrical Installation

4.1 General

The CDTX is powered in one of two ways, depending on the version purchased. The 2-wire version is a 18-35 VDC powered transmitter. The integral 115/230 VAC version requires line power. Please verify the type of unit before connecting any power.

WARNING: Do not connect AC line power to the 2-wire module.

Severe damage will result.

Important Notes:

1. Use wiring practices that conform to all national, state and local electrical codes. For proper safety as well as stable measuring performance, it is important that the earth ground connection be made to a solid ground point (Figure 4-1). The AC power supply contains a single 100Ma (115V) or 50mA (230V) slo-blo fuse. The fuse F1 is located adjacent to TB5 and is easily replaceable.

2. Do NOT run sensor cables or instrument 4-20 mA output wiring in the same conduit that contains AC power wiring. AC power wiring should be run in a dedicated conduit to prevent electrical noise from coupling with the instrumentation signals.

3. This analyzer must be installed by specifically trained personnel in accordance with relevant local codes and instructions contained in this operating manual. Observe the analyzer's technical specifications and input ratings. Proper electrical disconnection means must be provided prior to the electrical power connected to this instrument, such as a circuit breaker rated 250 VAC, 2 A minimum. If one line of the line power mains is not neutral, use a double-pole mains switch to disconnect the analyzer.

O&M Manual

Page 21

CDTX-45T Toroidal Conductivity System Part 4 – Electrical Installation

4.2 Two-Wire

In the two-wire configuration, a separate DC power supply must be used to power the instrument. The exact connection of this power supply is dependent on the control system into which the instrument will connect. See Figure 4-1 for further details. Any twisted pair shielded cable can be used for connection of the instrument to the power supply. Route signal cable away from AC power lines, adjustable frequency drives, motors, or other noisy electrical signal lines. Do not run sensor or signal cables in conduit that contains AC power lines or motor leads.

Figure 4-1 Loop-Power Connection, CDTX-45T Transmitter

Notes: 1. Voltage between Terminals 10 and 11 MUST be between 18 and 35 VDC.

2. Earth ground into Terminal 13 is HIGHLY recommended. This connection can greatly improve stability in electrically noisy environments.

O&M Manual

Page 22

CDTX-45T Toroidal Conductivity System Part 4 – Electrical Installation

(Power Supply Voltage

- 18)

Power Supply Voltage (VDC)

Total Load (Ohms

)

4.21 Load Drive

The amount of resistance that the analog output can drive in the 115/230 VAC version is fixed. However, in the two-wire configuration, the load-drive level is dependent on the DC supply voltage provided to the controller.

The two-wire instrument can operate on a power supply voltage of between 18 and 35 VDC. The available load drive capability can be calculated by applying the formula V/I=R, where V=load drive voltage, I=maximum loop current (in Amperes), and R=maximum resistance load (in Ohms).

To find the load drive voltage of the two-wire CDTX, subtract 18 VDC from the actual power supply voltage being used (the 18 VDC represents insertion loss). For example, if a 24 VDC power supply is being used, the load drive voltage is 6 VDC.

The maximum loop current of the two-wire CDTX is always 20.00 mA, or .02 A. Therefore,

.02

= R

MAX

For example, if the power supply voltage is 24 VDC, first subtract 18 VDC, and then divide the remainder by .02. 6/.02 = 300; therefore, a 300 Ohm maximum load can be inserted into the loop with a 24 VDC power supply.

Similarly, the following values can be calculated:

18.0 0

20.0 100

24.0 300

30.0 600

35.0 850

4.3 115/230 VAC w/Relays In the 115/230 VAC configuration, a DC power supply is mounted into the inside

rear of the enclosure. The power supply must be ordered with the proper operating voltage. Verify that the unit requires either 115 VAC or 230 VAC before installing. Also verify that power is fully disconnected before attempting to wire.

O&M Manual

Page 23

CDTX-45T Toroidal Conductivity System Part 4 – Electrical Installation

WARNING

Disconnect line power voltage BEFORE connecting

line power wires to Terminal TB5 of the power supply.

wire

single phase power. The power supply is configured

for 115 VAC or 230 VAC operation at the factory at

time of order, and the power supply is labeled as

such. Do NOT connect voltages other than the

AC powered CDTX systems are supplied with 3 cable gland fittings. One of the cable glands has a larger hole in the rubber gland and should be used for the power cord entry if a flexible power cord will be used for installation. One of the cable glands with the smaller gland opening should normally be used for the sensor cable. Cable glands will screw into any of the three threaded holes on the bottom of the enclosure.

Connect HOT, NEUTRAL, and GROUND to the matching designations on terminal strip TB5.

The power supply accepts only standard three-

labeled requirement to the input.

The analog outputs from the system are present at terminals TB1 and TB2. The loop-load limitation in this configuration is 500 Ohms maximum for each output. Also note that these two outputs are completely isolated from each other to insure that ground loops do not result from the connection of both outputs to the same device such as a PLC or DCS.

In the line-powered unit, a ribbon cable connects the power supply assembly with the microprocessor assembly located in the front section of the enclosure. This cable can be removed during installation to facilitate wiring if desired. It is best to unplug only one end. The ribbon cable has a marking stripe on one edge that is used to indicate proper orientation. The indicator stripe should be on the bottom edge of the cable when installed as shown in Figure 4-2.

O&M Manual

Page 24

CDTX-45T Toroidal Conductivity System Part 4 – Electrical Installation

Figure 4-2 Line Power Connection

The power strip, TB5, allows up to 12 AWG wire. A wire gauge of 16 AWG is recommended to allow for an easy pass-through into the ½” NPT ports when wiring.

O&M Manual

Page 25

CDTX-45T Toroidal Conductivity System Part 4 – Electrical Installation

Two sets of SPDT relay contacts are provided on the power supply board. None of the relay contacts are powered. The user must supply the proper power to the contacts. For applications that require the same switched operating voltage as the CDTX (115 or 230 V), power may be jumpered from the power input terminals at TB5. Relay wiring is connected at TB3 as shown below. Note that the relay contact markings are shown in the NORMAL mode. Programming a relay for “Failsafe” operation reverses the NO and NC positions in this diagram.

Figure 4-3 Relay Contacts

4.4 Sensor Wiring

The sensor cable can be quickly connected to the CDTX terminal strip by

matching the wire colors on the cable to the color designations on the label in the monitor. A junction box is also available to provide a break point for long sensor cable runs. Route signal cable away from AC power lines, adjustable frequency drives, motors, or other noisy electrical signal lines. Do not run sensor or signal cables in conduit that contains AC power lines or motor leads.

4.5 Direct Sensor Connection

Sensor connections are made in accordance with Figure 4-1. The sensor cable

can be routed into the enclosure through one of cord-grips supplied with the unit. Routing sensor wiring through conduit is only recommended if a junction box is to be used. Some loose cable is needed near the installation point so that the sensor can be inserted and removed easily from the flowcell.

O&M Manual

Page 26

CDTX-45T Toroidal Conductivity System Part 4 – Electrical Installation

Cord-grips used for sealing the cable should be snugly tightened after electrical

connections have been made to prevent moisture incursion. When stripping cables, leave adequate length for connections in the transmitter enclosure as shown below. The standard 20 ft. sensor cable normally supplied with the system is already stripped and ready for wiring. This cable can be cut to a shorter length if desired to remove extra cable in a given installation. Do not cut the cable so short as to make installation and removal of the sensor difficult.

Figure 4-4 Sensor Cable Preparation

4.6 Sensor Junction Box

When sensor separation from the monitor is needed and to be greater than 20 feet, the sensor junction box is required (CDTX-45T-JB). Wire according to Figure 4-5 with 3 paired, individually shielded 22 AWG cable.

CAUTION: When using a junction box and sensor interconnect cable, the

RED SHIELD must be isolated from the WHITE and GREEN SHIELDS. Failure to maintain isolation with the RED SHIELD will result in measurement instability.

O&M Manual

Page 27

CDTX-45T Toroidal Conductivity System Part 4 – Electrical Installation

Figure 4-5 Junction Box Wiring

O&M Manual

Page 28

CDTX-45T Toroidal Conductivity System Part 5 – Configuration

ENTER

MENU ICONS

12-CHARACTER

Part 5 – Configuration

5.1 User Interface

The user interface for the CDTX Series instrument consists of a custom display and a membrane keypad. All functions are accessed from this user interface (no internal jumpers, pots, etc.).

SIGN

RELAY/LO-BAT

INDICATOR

4-KEY USER

INTERFACE

RELAY

INDICATOR

ESC

4-DIGIT

MAIN DISPLAY

MENU ICONS

CAL

UNITS

CONF

12-CHARACTER

SECONDARY

DISPLAY

MEMBRANE

KEYPAD

DIAG FAIL

HOLD

UNITS

SECONDARY

DISPLAY

MEMBRANE

KEYPAD

MENU/ESCAPE

KEY

UP ARROW

KEY

Figure 5-1 User Interface

O&M Manual

ENTER KEY

LEFT ARROW

KEY

Page 29

CDTX-45T Torodial Conductivity System Part 5 – Configuration

5.11 Keys

All user configurations occur through the use of four membrane keys. These keys are used as follows:

MENU/ESC To scroll through the menu section headers or to escape

from anywhere in software. The escape sequence allows the user to back out of any changes in a logical manner. Using the escape key aborts all changes to the current screen and backs the user out one level in the software tree. The manual will refer to this key as either MENU or ESC, depending upon its particular function. In the batterypowered version of the CDTX, this is also the ON button.

UP (arrow) To scroll through individual list or display items and to

change number values.

LEFT (arrow) To move the cursor from right to left during changes to a

number value.

ENTER To select a menu section or list item for change and to store

any change.

5.12 Display

The large custom display provides clear information for general measurement use and user configuration. There are three main areas of the display: the main parameter display, the secondary message line, and the icon area.

Main Parameter During normal operation, the main parameter display

indicates the present process input with sign and units. This main display may be configured to display any of the main measurements that the system provides. During configuration, this area displays other useful set-up information to the user.

O&M Manual

Page 30

CDTX-45T Torodial Conductivity System Part 5 – Configuration

Lower Line During normal operation, the lower line of the display

indicates user-selected secondary measurements that the system is making. This also includes calibration data from the last calibration sequence and the transmitter model number and software version. During configuration, the lower line displays menu items and set-up prompts to the user. Finally, the lower line will display error messages when necessary. For a description of all display messages, refer to Section 8.4.

Icon Area The icon area contains display icons that assist the user in

set-up and indicate important states of system functions. The CAL, CONFIG, CNTRL, and DIAG icons are used to tell the user what branch of the software tree the user is in while scrolling through the menu items. This improves software map navigation dramatically. Upon entry into a menu, the title is displayed (such as CAL), and then the title disappears to make way for the actual menu item. However, the icon stays on.

HOLD The HOLD icon indicates that the current output of the

transmitter has been put into output hold. In this case, the output is locked to the last input value measured when the HOLD function was entered. HOLD values are retained even if the unit power is cycled.

FAIL The FAIL icon indicates that the system diagnostic function

has detected a problem that requires immediate attention. This icon is automatically cleared once the problem has been resolved.

O&M Manual

Page 31

CDTX-45T Torodial Conductivity System Part 5 – Configuration

Relay Area A/B The relay area contains two icons that indicate the state of

the system relays (if the relay card is installed). If the battery board is installed instead, the B icon indicates that the battery voltage is at a low level. The battery power option and the relay option cannot be installed together.

5.2 Software

The software of the CDTX-45T is organized in an easy to follow menu-based system. All user settings are organized under five menu sections: Measure, Calibration [CAL], Configuration [CONFIG], Control [CONTROL] and Diagnostics [DIAG].

Note: The default Measure Menu is display-only and has no menu icon.

5.21 Software Navigation

Within the CAL, CONFIG, CONTROL, and DIAG menu sections is a list of selectable items. Once a menu section (such as CONFIG) has been selected with the MENU key, the user can access the item list in this section by pressing either the ENTER key or the UP arrow key. The list items can then be scrolled through using the UP arrow key. Once the last item is reached, the list wraps around and the first list item is shown again. The items in the menu sections are organized such that more frequently used functions are first, while more permanent function settings are later in the list. See Figure 5-2 for a visual description of the software.

Each list item allows a change to a stored system variable. List items are designed in one of two forms: simple single variable, or multiple variable sequence. In the single variable format, the user can quickly modify one parameter - for example, changing temperature display units from °F to °C. In the multiple variable sequence, variables are changed as the result of some process. For example, the calibration of conductivity generally requires more than one piece of information to be entered. The majority of the menu items in the software consist of the single variable format type.

O&M Manual

Page 32

CDTX-45T Torodial Conductivity System Part 5 – Configuration

Any data that may be changed will be flashing. This flashing indicates user entry mode and is initiated by pressing the ENTER key. The UP arrow key will increase a flashing digit from 0 to 9. The LEFT arrow key moves the flashing digit from right to left. Once the change has been completed, pressing ENTER again stores the variable and stops the flashing. Pressing ESC aborts the change and also exits user entry mode.

The starting (default) screen is always the Measure Menu. The UP arrow key is used to select the desired display. From anywhere in this section the user can press the MENU key to select one of the four Menu Sections.

The UP arrow icon next to all list items on the display is a reminder to scroll through the list using the UP arrow key.

To select a list item for modification, first select the proper menu with the MENU key. Scroll to the list item with the UP arrow key and then press the ENTER key. This tells the system that the user wishes to perform a change on that item. For single item type screens, once the user presses the ENTER key, part or all of the variable will begin to flash, indicating that the user may modify that variable using the arrow keys. However, if the instrument is locked, the transmitter will display the message Locked! and will not enter user entry mode. The instrument must be unlocked by entering the proper code value to allow authorized changes to user entered values. Once the variable has been reset, pressing the ENTER key again causes the change to be stored and the flashing to stop. The message Accepted! will be displayed if the change is within pre-defined variable limits. If the user decides not to modify the value after it has already been partially changed, pressing the ESC key aborts the modification and returns the entry to its original stored value.

In a menu item which is a multiple variable sequence type, once the ENTER key is pressed there may be several prompts and sequences that are run to complete the modification. The ESC key can always be used to abort the sequence without changing any stored variables.

O&M Manual

Page 33

CDTX-45T Torodial Conductivity System Part 5 – Configuration

Start

ENTER

Set 4mA (#1)

Set 20mA (#1)

Set 20mA (#2)

If Relay B= FAIL

If Relay A= AL

If Relay A= FAIL

Setpnt A- HI

Delay A- HI

Setpnt A- LO

Delay A- LO

* Functions enabled with

** If Rly B is set to Cln1

Hyst A

Delay A

Phase A

ENTER

Out1 Mode

Out2 Mode

Relay A Mode

Relay B Mode

Temp Units

Setpnt B

Hyst B

Solu Comp

Fail Out #1

Fail Val #1

Timer Clean

Timer Hold

If Relay B= Cln2

If Relay B= CLn1

Delay B

Phase B

If Rly A &

B are set to

SECTIONS

MEASURE

(display only)

Temperature

* PID % Output

Loop Current #1

Loop Current #2

Slope

TDS

Model /Software Ver

** Autocleaner Status

ESC

CAL

ENTER

Cal Cond.

Cal Temp

Set Range

Cal Zeros

ESC

CONFIG

Entry Lock

Set Delay

Contrast

Main Display

Ref Temp

TDS Factor

ESC

Set 4mA (#2)

Setpnt A

ESC

, these

CON

are the

program

steps, if

Rlys are

set to

something

other than

, see

CON

steps below

DIAG

Set Hold

Fault List

Sim Out

* PID Timer

Fail Out #2

Fail Val #2

Failsafe

LIST

ITEMS

Phase A

Relay Option Card

or Cln2

Timer Clean

Timer Hold

Figure 5-2 Software Map

ESC

O&M Manual

Page 34

CDTX-45T Torodial Conductivity System Part 5 – Configuration

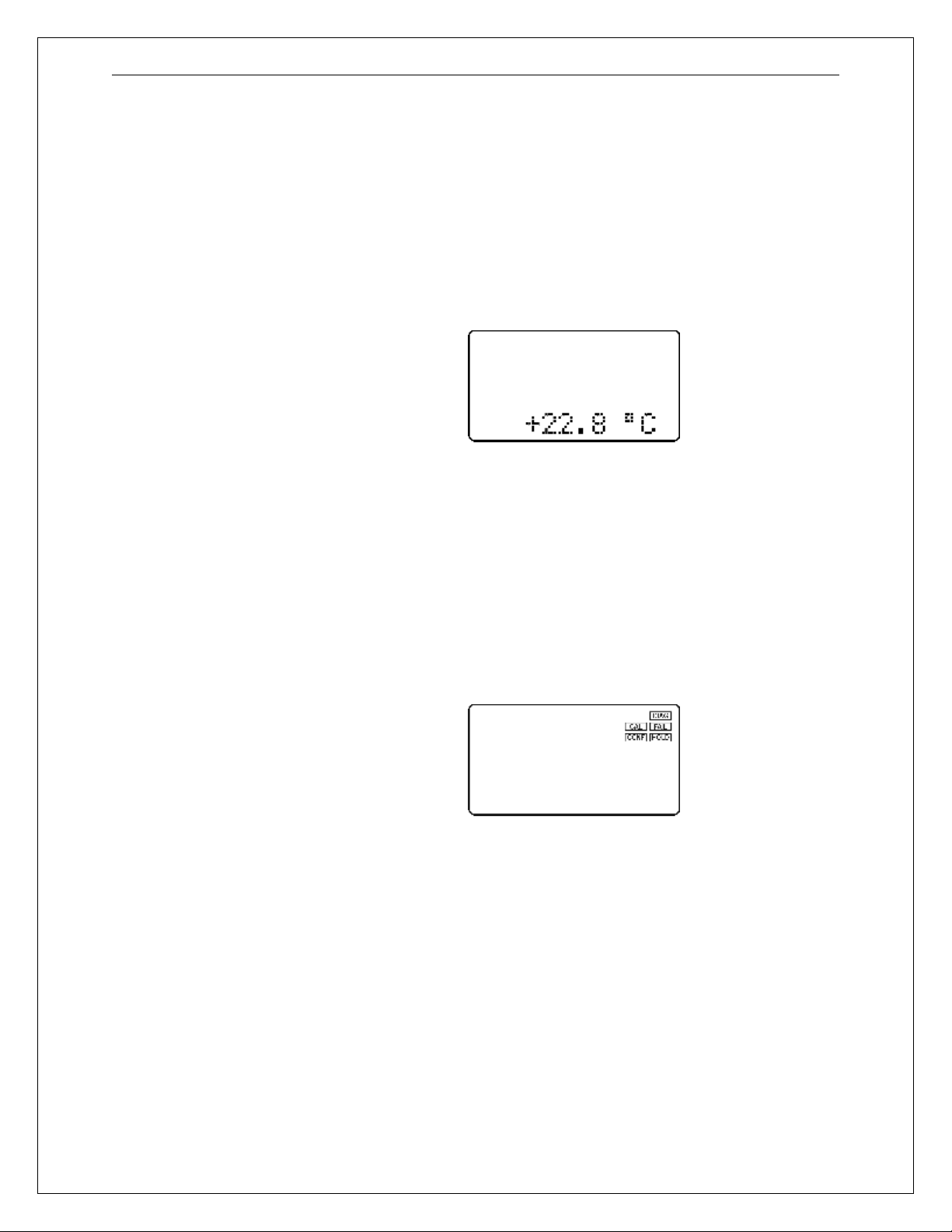

5.22 Measure Menu [MEASURE]

The default menu for the system is the display-only menu MEASURE. This menu is a display-only measurement menu, and has no changeable list items. When left alone, the instrument will automatically return to this menu after approximately 30 minutes. While in the default menu, the UP arrow allows the user to scroll through the secondary variables on the lower line of the display. A brief description of the fields in the basic transmitter version is as follows:

TRANSMITTER MEAS SCREENS:

25.7°C Temperature display. Can be displayed in °C or °F,

depending on user selection. A small “m” on the left side of the screen indicates the transmitter has automatically jumped to a manual 25°C setting due to a failure with the temperature signal input.

100% 20.00 mA PID Status screen (if enabled.) Shows the present controller

output level on left, and actual transmitter current on the right. The controller can be placed in manual while viewing this screen by pressing and holding the ENTER key for 5 seconds until a small flashing “m” appears on the screen. At that point the controller output can be adjusted up or down using the UP and LEFT arrow keys. To return to automatic operation, press and hold the ENTER key for 5 seconds and the “M” will disappear.

Loop Current #1 Indicates current output setting on TB1 Loop Current #2 Indicates current output setting on TB2 Cell Const This function allows the user to directly enter the factory

measured cell constant for the CDE-45T2 sensor. When this feature is used, calibration with reference solutions is unnecessary. See Part 5 - Calibration for more details.

TDS = 200 ppm Total Dissolved Solids (TDS). Displays TDS of process. v4.01 Transmitter software version number.

Note: A display test (all segments ON) can be actuated by pressing and

holding the ENTER key while viewing the model/version number on the lower line of the display.

O&M Manual

Page 35

CDTX-45T Torodial Conductivity System Part 5 – Configuration

For the relay-based analyzer version, or the portable battery powered version of the transmitter, the screens are basically the same, with additions to show two analog outputs instead of one (#1 and #2.)

The MEASURE screens are intended to be used as a very quick means of looking up critical values during operation or troubleshooting.

5.23 Calibration Menu [CAL]

The calibration menu contains items for frequent calibration of user parameters. There are five items in this list: Cal Cond, Cell Temp, Cal Const, and Cal Zeros.

Cal Cond The conductivity calibration function allows the user to adjust

the transmitter offset and span reading to match reference buffers, or to adjust the sensor offset to match the sample reading. See Part 7 - Calibration for more details.

Cal Temp The temperature calibration function allows the user to

adjust the offset of the temperature response by a small factor of ±5 °C. The temperature input is factory calibrated to very high accuracy. However, long cable lengths and junction boxes may degrade the accuracy of the temperature measurement in some extreme situations. Therefore, this feature is provided as an adjustment. See Part 6 Calibration for more details.

Cell Const This function allows the user to directly enter the factory

measured cell constant for the CDE45T2 sensor. When this feature is used, calibration with reference solutions is not necessary. See Part 6 - Calibration for more details.

Set Range This function allows the user to set the display range of the

transmitter for a specific application. Once set, all output functions use this display range to establish configuration settings. Press ENTER to initiate user entry mode, and the value will flash. Use the arrow key to modify the range for the desired range and then press ENTER.

Cal Zeros This function calibrates all range zero-points to the specific

sensor being used. This function is only required to be performed once at initial start-up or when the sensor has been replaced. See Part 6 - Calibration for more details.

O&M Manual

Page 36

CDTX-45T Torodial Conductivity System Part 5 – Configuration

5.24 Configuration Menu [CONFIG]

The Configuration Menu contains all of the general user

settings:

Entry Lock This function allows the user to lock out unauthorized

tampering with instrument settings. All settings may be viewed while the instrument is locked, but they cannot be modified. The Entry Lock feature is a toggle-type setting; that is, entering the correct code will lock the transmitter and entering the correct code again will unlock it. The code is preset at a fixed value. Press ENTER to initiate user entry mode and the first digit will flash. Use arrow keys to modify value. See end of manual for the CDTX-45T lock/unlock code. Press ENTER to toggle lock setting once code is correct. Incorrect codes do not change state of lock condition.

Set Delay The delay function sets the amount of damping on the

instrument. This function allows the user to apply a first order time delay function to the conductivity measurements being made. Both the display and the output value are affected by the degree of damping. Functions such as calibration are not affected by this parameter. The calibration routines contain their own filtering and stability monitoring functions to minimize the calibration timing. Press ENTER to initiate user entry mode, and the value will flash. Use the arrow keys to modify value; range is 0.1 to

9.9 minutes. Press ENTER to store the new value.

Contrast This function sets the contrast level for the display. The

custom display is designed with a wide temperature range, Super-Twist Nematic (STN) fluid.

The STN display provides the highest possible contrast and

widest viewing angle under all conditions. Contrast control of this type of display is generally not necessary, so contrast control is provided as a means for possible adjustment due to aging at extreme ranges. In addition, the display has an automatic temperature compensation network. Press ENTER to initiate user entry mode, and the value will flash. Use arrow keys to modify the value; range is 0 to 8 (0 being lightest). Press ENTER to update and store the new value.

O&M Manual

Page 37

CDTX-45T Torodial Conductivity System Part 5 – Configuration

Main Display This function allows the user to change the measurement in

the primary display area. The user may select between conductivity, sensor temperature, or output current. Using this function, the user may choose to put temperature in the main display area and conductivity on the secondary, lower line of the display. Press ENTER to initiate user entry mode, and the entire value will flash. Use the UP arrow key to modify the desired display value. Press ENTER to store the new value.

Select TC This function allows the user to select either a Pt1000 or

Pt100 platinum RTD temperature element. The Pt1000 element is the standard element in all high performance Q25 sensors; it is the recommended temperature sensing element for all measurements. The Pt100 selection is provided as an alternative for use with existing combinationstyle sensors. Press ENTER to initiate user entry mode, and the entire value will flash. Use the UP arrow key to modify the desired value. Press ENTER to store the new value.

Temp Mode This function sets the temperature compensation algorithm

for the instrument. The following choices are available: Lin,

1 Tbl, and 2 Tbl.

Lin: Linear temperature compensation method. This is the most common method and is recommended for most

aqueous solutions. The slope for this method is set in the Linear Comp section.

1 Tbl: Ammonia compensation method. This method is specific only to ammonia measurement.

2 Tbl: Natural Water compensation method. This setting is limited to the temperature range of 0 - 35 °C.

NOTES: 1. Do not set the Temp Mode to a value other than Lin unless the instrument is specifically intended to measure one of the compounds listed above.

2. If Temp Mode is set to 1 Tbl or 2 Tbl,

the settings for Linear Comp and Ref

Temp will not appear in the Software Menu.

O&M Manual

Page 38

CDTX-45T Torodial Conductivity System Part 5 – Configuration

This selection is critical for control of the internal diagnostics

and compensation factors. Press ENTER to initiate user entry mode, and the entire value will flash. Use the UP arrow key to modify the desired value.

Solu Comp This function sets the correction slope value for the linear

temperature compensation method and is used when the “Temp Mode” is set to Lin. Linear compensation is the method recommended for most aqueous solutions, and the value is typically 2.00 %/°C (25°C reference temperature) for neutral water. This is the factory default and it provides the best compensation for most aqueous solutions. Other typical ranges include:

Acids: 1.0 to 1.6%/°C Bases: 1.8 to 2.0%/°C Salts: 2.2 to 3.0%/°C

NOTE: If the temperature units are changed between °C and °F (see Temp Units in this Section), the default setting for this output will change between 2.00 %/°C and 1.11%/°F accordingly.

Other compensation slopes for uncommon solutions may be found in chemical handbooks (such as the CRC). Press ENTER to initiate user entry mode, and the entire value will flash. Use the arrow keys to modify the desired value; entry range is 0.000%/°C (no compensation) to 4.000%/°C. Press ENTER to store the new value.

Ref Temp The reference temperature function sets the basis point for

the linear temperature compensation methods. In most cases this setting should be left at the default of 25.0 °C.

Press ENTER to initiate user entry mode, and the entire value will flash. Use the arrow keys to modify the desired value; range is 0.0°C to 50.0°C. Press ENTER to update and store the new value. This setting appears in the Software Menu only if “Temp Mode” is set to Lin.

TDS Factor This function sets the linear relationship of the TDS (total

dissolved solids) reading to the conductivity measurement. The actual units for the slope are in mg/L/μS. The default value is 00.49 mg/L/μS.

O&M Manual

Page 39

CDTX-45T Torodial Conductivity System Part 5 – Configuration

Press ENTER to initiate user entry mode, and the entire value will flash. Use the arrow keys to modify the desired value; range is 00.00 mg/L/μS to 99.99 mg/L/μS. Press ENTER to update and store the new value.

Out 1 Mode This assigns the 4-20 mA output #1 to either µS (by

selecting 1) or for PID output (by selecting 2)

Out 2 Mode This assigns the 4-20 mA output # 2 to Temperature (by

selecting 1), µS (by selecting 2) or mg/L (by selecting 3)

Relay A Mode Relay A can be used in three different ways: as a setpoint

control, as a fail alarm, or as a HI-LO alarm band. The three settings for Rly A Mode are CON, FAIL and AL.

The CON setting enables normal control operation for Relay

A, with settings for setpoint, hysteresis, delay and phasing appearing in the CONFIG menu automatically. See Figure 5-3 for further details.

The FAIL setting enables the fail alarm mode for Relay A.

Relay A will then trip on any condition that causes the FAIL icon to be displayed on the LCD. Using this mode allows the User to send alarm indications to other remote devices.

The AL setting allows two setpoints to be selected for the

same relay, producing a HI-LO alarm band. In this mode, Relay A will trip inside or outside of the band, depending upon the Phase selected. See Figure 5-4 for further details.

Relay B Mode Relay B can be used in a number of ways: as a setpoint

control, or as an alarm. The two settings for Relay B Mode are CON and FAIL.

The CON setting enables normal setpoint operation for

Relay B. Relay B then operates identically to Relay A, with settings for setpoint, hysteresis, delay and phasing appearing in the CONFIG menu automatically. See Figure 5-3 for details.

The FAIL setting enables the fail alarm mode for Relay B.

Relay B will then trip on any condition that causes the FAIL icon to be displayed on the LCD. Using this mode allows the User to send alarm indications to other remote devices. See Figure 5-4 for details.

O&M Manual

Page 40

CDTX-45T Torodial Conductivity System Part 5 – Configuration

Temp Units This function sets the display units for temperature

measurement. Press ENTER to initiate user entry mode, and the entire value will flash. Use the UP arrow key to

modify the desired display value. The choices are °F and °C.Press ENTER to store the new value.

O&M Manual

Page 41

CDTX-45T Toroidal Conductivity System Part 6 – Control

Part 6 - Control

Set 4 mA (#1)

Set 20 mA (#1) These functions set the main 4 and 20 mA current loop

output points for the transmitter. The units displayed depend on the selection made in the CONFIG menu for I out #1 Mode. Also, when the Relay Option Board is installed, the units will also display #1 or #2 – since there are actually two analog outputs present in this version. Typically set 4 & 20 mA are used for conductivity.

The value stored for the 4 mA point may be higher or lower

than the value stored for the 20 mA point. The entry values are limited to values within the range specified in “Set Range”, and the 4 mA and the 20 mA point must be separated by at least 1% of this range Use the LEFT arrow key to select the first digit to be modified. Then use the UP and LEFT arrow keys to select the desired numerical value. Press ENTER to store the new value.

*Set 4 mA (#2)

*Set 20 mA (#2) [temp/conductivity] These functions set the second 4 mA and 20 mA current

loop output points for the transmitter. The output may be set to track temperature (default), or conductivity. The values stored for the 4 mA point may be higher or lower than the value stored for the 20 mA point.

The entry value is limited to a value between 0 and 110°C if

it is set for temperature, within the range specified in “Set Range” if the output is set to track conductivity. The 4 mA and the 20 mA point must be at least 20 units away from each other. Press ENTER to initiate user entry mode, and the value will flash. Use arrow keys to modify value. Press ENTER to store the new value.

NOTE: If the temperature units are changed between °C and

°F (see Temp Units in this section), the default settings for this output will be stored (present data is not converted.)

NOTE: If the battery board option is installed, the menu will be shown as Set 0 V #2 – since the battery board has two 0-

2.5 VDC voltage output signals instead of current outputs.

O&M Manual

Page 42

CDTX-45T Toroidal Conductivity System Part 6 –Control

ALARM CONFIGURATIONS APPLY TO AC POWERED UNITS ONLY

*A Setpoint This function establishes the conductivity trip point for relay

A. The entry value is limited to a value within the range specified in “Set Range”. Use the LEFT arrow key to select the first digit to be modified. Then use the UP and LEFT arrow keys to select the desired numerical value. Press ENTER to store the new value.

*A Hysteresis This function establishes the hysteresis, or “deadband”, for

Relay A. Hysteresis is most often used to control relay chattering; however, it may also be used in control schemes to separate the ON/OFF trip points of the relay. Press ENTER to initiate user entry mode, and the value will flash. Use the arrow keys to modify value. Press ENTER to store the new value.

*A Delay This function places an additional amount of time delay on

the trip point for relay A. This delay is in addition to the main delay setting for the controller. The entry value is limited to a value between 0 and 999 seconds. Press ENTER to initiate user entry mode, and the value will flash. Use arrow keys to modify value; range is 0 to 999 seconds. Press ENTER to store the new value.

*A Phasing This function establishes the direction of the relay trip.

When phase is HI, the relay operates in a direct mode. Therefore, the relay energizes and the LCD indicator illuminates when the conductivity value exceeds the setpoint. When the phase is LO, the relay energizes and the LCD indicator illuminates when the conductivity level drops below the setpoint. The failsafe setting does have an impact on this logic. The description here assumes the failsafe setting is OFF. Press ENTER to initiate user entry mode, and the entire value will flash. Use the UP arrow key to modify the desired value; selections include HI for direct operation or LO for reverse operation. Press ENTER to store the new value.

O&M Manual

Page 43

CDTX-45T Toroidal Conductivity System Part 6 –Control

When value rises to

≥

1.000 µS

, relay closes,

When value falls to

≤

1.000 µS, relay closes,

When value rises to

≥

0.500 µS, relay closes,

When value falls to

≤

0.500 µS, relay

*Setpnt A

See Figure 6-1 below for a visual description of a typical control relay application.

When value rises to ≥ 1.000 µS, relay closes. When value falls to ≤ 1.000 µS, relay opens.

When value rises to ≥ 1.000 µS, relay opens.

Settings:

Setpoint: 1.000 µS Hyst: 0.050 Delay: 000 Failsafe: OFF

When value falls to ≤ 1.000 µS, relay closes.

Figure 6-1 Control Relay Example, Hysteresis and Two Opposite Phase Options

If Relay A Mode is set to Alarm Mode, AL, then the following

*Hyst A-HI *Delay A-HI *Setpnt A-LO *Hyst A-LO *Delay A-LO

settings will appear in the Config Menu list automatically. In this mode, two setpoints can be selected on the same relay, to create an alarm band. Phase HI selection causes the relay to energize outside of the band, and Phase LO causes the relay to energize inside of the band. This feature enables one relay to be used as a control relay while the other is used as a HI-LO Alarm relay at the same time. Setpoint A-LO must be set lower than Setpoint A-HI. When AL mode is first selected, Setpoint A-LO is defaulted to 0.

Figure 6-2 is a visual description of a typical alarm relay application.

until value falls back to ≤ 0.950 µS.

until value rises back to ≥ 1.050 µS.

Setpoint A-HI: 1.000 µS Setpoint A-LO: 0.500 µS Hyst A-HI: 0.050 Hyst A-LO: 0.05 Delay A-HI: 000 Delay A-LO: 000

Settings:

Figure 6-2 Alarm Relay Example

O&M Manual

closes, until value rises back to ≥ 0.550 µS.

until value falls back to ≤ 0.450 µS.

Page 44

CDTX-45T Toroidal Conductivity System Part 6 –Control

*B Setpoint

If Relay B Mode is set to CON (see Relay B Mode), then

*B Hysteresis *B Delay

*B Phasing

Relay B will function identically to Relay A. Relay B settings appear in the CONFIG menu list automatically.

O&M Manual

Page 45

CDTX-45T Toroidal Conductivity System Part 7 – Calibration

Part 7 – Calibration

7.1 Overview and Methods

Calibration of the CDTX-45T is required to accurately match the sensor characteristics to the monitor/analyzer. Since the output of the conductivity sensor does not degrade over time, it is typically only required that the sensor be calibrated at initial installation and then cleaned periodically to maintain proper system accuracy.

It is important for the user to establish a periodic cleaning and calibration-check schedule for sensor maintenance to maintain high system accuracy. Since the conductivity of a solution is greatly affected by temperature, proper settings for thermal compensation are critical for accurate operation. Before calibrating the instrument for the very first time, it is important to select the proper operating parameters in the configuration menus for temperature compensation methods. Also at initial installation, a temperature calibration must be performed before conductivity can be calibrated.

When using conductivity calibration standards for a wet calibration, take care not to inadvertently contaminate the reference solution; always thoroughly clean the sensor, rinsing off in tap water, and then finish rinsing in pure or de-ionized water. In addition, note that calibration solutions less than 200 μS or greater than 100 mS can be very unstable. Moving the sensor back and forth between different value conductivity reference solutions can quickly contaminate the solutions and render them inaccurate.

7.11 1-Point Calibration Explained

The 1-point calibration method is generally known as the "grab sample" calibration method. In the 1-point calibration method, the sensor may be removed from the application and placed into a reference solution. It may also be left in the measurement process and calibrated by reference. The 1-point calibration adjusts the sensor slope to match the exact calibration point. Readings beyond that point are then extrapolated from the determined slope of the calibration line. Since the sensor slope does not degrade over time, frequent re-calibration is unnecessary. Calibration accuracy can be optimized by calibrating with a reference solution which is close to the values typically measured.

7.12 Zero Cal Calibration Explained

The sensor offset must be set for the system only on initial sensor installation, or when the cable length has been altered. The Zero Cal method establishes all of the sensor offset points for the instrument’s 6 ranges of operation.

O&M Manual

Page 46

CDTX-45T Toroidal Conductivity System Part 7 –Calibration

7.2 Performing a Sensor Zero Calibration

The sensor offset MUST be set for the system on initial sensor installation, or when the cable length has been altered. However, it can easily be adjusted at any time by re-calibrating the sensor in air. The sensor zero-calibration generally has little effect in measurements above about 50 mS, but it can have a significant effect in measurements below about 1 mS. If the sensor zero cal is to be performed, it must be done BEFORE the 1-point reference calibration.

To begin the sensor zero cal, verify that the sensor is connected and clean and dry. It should be placed in the air with the electrodes at least 1 foot away from any nearby objects. Holding it is not recommended – place on table or just hang.

Procedure

1. Remove sensor from process and clean thoroughly. Dry sensor and position

on table or hang in air (in air is best.) If on table, let end of sensor hang over edge of table.

2. Scroll to the CAL menu section using the MENU key and press ENTER or the

UP arrow key. Scroll to the menu Zero Cal.

3. Press the ENTER key. The screen will prompt the user to position the sensor

in air.

4. Press the ENTER key. The screen will automatically scroll through all ranges

and establish and store the proper zero points.

7.3 Performing a 1-Point Calibration

This calibration method is intended to be used as an on-line calibration method or a wet-cal with reference solutions. During calibration, the system will display the current conductivity reading, and the user can manually enter a reference value from a reference solution bottle or a comparative reference instrument.

For wet calibrations, the user may use pre-made calibration references (also available from Omega) or a NaCl solution may be made using pure, dried NaCl crystals and one liter of high purity, de-ionized, CO2-free water as mixed in the table shown in Figure 7-1. All table data is at 25°C - therefore, the sensor must be at this temperature to calibrate properly using the table data. If another reference calibration solution is being used, be sure to note temperature of reference solution before calibration. Since the sensor must ideally be at the specified temperature, wet calibrations can be difficult to perform accurately.

O&M Manual

Page 47

CDTX-45T Toroidal Conductivity System Part 7 –Calibration

NaCl Reference Solution

for Calibration (25°C)

μS/cm NaCl (gm)

100 0.05 200 0.10

500 0.25 1000 0.50 2000 1.01 3000 1.53 4000 2.06 5000 2.61 8000 4.34

10000 5.56 20000 11.59

Figure 7-1 NaCl Reference Solution for Calibration

During the 1-point calibration, the system will automatically pick the correct range for the calibration reference if the CDTX-45T is in the AUTO range (see Section

7.11). If the CDTX-45T is in a normal display mode, the user must be careful to calibrate with a solution that falls into the manual range selected. If the calibration solution is outside the manual range, an error will result.

Procedure

1. If a zero calibration on the sensor is also to be performed, that must be done FIRST. The zero calibration process can have an impact on the result of the 1point calibration. So if a zero cal is required, do that procedure and return here.

2. Determine whether the calibration will be done on-line or with the sensor removed and placed into a reference solution. If the sensor is removed from the application, rinse and clean. When calibrating a toroid sensor in a beaker of reference solution, there must be plenty of clearance between the sensor and any nearby objects – at least 2 inches. Also, gently stir sensor back and forth to remove any bubbles that may be present in the inner bore.

3. If the sensor has been removed and placed into a solution, allow the sensor to temperature equilibrate with the solution as much as possible. With the sensor coming from an application that differs greatly in temperature, the user may have to wait as much as 20 minutes. If the sensor is on-line, the user may want to set the output HOLD feature prior to calibration to lock out any output fluctuations.

O&M Manual

Page 48

CDTX-45T Toroidal Conductivity System Part 7 –Calibration

4. Scroll to the CAL menu section using the MENU key and press ENTER or the UP arrow key. Scroll until Cal Cond is displayed. Press ENTER.

5. The screen will prompt the user to place the sensor into the reference solution (ideally this has already been done to achieve temperature equilibrium.) Once sensor is ready, press ENTER.

6. The system now begins acquiring data for the calibration value. As data is gathered, the units for conductivity and temperature may flash. Flashing units indicate that this parameter is unstable. The calibration data point acquisition will stop only when the data remains stable for a pre-determined amount of time. This can be overridden by pressing ENTER. If the data remains unstable for 10 minutes, the calibration will fail and the message Cal Unstable will be displayed.

7. The screen will display the last measured conductivity value and a message will be displayed prompting the user for the reference value. The user must then modify the screen value with the arrow keys and press ENTER. The system then performs the proper checks.

8. If accepted, the screen will display the message PASS with the slope value, then it will return to the main measurement display. If the calibration fails, a message indicating the cause of the failure will be displayed and the FAIL icon will be turned on.

7.4 Temperature Calibration

The temperature input is factory calibrated for the highest accuracy. Temperature calibration is not recommended; however, it is provided for applications in which very long cable lengths are needed. For example, at 50 feet, readings may be off ±0.2 °C.

The temperature calibration sequence is essentially a 1-point offset calibration that allows adjustments of approximately ±5 °C.

The sensor temperature may be calibrated on line, or the sensor can be removed from the process and placed into a known solution temperature reference. In any case, it is critical that the sensor be allowed to reach temperature equilibrium with the solution in order to provide the highest accuracy.

When moving the sensor between widely different temperature conditions, it may be necessary to allow the sensor to stabilize as much as one hour before the calibration sequence is initiated. If the sensor is on-line, the user may want to set the output HOLD (see Section 5.12) feature prior to calibration to lock out any output fluctuations.

O&M Manual

Page 49

CDTX-45T Toroidal Conductivity System Part 7 –Calibration

Procedure

1. Scroll to the CAL menu section using the MENU key and press ENTER or the

UP arrow key.

2. Press the UP arrow key until Cal Temp is displayed.

3. Press the ENTER key. The message Place sensor in solution then press

ENTER will be displayed. Move the sensor into the calibration reference (if it hasn’t been moved already) and wait for temperature equilibrium to be achieved. Press ENTER to begin the calibration sequence.

4. The calibration data gathering process will begin. The message Wait will

flash as data is accumulated and analyzed. The °C or °F symbol may flash periodically if the reading is too unstable.

5. The message Adjust temp value then press ENTER will be displayed, and

the right-most digit will begin to flash, indicating that the value can be modified. Using the UP and LEFT arrow keys, modify the value to the known ref solution temperature. Adjustments up to ± 5 °C from the factory calibrated temperature are allowed. Press ENTER.

6. Once completed, the display will indicate PASS or FAIL. If the unit fails, the

temperature adjustment may be out of range, the sensor may not have achieved complete temperature equilibrium, or there may be a problem with the temperature element. In the event of calibration failure, it is recommended to attempt the calibration again immediately.

O&M Manual

Page 50

CDTX-45T Toroidal Conductivity System Part 8 – PID Controller Details

Part 8 – PID Controller Details

8.1 PID Description

PID control, like many other control schemes, are used in chemical control to improve the efficiency of chemical addition or control. By properly tuning the control loop that controls chemical addition, only the amount of chemical that is truly required is added to the system, saving money. The savings can be substantial when compared to a system which may be simply adding chemical at a constant rate to maintain some minimal addition under even the worst case conditions. The PID output controller is highly advantageous over simple control schemes that just utilize direct (proportional only) 4-20 mA output connections for control, since the PID controller can automatically adjust the “rate” of recovery based on the error between the setpoint and the measured value – which can be a substantial efficiency improvement..

The PID controller is basically designed to provide a “servo” action on the 4-20 mA output to control a process. If the user requires that a measured process stay as close as possible to a specific setpoint value, the controller output will change from 0% to 100% in an effort to keep the process at the setpoint. To affect this control, the controller must be used with properly selected control elements (valves, proper chemicals, etc.) that enable the controller to add or subtract chemical rapidly enough. This is not only specific to pumps and valves, but also to line sizes, delays in the system, etc.

This section is included to give a brief description of tuning details for the PID controller, and is not intended to be an exhaustive analysis of the complexities of PID loop tuning. Numerous sources are available for specialized methods of tuning that are appropriate for a specific application.

8.2 PID Algorithm

As most users of PID controllers realize, the terminology for the actual algorithm terms and even the algorithms themselves can vary between different manufacturers. This is important to recognize as early as possible, since just plugging in similar values from one controller into another can result in dramatically different results. There are various basic forms of PID algorithms that are commonly seen, and the implementation here is the most common version; The ISA algorithm (commonly referred to as the “ideal” algorithm.)

O&M Manual

Page 51

CDTX-45T Toroidal Conductivity System Part 8 – PID Controller Details

tde

)(

 



 



tePoutput

)(

∫

++=

Dtdte

)()(

Where:

output = controller output P = proportional gain I = integral gain D = derivative gain t = time e(t) = controller error (e=measured variable – setpoint)

Figure 8-1 CDTX-45T (Ideal) PID Equation

The most notable feature of the algorithm is the fact the proportional gain term affects all components directly (unlike some other algorithms - like the “series” form.) If a pre-existing controller utilizes the same form of the algorithm shown above, it is likely similar settings can for made if the units on the settings are exactly the same. Be careful of this, as many times the units are the reciprocals of each other (i.e. reps-per-min, sec-per-rep.)

PID stands for “proportional, integral, derivative.” These terms describe the three elements of the complete controller action, and each contributes a specific reaction in the control process. The PID controller is designed to be primarily used in a “closed-loop” control scheme, where the output of the controller directly affects the input through some control device, such as a pump, valve, etc.

General descriptions of what each of the PID elements contribute to the overall action of the controller are listed below.

P Proportional gain. With no “I” or “D” contribution, the controller output is

simply a factor of the proportional gain multiplied by the input error (difference between the measured input and the controller setpoint.) Because a typical chemical control loop cannot react instantaneously to a correction signal, proportional gain is typically not efficient by itself – it must be combined with some integral action to be useful. Set the P term to a number between 2-4 to start. Higher numbers will cause the controller action to be quicker.

I Integral gain. Integral gain is what allows the controller to eventually drive

the input error to zero – providing accuracy to the control loop. It must be used to affect the accuracy in the servo action of the controller. Like proportional gain, increasing integral gain results in the control action happening quicker. Set the I term to a number between 3-5 to start (1-2 more than P). Like proportional gain, increasing the integral term will cause the controller action to be quicker.

O&M Manual

Page 52

CDTX-45T Toroidal Conductivity System Part 8 – PID Controller Details

D Derivative gain. The addition of derivative control can be problematic in

many applications, because it greatly contributes to oscillatory behavior. In inherently slow chemical control process’, differential control is generally added in very small amounts to suppress erratic actions in the process that are non-continuous, such as pumps and valves clicking on and off. However, as a starting point for chemical process control, its best to leave the “D” term set to 0.

Based on these descriptions, the focus on tuning for chemical applications really only involves adjustment of “P” and “I” in most cases. However, increasing both increases the response of the controller. The difference is in the time of recovery. Although combinations of high “P’s” and low “I” will appear to operate the same as combinations of low “P’s” and high “I’s”, there will be a difference in rate of recovery and stability. Because of the way the algorithm is structured, large “P’s” can have a larger impact to instability, because the proportional gain term impacts all the other terms directly. Therefore, keep proportional gain lower to start and increase integral gain to achieve the effect required.

Many of the classical tuning techniques have the user start with all values at 0, and then increase the P term until oscillations occur. The P value is then reduced to ½ of the oscillatory value, and the I term is increased to give the desired response. This can be done with the CDTX-45T controller, with the exception that the I term should start no lower than 1.0.

If it appears that even large amounts of integral gain (>20) don’t appreciably increase the desired response, drop I back to about 1.0, and increase P by 1.00, and start increasing I again. In most chemical control schemes, I will be approximately 3 times the value of P.

8.3 Classical PID Tuning

Unlike many high speed position applications where PID loops are commonly used, the chemical feed application employed by this instrument does not require intense mathematical exercise to determine tuning parameters for the PID. In fact, the risk of instability is far greater with overly tuned PID control schemes. In addition, many of the classical mathematical exercises can be damaging or wasteful in the use of chemicals when the process is bumped with large amounts of input error to seek a response curve. Because of this, the general adjustment guidelines described in section 8.2 are sufficient for almost all application tuning for this instrument. Beyond this, many sources are available for classical tuning methods.

O&M Manual

Page 53

CDTX-45T Toroidal Conductivity System Part 8 – PID Controller Details

8.4 Common PID Pitfalls

The most common problem occurring in PID control applications involves the false belief that proper settings on only the PID controller can balance any process to an efficient level.

Close-loop control can only be effective if all elements in the loop are properly selected for the application, and the process behavior is properly understood. Luckily, the nature of simple chemical control process’ are generally slow in nature. Therefore, even a de-tuned controller (one that responds somewhat slowly) can still provide substantial improvements to setpoint control. In fact, damaging oscillatory behavior is far more likely in tightly tuned controllers where the user attempted to increase response too much.

When deciding on a PID control scheme, it is important to initially review all elements of the process. Sticking valves, undersized pumps, or delays in reaction times associated with chemical addition can have a dramatic effect on the stability of the control loop. When controlling a chemical mix or reaction, the sensor should be placed in a location that ensures proper mixing or reaction time has occurred.

The easiest processes to control with closed-loop schemes are generally linear, and symmetrical, in nature. For example, controlling level in tank where the opening of valve for a fixed period of time corresponds linearly to the amount that flows into a tank. Chemical control process’ can be more problematic when the nature of the setpoint value is non-linear relative to the input of chemical added. For example, pH control of a process may appear linear only in a certain range of operation, and become highly exponential at the extreme ranges of the measuring scale. In addition, if a chemical process is not symmetrical, that means it responds differentially to the addition and subtraction of chemical. It is important in these applications to study steady-state impact as well as stepchange impact to process changes. In other words, once the process has apparently been tuned under normal operating conditions, the user should attempt to force a dramatic change to the input to study how the output reacts. If this is difficult to do with the actual process input (the recommended method), the user can place the control in manual at an extreme control point such as 5% or 95%, and release it in manual. The recovery should not be overly oscillatory. If so, the loop needs to be de-tuned to deal with that condition (reduce P and/or I.)

O&M Manual

Page 54

CDTX-45T Toroidal Conductivity System Part 9 – System Maintenance

Part 9 – System Maintenance

9.1 System Checks

1. If the FAIL icon is flashing on the display, check the Fault List to determine

the cause of the failure. To access the Fault List, press the MENU/ESC key until the DIAG menu appears. Then press the UP arrow key until the Fault List appears. Press the ENTER key to access the Fault List, and the highest priority fault message will be displayed. For a list of all messages and possible causes/solutions, refer to Section 9.4.

2. In ALL environments, connect an earth ground jumper to earth terminal

connection on transmitter.

3. Perform a sensor zero calibration and a one-point calibration prior to sensor

installation.

4. Check sensor cable color to terminal strip markings.

5. For highly unstable behavior, remove sensor from the process and measure

the process solution in a plastic beaker. If the reading now stabilizes, check process mount for possible entrapped air. If sensor was mounted in-line in plastic tee, measuring lower conductivity water, ensure no high voltage sources (pumps, AFDs, motor starters, etc) are present within about 1 foot of tee.

6. If the instrument 4-20 mA output is connected into other control systems,

disconnect output loop from system load and run through a handheld DMM to monitor current. Also disconnect any relay wiring, if present. Finally, connect power on 110/230 V units with separate line cord and connect to a power outlet in an alternate location. Verify that the system operates correctly in this mode first.

9.2 Instrument Checks

1. Remove sensor completely and connect 1100 Ohms from the GREEN to

BLACK (green bundle) on the analyzer input leads. The temperature reading should display approximately 25 °C and the conductivity reading should display approximately 0.0 uS.

2. Reconnect the sensor and leave dry in air. With a DMM, measure the AC

voltage between RED and BLACK sensor leads. The DMM should read between 100 mVrms and 300 mVrms @ about 10 kHz. The display should show some value close to 0 uS if the sensor has been properly zero calibrated.

O&M Manual

Page 55

CDTX-45T Toroidal Conductivity System Part 9 – System Maintenance

3. For the line powered version, verify the proper line voltage power. With

power disconnected, verify continuity across the line fuse.

4. For the DC transmitter variation, verify that power supply has required voltage

based on size of resistance in current loop. Large resistive loads can reduce available power for transmitter.

9.3 Sensor Tests

Toroidal sensors can be tested with a digital voltmeter (DVM) to determine if a

major sensor problem exists. Follow the steps below to verify sensor integrity:

A. Disconnect the nine sensor wires from the terminal strip on the transmitter.

Check sensor plastic covering for any mechanical damage to plastic covering.

B. Connect a DVM between the RED and BLACK wires in the red jacket pair.

With the DVM set to measure resistance, you should measure between

0.4 and 2.0 Ohms.

C. Connect a DVM between the WHITE and BLACK wires in the white jacket

pair. With the DVM set to measure resistance, you should measure between 0.4 and 2.0 Ohms.

D. Connect a DVM between the WHITE wire from the white jacket pair, and

the RED wire from the red jacket pair. With the DVM set to measure resistance, you should measure an open circuit.

E. Connect a DVM between the GREEN and BLACK wires in the green

jacket pair. These are the RTD leads, and you should find a resistance value that depends on the temperature. The table below lists the resistance values for various temperatures.

O&M Manual

Page 56

CDTX-45T Toroidal Conductivity System Part 9 – System Maintenance

MESSAGE

DESCRIPTION

POSSIBLE CORRECTION

Cal Unstable

Calibration problem, data too

Clean sensor, get fresh cal solutions, allow

temperature and conductivity readings to fully

bilize, do not handle sensor or cable during

Slope HIGH

Sensor slope from calibration is

Get fresh cal solutions, allow temperature and

conductivity readings to fully stabilize, check for

Slope LOW

Sensor slope from calibration is

Clean sensor, get fresh cal solutions, allow

temperature and conductivity readings to fully

Offset HIGH

Sensor offset from calibration is too

get fresh cal solutions, allow

temperature and conductivity readings to fully

Temperature

°C

Resistance

Ω 0 1000 5 1019

10 1039 15 1058 20 1078 25 1097 30 1117 35 1136 40 1155 45 1175 50 1194

Figure 9-1 Pt1000 RTD Table

9.4 Display Messages

The CDTX Series instruments provide a number of diagnostic messages that indicate problems during normal operation and calibration. These messages appear as prompts on the secondary line of the display or as items on the Fault List.

The following messages will appear as prompts:

unstable to calibrate.

greater than 400%.

less than 20%.

high

O&M Manual

sta calibration.

correct buffer values

stabilize, check for correct buffer values.

Clean sensor,

stabilize, check for correct solution values.

Page 57

CDTX-45T Toroidal Conductivity System Part 9 – System Maintenance

Out of Range

Input value is outside selected

range of the specific list item being

ction to be

Locked!

Transmitter security setting is

Enter security code to allow modifications to

Unlocked!

Transmitter security has just been

Displayed just after security code has been

TC-F25 lock!

e TC won’t calibrate because

there is something wrong with the

Perform Sensor Tests and Instrument Tests to

confirm operation of TC in sensor. Check all

MESSAGE

DESCRIPTION

POSSIBLE CORRECTION

Sensor High

The raw signal from the sensor is too

Sensor Low

The raw signal from the sensor is too

Cond too High

The conductivity reading is over operating

range limits. Move to a higher range or

select “Auto” from Main Display in

Temp High

The temperature reading is over operating

limits. Check wiring and expected temp

level. Perform RTD test as described in

sensor manual. Recalibrate sensor

Temp Low

temperature reading is under

operating limits. Check wiring and

expected temp level. Perform RTD test as

described in sensor manual. Recalibrate

TC Error

rm RTD test

Check manual for limits of the fun

configured.

locked.

unlocked.

settings.

entered.

Th connection to the temperature

element in the sensor.

connections between sensor and instrument.

The following messages will appear as items on the Fault List:

Check wiring connections to sensor.

high.

low. The conductivity reading is > 2000 mS.

The temperature reading is > 210 ºC.

Check wiring connections to sensor.

CONFIG menu.

temperature element if necessary.

The temperature reading is < -10 ºC

TC may be open or shorted.

O&M Manual

The

sensor temperature element if necessary.

Check sensor wiring and perfo as described in sensor manual.

Page 58

CDTX-45T Toroidal Conductivity System Part 9 – System Maintenance

MESSAGE

DESCRIPTION

POSSIBLE CORRECTION

Cond Cal Fail

Clean sensor, get fresh cal solutions and

redo calibration. Verify conductivity value

eference solutions.

Perform sensor tests as described in

sensor manual. Replace sensor if still

EEprom Fail

Chcksum Fail

Display Fail

Range Cal

Failure of factory temperature

Failure of conductivity calibration.

of application or r

failure.

Fail

Internal nonvolatile memory failure

Internal software storage error.

Internal display driver fail.

calibration.

System failure, consult factory.

Consult factory.

O&M Manual

Page 59

O&M Manual

Page 60

M-4348/0409

O&M Manual
